OSHeap详解

OSHeap实际上是一个完全二叉树，再插入和删除的时候都进行了排序。

#include "OSHeap.h"
#include <ctime>
#include <cstdlib>

int main(int argc, char * argv[])
{
	srand(unsigned(time(0)));

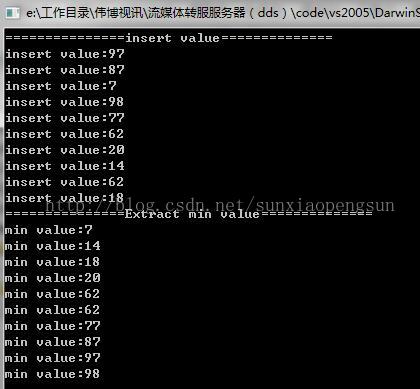

	cout << "===============insert value==============" << endl;
	OSHeap osHeap;
	for (int i =0 ;i < 10 ;i ++)
	{
		OSHeapElem *pElem = new OSHeapElem();
		int value = rand()%100;
		pElem->SetValue(value);

		cout << "insert value:" << value << endl;
		osHeap.Insert(pElem);
	}

	cout << "===============Extract min value==============" << endl;
	OSHeapElem *pElem = NULL;
	while((pElem = osHeap.ExtractMin()) != NULL)
	{
		cout << "min value:" << pElem->GetValue() << endl;
	}

	return 0;
}

#ifndef _OSHEAP_H_
#define _OSHEAP_H_

#define _OSHEAP_TESTING_ 0

#include "OSCond.h"

class OSHeapElem;

class OSHeap
{
    public:

        enum
        {
            kDefaultStartSize = 1024 //UInt32
        };

		//设置堆的初始大小，如果元素超过指定大小，则会自动增加内存，堆内部采用数组实现
        OSHeap(UInt32 inStartSize = kDefaultStartSize);
        ~OSHeap() { if (fHeap != NULL) delete fHeap; }

        //ACCESSORS
        UInt32      CurrentHeapSize() { return fFreeIndex - 1; }

		//查看最小元素值
        OSHeapElem* PeekMin() { if (CurrentHeapSize() > 0) return fHeap[1]; return NULL; }

        //MODIFIERS

        //These are the two primary operations supported by the heap
        //abstract data type. both run in log(n) time.
		//插入一个元素
        void            Insert(OSHeapElem*  inElem);
		//取出最小的元素
        OSHeapElem*     ExtractMin() { return Extract(1); }
        //removes specified element from the heap
        OSHeapElem*     Remove(OSHeapElem* elem);

#if _OSHEAP_TESTING_
        //returns true if it passed the test, false otherwise
        static Bool16       Test();
#endif

    private:

        OSHeapElem*     Extract(UInt32 index);

#if _OSHEAP_TESTING_
        //verifies that the heap is in fact a heap
        void            SanityCheck(UInt32 root);
#endif

        OSHeapElem**    fHeap;
        UInt32          fFreeIndex;
        UInt32          fArraySize;
};

class OSHeapElem
{
    public:
        OSHeapElem(void* enclosingObject = NULL)
            : fValue(0), fEnclosingObject(enclosingObject), fCurrentHeap(NULL) {}
        ~OSHeapElem() {}

        //This data structure emphasizes performance over extensibility
        //If it were properly object-oriented, the compare routine would
        //be virtual. However, to avoid the use of v-functions in this data
        //structure, I am assuming that the objects are compared using a 64 bit number.
        //
        void    SetValue(SInt64 newValue) { fValue = newValue; }
        SInt64  GetValue()              { return fValue; }
        void*   GetEnclosingObject()    { return fEnclosingObject; }
		void	SetEnclosingObject(void* obj) { fEnclosingObject = obj; }
        Bool16  IsMemberOfAnyHeap()     { return fCurrentHeap != NULL; }

    private:

        SInt64  fValue;
        void* fEnclosingObject;
        OSHeap* fCurrentHeap;

        friend class OSHeap;
};
#endif //_OSHEAP_H_

#include "OSHeap.h"
#include "OSMemory.h"

OSHeap::OSHeap(UInt32 inStartSize)
: fFreeIndex(1)
{
    if (inStartSize < 2)
        fArraySize = 2;
    else
        fArraySize = inStartSize;

    fHeap = NEW OSHeapElem*[fArraySize];
}

void OSHeap::Insert(OSHeapElem* inElem)
{
    Assert(inElem != NULL);

    if ((fHeap == NULL) || (fFreeIndex == fArraySize))
    {
        fArraySize *= 2;
        OSHeapElem** tempArray = NEW OSHeapElem*[fArraySize];
        if ((fHeap != NULL) && (fFreeIndex > 1))
            memcpy(tempArray, fHeap, sizeof(OSHeapElem*) * fFreeIndex);

        delete [] fHeap;
        fHeap = tempArray;
    }

    Assert(fHeap != NULL);
    Assert(inElem->fCurrentHeap == NULL);
    Assert(fArraySize > fFreeIndex);

#if _OSHEAP_TESTING_
    SanityCheck(1);
#endif

    //insert the element into the last leaf of the tree
    fHeap[fFreeIndex] = inElem;

    //bubble the new element up to its proper place in the heap

    //start at the last leaf of the tree
    UInt32 swapPos = fFreeIndex;
    while (swapPos > 1)
    {
        //move up the chain until we get to the root, bubbling this new element
        //to its proper place in the tree
        UInt32 nextSwapPos = swapPos >> 1;

        //if this child is greater than it's parent, we need to do the old
        //switcheroo
        if (fHeap[swapPos]->fValue < fHeap[nextSwapPos]->fValue)
        {
            OSHeapElem* temp = fHeap[swapPos];
            fHeap[swapPos] = fHeap[nextSwapPos];
            fHeap[nextSwapPos] = temp;
            swapPos = nextSwapPos;
        }
        else
            //if not, we are done!
            break;
    }
    inElem->fCurrentHeap = this;
    fFreeIndex++;
}


OSHeapElem* OSHeap::Extract(UInt32 inIndex)
{
    if ((fHeap == NULL) || (fFreeIndex <= inIndex))
        return NULL;

#if _OSHEAP_TESTING_
    SanityCheck(1);
#endif

    //store a reference to the element we want to extract
    OSHeapElem* victim = fHeap[inIndex];
    Assert(victim->fCurrentHeap == this);
    victim->fCurrentHeap = NULL;

    //but now we need to preserve this heuristic. We do this by taking
    //the last leaf, putting it at the empty position, then heapifying that chain
    fHeap[inIndex] = fHeap[fFreeIndex - 1];
    fFreeIndex--;

    //The following is an implementation of the Heapify algorithm (CLR 7.1 pp 143)
    //The gist is that this new item at the top of the heap needs to be bubbled down
    //until it is bigger than its two children, therefore maintaining the heap property.

    UInt32 parent = inIndex;
    while (parent < fFreeIndex)
    {
        //which is bigger? parent or left child?
        UInt32 greatest = parent;
        UInt32 leftChild = parent * 2;
        if ((leftChild < fFreeIndex) && (fHeap[leftChild]->fValue < fHeap[parent]->fValue))
            greatest = leftChild;

        //which is bigger? the biggest so far or the right child?
        UInt32 rightChild = (parent * 2) + 1;
        if ((rightChild < fFreeIndex) && (fHeap[rightChild]->fValue < fHeap[greatest]->fValue))
            greatest = rightChild;

        //if the parent is in fact bigger than its two children, we have bubbled
        //this element down far enough
        if (greatest == parent)
            break;

        //parent is not bigger than at least one of its two children, so swap the parent
        //with the largest item.
        OSHeapElem* temp = fHeap[parent];
        fHeap[parent] = fHeap[greatest];
        fHeap[greatest] = temp;

        //now heapify the remaining chain
        parent = greatest;
    }

    return victim;
}

OSHeapElem* OSHeap::Remove(OSHeapElem* elem)
{
    if ((fHeap == NULL) || (fFreeIndex == 1))
        return NULL;

#if _OSHEAP_TESTING_
    SanityCheck(1);
#endif

    //first attempt to locate this element in the heap
    UInt32 theIndex = 1;
    for ( ; theIndex < fFreeIndex; theIndex++)
        if (elem == fHeap[theIndex])
            break;

    //either we've found it, or this is a bogus element
    if (theIndex == fFreeIndex)
        return NULL;

    return Extract(theIndex);
}


#if _OSHEAP_TESTING_

void OSHeap::SanityCheck(UInt32 root)
{
    //make sure root is greater than both its children. Do so recursively
    if (root < fFreeIndex)
    {
        if ((root * 2) < fFreeIndex)
        {
            Assert(fHeap[root]->fValue <= fHeap[root * 2]->fValue);
            SanityCheck(root * 2);
        }
        if (((root * 2) + 1) < fFreeIndex)
        {
            Assert(fHeap[root]->fValue <= fHeap[(root * 2) + 1]->fValue);
            SanityCheck((root * 2) + 1);
        }
    }
}


Bool16 OSHeap::Test()
{
    OSHeap victim(2);
    OSHeapElem elem1;
    OSHeapElem elem2;
    OSHeapElem elem3;
    OSHeapElem elem4;
    OSHeapElem elem5;
    OSHeapElem elem6;
    OSHeapElem elem7;
    OSHeapElem elem8;
    OSHeapElem elem9;

    OSHeapElem* max = victim.ExtractMin();
    if (max != NULL)
        return false;

    elem1.SetValue(100);
    victim.Insert(&elem1);

    max = victim.ExtractMin();
    if (max != &elem1)
        return false;
    max = victim.ExtractMin();
    if (max != NULL)
        return false;

    elem1.SetValue(100);
    elem2.SetValue(80);

    victim.Insert(&elem1);
    victim.Insert(&elem2);

    max = victim.ExtractMin();
    if (max != &elem2)
        return false;
    max = victim.ExtractMin();
    if (max != &elem1)
        return false;
    max = victim.ExtractMin();
    if (max != NULL)
        return false;

    victim.Insert(&elem2);
    victim.Insert(&elem1);

    max = victim.ExtractMin();
    if (max != &elem2)
        return false;
    max = victim.ExtractMin();
    if (max != &elem1)
        return false;

    elem3.SetValue(70);
    elem4.SetValue(60);

    victim.Insert(&elem3);
    victim.Insert(&elem1);
    victim.Insert(&elem2);
    victim.Insert(&elem4);

    max = victim.ExtractMin();
    if (max != &elem4)
        return false;
    max = victim.ExtractMin();
    if (max != &elem3)
        return false;
    max = victim.ExtractMin();
    if (max != &elem2)
        return false;
    max = victim.ExtractMin();
    if (max != &elem1)
        return false;

    elem5.SetValue(50);
    elem6.SetValue(40);
    elem7.SetValue(30);
    elem8.SetValue(20);
    elem9.SetValue(10);

    victim.Insert(&elem5);
    victim.Insert(&elem3);
    victim.Insert(&elem1);

    max = victim.ExtractMin();
    if (max != &elem5)
        return false;

    victim.Insert(&elem4);
    victim.Insert(&elem2);

    max = victim.ExtractMin();
    if (max != &elem4)
        return false;
    max = victim.ExtractMin();
    if (max != &elem3)
        return false;

    victim.Insert(&elem2);

    max = victim.ExtractMin();
    if (max != &elem2)
        return false;

    victim.Insert(&elem2);
    victim.Insert(&elem6);

    max = victim.ExtractMin();
    if (max != &elem6)
        return false;

    victim.Insert(&elem6);
    victim.Insert(&elem3);
    victim.Insert(&elem4);
    victim.Insert(&elem5);

    max = victim.ExtractMin();
    if (max != &elem6)
        return false;
    max = victim.ExtractMin();
    if (max != &elem5)
        return false;

    victim.Insert(&elem8);
    max = victim.ExtractMin();
    if (max != &elem8)
        return false;
    max = victim.ExtractMin();
    if (max != &elem4)
        return false;

    victim.Insert(&elem5);
    victim.Insert(&elem4);
    victim.Insert(&elem9);
    victim.Insert(&elem7);
    victim.Insert(&elem8);
    victim.Insert(&elem6);

    max = victim.ExtractMin();
    if (max != &elem9)
        return false;
    max = victim.ExtractMin();
    if (max != &elem8)
        return false;
    max = victim.ExtractMin();
    if (max != &elem7)
        return false;
    max = victim.ExtractMin();
    if (max != &elem6)
        return false;
    max = victim.ExtractMin();
    if (max != &elem5)
        return false;
    max = victim.ExtractMin();
    if (max != &elem4)
        return false;
    max = victim.ExtractMin();
    if (max != &elem3)
        return false;
    max = victim.ExtractMin();
    if (max != &elem2)
        return false;
    max = victim.ExtractMin();
    if (max != &elem2)
        return false;
    max = victim.ExtractMin();
    if (max != &elem1)
        return false;
    max = victim.ExtractMin();
    if (max != NULL)
        return false;

    victim.Insert(&elem1);
    victim.Insert(&elem2);
    victim.Insert(&elem3);
    victim.Insert(&elem4);
    victim.Insert(&elem5);
    victim.Insert(&elem6);
    victim.Insert(&elem7);
    victim.Insert(&elem8);
    victim.Insert(&elem9);

    max = victim.Remove(&elem7);
    if (max != &elem7)
        return false;
    max = victim.Remove(&elem9);
    if (max != &elem9)
        return false;
    max = victim.ExtractMin();
    if (max != &elem8)
        return false;
    max = victim.Remove(&elem2);
    if (max != &elem2)
        return false;
    max = victim.Remove(&elem2);
    if (max != NULL)
        return false;
    max = victim.Remove(&elem8);
    if (max != NULL)
        return false;
    max = victim.Remove(&elem5);
    if (max != &elem5)
        return false;
    max = victim.Remove(&elem6);
    if (max != &elem6)
        return false;
    max = victim.Remove(&elem1);
    if (max != &elem1)
        return false;
    max = victim.ExtractMin();
    if (max != &elem4)
        return false;
    max = victim.Remove(&elem1);
    if (max != NULL)
        return false;

    return true;
}
#endif
