前面已经介绍了如何创建一个应用服务，如何创建一个系统服务，这里我把Android服务分为：应用服务（ActivityService），系统服务（SystemService），分类是否正确也不清楚，网上并没有资料明确定义，之所以这样分类，因为应用服务放在ActiveServices中管理，而系统服务放在ServiceManager中管理，两者存在明显的不同。由于Android设计时已经把中间层标准化了，我们实现一个服务时，只需要简单实现服务端（Native）和调用端（Proxy）即可。本文将详细描述ActiveService的启动全过程，有关Binder的部分没有详细介绍，后续文章再介绍。
1、Activity服务启动的几个阶段
Activity服务启动大致可以分为以下几个阶段：
- 准备阶段：做进程启动前的准备工作。
- 进程启动阶段：通过Zygote启动进程。(当服务已经启动时，此步骤略）
- Activity启动阶段：在新的进程里，启动Activity。
本文重点说明第1阶段和第3阶段，进程启动阶段参见前一篇文章《Android 进阶-进程启动分析》。所以，Activity服务与应用的启动过程大致相同。
2. 准备阶段

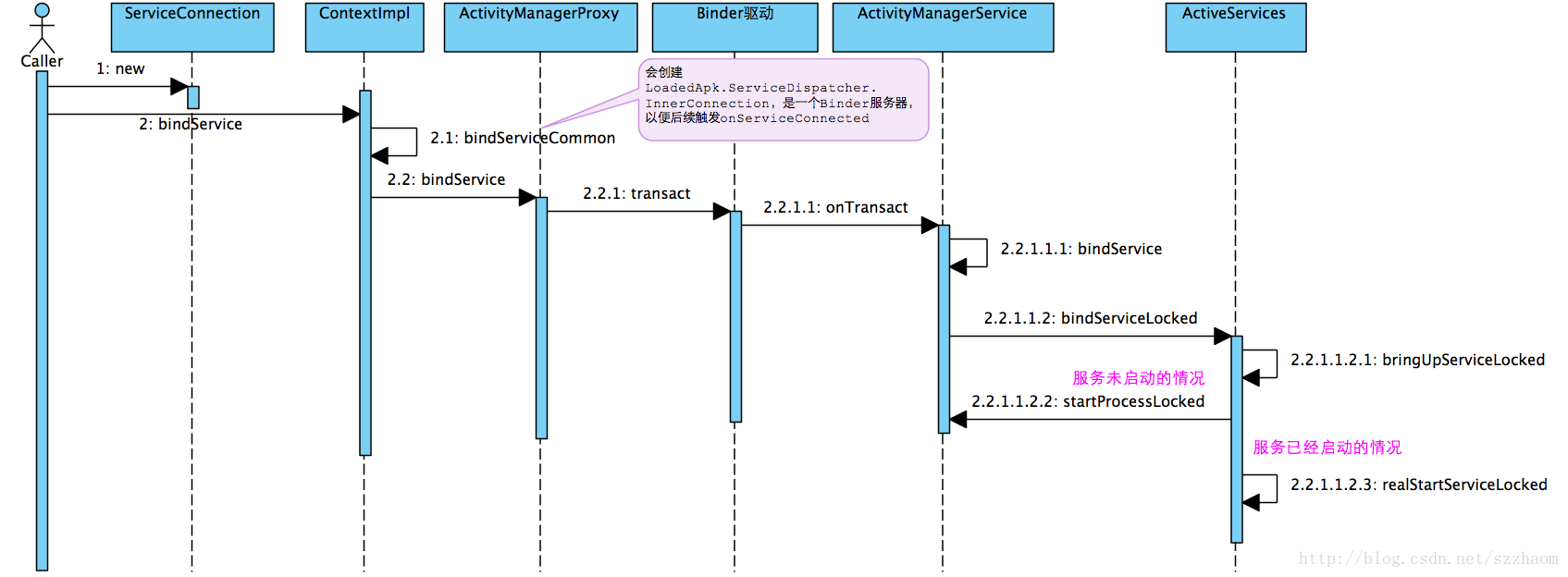

2.1 流程图
2.2 关键流程说明
上面的流程图，和Activity应用启动相似，最后都分为服务进程已经启动和服务进程未启动两种情况，服务进程已经启动的情况下，不需要进程启动，直接到服务启动步骤。
从先前服务实例中，我们知道，当要调用一个服务时，需要先创建一个ServiceConnection，并在OnServiceConnected函数中，保存服务的Binder接口，以便调用服务的各种接口。然后，再绑定服务，再调用服务。
2.2.1 ContextImpl.bindService
Client是调用Activity.bindService来绑定服务的，怎么会到ContextImpl.bindService中?上图中略去了一些步骤，这里结合代码说明：
Activity 继承自 ContextThemeWrapper ，而ContextThemeWrapper继承自 ContextWrapper，bindService就定义在ContextWraper中。
frameworks/base/core/java/android/content/ContextWrapper.java
public class ContextWrapper extends Context {
Context mBase;
public ContextWrapper(Context base) {
mBase = base;
}
...
public boolean bindService(Intent service, ServiceConnection conn,
int flags) {
return mBase.bindService(service, conn, flags);
}
...
}
frameworks/base/core/java/android/view/ContextThemeWrapper.java
public class ContextThemeWrapper extends ContextWrapper {
...
public ContextThemeWrapper() {
super(null);
}
...
}
frameworks/base/core/java/android/app/ActivityThread.java
public ActivityThread{
private Context createBaseContextForActivity(ActivityClientRecord r,
final Activity activity) {
ContextImpl appContext = new ContextImpl();
appContext.init(r.packageInfo, r.token, this);
appContext.setOuterContext(activity);
...
Context baseContext = appContext;
...
return baseContext;
}
...
private Activity performLaunchActivity(ActivityClientRecord r, Intent customIntent) {
// System.out.println("##### [" + System.currentTimeMillis() + "] ActivityThread.performLaunchActivity(" + r + ")");
...
try {
Application app = r.packageInfo.makeApplication(false, mInstrumentation);
...
if (activity != null) {
//创建上下文
Context appContext = createBaseContextForActivity(r, activity);
CharSequence title = r.activityInfo.loadLabel(appContext.getPackageManager());
Configuration config = new Configuration(mCompatConfiguration);
if (DEBUG_CONFIGURATION) Slog.v(TAG, "Launching activity "
+ r.activityInfo.name + " with config " + config);
//连接上下文
activity.attach(appContext, this, getInstrumentation(), r.token,
r.ident, app, r.intent, r.activityInfo, title, r.parent,
r.embeddedID, r.lastNonConfigurationInstances, config);
...
}
r.paused = true;
mActivities.put(r.token, r);
} catch (SuperNotCalledException e) {
throw e;
} catch (Exception e) {
if (!mInstrumentation.onException(activity, e)) {
throw new RuntimeException(
"Unable to start activity " + component
+ ": " + e.toString(), e);
}
}
return activity;
}
}public Activity{
...
final void attach(Context context, ActivityThread aThread,
Instrumentation instr, IBinder token, int ident,
Application application, Intent intent, ActivityInfo info,
CharSequence title, Activity parent, String id,
NonConfigurationInstances lastNonConfigurationInstances,
Configuration config) {
// 连接mBase
attachBaseContext(context);
mFragments.attachActivity(this, mContainer, null);
...
}
}
public class ContextThemeWrapper{
protected void attachBaseContext(Context newBase) {
//连接mBase
super.attachBaseContext(newBase);
mBase = newBase;
}
}
因此，上图从ContextImpl.bindService开始。
2.2.2 ContextImpl.bindServiceCommon
frameworks/base/core/java/android/app/ContextImpl.java
private boolean bindServiceCommon(Intent service, ServiceConnection conn, int flags,
UserHandle user) {
IServiceConnection sd;
if (conn == null) {
throw new IllegalArgumentException("connection is null");
}
if (mPackageInfo != null) {
// 创建一个IServiceConnection对象，服务绑定后，需要调用此对象的connected函数，触发ServiceConnection.onServiceConnected事件
// 此对象是一个LoadedApk.ServiceDispatcher.InnerConnection对象，见后面的LoadedApk的代码解释
sd = mPackageInfo.getServiceDispatcher(conn, getOuterContext(),
mMainThread.getHandler(), flags);
} else {
throw new RuntimeException("Not supported in system context");
}
validateServiceIntent(service);
try {
...
// 通过ActivieyManagerProxy.bindService，经由Binder调用ActivityManagerService.bindService
int res = ActivityManagerNative.getDefault().bindService(
mMainThread.getApplicationThread(), getActivityToken(),
service, service.resolveTypeIfNeeded(getContentResolver()),
sd, flags, user.getIdentifier());
if (res < 0) {
throw new SecurityException(
"Not allowed to bind to service " + service);
}
return res != 0;
} catch (RemoteException e) {
return false;
}
}public class LoadedApk{
...
static final class ServiceDispatcher {
private final ServiceDispatcher.InnerConnection mIServiceConnection;
...
private static class InnerConnection extends IServiceConnection.Stub {
...
}
...
IServiceConnection getIServiceConnection() {
// 返回一个InnerConnection连接
return mIServiceConnection;
}
}
...
public final IServiceConnection getServiceDispatcher(ServiceConnection c,
Context context, Handler handler, int flags) {
synchronized (mServices) {
LoadedApk.ServiceDispatcher sd = null;
ArrayMap<ServiceConnection, LoadedApk.ServiceDispatcher> map = mServices.get(context);
if (map != null) {
sd = map.get(c);
}
if (sd == null) {
// 创建ServiceDispatcher
sd = new ServiceDispatcher(c, context, handler, flags);
if (map == null) {
map = new ArrayMap<ServiceConnection, LoadedApk.ServiceDispatcher>();
mServices.put(context, map);
}
map.put(c, sd);
} else {
sd.validate(context, handler);
}
// 返回ServiceDispatcher.getIServiceConnection()
return sd.getIServiceConnection();
}
}
...
}- 调用mPackageInfo.getServiceDispatcher创建IServiceConnection连接，返回的是ServiceDispatcher.InnerConnection对象，此对象作为bindService的参数，传给后续实现者。此对象可以通过connected函数，来触发ServiceConection.onServiceConnected，来通知调用方，服务已经绑定了，并传入IBinder对象，可以调用方通过此对象来调用服务的各种操作；
- 通过ActivityManagerProxy.bindService，来调用ActivityManagerService中的bindService方法。说明：ActivityManagerNavite.getDefault()返回的是一个ActivityManagerProxy对象，这在《Android进阶- Activity应用启动分析》一文中已经有介绍。具体的过程见上图，Binder通信过程本文忽略。
需要注意的是，InnerConnection继承自IServiceConnection.Stub，即，新创建的InnerConnection是一个Binder服务端对象。
2.2.3 ActivityManagerProxy.bindService
public class ActivityManagerProxy{
public int bindService(IApplicationThread caller, IBinder token,
Intent service, String resolvedType, IServiceConnection connection,
int flags, int userId) throws RemoteException {
Parcel data = Parcel.obtain();
Parcel reply = Parcel.obtain();
data.writeInterfaceToken(IActivityManager.descriptor);
data.writeStrongBinder(caller != null ? caller.asBinder() : null);
data.writeStrongBinder(token);
service.writeToParcel(data, 0);
data.writeString(resolvedType);
// 写入connection的binder接口
data.writeStrongBinder(connection.asBinder());
data.writeInt(flags);
data.writeInt(userId);
mRemote.transact(BIND_SERVICE_TRANSACTION, data, reply, 0);
reply.readException();
int res = reply.readInt();
data.recycle();
reply.recycle();
return res;
}
}2.2.4 ActivityManagerService.bindService
流程走到ActivityManagerService.bindService中后，又有两个关键动作，即ActiveServices.realStartServiceLocked和ActiveServices.reuqestServiceBindLocked。
2.2.5 ActiveServices.bringUpServiceLocked
frameworks/base/services/java/com/android/server/am/ActiveServices.java
public class ActiveServices{
...
private final String bringUpServiceLocked(ServiceRecord r,
int intentFlags, boolean execInFg, boolean whileRestarting) {
...
ProcessRecord app;
if (!isolated) {
app = mAm.getProcessRecordLocked(procName, r.appInfo.uid, false);
if (DEBUG_MU) Slog.v(TAG_MU, "bringUpServiceLocked: appInfo.uid=" + r.appInfo.uid
+ " app=" + app);
if (app != null && app.thread != null) {
// 如果服务进程已经启动
try {
app.addPackage(r.appInfo.packageName, mAm.mProcessStats);
realStartServiceLocked(r, app, execInFg);
return null;
} catch (RemoteException e) {
Slog.w(TAG, "Exception when starting service " + r.shortName, e);
}
// If a dead object exception was thrown -- fall through to
// restart the application.
}
} else {
...
}
// Not running -- get it started, and enqueue this service record
// to be executed when the app comes up.
if (app == null) {
// 如果服务进程未启动
if ((app=mAm.startProcessLocked(procName, r.appInfo, true, intentFlags,
"service", r.name, false, isolated, false)) == null) {
...
return msg;
}
if (isolated) {
r.isolatedProc = app;
}
}
...
return null;
}
}
上面的函数流程很简单，就是判断如果服务进程已经启动，则直接调用realStartServiceLocked启动服务，否则调用ActivityManagerService.startProcessLocked启动进程，进入进程启动阶段。
3. 进程启动阶段
略。详见《Android 进阶 - 进程启动分析》一文。
4. 服务启动阶段

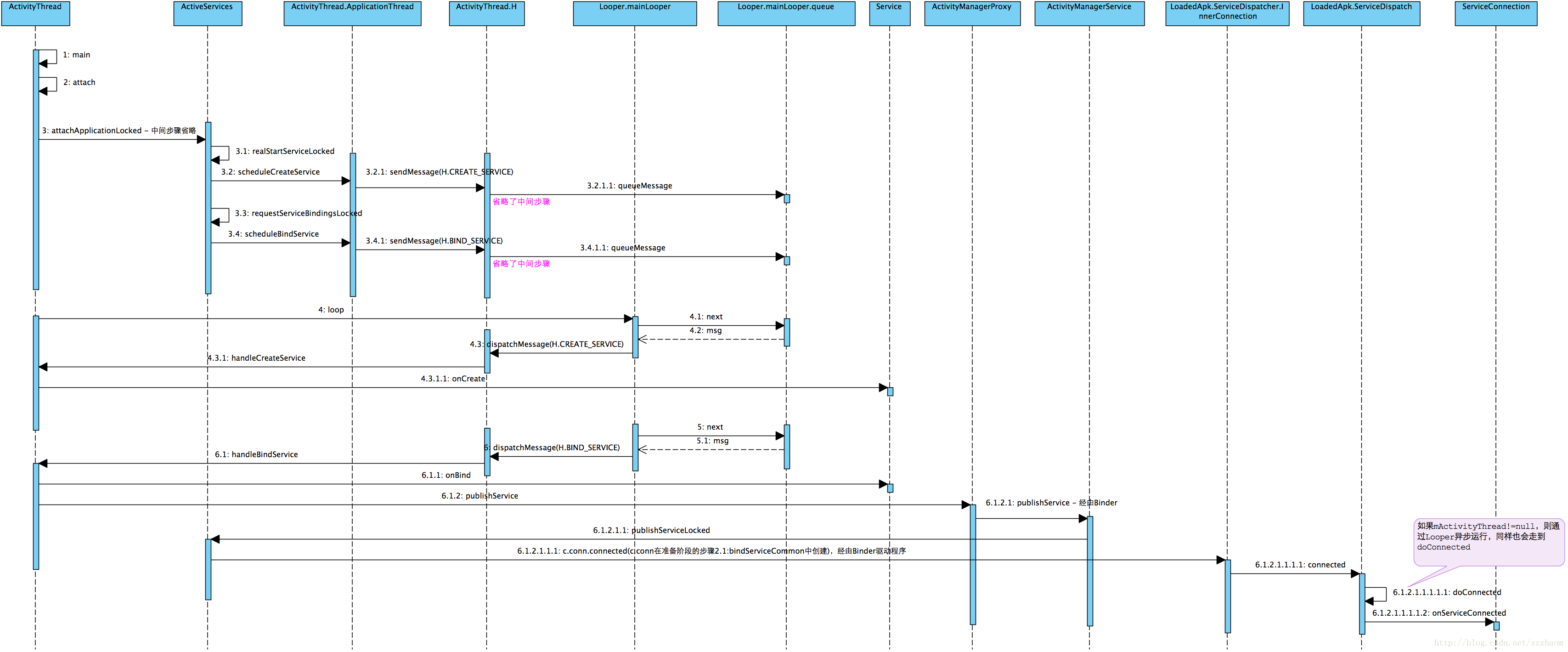

4.1 流程图
4.2 关键流程分析
上面的图看似比Activity启动要复杂，实际上大的步骤差不过，只不过，服务启动时，先要createService，再bindService，要发两次消息，而Activity启动只需要发一次消息。
如果服务进程已经启动的情况下，可直接从3.1:realStartServiceLocked一步往下看。
请先参看《Android 进阶 - Looper进程内通信》和《Android 进阶 -Activity应用启动分析》，从bindServiceLocked到sendMessage，再到消息进入到Looper.mainLooper.queue队列中，如果看了前面两篇文章，相信这一部分很容易看懂，这里不再讨论。流程主要发了两个消息H.CREATE_SERVICE和H.BIND_SERVICE，一个是创建服务的消息，一个是绑定服务的消息。这些消息会在Looper.loop函数依次处理。
4.2.1 handleCreateService
H.CREATE_SERVICE的消息，经由H.dispatchMessage，会进入ActivityThread.handleCreateService函数。
frameworks/base/core/java/android/app/ActivityThread.java
public clas ActivityThread{
...
private void handleCreateService(CreateServiceData data) {
// If we are getting ready to gc after going to the background, well
// we are back active so skip it.
unscheduleGcIdler();
LoadedApk packageInfo = getPackageInfoNoCheck(
data.info.applicationInfo, data.compatInfo);
Service service = null;
try {
java.lang.ClassLoader cl = packageInfo.getClassLoader();
service = (Service) cl.loadClass(data.info.name).newInstance();
} catch (Exception e) {
if (!mInstrumentation.onException(service, e)) {
throw new RuntimeException(
"Unable to instantiate service " + data.info.name
+ ": " + e.toString(), e);
}
}
try {
if (localLOGV) Slog.v(TAG, "Creating service " + data.info.name);
ContextImpl context = new ContextImpl();
context.init(packageInfo, null, this);
Application app = packageInfo.makeApplication(false, mInstrumentation);
context.setOuterContext(service);
// 连接服务上下文
service.attach(context, this, data.info.name, data.token, app,
ActivityManagerNative.getDefault());
// 触发服务的onCreate事件
service.onCreate();
mServices.put(data.token, service);
try {
ActivityManagerNative.getDefault().serviceDoneExecuting(
data.token, 0, 0, 0);
} catch (RemoteException e) {
// nothing to do.
}
} catch (Exception e) {
if (!mInstrumentation.onException(service, e)) {
throw new RuntimeException(
"Unable to create service " + data.info.name
+ ": " + e.toString(), e);
}
}
}
}4.2.2 handleBindService
H.BIND_SERVICE的消息，经由H.dispatchMessage，会进入ActivityThread.handleBindService函数。
frameworks/base/core/java/android/app/ActivityThread.java
public class ActivityThread{
...
private void handleBindService(BindServiceData data) {
Service s = mServices.get(data.token);
if (DEBUG_SERVICE)
Slog.v(TAG, "handleBindService s=" + s + " rebind=" + data.rebind);
if (s != null) {
try {
data.intent.setExtrasClassLoader(s.getClassLoader());
try {
if (!data.rebind) {
// 触发服务的onBind事件
IBinder binder = s.onBind(data.intent);
// 通过Binder，调用ActivityManagerService.publishService发布服务
ActivityManagerNative.getDefault().publishService(
data.token, data.intent, binder);
} else {
...
}
ensureJitEnabled();
} catch (RemoteException ex) {
}
} catch (Exception e) {
...
}
}
}
}4.2.3 publishService
上节的源码中说明，服务绑定完成之后，会通过ActivityManagerProxy代理，经由Binder，调用ActivityManagerService的publishService函数。frameworks/base/services/java/com/android/server/am/ActivityManagerService.java
frameworks/base/services/java/com/android/server/am/ActiveServices.java
pulbic class ActivityManagerService{
...
public void publishService(IBinder token, Intent intent, IBinder service) {
// Refuse possible leaked file descriptors
if (intent != null && intent.hasFileDescriptors() == true) {
throw new IllegalArgumentException("File descriptors passed in Intent");
}
synchronized(this) {
if (!(token instanceof ServiceRecord)) {
throw new IllegalArgumentException("Invalid service token");
}
mServices.publishServiceLocked((ServiceRecord)token, intent, service);
}
}
...
}
经由Binder驱动程序传输到ActivityManagerService后，service由服务端的Binder对象自动变了客户端的BinderProxy对象。
pulbic class ActiveServices{
...
void publishServiceLocked(ServiceRecord r, Intent intent, IBinder service) {
final long origId = Binder.clearCallingIdentity();
try {
if (DEBUG_SERVICE) Slog.v(TAG, "PUBLISHING " + r
+ " " + intent + ": " + service);
if (r != null) {
Intent.FilterComparison filter
= new Intent.FilterComparison(intent);
IntentBindRecord b = r.bindings.get(filter);
if (b != null && !b.received) {
b.binder = service;
b.requested = true;
b.received = true;
for (int conni=r.connections.size()-1; conni>=0; conni--) {
ArrayList<ConnectionRecord> clist = r.connections.valueAt(conni);
for (int i=0; i<clist.size(); i++) {
ConnectionRecord c = clist.get(i);
...
try {
// c.conn 为 服务启动准备阶段 在ContextImpl.bindServiceCommon中创建的，为一个LoadedApk.ServiceDispatcher.InnerConnection的实例的远程接口，通过Binder驱动调用服务端触发onServiceConnected事件。
c.conn.connected(r.name, service);
} catch (Exception e) {
Slog.w(TAG, "Failure sending service " + r.name +
" to connection " + c.conn.asBinder() +
" (in " + c.binding.client.processName + ")", e);
}
}
}
}
serviceDoneExecutingLocked(r, mDestroyingServices.contains(r), false);
}
} finally {
Binder.restoreCallingIdentity(origId);
}
}
...
}
下面的代码是经由Binder远程接口传回至Activity调用端。
frameworks/base/core/java/android/app/LoadedApk.java
public class LoadApk{
...
static final class ServiceDispatcher {
private static class InnerConnection extends IServiceConnection.Stub {
final WeakReference<LoadedApk.ServiceDispatcher> mDispatcher;
InnerConnection(LoadedApk.ServiceDispatcher sd) {
mDispatcher = new WeakReference<LoadedApk.ServiceDispatcher>(sd);
}
// 通知已经连接
public void connected(ComponentName name, IBinder service) throws RemoteException {
LoadedApk.ServiceDispatcher sd = mDispatcher.get();
if (sd != null) {
// 进入下面的connected函数
sd.connected(name, service);
}
}
}
...
public void connected(ComponentName name, IBinder service) {
if (mActivityThread != null) {
mActivityThread.post(new RunConnection(name, service, 0));
} else {
// 进入下面的doConnected函数
doConnected(name, service);
}
}
...
public void doConnected(ComponentName name, IBinder service) {
ServiceDispatcher.ConnectionInfo old;
ServiceDispatcher.ConnectionInfo info;
...
// If there was an old service, it is not disconnected.
if (old != null) {
// 假如是服务，触发onServiceDisconnected事件
mConnection.onServiceDisconnected(name);
}
// If there is a new service, it is now connected.
if (service != null) {
// 假如是新服务，则触发onServiceConnected。mConnection为在Activity.bindService是传入的参数，也即是绑定服务前用户创建的ServiceConnection类实例。
mConnection.onServiceConnected(name, service);
}
}
}
}流程走到这里，就算是完成了，进入了调用者创建的ServiceConnection.onServiceConnected函数中，此函数会传回服务的IBinder接口，调用者可以保存此接口调用服务的各类操作。
5. 结语

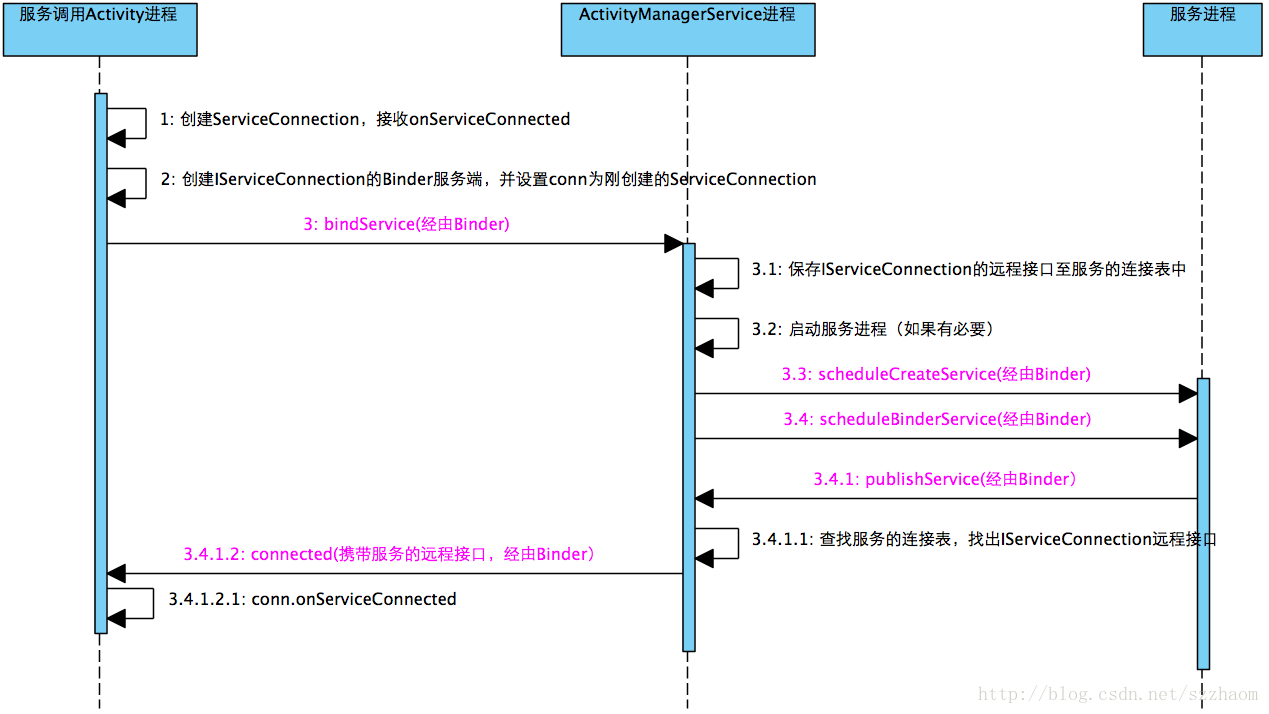

最后，我们总结一下，如下图。
上图是简化了的流程，只从三个进程来描述。从上图可以看出，Android已经屏蔽了进程概念，要在一个Activity里，绑定一个服务，其实是三个进程之间打交道，进程之间的数据，全部经由Binder传递。
- ServiceConnection在Activity里由调用方创建，实现onSeviceConnected事件，接收传回的service远程接口（BinderProxy）；
- 创建IServiceConnection的Binder服务端，此步骤在ContextImpl.bindServiceCommon里创建，是一个LoadedApk.ServiceDistpatch.InnerConnection类的实例。
- binderService，此处经由Binder，传入到ActivityManagerService中，数据传递ActivityManagerService时，会将IServiceConnection服务端对象转换为BinderProxy的远程接口代理对象，此时，ActivityManagerService是Activity的客户端。
- 保存IServiceConnection至服务的连接列表中
- 如果有必要，启动服务进程
- 调用app.thread.scheduleCreateService创建服务，app.thread是一个基于ActivityThread.ApplicationThread的Binder远程接口，由此接口，可以与服务进程通讯，真正的操作在服务进程里。
- 同理，调用app.thread.scheduleBindService绑定服务，绑定操作在服务进程里
- 服务进程通过ActivityManagerProxy，经由Binder接口，将publishService转发至ActivityManagerService中。
- ActivityManagerService进程查找此服务的IServiceConnection远程Binder接口。
- 调用IServiceConnection远程Binder接口，进入到IServiceConnection服务端（即Activity服务调用进程），执行connected操作
- 最后执行ServiceConnection.onServiceConnected，通知Activity，服务绑定完成。并得到了服务的远程接口。
276
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
