任务 RIP协议项目实训

任务  RIP协议项目实训

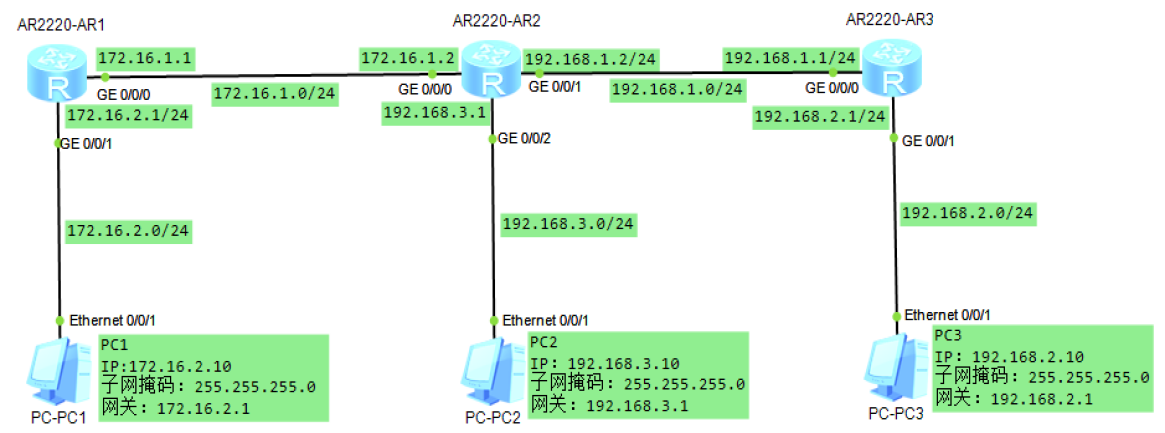

项目实训网络拓扑图如图所示。

实训要求：根据网络拓扑图所示的标注，完成如下配置。

1. 完成路由器接口和计算机IP地址的配置。
2. 要求在路由器R1、R2、R3上配置RIPv2动态路由协议，关闭自动汇总功能，实现计算机PC1、PC2和PC3互通。

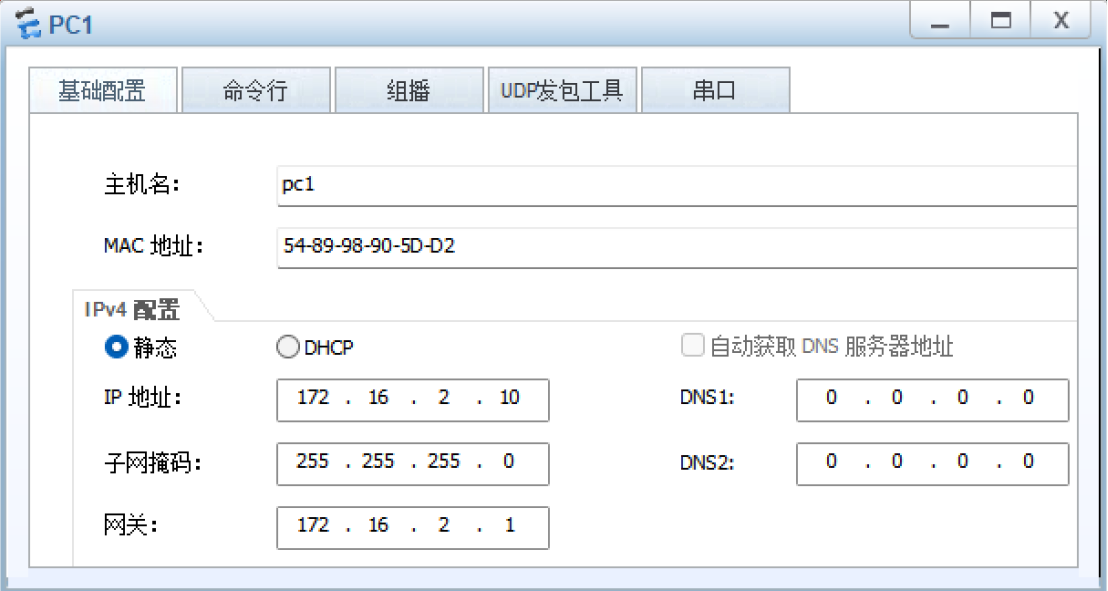

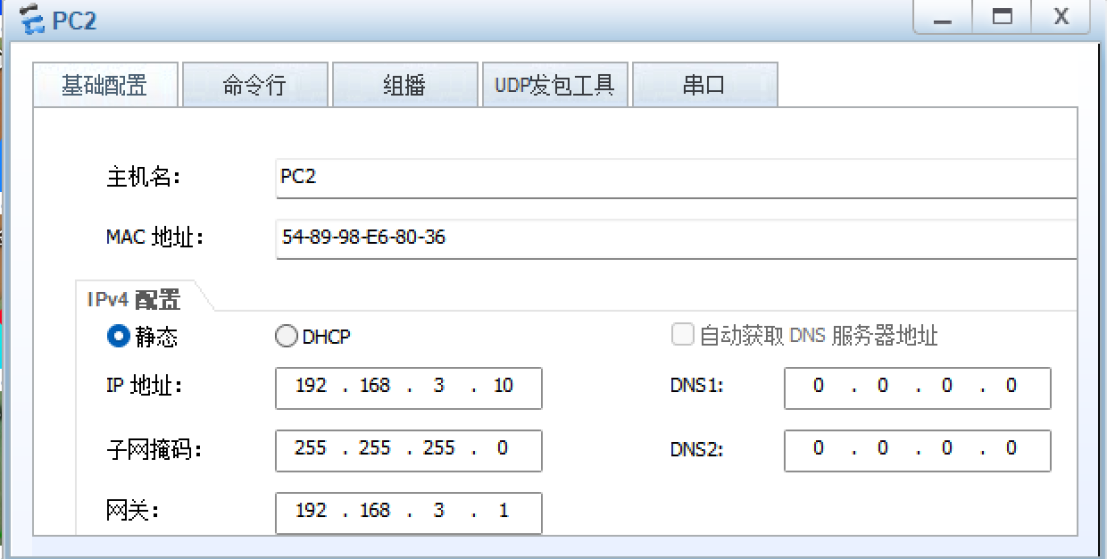

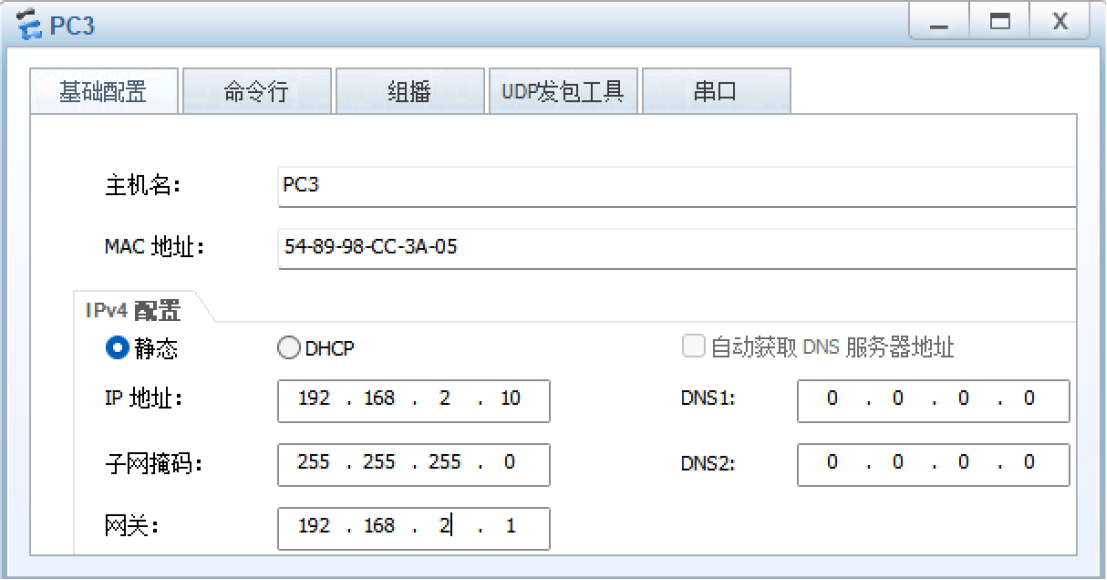

计算机IP地址的配置：

路由器接口的配置

路由器R1接口的配置:

<Huawei>system-view

[Huawei]undo info-center enable

[Huawei]sysname R1

[R1]interface g0/0/0

[R1-GigabitEthernet0/0/0]ip address 172.16.1.1 24

[R1-GigabitEthernet0/0/0]quit

[R1]interface g0/0/1

[R1-GigabitEthernet0/0/1]ip address 172.16.2.1 24

[R1-GigabitEthernet0/0/1]quit

路由器R2接口的配置:

<Huawei>system-view

[Huawei]undo info-center enable

[Huawei]sysname R2

[R2]interface g0/0/0

[R2-GigabitEthernet0/0/0]ip address 172.16.1.2 24

[R2-GigabitEthernet0/0/0]quit

[R2]interface g0/0/1

[R2-GigabitEthernet0/0/1]ip address 192.168.1.2 24

[R2-GigabitEthernet0/0/1]quit

[R2]interface g0/0/2

[R2-GigabitEthernet0/0/2]ip address 192.168.3.1 24

[R2-GigabitEthernet0/0/2]quit

路由器R3接口的配置:

<Huawei>system-view

[Huawei]undo info-center enable

[Huawei]sysname R3

[R3]interface g0/0/0

[R3-GigabitEthernet0/0/0]ip address 192.168.1.1 24

[R3-GigabitEthernet0/0/0]quit

[R3]interface g0/0/1

[R3-GigabitEthernet0/0/1]ip address 192.168.2.1 24

[R3-GigabitEthernet0/0/1]quit

完成RIPv2动态路由配置

路由器R1动态路由配置:

[R1]rip

[R1-rip-1]version 2

[R1-rip-1]undo summary

[R1-rip-1]network 172.16.0.0

[R1-rip-1]quit

路由器R2动态路由配置:

[R2]rip

[R2-rip-1]version 2

[R2-rip-1]undo summary

[R2-rip-1]network 192.168.1.0

[R2-rip-1]network 192.168.3.0

[R2-rip-1]network 172.16.0.0

路由器R3动态路由配置:

[R3]rip

[R3-rip-1]version 2

[R3-rip-1]undo summary

[R3-rip-1]network 192.168.1.0

[R3-rip-1]network 192.168.2.0

测试

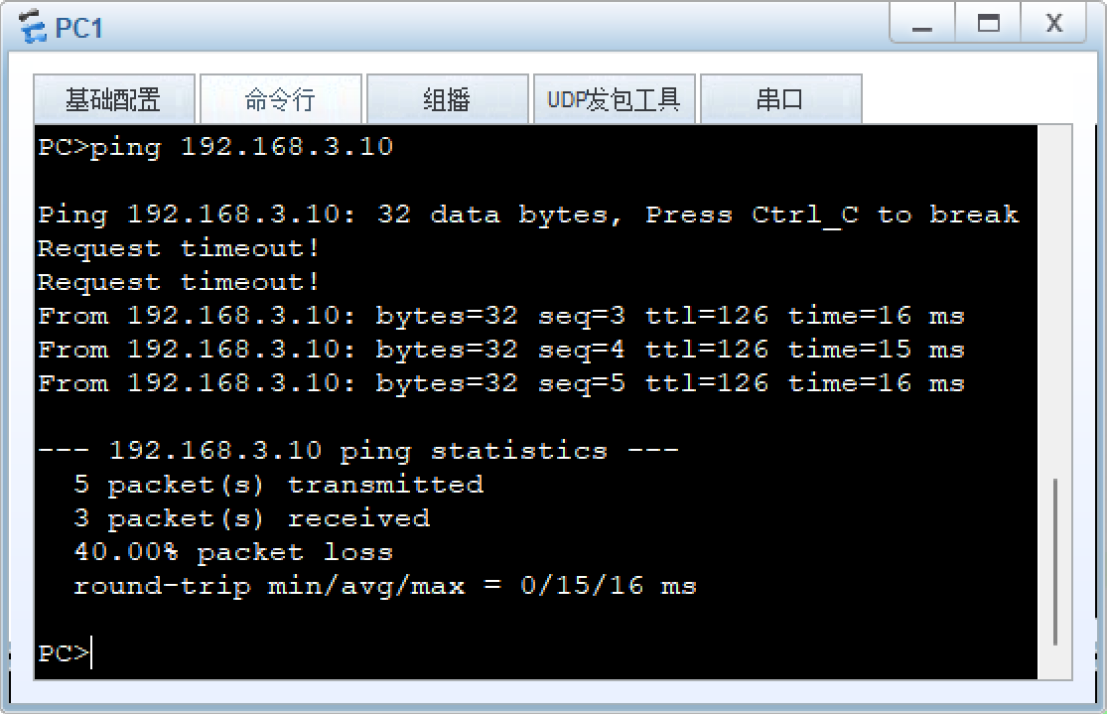

PC1 ping PC2

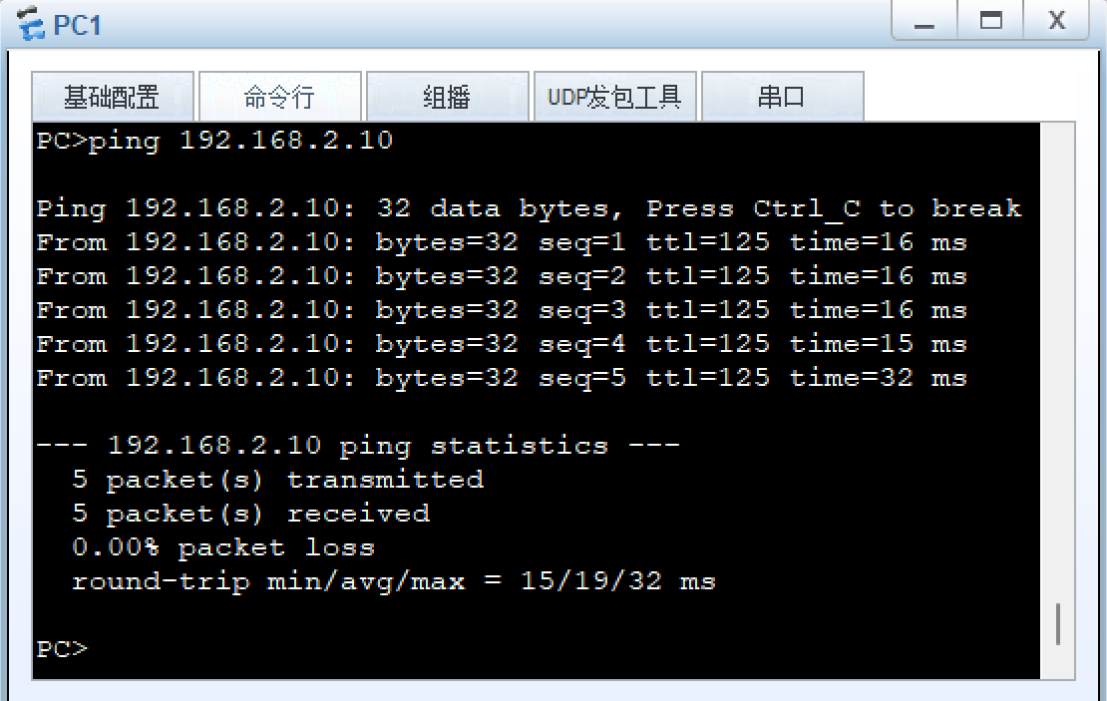

PC1 ping PC3

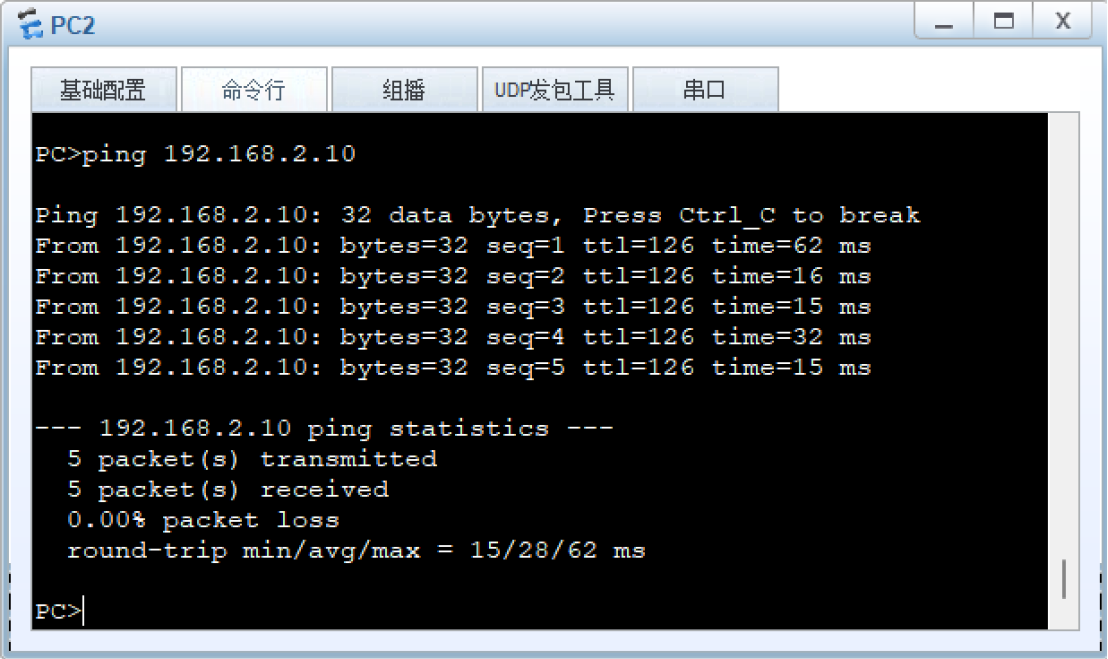

PC2 ping PC3
