HTML编写动态爱心-李峋同款爱心(粉色,蓝色爱心)

<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.0 Transitional//EN">
<HTML>
 <HEAD>
  <TITLE> New Document </TITLE>
  <META NAME="Generator" CONTENT="EditPlus">
  <META NAME="Author" CONTENT="">
  <META NAME="Keywords" CONTENT="">
  <META NAME="Description" CONTENT="">
  <style>
  html, body {
  height: 100%;
  padding: 0;
  margin: 0;
  background: #000;
}
canvas {
  position: absolute;
  width: 100%;
  height: 100%;
}
  </style>
 </HEAD>

 <BODY>
	 <canvas id="c"></canvas>
	 		<script>
	 			var c=document.getElementById("c");
	 			var	ctx=c.getContext("2d");
	 				c.width=window.innerWidth;
	 				c.height=window.innerHeight;
	 //				ctx.fillRect(0,0,100,100);
	 //				a,b,c,d分别代表x方向偏移,y方向偏移,宽,高
	 			var string1 = "abcdefghijklmnopqrstuvwxyz";
	 				string1.split("");
	 			var fontsize=20;
	 				columns=c.width/fontsize;
	 			var drop = [];
	 			for(var x=0;x<columns;x++)
	 			{
	 				drop[x]=0;
	 			}
	 		function drap(){
	 			ctx.fillStyle="rgba(0,0,0,0.07)";
	 			ctx.fillRect(0,0,c.width,c.height);
	 			ctx.fillStyle="#ea80b0";
	 			ctx.font=fontsize+"px arial";
	 			for(var i=0;i<drop.length;i++){
	 				var text1=string1[Math.floor(Math.random()*string1.length)];
	 				ctx.fillText(text1,i*fontsize,drop[i]*fontsize);
	 				drop[i]++;
	 				if(drop[i]*fontsize>c.height&&Math.random()>0.9){//90%的几率掉落
	 					drop[i]=0;
	 				}
	 			}
	 		}
	 		setInterval(drap,50);
	 		</script>
  <canvas id="pinkboard"></canvas>
  <script>
  /*
 * Settings
 */
var settings = {
  particles: {
    length:   500, // maximum amount of particles
    duration:   2, // particle duration in sec
    velocity: 100, // particle velocity in pixels/sec
    effect: -0.75, // play with this for a nice effect
    size:      30, // particle size in pixels
  },
};

/*
 * RequestAnimationFrame polyfill by Erik Möller
 */
(function(){var b=0;var c=["ms","moz","webkit","o"];for(var a=0;a<c.length&&!window.requestAnimationFrame;++a){window.requestAnimationFrame=window[c[a]+"RequestAnimationFrame"];window.cancelAnimationFrame=window[c[a]+"CancelAnimationFrame"]||window[c[a]+"CancelRequestAnimationFrame"]}if(!window.requestAnimationFrame){window.requestAnimationFrame=function(h,e){var d=new Date().getTime();var f=Math.max(0,16-(d-b));var g=window.setTimeout(function(){h(d+f)},f);b=d+f;return g}}if(!window.cancelAnimationFrame){window.cancelAnimationFrame=function(d){clearTimeout(d)}}}());

/*
 * Point class
 */
var Point = (function() {
  function Point(x, y) {
    this.x = (typeof x !== 'undefined') ? x : 0;
    this.y = (typeof y !== 'undefined') ? y : 0;
  }
  Point.prototype.clone = function() {
    return new Point(this.x, this.y);
  };
  Point.prototype.length = function(length) {
    if (typeof length == 'undefined')
      return Math.sqrt(this.x * this.x + this.y * this.y);
    this.normalize();
    this.x *= length;
    this.y *= length;
    return this;
  };
  Point.prototype.normalize = function() {
    var length = this.length();
    this.x /= length;
    this.y /= length;
    return this;
  };
  return Point;
})();

/*
 * Particle class
 */
var Particle = (function() {
  function Particle() {
    this.position = new Point();
    this.velocity = new Point();
    this.acceleration = new Point();
    this.age = 0;
  }
  Particle.prototype.initialize = function(x, y, dx, dy) {
    this.position.x = x;
    this.position.y = y;
    this.velocity.x = dx;
    this.velocity.y = dy;
    this.acceleration.x = dx * settings.particles.effect;
    this.acceleration.y = dy * settings.particles.effect;
    this.age = 0;
  };
  Particle.prototype.update = function(deltaTime) {
    this.position.x += this.velocity.x * deltaTime;
    this.position.y += this.velocity.y * deltaTime;
    this.velocity.x += this.acceleration.x * deltaTime;
    this.velocity.y += this.acceleration.y * deltaTime;
    this.age += deltaTime;
  };
  Particle.prototype.draw = function(context, image) {
    function ease(t) {
      return (--t) * t * t + 1;
    }
    var size = image.width * ease(this.age / settings.particles.duration);
    context.globalAlpha = 1 - this.age / settings.particles.duration;
    context.drawImage(image, this.position.x - size / 2, this.position.y - size / 2, size, size);
  };
  return Particle;
})();

/*
 * ParticlePool class
 */
var ParticlePool = (function() {
  var particles,
      firstActive = 0,
      firstFree   = 0,
      duration    = settings.particles.duration;

  function ParticlePool(length) {
    // create and populate particle pool
    particles = new Array(length);
    for (var i = 0; i < particles.length; i++)
      particles[i] = new Particle();
  }
  ParticlePool.prototype.add = function(x, y, dx, dy) {
    particles[firstFree].initialize(x, y, dx, dy);

    // handle circular queue
    firstFree++;
    if (firstFree   == particles.length) firstFree   = 0;
    if (firstActive == firstFree       ) firstActive++;
    if (firstActive == particles.length) firstActive = 0;
  };
  ParticlePool.prototype.update = function(deltaTime) {
    var i;

    // update active particles
    if (firstActive < firstFree) {
      for (i = firstActive; i < firstFree; i++)
        particles[i].update(deltaTime);
    }
    if (firstFree < firstActive) {
      for (i = firstActive; i < particles.length; i++)
        particles[i].update(deltaTime);
      for (i = 0; i < firstFree; i++)
        particles[i].update(deltaTime);
    }

    // remove inactive particles
    while (particles[firstActive].age >= duration && firstActive != firstFree) {
      firstActive++;
      if (firstActive == particles.length) firstActive = 0;
    }


  };
  ParticlePool.prototype.draw = function(context, image) {
    // draw active particles
    if (firstActive < firstFree) {
      for (i = firstActive; i < firstFree; i++)
        particles[i].draw(context, image);
    }
    if (firstFree < firstActive) {
      for (i = firstActive; i < particles.length; i++)
        particles[i].draw(context, image);
      for (i = 0; i < firstFree; i++)
        particles[i].draw(context, image);
    }
  };
  return ParticlePool;
})();

/*
 * Putting it all together
 */
(function(canvas) {
  var context = canvas.getContext('2d'),
      particles = new ParticlePool(settings.particles.length),
      particleRate = settings.particles.length / settings.particles.duration, // particles/sec
      time;

  // get point on heart with -PI <= t <= PI
  function pointOnHeart(t) {
    return new Point(
      160 * Math.pow(Math.sin(t), 3),
      130 * Math.cos(t) - 50 * Math.cos(2 * t) - 20 * Math.cos(3 * t) - 10 * Math.cos(4 * t) + 25
    );
  }

  // creating the particle image using a dummy canvas
  var image = (function() {
    var canvas  = document.createElement('canvas'),
        context = canvas.getContext('2d');
    canvas.width  = settings.particles.size;
    canvas.height = settings.particles.size;
    // helper function to create the path
    function to(t) {
      var point = pointOnHeart(t);
      point.x = settings.particles.size / 2 + point.x * settings.particles.size / 350;
      point.y = settings.particles.size / 2 - point.y * settings.particles.size / 350;
      return point;
    }
    // create the path
    context.beginPath();
    var t = -Math.PI;
    var point = to(t);
    context.moveTo(point.x, point.y);
    while (t < Math.PI) {
      t += 0.01; // baby steps!
      point = to(t);
      context.lineTo(point.x, point.y);
    }
    context.closePath();
    // create the fill
    context.fillStyle = '#ea80b0';
    context.fill();
    // create the image
    var image = new Image();
    image.src = canvas.toDataURL();
    return image;
  })();

  // render that thing!
  function render() {
    // next animation frame
    requestAnimationFrame(render);

    // update time
    var newTime   = new Date().getTime() / 1000,
        deltaTime = newTime - (time || newTime);
    time = newTime;

    // clear canvas
    context.clearRect(0, 0, canvas.width, canvas.height);

    // create new particles
    var amount = particleRate * deltaTime;
    for (var i = 0; i < amount; i++) {
      var pos = pointOnHeart(Math.PI - 2 * Math.PI * Math.random());
      var dir = pos.clone().length(settings.particles.velocity);
      particles.add(canvas.width / 2 + pos.x, canvas.height / 2 - pos.y, dir.x, -dir.y);
    }

    // update and draw particles
    particles.update(deltaTime);
    particles.draw(context, image);
  }

  // handle (re-)sizing of the canvas
  function onResize() {
    canvas.width  = canvas.clientWidth;
    canvas.height = canvas.clientHeight;
  }
  window.onresize = onResize;

  // delay rendering bootstrap
  setTimeout(function() {
    onResize();
    render();
  }, 10);
})(document.getElementById('pinkboard'));
  </script>
 </BODY>
</HTML>

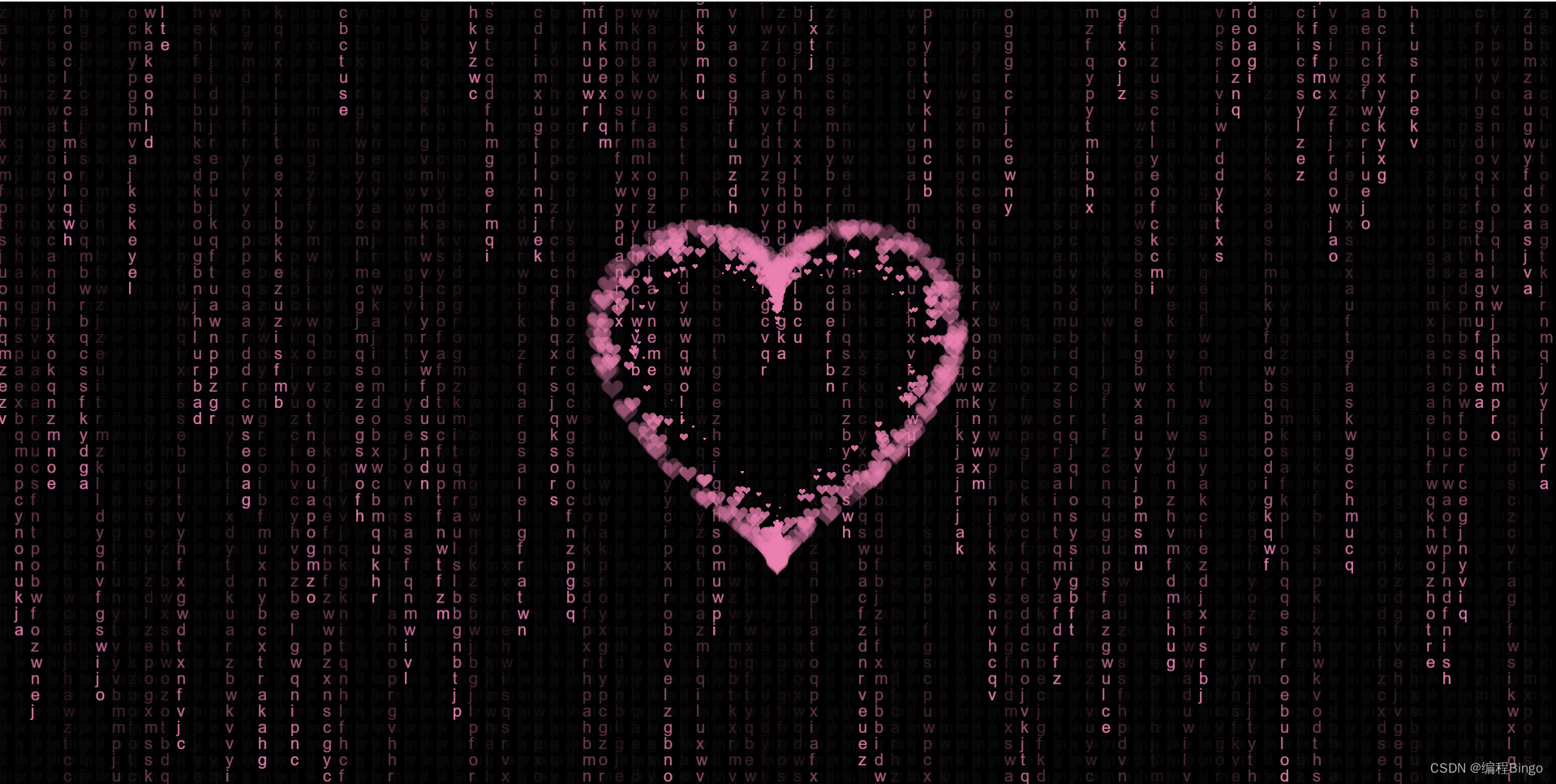

效果图

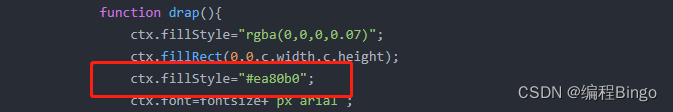

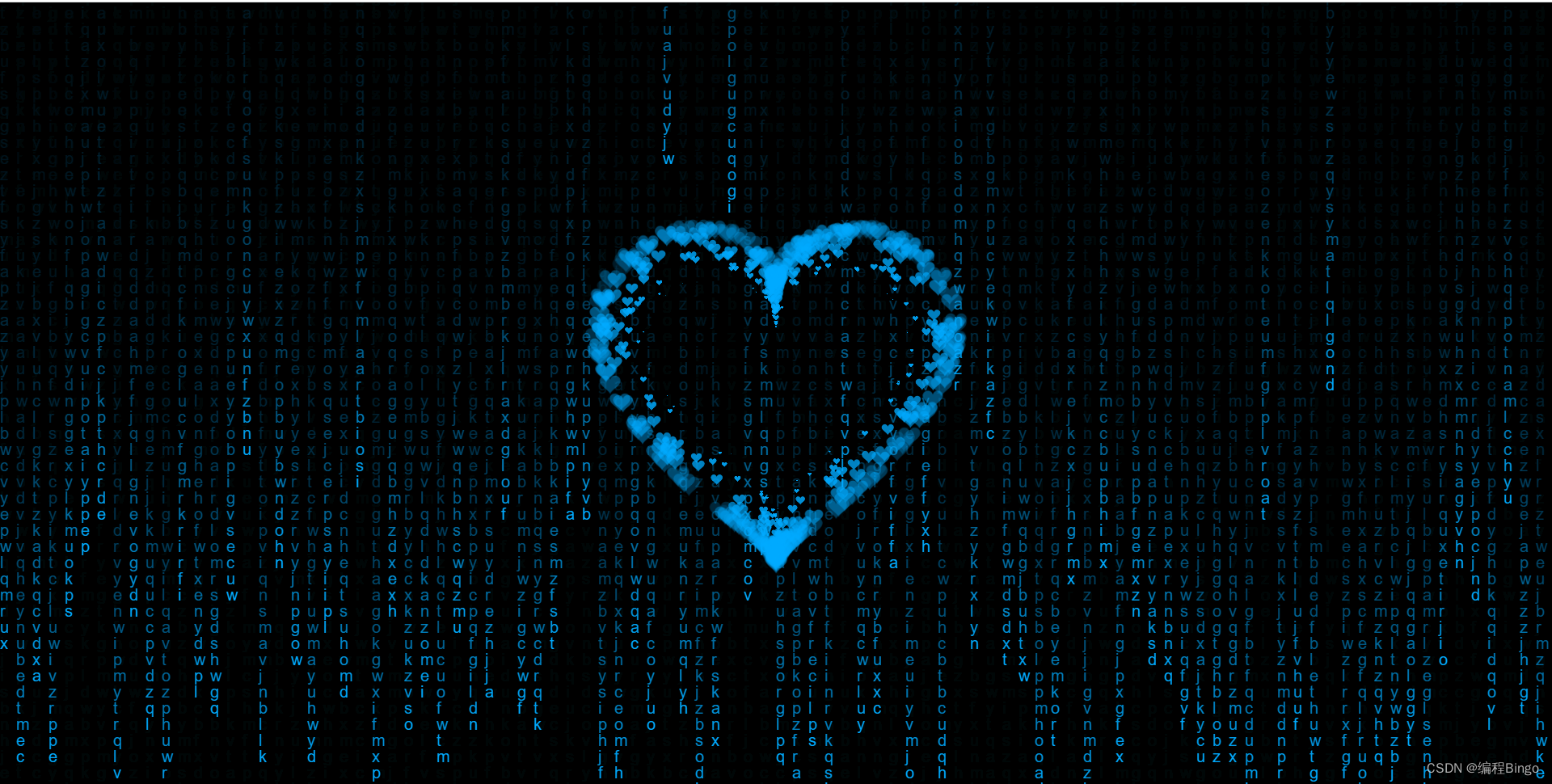

 更改两处颜色变不同颜色的动态爱心

1.背景颜色

2.爱心颜色
