配置四路由器静态路由

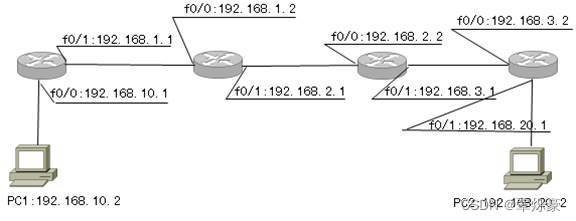

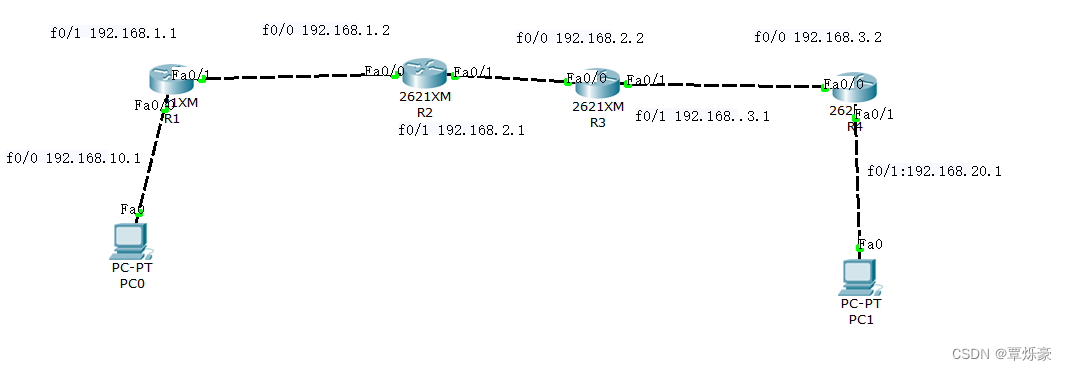

 拓扑图

配置思路：将R1和R4理解为接入层路由器所以只需要配置缺省路由即可

R1

    R1>enable
	R1>configure terminal
	R1>interface FastEthernet0/0
    R1> ip address 192.168.10.1 255.255.255.0
    R1>no shut
    R1>interface FastEthernet0/1
    R1>ip address 192.168.1.1 255.255.255.0
    R1>no shut
    R1>ip route 0.0.0.0 0.0.0.0 192.168.1.2 //缺省路由

R2

    R2>enable
	R2>configure terminal
	R2>interface FastEthernet0/0
    R2> ip address 192.168.1.2 255.255.255.0
    R2>no shut
    R2>interface FastEthernet0/1
	R2>ip address 192.168.2.1 255.255.255.0
	R2>no shut

ip route 192.168.10.0 255.255.255.0 192.168.1.1 //静态路由
ip route 192.168.3.0 255.255.255.0 192.168.2.2 //静态路由
ip route 192.168.20.0 255.255.255.0 192.168.2.2 //静态路由

R3



    R3>enable
	R3>configure terminal
	R3>interface FastEthernet0/0
    R3> ip address 192.168.2.2 255.255.255.0
    R3>no shut
    R3>interface FastEthernet0/1
	R3>ip address 192.168.3.1 255.255.255.0
	R3>no shut

ip route 192.168.20.0 255.255.255.0 192.168.3.2 //静态路由
ip route 192.168.1.0 255.255.255.0 192.168.2.1 //静态路由
ip route 192.168.10.0 255.255.255.0 192.168.2.1 //静态路由

R4



    R4>enable
	R4>configure terminal
	R4>interface FastEthernet0/0
    R4>ip address 192.168.3.2 255.255.255.0
    R4>no shut
    R4>interface FastEthernet0/1
	R4>ip address 192.168.20.1 255.255.255.0
	R4>no shut

ip route 0.0.0.0 0.0.0.0 192.168.3.1 //缺省路由

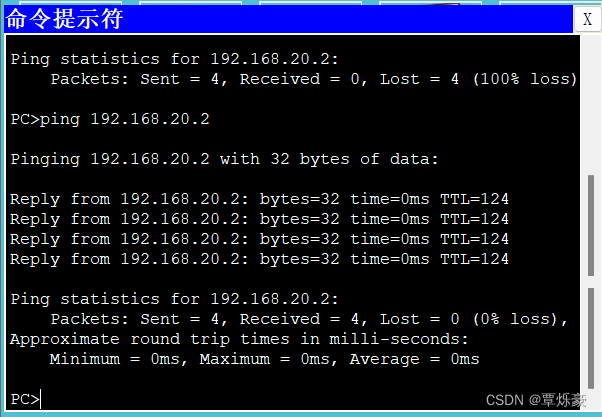

配置完成，测试
