总结

如果用几句话总结part 2B，那就是：
修改pingloop（也就是心跳循环），修改AppendEntries实现日志同步，修改RequestVote(选举要考虑日志term和条数)，增加Start(Leader的入口函数，附加日志条目)，增加rf.applyCh <- msg(commit日志到channel) 这些缺一不可，除此之外，可能还需要改一下之前关于日志声明、定义有问题的地方。
除论文外参考的文章：

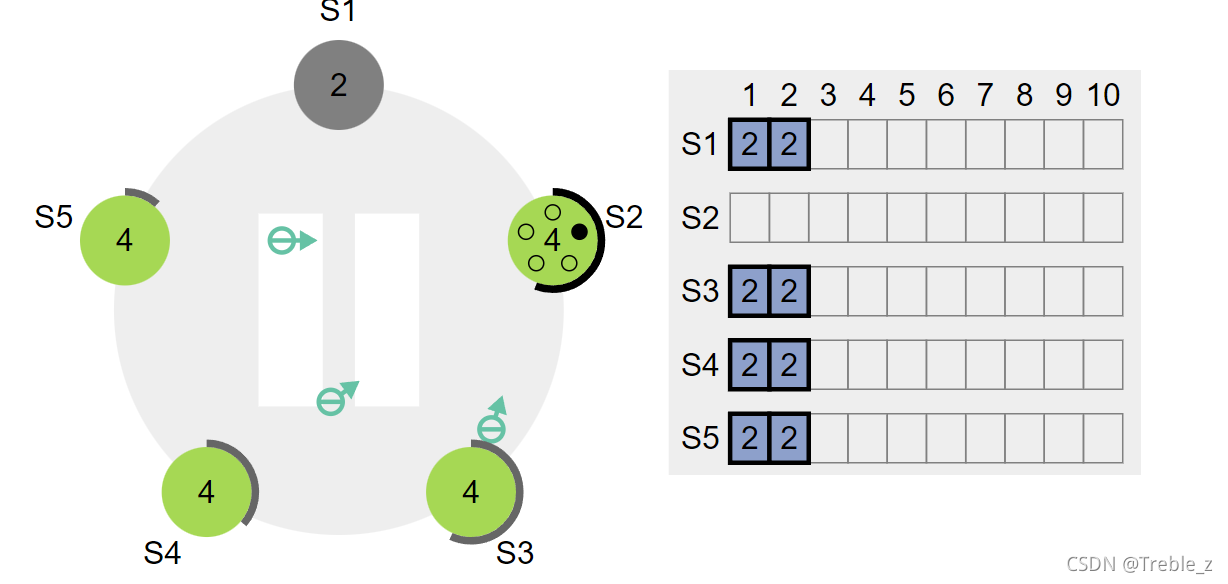

最重要的演示图

框架

一个实现

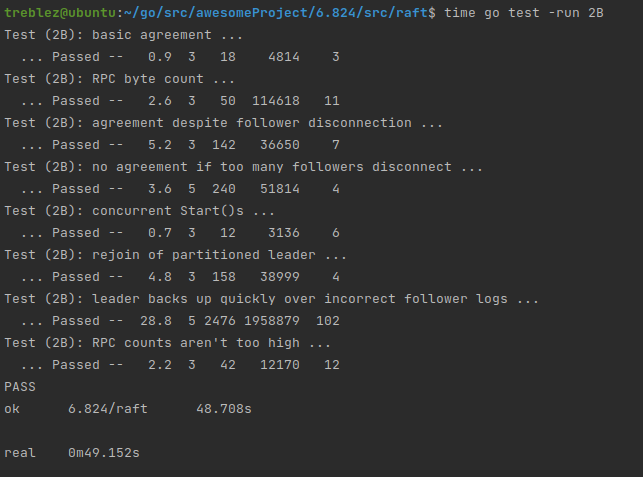

在这里插入图片描述

需要注意的地方

pingloop

  1. for遍历peers的时候一定要更新自己的matchIndex和nextIndex，用来更新leader commitIndex

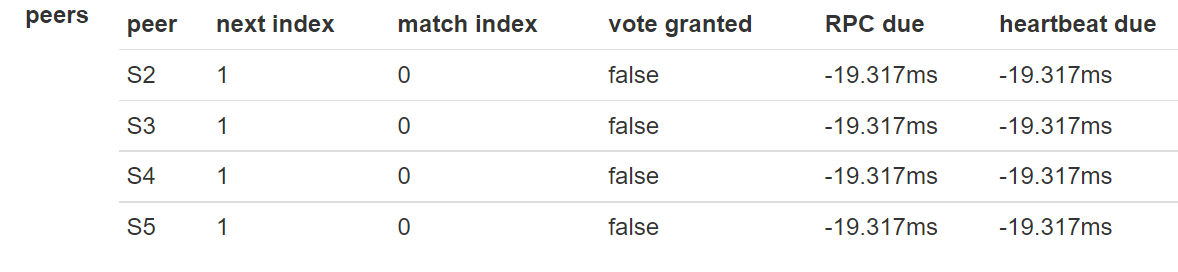

  2. Make初始化注意rf.log = make([]LogEntry, 1)确保log下标从1开始，和下图一致
    在这里插入图片描述
  3. getMajoritySameIndex用来在reply为success时更新commitIndex，查找算法为找到peers matchIndex的中位数，更新完之后，对在之前的commitIndex和之后的commitIndex之间的log进行setCommitIndex提交
  4. 如果reply为false，那么跳过一个term重新匹配

AppendEntries

  1. len(rf.log)-1<args.PrevLogIndex直接返回，reply.MatchIndex在2B没有用
  2. args.PrevLogIndex>0 && rf.log[args.PrevLogIndex].Term != args.PrevLogTerm删除不匹配的是可选的，如果不删除也可以通过
  3. 在保存日志的时候有脏数据必须截取append，否则有一个测试点跑不过

RequestVote

被选举人应该保有比选举人更新的数据，下图为false

Start

返回值依次为len(rf.log)、rf.currentTerm、是否为leader

rf.applyCh <- msg

ApplyMsg包括CommandValid、Command、CommandIndex，每次将一条信息通过channel发送给applyCh

代码实现

package raft

//
// this is an outline of the API that raft must expose to
// the service (or tester). see comments below for
// each of these functions for more details.
//
// rf = Make(...)
//   create a new Raft server.
// rf.Start(command interface{}) (index, Term, isleader)
//   start agreement on a new log entry
// rf.GetState() (Term, isLeader)
//   ask a Raft for its current Term, and whether it thinks it is leader
// ApplyMsg
//   each time a new entry is committed to the log, each Raft peer
//   should send an ApplyMsg to the service (or tester)
//   in the same server.
//

import (
	"math/rand"
	"sort"

	//	"bytes"
	"sync"
	"sync/atomic"
	"time"

	//	"6.824/labgob"
	"6.824/labrpc"
)

// ApplyMsg
// as each Raft peer becomes aware that successive log Entries are
// committed, the peer should send an ApplyMsg to the service (or
// tester) on the same server, via the applyCh passed to Make(). set
// CommandValid to true to indicate that the ApplyMsg contains a newly
// committed log entry.
//
// in part 2D you'll want to send other kinds of messages (e.g.,
// snapshots) on the applyCh, but set CommandValid to false for these
// other uses.
//
type ApplyMsg struct {
	CommandValid bool
	Command      interface{}
	CommandIndex int

	// For 2D:
	SnapshotValid bool
	Snapshot      []byte
	SnapshotTerm  int
	SnapshotIndex int
}

const (
	FOLLOWER = iota
	CANDIDATE
	LEADER
)
type LogEntry struct {
	Command interface{}
	//1
	Index 	int
	Term    int
}

//
// A Go object implementing a single Raft peer.
//
type Raft struct {
	mu        sync.Mutex          // Lock to protect shared access to this peer's state
	peers     []*labrpc.ClientEnd // RPC end points of all peers
	persister *Persister          // Object to hold this peer's persisted state
	me        int                 // this peer's index into peers[]
	dead      int32               // set by Kill()

	// Your data here (2A, 2B, 2C).
	// Look at the paper's Figure 2 for a description of what
	// state a Raft server must maintain.
	//persistent for all
	role			int
	currentTerm		int
	votedFor		int
	log 			[]LogEntry
	//volatile for all
	commitIndex		int
	lastApplied		int
	//volatile for leaders
	// 保存要发送的下一个follower条目
	nextIndex     []int
	//跟踪每一个leader和follower匹配到的日志条目
	matchIndex    []int
	electionTimer time.Timer
	lastElectionTimer 	time.Time
	electTime 		int64
	applyCh        chan ApplyMsg // 提交
}

// return currentTerm and whether this server
// believes it is the leader.
func (rf *Raft) GetState() (int, bool) {
	var term int
	var isleader bool
	// Your code here (2A).
	rf.mu.Lock()
	defer rf.mu.Unlock()
	term = rf.currentTerm
	isleader = rf.role==LEADER
	return term, isleader
}
func (rf *Raft) getElectTime() int64 {
	rand.Seed(int64(rf.me)*1000)
	return rand.Int63n(100) + 300
}
func (rf *Raft) becomeCandidate() {
	_, err := DPrintf("%d change to candidate, it role is %d", rf.me,rf.role)
	if err != nil {
		return
	}
	rf.role = CANDIDATE
	rf.currentTerm++
	rf.votedFor = rf.me
	//rf.persist()
}

func (rf *Raft) becomeFollower(term int) {
	rf.role = FOLLOWER
	rf.currentTerm = term
	rf.votedFor = -1
	//rf.persist()
	//rf.lastElectionTimer = time.Now()
	_, err := DPrintf("%d change to follower with Term %d", rf.me, rf.currentTerm)
	if err != nil {
		return
	}
}

func (rf *Raft) becomeLeader() {
	rf.role = LEADER
	//rf.persist()

	for i := 0; i < len(rf.peers); i++ {
		// 同步条目
		rf.matchIndex[i] = 0
		// 从最后一条开始试探
		rf.nextIndex[i] = len(rf.log)
	}

	go rf.pingLoop()
	_, err := DPrintf("%d change to leader", rf.me)
	if err != nil {
		return
	}
}

func (rf *Raft) electionLoop() {
	for !rf.killed() {
		// 等待选举超时
		rf.mu.Lock()
		// 跳过leader
		if rf.role == LEADER {

			rf.mu.Unlock()
		}else if time.Since(rf.lastElectionTimer).Milliseconds() > rf.electTime{
			_, err := DPrintf("%d time out!lastElectionTimer is %d," +
				"electTime is %d will get lock...", rf.me,
				time.Since(rf.lastElectionTimer).Milliseconds(),
				rf.electTime)
			if err != nil {
				return
			}
			//开始选举
			rf.becomeCandidate()
			// request vote from each Peer except itself
			// 发起选举
			lastLogIndex := len(rf.log) - 1
			args := RequestVoteArgs{
				Term:         rf.currentTerm,
				CandidateId:  rf.me,
				LastLogIndex: lastLogIndex,
				LastLogTerm:  rf.log[lastLogIndex].Term,
			}
			var conMutex sync.Mutex
			count := 1
			for server,_ := range rf.peers{
				if server==rf.me{
					rf.nextIndex[server] = len(rf.log)
					rf.matchIndex[server] = len(rf.log) - 1
					continue
				}
				go func(server int){
					reply := RequestVoteReply{}
					ok := rf.SendRequestVote(server, &args, &reply)
					rf.mu.Lock()
					defer rf.mu.Unlock()
					_, err := DPrintf("%d send Request to %d", rf.me, server)
					if err != nil {
						return
					}
					// 注意！处理过期的term
					if ok==false||reply.Term<rf.currentTerm{
						_, err := DPrintf("%d return be", rf.me)
						if err != nil {
							return
						}
						return
					}
					// 更大的term，更新并且变成follower
					if reply.Term>rf.currentTerm{
						rf.currentTerm = reply.Term
						rf.becomeFollower(reply.Term)
						return
					}
					if reply.VoteGranted {
						conMutex.Lock()
						defer conMutex.Unlock()
						//  已经是leader了，跳过
						if rf.role==LEADER{
							return
						}
						count = count + 1
						if count> len(rf.peers)/2 {
							rf.becomeLeader()
							_, err := DPrintf("%d get %d ticket,become leader",rf.me, count)
							if err != nil {
								return
							}
						}
					}
				}(server)
			}
			rf.lastElectionTimer = time.Now()
			rf.electTime = rf.getElectTime()
			rf.mu.Unlock()
		}else{
			rf.mu.Unlock()
		}
		time.Sleep(80 * time.Millisecond)
	}
}
func getMajoritySameIndex(matchIndex []int) int{
	tmp := make([]int,len(matchIndex))
	copy(tmp,matchIndex)
	sort.Sort(sort.Reverse(sort.IntSlice(tmp)))
	idx := len(tmp)/2
	return tmp[idx]
}
func (rf *Raft) pingLoop() {
	for {
		rf.mu.Lock()
		// 如果不是leader退出循环
		if rf.role != LEADER {
			_, err := DPrintf("%d not leader!",rf.me)
			if err != nil {
				return
			}
			rf.mu.Unlock()
			return
		}

		for server,_ := range rf.peers{
			//此處一定要更新自己的nextIndex和matchIndex
			// 作用是确保commitIndex的正确更新
			if server==rf.me{
				rf.nextIndex[server] = len(rf.log)
				rf.matchIndex[server] = len(rf.log) - 1
				continue
			}
			DPrintf("leader %d ,server %d,nextIndex %d,matchIndex %d,log size %d" ,
				rf.me,server,rf.nextIndex[server],rf.matchIndex[server],len(rf.log))
			args := AppendEntriesArgs{
				Term : rf.currentTerm,
				LeaderId : rf.me,
				LeaderCommit : rf.commitIndex,
				PrevLogIndex :rf.nextIndex[server]-1,
				PrevLogTerm : rf.log[(rf.nextIndex[server]-1)].Term,
			}
			args.Entries = make([]LogEntry, len(rf.log[(args.PrevLogIndex+1):]))
			copy(args.Entries, rf.log[(args.PrevLogIndex+1):])
			args.PrevLogTerm = rf.log[args.PrevLogIndex].Term
			rf.mu.Unlock()
			go func(server int){
				reply := AppendEntriesReply{}
				ok := rf.SendAppendEntries(server, &args, &reply)
				rf.mu.Lock()
				defer rf.mu.Unlock()
				if ok==false {
					return
				}

				if reply.Term>rf.currentTerm{
					rf.becomeFollower(reply.Term)
				}
				// 注意！判断Term 上下兩個判斷的位置不能顛倒
				if rf.role != LEADER || rf.currentTerm!=args.Term{
					return
				}
				if reply.Success {
					rf.matchIndex[server] = args.PrevLogIndex + len(args.Entries) // do not depend on len(rf.log)
					rf.nextIndex[server] = rf.matchIndex[server] + 1
					// 每次更新Peer的匹配
					majorityIndex := getMajoritySameIndex(rf.matchIndex)
					DPrintf("majorityIndex:%d",majorityIndex)
					if len(args.Entries) != 0 && rf.log[majorityIndex].Term == rf.currentTerm && majorityIndex > rf.commitIndex {
						for N:=rf.commitIndex;N<=majorityIndex;N++{
							rf.setCommitIndex(N)
						}
						rf.commitIndex = majorityIndex
						DPrintf("%v advance commit index to %v", rf, rf.commitIndex)
					}

				} else {
					//優化策略：如果不匹配，那麼跳過一個term
					prevIndex := args.PrevLogIndex
					for prevIndex > 0 && rf.log[prevIndex].Term == args.PrevLogTerm {
						prevIndex--
					}
					rf.nextIndex[server] = prevIndex + 1
				}

			}(server)
			rf.mu.Lock()
		}
		rf.mu.Unlock()
		time.Sleep(100*time.Millisecond)
	}
}
//func (rf *Raft) applyLoop() {
//	for {
//		time.Sleep(10 * time.Millisecond)
//		rf.mu.Lock()
//		for rf.lastApplied < rf.commitIndex {
//			rf.lastApplied++
//			rf.apply( rf.lastApplied，rf.log[rf.lastApplied]) // put to applyChan in the function
//		}
//		rf.mu.Unlock()
//	}
//}

//
// save Raft's persistent state to stable storage,
// where it can later be retrieved after a crash and restart.
// see paper's Figure 2 for a description of what should be persistent.
//
func (rf *Raft) persist() {
	// Your code here (2C).
	// Example:
	// w := new(bytes.Buffer)
	// e := labgob.NewEncoder(w)
	// e.Encode(rf.xxx)
	// e.Encode(rf.yyy)
	// data := w.Bytes()
	// rf.persister.SaveRaftState(data)
}


//
// restore previously persisted state.
//
func (rf *Raft) readPersist(data []byte) {
	if data == nil || len(data) < 1 { // bootstrap without any state?
		return
	}
	// Your code here (2C).
	// Example:
	// r := bytes.NewBuffer(data)
	// d := labgob.NewDecoder(r)
	// var xxx
	// var yyy
	// if d.Decode(&xxx) != nil ||
	//    d.Decode(&yyy) != nil {
	//   error...
	// } else {
	//   rf.xxx = xxx
	//   rf.yyy = yyy
	// }
}


//
// A service wants to switch to snapshot.  Only do so if Raft hasn't
// have more recent info since it communicate the snapshot on applyCh.
//
func (rf *Raft) CondInstallSnapshot(lastIncludedTerm int, lastIncludedIndex int, snapshot []byte) bool {

	// Your code here (2D).

	return true
}

// the service says it has created a snapshot that has
// all info up to and including index. this means the
// service no longer needs the log through (and including)
// that index. Raft should now trim its log as much as possible.
func (rf *Raft) Snapshot(index int, snapshot []byte) {
	// Your code here (2D).

}


//
// example RequestVote RPC arguments structure.
// field names must start with capital letters!
//
type RequestVoteArgs struct {
	// Your data here (2A, 2B).
	Term			int
	CandidateId		int
	LastLogIndex 	int
	LastLogTerm		int
}

//
// example RequestVote RPC reply structure.
// field names must start with capital letters!
//
type RequestVoteReply struct {
	// Your data here (2A).
	Term 	int
	VoteGranted	bool
}


func (rf *Raft) RequestVote(args *RequestVoteArgs, reply *RequestVoteReply) {

	// Your code here (2A, 2B).
	rf.mu.Lock()
	defer rf.mu.Unlock()
	_, err := DPrintf("%d RequestVote get from %d", rf.me,args.CandidateId)
	if err != nil {
		return
	}
	// 拒绝投票 term比較小 或者已經投過票了
	if args.Term<=rf.currentTerm ||
		(args.Term == rf.currentTerm && rf.votedFor != -1 && rf.votedFor != args.CandidateId){
		_, err := DPrintf("confuse vote to %d",args.CandidateId)
		if err != nil {
			return
		}
		reply.VoteGranted = false
		reply.Term = rf.currentTerm
		return
	}
	// 转换为follower
	if args.Term > rf.currentTerm{
		_, err := DPrintf("%d become to follower because of bigger term",rf.me)
		if err != nil {
			return
		}
		//转换为follower
		rf.becomeFollower(args.Term)
	}
	// 2B: candidate's vote should be at least up-to-date as receiver's log
	// "up-to-date" is defined in thesis 5.4.1
	// 被選舉人應當保有比選舉人更新的記錄
	lastLogIndex := len(rf.log) - 1
	if args.LastLogTerm < rf.log[lastLogIndex].Term ||
		(args.LastLogTerm == rf.log[lastLogIndex].Term &&
			args.LastLogIndex < (lastLogIndex)) {
		// Receiver is more up-to-date, does not grant vote
		reply.Term = rf.currentTerm
		reply.VoteGranted = false
		return
	}
	//更新Term
	reply.Term = rf.currentTerm

	//每个任期只能投票给一个人
	//2b 對比log的更新
	if rf.votedFor == -1 {
		_, err := DPrintf("%d vote to %d",rf.me, args.CandidateId)
		if err != nil {
			return
		}
		reply.VoteGranted = true
		rf.votedFor = args.CandidateId
		// 授予投票也要更新时间
		rf.lastElectionTimer = time.Now()
		// 投票之后再次更新Term！
		reply.Term = rf.currentTerm
	}
	rf.persist()
}
func (rf *Raft) SendRequestVote(server int, args *RequestVoteArgs, reply *RequestVoteReply) bool {
	ok := rf.peers[server].Call("Raft.RequestVote", args, reply)
	return ok
}

type AppendEntriesArgs struct {
	Term int
	LeaderId int
	PrevLogIndex int
	PrevLogTerm	int
	Entries      []LogEntry
	LeaderCommit int
}

type AppendEntriesReply struct{
	Term    int
	Success    bool
	MatchIndex int
}

func (rf *Raft) AppendEntries(args *AppendEntriesArgs, reply *AppendEntriesReply){
	rf.mu.Lock()
	defer rf.mu.Unlock()
	// 小于当前任
	reply.Success = false
	reply.MatchIndex = -1
	reply.Term = rf.currentTerm
	if args.Term<rf.currentTerm {
		reply.Term = rf.currentTerm
		return
	}
	// 发现更大的任期，则转为该任期的follower
	if args.Term > rf.currentTerm {
		rf.becomeFollower(args.Term)
	}
	// 不匹配返回重新匹配
	if len(rf.log)-1<args.PrevLogIndex{
		reply.MatchIndex = len(rf.log)
		return
	}
	//term不同的情况
	if args.PrevLogIndex>0 && rf.log[args.PrevLogIndex].Term != args.PrevLogTerm {
		rf.log = rf.log[0:args.PrevLogIndex] // delete the log in prevLogIndex and after it
		rf.persist()
		return
	}

	// 保存日志
	for i,logEntry := range args.Entries{
		index := args.PrevLogIndex + i +1
		if index > len(rf.log)-1{
			rf.log = append(rf.log, logEntry)
			DPrintf("rf.me %d,get entry，log size %d", rf.me, len(rf.log))
		}else{
			// 防止脏数据，任期不一致的时候截取重新append
			if rf.log[index].Term != logEntry.Term{
				rf.log = rf.log[:index]
				rf.log = append(rf.log, logEntry)
			}
		}
	}
	if args.LeaderCommit>rf.commitIndex{
		if len(rf.log)-1 < args.LeaderCommit{
			rf.commitIndex = len(rf.log)-1
		}else{
			rf.commitIndex = args.LeaderCommit
		}
		rf.setCommitIndex(rf.commitIndex)
	}
	// 正确的心跳包
	reply.Success = true
	rf.lastElectionTimer = time.Now()
	//日志操作
	rf.persist()
}
func (rf *Raft) SendAppendEntries(server int, args *AppendEntriesArgs, reply *AppendEntriesReply) bool {

	ok := rf.peers[server].Call("Raft.AppendEntries", args, reply)
	return ok
}

/*
	Start入口函数，应用层消息从此处发送给leader
*/
func (rf *Raft) Start(command interface{}) (int, int, bool) {
	rf.mu.Lock()
	defer rf.mu.Unlock()
	index := -1
	term := -1
	term = rf.currentTerm
	isLeader := rf.role==LEADER
	if isLeader{
		index = len(rf.log)
		rf.log = append(rf.log, LogEntry{
			Command: command,
			Index: index,
			Term: term,
		})
		DPrintf("leader %d ,get command %d", rf.me, index)
	}

	// Your code here (2B).

	return index, term, isLeader
}


//
// the tester doesn't halt goroutines created by Raft after each test,
// but it does call the Kill() method. your code can use killed() to
// check whether Kill() has been called. the use of atomic avoids the
// need for a lock.
//
// the issue is that long-running goroutines use memory and may chew
// up CPU time, perhaps causing later tests to fail and generating
// confusing debug output. any goroutine with a long-running loop
// should call killed() to check whether it should stop.
//
func (rf *Raft) Kill() {
	atomic.StoreInt32(&rf.dead, 1)
	// Your code here, if desired.
}

func (rf *Raft) killed() bool {
	z := atomic.LoadInt32(&rf.dead)
	return z == 1
}

// The ticker go routine starts a new election if this peer hasn't received
// heartsbeats recently.
func (rf *Raft) ticker() {
	for rf.killed() == false {

		// Your code here to check if a leader election should
		// be started and to randomize sleeping time using
		// time.Sleep().

	}
}

// Make
// the service or tester wants to create a Raft server. the ports
// of all the Raft servers (including this one) are in peers[]. this
// server's port is peers[me]. all the servers' peers[] arrays
// have the same order. persister is a place for this server to
// save its persistent state, and also initially holds the most
// recent saved state, if any. applyCh is a channel on which the
// tester or service expects Raft to send ApplyMsg messages.
// Make() must return quickly, so it should start goroutines
// for any long-running work.
//
func Make(peers []*labrpc.ClientEnd, me int,
	persister *Persister, applyCh chan ApplyMsg) *Raft {
	rf := &Raft{}
	rf.peers = peers
	rf.persister = persister
	rf.me = me
	rf.matchIndex = make([]int,len(peers))
	rf.nextIndex = make([]int,len(peers))
	// Your initialization code here (2A, 2B, 2C).
	//一开始的角色是FOLLOWER
	rf.role = FOLLOWER
	rf.votedFor = -1
	rf.commitIndex = 0
	rf.lastApplied = 0
	rf.currentTerm = 0
	// 注意！log從1開始
	rf.log = make([]LogEntry, 1)
	// initialize from state persisted before a crash
	rf.readPersist(persister.ReadRaftState())

	// start ticker goroutine to start elections
	//go rf.ticker()
	//设置选举过期时间
	rf.lastElectionTimer = time.Now()
	rf.electTime = rf.getElectTime()
	rf.applyCh = applyCh
	//开始选举循环
	go rf.electionLoop()

	return rf
}

// rf.applyCh 不要忘记在 Make 函数中使用传入的参数 applyCh 进行赋值
func (rf *Raft) setCommitIndex(commitIndex int) {
	rf.commitIndex = commitIndex
	// apply all entries between lastApplied and committed
	// should be called after commitIndex updated
	if rf.commitIndex > rf.lastApplied {
		entriesToApply := append([]LogEntry{}, rf.log[(rf.lastApplied+1):(rf.commitIndex+1)]...)
		go func(startIdx int, entries []LogEntry) {
			for idx, entry := range entries {
				var msg ApplyMsg
				msg.CommandValid = true
				msg.Command = entry.Command
				msg.CommandIndex = startIdx + idx
				rf.applyCh <- msg
				// do not forget to update lastApplied index
				// this is another goroutine, so protect it with lock
				rf.mu.Lock()
				if rf.lastApplied < msg.CommandIndex {
					rf.lastApplied = msg.CommandIndex
				}
				rf.mu.Unlock()
			}
		}(rf.lastApplied+1, entriesToApply)
	}
}
SakamataZ
关注
  • 0
    点赞
  • 踩
  • 0
    收藏
    觉得还不错? 一键收藏
  • 0
    评论
专栏目录
MIT_6.824:MIT6.824作业答案
05-18
MIT_6.824分布式系统课程作业 根据课程目录，阅读论文，完成以下的作业demo。 src/mapReduce src/raft， 基于go实现的raft协议 src/kvraft， 基于raft的分布式kv存储
【分布式】MIT 6.824 Lab 2B实现细节分析
最新发布
qq_40690815的博客
11-15 1018
MIT 6.824 2020版 Lab 2B 实验实现细节/关键点总结
6.824 Lab2 PartB实验部分
super_dmz的博客
10-04 210
测试文件内容分析 func TestBasicAgree2B(t *testing.T) { servers := 3 cfg := make_config(t, servers, false) defer cfg.cleanup() cfg.begin("Test (2B): basic agreement") iters := 3 for index := 1; index < iters+1; index++ { // 开始对应index处不应该有任何日志记录 nd,
mit6.824 第一次学习笔记（持续更新）
rsy56640的博客
03-28 2687
第一次过mit6.824，功利性比较强，有些拓展阅读之后再补。。。 github 地址：https://github.com/rsy56640/Distributed_System_Learning/tree/master/MIT6.824/1st_learning 持续更新 ...
Mit 6.824（二）
weixin_48433164的博客
02-25 479
文章目录分布式系统笔记（二）lecture 4 --Primary-Backup Replicationlecture 5 -- Go Threads and Raftlecture 6 -- fault tolerence raft（共识算法） 分布式系统笔记（二） lecture 4 --Primary-Backup Replication 单台计算机的故障停止fail-stop state transfer 状态转换 Replicated state machine 复制状态机方案 一个Linux
mit6.824-lab2-2A和2B
sadzyf的博客
04-03 1377
资料 实验官网：http://nil.csail.mit.edu/6.824/2018/labs/lab-raft.html 论文翻译：https://www.infoq.cn/article/raft-paper/ 视频讲解：https://www.bilibili.com/video/BV1TW411M7Fx?from=search&seid=6824636064276951860 动...
MIT6.824-2018-Chinese:MIT 6.824（分布式系统）的中文版
03-11
MIT6.824-2018-中文MIT 6.824（分布式系统）的中文版有关详细信息，请参见 。介绍之前的项目（ ）由于个人原因（懒狗一条，外加毕业和工作的事）虎头蛇尾地扔在了一边。最近突然翻出来一看，觉得自己写的真的很shi。...
6.824-labs:我在MIT 6.824上的实现
03-09
6.824-labs:我在MIT 6.824上的实现
MIT6.824-LAB:Lab2-Lab4
03-14
MIT6.824-LAB:Lab2-Lab4
MIT6.824-2017-Chinese:MIT 6.824（分布式系统）的中文版
03-11
6.824是用Go语言实现的一个简单的分布式系统。学习该课程可以让你对分布式系统原理有一个广泛深入的认识。 在开始学习之前，最好能拥有一定的计算机网络以及操作系统的知识。 之所以选择这一门课，我主要有以下几个...
6.824-2018:MIT 6.824 2018实验。 MIT6.824分布式系统（2018秋）
03-11
6.824-2018 MIT 6.824 2018实验。 MIT6.824分布式系统（2018秋）https://www.jianshu.com/本人最近在更新MIT的论文系列，读论文有困难的小伙伴可以来一起探讨 //www.jianshu.com/
MIT 6.824 分布式课程Lab2 2B 日志追加实现
码墨
03-07 1536
这部分主要实现附加日志部分，即一致性操作。主要涉及到完善Start()函数，完善附加日志请求AppendEntries RPC和回复AppendEntriesReply RPC结构，并实现附加日志过程函数。 一、AppendEntries和AppendEntriesReply结构 根据论文来完善AppendEntries结构： 附加日志请求AppendEntries RPC: 由领导人负责用来复...
Raft分布式一致性算法学习资料
小凯的博客
09-12 951
Learning Material A website that contains the visualization, implementation and courses materials a simple visualization of raft(friendly to newcomer) Raft Paper Raft Paper Chinese version notes on Ra...
2020 6.824 的 Raft Lab 2B
Bokk的博客
11-21 1255
目录前言一、Raft2B二、SendHeartbeat2.1 框架2.2、发送部分的AppendEntriesArgs2.3、接收部分的处理2.3.1 成功处理2.3.2 失败处理2.4、最后, SendHeartbeat的实现如下三、 AppendEntries3.1 整体框架3.2 日志对比3.3 日志保存3.4 跟新commitIndex3.5 最后, AppendEntries的实现如下四、 其他一些相关修改4.1 start4.2 RequestVote跟新4.3 ApplyLog总结 前言 做
Mit6.824-lab2b-2022
qq_41703198的博客
09-28 739
2b是整个raft最重要的部分，这部分的完成度与严谨与否，直接决定了2c和2d实验的难易程度，如果2a和2b的代码可以完美符合论文的要求，那2c和2d只是额外添加一部分功能代码而已。但是2a和2b部分的测试并不能保证所有情况都被测试到，因此自己完成代码的时候一定要尽量多读几遍paper，保证自己逻辑通顺，所有的功能代码尽善尽美。
MIT6.824 分布式系统 lab1
Poundssss的博客
09-26 6438
前言之前做了MIT6.828操作系统课程，过程很痛苦，也学到了很多。不过最大的收货还是发现了非常好的学习方式——刷顶级名校的闻名课程。自然同样是麻省理工久负盛名的分布式系统课程MIT6.824就顺理成章的加入了todolist。值得议一提的是，这两门课程都是同一个实验室出品，实在是良心。我的项目地址在:github.com/T0mmyliu/distributed-system-course-MIT
MIT6.824 Lab2实现与踩坑
arccosY的博客
01-19 2072
Lab2要求实现Raft协议，最主要的就是实现两个RPC方法——RequestVote和AppendEntries，每个RPC方法的参数、返回值和处理流程要完全按照论文来实现，同时要参考课程给出的Raft Structure Advice和Student Guide。下面对论文中的一些细节和go语言的实现细节做一些记录 一、Lab2A Lab2A只需要实现leader election这一个功能，测试也只有两个，但也是整个Lab2，3，4的开始，所以并不简单 currentTerm和votedFor的改变：
6.824 lab2A
z1213035927的博客
02-10 1223
引言 恰逢寒假准备实习，便重新拾起6.824的lab，lab2主要是对Raft论文的复现，本文实现了2A部分的内容，lab2的内容难度还是很大的，写下此文便于日后复习使用。 Reference： Raft论文翻译 MIT 6.824 Lab2 翻译 Raft 算法详解（一）领导者选举 MIT 6.824 lab2 PartA 正文 2A部分将实现领导人选举和心跳包的发送，关于Raft工作原理的内容不再赘述，详见Raft论文。 一、结构体的创建和初始化 通过论文中的figure 2，便可
MIT 6.824 分布式课程Lab2 2A Raft领导者选举和心跳机制
码墨
02-28 2085
一、Raft选主流程 当新集群启动的时候，所有的机器A、B、C的默认状态是Follower，所有的机器地址endpoint作为初始化参数传入进程。 如果收到心跳，则作为Follower开始工作，选主结束。如果超过一段随机选举超时时间后（在一定范围且大于心跳时间）， 开始发起Election。随机的目的是为了保证不要同时发起Election，在少数情况下可能会发生同时发起选举情况。 集群初始化时没...
mit6.824概括
08-29
MIT 6.824是一门关于分布式系统的课程。根据引用中提到的信息，MIT 6.824的中文版详细信息可以在相应的网站上找到。这门课程在引用中列出了2020年春季的课程表。此外，根据引用中的描述，MIT 6.824是一门非常有名的网上公开课。<span class="em">1</span><span class="em">2</span><span class="em">3</span> #### 引用[.reference_title] - *1* [MIT6.824-2018-Chinese:MIT 6.824（分布式系统）的中文版](https://download.csdn.net/download/weixin_42166261/15734169)[target="_blank" data-report-click={"spm":"1018.2226.3001.9630","extra":{"utm_source":"vip_chatgpt_common_search_pc_result","utm_medium":"distribute.pc_search_result.none-task-cask-2~all~insert_cask~default-1-null.142^v93^chatsearchT3_2"}}] [.reference_item style="max-width: 50%"] - *2* *3* [2020 MIT 6.824 分布式系统课程](https://blog.csdn.net/jiangshouzhuang/article/details/104528806)[target="_blank" data-report-click={"spm":"1018.2226.3001.9630","extra":{"utm_source":"vip_chatgpt_common_search_pc_result","utm_medium":"distribute.pc_search_result.none-task-cask-2~all~insert_cask~default-1-null.142^v93^chatsearchT3_2"}}] [.reference_item style="max-width: 50%"] [ .reference_list ]

“相关推荐”对你有帮助么？

  • 非常没帮助
  • 没帮助
  • 一般
  • 有帮助
  • 非常有帮助
提交
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
