一、前言

Oauth2中的资源服务Resource需要验证令牌，就要配置令牌的解码器JwtDecoder，认证服务器的公钥等等。如果有多个资源服务Resource，就要重复配置，比较繁锁。把公共的配置信息抽取出来，制成starter，可以极大地简化操作。

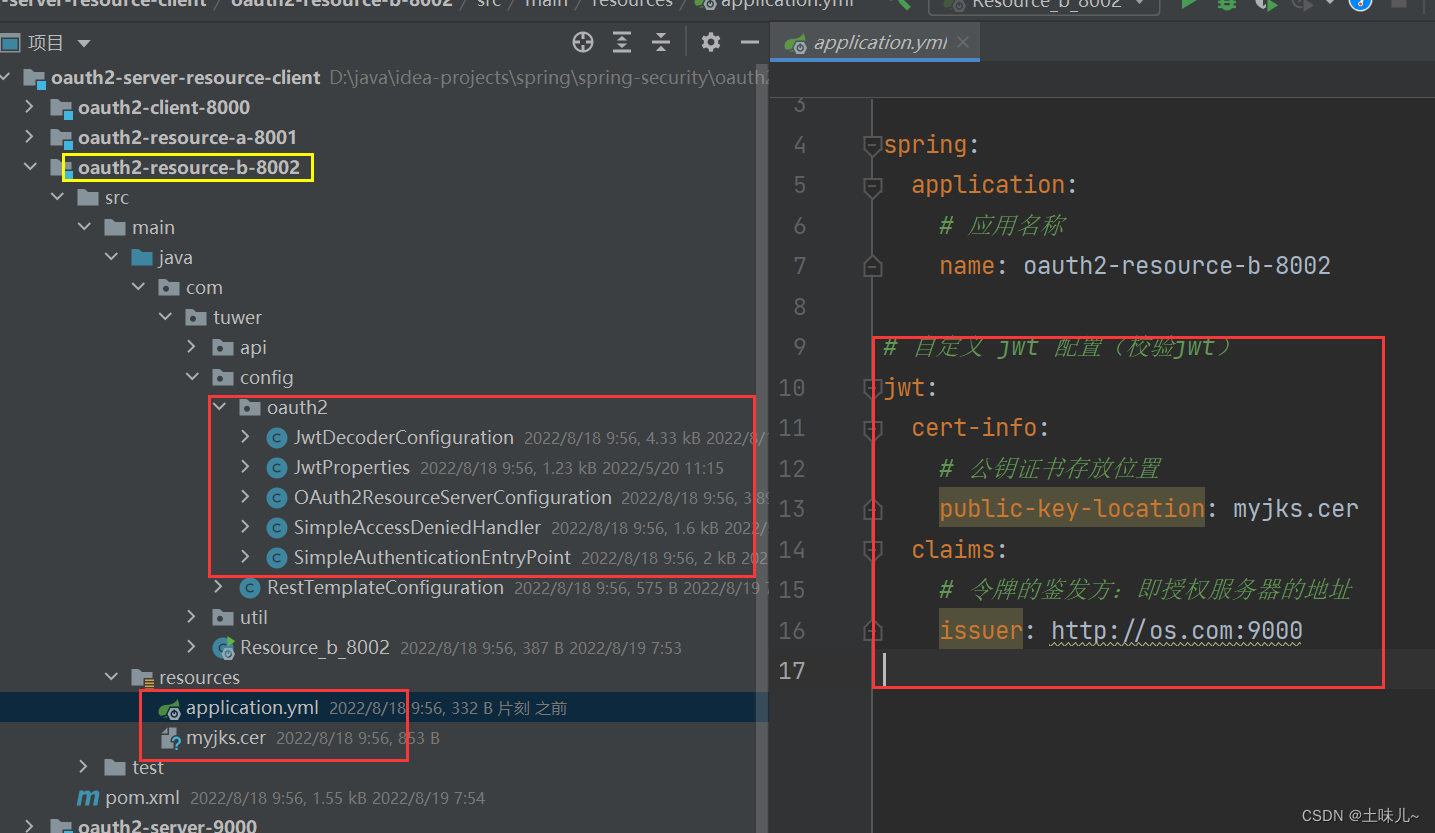

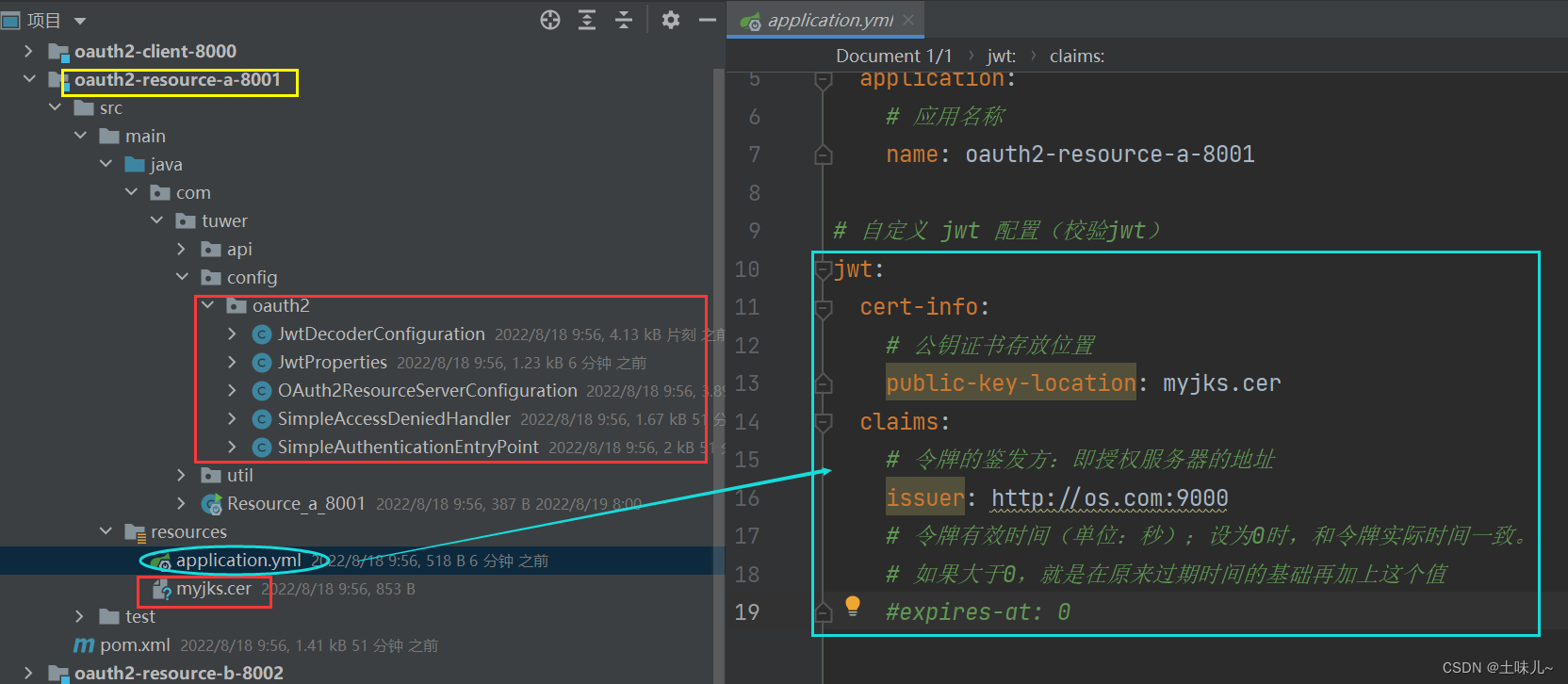

未使用starter的原来配置

在这里插入图片描述

二、制作starter

详细步骤参考：自定义启动器 Starter【保姆级教程】

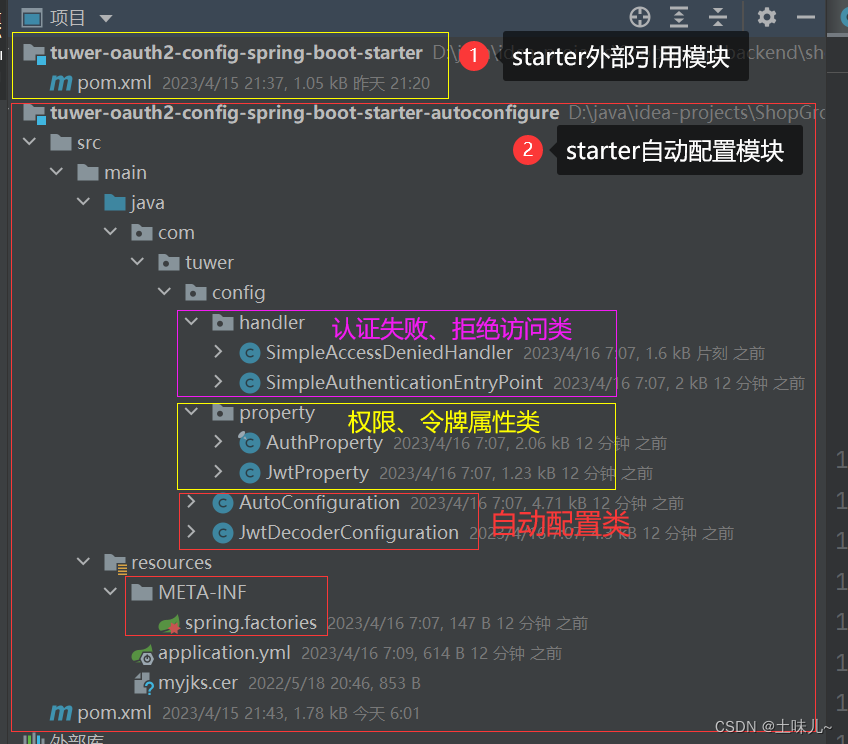

1、完整结构图

在这里插入图片描述

2、外部引用模块

名称：tuwer-oauth2-config-spring-boot-starter

普通的 maven 项目

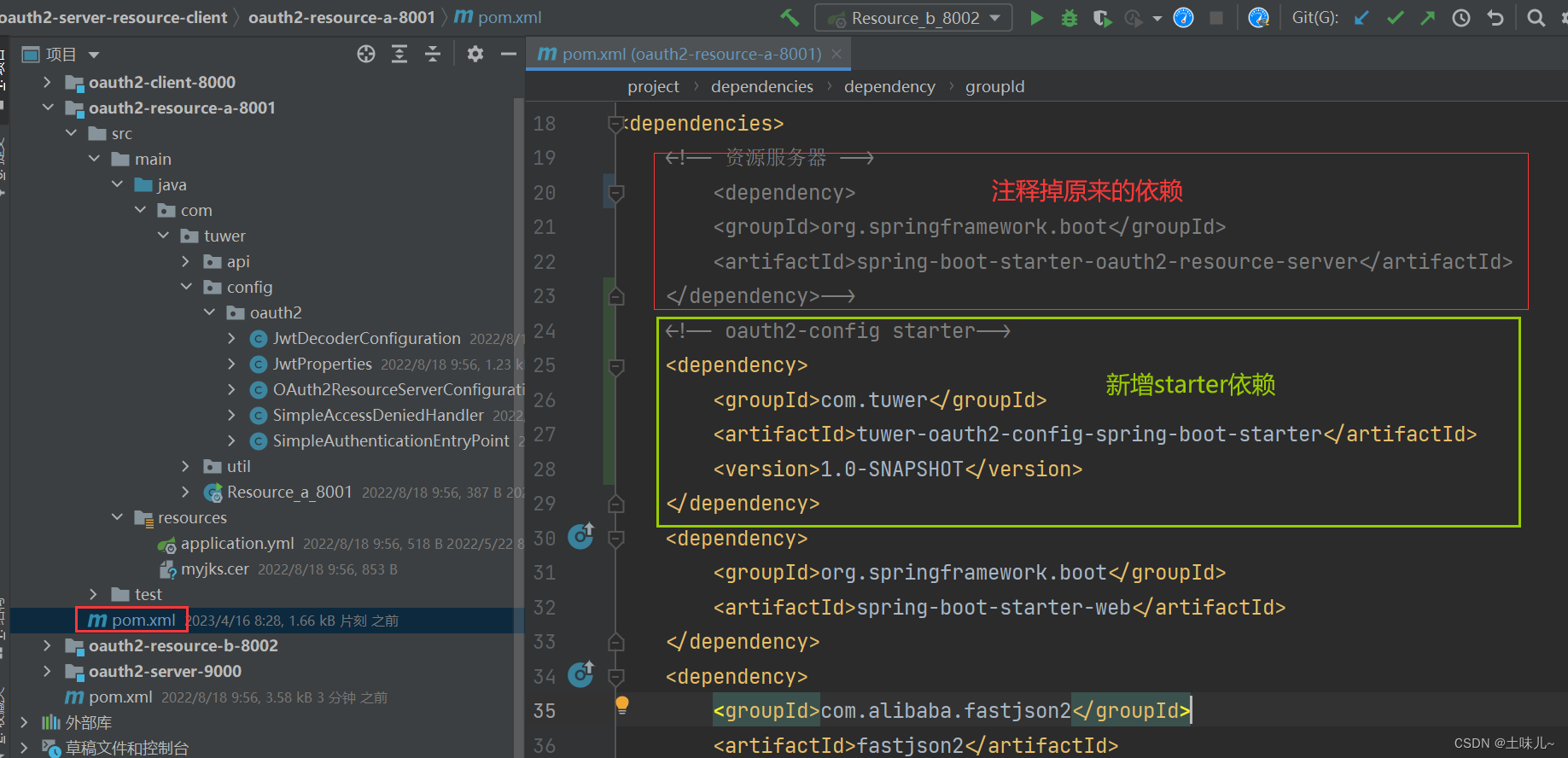

资源服务中引入该模块的依赖即可

模块中只有一个pom.xml文件，其余的都可删除

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.tuwer</groupId>
    <artifactId>tuwer-oauth2-config-spring-boot-starter</artifactId>
    <version>1.0-SNAPSHOT</version>
    <description>oauth2-config启动器</description>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <!-- 编译编码 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- 自动配置模块 -->
        <dependency>
            <groupId>com.tuwer</groupId>
            <artifactId>tuwer-oauth2-config-spring-boot-starter-autoconfigure</artifactId>
            <version>1.0-SNAPSHOT</version>
        </dependency>
    </dependencies>
</project>

3、自动配置模块

核心模块

名称：tuwer-oauth2-config-spring-boot-starter-autoconfigure

spring boot 项目

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.6.7</version>
    </parent>
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.tuwer</groupId>
    <artifactId>tuwer-oauth2-config-spring-boot-starter-autoconfigure</artifactId>
    <version>1.0-SNAPSHOT</version>
    <description>oauth2-config启动器自动配置模块</description>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <!-- 编译编码 -->
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
    </properties>

    <dependencies>
        <!-- 基础启动器 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter</artifactId>
        </dependency>
        <!-- 资源服务器 -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-oauth2-resource-server</artifactId>
        </dependency>
        <!-- web -->
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <!-- lombok -->
        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.22</version>
        </dependency>
    </dependencies>
</project>

handler（拒绝访问、认证失败）处理类

package com.tuwer.config.handler;

import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.SneakyThrows;
import org.springframework.http.MediaType;
import org.springframework.security.access.AccessDeniedException;
import org.springframework.security.web.access.AccessDeniedHandler;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.HashMap;

/**
 * <p>拒绝访问处理器</p>
 *
 * @author 土味儿
 * Date 2022/5/11
 * @version 1.0
 */
public class SimpleAccessDeniedHandler implements AccessDeniedHandler {
    @SneakyThrows
    @Override
    public void handle(HttpServletRequest request,
                       HttpServletResponse response,
                       AccessDeniedException accessDeniedException
    ) throws IOException, ServletException {
        //todo your business
        HashMap<String, String> map = new HashMap<>(2);
        map.put("uri", request.getRequestURI());
        map.put("msg", "拒绝访问");
        response.setStatus(HttpServletResponse.SC_FORBIDDEN);
        response.setCharacterEncoding("utf-8");
        response.setContentType(MediaType.APPLICATION_JSON_VALUE);
        ObjectMapper objectMapper = new ObjectMapper();
        String resBody = objectMapper.writeValueAsString(map);
        PrintWriter printWriter = response.getWriter();
        printWriter.print(resBody);
        printWriter.flush();
        printWriter.close();
    }
}

package com.tuwer.config.handler;

import com.fasterxml.jackson.databind.ObjectMapper;
import lombok.SneakyThrows;
import org.springframework.http.MediaType;
import org.springframework.security.core.AuthenticationException;
import org.springframework.security.oauth2.server.resource.InvalidBearerTokenException;
import org.springframework.security.web.AuthenticationEntryPoint;

import javax.servlet.ServletException;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
import java.io.PrintWriter;
import java.util.HashMap;

/**
 * <p>认证失败处理器</p>
 *
 * @author 土味儿
 * Date 2022/5/11
 * @version 1.0
 */
public class SimpleAuthenticationEntryPoint implements AuthenticationEntryPoint {
    @SneakyThrows
    @Override
    public void commence(HttpServletRequest request,
                         HttpServletResponse response,
                         AuthenticationException authException
    ) throws IOException, ServletException {
        HashMap<String, String> map = new HashMap<>(2);
        if (authException instanceof InvalidBearerTokenException) {
            // 令牌失效
            System.out.println("token失效");
            //todo token处理逻辑
        }
        map.put("uri", request.getRequestURI());
        map.put("msg", "认证失败");
        if (response.isCommitted()) {
            return;
        }
        response.setStatus(HttpServletResponse.SC_UNAUTHORIZED);
        response.setStatus(HttpServletResponse.SC_ACCEPTED);
        response.setCharacterEncoding("utf-8");
        response.setContentType(MediaType.APPLICATION_JSON_VALUE);
        ObjectMapper objectMapper = new ObjectMapper();
        String resBody = objectMapper.writeValueAsString(map);
        PrintWriter printWriter = response.getWriter();
        printWriter.print(resBody);
        printWriter.flush();
        printWriter.close();
    }
}

property（权限、令牌）属性类

权限属性类：AuthProperty，通过application.yml来配置权限，避免在自动配置类中以硬编码的形式写入权限

package com.tuwer.config.property;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.util.CollectionUtils;

import java.util.Set;

/**
 * <p>权限属性类</p>
 *
 * @author 土味儿
 * Date 2022/9/2
 * @version 1.0
 */
@Data
@ConfigurationProperties(prefix = "resource-auth")
public final class AuthProperty {
    private Authority authority;

    /**
     * 权限
     */
    @Data
    public static class Authority {
        private Set<String> roles;
        private Set<String> scopes;
        private Set<String> auths;
    }

    /**
     * 组装权限字符串
     * 目的：给 hasAnyAuthority() 方法生成参数
     * @return
     */
    public String getAllAuth() {
        StringBuilder res = new StringBuilder();

        // 角色
        Set<String> roles = this.authority.roles;
        // 角色非空时
        if (!CollectionUtils.isEmpty(roles)) {
            for (String role : roles) {
                res.append(role).append("','");
            }
            // 循环结果后，生成类似：x ',' y ',' z ','
        }

        // 范围
        Set<String> scopes = this.authority.scopes;
        // 非空时
        if (!CollectionUtils.isEmpty(scopes)) {
            for (String scope : scopes) {
                res.append("SCOPE_" + scope).append("','");
            }
            // 循环结果后，生成类似：x ',' y ',' z ',' SCOPE_a ',' SCOPE_b ',' SCOPE_c ','
        }

        // 细粒度权限
        Set<String> auths = this.authority.auths;
        // 非空时
        if (!CollectionUtils.isEmpty(auths)) {
            for (String auth : auths) {
                res.append(auth).append("','");
            }
            // 循环结果后，生成类似：x ',' y ',' z ',' SCOPE_a ',' SCOPE_b ',' SCOPE_c ',' l ',' m ',' n ','
        }

        // 如果res不为空，去掉最后多出的三个字符 ','
        int len = res.length();
        if (len > 3) {
            res.delete(len - 3, len);
        }

        return res.toString();
    }
}

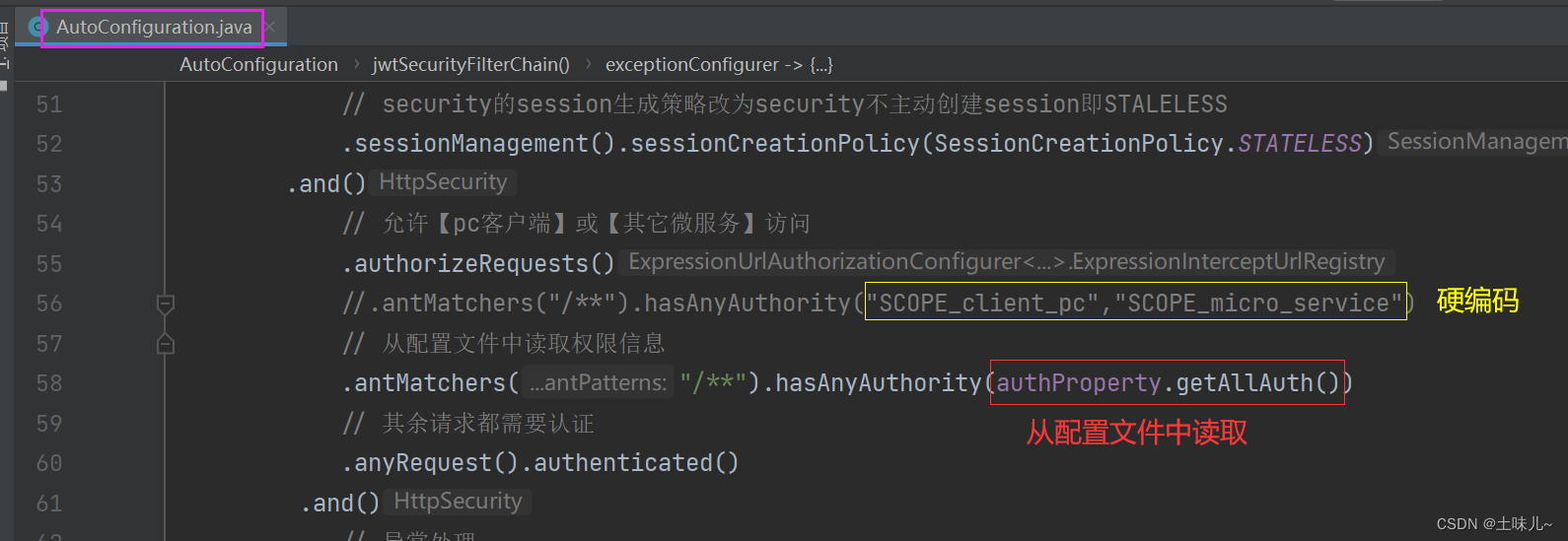

在这里插入图片描述

package com.tuwer.config.property;

import lombok.Data;
import org.springframework.boot.context.properties.ConfigurationProperties;

/**
 * <p>属性配置类</p>
 *
 * @author 土味儿
 * Date 2022/5/11
 * @version 1.0
 */
@Data
@ConfigurationProperties(prefix = "jwt")
public class JwtProperty {
    /*
    ======= 配置示例 ======
    # 自定义 jwt 配置
    jwt:
        cert-info:
            # 证书存放位置
            public-key-location: myKey.cer
        claims:
            # 令牌的鉴发方：即授权服务器的地址
            issuer: http://os:9000
    */
    /**
     * 证书信息（内部静态类）
     * 证书存放位置...
     */
    private CertInfo certInfo;

    /**
     * 证书声明（内部静态类）
     * 发证方...
     */
    private Claims claims;

    @Data
    public static class Claims {
        /**
         * 发证方
         */
        private String issuer;
        /**
         * 有效期
         */
        //private Integer expiresAt;
    }

    @Data
    public static class CertInfo {
        /**
         * 证书存放位置
         */
        private String publicKeyLocation;
    }
}

解码器自动配置类

package com.tuwer.config;

import com.nimbusds.jose.jwk.RSAKey;
import com.tuwer.config.property.JwtProperty;
import lombok.SneakyThrows;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.context.annotation.Primary;
import org.springframework.core.io.ClassPathResource;
import org.springframework.security.oauth2.core.DelegatingOAuth2TokenValidator;
import org.springframework.security.oauth2.core.OAuth2TokenValidator;
import org.springframework.security.oauth2.jwt.Jwt;
import org.springframework.security.oauth2.jwt.JwtDecoder;
import org.springframework.security.oauth2.jwt.JwtIssuerValidator;
import org.springframework.security.oauth2.jwt.NimbusJwtDecoder;

import javax.annotation.Resource;
import java.io.InputStream;
import java.security.cert.CertificateFactory;
import java.security.cert.X509Certificate;
import java.security.interfaces.RSAPublicKey;
import java.util.Collection;

/**
 * <p>自定义jwt解码器</p>
 *
 * @author 土味儿
 * Date 2022/5/11
 * @version 1.0
 */
@EnableConfigurationProperties(JwtProperty.class)
@Configuration
public class JwtDecoderConfiguration {
    /**
     * 注入 JwtProperties 属性配置类
     */
    @Resource
    private JwtProperty jwtProperty;

    /**
     *  校验jwt发行者 issuer 是否合法
     *
     * @return the jwt issuer validator
     */
    @Bean
    JwtIssuerValidator jwtIssuerValidator() {
        return new JwtIssuerValidator(this.jwtProperty.getClaims().getIssuer());
    }

/*
    *
     *  校验jwt是否过期
     *
     * @return the jwt timestamp validator
*/
/*    @Bean
    JwtTimestampValidator jwtTimestampValidator() {
        System.out.println("检测令牌是否过期！"+ LocalDateTime.now());
        return new JwtTimestampValidator(Duration.ofSeconds((long) this.jwtProperties.getClaims().getExpiresAt()));
    }*/

    /**
     * jwt token 委托校验器，集中校验的策略{@link OAuth2TokenValidator}
     *
     * // @Primary：自动装配时当出现多个Bean候选者时，被注解为@Primary的Bean将作为首选者，否则将抛出异常
     * @param tokenValidators the token validators
     * @return the delegating o auth 2 token validator
     */
    @Primary
    @Bean({"delegatingTokenValidator"})
    public DelegatingOAuth2TokenValidator<Jwt> delegatingTokenValidator(Collection<OAuth2TokenValidator<Jwt>> tokenValidators) {
        return new DelegatingOAuth2TokenValidator<>(tokenValidators);
    }

    /**
     * 基于Nimbus的jwt解码器，并增加了一些自定义校验策略
     *
     * // @Qualifier 当有多个相同类型的bean存在时，指定注入
     * @param validator DelegatingOAuth2TokenValidator<Jwt> 委托token校验器
     * @return the jwt decoder
     */
    @SneakyThrows
    @Bean
    public JwtDecoder jwtDecoder(@Qualifier("delegatingTokenValidator")
                                         DelegatingOAuth2TokenValidator<Jwt> validator) {
        // 指定 X.509 类型的证书工厂
        CertificateFactory certificateFactory = CertificateFactory.getInstance("X.509");
        // 读取cer公钥证书来配置解码器
        String publicKeyLocation = this.jwtProperty.getCertInfo().getPublicKeyLocation();
        // 获取证书文件输入流
        ClassPathResource resource = new ClassPathResource(publicKeyLocation);
        InputStream inputStream = resource.getInputStream();
        // 得到证书
        X509Certificate certificate = (X509Certificate) certificateFactory.generateCertificate(inputStream);
        // 解析
        RSAKey rsaKey = RSAKey.parse(certificate);
        // 得到公钥
        RSAPublicKey key = rsaKey.toRSAPublicKey();
        // 构造解码器
        NimbusJwtDecoder nimbusJwtDecoder = NimbusJwtDecoder.withPublicKey(key).build();
        // 注入自定义JWT校验逻辑
        nimbusJwtDecoder.setJwtValidator(validator);
        return nimbusJwtDecoder;
    }
}

主自动配置类：安全权限等

package com.tuwer.config;

import com.tuwer.config.handler.SimpleAccessDeniedHandler;
import com.tuwer.config.handler.SimpleAuthenticationEntryPoint;
import com.tuwer.config.property.AuthProperty;
import org.springframework.boot.autoconfigure.condition.ConditionalOnBean;
import org.springframework.boot.context.properties.EnableConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.security.config.annotation.web.builders.HttpSecurity;
import org.springframework.security.config.annotation.web.configuration.WebSecurityCustomizer;
import org.springframework.security.config.http.SessionCreationPolicy;
import org.springframework.security.oauth2.jwt.JwtClaimNames;
import org.springframework.security.oauth2.jwt.JwtDecoder;
import org.springframework.security.oauth2.server.resource.authentication.JwtAuthenticationConverter;
import org.springframework.security.oauth2.server.resource.authentication.JwtGrantedAuthoritiesConverter;
import org.springframework.security.web.SecurityFilterChain;

import javax.annotation.Resource;

/**
 * <p>资源服务器配置</p>
 * 当解码器JwtDecoder存在时生效
 *
 * @author 土味儿
 * Date 2022/5/11
 * @version 1.0
 */
@ConditionalOnBean(JwtDecoder.class)
@EnableConfigurationProperties(AuthProperty.class)
@Configuration
public class AutoConfiguration {
    @Resource
    private AuthProperty authProperty;
    /**
     * 资源管理器配置
     *
     * @param http the http
     * @return the security filter chain
     * @throws Exception the exception
     */
    @Bean
    SecurityFilterChain jwtSecurityFilterChain(HttpSecurity http) throws Exception {
        // 拒绝访问处理器 401
        SimpleAccessDeniedHandler accessDeniedHandler = new SimpleAccessDeniedHandler();
        // 认证失败处理器 403
        SimpleAuthenticationEntryPoint authenticationEntryPoint = new SimpleAuthenticationEntryPoint();

        return http
                // security的session生成策略改为security不主动创建session即STALELESS
                .sessionManagement().sessionCreationPolicy(SessionCreationPolicy.STATELESS)
            .and()
                // 允许【pc客户端】或【其它微服务】访问
                .authorizeRequests()
                //.antMatchers("/**").hasAnyAuthority("SCOPE_client_pc","SCOPE_micro_service")
                // 从配置文件中读取权限信息
                .antMatchers("/**").hasAnyAuthority(authProperty.getAllAuth())
                // 其余请求都需要认证
                .anyRequest().authenticated()
             .and()
                // 异常处理
                .exceptionHandling(exceptionConfigurer -> exceptionConfigurer
                        // 拒绝访问
                        .accessDeniedHandler(accessDeniedHandler)
                        // 认证失败
                        .authenticationEntryPoint(authenticationEntryPoint)
                )
                // 资源服务
                .oauth2ResourceServer(resourceServer -> resourceServer
                        .accessDeniedHandler(accessDeniedHandler)
                        .authenticationEntryPoint(authenticationEntryPoint)
                        .jwt()
                )
                .build();
    }


    /**
     * JWT个性化解析
     *
     * @return
     */
    @Bean
    JwtAuthenticationConverter jwtAuthenticationConverter() {
        JwtAuthenticationConverter jwtAuthenticationConverter = new JwtAuthenticationConverter();
        JwtGrantedAuthoritiesConverter jwtGrantedAuthoritiesConverter = new JwtGrantedAuthoritiesConverter();
//        如果不按照规范  解析权限集合Authorities 就需要自定义key
//        jwtGrantedAuthoritiesConverter.setAuthoritiesClaimName("scopes");
//        OAuth2 默认前缀是 SCOPE_     Spring Security 是 ROLE_
//        jwtGrantedAuthoritiesConverter.setAuthorityPrefix("");
        jwtAuthenticationConverter.setJwtGrantedAuthoritiesConverter(jwtGrantedAuthoritiesConverter);
        // 用户名 可以放sub
        jwtAuthenticationConverter.setPrincipalClaimName(JwtClaimNames.SUB);
        return jwtAuthenticationConverter;
    }

    /**
     * 开放一些端点的访问控制
     * 不需要认证就可以访问的端口
     * @return
     */
    @Bean
    WebSecurityCustomizer webSecurityCustomizer() {
        return web -> web.ignoring().antMatchers(
                "/actuator/**"
        );
    }
}

spring.factories

指明自动配置类的地址，在 resources 目录下编写一个自己的 META-INF\spring.factories；有两个自动配置类，中间用逗号分开

注意点：

如果同一个组中有多个starter，自动配置类名称不要相同；如果相同，将只有一个配置类生效，其余的将失效。

如：

starterA中：com.tuwer.config.AutoConfiguration

starterB中：就不要再用 com.tuwer.config.AutoConfiguration 名称，可以改为 com.tuwer.config.AutoConfigurationB

org.springframework.boot.autoconfigure.EnableAutoConfiguration=\
  com.tuwer.config.JwtDecoderConfiguration,\
  com.tuwer.config.AutoConfiguration

application.yml

令牌、权限的配置可以放在引用starter的资源服务中；如果每个资源服务的配置都一样，可以放在starter中

# 自定义 jwt 配置（校验jwt）
jwt:
  cert-info:
    # 公钥证书存放位置
    public-key-location: myjks.cer
  claims:
    # 令牌的鉴发方：即授权服务器的地址
    issuer: http://os.com:9000

# 自定义权限配置
resource-auth:
  # 权限
  authority:
    # 角色名称；不用加ROlE_，提取用户角色权限时，自动加
    roles:
    # 授权范围；不用加SCOPE_，保持与认证中心中定义的一致即可；
    # 后台自动加 SCOPE_
    scopes:
      - client_pc
      - micro_service
    # 细粒度权限
    auths:

公钥

把认证中心的公钥文件myjks.cer放到resources目录下

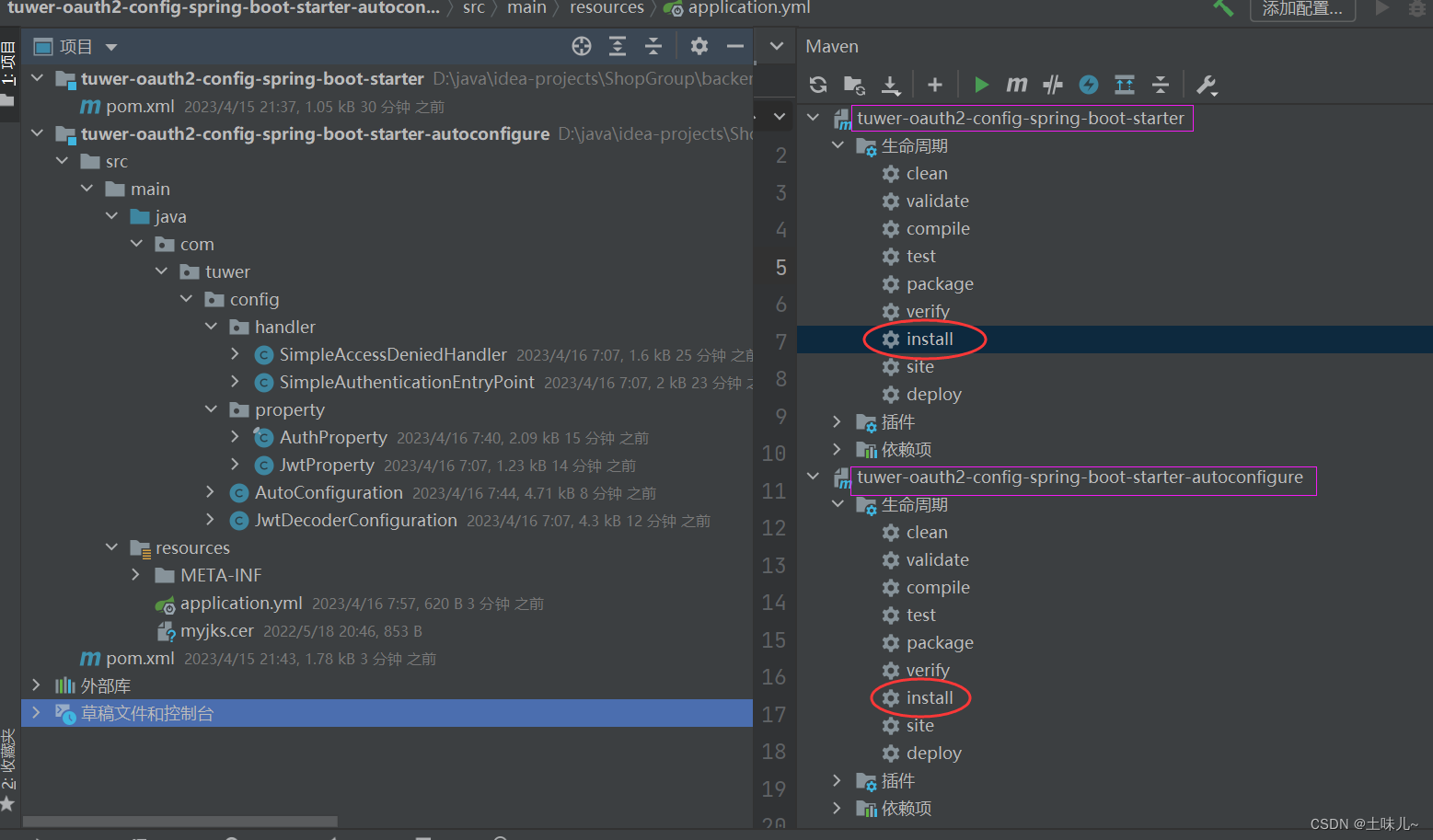

4、install

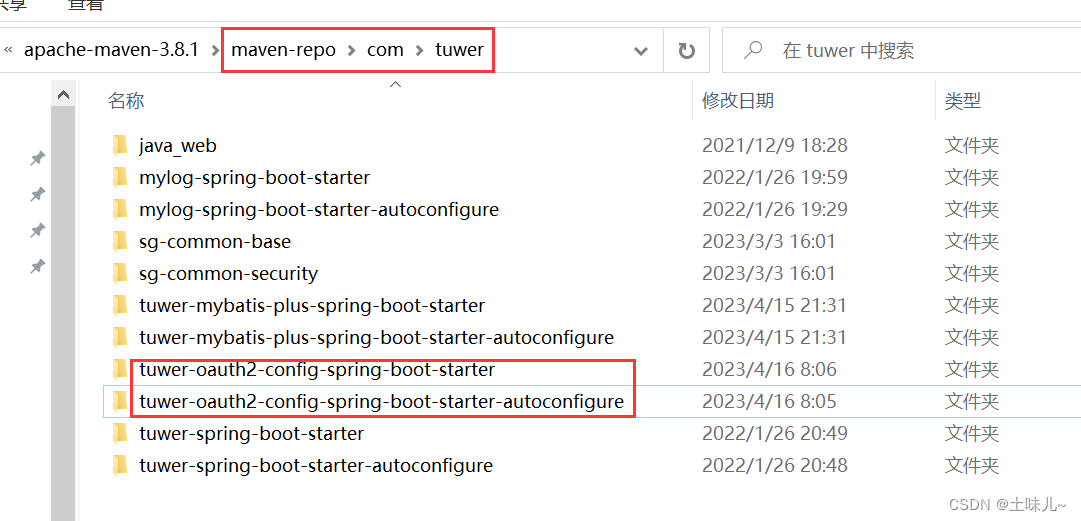

把starter安装install到本地maven仓库中

在这里插入图片描述

三、使用starter

1、引入starter依赖

在资源服务中引入 tuwer-oauth2-config-spring-boot-starter

在这里插入图片描述

2、application.yml

在这里插入图片描述

3、删除资源服务中原文件

在这里插入图片描述

土味儿~

关注

1
点赞
踩
3

收藏

觉得还不错? 一键收藏
打赏
0
评论
用starter实现Oauth2中资源服务的统一配置

Oauth2中的资源服务Resource需要验证令牌，就要配置令牌的解码器JwtDecoder，认证服务器的公钥等等。如果有多个资源服务Resource，就要重复配置，比较繁锁。把公共的配置信息抽取出来，制成starter，可以极大地简化操作。
复制链接

扫一扫
