NDK入门demo

Android Studio NDK开发入门demo

1、创建工程，路径为C:\Users\Administrator\AndroidStudioProjects\xy

cn.xy.MainActivity.java代码如下

public class MainActivity extends AppCompatActivity {

    @Override
    protected void onCreate(Bundle savedInstanceState) {
        super.onCreate(savedInstanceState);
        setContentView(R.layout.activity_main);
        TextView textView = (TextView) findViewById(R.id.tv);
        textView.setText(NDKTestFromJNI());

//        Log.i("输出结果",""+NDKTestFromJNI());
    }

    static {
        System.loadLibrary("demo");
    }

   public native String NDKTestFromJNI();
}



2、新建jni文件

新建demo.c

#include <jni.h>

JNIEXPORT jstring JNICALL Java_cn_xy_MainActivity_NDKTestFromJNI(JNIEnv *env, jobject obj){
     return(*env)->NewStringUTF(env,"this is ndk demo");
}

新建Android.mk

LOCAL_PATH := $(call my-dir)
include $(CLEAR_VARS)
LOCAL_MODULE := demo
LOCAL_SRC_FILES := demo.c
include $(BUILD_SHARED_LIBRARY)

3、生成so文件

打开终端terminal执行如下代码

C:\Users\Administrator\AndroidStudioProjects\xy>cd app

C:\Users\Administrator\AndroidStudioProjects\xy\app>ndk-build

[arm64-v8a] Compile        : demo <= demo.c

[arm64-v8a] SharedLibrary  : libdemo.so

[arm64-v8a] Install        : libdemo.so => libs/arm64-v8a/libdemo.so

[x86_64] Compile        : demo <= demo.c

[x86_64] SharedLibrary  : libdemo.so

[x86_64] Install        : libdemo.so => libs/x86_64/libdemo.so

[mips64] Compile        : demo <= demo.c

[mips64] SharedLibrary  : libdemo.so

[mips64] Install        : libdemo.so => libs/mips64/libdemo.so

[armeabi-v7a] Compile thumb  : demo <= demo.c

[armeabi-v7a] SharedLibrary  : libdemo.so

[armeabi-v7a] Install        : libdemo.so => libs/armeabi-v7a/libdemo.so

[armeabi] Compile thumb  : demo <= demo.c

[armeabi] SharedLibrary  : libdemo.so

[armeabi] Install        : libdemo.so => libs/armeabi/libdemo.so

[x86] Compile        : demo <= demo.c

[x86] SharedLibrary  : libdemo.so

[x86] Install        : libdemo.so => libs/x86/libdemo.so

[mips] Compile        : demo <= demo.c

[mips] SharedLibrary  : libdemo.so

[mips] Install        : libdemo.so => libs/mips/libdemo.so

显示如上则表示.so生成成功

4、配置

Build.gradle：

①Android 下

sourceSets{
    main{
        jniLibs.srcDirs = ['libs']
    }
}



②Android 下defaultConfig增加

ndk{
    moduleName "demo"
    ldLibs"demo"
    abiFilters"armeabi","mips","x86"
}



Gradle.properties：



 增加：android.useDeprecatedNdk=true



Local.properties:

ndk.dir=C\:\\Users\\Administrator\\AppData\\Local\\Android\\Sdk\\ndk-bundle
sdk.dir=C\:\\Users\\Administrator\\AppData\\Local\\Android\\Sdk

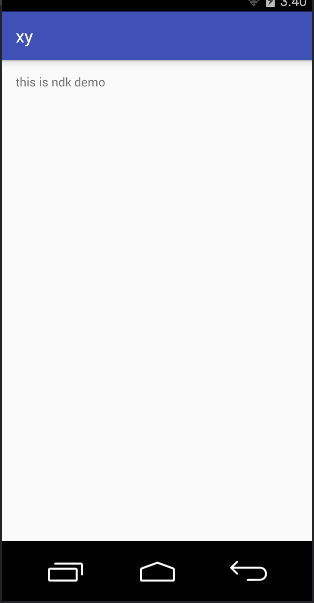

5、编辑调试结果如下：



6、参考目录结构：

7参考下载地址

http://download.csdn.net/detail/tuchaofu/9576074
