前言:
之前的几篇博客基本上都是使用jdk来实现WebService的调用,没有使用任何框架的东西。这样的操作对WebService客户端、服务端的调用、生成等关系的理解会比较深刻,当然也有很大的弊端,需要手动拷贝生成的代码,进行大量重复性的工作。这时候就需要引入框架了,本篇博客介绍其中一种框架CXF,他可以和spring整合实现WebService。
1、下载CXF
apache-cxf-2.5.0

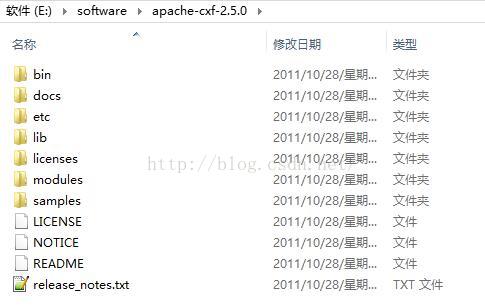

解压之后可以看到它的目录结构,其中bin中主要是一些bat文件或命令,后面会经常用到的就是wsdl2java。lib中是一系列的jar包。因为cxf支持spring,自带的lib中有一些spring的核心包。
2、环境变量
在Path的值后加“;E:\software\apache-cxf-2.5.0\bin” 注意:加上;分号
测试是否配置成功:
cd E:\software\apache-cxf-2.5.0\bin
e:
wsdl2java

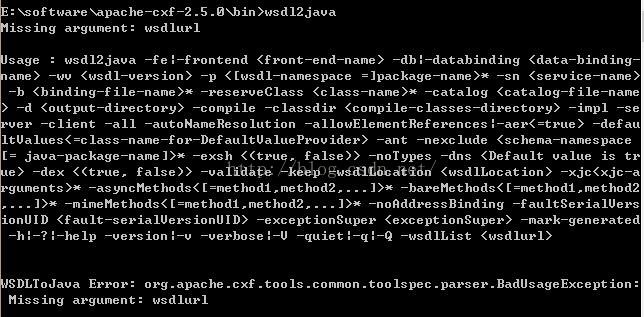

如果出现如下信息,则说明已经可以找到该命令,环境变量配置成功。
3、新建项目(服务端)
引入jar包:
将cxf解压文件的lib目录下的jar包加到项目中。
与前几篇博客相同,我们在服务端给出一个接口IHelloWorld和实现类HelloWorldImpl。
IHelloWorld接口的方法为:
@WebService
public interface IHelloWorld {
public String sayHello(String text);
}
实现类HelloWorldImpl。
@WebService(endpointInterface="cn.com.service.IHelloWorld")
public class HelloWorldImpl implements IHelloWorld {
public String sayHello(String text) {
return "Hello" + text ;
}
}
配置文件
1)applicationContext.xml
在src下新建该文件,其中import标签引入的三个配置文件在cxf的核心jar包下,具体路径:cxf-2.5.0.jar\META-INF\cxf。
<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:p="http://www.springframework.org/schema/p"
xmlns:jaxws="http://cxf.apache.org/jaxws"
xmlns:cxf="http://cxf.apache.org/core"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans-2.5.xsd
http://cxf.apache.org/jaxws
http://cxf.apache.org/schemas/jaxws.xsd">
<import resource="classpath:META-INF/cxf/cxf.xml" />
<import resource="classpath:META-INF/cxf/cxf-extension-soap.xml" />
<import resource="classpath:META-INF/cxf/cxf-servlet.xml" />
<bean id="hello" class="cn.com.service.HelloWorldImpl"/>
<jaxws:endpoint id="helloWorld" implementor="#hello" address="/HelloWorld" />
</beans>
2)web.xml
<?xml version="1.0" encoding="UTF-8"?>
<web-app version="2.5" xmlns="http://java.sun.com/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://java.sun.com/xml/ns/javaee
http://java.sun.com/xml/ns/javaee/web-app_2_5.xsd">
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>/WEB-INF/applicationContext.xml</param-value>
</context-param>
<listener>
<!-- 该listener保证 在web应用启动时加载spring容器 -->
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!--所有来自/*的请求,都交由CXFServlet处理 -->
<servlet>
<servlet-name>CXFServlet</servlet-name>
<!-- <display-name>CXF Servlet</display-name> -->
<servlet-class>org.apache.cxf.transport.servlet.CXFServlet</servlet-class>
<load-on-startup>1</load-on-startup>
</servlet>
<servlet-mapping>
<servlet-name>CXFServlet</servlet-name>
<url-pattern>/*</url-pattern>
</servlet-mapping>
</web-app>
发布服务
将项目部署到tomcat上,启动后在浏览器地址输入http://localhost:8080/webws/HelloWorld?wsdl (webws为项目名称)。
<wsdl:definitions name="HelloWorldImplService" targetNamespace="http://service.com.cn/">
<wsdl:portType name="HelloWorldImpl"></wsdl:portType>
<wsdl:binding name="HelloWorldImplServiceSoapBinding" type="tns:HelloWorldImpl">
<soap:binding style="document" transport="http://schemas.xmlsoap.org/soap/http"/>
</wsdl:binding>
<wsdl:service name="HelloWorldImplService">
<wsdl:port binding="tns:HelloWorldImplServiceSoapBinding" name="HelloWorldImplPort">
<soap:address location="http://localhost:8080/webws/HelloWorld"/>
</wsdl:port>
</wsdl:service>
</wsdl:definitions>
4、生成客户端
新建一个空的客户端项目,进入src目录,使用wsdl2java生成客户端。
Refresh刷新项目,可以看到,客户端项目中生成的相应的文件,效果和使用wsimport命令相同。
测试:
在客户端新建测试类,注意在测试的时候要保证tomcat上部署好服务。
public static void main(String[] args) {
HelloWorldImplService factory=new HelloWorldImplService();
IHelloWorld hw=factory.getHelloWorldImplPort();
System.out.println(hw.sayHello("Sherry"));
}
以上就是cxf整合spring实现WebService调用的例子。小编认为,cxf框架实现WebService的亮点有两个:一是将生成客户端的命令进行了封装,省去了用jdk开发时复杂的命令输入和繁琐的文件拷贝工作。二是整合spring,spring框架的优点就不用多说了,大大提高了开发的效率和可扩展性。
