01. 概述
理光公司于2019年02月28日宣布推出第六代理光GEN 6喷头(理光G6喷头),此次推出的理光G6喷头有三款,喷头的型号分别为RICOH MH5320、RICOH MH5340、RICOH MH5320 A型。
新的打印头将作为RICOH MH5420 / 5440和RICOH MH5421 / 5441的更高规格型号推出。最小化的5pl液滴尺寸和改进的喷射精度可产生出色的打印质量而不会产生颗粒感。此外,灰度级的最高频率为50kHz,可提高生产率。
每个打印头都具有增强的粘合技术,可提高耐用性 凭借这些新功能,RICOH MH5320 / 5340/5320 A型进一步增强了其与UV,溶剂和水性油墨的兼容性。具体而言,MH5320的水性油墨兼容性和使用寿命是之前MH5421的两倍以上。* 2
在用于标志图形和纺织品的工业印刷市场中,越来越需要满足各种客户需求,例如较小的批量和较短的交货时间。这导致工业印刷的快速数字化,以提供更大的灵活性和生产力,并增加对喷墨打印头的需求,从而实现高分辨率打印和更高的生产率。
通过推出这款新型打印头,理光将满足这些市场需求。理光将支持客户的打印机开发,共同创造数字印刷的新价值。
2018年2月,理光宣布其增长战略“RICOH Ignite”,该战略旨在通过扩大其印刷技术组合来增强其客户群。40多年来,理光一直致力于开发喷墨技术,如今它不仅用于办公室打印,还用于各种不同领域的商业和工业打印应用,包括生活方式。此外,它一直在加强纸张和纸张的“显示打印”功能,以及“应用打印”,它结合了流程和材料,以创造新的客户价值。
02. G6喷头特性
This head is compatible with UV, Solvent and Aqueous based inks. Specifically, the aqueous ink compatibility and service life of the MH5320/MH5340 is more than double that of the MH5421/MH5441 that preceded it.
Results obtained using ink and evaluation procedures defined by Ricoh

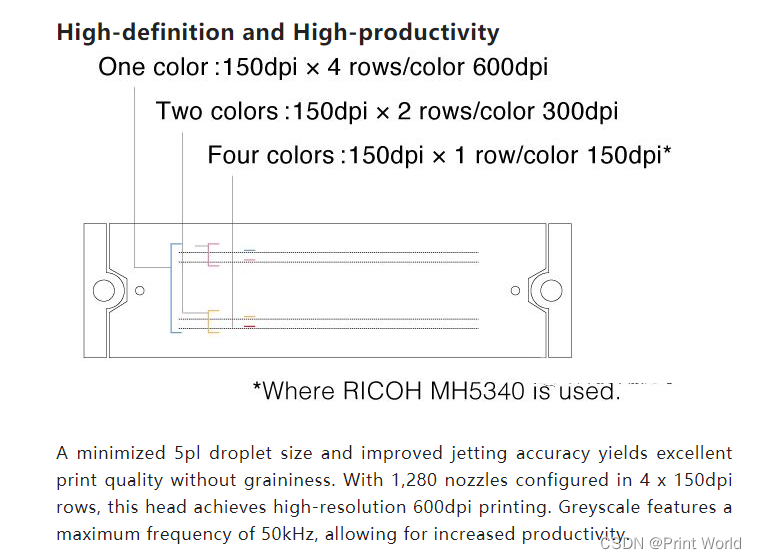

System compatibility

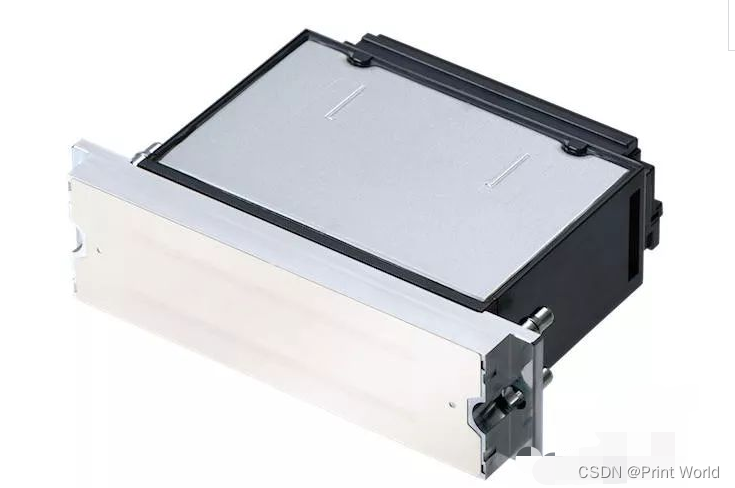

A new, straightforward alignment method using printhead surfaces enables high precision positioning accuracy and easy alignment. Printhead replacement is simple. In addition to official MH cables, customers may design cables compatible with their application as needed with the existing cable structure.

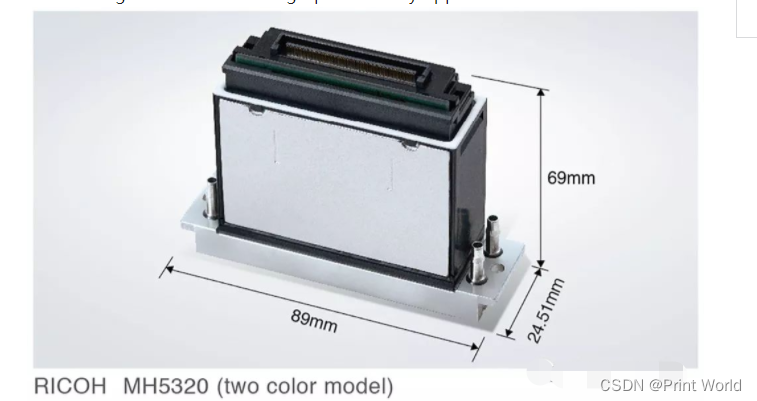

Specifications / External dimensions
Featuring high durability and enhanced ink compatibility, this Inkjet Head enables high definition and high productivity applications.

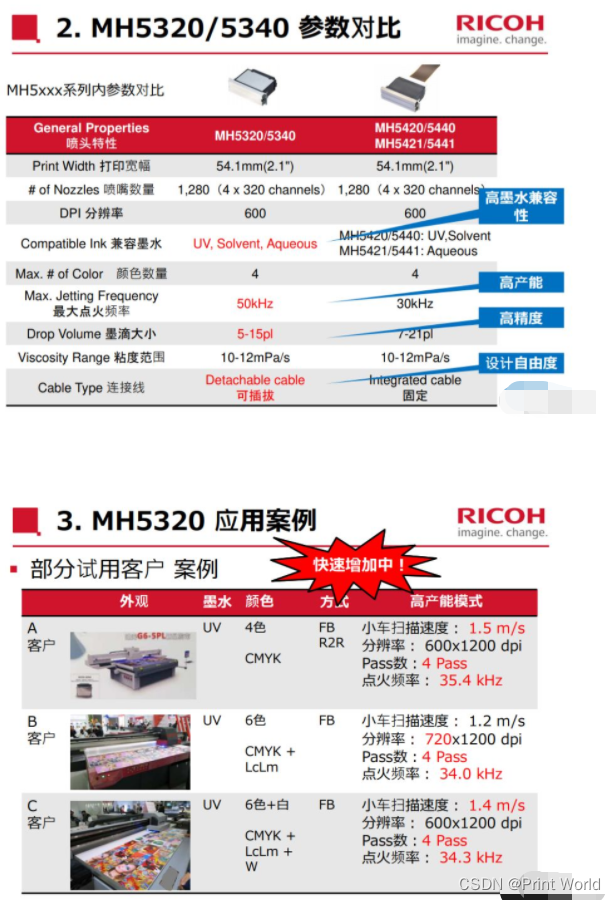

参数表
Results obtained from continuous jetting test using standard Ricoh test fluid.

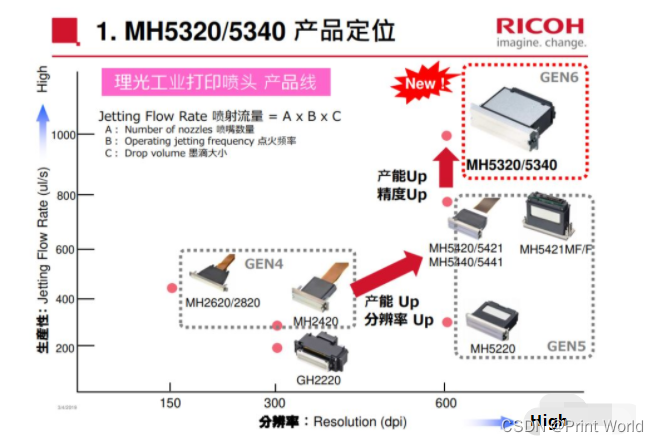

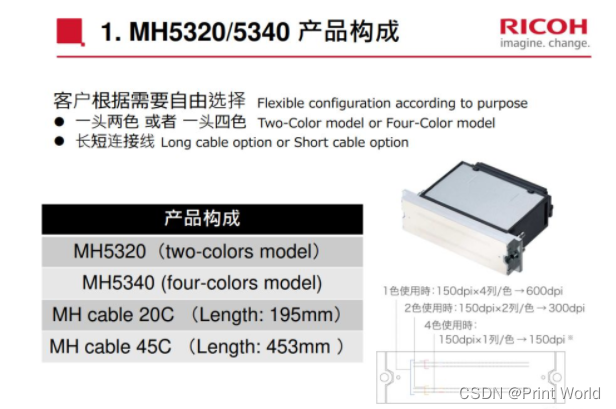

03. G6喷头产品构成和定位

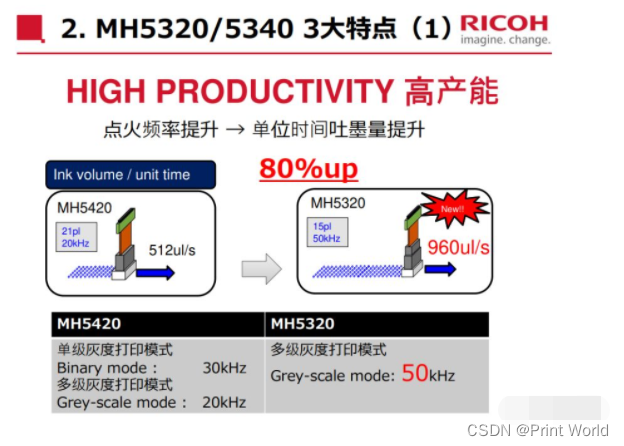

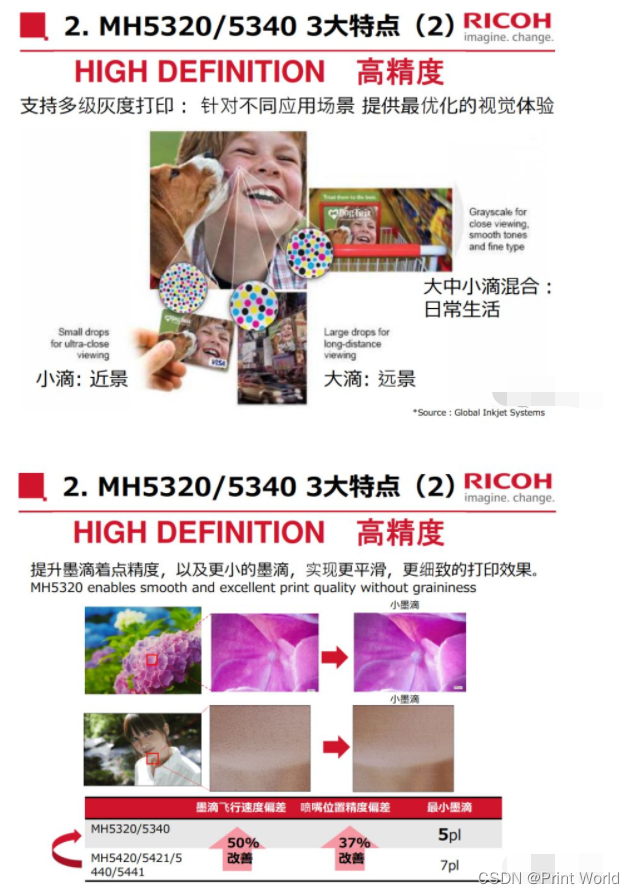

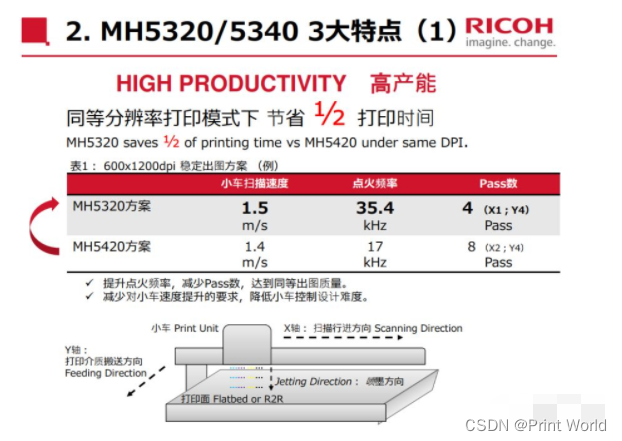

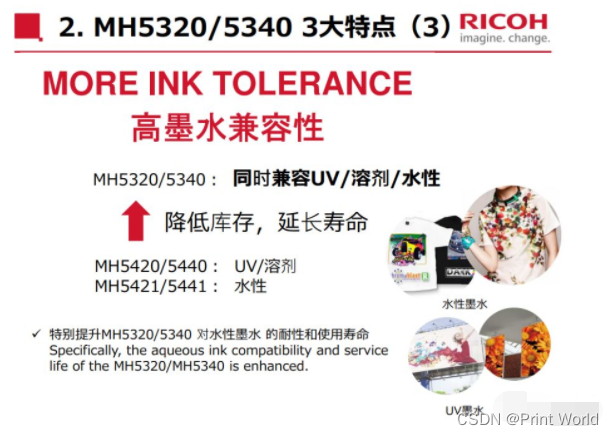

04. MH5320/5340三大特点
05. 应用案例和其它
06. 理光G6喷头视频
理光G6喷头介绍
07. 附录
官网:https://industry.ricoh.com/en/industrialinkjet/
理光中国:https://www.ricoh.com.cn/en
