之前有在YouTube看到过国外有人制作球形的旋转LED，纯手工焊接的线实在是厉害，关键还是RGB三色的。为了制作简单一点，我们来做一个小型一点的单色球形LED，灯采用0805，单片机采用STC8C2K64S4，通过上位机软件来对显示的内容进行更新，数据存在单片机可设定大小的EEP中，红外遥控切换几个模式。原理图设计如下
无线供电芯片采用XK510+配套38uh线圈使用，输入5-12V 接收端可最大接收500MA电流
之前的无线供电电流小了，现在采用功率大一点的无线供电方案。

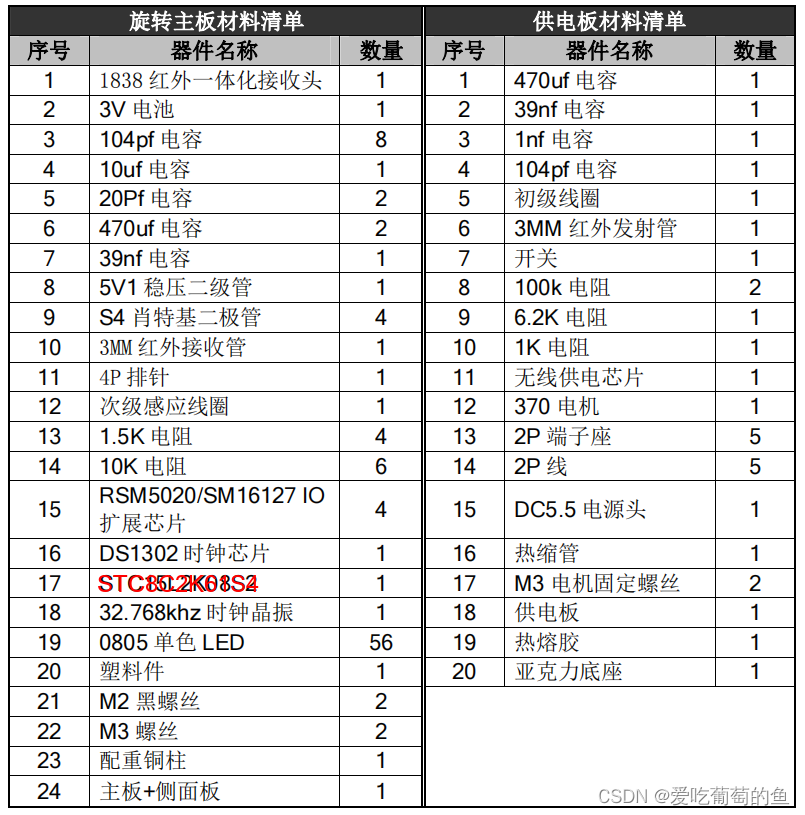

元件清单如下
在这里插入图片描述
电路板打样了2次，总开发周期断断续续弄了一个多月，无线供电会引起单片机无法正常复位，这个问题调试了好几天，软件上也是各种BUG，最后也没完全改完，但是不太影响DIY制作，也实现了上位机改字遥控器切换了！
制作难度比较大，主板要尽量轻一点，采用板厚0.8MM，贴片元件用的是0805封装的，难点在灯的焊接，一般方法是：把灯反面放在桌子上，在电路板正极，上好焊锡，用手拿着电路板去焊接灯，这样相对容易一点，就是比较费时间，熟练的情况下都要一个多小时焊接。成品图如下：

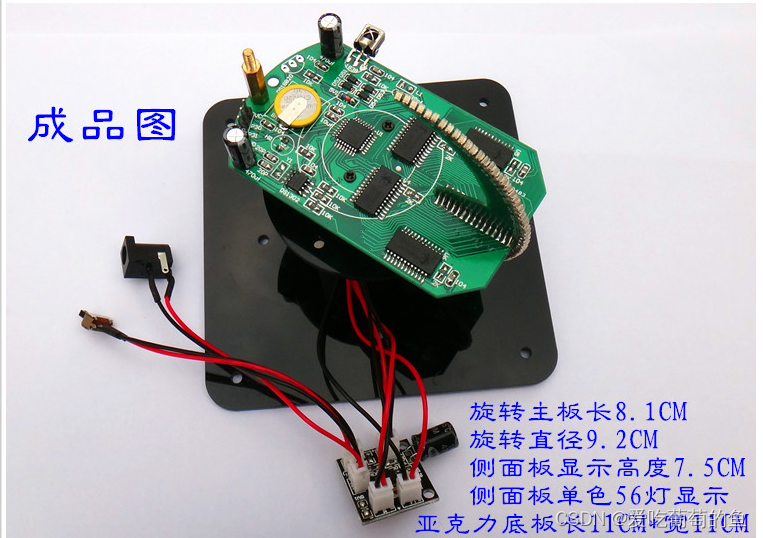

在这里插入图片描述

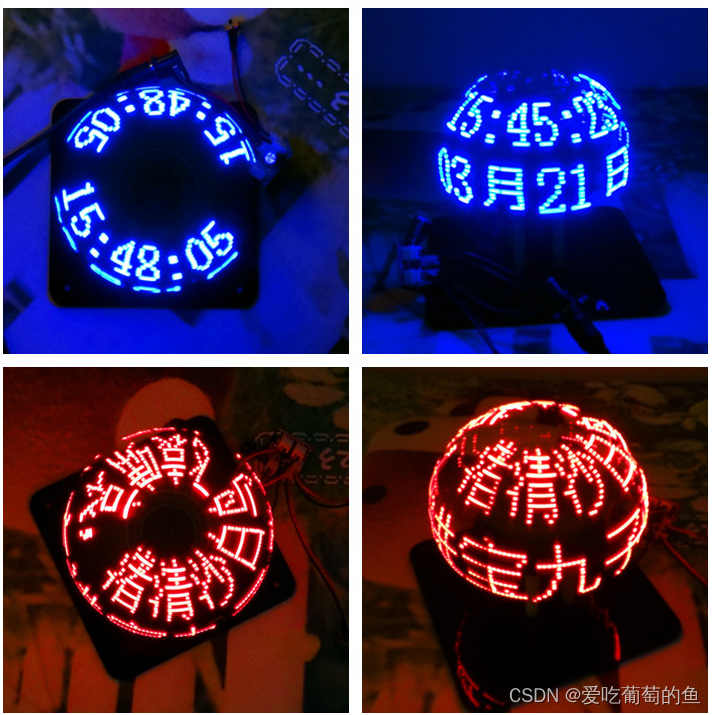

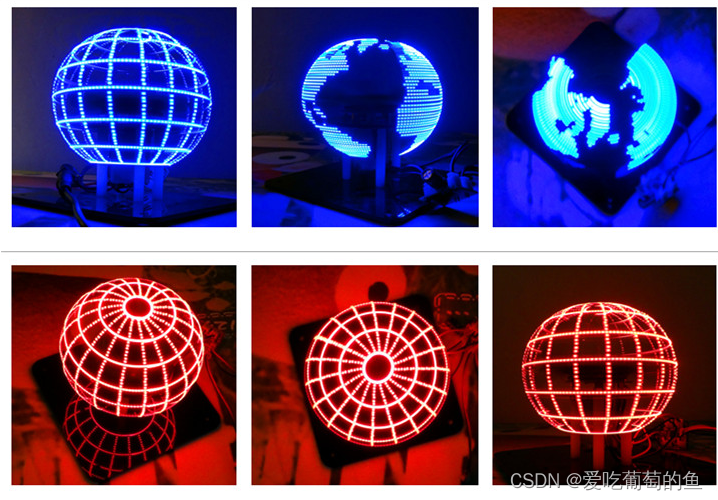

显示的效果图:

16高文字显示程序如下：

/*************************************************************
                     16高文字显示程序
程序编写：Fucp   2023-5-10
DIY套件  http://59tiaoba.taobao.com

单片机 STC8c2k64s4  或者其他STC8系列 工作频率18.432M
字模软件用  PC2002
逐列取模方式

电机旋转方向 逆时针
/***********************************************************
说明：显示16X16汉字
*************************************************************/
#include "NEW_8051.H"
#include "intrins.h"
#define uchar unsigned char
#define uint unsigned int    //宏定义


sbit STR=P2^0;	 //锁存
sbit OE=P2^3;  //595使能
sbit SDA=P1^0;	//数据
sbit SCK=P2^1;	//时钟

uchar code zimo[];
unsigned long ceshi=0x00000001;
uchar k;
bit Scan_bit=0;
bit BIT_timeout=0;
uint i=0,j=0;
#define ucNumRows 176 //定义一周显示字个数 一个字16列 160/16=10个字
void Send_data(uchar temp,uchar temp2,uchar temp3,uchar temp4);
void Send_data_chang(uchar temp,uchar temp2,uchar temp3,uchar temp4);
uchar t=0x55;
/*********延时子程序**********/
/*****n（us）延时子程序*****/
void Delay1ms()		//@18.432MHz
{

    unsigned char a,b;
    for(b=61;b>0;b--)
        for(a=8;a>0;a--);
}

/*********中断子程序**********/
void int0() interrupt 0	//使用外部中断0
{
	BIT_timeout=1; //起点标志位
	/*t=~t;
	Send_data_chang(t,t,t,t);//双 数据
	 Send_data(t,t,t,t);//单 数据

		Send_data(t,t,t,t);	 //单 数据
	Send_data_chang(t,t,t,t);	//  双数据

	STR=1;
    STR=0;
	OE=0; */
}

/************************************** ***/
void Send_data(uchar temp,uchar temp2,uchar temp3,uchar temp4)	  /*发送数据*/
{
	uchar k;
	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp&0x80);//通过IO口送一个位给 595
       temp=temp<<2;  //字节移位 准备送下一位
       SCK=1;
   }
   	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp2&0x80);//通过IO口送一个位给 595
       temp2=temp2<<2;  //字节移位 准备送下一位
       SCK=1;
   }
   	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp3&0x80);//通过IO口送一个位给 595
       temp3=temp3<<2;  //字节移位 准备送下一位
       SCK=1;
   }
   	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp4&0x80);//通过IO口送一个位给 595
       temp4=temp4<<2;  //字节移位 准备送下一位
       SCK=1;
   }

}

/**************************************/
void Send_data_chang(uchar temp,uchar temp2,uchar temp3,uchar temp4)		  /*发送反向数据*/
{
	uchar k;
	temp=temp<<1;
	temp2=temp2<<1;
	temp3=temp3<<1;
	temp4=temp4<<1;


	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp&0x80);//通过IO口送一个位给 595
       temp=temp<<2;  //字节移位 准备送下一位
       SCK=1;
   }
   	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp2&0x80);//通过IO口送一个位给 595
       temp2=temp2<<2;  //字节移位 准备送下一位
       SCK=1;
   }
   	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp3&0x80);//通过IO口送一个位给 595
       temp3=temp3<<2;  //字节移位 准备送下一位
       SCK=1;
   }
   	for(k=0;k<4;k++)//一个字节8位 发送给595
   {
       SCK=0; //上升沿移位595
	   SDA=(bit)(temp4&0x80);//通过IO口送一个位给 595
       temp4=temp4<<2;  //字节移位 准备送下一位
       SCK=1;
   }
}

void InitTimer0(void)
{


     IT0 = 1;    //外部中断为边沿触发
                   //设置INT0的中断类型 (1:仅下降沿 0:上升沿和下降沿)
    EX0 = 1;
	 EA = 1;                 //使能INT0中断
	  P0M0=0;
	 P0M1=0;
	 P1M0=0;
	 P1M1=0;
	 P2M0=0;
	 P2M1=0;
	 P3M0=0;
	 P3M1=0;
	 P3=0xff;
}
/**********************************************/
void Delay300ms()		//@18.432MHz
{
	unsigned char i, j, k;

	_nop_();
	_nop_();
	i = 22;
	j = 3;
	k = 227;
	do
	{
		do
		{
			while (--k);
		} while (--j);
	} while (--i);
}
/*****主函数*****/
void main(void)
{
   // uchar i=0;
	 InitTimer0();
	//	P1M0=0XFF;
	//	P1M1=0X00;
		//P1=0XFF;

    //主程序中只检测按键
   	while(1)
    {

         //BIT_timeout=1;
		if(BIT_timeout==1)	//起点判断
	 	{
			BIT_timeout=0; //清零
			Scan_bit=1;// 起点检测到后 LED不再流水测试
			j++;
	        if( j>732 )//显示完文字后 循环； j=16*需要显示的字数	 这里大概有52个字符 所以52*16=832-ucNumRows
	        {
	            j=0 ;
	        }

	       for(i=j;i<ucNumRows+j;i++)  //立体显示176列 数据   176/16=11个字
	        {
				Send_data_chang(0x00,0x00,0x00,zimo[i*2+1]);//双 数据
					Send_data(0x00,0x00,0x00,zimo[i*2+1]);//单 数据

				   	Send_data(zimo[i*2],0x00,0x00,0x00);	 //单 数据
				Send_data_chang(zimo[i*2],0x00,0x00,0x00);	//  双数据

				STR=1;
			    STR=0;
				OE=0;
				Delay1ms();
				OE=1;
	           if(BIT_timeout==1)//这里如果没有显示完一圈的数据 回到起点了
			                  //直接跳出 就不会出现头吃尾的现象 而且盲点很小
			   {
			   		break;
			   }
			}

		}
/*	if(Scan_bit==0)	//如果红外对管有问题（起点检测不到） 旋转起来只有流水灯现象	 流水灯可以检测灯焊接的是否有问题
	{
	    ceshi=0x00000001;
		for(k=0;k<32;k++)//流动8次
			{

				Send_data_chang(ceshi>>24,ceshi>>16,ceshi>>8,ceshi);//双 数据
				 Send_data(ceshi>>24,ceshi>>16,ceshi>>8,ceshi);//单 数据

					Send_data(ceshi>>24,ceshi>>16,ceshi>>8,ceshi);	 //单 数据
				Send_data_chang(ceshi>>24,ceshi>>16,ceshi>>8,ceshi);	//  双数据

				STR=1;
			    STR=0;
				OE=0;
			 	if(Scan_bit==1)
				break;
			 	Delay300ms();//延时300MS
				OE=1;
			    ceshi=ceshi<<1;

			}
	}*/


    }

}
//PC2002字幕软件  配置 （逐列 阴码 逆向）
uchar code zimo[]={
0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",0*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",1*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",2*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",3*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",4*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",5*/


0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,
0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x00,0x00,/*"一",0*/

0x00,0x00,0xF8,0x0F,0x08,0x00,0xFF,0xFF,0x08,0x08,0xF8,0x8F,0x00,0x60,0xFE,0x1F,
0x42,0x00,0x82,0x01,0x02,0x00,0xFE,0x3F,0x00,0x40,0x00,0x40,0x00,0x78,0x00,0x00,/*"帆",1*/

0x00,0x80,0x00,0x60,0xFE,0x1F,0x02,0x00,0x12,0x20,0x22,0x10,0xC2,0x0C,0x02,0x03,
0xC2,0x0C,0x32,0x30,0x02,0x00,0xFE,0x0F,0x00,0x30,0x00,0x40,0x00,0xF8,0x00,0x00,/*"风",2*/

0x00,0x40,0xFE,0x3F,0x00,0x00,0xFC,0x3F,0x00,0x00,0xFF,0xFF,0x00,0x80,0xF2,0x4F,
0x12,0x20,0x1A,0x18,0xD6,0x07,0x12,0x10,0x12,0x20,0xF2,0x4F,0x02,0x80,0x00,0x00,/*"顺",3*/

0x00,0x10,0x00,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,
0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x08,0x10,0x00,0x10,0x00,0x10,0x00,0x00,/*"二",4*/

0x20,0x00,0x20,0x00,0x20,0x00,0xFE,0x7F,0x20,0x40,0x20,0x40,0xFF,0x47,0x20,0x44,
0x20,0x44,0x20,0x44,0xFF,0x47,0x20,0x40,0x20,0x40,0x20,0x40,0x20,0x00,0x00,0x00,/*"世",5*/

0x10,0x80,0x10,0x40,0x10,0x20,0x10,0x18,0x10,0x06,0xFF,0x41,0x10,0x20,0x10,0x10,
0xF0,0x3F,0x10,0x44,0x11,0x42,0x16,0x41,0xD0,0x40,0x10,0x40,0x10,0x78,0x00,0x00,/*"龙",6*/

0x00,0x80,0xFE,0x7F,0x22,0x02,0x22,0x82,0xFE,0xFF,0x28,0x01,0xA9,0x20,0x6E,0x2D,
0x28,0x29,0x3F,0x29,0x28,0x29,0x6C,0x4F,0xAB,0x88,0x28,0x79,0x20,0x01,0x00,0x00,/*"腾",7*/

0x00,0x20,0x04,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,
0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x84,0x20,0x04,0x20,0x00,0x20,0x00,0x00,/*"三",8*/

0x00,0x08,0x08,0x08,0x88,0x08,0x88,0x08,0x89,0x08,0x8E,0x08,0x88,0x08,0xF8,0xFF,
0x88,0x08,0x8C,0x08,0x8B,0x08,0x88,0x08,0x88,0x08,0x08,0x08,0x00,0x08,0x00,0x00,/*"羊",9*/

0x80,0x00,0x82,0x80,0x82,0x40,0x82,0x30,0xFE,0x0F,0x82,0x00,0x82,0x00,0x82,0x00,
0x82,0x00,0x82,0x00,0xFE,0xFF,0x82,0x00,0x82,0x00,0x82,0x00,0x80,0x00,0x00,0x00,/*"开",10*/

0x40,0x04,0x44,0x24,0x54,0x22,0x54,0x12,0x54,0x15,0xD4,0x48,0x74,0x84,0x5F,0x7F,
0x54,0x08,0xD4,0x08,0x54,0x15,0x54,0x12,0x54,0x22,0x44,0x04,0x40,0x04,0x00,0x00,/*"泰",11*/

0x00,0x00,0xFC,0x7F,0x04,0x28,0x04,0x24,0x04,0x23,0xFC,0x20,0x04,0x20,0x04,0x20,
0x04,0x20,0xFC,0x21,0x04,0x22,0x04,0x22,0x04,0x22,0xFC,0x7F,0x00,0x00,0x00,0x00,/*"四",12*/

0x00,0x09,0x10,0x09,0x90,0x08,0x92,0x08,0x52,0x09,0x32,0x49,0x12,0x89,0xFE,0x79,
0x12,0x0D,0x31,0x0B,0x51,0x09,0x91,0x08,0x90,0x08,0x10,0x09,0x00,0x09,0x00,0x00,/*"季",13*/

0x00,0x01,0x02,0x01,0x02,0x01,0x12,0x01,0x62,0x01,0x02,0x01,0x02,0x01,0xFE,0xFF,
0x02,0x01,0x02,0x01,0x42,0x01,0x32,0x01,0x02,0x01,0x02,0x01,0x00,0x01,0x00,0x00,/*"平",14*/

0x80,0x00,0x90,0x80,0x8C,0x80,0x84,0x84,0x84,0x46,0x84,0x49,0xF5,0x28,0x86,0x10,
0x84,0x10,0x84,0x2C,0x84,0x23,0x84,0x40,0x94,0x80,0x8C,0x00,0x80,0x00,0x00,0x00,/*"安",15*/

0x00,0x40,0x02,0x40,0x42,0x40,0x42,0x40,0x42,0x78,0xC2,0x47,0x7E,0x40,0x42,0x40,
0x42,0x40,0x42,0x40,0x42,0x40,0xC2,0x7F,0x02,0x40,0x02,0x40,0x00,0x40,0x00,0x00,/*"五",16*/

0x08,0x02,0x09,0x01,0xCE,0xFF,0xB8,0x00,0x08,0x03,0x00,0x00,0x02,0xFF,0x7A,0x49,
0x4A,0x49,0x4A,0x49,0x4A,0x7F,0x4A,0x49,0x4A,0x49,0x7A,0x49,0x02,0xFF,0x00,0x00,/*"福",17*/

0x00,0x00,0xF8,0x1F,0x00,0x00,0x00,0x00,0xFF,0xFF,0x40,0x00,0x20,0x00,0x18,0x7F,
0x0F,0x21,0x18,0x21,0x68,0x3F,0x08,0x21,0x08,0x21,0x08,0x7F,0x08,0x00,0x00,0x00,/*"临",18*/

0x00,0x00,0xF8,0xFF,0x01,0x00,0x06,0x00,0x00,0x00,0x00,0x00,0x02,0x00,0x02,0x00,
0x02,0x00,0x02,0x00,0x02,0x00,0x02,0x40,0x02,0x80,0xFE,0x7F,0x00,0x00,0x00,0x00,/*"门",19*/

0x20,0x00,0x20,0x40,0x20,0x20,0x20,0x10,0x20,0x0C,0x20,0x03,0x21,0x00,0x22,0x00,
0x2C,0x00,0x20,0x01,0x20,0x02,0x20,0x04,0x20,0x18,0x20,0x60,0x20,0x00,0x00,0x00,/*"六",20*/

0x20,0x00,0x20,0x40,0x20,0x20,0x20,0x10,0x20,0x0C,0x20,0x03,0x21,0x00,0x22,0x00,
0x2C,0x00,0x20,0x01,0x20,0x02,0x20,0x04,0x20,0x18,0x20,0x60,0x20,0x00,0x00,0x00,/*"六",21*/

0x20,0x80,0x20,0x80,0x20,0x40,0x20,0x20,0x20,0x10,0x20,0x0C,0x20,0x03,0xFF,0x00,
0x20,0x03,0x20,0x0C,0x20,0x10,0x20,0x20,0x20,0x40,0x20,0x80,0x20,0x80,0x00,0x00,/*"大",22*/

0x00,0x40,0xFE,0x3F,0x00,0x00,0xFC,0x3F,0x00,0x00,0xFF,0xFF,0x00,0x80,0xF2,0x4F,
0x12,0x20,0x1A,0x18,0xD6,0x07,0x12,0x10,0x12,0x20,0xF2,0x4F,0x02,0x80,0x00,0x00,/*"顺",23*/

0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x80,0x00,0x40,0x00,0xFF,0x3F,0x40,0x40,
0x40,0x40,0x40,0x40,0x20,0x40,0x20,0x40,0x20,0x40,0x20,0x78,0x00,0x00,0x00,0x00,/*"七",0*/

0x00,0x00,0x00,0x44,0x00,0x42,0xBE,0x49,0x2A,0x49,0x2A,0x49,0x2A,0x49,0xEA,0x7F,
0x2A,0x49,0x2A,0x49,0x2A,0x49,0x3E,0x49,0x00,0x41,0x00,0x40,0x00,0x00,0x00,0x00,/*"星",1*/

0x04,0x00,0x04,0xFE,0x04,0x02,0x04,0x02,0xF4,0x7A,0x94,0x4A,0x95,0x4A,0x96,0x4A,
0x94,0x4A,0x94,0x4A,0xF4,0x7A,0x04,0x02,0x04,0x82,0x04,0xFE,0x04,0x00,0x00,0x00,/*"高",2*/

0x00,0x80,0xFE,0x6F,0x42,0x08,0x42,0x08,0x42,0x28,0xFE,0xCF,0x00,0x00,0x42,0x00,
0xA2,0x2F,0x9E,0xC8,0x82,0x08,0xA2,0x08,0xC2,0x28,0xBE,0xCF,0x00,0x00,0x00,0x00,/*"照",3*/

0x00,0x00,0x00,0x80,0x00,0x60,0x00,0x18,0x00,0x07,0xFC,0x00,0x00,0x00,0x00,0x00,
0x00,0x00,0x7E,0x00,0x80,0x03,0x00,0x0C,0x00,0x30,0x00,0x40,0x00,0x80,0x00,0x00,/*"八",4*/

0x08,0x00,0x08,0x80,0x08,0x40,0x08,0x20,0x08,0x18,0xF8,0x07,0x89,0x00,0x8E,0x00,
0x88,0x40,0x88,0x80,0x88,0x40,0x88,0x3F,0x08,0x00,0x08,0x00,0x08,0x00,0x00,0x00,/*"方",5*/

0x40,0x00,0x40,0x40,0x42,0x20,0xCC,0x1F,0x00,0x20,0x80,0x40,0x88,0x50,0x88,0x4C,
0xFF,0x43,0x88,0x40,0x88,0x40,0xFF,0x5F,0x88,0x40,0x88,0x40,0x80,0x40,0x00,0x00,/*"进",6*/

0x10,0x40,0x4C,0x40,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x44,0x45,0x44,0xC6,0x7F,
0x44,0x44,0x44,0x44,0x44,0x54,0x44,0x64,0x44,0x44,0x54,0x40,0x0C,0x40,0x00,0x00,/*"宝",7*/

0x00,0x80,0x10,0x40,0x10,0x20,0x10,0x18,0x10,0x07,0xFF,0x00,0x10,0x00,0x10,0x00,
0x10,0x00,0x10,0x00,0xF0,0x3F,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x78,0x00,0x00,/*"九",8*/

0x80,0x00,0x82,0x00,0x82,0x00,0x82,0x00,0x82,0x00,0x82,0x40,0x82,0x80,0xE2,0x7F,
0xA2,0x00,0x92,0x00,0x8A,0x00,0x86,0x00,0x82,0x00,0x80,0x00,0x80,0x00,0x00,0x00,/*"子",9*/

0x00,0x01,0x00,0x41,0x8A,0x40,0x52,0x4F,0x22,0x59,0x5A,0x69,0x46,0x49,0x40,0x49,
0x47,0x49,0x58,0x69,0x24,0x59,0x52,0x4F,0x88,0x40,0x04,0x41,0x00,0x01,0x00,0x00,/*"登",10*/

0x24,0x08,0x24,0x06,0xA4,0x01,0xFE,0xFF,0xA3,0x00,0x22,0x01,0x00,0x04,0x22,0x04,
0xCC,0x04,0x00,0x04,0x00,0x04,0xFF,0xFF,0x00,0x02,0x00,0x02,0x00,0x02,0x00,0x00,/*"科",11*/

0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0xFF,0xFF,
0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,/*"十",12*/

0x80,0x00,0x80,0x40,0x40,0x40,0x20,0x44,0x50,0x44,0x48,0x44,0x44,0x44,0xC3,0x7F,
0x44,0x44,0x48,0x44,0x50,0x44,0x20,0x44,0x40,0x40,0x80,0x40,0x80,0x00,0x00,0x00,/*"全",13*/

0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0xFF,0xFF,
0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x40,0x00,0x00,0x00,/*"十",14*/

0x00,0x81,0x04,0x89,0x24,0x89,0x24,0x49,0x25,0x49,0x26,0x29,0x24,0x19,0xFC,0x0F,
0x24,0x19,0x26,0x29,0x25,0x49,0x24,0x49,0x24,0x89,0x04,0x89,0x00,0x81,0x00,0x00,/*"美",15*/

0x02,0x00,0x02,0x00,0xE2,0xFF,0x22,0x42,0x22,0x42,0x32,0x42,0x2A,0x42,0x26,0x42,
0x22,0x42,0x22,0x42,0x22,0x42,0x22,0x42,0xE2,0xFF,0x02,0x00,0x02,0x00,0x00,0x00,/*"百",16*/

0x04,0x04,0x04,0x04,0x74,0x15,0x54,0x15,0x54,0x15,0x54,0x55,0x54,0x95,0xFF,0x7F,
0x54,0x15,0x54,0x15,0x54,0x15,0x54,0x15,0x74,0x1F,0x04,0x04,0x04,0x04,0x00,0x00,/*"事",17*/

0x04,0x00,0x04,0x00,0x04,0x02,0xF4,0x02,0x94,0x02,0x94,0x42,0x95,0x82,0x96,0x7A,
0x94,0x0A,0x94,0x06,0x94,0x06,0xF4,0x02,0x04,0x00,0x04,0x00,0x04,0x00,0x00,0x00,/*"亨",18*/

0x40,0x80,0x42,0x40,0xCC,0x3F,0x00,0x40,0x00,0x80,0xE2,0xFF,0x22,0x89,0x2A,0x89,
0x2A,0x89,0xF2,0xBF,0x2A,0x89,0x26,0xA9,0x22,0xC9,0xE0,0xBF,0x00,0x80,0x00,0x00,/*"通",19*/

0x04,0x80,0x04,0x40,0x04,0x20,0x04,0x18,0x04,0x06,0xFC,0x01,0x44,0x00,0x44,0x00,
0x44,0x40,0x44,0x80,0x44,0x40,0xC4,0x3F,0x04,0x00,0x04,0x00,0x04,0x00,0x00,0x00,/*"万",20*/

0x04,0x04,0x04,0x04,0x74,0x15,0x54,0x15,0x54,0x15,0x54,0x55,0x54,0x95,0xFF,0x7F,
0x54,0x15,0x54,0x15,0x54,0x15,0x54,0x15,0x74,0x1F,0x04,0x04,0x04,0x04,0x00,0x00,/*"事",21*/

0x10,0x80,0x10,0x41,0xF0,0x22,0x1F,0x14,0x10,0x08,0x10,0x16,0xF0,0x61,0x00,0x00,
0x00,0x00,0xF8,0x7F,0x08,0x20,0x08,0x20,0x08,0x20,0xF8,0x7F,0x00,0x00,0x00,0x00,/*"如",22*/

0x10,0x40,0x10,0x30,0x12,0x00,0xD2,0x77,0x56,0x85,0x5A,0x85,0x52,0x8D,0x53,0xB5,
0x52,0x85,0x5A,0x85,0x56,0x85,0xD2,0xE7,0x12,0x00,0x10,0x10,0x10,0x60,0x00,0x00,/*"意",23*/


0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",0*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",1*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",2*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",3*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",4*/

0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,0x00,/*" ",5*/

};

关于制作资料的分享，到下面链接下载！
链接：https://pan.baidu.com/s/14hN0zfzXZVkOfVDAnKLd6Q?pwd=ie96
提取码：ie96

爱吃葡萄的鱼

关注

2
点赞
踩
15

收藏

觉得还不错? 一键收藏
3
评论
POV系列之56灯球形旋转LED制作

为了制作简单一点，我们来做一个小型一点的单色球形LED，灯采用0805，单片机采用STC8C2K64S4，通过上位机软件来对显示的内容进行更新，数据存在单片机可设定大小的EEP中，红外遥控切换几个模式。电路板打样了2次，总开发周期断断续续弄了一个多月，无线供电会引起单片机无法正常复位，这个问题调试了好几天，软件上也是各种BUG，最后也没完全改完，但是不太影响DIY制作，也实现了上位机改字遥控器切换了！链接：https://pan.baidu.com/s/14hN0zfzXZVkOfVDAnKLd6Q?
复制链接

扫一扫
