Spark-spark-submit提交Job流程 解读
本篇博文详细讲讲spark-submit提交Job流程。

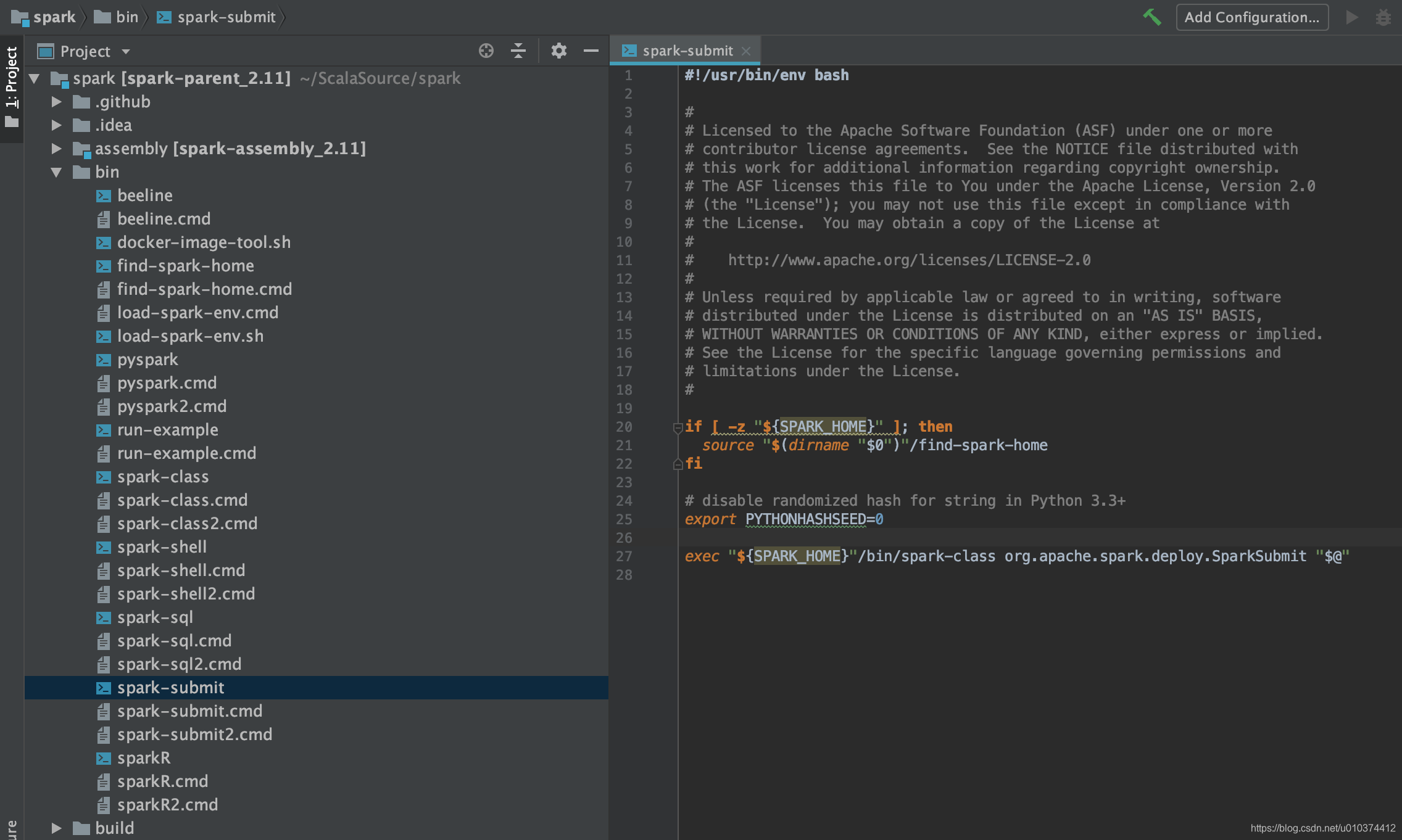

spark-submit
spark-submit 是Spark Home bin目录下的一个sh，在安装Spark的时候，会在系统的环境变量中配置SPARK_HOME（即spark的位置路径）
#如果${SPARK_HOME} 的长度为0，则会使用spark-submit
if [ -z "${SPARK_HOME}" ]; then
source "$(dirname "$0")"/find-spark-home
fi
# disable randomized hash for string in Python 3.3+
export PYTHONHASHSEED=0
#执行 spark_home//bin/spark-class org.apache.spark.deploy.SparkSubmit "$@"
# "$@" 代表spark-submit的所有参数列表
exec "${SPARK_HOME}"/bin/spark-class org.apache.spark.deploy.SparkSubmit "$@"
可以看出 它会转移到 spark-class sh脚本执行。
spark-class
spark-class 也是一个sh脚本
#这个找到spark的home
if [ -z "${SPARK_HOME}" ]; then
source "$(dirname "$0")"/find-spark-home
fi
#加载load-spark-env.sh 配置文件
#目的是找到 conf下的spark-env.sh 加载其中的环境变量，确定集群运行模式
#和使用那种scala版本
. "${SPARK_HOME}"/bin/load-spark-env.sh
# Find the java binary
#找到配置的java
if [ -n "${JAVA_HOME}" ]; then
RUNNER="${JAVA_HOME}/bin/java"
else
if [ "$(command -v java)" ]; then
RUNNER="java"
else
echo "JAVA_HOME is not set" >&2
exit 1
fi
fi
# Find Spark jars.
#找到spark下jars目录，不存在的话使用assembly/target/scala-$SPARK_SCALA_VERSION/jars中的jars
#设置SPARK_JARS_DIR的环境变量
if [ -d "${SPARK_HOME}/jars" ]; then
SPARK_JARS_DIR="${SPARK_HOME}/jars"
else
SPARK_JARS_DIR="${SPARK_HOME}/assembly/target/scala-$SPARK_SCALA_VERSION/jars"
fi
#设置LAUNCH_CLASSPATH spark运行的classpath 为$SPARK_JARS_DIR/*
if [ ! -d "$SPARK_JARS_DIR" ] && [ -z "$SPARK_TESTING$SPARK_SQL_TESTING" ]; then
echo "Failed to find Spark jars directory ($SPARK_JARS_DIR)." 1>&2
echo "You need to build Spark with the target \"package\" before running this program." 1>&2
exit 1
else
LAUNCH_CLASSPATH="$SPARK_JARS_DIR/*"
fi
# Add the launcher build dir to the classpath if requested.
#这个一般不会配置
if [ -n "$SPARK_PREPEND_CLASSES" ]; then
LAUNCH_CLASSPATH="${SPARK_HOME}/launcher/target/scala-$SPARK_SCALA_VERSION/classes:$LAUNCH_CLASSPATH"
fi
# For tests
if [[ -n "$SPARK_TESTING" ]]; then
unset YARN_CONF_DIR
unset HADOOP_CONF_DIR
fi
# The launcher library will print arguments separated by a NULL character, to allow arguments with
# characters that would be otherwise interpreted by the shell. Read that in a while loop, populating
# an array that will be used to exec the final command.
#
# The exit code of the launcher is appended to the output, so the parent shell removes it from the
# command array and checks the value to see if the launcher succeeded.
#组装 运行命令 java -Xmx128m -cp $LAUNCH_CLASSPATH org.apache.spark.launcher.Main org.apache.spark.deploy.SparkSubmit --master xx --deploy-mode cluster ...
build_command() {
"$RUNNER" -Xmx128m -cp "$LAUNCH_CLASSPATH" org.apache.spark.launcher.Main "$@"
#这里在最后再追加一个 0
printf "%d\0" $?
}
# Turn off posix mode since it does not allow process substitution
# 为了后面捕获java 输出
set +o posix
CMD=()
while IFS= read -d '' -r ARG; do
CMD+=("$ARG")
done < <(build_command "$@")
#组装 运行命令 java -Xmx128m -cp $LAUNCH_CLASSPATH org.apache.spark.launcher.Main org.apache.spark.deploy.SparkSubmit --master xx --deploy-mode cluster ... 0
echo "yyb cmd ${CMD[*]}"
COUNT=${#CMD[@]}
LAST=$((COUNT - 1))
#所以这个会是 0
LAUNCHER_EXIT_CODE=${CMD[$LAST]}
# Certain JVM failures result in errors being printed to stdout (instead of stderr), which causes
# the code that parses the output of the launcher to get confused. In those cases, check if the
# exit code is an integer, and if it's not, handle it as a special error case.
if ! [[ $LAUNCHER_EXIT_CODE =~ ^[0-9]+$ ]]; then
echo "${CMD[@]}" | head -n-1 1>&2
exit 1
fi
if [ $LAUNCHER_EXIT_CODE != 0 ]; then
exit $LAUNCHER_EXIT_CODE
fi
#这里又把上面追加的0 去掉
CMD=("${CMD[@]:0:$LAST}")
#运行命令 java -Xmx128m -cp $LAUNCH_CLASSPATH org.apache.spark.launcher.Main org.apache.spark.deploy.SparkSubmit --master xx --deploy-mode cluster ... --jars xxx.jar,yyy.jar user-jar.jar
#这个就是最终的命令
#需要注意的是 下面这个一共是2个执行命令 ${CMD[@]}是一个，这个会返回 组装好的 真正执行的命令
## 最后 组装好的命令 示例：
#{JAVA_HOME}/bin/java [java_opt] -cp xx/xxx;yy/yy/*... org.apache.spark.deploy.SparkSubmit --master yarn --deploy-mode cluster --conf xxx=xxx --jars jar1,jar2 --class xxxx .. 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数
#然后 exec 再执行 真正组装好的命令
exec "${CMD[@]}"
load-spark-env.sh
作用是：找到 conf下的spark-env.sh 加载其中的环境变量，确定集群运行模式
和使用那种scala版本
#这个找到spark的home
if [ -z "${SPARK_HOME}" ]; then
source "$(dirname "$0")"/find-spark-home
fi
#SPARK_ENV_LOADED这个环境变量一般不会配置，所以会进入这个if
if [ -z "$SPARK_ENV_LOADED" ]; then
export SPARK_ENV_LOADED=1
#配置SPARK_CONF_DIR
export SPARK_CONF_DIR="${SPARK_CONF_DIR:-"${SPARK_HOME}"/conf}"
#SPARK_CONF_DIR 下面的spark-env.sh 存在的话 则进入if，一般的话会存在，所以一般会进入这个if
if [ -f "${SPARK_CONF_DIR}/spark-env.sh" ]; then
# Promote all variable declarations to environment (exported) variables
#加载SPARK_CONF_DIR 目录下的 spark-env.sh 修改的环境变量
#spark-env.sh 主要用来配置 spark 运行在那种集群模式下
#列举一些yarn模式下的配置参数 SPARK_CONF_DIR，HADOOP_CONF_DIR，YARN_CONF_DIR，
#SPARK_EXECUTOR_CORES，SPARK_EXECUTOR_MEMORY，SPARK_DRIVER_MEMORY等
set -a
. "${SPARK_CONF_DIR}/spark-env.sh"
set +a
fi
fi
# Setting SPARK_SCALA_VERSION if not already set.
#SPARK_SCALA_VERSION这个环境变量一般不会配置，所以会进入这个if
#主要目的是使用spark自带的scala版本
if [ -z "$SPARK_SCALA_VERSION" ]; then
ASSEMBLY_DIR2="${SPARK_HOME}/assembly/target/scala-2.11"
ASSEMBLY_DIR1="${SPARK_HOME}/assembly/target/scala-2.12"
if [[ -d "$ASSEMBLY_DIR2" && -d "$ASSEMBLY_DIR1" ]]; then
echo -e "Presence of build for multiple Scala versions detected." 1>&2
echo -e 'Either clean one of them or, export SPARK_SCALA_VERSION in spark-env.sh.' 1>&2
exit 1
fi
if [ -d "$ASSEMBLY_DIR2" ]; then
export SPARK_SCALA_VERSION="2.11"
else
export SPARK_SCALA_VERSION="2.12"
fi
fi
org.apache.spark.launcher.Main
spark-submit 提交的Job 的参数最后都传递到这个类这里，命令实例如下：
java -Xmx128m -cp $LAUNCH_CLASSPATH org.apache.spark.launcher.Main org.apache.spark.deploy.SparkSubmit --master xx --deploy-mode cluster ... --jars xxx.jar,yyy.jar user-jar.jar
这里类的运行完结果示例：
//最后结果 {JAVA_HOME}/bin/java [java_opt] -cp xx/xxx;yy/yy/*… org.apache.spark.deploy.SparkSubmit --master yarn --deploy-mode cluster --conf xxx=xxx --jars jar1,jar2 --class xxxx … 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数
。
下面来看看整个详细的过程：
org.apache.spark.launcher.Main这个类在spark源码的launcher目录下，主要目的是解析和验证spark-submit 后面的参数，抽取和验证参数的正确性。
下面来解读一下这个类：
class Main {
//主方法
public static void main(String[] argsArray) throws Exception {
//判断参数数量是否为0，为0的话 抛出异常提示信息
checkArgument(argsArray.length > 0, "Not enough arguments: missing class name.");
//参数数组 转 ArrayList
List<String> args = new ArrayList<>(Arrays.asList(argsArray));
//拿到真正的待运行类 全称 org.apache.spark.deploy.SparkSubmit
String className = args.remove(0);
//是否打印 运行命令
boolean printLaunchCommand = !isEmpty(System.getenv("SPARK_PRINT_LAUNCH_COMMAND"));
AbstractCommandBuilder builder;
//spark-submit 走if这个分支
if (className.equals("org.apache.spark.deploy.SparkSubmit")) {
try {
//使用SparkSubmitCommandBuilder解析参数
//这个的args是-master xx --deploy-mode cluster ... --jars xxx.jar,yyy.jar user-jar.jar
//这一步执行完成 builder 里面的属性已经都有args配置的参数值
//引文SparkSubmitCommandBuilder 的内部类 OptionParser parse过程操作的
//这一步详细的解读见下面 SparkSubmitCommandBuilder的部分
builder = new SparkSubmitCommandBuilder(args);
} catch (IllegalArgumentException e) {
printLaunchCommand = false;
System.err.println("Error: " + e.getMessage());
System.err.println();
MainClassOptionParser parser = new MainClassOptionParser();
try {
parser.parse(args);
} catch (Exception ignored) {
// Ignore parsing exceptions.
}
List<String> help = new ArrayList<>();
if (parser.className != null) {
help.add(parser.CLASS);
help.add(parser.className);
}
help.add(parser.USAGE_ERROR);
builder = new SparkSubmitCommandBuilder(help);
}
} else {
builder = new SparkClassCommandBuilder(className, args);
}
Map<String, String> env = new HashMap<>();
//接下来 build commed 细节见SparkSubmitCommandBuilder的buildCommand方法
List<String> cmd = builder.buildCommand(env);
if (printLaunchCommand) {
System.err.println("Spark Command: " + join(" ", cmd));
System.err.println("========================================");
}
if (isWindows()) {
System.out.println(prepareWindowsCommand(cmd, env));
} else {
// In bash, use NULL as the arg separator since it cannot be used in an argument.
List<String> bashCmd = prepareBashCommand(cmd, env);
//最后结果 {JAVA_HOME}/bin/java [java_opt] -cp xx/xxx;yy/yy/*... org.apache.spark.deploy.SparkSubmit --master yarn --deploy-mode cluster --conf xxx=xxx --jars jar1,jar2 --class xxxx .. 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数
//这个结果 会被 执行 spark-class 的 shell 脚本 捕获
//exec 执行这个已经组装好的命令
for (String c : bashCmd) {
System.out.print(c);
System.out.print('\0');
}
}
}
/**
* Prepare a command line for execution from a Windows batch script.
*
* The method quotes all arguments so that spaces are handled as expected. Quotes within arguments
* are "double quoted" (which is batch for escaping a quote). This page has more details about
* quoting and other batch script fun stuff: http://ss64.com/nt/syntax-esc.html
*/
private static String prepareWindowsCommand(List<String> cmd, Map<String, String> childEnv) {
StringBuilder cmdline = new StringBuilder();
for (Map.Entry<String, String> e : childEnv.entrySet()) {
cmdline.append(String.format("set %s=%s", e.getKey(), e.getValue()));
cmdline.append(" && ");
}
for (String arg : cmd) {
cmdline.append(quoteForBatchScript(arg));
cmdline.append(" ");
}
return cmdline.toString();
}
/**
* Prepare the command for execution from a bash script. The final command will have commands to
* set up any needed environment variables needed by the child process.
*/
private static List<String> prepareBashCommand(List<String> cmd, Map<String, String> childEnv) {
if (childEnv.isEmpty()) {
return cmd;
}
List<String> newCmd = new ArrayList<>();
newCmd.add("env");
for (Map.Entry<String, String> e : childEnv.entrySet()) {
newCmd.add(String.format("%s=%s", e.getKey(), e.getValue()));
}
newCmd.addAll(cmd);
return newCmd;
}
/**
* A parser used when command line parsing fails for spark-submit. It's used as a best-effort
* at trying to identify the class the user wanted to invoke, since that may require special
* usage strings (handled by SparkSubmitArguments).
*/
private static class MainClassOptionParser extends SparkSubmitOptionParser {
String className;
@Override
protected boolean handle(String opt, String value) {
if (CLASS.equals(opt)) {
className = value;
}
return false;
}
@Override
protected boolean handleUnknown(String opt) {
return false;
}
@Override
protected void handleExtraArgs(List<String> extra) {
}
}
}
SparkSubmitCommandBuilder class
看一个这个类的构造方法：
构造方法
//这个的args的是 --master xx --deploy-mode cluster ... --jars xxx.jar,yyy.jar user-jar.jar
SparkSubmitCommandBuilder(List<String> args) {
this.allowsMixedArguments = false;
this.sparkArgs = new ArrayList<>();
boolean isExample = false;
List<String> submitArgs = args;
if (args.size() > 0) {
//spark-submit 不会进入这个switch
switch (args.get(0)) {
case PYSPARK_SHELL:
this.allowsMixedArguments = true;
appResource = PYSPARK_SHELL;
submitArgs = args.subList(1, args.size());
break;
case SPARKR_SHELL:
this.allowsMixedArguments = true;
appResource = SPARKR_SHELL;
submitArgs = args.subList(1, args.size());
break;
case RUN_EXAMPLE:
isExample = true;
submitArgs = args.subList(1, args.size());
}
this.isExample = isExample; //false
//使用OptionParser解析参数
//细节 见 OptionParser 解读部分
OptionParser parser = new OptionParser();
parser.parse(submitArgs);
//spark-submit 的话 是true
this.isAppResourceReq = parser.isAppResourceReq;
} else {
this.isExample = isExample;
this.isAppResourceReq = false;
}
}
buildCommand
@Override
//env是传过来的null map，appResource是用户自己JOb Jar，所以会走else 这个分支
public List<String> buildCommand(Map<String, String> env)
throws IOException, IllegalArgumentException {
if (PYSPARK_SHELL.equals(appResource) && isAppResourceReq) {
return buildPySparkShellCommand(env);
} else if (SPARKR_SHELL.equals(appResource) && isAppResourceReq) {
return buildSparkRCommand(env);
} else {//spark-submit的话走这个分支 详细信息看下面
return buildSparkSubmitCommand(env);
}
}
buildSparkSubmitCommand
private List<String> buildSparkSubmitCommand(Map<String, String> env)
throws IOException, IllegalArgumentException {
//加载用户指定的propertiesFile 或者 conf/spark-defaults.conf 文件
// conf/spark-defaults.conf 这个可以统一配置 生产环境一般是有这个文件的，但是里面的配置项都是注释的
Map<String, String> config = getEffectiveConfig();
//这个返回 false
boolean isClientMode = isClientMode(config);
//extraClassPath is null
String extraClassPath = isClientMode ? config.get(SparkLauncher.DRIVER_EXTRA_CLASSPATH) : null;
//返回 ${JAVA_HOME}/bin [java-opt] -cp
//如果 conf/java-opts 有这个 java 优化文件，则会在 ${JAVA_HOME}/bin 加上 这个优化参数
//-cp 的主要组装细节在buildClassPath 方法中
//cp 会有spark_home/conf spark_home/core/target/jars/* spark_home/mllib/target/jars/* spark_home/assembly/target/scala-%s/jars/* HADOOP_CONF_DIR、YARN_CONF_DIR、SPARK_DIST_CLASSPATH中的
List<String> cmd = buildJavaCommand(extraClassPath);
// Take Thrift Server as daemon
if (isThriftServer(mainClass)) {
addOptionString(cmd, System.getenv("SPARK_DAEMON_JAVA_OPTS"));
}
//到这里 组装的命令已经这个样子了 {JAVA_HOME}/bin/java [java_opt] -cp xx/xxx;yy/yy/*...
//继续追加 SPARK_SUBMIT_OPTS 优化参数
addOptionString(cmd, System.getenv("SPARK_SUBMIT_OPTS"));
// We don't want the client to specify Xmx. These have to be set by their corresponding
// memory flag --driver-memory or configuration entry spark.driver.memory
//这里一般不会有的
String driverExtraJavaOptions = config.get(SparkLauncher.DRIVER_EXTRA_JAVA_OPTIONS);
if (!isEmpty(driverExtraJavaOptions) && driverExtraJavaOptions.contains("Xmx")) {
String msg = String.format("Not allowed to specify max heap(Xmx) memory settings through " +
"java options (was %s). Use the corresponding --driver-memory or " +
"spark.driver.memory configuration instead.", driverExtraJavaOptions);
throw new IllegalArgumentException(msg);
}
if (isClientMode) {
// Figuring out where the memory value come from is a little tricky due to precedence.
// Precedence is observed in the following order:
// - explicit configuration (setConf()), which also covers --driver-memory cli argument.
// - properties file.
// - SPARK_DRIVER_MEMORY env variable
// - SPARK_MEM env variable
// - default value (1g)
// Take Thrift Server as daemon
String tsMemory =
isThriftServer(mainClass) ? System.getenv("SPARK_DAEMON_MEMORY") : null;
String memory = firstNonEmpty(tsMemory, config.get(SparkLauncher.DRIVER_MEMORY),
System.getenv("SPARK_DRIVER_MEMORY"), System.getenv("SPARK_MEM"), DEFAULT_MEM);
cmd.add("-Xmx" + memory);
addOptionString(cmd, driverExtraJavaOptions);
mergeEnvPathList(env, getLibPathEnvName(),
config.get(SparkLauncher.DRIVER_EXTRA_LIBRARY_PATH));
}
//到这里 组装的命令已经这个样子了 {JAVA_HOME}/bin/java [java_opt] -cp xx/xxx;yy/yy/*... org.apache.spark.deploy.SparkSubmit
cmd.add("org.apache.spark.deploy.SparkSubmit");
//这里是规整 spark-submit 后面的参数
// --master yarn --deploy-mode cluster --conf xxx=xxx --jars jar1,jar2 --class xxxx .. 其他的spark-submit 配置的参数
cmd.addAll(buildSparkSubmitArgs());
// 最后的cmd
//{JAVA_HOME}/bin/java [java_opt] -cp xx/xxx;yy/yy/*... org.apache.spark.deploy.SparkSubmit --master yarn --deploy-mode cluster --conf xxx=xxx --jars jar1,jar2 --class xxxx .. 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数
return cmd;
}
OptionParser
这里这要看看用到的方法：
protected final void parse(List<String> args) {
//这个是正则提取表达式
Pattern eqSeparatedOpt = Pattern.compile("(--[^=]+)=(.+)");
int idx = 0;
for (idx = 0; idx < args.size(); idx++) {
String arg = args.get(idx);
String value = null;
Matcher m = eqSeparatedOpt.matcher(arg);
//这里用来解析xxx=yyy这个配置
if (m.matches()) {
arg = m.group(1);
value = m.group(2);
}
// Look for options with a value.
//以 --master yarn 为例 name就是 --master
//如果这里是最后一个 用户的Job jar，那么name 就是 null了
String name = findCliOption(arg, opts);
if (name != null) {//但是这个在--master yarn 会有一个空格，
//所以要idx++ 获取 yarn的位置的值，如果已经没有args下一个值了那么就会抛出异常
if (value == null) {
if (idx == args.size() - 1) {
throw new IllegalArgumentException(
String.format("Missing argument for option '%s'.", arg));
}
idx++;
//取到yarn这个位置的值
value = args.get(idx);
}
//这个方法判断传入的配置是不是需要的参数，如果不是内置的参数，则会break
if (!handle(name, value)) {
break;
}
//继续解析下一个参数
continue;
}
// Look for a switch.
//这里是 spark-submit -h等的帮助 参数解析
name = findCliOption(arg, switches);
if (name != null) {
if (!handle(name, null)) {
break;
}
continue;
}
//这里会处理 appResource即用户自己的Job jar
if (!handleUnknown(arg)) {
break;
}
}
if (idx < args.size()) {
idx++;
}
//这里用来处理用户自己的Job jar 后面自己的参数 appArgs
handleExtraArgs(args.subList(idx, args.size()));
}
SparkSubmit Object
上面spark-submit sh脚本 执行的最终结果就是执行 SparkSubmit Object 的 main 方法。
这里使用下面的启动参数为例子讲解一下（执行输入，），
{JAVA_HOME}/bin/java [java_opt] -cp xx/xxx;yy/yy/*… org.apache.spark.deploy.SparkSubmit --master yarn --deploy-mode cluster --conf xxx=xxx --jars hdfs://jar1,jar2 --class xxxx … 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数。
注意这里的资源都在在hdfs上的。
首先看看main方法：
//这里的args就是 -master yarn --deploy-mode cluster --conf xxx=xxx --jars hdfs://jar1,jar2 --class xxxx .. 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数
override def main(args: Array[String]): Unit = {
// Initialize logging if it hasn't been done yet. Keep track of whether logging needs to
// be reset before the application starts.
//这里是初始化日志
val uninitLog = initializeLogIfNecessary(true, silent = true)
//使用SparkSubmitArguments解析参数，里面实际的parse 过程和上面的一样
val appArgs = new SparkSubmitArguments(args)
if (appArgs.verbose) {
// scalastyle:off println
printStream.println(appArgs)
// scalastyle:on println
}
appArgs.action match {
//这里默认是submit，转移到submit方法
case SparkSubmitAction.SUBMIT => submit(appArgs, uninitLog)
case SparkSubmitAction.KILL => kill(appArgs)
case SparkSubmitAction.REQUEST_STATUS => requestStatus(appArgs)
}
}
//args: SparkSubmitArguments 已经解析过的 -master yarn --deploy-mode cluster --conf xxx=xxx --jars jar1,jar2 --class xxxx .. 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数
private def submit(args: SparkSubmitArguments, uninitLog: Boolean): Unit = {
def doRunMain(): Unit = {
//一般不会走这个if分支
if (args.proxyUser != null) {
val proxyUser = UserGroupInformation.createProxyUser(args.proxyUser,
UserGroupInformation.getCurrentUser())
try {
proxyUser.doAs(new PrivilegedExceptionAction[Unit]() {
override def run(): Unit = {
runMain(args, uninitLog)
}
})
} catch {
case e: Exception =>
if (e.getStackTrace().length == 0) {
// scalastyle:off println
printStream.println(s"ERROR: ${e.getClass().getName()}: ${e.getMessage()}")
// scalastyle:on println
exitFn(1)
} else {
throw e
}
}
} else {
//再次 转移到 runMain 这个函数，下面来看看这个方法
runMain(args, uninitLog)
}
}
if (args.isStandaloneCluster && args.useRest) {
try {
// scalastyle:off println
printStream.println("Running Spark using the REST application submission protocol.")
// scalastyle:on println
doRunMain()
} catch {
// Fail over to use the legacy submission gateway
case e: SubmitRestConnectionException =>
printWarning(s"Master endpoint ${args.master} was not a REST server. " +
"Falling back to legacy submission gateway instead.")
args.useRest = false
submit(args, false)
}
// In all other modes, just run the main class as prepared
} else {
//这个方法直接会走这一步，然后执行 这个内部函数
doRunMain()
}
}
runMain 方法
//args: SparkSubmitArguments 已经解析过的 -master yarn --deploy-mode cluster --conf xxx=xxx --jars jar1,jar2 --class xxxx .. 其他的spark-submit配置的参数 用户自己的jar 用户自己设置的用户参数
private def runMain(args: SparkSubmitArguments, uninitLog: Boolean): Unit = {
//prepareSubmitEnvironment 这个方法是一个很重要且非常长的方法，里面会确定 执行用户jar的 与各个集群的连接的提交类
//下面有详细的 解读
val (childArgs, childClasspath, sparkConf, childMainClass) = prepareSubmitEnvironment(args)
//返回结果
//sparkConf childClasspath childMainClass childArgs 已经初始化了
//返回这些参数
//如果是yarn的话 childMainClass是org.apache.spark.deploy.yarn.YarnClusterApplication
//childClasspath 里面已经有了用户的Job jar了
// Let the main class re-initialize the logging system once it starts.
if (uninitLog) {
Logging.uninitialize()
}
// scalastyle:off println
if (args.verbose) {
printStream.println(s"Main class:\n$childMainClass")
printStream.println(s"Arguments:\n${childArgs.mkString("\n")}")
// sysProps may contain sensitive information, so redact before printing
printStream.println(s"Spark config:\n${Utils.redact(sparkConf.getAll.toMap).mkString("\n")}")
printStream.println(s"Classpath elements:\n${childClasspath.mkString("\n")}")
printStream.println("\n")
}
// scalastyle:on println
val loader =
if (sparkConf.get(DRIVER_USER_CLASS_PATH_FIRST)) {
new ChildFirstURLClassLoader(new Array[URL](0),
Thread.currentThread.getContextClassLoader)
} else {
new MutableURLClassLoader(new Array[URL](0),
Thread.currentThread.getContextClassLoader)
}
Thread.currentThread.setContextClassLoader(loader)
for (jar <- childClasspath) {
addJarToClasspath(jar, loader)
}
var mainClass: Class[_] = null
try {
//反射 org.apache.spark.deploy.yarn.YarnClusterApplication
//这个类在源码的 resource-managers 下
//这个类 是 org.apache.spark.deploy.yarn.client的 内部类
mainClass = Utils.classForName(childMainClass)
} catch {
case e: ClassNotFoundException =>
e.printStackTrace(printStream)
if (childMainClass.contains("thriftserver")) {
// scalastyle:off println
printStream.println(s"Failed to load main class $childMainClass.")
printStream.println("You need to build Spark with -Phive and -Phive-thriftserver.")
// scalastyle:on println
}
System.exit(CLASS_NOT_FOUND_EXIT_STATUS)
case e: NoClassDefFoundError =>
e.printStackTrace(printStream)
if (e.getMessage.contains("org/apache/hadoop/hive")) {
// scalastyle:off println
printStream.println(s"Failed to load hive class.")
printStream.println("You need to build Spark with -Phive and -Phive-thriftserver.")
// scalastyle:on println
}
System.exit(CLASS_NOT_FOUND_EXIT_STATUS)
}
val app: SparkApplication = if (classOf[SparkApplication].isAssignableFrom(mainClass)) {
//会走这一步 实例化org.apache.spark.deploy.yarn.YarnClusterApplication
mainClass.newInstance().asInstanceOf[SparkApplication]
} else {
// SPARK-4170
if (classOf[scala.App].isAssignableFrom(mainClass)) {
printWarning("Subclasses of scala.App may not work correctly. Use a main() method instead.")
}
new JavaMainApplication(mainClass)
}
@tailrec
def findCause(t: Throwable): Throwable = t match {
case e: UndeclaredThrowableException =>
if (e.getCause() != null) findCause(e.getCause()) else e
case e: InvocationTargetException =>
if (e.getCause() != null) findCause(e.getCause()) else e
case e: Throwable =>
e
}
try {
//启动org.apache.spark.deploy.yarn.YarnClusterApplication start 方法 并传入参数 和 sparkConf
//详细的下面运行步骤 见下面的 YarnClusterApplication 类的解读
app.start(childArgs.toArray, sparkConf)
} catch {
case t: Throwable =>
findCause(t) match {
case SparkUserAppException(exitCode) =>
System.exit(exitCode)
case t: Throwable =>
throw t
}
}
}
private[deploy] def prepareSubmitEnvironment(
args: SparkSubmitArguments,
conf: Option[HadoopConfiguration] = None)
: (Seq[String], Seq[String], SparkConf, String) = {
try {
//转移到doPrepareSubmitEnvironment 方法，conf=None
doPrepareSubmitEnvironment(args, conf)
//返回结果
//sparkConf childClasspath childMainClass childArgs 已经初始化了
//返回这些参数
//如果是yarn的话 childMainClass是org.apache.spark.deploy.yarn.YarnClusterApplication
//childClasspath 里面已经有了用户的Job jar了
} catch {
case e: SparkException =>
printErrorAndExit(e.getMessage)
throw e
}
}
private def doPrepareSubmitEnvironment(
args: SparkSubmitArguments,
conf: Option[HadoopConfiguration] = None)
: (Seq[String], Seq[String], SparkConf, String) = {
// Return values
val childArgs = new ArrayBuffer[String]()
val childClasspath = new ArrayBuffer[String]()
val sparkConf = new SparkConf()
var childMainClass = ""
// clusterManager = YARN
val clusterManager: Int = args.master match {
case "yarn" => YARN
case "yarn-client" | "yarn-cluster" =>
printWarning(s"Master ${args.master} is deprecated since 2.0." +
" Please use master \"yarn\" with specified deploy mode instead.")
YARN
case m if m.startsWith("spark") => STANDALONE
case m if m.startsWith("mesos") => MESOS
case m if m.startsWith("k8s") => KUBERNETES
case m if m.startsWith("local") => LOCAL
case _ =>
printErrorAndExit("Master must either be yarn or start with spark, mesos, k8s, or local")
-1
}
// deployMode = CLUSTER
var deployMode: Int = args.deployMode match {
case "client" | null => CLIENT
case "cluster" => CLUSTER
case _ => printErrorAndExit("Deploy mode must be either client or cluster"); -1
}
//走这个if args.master = "yarn"
if (clusterManager == YARN) {
(args.master, args.deployMode) match {
case ("yarn-cluster", null) =>
deployMode = CLUSTER
args.master = "yarn"
case ("yarn-cluster", "client") =>
printErrorAndExit("Client deploy mode is not compatible with master \"yarn-cluster\"")
case ("yarn-client", "cluster") =>
printErrorAndExit("Cluster deploy mode is not compatible with master \"yarn-client\"")
case (_, mode) =>
args.master = "yarn"
}
// Make sure YARN is included in our build if we're trying to use it
if (!Utils.classIsLoadable(YARN_CLUSTER_SUBMIT_CLASS) && !Utils.isTesting) {
printErrorAndExit(
"Could not load YARN classes. " +
"This copy of Spark may not have been compiled with YARN support.")
}
}
if (clusterManager == KUBERNETES) {
args.master = Utils.checkAndGetK8sMasterUrl(args.master)
// Make sure KUBERNETES is included in our build if we're trying to use it
if (!Utils.classIsLoadable(KUBERNETES_CLUSTER_SUBMIT_CLASS) && !Utils.isTesting) {
printErrorAndExit(
"Could not load KUBERNETES classes. " +
"This copy of Spark may not have been compiled with KUBERNETES support.")
}
}
// Fail fast, the following modes are not supported or applicable
(clusterManager, deployMode) match {
case (STANDALONE, CLUSTER) if args.isPython =>
printErrorAndExit("Cluster deploy mode is currently not supported for python " +
"applications on standalone clusters.")
case (STANDALONE, CLUSTER) if args.isR =>
printErrorAndExit("Cluster deploy mode is currently not supported for R " +
"applications on standalone clusters.")
case (KUBERNETES, _) if args.isPython =>
printErrorAndExit("Python applications are currently not supported for Kubernetes.")
case (KUBERNETES, _) if args.isR =>
printErrorAndExit("R applications are currently not supported for Kubernetes.")
case (KUBERNETES, CLIENT) =>
printErrorAndExit("Client mode is currently not supported for Kubernetes.")
case (LOCAL, CLUSTER) =>
printErrorAndExit("Cluster deploy mode is not compatible with master \"local\"")
case (_, CLUSTER) if isShell(args.primaryResource) =>
printErrorAndExit("Cluster deploy mode is not applicable to Spark shells.")
case (_, CLUSTER) if isSqlShell(args.mainClass) =>
printErrorAndExit("Cluster deploy mode is not applicable to Spark SQL shell.")
case (_, CLUSTER) if isThriftServer(args.mainClass) =>
printErrorAndExit("Cluster deploy mode is not applicable to Spark Thrift server.")
case _ =>
}
// Update args.deployMode if it is null. It will be passed down as a Spark property later.
(args.deployMode, deployMode) match {
case (null, CLIENT) => args.deployMode = "client"
case (null, CLUSTER) => args.deployMode = "cluster"
case _ =>
}
//isYarnCluster true 其他为false
val isYarnCluster = clusterManager == YARN && deployMode == CLUSTER
val isMesosCluster = clusterManager == MESOS && deployMode == CLUSTER
val isStandAloneCluster = clusterManager == STANDALONE && deployMode == CLUSTER
val isKubernetesCluster = clusterManager == KUBERNETES && deployMode == CLUSTER
//走这个if分支 但是 is scala 程序 ，所以不仔细看了
if (!isMesosCluster && !isStandAloneCluster) {
val resolvedMavenCoordinates = DependencyUtils.resolveMavenDependencies(
args.packagesExclusions, args.packages, args.repositories, args.ivyRepoPath,
args.ivySettingsPath)
if (!StringUtils.isBlank(resolvedMavenCoordinates)) {
args.jars = mergeFileLists(args.jars, resolvedMavenCoordinates)
if (args.isPython || isInternal(args.primaryResource)) {
args.pyFiles = mergeFileLists(args.pyFiles, resolvedMavenCoordinates)
}
}
if (args.isR && !StringUtils.isBlank(args.jars)) {
RPackageUtils.checkAndBuildRPackage(args.jars, printStream, args.verbose)
}
}
//把 spark-submit 的 --conf 的配置参数 加到 sparkConf 中去
//并 创建一个hadoopConf对象 里面有sparkConf,主要把s3 和 sparkConf以中以 spark.hadoop 开头的参数 放进来
args.sparkProperties.foreach { case (k, v) => sparkConf.set(k, v) }
val hadoopConf = conf.getOrElse(SparkHadoopUtil.newConfiguration(sparkConf))
val targetDir = Utils.createTempDir()
// assure a keytab is available from any place in a JVM
if (clusterManager == YARN || clusterManager == LOCAL || clusterManager == MESOS) {
if (args.principal != null) {
if (args.keytab != null) {
require(new File(args.keytab).exists(), s"Keytab file: ${args.keytab} does not exist")
// Add keytab and principal configurations in sysProps to make them available
// for later use; e.g. in spark sql, the isolated class loader used to talk
// to HiveMetastore will use these settings. They will be set as Java system
// properties and then loaded by SparkConf
sparkConf.set(KEYTAB, args.keytab)
sparkConf.set(PRINCIPAL, args.principal)
UserGroupInformation.loginUserFromKeytab(args.principal, args.keytab)
}
}
}
// 解析不同的路径 全称
args.jars = Option(args.jars).map(resolveGlobPaths(_, hadoopConf)).orNull
args.files = Option(args.files).map(resolveGlobPaths(_, hadoopConf)).orNull
args.pyFiles = Option(args.pyFiles).map(resolveGlobPaths(_, hadoopConf)).orNull
args.archives = Option(args.archives).map(resolveGlobPaths(_, hadoopConf)).orNull
lazy val secMgr = new SecurityManager(sparkConf)
// In client mode, download remote files.
var localPrimaryResource: String = null
var localJars: String = null
var localPyFiles: String = null
if (deployMode == CLIENT) {
localPrimaryResource = Option(args.primaryResource).map {
downloadFile(_, targetDir, sparkConf, hadoopConf, secMgr)
}.orNull
localJars = Option(args.jars).map {
downloadFileList(_, targetDir, sparkConf, hadoopConf, secMgr)
}.orNull
localPyFiles = Option(args.pyFiles).map {
downloadFileList(_, targetDir, sparkConf, hadoopConf, secMgr)
}.orNull
}
//会走这个if 这里是下载 其他的远程资源 如http ftp
if (clusterManager == YARN) {
val forceDownloadSchemes = sparkConf.get(FORCE_DOWNLOAD_SCHEMES)
def shouldDownload(scheme: String): Boolean = {
forceDownloadSchemes.contains(scheme) ||
Try { FileSystem.getFileSystemClass(scheme, hadoopConf) }.isFailure
}
def downloadResource(resource: String): String = {
val uri = Utils.resolveURI(resource)
uri.getScheme match {
case "local" | "file" => resource
case e if shouldDownload(e) =>
val file = new File(targetDir, new Path(uri).getName)
if (file.exists()) {
file.toURI.toString
} else {
downloadFile(resource, targetDir, sparkConf, hadoopConf, secMgr)
}
case _ => uri.toString
}
}
args.primaryResource = Option(args.primaryResource).map { downloadResource }.orNull
args.files = Option(args.files).map { files =>
Utils.stringToSeq(files).map(downloadResource).mkString(",")
}.orNull
args.pyFiles = Option(args.pyFiles).map { pyFiles =>
Utils.stringToSeq(pyFiles).map(downloadResource).mkString(",")
}.orNull
args.jars = Option(args.jars).map { jars =>
Utils.stringToSeq(jars).map(downloadResource).mkString(",")
}.orNull
args.archives = Option(args.archives).map { archives =>
Utils.stringToSeq(archives).map(downloadResource).mkString(",")
}.orNull
}
// If we're running a python app, set the main class to our specific python runner
if (args.isPython && deployMode == CLIENT) {
if (args.primaryResource == PYSPARK_SHELL) {
args.mainClass = "org.apache.spark.api.python.PythonGatewayServer"
} else {
// If a python file is provided, add it to the child arguments and list of files to deploy.
// Usage: PythonAppRunner <main python file> <extra python files> [app arguments]
args.mainClass = "org.apache.spark.deploy.PythonRunner"
args.childArgs = ArrayBuffer(localPrimaryResource, localPyFiles) ++ args.childArgs
if (clusterManager != YARN) {
// The YARN backend distributes the primary file differently, so don't merge it.
args.files = mergeFileLists(args.files, args.primaryResource)
}
}
if (clusterManager != YARN) {
// The YARN backend handles python files differently, so don't merge the lists.
args.files = mergeFileLists(args.files, args.pyFiles)
}
if (localPyFiles != null) {
sparkConf.set("spark.submit.pyFiles", localPyFiles)
}
}
// In YARN mode for an R app, add the SparkR package archive and the R package
// archive containing all of the built R libraries to archives so that they can
// be distributed with the job
if (args.isR && clusterManager == YARN) {
val sparkRPackagePath = RUtils.localSparkRPackagePath
if (sparkRPackagePath.isEmpty) {
printErrorAndExit("SPARK_HOME does not exist for R application in YARN mode.")
}
val sparkRPackageFile = new File(sparkRPackagePath.get, SPARKR_PACKAGE_ARCHIVE)
if (!sparkRPackageFile.exists()) {
printErrorAndExit(s"$SPARKR_PACKAGE_ARCHIVE does not exist for R application in YARN mode.")
}
val sparkRPackageURI = Utils.resolveURI(sparkRPackageFile.getAbsolutePath).toString
// Distribute the SparkR package.
// Assigns a symbol link name "sparkr" to the shipped package.
args.archives = mergeFileLists(args.archives, sparkRPackageURI + "#sparkr")
// Distribute the R package archive containing all the built R packages.
if (!RUtils.rPackages.isEmpty) {
val rPackageFile =
RPackageUtils.zipRLibraries(new File(RUtils.rPackages.get), R_PACKAGE_ARCHIVE)
if (!rPackageFile.exists()) {
printErrorAndExit("Failed to zip all the built R packages.")
}
val rPackageURI = Utils.resolveURI(rPackageFile.getAbsolutePath).toString
// Assigns a symbol link name "rpkg" to the shipped package.
args.archives = mergeFileLists(args.archives, rPackageURI + "#rpkg")
}
}
// TODO: Support distributing R packages with standalone cluster
if (args.isR && clusterManager == STANDALONE && !RUtils.rPackages.isEmpty) {
printErrorAndExit("Distributing R packages with standalone cluster is not supported.")
}
// TODO: Support distributing R packages with mesos cluster
if (args.isR && clusterManager == MESOS && !RUtils.rPackages.isEmpty) {
printErrorAndExit("Distributing R packages with mesos cluster is not supported.")
}
// If we're running an R app, set the main class to our specific R runner
if (args.isR && deployMode == CLIENT) {
if (args.primaryResource == SPARKR_SHELL) {
args.mainClass = "org.apache.spark.api.r.RBackend"
} else {
// If an R file is provided, add it to the child arguments and list of files to deploy.
// Usage: RRunner <main R file> [app arguments]
args.mainClass = "org.apache.spark.deploy.RRunner"
args.childArgs = ArrayBuffer(localPrimaryResource) ++ args.childArgs
args.files = mergeFileLists(args.files, args.primaryResource)
}
}
if (isYarnCluster && args.isR) {
// In yarn-cluster mode for an R app, add primary resource to files
// that can be distributed with the job
args.files = mergeFileLists(args.files, args.primaryResource)
}
// Special flag to avoid deprecation warnings at the client
sys.props("SPARK_SUBMIT") = "true"
// A list of rules to map each argument to system properties or command-line options in
// each deploy mode; we iterate through these below
val options = List[OptionAssigner](
// All cluster managers
OptionAssigner(args.master, ALL_CLUSTER_MGRS, ALL_DEPLOY_MODES, confKey = "spark.master"),
OptionAssigner(args.deployMode, ALL_CLUSTER_MGRS, ALL_DEPLOY_MODES,
confKey = "spark.submit.deployMode"),
OptionAssigner(args.name, ALL_CLUSTER_MGRS, ALL_DEPLOY_MODES, confKey = "spark.app.name"),
OptionAssigner(args.ivyRepoPath, ALL_CLUSTER_MGRS, CLIENT, confKey = "spark.jars.ivy"),
OptionAssigner(args.driverMemory, ALL_CLUSTER_MGRS, CLIENT,
confKey = "spark.driver.memory"),
OptionAssigner(args.driverExtraClassPath, ALL_CLUSTER_MGRS, ALL_DEPLOY_MODES,
confKey = "spark.driver.extraClassPath"),
OptionAssigner(args.driverExtraJavaOptions, ALL_CLUSTER_MGRS, ALL_DEPLOY_MODES,
confKey = "spark.driver.extraJavaOptions"),
OptionAssigner(args.driverExtraLibraryPath, ALL_CLUSTER_MGRS, ALL_DEPLOY_MODES,
confKey = "spark.driver.extraLibraryPath"),
// Propagate attributes for dependency resolution at the driver side
OptionAssigner(args.packages, STANDALONE | MESOS, CLUSTER, confKey = "spark.jars.packages"),
OptionAssigner(args.repositories, STANDALONE | MESOS, CLUSTER,
confKey = "spark.jars.repositories"),
OptionAssigner(args.ivyRepoPath, STANDALONE | MESOS, CLUSTER, confKey = "spark.jars.ivy"),
OptionAssigner(args.packagesExclusions, STANDALONE | MESOS,
CLUSTER, confKey = "spark.jars.excludes"),
// Yarn only
OptionAssigner(args.queue, YARN, ALL_DEPLOY_MODES, confKey = "spark.yarn.queue"),
OptionAssigner(args.numExecutors, YARN, ALL_DEPLOY_MODES,
confKey = "spark.executor.instances"),
OptionAssigner(args.pyFiles, YARN, ALL_DEPLOY_MODES, confKey = "spark.yarn.dist.pyFiles"),
OptionAssigner(args.jars, YARN, ALL_DEPLOY_MODES, confKey = "spark.yarn.dist.jars"),
OptionAssigner(args.files, YARN, ALL_DEPLOY_MODES, confKey = "spark.yarn.dist.files"),
OptionAssigner(args.archives, YARN, ALL_DEPLOY_MODES, confKey = "spark.yarn.dist.archives"),
OptionAssigner(args.principal, YARN, ALL_DEPLOY_MODES, confKey = "spark.yarn.principal"),
OptionAssigner(args.keytab, YARN, ALL_DEPLOY_MODES, confKey = "spark.yarn.keytab"),
// Other options
OptionAssigner(args.executorCores, STANDALONE | YARN | KUBERNETES, ALL_DEPLOY_MODES,
confKey = "spark.executor.cores"),
OptionAssigner(args.executorMemory, STANDALONE | MESOS | YARN | KUBERNETES, ALL_DEPLOY_MODES,
confKey = "spark.executor.memory"),
OptionAssigner(args.totalExecutorCores, STANDALONE | MESOS | KUBERNETES, ALL_DEPLOY_MODES,
confKey = "spark.cores.max"),
OptionAssigner(args.files, LOCAL | STANDALONE | MESOS | KUBERNETES, ALL_DEPLOY_MODES,
confKey = "spark.files"),
OptionAssigner(args.jars, LOCAL, CLIENT, confKey = "spark.jars"),
OptionAssigner(args.jars, STANDALONE | MESOS | KUBERNETES, ALL_DEPLOY_MODES,
confKey = "spark.jars"),
OptionAssigner(args.driverMemory, STANDALONE | MESOS | YARN | KUBERNETES, CLUSTER,
confKey = "spark.driver.memory"),
OptionAssigner(args.driverCores, STANDALONE | MESOS | YARN | KUBERNETES, CLUSTER,
confKey = "spark.driver.cores"),
OptionAssigner(args.supervise.toString, STANDALONE | MESOS, CLUSTER,
confKey = "spark.driver.supervise"),
OptionAssigner(args.ivyRepoPath, STANDALONE, CLUSTER, confKey = "spark.jars.ivy"),
// An internal option used only for spark-shell to add user jars to repl's classloader,
// previously it uses "spark.jars" or "spark.yarn.dist.jars" which now may be pointed to
// remote jars, so adding a new option to only specify local jars for spark-shell internally.
OptionAssigner(localJars, ALL_CLUSTER_MGRS, CLIENT, confKey = "spark.repl.local.jars")
)
// In client mode, launch the application main class directly
// In addition, add the main application jar and any added jars (if any) to the classpath
if (deployMode == CLIENT) {
childMainClass = args.mainClass
if (localPrimaryResource != null && isUserJar(localPrimaryResource)) {
childClasspath += localPrimaryResource
}
if (localJars != null) { childClasspath ++= localJars.split(",") }
}
//这个 if 会走
if (isYarnCluster) {
//一般不会配这个参数
if (isUserJar(args.primaryResource)) {
childClasspath += args.primaryResource
}
//把 --jars 参数 加到childClasspath
//sparkConf childClasspath 已经初始化了
if (args.jars != null) { childClasspath ++= args.jars.split(",") }
}
if (deployMode == CLIENT) {
if (args.childArgs != null) { childArgs ++= args.childArgs }
}
// Map all arguments to command-line options or system properties for our chosen mode
//sparkConf childClasspath 已经初始化了
//把这个模式下的 OPtions 的 值都 依次 set到 sparkConf
for (opt <- options) {
if (opt.value != null &&
(deployMode & opt.deployMode) != 0 &&
(clusterManager & opt.clusterManager) != 0) {
if (opt.clOption != null) { childArgs += (opt.clOption, opt.value) }
if (opt.confKey != null) { sparkConf.set(opt.confKey, opt.value) }
}
}
// In case of shells, spark.ui.showConsoleProgress can be true by default or by user.
if (isShell(args.primaryResource) && !sparkConf.contains(UI_SHOW_CONSOLE_PROGRESS)) {
sparkConf.set(UI_SHOW_CONSOLE_PROGRESS, true)
}
// Add the application jar automatically so the user doesn't have to call sc.addJar
// For YARN cluster mode, the jar is already distributed on each node as "app.jar"
// For python and R files, the primary resource is already distributed as a regular file
if (!isYarnCluster && !args.isPython && !args.isR) {
var jars = sparkConf.getOption("spark.jars").map(x => x.split(",").toSeq).getOrElse(Seq.empty)
if (isUserJar(args.primaryResource)) {
jars = jars ++ Seq(args.primaryResource)
}
sparkConf.set("spark.jars", jars.mkString(","))
}
// In standalone cluster mode, use the REST client to submit the application (Spark 1.3+).
// All Spark parameters are expected to be passed to the client through system properties.
if (args.isStandaloneCluster) {
if (args.useRest) {
childMainClass = REST_CLUSTER_SUBMIT_CLASS
childArgs += (args.primaryResource, args.mainClass)
} else {
// In legacy standalone cluster mode, use Client as a wrapper around the user class
childMainClass = STANDALONE_CLUSTER_SUBMIT_CLASS
if (args.supervise) { childArgs += "--supervise" }
Option(args.driverMemory).foreach { m => childArgs += ("--memory", m) }
Option(args.driverCores).foreach { c => childArgs += ("--cores", c) }
childArgs += "launch"
childArgs += (args.master, args.primaryResource, args.mainClass)
}
if (args.childArgs != null) {
childArgs ++= args.childArgs
}
}
// Let YARN know it's a pyspark app, so it distributes needed libraries.
//sparkConf childClasspath 已经初始化了
if (clusterManager == YARN) {
if (args.isPython) {
sparkConf.set("spark.yarn.isPython", "true")
}
}
if (clusterManager == MESOS && UserGroupInformation.isSecurityEnabled) {
setRMPrincipal(sparkConf)
}
// In yarn-cluster mode, use yarn.Client as a wrapper around the user class
//sparkConf childClasspath childMainClass 已经初始化了
if (isYarnCluster) {
childMainClass = YARN_CLUSTER_SUBMIT_CLASS
if (args.isPython) {
childArgs += ("--primary-py-file", args.primaryResource)
childArgs += ("--class", "org.apache.spark.deploy.PythonRunner")
} else if (args.isR) {
val mainFile = new Path(args.primaryResource).getName
childArgs += ("--primary-r-file", mainFile)
childArgs += ("--class", "org.apache.spark.deploy.RRunner")
} else {
if (args.primaryResource != SparkLauncher.NO_RESOURCE) {
childArgs += ("--jar", args.primaryResource)
}
//sparkConf childClasspath childArgs 已经初始化了
//childArgs += --class value
childArgs += ("--class", args.mainClass)
}
//sparkConf childClasspath childMainClass childArgs 已经初始化了
//childArgs += --arg value是用户自己的Job的参数
if (args.childArgs != null) {
args.childArgs.foreach { arg => childArgs += ("--arg", arg) }
}
}
if (isMesosCluster) {
assert(args.useRest, "Mesos cluster mode is only supported through the REST submission API")
childMainClass = REST_CLUSTER_SUBMIT_CLASS
if (args.isPython) {
// Second argument is main class
childArgs += (args.primaryResource, "")
if (args.pyFiles != null) {
sparkConf.set("spark.submit.pyFiles", args.pyFiles)
}
} else if (args.isR) {
// Second argument is main class
childArgs += (args.primaryResource, "")
} else {
childArgs += (args.primaryResource, args.mainClass)
}
if (args.childArgs != null) {
childArgs ++= args.childArgs
}
}
if (isKubernetesCluster) {
childMainClass = KUBERNETES_CLUSTER_SUBMIT_CLASS
if (args.primaryResource != SparkLauncher.NO_RESOURCE) {
childArgs ++= Array("--primary-java-resource", args.primaryResource)
}
childArgs ++= Array("--main-class", args.mainClass)
if (args.childArgs != null) {
args.childArgs.foreach { arg =>
childArgs += ("--arg", arg)
}
}
}
// Load any properties specified through --conf and the default properties file
//sparkConf childClasspath childMainClass childArgs 已经初始化了
//sparkConf + 用户在spark-submit --conf的参数
for ((k, v) <- args.sparkProperties) {
sparkConf.setIfMissing(k, v)
}
// Ignore invalid spark.driver.host in cluster modes.
if (deployMode == CLUSTER) {
sparkConf.remove("spark.driver.host")
}
// Resolve paths in certain spark properties
val pathConfigs = Seq(
"spark.jars",
"spark.files",
"spark.yarn.dist.files",
"spark.yarn.dist.archives",
"spark.yarn.dist.jars")
pathConfigs.foreach { config =>
// Replace old URIs with resolved URIs, if they exist
sparkConf.getOption(config).foreach { oldValue =>
sparkConf.set(config, Utils.resolveURIs(oldValue))
}
}
// Resolve and format python file paths properly before adding them to the PYTHONPATH.
// The resolving part is redundant in the case of --py-files, but necessary if the user
// explicitly sets `spark.submit.pyFiles` in his/her default properties file.
sparkConf.getOption("spark.submit.pyFiles").foreach { pyFiles =>
val resolvedPyFiles = Utils.resolveURIs(pyFiles)
val formattedPyFiles = if (!isYarnCluster && !isMesosCluster) {
PythonRunner.formatPaths(resolvedPyFiles).mkString(",")
} else {
// Ignoring formatting python path in yarn and mesos cluster mode, these two modes
// support dealing with remote python files, they could distribute and add python files
// locally.
resolvedPyFiles
}
sparkConf.set("spark.submit.pyFiles", formattedPyFiles)
}
//sparkConf childClasspath childMainClass childArgs 已经初始化了
//返回这些参数
//如果是yarn的话 childMainClass是org.apache.spark.deploy.yarn.YarnClusterApplication
//childClasspath 里面已经有了用户的Job jar了
(childArgs, childClasspath, sparkConf, childMainClass)
}
YarnClusterApplication
这个类在spark 源码的 resource-managers 的yarn 目录下。
这类继承自SparkApplication，并且重写 start方法。
注意：
childArgs 里面有 --class mainClass --jar primaryResource (–arg userselfargs) *
childClasspath 里面有 --jars的jar和primaryResource
sparkConf 里面有 spark-submit 的–conf 和 keytab、principal 以及其他必要的配置
private[spark] class YarnClusterApplication extends SparkApplication {
//args 是用户Jar 的自己的参数 conf是 sparkConfig的配置
override def start(args: Array[String], conf: SparkConf): Unit = {
// SparkSubmit would use yarn cache to distribute files & jars in yarn mode,
// so remove them from sparkConf here for yarn mode.
conf.remove("spark.jars")
conf.remove("spark.files")
//ClientArguments 和Client详情 继续看下面
new Client(new ClientArguments(args), conf).run()
}
}
ClientArguments
注意：
childArgs 里面有 --class mainClass --jar primaryResource (–arg userselfargs) *
childClasspath 里面有 --jars的jar和primaryResource
sparkConf 里面有 spark-submit 的–conf 和 keytab、principal 以及其他必要的配置
这个类的作用主要是解析传进来的 Array[String] 类的 args
private[spark] class ClientArguments(args: Array[String]) {
var userJar: String = null //user self jar
var userClass: String = null //user main class
var primaryPyFile: String = null
var primaryRFile: String = null
var userArgs: ArrayBuffer[String] = new ArrayBuffer[String]()
//user self args
parseArgs(args.toList)
private def parseArgs(inputArgs: List[String]): Unit = {
var args = inputArgs
//通过模式匹配 提取参数
while (!args.isEmpty) {
args match {
case ("--jar") :: value :: tail =>
userJar = value
args = tail
case ("--class") :: value :: tail =>
userClass = value
args = tail
case ("--primary-py-file") :: value :: tail =>
primaryPyFile = value
args = tail
case ("--primary-r-file") :: value :: tail =>
primaryRFile = value
args = tail
case ("--arg") :: value :: tail =>
userArgs += value
args = tail
case Nil =>
case _ =>
throw new IllegalArgumentException(getUsageMessage(args))
}
}
if (primaryPyFile != null && primaryRFile != null) {
throw new IllegalArgumentException("Cannot have primary-py-file and primary-r-file" +
" at the same time")
}
}
Client
这个类的目的是 提交任务到 yarn。
注意：
childArgs 里面有 --class mainClass --jar primaryResource (–arg userselfargs) *
childClasspath 里面有 --jars的hdfs:// jar和primaryResource
sparkConf 里面有 spark-submit 的–conf 和 keytab、principal 以及其他必要的配置
args: ClientArguments 的作用主要解析乐的传进来的 Array[String] 类的 args（childArgs ）
先看看构造方法：
private val yarnClient = YarnClient.createYarnClient //创建yarn 客户端
private val hadoopConf = new YarnConfiguration(SparkHadoopUtil.newConfiguration(sparkConf))
//isClusterMode true
private val isClusterMode = sparkConf.get("spark.submit.deployMode", "client") == "cluster"
// AM 即 driver memory
private val amMemory = if (isClusterMode) {
sparkConf.get(DRIVER_MEMORY).toInt
} else {
sparkConf.get(AM_MEMORY).toInt
}
private val amMemoryOverhead = {
val amMemoryOverheadEntry = if (isClusterMode) DRIVER_MEMORY_OVERHEAD else AM_MEMORY_OVERHEAD
sparkConf.get(amMemoryOverheadEntry).getOrElse(
math.max((MEMORY_OVERHEAD_FACTOR * amMemory).toLong, MEMORY_OVERHEAD_MIN)).toInt
}
private val amCores = if (isClusterMode) {
sparkConf.get(DRIVER_CORES)
} else {
sparkConf.get(AM_CORES)
}
// Executor related configurations
private val executorMemory = sparkConf.get(EXECUTOR_MEMORY)
private val executorMemoryOverhead = sparkConf.get(EXECUTOR_MEMORY_OVERHEAD).getOrElse(
math.max((MEMORY_OVERHEAD_FACTOR * executorMemory).toLong, MEMORY_OVERHEAD_MIN)).toInt
private val distCacheMgr = new ClientDistributedCacheManager()
private var loginFromKeytab = false
private var principal: String = null
private var keytab: String = null
private var credentials: Credentials = null
private var amKeytabFileName: String = null
private val launcherBackend = new LauncherBackend() {
override protected def conf: SparkConf = sparkConf
override def onStopRequest(): Unit = {
if (isClusterMode && appId != null) {
yarnClient.killApplication(appId)
} else {
setState(SparkAppHandle.State.KILLED)
stop()
}
}
}
//false
private val fireAndForget = isClusterMode && !sparkConf.get(WAIT_FOR_APP_COMPLETION)
private var appId: ApplicationId = null
//Job Staging
private val appStagingBaseDir = sparkConf.get(STAGING_DIR).map { new Path(_) }
.getOrElse(FileSystem.get(hadoopConf).getHomeDirectory())
private val credentialManager = new YARNHadoopDelegationTokenManager(
sparkConf,
hadoopConf,
conf => YarnSparkHadoopUtil.hadoopFSsToAccess(sparkConf, conf))
run
构造方法看完之后，就可以client的run方法了：
def run(): Unit = {
//submitApplication这个是主要提交JOb的流程，细节看下面的详解
this.appId = submitApplication()
if (!launcherBackend.isConnected() && fireAndForget) {
//这个是监控Job运行的状态,即会在gateway上打印 zhegeJob的状态 Accept｜Running｜Faild
val report = getApplicationReport(appId)
val state = report.getYarnApplicationState
logInfo(s"Application report for $appId (state: $state)")
logInfo(formatReportDetails(report))
if (state == YarnApplicationState.FAILED || state == YarnApplicationState.KILLED) {
throw new SparkException(s"Application $appId finished with status: $state")
}
} else {
val (yarnApplicationState, finalApplicationStatus) = monitorApplication(appId)
if (yarnApplicationState == YarnApplicationState.FAILED ||
finalApplicationStatus == FinalApplicationStatus.FAILED) {
throw new SparkException(s"Application $appId finished with failed status")
}
if (yarnApplicationState == YarnApplicationState.KILLED ||
finalApplicationStatus == FinalApplicationStatus.KILLED) {
throw new SparkException(s"Application $appId is killed")
}
if (finalApplicationStatus == FinalApplicationStatus.UNDEFINED) {
throw new SparkException(s"The final status of application $appId is undefined")
}
}
}
最后结果：
//amArgs
val amArgs =
Seq(amClass) ++ userClass ++ userJar ++ primaryPyFile ++ primaryRFile ++ userArgs ++
Seq("–properties-file", buildPath(Environment.PWD.$$(),
amCLass = org.apache.spark.deploy.yarn.ApplicationMaster
监控的是这个类 org.apache.spark.deploy.yarn.ApplicationMaster 的结果，这个类执行的才是用户自己的Job Jar
submitApplication
def submitApplication(): ApplicationId = {
var appId: ApplicationId = null
try {
launcherBackend.connect()
// Setup the credentials before doing anything else,
// so we have don't have issues at any point.
//kerberos认证
setupCredentials()
初始化 yarnClient并启动
yarnClient.init(hadoopConf)
yarnClient.start()
logInfo("Requesting a new application from cluster with %d NodeManagers"
.format(yarnClient.getYarnClusterMetrics.getNumNodeManagers))
// 创建一个应用 并且获取appId
val newApp = yarnClient.createApplication()
val newAppResponse = newApp.getNewApplicationResponse()
appId = newAppResponse.getApplicationId()
new CallerContext("CLIENT", sparkConf.get(APP_CALLER_CONTEXT),
Option(appId.toString)).setCurrentContext()
// 验证要申请的资源是否超过 一个节点的最大限制
verifyClusterResources(newAppResponse)
// Set up the appropriate contexts to launch our AM
//AM 运行环境参数
val containerContext = createContainerLaunchContext(newAppResponse)
val appContext = createApplicationSubmissionContext(newApp, containerContext)
// Finally, submit and monitor the application
logInfo(s"Submitting application $appId to ResourceManager")
//提交应用，Yarn开始执行
yarnClient.submitApplication(appContext)
launcherBackend.setAppId(appId.toString)
reportLauncherState(SparkAppHandle.State.SUBMITTED)
appId
} catch {
case e: Throwable =>
if (appId != null) {
cleanupStagingDir(appId)
}
throw e
}
}
最后结果：
//amArgs
val amArgs =
Seq(amClass) ++ userClass ++ userJar ++ primaryPyFile ++ primaryRFile ++ userArgs ++
Seq("–properties-file", buildPath(Environment.PWD.$$(),
amCLass = org.apache.spark.deploy.yarn.ApplicationMaster
–properties-file 里面包含 spark-submit的conf 设置等
** 这里是真正的启动AppMaster **
如果要看这个里面的细节，可以继续 往下看。
这个类 ApplicationMaster 的 后续再详细解读。
createContainerLaunchContext
最后结果：
//amArgs
val amArgs =
Seq(amClass) ++ userClass ++ userJar ++ primaryPyFile ++ primaryRFile ++ userArgs ++
Seq("–properties-file", buildPath(Environment.PWD.$$(),
amCLass = org.apache.spark.deploy.yarn.ApplicationMaster
private def createContainerLaunchContext(newAppResponse: GetNewApplicationResponse)
: ContainerLaunchContext = {
logInfo("Setting up container launch context for our AM")
val appId = newAppResponse.getApplicationId
//staging path 确定
val appStagingDirPath = new Path(appStagingBaseDir, getAppStagingDir(appId))
val pySparkArchives =
if (sparkConf.get(IS_PYTHON_APP)) {
findPySparkArchives()
} else {
Nil
}
//am 运行参数
//appStagingDirPath 是staging path pySparkArchives是Nil
//launchEnv 确定了
val launchEnv = setupLaunchEnv(appStagingDirPath, pySparkArchives)
val localResources = prepareLocalResources(appStagingDirPath, pySparkArchives)
val amContainer = Records.newRecord(classOf[ContainerLaunchContext])
amContainer.setLocalResources(localResources.asJava)
amContainer.setEnvironment(launchEnv.asJava)
val javaOpts = ListBuffer[String]()
// Set the environment variable through a command prefix
// to append to the existing value of the variable
var prefixEnv: Option[String] = None
// Add Xmx for AM memory
javaOpts += "-Xmx" + amMemory + "m"
val tmpDir = new Path(Environment.PWD.$$(), YarnConfiguration.DEFAULT_CONTAINER_TEMP_DIR)
javaOpts += "-Djava.io.tmpdir=" + tmpDir
val useConcurrentAndIncrementalGC = launchEnv.get("SPARK_USE_CONC_INCR_GC").exists(_.toBoolean)
if (useConcurrentAndIncrementalGC) {
// In our expts, using (default) throughput collector has severe perf ramifications in
// multi-tenant machines
javaOpts += "-XX:+UseConcMarkSweepGC"
javaOpts += "-XX:MaxTenuringThreshold=31"
javaOpts += "-XX:SurvivorRatio=8"
javaOpts += "-XX:+CMSIncrementalMode"
javaOpts += "-XX:+CMSIncrementalPacing"
javaOpts += "-XX:CMSIncrementalDutyCycleMin=0"
javaOpts += "-XX:CMSIncrementalDutyCycle=10"
}
// Include driver-specific java options if we are launching a driver
if (isClusterMode) {
sparkConf.get(DRIVER_JAVA_OPTIONS).foreach { opts =>
javaOpts ++= Utils.splitCommandString(opts).map(YarnSparkHadoopUtil.escapeForShell)
}
val libraryPaths = Seq(sparkConf.get(DRIVER_LIBRARY_PATH),
sys.props.get("spark.driver.libraryPath")).flatten
if (libraryPaths.nonEmpty) {
prefixEnv = Some(getClusterPath(sparkConf, Utils.libraryPathEnvPrefix(libraryPaths)))
}
if (sparkConf.get(AM_JAVA_OPTIONS).isDefined) {
logWarning(s"${AM_JAVA_OPTIONS.key} will not take effect in cluster mode")
}
} else {
// Validate and include yarn am specific java options in yarn-client mode.
sparkConf.get(AM_JAVA_OPTIONS).foreach { opts =>
if (opts.contains("-Dspark")) {
val msg = s"${AM_JAVA_OPTIONS.key} is not allowed to set Spark options (was '$opts')."
throw new SparkException(msg)
}
if (opts.contains("-Xmx")) {
val msg = s"${AM_JAVA_OPTIONS.key} is not allowed to specify max heap memory settings " +
s"(was '$opts'). Use spark.yarn.am.memory instead."
throw new SparkException(msg)
}
javaOpts ++= Utils.splitCommandString(opts).map(YarnSparkHadoopUtil.escapeForShell)
}
sparkConf.get(AM_LIBRARY_PATH).foreach { paths =>
prefixEnv = Some(getClusterPath(sparkConf, Utils.libraryPathEnvPrefix(Seq(paths))))
}
}
// For log4j configuration to reference
javaOpts += ("-Dspark.yarn.app.container.log.dir=" + ApplicationConstants.LOG_DIR_EXPANSION_VAR)
val userClass =
if (isClusterMode) {
Seq("--class", YarnSparkHadoopUtil.escapeForShell(args.userClass))
} else {
Nil
}
val userJar =
if (args.userJar != null) {
Seq("--jar", args.userJar)
} else {
Nil
}
val primaryPyFile =
if (isClusterMode && args.primaryPyFile != null) {
Seq("--primary-py-file", new Path(args.primaryPyFile).getName())
} else {
Nil
}
val primaryRFile =
if (args.primaryRFile != null) {
Seq("--primary-r-file", args.primaryRFile)
} else {
Nil
}
//这里 amClass 是 org.apache.spark.deploy.yarn.ApplicationMaster
val amClass =
if (isClusterMode) {
Utils.classForName("org.apache.spark.deploy.yarn.ApplicationMaster").getName
} else {
Utils.classForName("org.apache.spark.deploy.yarn.ExecutorLauncher").getName
}
if (args.primaryRFile != null && args.primaryRFile.endsWith(".R")) {
args.userArgs = ArrayBuffer(args.primaryRFile) ++ args.userArgs
}
val userArgs = args.userArgs.flatMap { arg =>
Seq("--arg", YarnSparkHadoopUtil.escapeForShell(arg))
}
//amArgs
val amArgs =
Seq(amClass) ++ userClass ++ userJar ++ primaryPyFile ++ primaryRFile ++ userArgs ++
Seq("--properties-file", buildPath(Environment.PWD.$$(), LOCALIZED_CONF_DIR, SPARK_CONF_FILE))
// Command for the ApplicationMaster
//组装启动 AM的命令
val commands = prefixEnv ++
Seq(Environment.JAVA_HOME.$$() + "/bin/java", "-server") ++
javaOpts ++ amArgs ++
Seq(
"1>", ApplicationConstants.LOG_DIR_EXPANSION_VAR + "/stdout",
"2>", ApplicationConstants.LOG_DIR_EXPANSION_VAR + "/stderr")
// TODO: it would be nicer to just make sure there are no null commands here
val printableCommands = commands.map(s => if (s == null) "null" else s).toList
amContainer.setCommands(printableCommands.asJava)
logDebug("===============================================================================")
logDebug("YARN AM launch context:")
logDebug(s" user class: ${Option(args.userClass).getOrElse("N/A")}")
logDebug(" env:")
if (log.isDebugEnabled) {
Utils.redact(sparkConf, launchEnv.toSeq).foreach { case (k, v) =>
logDebug(s" $k -> $v")
}
}
logDebug(" resources:")
localResources.foreach { case (k, v) => logDebug(s" $k -> $v")}
logDebug(" command:")
logDebug(s" ${printableCommands.mkString(" ")}")
logDebug("===============================================================================")
// send the acl settings into YARN to control who has access via YARN interfaces
val securityManager = new SecurityManager(sparkConf)
amContainer.setApplicationACLs(
YarnSparkHadoopUtil.getApplicationAclsForYarn(securityManager).asJava)
setupSecurityToken(amContainer)
amContainer
}
setupLaunchEnv
注意：
childArgs 里面有 --class mainClass --jar primaryResource (–arg userselfargs) *
childClasspath 里面有 --jars的jar和primaryResource
sparkConf 里面有 spark-submit 的–conf 和 keytab、principal 以及其他必要的配置
args: ClientArguments 的作用主要解析乐的传进来的 Array[String] 类的 args（childArgs ）
即 --class mainClass --jar primaryResource (–arg userselfargs) *
//appStagingDirPath 是staging path pySparkArchives是Nil
private def setupLaunchEnv(
stagingDirPath: Path,
pySparkArchives: Seq[String]): HashMap[String, String] = {
logInfo("Setting up the launch environment for our AM container")
val env = new HashMap[String, String]()
// args是 --class mainClass --jar primaryResource (--arg userselfargs) *
// env 保存的是运行的环境变量和参数
populateClasspath(args, hadoopConf, sparkConf, env, sparkConf.get(DRIVER_CLASS_PATH))
env("SPARK_YARN_STAGING_DIR") = stagingDirPath.toString
env("SPARK_USER") = UserGroupInformation.getCurrentUser().getShortUserName()
if (loginFromKeytab) {
val credentialsFile = "credentials-" + UUID.randomUUID().toString
sparkConf.set(CREDENTIALS_FILE_PATH, new Path(stagingDirPath, credentialsFile).toString)
logInfo(s"Credentials file set to: $credentialsFile")
}
// Pick up any environment variables for the AM provided through spark.yarn.appMasterEnv.*
val amEnvPrefix = "spark.yarn.appMasterEnv."
sparkConf.getAll
.filter { case (k, v) => k.startsWith(amEnvPrefix) }
.map { case (k, v) => (k.substring(amEnvPrefix.length), v) }
.foreach { case (k, v) => YarnSparkHadoopUtil.addPathToEnvironment(env, k, v) }
// If pyFiles contains any .py files, we need to add LOCALIZED_PYTHON_DIR to the PYTHONPATH
// of the container processes too. Add all non-.py files directly to PYTHONPATH.
//
// NOTE: the code currently does not handle .py files defined with a "local:" scheme.
val pythonPath = new ListBuffer[String]()
val (pyFiles, pyArchives) = sparkConf.get(PY_FILES).partition(_.endsWith(".py"))
if (pyFiles.nonEmpty) {
pythonPath += buildPath(Environment.PWD.$$(), LOCALIZED_PYTHON_DIR)
}
(pySparkArchives ++ pyArchives).foreach { path =>
val uri = Utils.resolveURI(path)
if (uri.getScheme != LOCAL_SCHEME) {
pythonPath += buildPath(Environment.PWD.$$(), new Path(uri).getName())
} else {
pythonPath += uri.getPath()
}
}
// Finally, update the Spark config to propagate PYTHONPATH to the AM and executors.
if (pythonPath.nonEmpty) {
val pythonPathStr = (sys.env.get("PYTHONPATH") ++ pythonPath)
.mkString(ApplicationConstants.CLASS_PATH_SEPARATOR)
env("PYTHONPATH") = pythonPathStr
sparkConf.setExecutorEnv("PYTHONPATH", pythonPathStr)
}
if (isClusterMode) {
// propagate PYSPARK_DRIVER_PYTHON and PYSPARK_PYTHON to driver in cluster mode
Seq("PYSPARK_DRIVER_PYTHON", "PYSPARK_PYTHON").foreach { envname =>
if (!env.contains(envname)) {
sys.env.get(envname).foreach(env(envname) = _)
}
}
sys.env.get("PYTHONHASHSEED").foreach(env.put("PYTHONHASHSEED", _))
}
sys.env.get(ENV_DIST_CLASSPATH).foreach { dcp =>
env(ENV_DIST_CLASSPATH) = dcp
}
env
}
populateClasspath
args: ClientArguments 的作用主要解析乐的传进来的 Array[String] 类的 args（childArgs ）
即 --class mainClass --jar primaryResource (–arg userselfargs) *
extraClassPath is None
private[yarn] def populateClasspath(
args: ClientArguments,
conf: Configuration,
sparkConf: SparkConf,
env: HashMap[String, String],
extraClassPath: Option[String] = None): Unit = {
extraClassPath.foreach { cp =>
addClasspathEntry(getClusterPath(sparkConf, cp), env)
}
//env 设置 classpath
addClasspathEntry(Environment.PWD.$$(), env)
addClasspathEntry(Environment.PWD.$$() + Path.SEPARATOR + LOCALIZED_CONF_DIR, env)
if (sparkConf.get(USER_CLASS_PATH_FIRST)) {
// in order to properly add the app jar when user classpath is first
// we have to do the mainJar separate in order to send the right thing
// into addFileToClasspath
val mainJar =
if (args != null) {
getMainJarUri(Option(args.userJar))
} else {
getMainJarUri(sparkConf.get(APP_JAR))
}
mainJar.foreach(addFileToClasspath(sparkConf, conf, _, APP_JAR_NAME, env))
val secondaryJars =
if (args != null) {
getSecondaryJarUris(Option(sparkConf.get(JARS_TO_DISTRIBUTE)))
} else {
getSecondaryJarUris(sparkConf.get(SECONDARY_JARS))
}
secondaryJars.foreach { x =>
addFileToClasspath(sparkConf, conf, x, null, env)
}
}
// Add the Spark jars to the classpath, depending on how they were distributed.
addClasspathEntry(buildPath(Environment.PWD.$$(), LOCALIZED_LIB_DIR, "*"), env)
if (sparkConf.get(SPARK_ARCHIVE).isEmpty) {
sparkConf.get(SPARK_JARS).foreach { jars =>
jars.filter(isLocalUri).foreach { jar =>
val uri = new URI(jar)
addClasspathEntry(getClusterPath(sparkConf, uri.getPath()), env)
}
}
}
populateHadoopClasspath(conf, env)
sys.env.get(ENV_DIST_CLASSPATH).foreach { cp =>
addClasspathEntry(getClusterPath(sparkConf, cp), env)
}
// Add the localized Hadoop config at the end of the classpath, in case it contains other
// files (such as configuration files for different services) that are not part of the
// YARN cluster's config.
addClasspathEntry(
buildPath(Environment.PWD.$$(), LOCALIZED_CONF_DIR, LOCALIZED_HADOOP_CONF_DIR), env)
}
730
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
