从布局的性能、布局层级、布局复用性、测量和绘制时间方向讨论。
* 选择耗费性能少的布局
耗费性能低的布局有FrameLayout、LinearLayout
高的有RelativeLayout;布局过程消耗更多的CPU资源和时间
嵌套消耗的性能 > 单个布局本身的性能
* 减少布局的嵌套
布局层级越少绘制的工作量越少,绘制速度越快,可以选择merge标签,减少布局层级。
<merge>作为布局的根标签时,其他布局通过<include>标签引用的时候,只有merge标签内的内容被引用,这样减少一层布局。
* 提供布局的复用性
提取不同布局之间共同的部分,提高布局的测量和绘制时间,使用include标签。
* 减少初次测量&绘制时间
使用<ViewStub>标签,轻量级View,不占用显示资源,默认不显示,只有在需要时才显示,比如显示进度、信息出错的提示布局。
ViewStub标签引入外部布局,类似于include标签。当调用ViewStub.inflate()时,ViewStub指向的布局文件才会被inflate、实例化,显示出来。
注意:
~ ViewStub的layout布局不能使用merge标签,否则报错
~ ViewStub的inflate只能执行一次,显示之后,就不能在使用ViewStub控制。
~ 与View.setVisible(View.Gone)的区别:View 的可见性设置为 gone 后,在inflate 时,该View 及其子View依然会被解析;而使用 ViewStub就能避免解析其中指定的布局文件,从而节省布局文件的解析时间 & 内存的占用
* 尽可能少用布局属性wrap_content
布局属性 wrap_content 会增加布局测量时计算成本
布局调优工具
常用的有hierarchy viewer、Lint、Systrace
Hierarchy Viewer
Android studio提供的UI性能检测工具。
Lint
代码扫描分析工具
Systrace
提供性能数据采样和分析工具
检测Android系统各个组件随着时间的运行状态提供解决方案。
RelativeLayout和LinearLayout性能比较
1、View的简单绘制流程
View的绘制从ViewRoot的performTraversals()方法开始依次调用perfromMeasure、performLayout和performDraw这三个方法。这三个方法分别完成顶级View的measure、layout和draw三大流程,其中perfromMeasure会调用measure,measure又会调用onMeasure,在onMeasure方法中则会对所有子元素进行measure,这个时候measure流程就从父容器传递到子元素中了,这样就完成了一次measure过程,接着子元素会重复父容器的measure,如此反复就完成了整个View树的遍历。同理,performLayout和performDraw也分别完成perfromMeasure类似的流程。通过这三大流程,分别遍历整棵View树,就实现了Measure,Layout,Draw这一过程,View就绘制出来了。
从RelativeLayout和LinearLayout两大布局的绘制来看,耗时的差别主要体现在Measure过程,Layout和Draw过程相差不多。
分别看下他们的onMeasure()方法
RelativeLayout的onMeasure():
@Override protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) { if (mDirtyHierarchy) { mDirtyHierarchy = false; sortChildren(); } int myWidth = -1; int myHeight = -1; int width = 0; int height = 0; //分别拿到宽高的测量模式和测量大小 final int widthMode = MeasureSpec.getMode(widthMeasureSpec); final int heightMode = MeasureSpec.getMode(heightMeasureSpec); final int widthSize = MeasureSpec.getSize(widthMeasureSpec); final int heightSize = MeasureSpec.getSize(heightMeasureSpec); ....... //View数组存放水平方向排序的子View View[] views = mSortedHorizontalChildren; int count = views.length; //第一次遍历子View for (int i = 0; i < count; i++) { View child = views[i]; if (child.getVisibility() != GONE) { LayoutParams params = (LayoutParams) child.getLayoutParams(); int[] rules = params.getRules(layoutDirection); //应用水平方向设置的规则rules applyHorizontalSizeRules(params, myWidth, rules); //遍历measure子View measureChildHorizontal(child, params, myWidth, myHeight); if (positionChildHorizontal(child, params, myWidth, isWrapContentWidth)) { offsetHorizontalAxis = true; } } } //数组存放垂直方向排序的子View views = mSortedVerticalChildren; count = views.length; final int targetSdkVersion = getContext().getApplicationInfo().targetSdkVersion; //第二次遍历子view for (int i = 0; i < count; i++) { final View child = views[i]; if (child.getVisibility() != GONE) { final LayoutParams params = (LayoutParams) child.getLayoutParams(); //应用垂直方向设置的规则rules applyVerticalSizeRules(params, myHeight, child.getBaseline()); //遍历measure子View measureChild(child, params, myWidth, myHeight); if (positionChildVertical(child, params, myHeight, isWrapContentHeight)) { offsetVerticalAxis = true; } if (isWrapContentWidth) { if (isLayoutRtl()) { if (targetSdkVersion < Build.VERSION_CODES.KITKAT) { width = Math.max(width, myWidth - params.mLeft); } else { width = Math.max(width, myWidth - params.mLeft - params.leftMargin); } } else { if (targetSdkVersion < Build.VERSION_CODES.KITKAT) { width = Math.max(width, params.mRight); } else { width = Math.max(width, params.mRight + params.rightMargin); } } } if (isWrapContentHeight) { if (targetSdkVersion < Build.VERSION_CODES.KITKAT) { height = Math.max(height, params.mBottom); } else { height = Math.max(height, params.mBottom + params.bottomMargin); } } if (child != ignore || verticalGravity) { left = Math.min(left, params.mLeft - params.leftMargin); top = Math.min(top, params.mTop - params.topMargin); } if (child != ignore || horizontalGravity) { right = Math.max(right, params.mRight + params.rightMargin); bottom = Math.max(bottom, params.mBottom + params.bottomMargin); } } } ......... //onMeasure之后必须调用的方法 setMeasuredDimension(width, height); }
根据上述关键代码,RelativeLayout分别对所有子View进行两次measure,横向纵向分别进行一次,这是为什么呢?首先RelativeLayout中子View的排列方式是基于彼此的依赖关系,而这个依赖关系可能和布局中View的顺序并不相同,在确定每个子View的位置的时候,需要先给所有的子View排序一下。又因为RelativeLayout允许A,B 2个子View,横向上B依赖A,纵向上A依赖B。所以需要横向纵向分别进行一次排序测量。 mSortedHorizontalChildren和mSortedVerticalChildren是分别对水平方向的子控件和垂直方向的子控件进行排序后的View数组。
LinearLayout的onMeasure():
@Override
protected void onMeasure(int widthMeasureSpec, int heightMeasureSpec) {
if (mOrientation == VERTICAL) {
measureVertical(widthMeasureSpec, heightMeasureSpec);
} else {
measureHorizontal(widthMeasureSpec, heightMeasureSpec);
}
}
与RelativeLayout相比LinearLayout的measure就简单的多,只需判断线性布局是水平布局还是垂直布局即可,然后才进行测量:

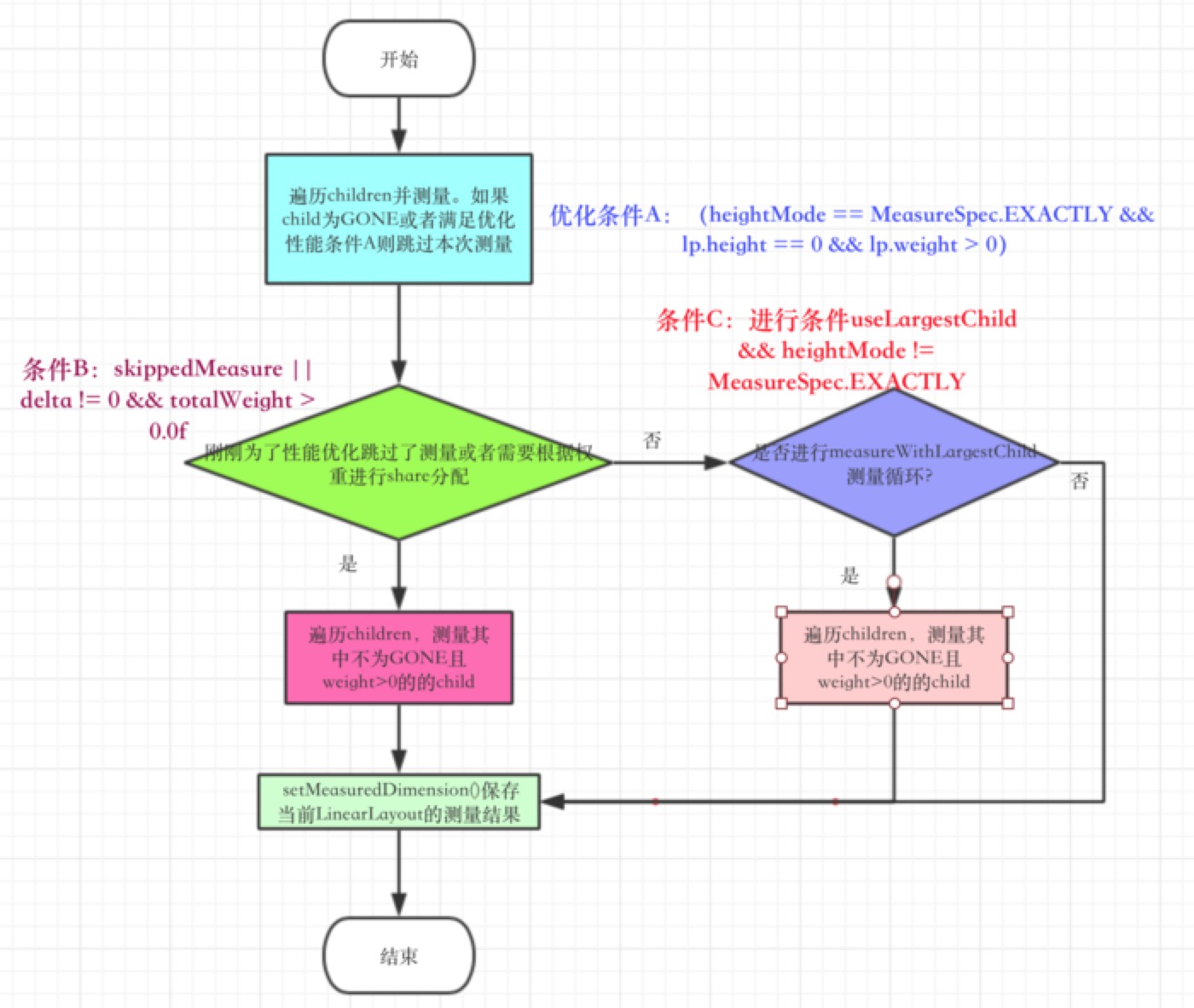

LinearLayout的Weight>0,有可能是进行两次测量,并不是一定是两次。
height ==0 ;weight >0 ; heightMode != MeasureSpec.EXACTLY; 三个条件满足,才能跳过测量。
final boolean useExcessSpace = lp.height == 0 && lp.weight > 0;
if (heightMode == MeasureSpec.EXACTLY && useExcessSpace) {
// Optimization: don't bother measuring children who are only
// laid out using excess space. These views will get measured
// later if we have space to distribute.
final int totalLength = mTotalLength;
mTotalLength = Math.max(totalLength, totalLength + lp.topMargin + lp.bottomMargin);
skippedMeasure = true;
}
RelativeLayout另一个性能问题
下面是View的measure方法
public final void measure(int widthMeasureSpec, int heightMeasureSpec) {
boolean optical = isLayoutModeOptical(this);
if (optical != isLayoutModeOptical(mParent)) {
Insets insets = getOpticalInsets();
int oWidth = insets.left + insets.right;
int oHeight = insets.top + insets.bottom;
widthMeasureSpec = MeasureSpec.adjust(widthMeasureSpec, optical ? -oWidth : oWidth);
heightMeasureSpec = MeasureSpec.adjust(heightMeasureSpec, optical ? -oHeight : oHeight);
}
// Suppress sign extension for the low bytes
long key = (long) widthMeasureSpec << 32 | (long) heightMeasureSpec & 0xffffffffL;
if (mMeasureCache == null) mMeasureCache = new LongSparseLongArray(2);
final boolean forceLayout = (mPrivateFlags & PFLAG_FORCE_LAYOUT) == PFLAG_FORCE_LAYOUT;//判断是否强制刷新
// Optimize layout by avoiding an extra EXACTLY pass when the view is
// already measured as the correct size. In API 23 and below, this
// extra pass is required to make LinearLayout re-distribute weight.
final boolean specChanged = widthMeasureSpec != mOldWidthMeasureSpec //传入值MeasureSpec没有变化
|| heightMeasureSpec != mOldHeightMeasureSpec;
final boolean isSpecExactly = MeasureSpec.getMode(widthMeasureSpec) == MeasureSpec.EXACTLY
&& MeasureSpec.getMode(heightMeasureSpec) == MeasureSpec.EXACTLY;
final boolean matchesSpecSize = getMeasuredWidth() == MeasureSpec.getSize(widthMeasureSpec)
&& getMeasuredHeight() == MeasureSpec.getSize(heightMeasureSpec);
final boolean needsLayout = specChanged
&& (sAlwaysRemeasureExactly || !isSpecExactly || !matchesSpecSize);
if (forceLayout || needsLayout) {
// first clears the measured dimension flag
mPrivateFlags &= ~PFLAG_MEASURED_DIMENSION_SET;
resolveRtlPropertiesIfNeeded();
int cacheIndex = forceLayout ? -1 : mMeasureCache.indexOfKey(key);
if (cacheIndex < 0 || sIgnoreMeasureCache) {
// measure ourselves, this should set the measured dimension flag back
onMeasure(widthMeasureSpec, heightMeasureSpec);
mPrivateFlags3 &= ~PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
} else {
long value = mMeasureCache.valueAt(cacheIndex);
// Casting a long to int drops the high 32 bits, no mask needed
setMeasuredDimensionRaw((int) (value >> 32), (int) value);
mPrivateFlags3 |= PFLAG3_MEASURE_NEEDED_BEFORE_LAYOUT;
}
// flag not set, setMeasuredDimension() was not invoked, we raise
// an exception to warn the developer
if ((mPrivateFlags & PFLAG_MEASURED_DIMENSION_SET) != PFLAG_MEASURED_DIMENSION_SET) {
throw new IllegalStateException("View with id " + getId() + ": "
+ getClass().getName() + "#onMeasure() did not set the"
+ " measured dimension by calling"
+ " setMeasuredDimension()");
}
mPrivateFlags |= PFLAG_LAYOUT_REQUIRED;
}
mOldWidthMeasureSpec = widthMeasureSpec;
mOldHeightMeasureSpec = heightMeasureSpec;
mMeasureCache.put(key, ((long) mMeasuredWidth) << 32 |
(long) mMeasuredHeight & 0xffffffffL); // suppress sign extension
}
View的measure方法里对绘制过程做了一个优化,如果我们或者我们的子View没有要求强制刷新,而父View给子View的传入值也没有变化(也就是说子View的位置没变化),就不会做无谓的measure。但是上面已经说了RelativeLayout要做两次measure,而在做横向的测量时,纵向的测量结果尚未完成,只好暂时使用myHeight传入子View系统,假如子View的Height不等于(设置了margin)myHeight的高度,那么measure中上面代码所做得优化将不起作用,这一过程将进一步影响RelativeLayout的绘制性能。而LinearLayout则无这方面的担忧。解决这个问题也很好办,如果可以,尽量使用padding代替margin。
结论:
1、RelativeLayout会让子View调用2次onMeasure,LinearLayout 在有weight时,也会调用子View 2次onMeasure
2、RelativeLayout的子View如果高度和RelativeLayout不同,则会引发效率问题,当子View很复杂时,这个问题会更加严重。如果可以,尽量使用padding代替margin。
3、在不影响层级深度的情况下,使用LinearLayout和FrameLayout而不是RelativeLayout。
4、提高绘制性能的使用方式
根据上面源码的分析,RelativeLayout将对所有的子View进行两次measure,而LinearLayout在使用weight属性进行布局时也会对子View进行两次measure,如果他们位于整个View树的顶端时并可能进行多层的嵌套时,位于底层的View将会进行大量的measure操作,大大降低程序性能。因此,应尽量将RelativeLayout和LinearLayout置于View树的底层,并减少嵌套。
较低的SDK版本新建Android项目时,默认的布局文件是采用线性布局LinearLayout,但现在自动生成的布局文件都是RelativeLayout,为什么呢?
Google的意思是“性能至上”, RelativeLayout 在性能上更好,因为在诸如 ListView 等控件中,使用 LinearLayout 容易产生多层嵌套的布局结构,这在性能上是不好的。而 RelativeLayout 因其原理上的灵活性,通常层级结构都比较扁平,很多使用LinearLayout 的情况都可以用一个 RelativeLayout 来替代,以降低布局的嵌套层级,优化性能。所以从这一点来看,Google比较推荐开发者使用RelativeLayout,因此就将其作为Blank Activity的默认布局了。
