4.2.0版本(4.6.1之前)
- broke收到延迟消息
- 将延迟消息暂存至topic:SCHEDULE_TOPIC_XXXX,队列为delayLevel-1,例如:delayLevel=3,则对应的reviveQueueId=2
- 定时任务轮询SCHEDULE_TOPIC_XXXX消息,如果消息已到达约定投递时间deliverTimeMs则将消息requeue至原topic中的原队列
5.1.0版本
老版本延迟队列仅支持几个延迟时间,而不是任意延迟时间,新版本进行了升级,可以支持任意版本
模型
- TimerWheel(org.apache.rocketmq.store.timer.TimerWheel):时间轮结构,是一个环,由一系列Slot组成,逻辑上因为延迟消息的生产时间是随机的,因此不连续,对应一个物理二进制文件,例如:/var/folders/_m/sx5bwyvj6z577f3vzk8pw4lc0000gn/T/unitteststore-4b570306-1d9a-4c49-9f07-486249fd2187
- slotsTotal:轮盘的槽数量
- precisionMs:时间轮盘的时间精度,例如:500ms,延迟消息延迟时间在20230320 21:37:50.000至20230320 21:37:50.500期间的消息,都将落在同一个slot槽上
- wheelLength:轮盘的物理空间长度
- Slot(org.apache.rocketmq.store.timer.Slot):每一个slot代表一个时间范围内的delayedTime槽
- timeMs:delayedTime,例如:1679318932500(2023-03-20 21:28:52)
- firstPos:当前槽的头部TimerLog物理存储起始点,类似于:HashMap冲突时的链表头
- lastPos:当前槽的TimerLog日志物理存储起始点
- num:当前槽中延迟消息的数量
- magic:暂时未使用
- 案例1:写入三条消息,对应slot数据写入数据如下
timerLog.append delayTime=2023-04-16 20:00:00
firstPos=0 lastPos=0 num=1 size=52
timerLog.append delayTime=2023-04-16 20:05:00
firstPos=52 lastPos=52 num=1 size=52
timerLog.append delayTime=2023-04-16 20:00:00
firstPos=0 lastPos=104 num=2 size=52
timerLog.append delayTime=2023-04-16 20:00:00
firstPos=0 lastPos=156 num=3 size=52
- TimerLog(org.apache.rocketmq.store.timer.TimerLog):
- size: 日志大小
- prePos: 前一个日志起始offset
- magic:日志是否被删除等标志符
- currentWriteTime:当前写入时间
- delayedTime:延迟消息延迟时间=delayedTime-tmpWriteTimeMs(currentWriteTime)
- offsetPy:消息队列所在offset
- sizePy:消息大小
- hashCode:realTopic的hash值,统计指标使用
- reservedValue:预留字段
- 书接案例1:
timerLog.append delayTime=2023-04-16 20:00:00
prevPos=-1 size=52
timerLog.append delayTime=2023-04-16 20:05:00
prevPos=-1 size=52
timerLog.append delayTime=2023-04-16 20:00:00
prevPos=0 size=52
timerLog.append delayTime=2023-04-16 20:00:00
prevPos=104 size=52
- TimerRequest(org.apache.rocketmq.store.timer.TimerRequest)

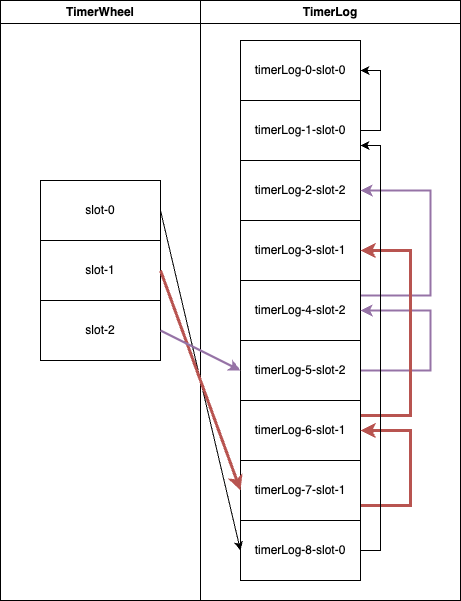

TimerWheel与TimerLog
业务逻辑
- org.apache.rocketmq.broker.BrokerController#registerMessageStoreHook:注册钩子方法,回调调度消息处理钩子:org.apache.rocketmq.broker.util.HookUtils#handleScheduleMessage,老版本的延迟消息在CommitLog中重写延迟消息Topic逻辑,已迁移至该钩子方法
- TimerMessageStore:定时消息存储,负责持久化,维护更新TimerWheel,以及重启恢复等功能,BrokerController初始化时加载,启动/停止也由BrokerController管理
- org.apache.rocketmq.store.timer.TimerMessageStore#enqueue
- 读取org.apache.rocketmq.store.timer.TimerMessageStore#TIMER_TOPIC队列数据,queueId写死为0
- 按照队列固定存储大小org.apache.rocketmq.store.ConsumeQueue#CQ_STORE_UNIT_SIZE读取ConsumeQueue队列数据
- 将消息体org.apache.rocketmq.common.message.MessageExt与其他元数据封装为TimerRequest,入队列org.apache.rocketmq.store.timer.TimerMessageStore#enqueuePutQueue
- org.apache.rocketmq.store.timer.TimerMessageStore.TimerEnqueuePutService#run
- 拉取enqueuePutQueue队列数据
- 将消息相关元数据offset+size,以及slot的pre pos封装为TimerLog buffer(org.apache.rocketmq.store.timer.TimerMessageStore#timerLogBuffer),将TimerLog buffer追加写入org.apache.rocketmq.store.timer.TimerMessageStore#timerLog
- 将TimerLog物理信息与延迟时间封装为Slot槽,写入时间轮
- org.apache.rocketmq.store.timer.TimerMessageStore.TimerDequeueGetService#run
- 基于当前读时间(org.apache.rocketmq.store.timer.TimerMessageStore#currReadTimeMs)继续滚动读取时间轮盘Slot槽数据,即已经到达延迟时间的消息,需要触发延迟消息推送
- 根据Slot槽数据(slot.lastPos)读取物理数据TimerLog
- 将TimerLog记录的元数据信息封装为TimerRequest,入队列org.apache.rocketmq.store.timer.TimerMessageStore#dequeueGetQueue
- org.apache.rocketmq.store.timer.TimerMessageStore.TimerDequeueGetMessageService#run
- 拉取dequeueGetQueue队列数据
- 根据TimerRequest元数据信息,从消息队列(org.apache.rocketmq.store.timer.TimerMessageStore#messageStore)中读取MessageExt
- 将读取到的MessageExt信息写入TimerRequest,入队列:org.apache.rocketmq.store.timer.TimerMessageStore#dequeuePutQueue
- org.apache.rocketmq.store.timer.TimerMessageStore.TimerDequeuePutMessageService#run
- 拉取dequeuePutQueue队列数据
- 将MessageExt转为MessageExtBrokerInner消息写入真实的消息队列,org.apache.rocketmq.store.timer.TimerMessageStore#convertMessage将延迟队列消息topic更新为实际topic:org.apache.rocketmq.common.message.MessageConst#PROPERTY_REAL_TOPIC
流程图
问题
为什么不同粒度的延迟消息要用不同的队列?
- 性能问题。假如使用同一个队列,如果队列头部都是小时级别的消息,队列中间是分钟级别的消息,分钟级别的消息大概率都会比小时级别的消息先到达触发requeue时间,那么这个时候想要获取分钟级别的消息,需要遍历至分钟级别消息的下标处,就相当于磁盘出现了大量碎片。性能必然很差,可能导致延迟时间严重失真
为什么要重写MessageExt的queueOffset?
// 源代码:org.apache.rocketmq.store.timer.TimerMessageStore#enqueue
// use CQ offset, not offset in Message
msgExt.setQueueOffset(offset + (i / ConsumeQueue.CQ_STORE_UNIT_SIZE));
- 发消息时可能存在单个消息与批量消息,那么消息的offset是不均匀的,例如:0,30,50,90
- 延迟消息读取的时候是按照队列存储单元大小(org.apache.rocketmq.store.ConsumeQueue#CQ_STORE_UNIT_SIZE=20)固定长度读取的,因此offset是均匀的,应该是:0,20,40,60
- 因此需要重写queueOffset
为什么Slot槽时totalSlot的2倍?
木鸡啊-_-!!!
TimerLog读取的时候会读取到不需要的数据?
例如Slot案例中写入的三条数据对应的两条延迟消息(均为延迟时间:2023-04-16 20:00:00)之间,夹杂着一条更晚触发的延迟消息(2023-04-16 20:05:00)
答案当然是不会,书接案例1:read timer log, 读取顺序如下:
- prevPos=156
- prevPos=104
- prevPos=0
为什么抽象TimerLog与Slot,而不是直接使用Slot记录TimerLog数据?
- 通过TimerLog记录延迟消息更快,Slot是Wheel的槽,本身是个有序存储,如果要使用Slot存储,每次写入的延迟消息的时间是分散无序的,必须每次先读(延迟消息属于哪个槽)再写。而TimerLog只需要append操作,相对于Slot性能一定是更快的
- 如果使用Slot记录TimerLog数据,那么原有的TimerWheel结构就变成了一个环形的hashMap,而物理存储是一个平面文件,如果使用一个文件维护hashMap,offset问题会非常复杂,并且需要考虑并发读写问题。如果使用多个文件存储,其实就又回到了当前的抽象,一个文件为TimerWheel,多个文件为槽链表。当前的TimerLog使用同一个文件,格式就是一个数组实现的有指针的链表,通过prevPos跳跃访问同一个槽的数据。
为什么有两个指针:slot当前读取位置,slot当前写入位置?
注:讨论延迟精度为1s
正常的时间轮,一个读取位置就够了,例如:60s的时间轮,1s嘀嗒一次(移动一次slot),每次写入前一个slot,一圈以后就说明60s时间到了可以触发了。
因为rmq的延迟队列嘀嗒的时间是精度的1/10,例如:精度500ms,嘀嗒的时间是50ms
为什么不是固定的1s呢?
因为故障恢复问题,在服务重启期间,延迟消息有很多已经到期该触发了,重启后怎么办?从上次读取位置1s一次的嘀嗒到当前写入时间?那么所有的延迟消息都会被影响,导致延迟时间不准
所以需要加快读取的进度,rmq固定的读取速度是精度的1/10,因此读取一定会超过写入,当读到写入时间时?就会原地等待,因此需要记录当前写入时间
能不能用当前时间作为当前写入时间?
可以,rmq也是这样做的
多记录一个当前写入位置(时间),其实就是为了作为读取的暂停符号
