gnuplot multiplot

预处理

脚本复制后，需要预处理，否则出现"Not able to execute a .sh file: /bin/bash^M: bad interpreter"的错误。

sed -i -e 's/\r$//'   multiplot.sh

gnuplot绘制多图。

multiplot.sh

gnuplot<<!
set terminal pngcairo size 600, 900
set output 'stacking.png'

set lmargin at screen 0.15
set rmargin at screen 0.95

TOP=0.98
DY = 0.29

set multiplot
set offset 0,0,graph 0.05, graph 0.05

set xlabel 'time'
set ylabel 'ylabel 1' offset 1
set tmargin at screen TOP-2*DY
set bmargin at screen TOP-3*DY
set ytics -1000,500,1000
plot 1150*cos(x) title 'First'

set xtics format ''
unset xlabel
set ylabel 'ylabel 2' offset 0
set tmargin at screen TOP-DY
set bmargin at screen TOP-2*DY
set ytics -100,50,100
plot 101*sin(x) title 'Second'

set ylabel 'ylabel 3' offset -1
set tmargin at screen TOP
set bmargin at screen TOP-DY
set ytics -8,4,8
plot 10*sin(2*x) title 'Third'

unset multiplot; set output
set output
exit
!

 这里的tmargin，bmargin设置的就是一个子图的高度。

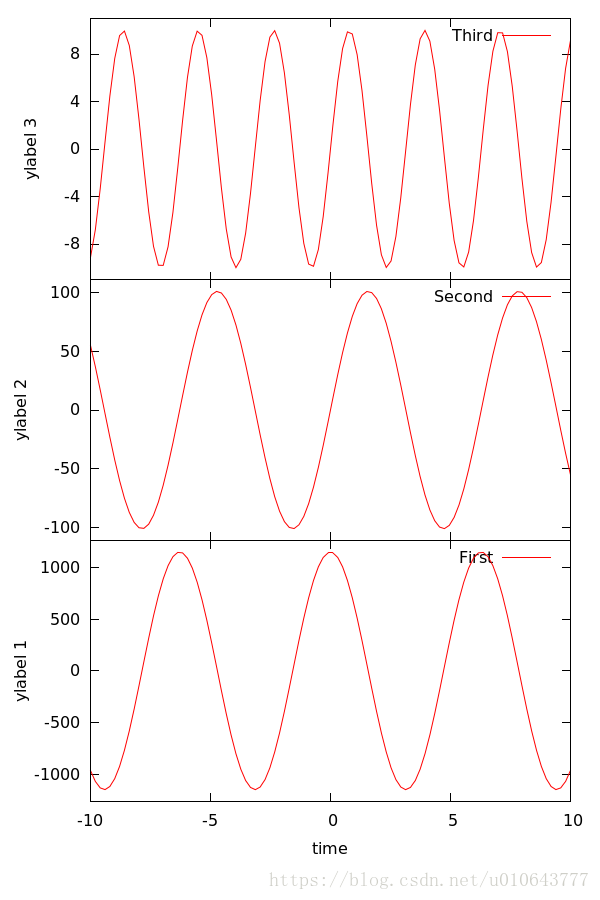

 上述脚本可以直接执行，画出的结果:

 我更改下脚本，让它画出四个子图。

#! /bin/sh
gnuplot<<!
set terminal pngcairo size 600, 900
set output 'stacking.png'

set lmargin at screen 0.15
set rmargin at screen 0.95

TOP=0.98
DY = 0.23

set multiplot
set offset 0,0,graph 0.05, graph 0.05
set xlabel 'time'
set ylabel 'ylabel 0' offset 1
set tmargin at screen TOP-3*DY
set bmargin at screen TOP-4*DY
set ytics -4 2 4
plot 8*cos(x) title 'Zero'

set xtics format ''
unset xlabel
set ylabel 'ylabel 1' offset 1
set tmargin at screen TOP-2*DY
set bmargin at screen TOP-3*DY
set ytics -1000,500,1000
plot 1150*cos(x) title 'First'


set ylabel 'ylabel 2' offset 0
set tmargin at screen TOP-DY
set bmargin at screen TOP-2*DY
set ytics -100,50,100
plot 101*sin(x) title 'Second'

set ylabel 'ylabel 3' offset -1
set tmargin at screen TOP
set bmargin at screen TOP-DY
set ytics -8,4,8
plot 10*sin(2*x) title 'Third'

unset multiplot;
set output
exit
!

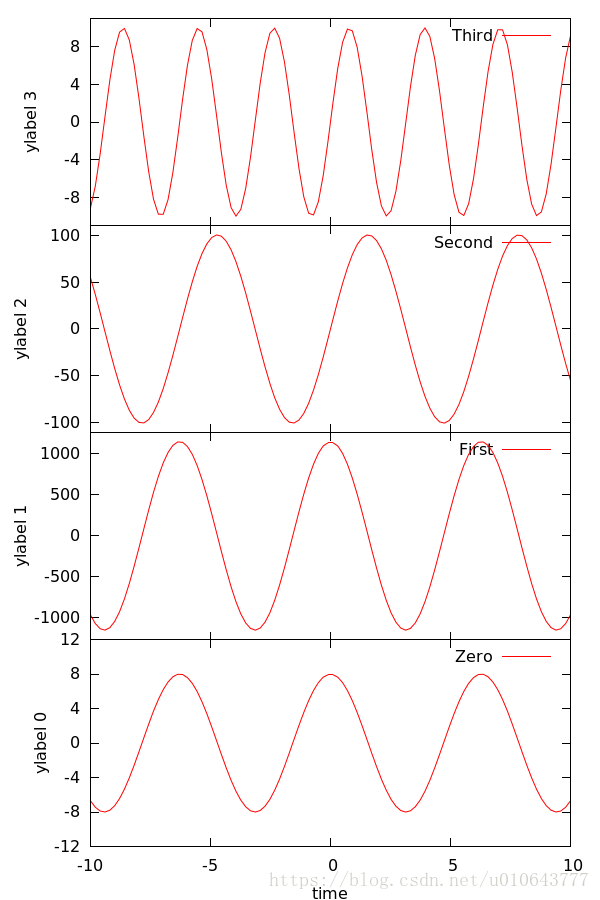

 result:

 让各个子图之间，有一定的间距:

#! /bin/sh
gnuplot<<!
set terminal pngcairo size 600, 900
set output 'stacking.png'

set lmargin at screen 0.15
set rmargin at screen 0.95

TOP=0.98
DY = 0.21
seam=0.02

set multiplot
set offset 0,0,graph 0.05, graph 0.05
set xlabel 'time'
set ylabel 'ylabel 0' offset 1
set tmargin at screen TOP-3*DY-3*seam
set bmargin at screen TOP-4*DY-3*seam
set ytics -4 2 4
plot 8*cos(x) title 'Zero'

set xtics format ''
unset xlabel
set ylabel 'ylabel 1' offset 1
set tmargin at screen TOP-2*DY-2*seam
set bmargin at screen TOP-3*DY-2*seam
set ytics -1000,500,1000
plot 1150*cos(x) title 'First'


set ylabel 'ylabel 2' offset 1
set tmargin at screen TOP-DY-1*seam
set bmargin at screen TOP-2*DY-1*seam
set ytics -100,50,100
plot 101*sin(x) title 'Second'

set ylabel 'ylabel 3' offset 1
set tmargin at screen TOP
set bmargin at screen TOP-DY
set ytics -8,4,8
plot 10*sin(2*x) title 'Third'

unset multiplot;
set output
exit
!

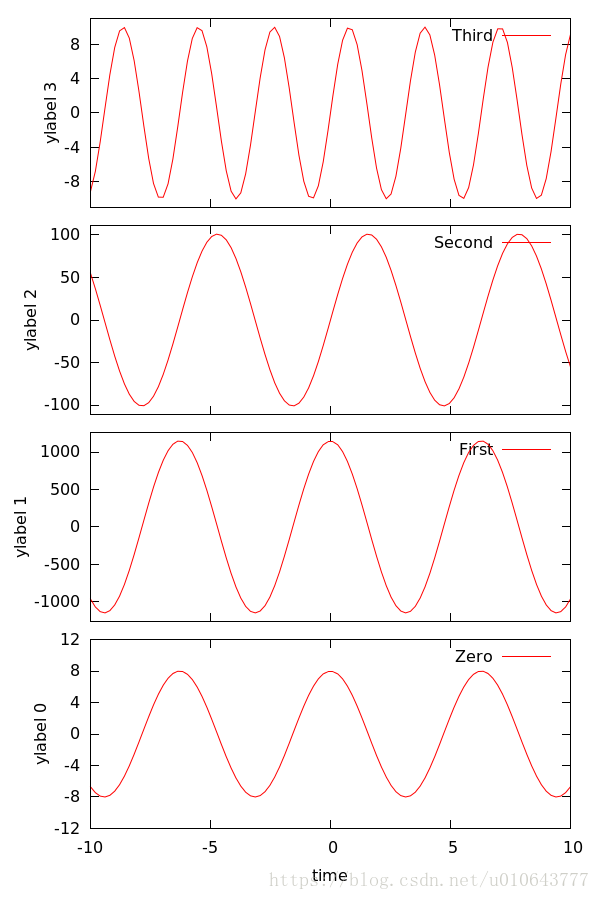

 results:

 上下左右各两个:
multiplot.sh

#! /bin/sh
#set lmargin at screen 0.15
#set rmargin at screen 0.95
gnuplot<<!
set terminal pngcairo size 600, 900
set output 'stacking.png'



TOP=0.98
DY = 0.45
seam=0.02
x_gap=0.02
central_axis=0.55

set multiplot
set offset 0,0,graph 0.05, graph 0.05
set xlabel 'time'
set ylabel 'ylabel 0' offset 1
set lmargin at screen 0.15
set rmargin at screen central_axis-x_gap
set tmargin at screen TOP-1*DY-seam
set bmargin at screen TOP-2*DY-seam
set ytics -4 2 4
plot 8*cos(x) title 'Zero'

set xlabel 'time'
unset ylabel
set lmargin at screen central_axis+x_gap
set rmargin at screen 0.95
set tmargin at screen TOP-1*DY-seam
set bmargin at screen TOP-2*DY-seam
set ytics -1000,500,1000
plot 1150*cos(x) title 'First'

set xtics format ''
unset xlabel
set ylabel 'ylabel 2' offset 1
set lmargin at screen 0.15
set rmargin at screen central_axis-x_gap
set tmargin at screen TOP
set bmargin at screen TOP-DY
set ytics -100,50,100
plot 101*sin(x) title 'Second'

set xtics format ''
unset ylabel
set lmargin at screen central_axis+x_gap
set rmargin at screen 0.95
set tmargin at screen TOP
set bmargin at screen TOP-DY
set ytics -8,4,8
plot 10*sin(2*x) title 'Third'

unset multiplot;
set output
exit
!

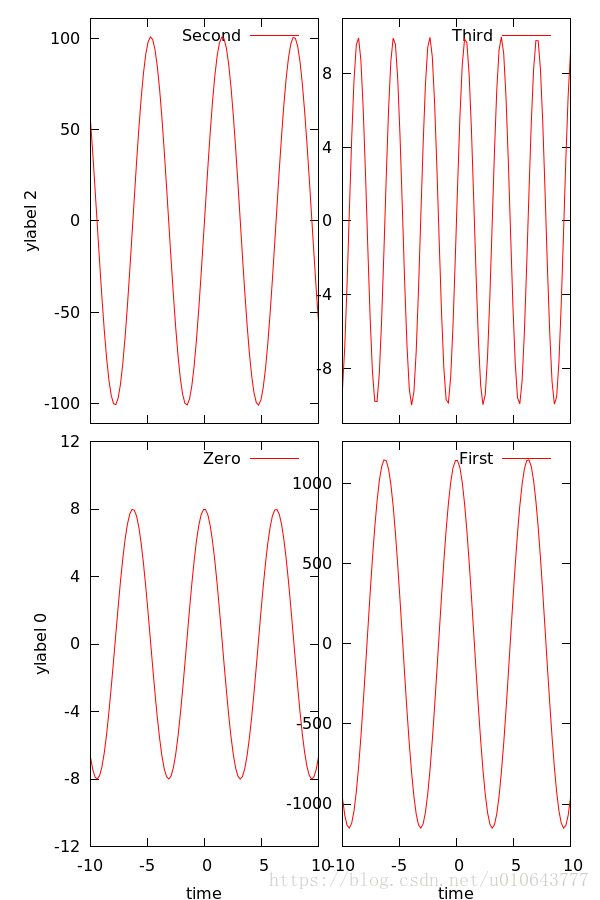

 Result:

更改坐标轴标注

data.txt

month   beijing shanghai
Jan 12  13
Fab  1  3
Mar  2  4
Apr  5   7
May 4   8
Jun 9   10
Jul  13 15
Aug 16   17
Sept  2   20
Oct   25   15
Nov   18    16
Dec    12   17

data_plot.sh

#! /bin/sh
file1=data.txt
output=test
gnuplot<<!
set yrange [0:30]
set style data histogram
set style histogram clustered gap 1
set style fill solid 0.4 border
set term "png"
set output "${output}.png"
plot "${file1}" using 2:xticlabels(1) title columnheader(2),'' using 3:xticlabels(1) title columnheader(3)

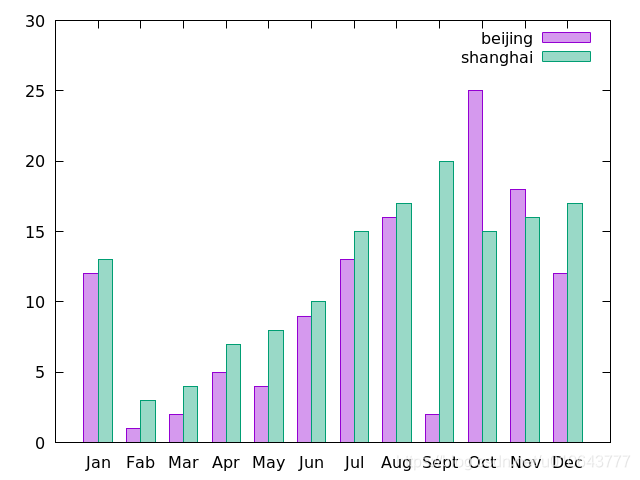

set output
exit
!

reference:
[1]multiplot-stacking
[2]gnuplot demo
[3]How do gnuplot margins work in multiplot mode?
[4]gnuplot使用中的几个设置
[5] [gnuplot详细教程]
