上一篇讲的是springboot如何连接hadoop3.0
地址：https://blog.csdn.net/u011165335/article/details/106303379
那个是没有开启Kerberos认证的；
先贴一下组件版本：我这里的是CDH6.1.1+HADOOP3.0+HIVE2.1.1
在这里插入图片描述
CDH里面只要开启了认证,那么每个组件都会有各自的一个keytab
用各自的keytab认证即可

下面是本地的win测试,keytab是从linux服务器复制下来的;

##Kerberos认证配置##
dmp.Kerberos.flag=true
dmp.keytab.hivepath=D:/keyTab/hive.keytab
dmp.keytab.hdfspath=D:/keyTab/hdfs.keytab
dmp.keytab.hbasepath=D:/keyTab/hbase.keytab
dmp.krb5.path=src/main/resources/krb5-test.conf

这里主要说明：
1.springboot如何连接Kerberos认证的hadoop3.0
配置：

hdfs.path=hdfs://xxxx:8020

代码：

package com.xxxx.tpi.dmp.config;

import org.apache.hadoop.security.UserGroupInformation;
import org.slf4j.Logger;
import org.slf4j.LoggerFactory;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Configuration;

import java.io.IOException;

/**
 * Created by yusy02 on 2020/9/1 14:56
 */
@Configuration
public class Kerberoslogin {
    Logger logger = LoggerFactory.getLogger(getClass());

    @Value("${dmp.Kerberos.flag}")
    private boolean kerberosFlag;
    @Value("${dmp.keytab.path}")
    private String keytabPath;

    /**
     * 返回是否登录成功
     *
     * @param conf
     * @return
     * @throws IOException
     */
    public boolean Kerberoslogin(org.apache.hadoop.conf.Configuration conf) {
        //Kerberos认证
        if (conf == null) {
            conf = new org.apache.hadoop.conf.Configuration();
        }

        try {
            if (kerberosFlag) {
                //System.setProperty("sun.security.krb5.debug", "true");
                System.setProperty("java.security.krb5.conf", "src/main/resources/krb5.conf");
                conf.set("hadoop.security.authentication", "Kerberos");
                UserGroupInformation.setConfiguration(conf);
                UserGroupInformation.loginUserFromKeytab("xxx@xxx.COM", keytabPath);
            }
        } catch (IOException e) {
            logger.error("认证失败->", e);
            e.printStackTrace();
        }
        return kerberosFlag;
    }
}

package com.xxx.tpi.dmp.config;

import com.cntaiping.tpi.dmp.util.HdfsUtil;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Value;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

@Configuration
public class HdfsConfig {
    @Value("${hdfs.path}")
    private String defaultHdfsUri;
    @Autowired
    Kerberoslogin Kerberoslogin;

    @Bean
    public HdfsUtil getHbaseService() {
        org.apache.hadoop.conf.Configuration conf = new org.apache.hadoop.conf.Configuration();
        //操作文件io,用来读写
        //conf.set("fs.hdfs.impl", DistributedFileSystem.class.getName());
        conf.set("fs.defaultFS", defaultHdfsUri);
        //认证
        Kerberoslogin.Kerberoslogin(conf);
        return new HdfsUtil(conf, defaultHdfsUri);
    }

}

2.springboot如何连接hive(使用durid连接池)
配置
注意连接串后面有principal认证

#####################hive###################
#hive.url=jdbc:hive2://xxxx:10000
hive.url=jdbc:hive2://xxxx.cntaiping.com:10000/default;principal=hive/whtpicdmapp02.cntaiping.com@CNTAIPING.COM
hive.driver-class-name=org.apache.hive.jdbc.HiveDriver
#hive.type=com.alibaba.druid.pool.DruidDataSource
hive.user=appuser
hive.password=appuser
# 下面为连接池的补充设置，应用到上面所有数据源中
# 初始化大小，最小，最大
hive.initialSize=1
hive.minIdle=3
hive.maxActive=20
# 配置获取连接等待超时的时间
hive.maxWait=60000
# 配置间隔多久才进行一次检测，检测需要关闭的空闲连接，单位是毫秒
hive.timeBetweenEvictionRunsMillis=60000
# 配置一个连接在池中最小生存的时间，单位是毫秒
hive.minEvictableIdleTimeMillis=30000
hive.validationQuery=select 1
hive.testWhileIdle=true
hive.testOnBorrow=false
hive.testOnReturn=false
# 打开PSCache，并且指定每个连接上PSCache的大小
hive.poolPreparedStatements=true
hive.maxPoolPreparedStatementPerConnectionSize=20

代码

package com.xxx.tpi.dmp.config;

import com.alibaba.druid.pool.DruidDataSource;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.beans.factory.annotation.Qualifier;
import org.springframework.boot.context.properties.ConfigurationProperties;
import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;
import org.springframework.jdbc.core.JdbcTemplate;

import javax.sql.DataSource;

// 默认文件路径是加载yml或者prop下面的
@Configuration
@ConfigurationProperties(prefix = "hive")
@MapperScan(basePackages = {"com.xxxx.tpi.dmp.mapper.hive"}, sqlSessionFactoryRef = "hiveSqlSessionFactory")
public class HiveDruidConfig {
    @Autowired
    Kerberoslogin Kerberoslogin;

    private String url;
    private String user;
    private String password;
    private String driverClassName;
    private int initialSize;
    private int minIdle;
    private int maxActive;
    private int maxWait;
    private int timeBetweenEvictionRunsMillis;
    private int minEvictableIdleTimeMillis;
    private String validationQuery;
    private boolean testWhileIdle;
    private boolean testOnBorrow;
    private boolean testOnReturn;
    private boolean poolPreparedStatements;
    private int maxPoolPreparedStatementPerConnectionSize;

    public HiveDruidConfig() {
    }

    @Bean(name = "hiveDruidDataSource")
    @Qualifier("hiveDruidDataSource")
    public DataSource dataSource() {
        boolean kerberosFlag = Kerberoslogin.Kerberoslogin(null);
        DruidDataSource datasource = new DruidDataSource();
        datasource.setUrl(url);
        if(!kerberosFlag){
            datasource.setUsername(user);
            datasource.setPassword(password);
        }
        datasource.setDriverClassName(driverClassName);
        // pool configuration
        datasource.setInitialSize(initialSize);
        datasource.setMinIdle(minIdle);
        datasource.setMaxActive(maxActive);
        datasource.setMaxWait(maxWait);
        datasource.setTimeBetweenEvictionRunsMillis(timeBetweenEvictionRunsMillis);
        datasource.setMinEvictableIdleTimeMillis(minEvictableIdleTimeMillis);
        datasource.setValidationQuery(validationQuery);
        datasource.setTestWhileIdle(testWhileIdle);
        datasource.setTestOnBorrow(testOnBorrow);
        datasource.setTestOnReturn(testOnReturn);
        datasource.setPoolPreparedStatements(poolPreparedStatements);
        datasource.setMaxPoolPreparedStatementPerConnectionSize(maxPoolPreparedStatementPerConnectionSize);
        return datasource;
    }

    @Bean(name = "hiveDruidTemplate")
    public JdbcTemplate hiveDruidTemplate(@Qualifier("hiveDruidDataSource") DataSource dataSource) {
        return new JdbcTemplate(dataSource);
    }


  /*
    // hive目前不需要xml写sql
    @Bean(name = "hiveSqlSessionFactory")
    public SqlSessionFactory sqlSessionFactory(@Qualifier("hiveDruidDataSource") DataSource dataSource) throws Exception {
        SqlSessionFactoryBean sessionFactoryBean = new SqlSessionFactoryBean();
        sessionFactoryBean.setDataSource(dataSource);
        //这里先占个位置,如何需要,会创建hive目录
        sessionFactoryBean.setMapperLocations(new PathMatchingResourcePatternResolver()
                .getResources("classpath*:mybatis/hive/*.xml"));
        return sessionFactoryBean.getObject();
    }*/

    public String getUrl() {
        return url;
    }

    public void setUrl(String url) {
        this.url = url;
    }

    public String getUser() {
        return user;
    }

    public void setUser(String user) {
        this.user = user;
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password;
    }

    public String getDriverClassName() {
        return driverClassName;
    }

    public void setDriverClassName(String driverClassName) {
        this.driverClassName = driverClassName;
    }

    public int getInitialSize() {
        return initialSize;
    }

    public void setInitialSize(int initialSize) {
        this.initialSize = initialSize;
    }

    public int getMinIdle() {
        return minIdle;
    }

    public void setMinIdle(int minIdle) {
        this.minIdle = minIdle;
    }

    public int getMaxActive() {
        return maxActive;
    }

    public void setMaxActive(int maxActive) {
        this.maxActive = maxActive;
    }

    public int getMaxWait() {
        return maxWait;
    }

    public void setMaxWait(int maxWait) {
        this.maxWait = maxWait;
    }

    public int getTimeBetweenEvictionRunsMillis() {
        return timeBetweenEvictionRunsMillis;
    }

    public void setTimeBetweenEvictionRunsMillis(int timeBetweenEvictionRunsMillis) {
        this.timeBetweenEvictionRunsMillis = timeBetweenEvictionRunsMillis;
    }

    public int getMinEvictableIdleTimeMillis() {
        return minEvictableIdleTimeMillis;
    }

    public void setMinEvictableIdleTimeMillis(int minEvictableIdleTimeMillis) {
        this.minEvictableIdleTimeMillis = minEvictableIdleTimeMillis;
    }

    public String getValidationQuery() {
        return validationQuery;
    }

    public void setValidationQuery(String validationQuery) {
        this.validationQuery = validationQuery;
    }

    public boolean isTestWhileIdle() {
        return testWhileIdle;
    }

    public void setTestWhileIdle(boolean testWhileIdle) {
        this.testWhileIdle = testWhileIdle;
    }

    public boolean isTestOnBorrow() {
        return testOnBorrow;
    }

    public void setTestOnBorrow(boolean testOnBorrow) {
        this.testOnBorrow = testOnBorrow;
    }

    public boolean isTestOnReturn() {
        return testOnReturn;
    }

    public void setTestOnReturn(boolean testOnReturn) {
        this.testOnReturn = testOnReturn;
    }

    public boolean isPoolPreparedStatements() {
        return poolPreparedStatements;
    }

    public void setPoolPreparedStatements(boolean poolPreparedStatements) {
        this.poolPreparedStatements = poolPreparedStatements;
    }

    public int getMaxPoolPreparedStatementPerConnectionSize() {
        return maxPoolPreparedStatementPerConnectionSize;
    }

    public void setMaxPoolPreparedStatementPerConnectionSize(int maxPoolPreparedStatementPerConnectionSize) {
        this.maxPoolPreparedStatementPerConnectionSize = maxPoolPreparedStatementPerConnectionSize;
    }
}

3.主要的问题
我本地默认的搭配是跟服务器上面一致的： hive2.1.1+hadoop3.0
但是这样会出现如下问题：
此时要么升级hive版本到3.0，要么降级hadoop到2.x.x
（最终方案，降级hadoop）

1）.Unrecognized Hadoop major version number: 3.0.0
2018年5月21日，Hive 3.0.0发布，支持Hadoop 3。
这个是因为我的搭配的hive2.1是不支持hadoop3.0的；

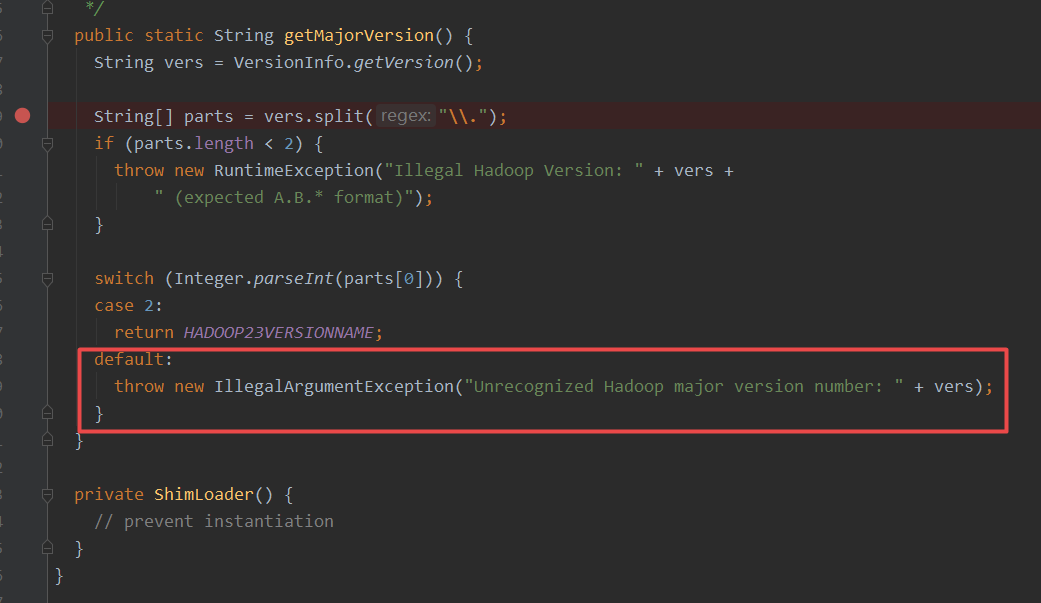

看ShimLoader源码（hive2.1.1）
在这里插入图片描述

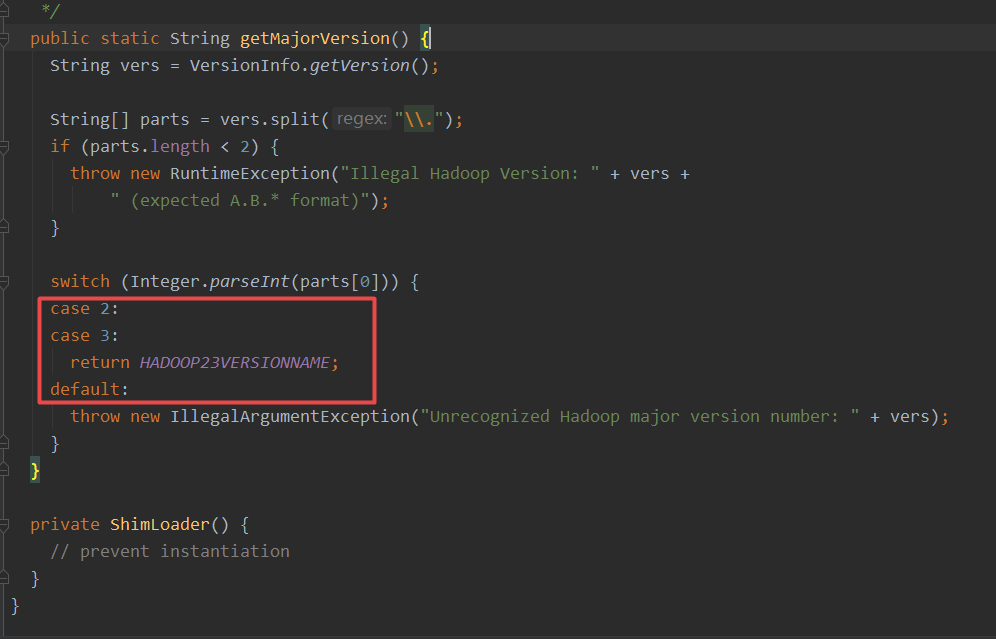

再看ShimLoader的2.1源码（hive3.0.0）

依赖如下：

 <dependency>
            <groupId>org.apache.hive</groupId>
            <artifactId>hive-jdbc</artifactId>
            <version>3.0.0</version>
</dependency>

版本问题解决了，下面又报错了Required field ‘client_protocol’ is unset!

Caused by: java.sql.SQLException: Could not establish connection to jdbc:hive2://xxxx.cntaiping.com:10000/default;principal=hive/xxx.cntaiping.com@xxx.COM: Required field 'client_protocol' is unset! Struct:TOpenSessionReq(client_protocol:null, configuration:{set:hiveconf:hive.server2.thrift.resultset.default.fetch.size=1000, use:database=default})

这个原因是，我本地的jdbc的hive版本是3.0.0,但是服务器上面还是2.1.1，版本不匹配导致的，
也就是说，不能升级hive，那我把本地的hadoop降级试一下

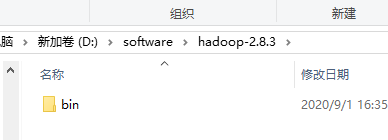

注意：我本地的hadoop只是一个客户端，这个下载地址：
https://gitee.com/bochangguan/winutils/tree/master
在这里插入图片描述
然后把hadoop的依赖改成2.8.3；发现就可以成功连接了；

参考地址：
https://www.jianshu.com/p/e2248a86f0fa
https://blog.csdn.net/mm_bit/article/details/51958344
https://stackoverflow.com/questions/47004014/unrecognized-hadoop-major-version-number-3-0-0-beta1-at-org-apache-hadoop-hive/47007925#47007925
