解决kibana 7.x Visiable Vega多次聚合显示问题

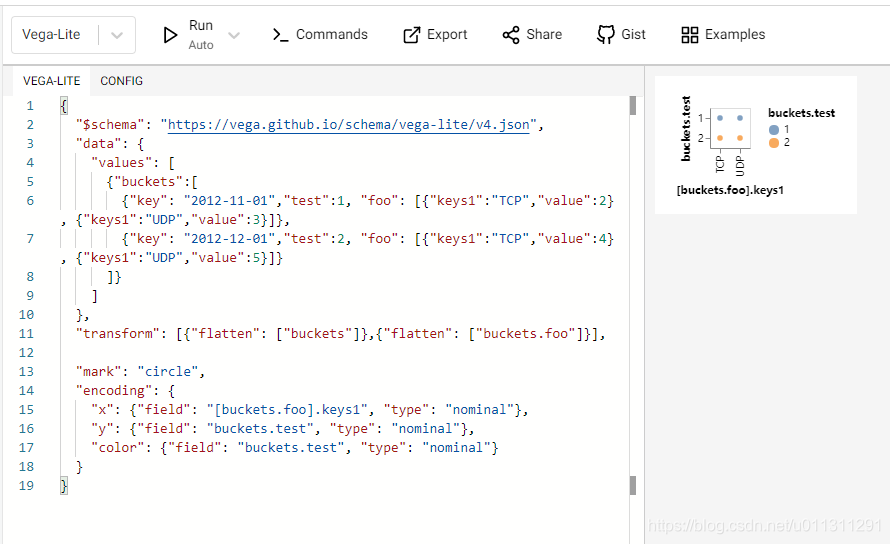

Vega可以使用以下链接进行调试:

https://vega.github.io/editor/#/edited

数据

{
  "$schema": "https://vega.github.io/schema/vega-lite/v4.json",
  "data": {
    "values": [
      {"buckets":[
        {"key": "2012-11-01","test":1, "foo": [{"keys1":"TCP","value":2}, {"keys1":"UDP","value":3}]},
        {"key": "2012-12-01","test":2, "foo": [{"keys1":"TCP","value":4}, {"keys1":"UDP","value":5}]}
      ]}
    ]
  },
  "transform": [{"flatten": ["buckets"]},{"flatten": ["buckets.foo"]}],

  "mark": "circle",
  "encoding": {
    "x": {"field": "[buckets.foo].keys1", "type": "nominal"},
    "y": {"field": "buckets.test", "type": "nominal"},
    "color": {"field": "buckets.test", "type": "nominal"}
  }
}

注意需要使用[buckets.foo]

Vega数据的调试方式

对不确定的数据进行测试时，可以查看DATA VEWER进行调试
