1.现象举例

1.hostbyte=DID_BAD_TARGET driverbyte=DRIVER_OK

Jul 16 08:06:53 localhost kernel: sd 11:0:0:0: [sdh] Synchronize Cache(10) failed: Result: hostbyte=DID_BAD_TARGET driverbyte=DRIVER_OK
Jul 16 08:06:53 localhost kernel: sd 11:0:0:0: [sdh] Start/Stop Unit failed: Result: hostbyte=DID_BAD_TARGET driverbyte=DRIVER_OK

2.hostbyte=DID_OK driverbyte=DRIVER_SENSE

[   37.404796] sd 0:0:0:0: [sda] tag#3 FAILED Result: hostbyte=DID_OK driverbyte=DRIVER_SENSE
[   37.404806] blk_update_request: I/O error, dev sda, sector 0

3.hostbyte=DID_ERROR driverbyte=DRIVER_OK

Dec  6 18:12:13 localhost kernel: sd 20:0:0:0: [sdb] FAILED Result: hostbyte=DID_ERROR driverbyte=DRIVER_OK
Dec  6 18:12:13 localhost kernel: blk_update_request: I/O error, dev sdb, sector 512

2.hostbyte和driverbyte

linux/include/scsi/scsi.h

/*
 *  Use these to separate status msg and our bytes
 *
 *  These are set by:
 *
 *      status byte = set from target device
 *      msg_byte    = return status from host adapter itself.
 *      host_byte   = set by low-level driver to indicate status.
 *      driver_byte = set by mid-level.
 */
#define status_byte(result) (((result) >> 1) & 0x7f)
#define msg_byte(result)    (((result) >> 8) & 0xff)
#define host_byte(result)   (((result) >> 16) & 0xff)
#define driver_byte(result) (((result) >> 24) & 0xff)

hostbyte码值对应的含义如下：

132 /*
133  * Host byte codes
134  */
135
136 #define DID_OK          0x00    /* NO error                                */
137 #define DID_NO_CONNECT  0x01    /* Couldn't connect before timeout period  */
138 #define DID_BUS_BUSY    0x02    /* BUS stayed busy through time out period */
139 #define DID_TIME_OUT    0x03    /* TIMED OUT for other reason              */
140 #define DID_BAD_TARGET  0x04    /* BAD target.                             */
141 #define DID_ABORT       0x05    /* Told to abort for some other reason     */
142 #define DID_PARITY      0x06    /* Parity error                            */
143 #define DID_ERROR       0x07    /* Internal error                          */
144 #define DID_RESET       0x08    /* Reset by somebody.                      */
145 #define DID_BAD_INTR    0x09    /* Got an interrupt we weren't expecting.  */
146 #define DID_PASSTHROUGH 0x0a    /* Force command past mid-layer            */
147 #define DID_SOFT_ERROR  0x0b    /* The low level driver just wish a retry  */
148 #define DID_IMM_RETRY   0x0c    /* Retry without decrementing retry count  */
149 #define DID_REQUEUE     0x0d    /* Requeue command (no immediate retry) also
150                                  * without decrementing the retry count    */
151 #define DID_TRANSPORT_DISRUPTED 0x0e /* Transport error disrupted execution
152                                       * and the driver blocked the port to
153                                       * recover the link. Transport class will
154                                       * retry or fail IO */
155 #define DID_TRANSPORT_FAILFAST  0x0f /* Transport class fastfailed the io */
156 #define DID_TARGET_FAILURE 0x10 /* Permanent target failure, do not retry on
157                                  * other paths */
158 #define DID_NEXUS_FAILURE 0x11  /* Permanent nexus failure, retry on other
159                                  * paths might yield different results */
160 #define DID_ALLOC_FAILURE 0x12  /* Space allocation on the device failed */
161 #define DID_MEDIUM_ERROR  0x13  /* Medium error */

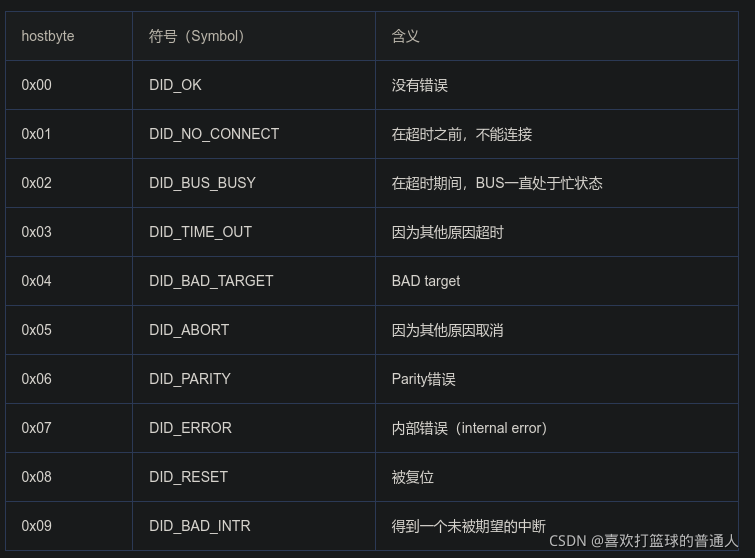

hostbyte

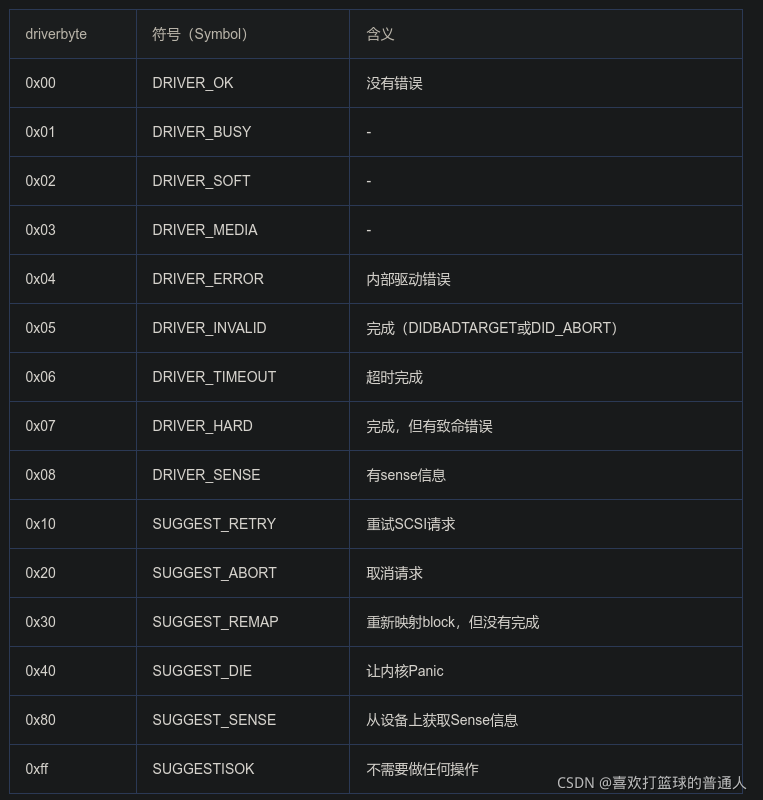

driverbyte

3.FC链路的硬件故障

光模块、光纤线或者HBA卡有异常，常见的表现有：
a.链路出现误码：需更换整条链路光模块和光纤线
b.存储上报光模块异常告警：更换光模块
c.主机日志报错，常见的是0x70000错误，是HBA卡内部错误。
示例：UP_done:C0P1L2, r=70000 , MPP_SELECTION_TIMEOUT, sk=0, ASC/ASCQ=0/0, SN:92288176
常见HBA错误返回码如下：
