背景介绍
GL-SF1200 路由器使用了siflower
的SF19A28国产芯片,虽然也是mips
架构,但由于经过了魔改,不论是mips_24kc
还是mipsel_24kc
的elf
均无法在其上运行。虽然官方在软件仓库提供了大量软件包以供下载,但是有时我们想要安装一些不常见的或者专有的软件包的时候,就会遇到困难。
解决思路
好在官方提供了该固件的完整源码,因此我们可以在略微调整构建流程后,利用github actions
迅速构建我们自己的软件包。
本文基于官网固件V3.204 - Aug 9, 2021版本,目前最新的3.207
版本也可使用,对应源码位于官方仓库openwrt-18.06-siflower分支的commit789db2edb75f4924c6b9227847240d0bfb0d2cd0
编译流程
我的仓库已经配置好了全部所需内容,整合了lean openwrt的常用软件包。只需要先在本地运行如下命令配置好需要的软件包
sudo -E apt-get -y install build-essential asciidoc binutils bzip2 gawk gettext git libncurses5-dev libz-dev patch python3 unzip zlib1g-dev lib32gcc1 libc6-dev-i386 subversion flex uglifyjs gcc-multilib g++-multilib p7zip p7zip-full msmtp libssl-dev texinfo libglib2.0-dev xmlto qemu-utils upx libelf-dev autoconf automake libtool autopoint device-tree-compiler antlr3 gperf swig libtinfo5
git clone --depth=1 -b openwrt-18.06-siflower https://github.com/fumiama/openwrt-gl.git
cd openwrt-gl/openwrt-18.06
git clone --depth=1 https://github.com/fumiama/openwrt-passwall.git ./package/passwall
git clone --depth=1 https://github.com/fumiama/openwrt-packages.git ./package/useful
git clone --depth=1 https://github.com/fumiama/opackages.git ./package/fumiama
git clone --depth=1 https://github.com/fumiama/openwrt-upx.git ./package/fumiama/upx
git clone --depth=1 https://github.com/fumiama/luci-theme-rosy.git ./package/fumiama/luci-theme-rosy
git clone --depth=1 https://github.com/fumiama/lede.git package/leana
mv package/leana/package/lean package/
mv -n package/leana/package/libs/* package/libs/
rm -rf package/leana
cp .config.sf1200 .config
cd include
mv siwifi_version.mk.sf1200 siwifi_version.mk
cd ..
./scripts/feeds update -a
./scripts/feeds install -a
make menuconfig
然后fork
我的仓库,将生成的.config
文件覆盖到openwrt-18.06/.config.sf1200
,即可激活自动编译。编译完成后,前往actions
下载编译好的软件包即可。另外只建议安装软件包,不建议直接安装编译出的固件,可能会出现各种疑难杂症。
其他选择
如果您并不擅长自己编译,这里提供一个编译好的软件包合集,增加的软件包比较有限,基本上是我自己常用的,主要是一些主题和一些你懂的软件,所以如果里面没有您想要的软件包,也请勿私信打扰,谢谢您的配合。
安装软件包
首先您需要在路由器官方管理界面的更多设置->高级功能中选择安装luci
,然后使用scp
上传软件包filetransfer
及其i18n
翻译到/tmp
,用ssh
登录后,使用opkg install
命令安装二者,即可在luci
中找到文件传输
。接下来的软件包就可以方便地通过文件传输一键上传+安装,无需再用ssh
。

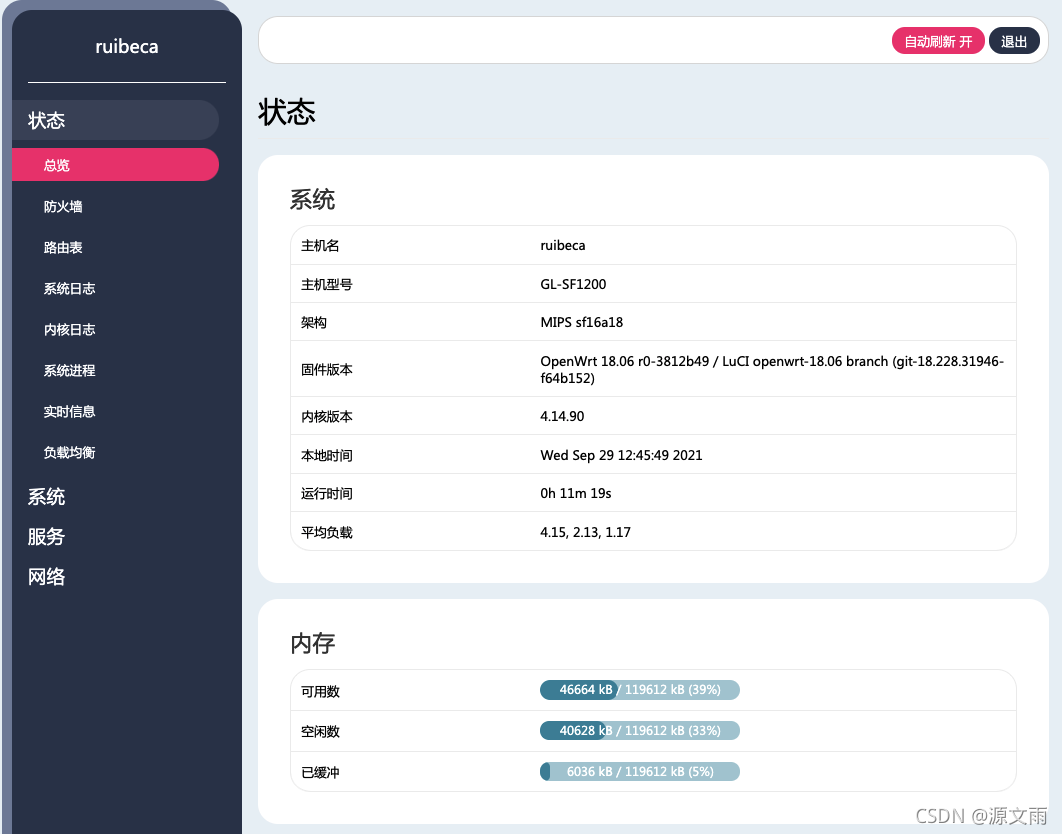

推荐使用rosy
主题美化界面,效果如下
