1. 下载源码
git@github.com:ocornut/imgui.git
- master 分支:主分支
- docking 分支:增加了
docking
和Multi-viewport
这里我下载的事 docking
分支
git clone -b docking --recurse-submodules git@github.com:ocornut/imgui.git

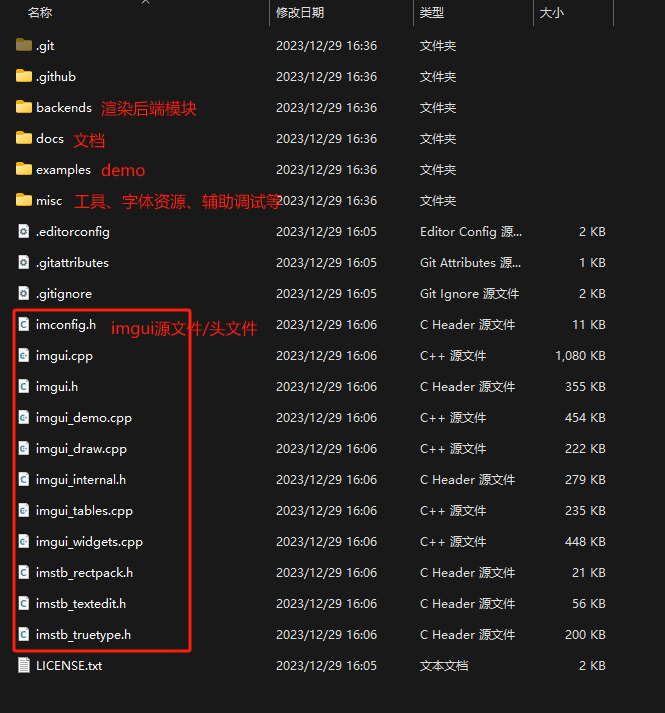

2. 目录结构
3. 配置项目(win32+opengl)

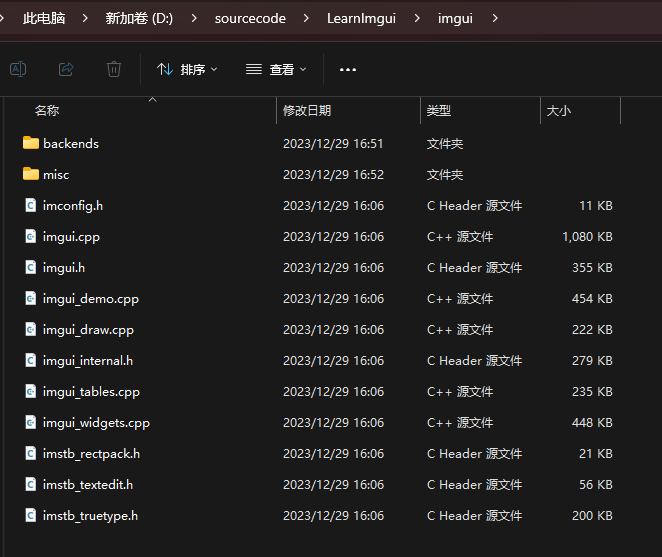

- VS2022 创建一个空项目、新建imgui文件夹(放置imgui拷贝过来的文件)
- 拷贝源码根目录下所有头文件和源文件
- 拷贝backends目录下的
imgui_impl_opengl3.cpp
imgui_impl_opengl3.h
imgui_impl_opengl3_loader.h
imgui_impl_win32.cpp
imgui_impl_win32.h
- 拷贝misc目录下的
cpp
和debuggers
文件夹
- 设置include包含目录
$(SolutionDir)\imgui
$(SolutionDir)\imgui\backends
- 设置附加依赖项
opengl32.lib
- 添加头文件
#include "imgui.h"
#include "imgui_impl_opengl3.h"
#include "imgui_impl_win32.h"
#include <windows.h>
#include <GL/GL.h>
4. main.cpp
//Windows 窗口数据
struct WGL_WindowData { HDC hDC; };
static HGLRC g_hRC; //opengl 句柄
static WGL_WindowData g_MainWindow; //窗口句柄
static int g_Width;
static int g_Height;
//初始化opengl
bool CreateDeviceWGL(HWND hWnd, WGL_WindowData* data)
{
HDC hDc = ::GetDC(hWnd);
PIXELFORMATDESCRIPTOR pfd = { 0 };
pfd.nSize = sizeof(pfd);
pfd.nVersion = 1;
pfd.dwFlags = PFD_DRAW_TO_WINDOW | PFD_SUPPORT_OPENGL | PFD_DOUBLEBUFFER;
pfd.iPixelType = PFD_TYPE_RGBA;
pfd.cColorBits = 32;
const int pf = ::ChoosePixelFormat(hDc, &pfd);
if (pf == 0)
return false;
if (::SetPixelFormat(hDc, pf, &pfd) == FALSE)
return false;
::ReleaseDC(hWnd, hDc);
data->hDC = ::GetDC(hWnd);
if (!g_hRC)
g_hRC = wglCreateContext(data->hDC);
return true;
}
//释放opengl
void CleanupDeviceWGL(HWND hWnd, WGL_WindowData* data)
{
wglMakeCurrent(nullptr, nullptr);
::ReleaseDC(hWnd, data->hDC);
}
static void Hook_Renderer_CreateWindow(ImGuiViewport* viewport)
{
assert(viewport->RendererUserData == nullptr);
WGL_WindowData* data = IM_NEW(WGL_WindowData);
CreateDeviceWGL((HWND)viewport->PlatformHandle, data);
viewport->RendererUserData = data;
}
static void Hook_Renderer_DestroyWindow(ImGuiViewport* viewport)
{
if (viewport->RendererUserData != nullptr)
{
WGL_WindowData* data = (WGL_WindowData*)viewport->RendererUserData;
CleanupDeviceWGL((HWND)viewport->PlatformHandle, data);
IM_DELETE(data);
viewport->RendererUserData = nullptr;
}
}
static void Hook_Platform_RenderWindow(ImGuiViewport* viewport, void*)
{
// Activate the platform window DC in the OpenGL rendering context
if (WGL_WindowData* data = (WGL_WindowData*)viewport->RendererUserData)
wglMakeCurrent(data->hDC, g_hRC);
}
static void Hook_Renderer_SwapBuffers(ImGuiViewport* viewport, void*)
{
if (WGL_WindowData* data = (WGL_WindowData*)viewport->RendererUserData)
::SwapBuffers(data->hDC);
}
extern IMGUI_IMPL_API LRESULT ImGui_ImplWin32_WndProcHandler(HWND hWnd, UINT msg, WPARAM wParam, LPARAM lParam);
//窗口处理函数(自定义、处理消息)
LRESULT APIENTRY WndProc(HWND hWnd, UINT msgID, WPARAM wParam, LPARAM lParam)
{
if (ImGui_ImplWin32_WndProcHandler(hWnd, msgID, wParam, lParam))
return true;
//处理消息
switch (msgID)
{
case WM_SIZE:
if (wParam != SIZE_MINIMIZED)
{
g_Width = LOWORD(lParam);
g_Height = HIWORD(lParam);
}
return 0;
case WM_SYSCOMMAND:
if ((wParam & 0xfff0) == SC_KEYMENU) //禁用ALT应用程序菜单
return 0;
break;
case WM_CREATE:
break;
case WM_DESTROY:
PostQuitMessage(0);
break;
default:
break;
}
//给各种消息默认处理
return DefWindowProc(hWnd, msgID, wParam, lParam);
}
int main(int argc, char* argv[])
{
//注册窗口类
WNDCLASS wc = { 0 };
wc.style = CS_OWNDC;//窗口类的风格
wc.lpfnWndProc = WndProc;//窗口处理函数
wc.cbClsExtra = 0;//窗口类的附加数据buff的大小
wc.cbWndExtra = 0;//窗口的附加数据buff的大小
wc.hInstance = GetModuleHandle(nullptr);//当前模块实例句柄
wc.hIcon = nullptr;//窗口图标句柄
wc.hCursor = nullptr;//鼠标句柄
wc.hbrBackground = nullptr;//绘制窗口背景的画刷句柄
wc.lpszMenuName = nullptr; //窗口菜单的资源id字符串
wc.lpszClassName = TEXT("mainWindow");//窗口类的名称
RegisterClass(&wc);
//创建窗口
HWND hWnd = CreateWindowEx(0, TEXT("mainWindow"), TEXT("window"), WS_OVERLAPPEDWINDOW, 100, 100, 1280, 800, nullptr, nullptr, wc.hInstance, nullptr);
//初始化OpenGL
if (!CreateDeviceWGL(hWnd, &g_MainWindow))
{
CleanupDeviceWGL(hWnd, &g_MainWindow);
::DestroyWindow(hWnd);
::UnregisterClassW(wc.lpszClassName, wc.hInstance);
return 1;
}
wglMakeCurrent(g_MainWindow.hDC, g_hRC);
//显示窗口
ShowWindow(hWnd, SW_SHOWDEFAULT);
UpdateWindow(hWnd);
//设置 imgui上下文
IMGUI_CHECKVERSION();
ImGui::CreateContext();
ImGuiIO& io = ImGui::GetIO(); (void)io;
io.ConfigFlags |= ImGuiConfigFlags_NavEnableKeyboard; // 键盘控制
io.ConfigFlags |= ImGuiConfigFlags_NavEnableGamepad; // Gamepad
io.ConfigFlags |= ImGuiConfigFlags_DockingEnable; // Docking
io.ConfigFlags |= ImGuiConfigFlags_ViewportsEnable; // Multi-Viewport / Platform Windows
//设置窗口风格
ImGui::StyleColorsDark();
//ImGuiConfigFlags_ViewportsEnable 启用后,调整WindowRounding/WindowBg 使平台窗口看起来与常规窗口相同
ImGuiStyle& style = ImGui::GetStyle();
if (io.ConfigFlags & ImGuiConfigFlags_ViewportsEnable)
{
style.WindowRounding = 0.0f;
style.Colors[ImGuiCol_WindowBg].w = 1.0f;
}
//设置平台/渲染器后端-opengl
ImGui_ImplWin32_InitForOpenGL(hWnd);
ImGui_ImplOpenGL3_Init();
//通过hook连接Win32和GLapi。
if (io.ConfigFlags & ImGuiConfigFlags_ViewportsEnable)
{
ImGuiPlatformIO& platform_io = ImGui::GetPlatformIO();
IM_ASSERT(platform_io.Renderer_CreateWindow == nullptr);
IM_ASSERT(platform_io.Renderer_DestroyWindow == nullptr);
IM_ASSERT(platform_io.Renderer_SwapBuffers == nullptr);
IM_ASSERT(platform_io.Platform_RenderWindow == nullptr);
platform_io.Renderer_CreateWindow = Hook_Renderer_CreateWindow;
platform_io.Renderer_DestroyWindow = Hook_Renderer_DestroyWindow;
platform_io.Renderer_SwapBuffers = Hook_Renderer_SwapBuffers;
platform_io.Platform_RenderWindow = Hook_Platform_RenderWindow;
}
ImVec4 clear_color = ImVec4(0.50f, 0.50f, 0.50f, 1.00f);
//消息循环
bool done = false;
while (!done)
{
MSG nMsg = { 0 };
//轮询和处理消息
while (::PeekMessage(&nMsg, nullptr, 0U, 0U, PM_REMOVE))
{
TranslateMessage(&nMsg); //翻译键盘消息
DispatchMessage(&nMsg); //派发消息,将消息交给窗口处理函数
if (nMsg.message == WM_QUIT)
done = true;
}
if (done)
break;
//imgui
ImGui_ImplOpenGL3_NewFrame();
ImGui_ImplWin32_NewFrame();
ImGui::NewFrame();
//显示窗口
static int counter = 0;
ImGui::Begin("window!");
ImGui::Text("helloworld.");
if (ImGui::Button("Button"))
counter++;
ImGui::Text("counter = %d", counter);
/* bool bShowDemoWindow = true;
ImGui::ShowDemoWindow(&bShowDemoWindow);*/
ImGui::End();
//渲染
ImGui::Render();
glViewport(0, 0, g_Width, g_Height);
glClearColor(clear_color.x, clear_color.y, clear_color.z, clear_color.w);
glClear(GL_COLOR_BUFFER_BIT);
ImGui_ImplOpenGL3_RenderDrawData(ImGui::GetDrawData());
//更新渲染 windows平台
if (io.ConfigFlags & ImGuiConfigFlags_ViewportsEnable)
{
ImGui::UpdatePlatformWindows();
ImGui::RenderPlatformWindowsDefault();
//将OpenGL渲染上下文恢复到主窗口DC,因为平台窗口可能已经更改了它。
wglMakeCurrent(g_MainWindow.hDC, g_hRC);
}
::SwapBuffers(g_MainWindow.hDC);
}
ImGui_ImplOpenGL3_Shutdown();
ImGui_ImplWin32_Shutdown();
ImGui::DestroyContext();
CleanupDeviceWGL(hWnd, &g_MainWindow);
wglDeleteContext(g_hRC);
::DestroyWindow(hWnd);
::UnregisterClassW(wc.lpszClassName, wc.hInstance);
return 0;
}
