概要
qml 的资料相对qt widget来说,还是偏少啊,无论从帮助文档还是从网上搜索。笔者项目中遇到的一些展示控件,需要用tableview来展示,总结了一下两种方式,都是基于Tableview来实现的,一种是基于 QtQuick.Controls 1.4 版本,一种是高版本 QtQuick 2.14
基于QtQuick.Controls 1.4 版本的TableView用法
几种最重要的几个属性就是
headerDelegate : Component
itemDelegate : Component
model : model
rowDelegate : Component
selection : Selection
用法举例
下述代码中实现了表格的删除、复制、上移、下移、多选、多选的复制、多选的删除,全部勾选,右键菜单等等功能

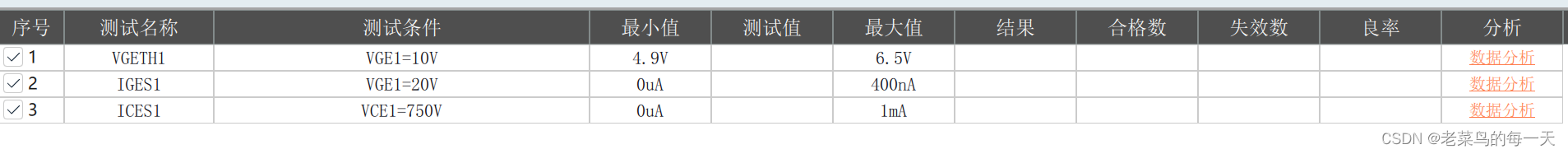

效果如图:
TableView{
id:_tableView
anchor.fill:parent
headerDelegate: headerDele // headerDelegate
rowDelegate :rowDele //rowDelegate
selectionMode:SelectionMode.ExtendedSelection
horizontalScrollBarPolicy: Qt.ScrollBarAlwaysOff//隐藏水平滚动条
frameVisible: false
property bool interactive : true
property var curTestRow : 0
property var testSelectIndexList : []
property real firstColumnWidth : 80
property real singleLineHeight:32
property var headerModel: [qsTr("序号"),qsTr("测试名称"),qsTr("测试条件"),qsTr("最小值"),qsTr("测试值"),qsTr("最大值"),qsTr("结果"),qsTr("合格数"),qsTr("失效数"),qsTr("良率"),qsTr("分析")];
property var roleModel: ["testCheckState","testName","condition","min","testResult","max","state","passNumber","failedNumber","passRate","analysis"];
function getColumnWidth(col)
{
switch(col)
{
case 0:
return firstColumnWidth;
case 1:
return Math.floor((_tableView.width-firstColumnWidth-11)*0.1);
case 2:
return Math.floor((_tableView.width-firstColumnWidth-11)*0.25);
case 3:
case 4:
case 5:
case 6:
case 7:
case 8:
case 9:
case 10:
return Math.floor((_tableView.width-firstColumnWidth-11)*0.08125);
default:
return Math.floor((_tableView.width-firstColumnWidth-11)*0.08125);
}
}
//遍历
function getAlllData() {
console.log("get all data",_tableView.model.count)
for (var i = 0; i < _tableView.model.count; ++i) {
var obj = _tableView.model.get(i);
var str = JSON.stringify(obj).toLowerCase();
console.log("str=", str);
}
}
function getLibTypeIndex() //获取lib这种测试类型的行索引
{
for (var i = 0; i < _tableView.model.count; ++i) {
var obj = _tableView.model.get(i);
if(obj.testType === "lib")
{
return i;
}
}
return 0;
}
function addOneTopRow(obj)
{
var libIndex = getLibTypeIndex();
console.log("addOneTopRow libindex=", libIndex)
if(libIndex > 0)
_tableModel.insert(libIndex,obj);
else
_tableModel.insert(0,obj);
}
function addOneRow()
{
var uuid = TestManager.addTmpLib();
var count = _tableModel.count;
var rowObj = TestManager.getOneLibByUuid(uuid)
var iunit = rowObj["resultUnit"];
var displayTexMax = UILogic.disPlay(Number(rowObj["max"]),iunit)
var displayTexMin = UILogic.disPlay(Number(rowObj["min"]),iunit)
rowObj["max"] = displayTexMax;
rowObj["min"] = displayTexMin;
console.log("testTable add row",JSON.stringify(rowObj) )
_tableModel.append(rowObj);
}
function updateOneRow(libname,uuid)
{
TestManager.applyTmpLib(libname,uuid);
//更新当前编辑过的行,因为需要display转换
var rowObj = TestManager.getOneLib(libname);
var imax = rowObj["max"];
var imin = rowObj["min"]
var iunit = rowObj["resultUnit"];
var displayTexMax = UILogic.disPlay(Number(rowObj["max"]),iunit)
var displayTexMin = UILogic.disPlay(Number(rowObj["min"]),iunit)
rowObj["max"] = displayTexMax;
rowObj["min"] = displayTexMin;
_tableModel.setProperty(_tableView.currentRow,"testName",libname)
_tableModel.setProperty(_tableView.currentRow,"condition",rowObj["condition"])
_tableModel.setProperty(_tableView.currentRow,"min",rowObj["min"])
_tableModel.setProperty(_tableView.currentRow,"max",rowObj["max"])
_tableModel.setProperty(_tableView.currentRow,"testResult","")
_tableModel.setProperty(_tableView.currentRow,"resultUnit",iunit)
}
function updateTestResult(uuid,value,testStatus,passNum,failedNum,passRate) //0 失败 1 成功
{
for(var i=0;i<_tableModel.count;i++)
{
var obj = _tableModel.get(i);
if(obj["uuid"] === uuid)
{
console.log("updateTestResult",value,testStatus)
var iunit = obj["resultUnit"];
var displayTexValue = UILogic.disPlay(value,iunit)
console.log(typeof displayTexValue,displayTexValue);
_tableModel.setProperty(i,"state",testStatus)
_tableModel.setProperty(i,"testResult",displayTexValue)
_tableModel.setProperty(i,"passNumber",String(passNum))
_tableModel.setProperty(i,"failedNumber",String(failedNum))
_tableModel.setProperty(i,"passRate",passRate)
//_tableModel.setProperty(i,"static",staticInfo)
}
}
}
function updatePatMinMax(uuid,min,max)
{
for(var i=0;i<_tableModel.count;i++)
{
var rowObj = _tableModel.get(i);
if(rowObj["uuid"] === uuid)
{
var imax = rowObj["max"];
var imin = rowObj["min"];
console.log("updatePatMinMax before",imin,imax)
var iunit = rowObj["resultUnit"];
var displayTexMin = UILogic.disPlay(min,iunit)
var displayTexMax = UILogic.disPlay(max,iunit)
rowObj["max"] = displayTexMax;
rowObj["min"] = displayTexMin;
console.log("updatePatMinMax",min,max)
_tableModel.setProperty(i,"min",displayTexMin)
_tableModel.setProperty(i,"max",displayTexMax)
}
}
}
function updateOneKerlwenTest(desobj)
{
for(var i=0;i<_tableModel.count;i++)
{
var obj = _tableModel.get(i);
if(obj["uuid"] === desobj.uuid)
{
_tableModel.setProperty(i,"min",desobj.min)
_tableModel.setProperty(i,"max",desobj.max)
}
}
}
function updateOneKerlwenTestResult(name,result,bpass)
{
for(var i=0;i<_tableModel.count;i++)
{
var obj = _tableModel.get(i);
if(obj["testName"] === name)
{
_tableModel.setProperty(i,"testResult",String(UILogic.getFixedNumber(result,5)))
_tableModel.setProperty(i,"state",bpass?1:0)
break;
}
}
}
function haveKerlwenOrThresholdEnabledList()
{
for(var i=0;i<_tableModel.count;i++)
{
var obj = _tableModel.get(i);
if(obj["testCheckState"] === 2 && obj["testType"]!=="lib")
{
return true;
}
}
return false;
}
function getEnabledList()
{
var enableList = [];
testSelectIndexList = [];
for(var i=0;i<_tableModel.count;i++)
{
var obj = _tableModel.get(i);
//console.log("getEnabledList",i,JSON.stringify(obj))
if(obj["testCheckState"] === 2 && obj["testType"]==="lib")
{
enableList.push(obj["uuid"]);
testSelectIndexList.push(i);
}
}
return enableList;
}
function clearAllResult()
{
for(var i=0;i<_tableModel.count;i++)
{
_tableModel.setProperty(i,"testResult","")
_tableModel.setProperty(i,"state",3)
//_tableModel.setProperty(i,"static","")
_tableModel.setProperty(i,"passNumber","")
_tableModel.setProperty(i,"failedNumber","")
_tableModel.setProperty(i,"passRate","")
}
}
function enableTable(enable)
{
_tableView.interactive = enable;
if(enable === false)
_tableView.selection.clear();
}
function removeRow()
{
var i = 0;
_tableView.selection.forEach( function(rowIndex) {
console.log("removeRow",rowIndex)
var newValue = rowIndex - i;
var curObj = _tableModel.get(newValue);
console.log("removeRow",JSON.stringify(curObj),curObj["testName"])
if(curObj.testType === "lib")
TestManager.removeOneLibByUuid(curObj["uuid"]);
else if(curObj.testType === "kerlwen")
{
TestManager.removeOneKerlwenTest(curObj["testName"])
}
else if(curObj.testType === "threshold")
{
TestManager.removeOneThresholdTest(curObj["testName"])
}
_tableModel.remove(newValue)
i++;
} )
_tableView.selection.clear();
}
function upRow()
{
//判断是否已经选中第一行
var isTop = false;
var indexList = [];
_tableView.selection.forEach( function(rowIndex) {
indexList.push(rowIndex);
if(rowIndex === 0)
isTop = true;
})
if(isTop)
return;
var top;
var bottom;
var count= _tableView.selection.count;
var i=0;
_tableView.selection.forEach( function(rowIndex) {
if(i === 0)
top = rowIndex;
if(i=== (count-1))
bottom = rowIndex;
_tableModel.move(rowIndex,rowIndex-1,1);
TestManager.moveUpOneLib(rowIndex);
i++;
} )
_tableView.selection.clear();
for(var n2 = 0; n2<indexList.length; n2++)
_tableView.selection.select(Number(indexList[n2])-1);
//_tableView.selection.select(top-1,bottom-1);
}
function downRow()
{
//判断是否已经到了最下面
var isLast = false;
_tableView.selection.forEach( function(rowIndex) {
if(rowIndex === (_tableModel.count-1))
isLast = true;
})
if(isLast)
return;
//反向获得新的list 需要先移动最下面的行
var list = [];
var revertList;
_tableView.selection.forEach( function(rowIndex) {
list.push(rowIndex);
} )
revertList = Utils.revert(list);
if(revertList.length > 0)
{
var top;
var bottom;
var count= _tableView.selection.count;
for(var n = 0; n<revertList.length; n++)
{
var rowIndex = Number(revertList[n]);
if(n === 0)
bottom = rowIndex;
if(n=== (revertList.length-1))
top = rowIndex;
_tableModel.move(rowIndex,rowIndex+1,1);
TestManager.moveDownOneLib(rowIndex);
}
_tableView.selection.clear();
for(var n2 = 0; n2<revertList.length; n2++)
_tableView.selection.select(Number(revertList[n2])+1);
}
}
function copyRow()
{
//复制的时候不能直接操控 curobj
//ex var newObj = curObj
// newObj["testName"] = ....
_tableView.selection.forEach( function(rowIndex) {
var curObj = _tableModel.get(rowIndex);
if(curObj.testType !== "lib")
return;
var newObj = UILogic.deepCopyViaJson(curObj);
newObj["uuid"] = Utils.genUuid();
newObj["testName"] = TestManager.getCopyName(curObj["testName"]);
newObj["testResult"] = ""
newObj["state"] = 3
newObj["passNumber"] = ""
newObj["failedNumber"] = ""
newObj["passRate"] = ""
//newObj["static"] = ""
console.log("copy row des",JSON.stringify(newObj))
TestManager.copyOneLib(curObj["uuid"], newObj["testName"],newObj["uuid"]);
_tableModel.insert(_tableModel.count,newObj)
AppSettings.testModifyed = true
} )
}
function selectAll()
{
_tableView.selection.selectAll();
}
function deSelectAll()
{
_tableView.selection.clear();
}
function selectNext(index)
{
console.log("selectNext",index,testSelectIndexList[index])
curTestRow = testSelectIndexList[index];
_tableView.selection.select(testSelectIndexList[index])
_tableModel.setProperty(testSelectIndexList[index],"state",2)
}
function updateCurSelect()
{
console.log("updateCurSelect curTestRow=",curTestRow)
if(_tableModel.count === 0)
return;
var obj = _tableModel.get(curTestRow);
if(obj["state"] === 2)
{
_tableModel.setProperty(curTestRow,"state",3)
}
}
function enableAll()
{
console.log("enableAll")
for(var i=0;i<_tableModel.count;i++)
{
_tableModel.setProperty(i,"testCheckState",2)
}
}
function enableNull()
{
console.log("enableNull")
for(var i=0;i<_tableModel.count;i++)
{
_tableModel.setProperty(i,"testCheckState",0)
}
}
function getCurLibName()
{
var curObj = _tableModel.get(_tableView.currentRow);
return curObj.testName;
}
function getCurTestInfo()
{
var curObj = _tableModel.get(_tableView.currentRow);
console.log("getCurTestInfo",JSON.stringify(curObj))
var uuid = curObj.uuid;
var testType = curObj.testType
return {uuid,testType};
}
function initLibData()
{
var libarray = TestManager.getLibs();
for(var i=0;i<libarray.length;i++)
{
var obj = libarray[i];
var imax = obj["max"];
var imin = obj["min"]
var iunit = obj["resultUnit"];
var displayTexMax = UILogic.disPlay(obj["max"],iunit)
var displayTexMin = UILogic.disPlay(obj["min"],iunit)
obj["max"] = displayTexMax;
obj["min"] = displayTexMin;
console.log("initLibData",JSON.stringify(obj))
_tableModel.append(libarray[i]);
}
}
function initKerlwenData()
{
var arrays = TestManager.getKerlwenTestArray();
for(var i=0;i<arrays.length;i++)
{
_tableModel.append(arrays[i]);
}
}
function initThresholdData()
{
var arrays = TestManager.getThresholdTestArray();
for(var i=0;i<arrays.length;i++)
{
_tableModel.append(arrays[i]);
}
}
function initData()
{
if(TestManager.haveCategory() === false)
return;
AppSettings.curGroup = TestManager.getCurCategoryName();
_tableModel.clear();
initKerlwenData();
initThresholdData();
initLibData();
}
model: ListModel{
id:_tableModel
}
Menu { // 右键菜单
title: "Edit"
id: contentMenu
MenuItem {
text: qsTr("增加")
shortcut: "Ctrl+A"
onTriggered: {
addClicked()
}
}
MenuItem {
text: qsTr("删除")
shortcut: "Ctrl+D"
onTriggered: {
removeRow()
}
}
MenuItem {
text: qsTr("复制")
shortcut: "Ctrl+C"
onTriggered: {
copyRow();
}
}
MenuSeparator { }
MenuItem {
text: qsTr("上移")
onTriggered: {
upRow();
}
}
MenuItem {
text: qsTr("下移")
onTriggered: {
downRow();
}
}
MenuItem {
text: qsTr("全部勾选")
onTriggered: {
enableAll();
}
}
MenuItem {
text: qsTr("全部取消勾选")
onTriggered: {
enableNull();
}
}
MenuItem {
text: qsTr("清除结果")
onTriggered: {
clearAllResult();
TestManager.clearAllResult();
}
}
// Menu {
// title: "More Stuff"
// MenuItem {
// text: "Do Nothing"
// }
// }
}
//定义表头的组件
Component{
id:headerDele
Rectangle{
implicitWidth: _tableView.width*0.1
implicitHeight: singleLineHeight+10
border.width: 1
border.color: "#838B8B"
color: "#4F4F4F"
AppText {
anchors.centerIn: parent
text: styleData.value
color:"white"
}
}
}
//定义行的组件
Component{
id:rowDele
Rectangle{
width: _tableView.width
height: singleLineHeight
//color: styleData.selected?"#450000ff":"#22000000"
color: styleData.selected ? Style.color_cyan_secondary : Style.color_elevation_bg_low
//color: (/*styleData.selected || */styleData.row === _tableView.currentRow )? Style.color_cyan_secondary : Style.color_elevation_bg_low
MouseArea
{
anchors.fill: parent
acceptedButtons: Qt.RightButton
onClicked: {
console.log("right button clikced",_tableView.selection.count)
if(_tableView.selection.count === 0)
{
_tableView.selection.clear()
_tableView.selection.select(styleData.row)
_tableView.currentRow = styleData.row
}
contentMenu.popup()
}
}
}
}
//序号
TableViewColumn{
role:roleModel[0]
title: headerModel[0]
width: getColumnWidth(0)
delegate: Rectangle{
color: "transparent"
height: singleLineHeight
border.width: 1
border.color: Style.controlBorderColor
enabled: interactive===true
AppCheckBox
{
checkState: Number(styleData.value)===2?Qt.Checked:Qt.Unchecked
text: styleData.row+1
textfont.pixelSize : Style.font_size_cn_20
enabled: UserManager.curUserPermission===Permission.Permission_admin || UserManager.curUserPermission===Permission.Permission_engineer
onCheckStateChanged:
{
//console.log("checkState",styleData.row, checkState)
if(styleData.row === -1)
return;
_tableModel.setProperty(styleData.row,"testCheckState",checkState)
var obj = _tableModel.get(styleData.row);
if(obj.testType === "lib")
{
TestManager.setEnaleLib(obj["uuid"],checkState==Qt.Checked)
}
else if(obj.testType === "kerlwen")
{
TestManager.setEnableKerlwenTest(obj["uuid"],checkState==Qt.Checked)
}
else if(obj.testType === "threshold")
{
TestManager.setEnableThresholdTest(obj["uuid"],checkState==Qt.Checked)
}
}
}
}
}
//实验名称
TableViewColumn{
role:roleModel[1]
title: headerModel[1]
width: getColumnWidth(1)
delegate: Rectangle{
color: "transparent"
height: singleLineHeight
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
text:styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
width: parent.width
elide: Text.ElideRight
}
}
}
//试验条件
TableViewColumn{
role:roleModel[2]
title: headerModel[2]
width: getColumnWidth(2)
delegate: Rectangle{
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
text:styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
}
}
}
//最小值
TableViewColumn{
role:roleModel[3]
title: headerModel[3]
width: getColumnWidth(3)
delegate: Rectangle{
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
//width: parent.width
text:styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
elide: Text.ElideRight
}
}
}
//结果值
TableViewColumn{
role:roleModel[4]
title: headerModel[4]
width: getColumnWidth(4)
delegate: Rectangle{
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
text:styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
}
}
}
//最大值
TableViewColumn{
role:roleModel[5]
title: headerModel[5]
width: getColumnWidth(5)
delegate: Rectangle{
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
text: styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
}
}
}
//是否合格
TableViewColumn{
role:roleModel[6]
title: headerModel[6]
width: getColumnWidth(6)
delegate: Rectangle{
id:resultDelegate
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
//0 失败 1成功 2正在测试 3 未开始
AppIcon{
//anchors.centerIn: parent
id:_resultPic
anchors.verticalCenter: parent.verticalCenter
width: 26
height: 26
x:(parent.width-width)/2
visible: styleData.value !== 2
source: {
if(styleData.value === 3)
{
return "";
}
else if(styleData.value === 0)
{
return "qrc:/images/unpass.png";
}
else if(styleData.value === 1)
{
return "qrc:/images/pass.png";
}
return "";
}
}
AppIcon{
id:_resultTestPic
anchors.verticalCenter: parent.verticalCenter
width: 26
height: 26
x:(parent.width-width)/2
visible: styleData.value === 2
NumberAnimation on x {
running: styleData.value === 2
loops: Animation.Infinite
from: 0; to: parent.width-_resultTestPic.width; duration: 200
}
source: "qrc:/images/testing.png";
}
}
}
TableViewColumn{
role:roleModel[7]
title: headerModel[7]
width: getColumnWidth(7)
delegate: Rectangle{
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
text: styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
}
}
}
TableViewColumn{
role:roleModel[8]
title: headerModel[8]
width: getColumnWidth(8)
delegate: Rectangle{
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
text: styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
}
}
}
TableViewColumn{
role:roleModel[9]
title: headerModel[9]
width: getColumnWidth(9)
delegate: Rectangle{
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
AppText{
anchors.centerIn: parent
text: styleData.value
font.styleName: "Regular"
font.pixelSize : Style.font_size_cn_22
}
}
}
TableViewColumn{
role:roleModel[10]
title: headerModel[10]
width: getColumnWidth(10)
delegate: Rectangle{
id:waveDelegate
height: singleLineHeight
color: "transparent"
border.width: 1
border.color: Style.controlBorderColor
enabled: interactive===true
AppUnderlineButton
{
anchors.centerIn: parent
font.pixelSize: Style.font_size_cn_20
text: qsTr("数据分析")
textColor: "#FF7F50"
onSigClicked:
{
_tableView.currentRow = styleData.row
_tableView.selection.clear();
_tableView.selection.select(styleData.row)
var obj = getCurTestInfo();
AppSettings.testType = obj.testType
if(obj.testType === "lib")
{
TestManager.setTempEditLib(obj.uuid);
globalUI.showLibAnalysisPage(styleData.row);
}
}
}
}
}
}
删除功能实现
function removeRow()
{
var i = 0;
_tableView.selection.forEach( function(rowIndex) {
console.log("removeRow",rowIndex)
var newValue = rowIndex - i;
_tableModel.remove(newValue)
i++;
} )
_tableView.selection.clear();*
}
复制功能实现
对业务代码进行了删除,只保留了跟表格有关的代码
function copyRow()
{
_tableView.selection.forEach( function(rowIndex) {
var curObj = _tableModel.get(rowIndex);
_tableModel.insert(_tableModel.count,curObj )
} )
}
上移功能实现
function upRow()
{
//判断是否已经选中第一行
var isTop = false;
var indexList = [];
_tableView.selection.forEach( function(rowIndex) {
indexList.push(rowIndex);
if(rowIndex === 0)
isTop = true;
})
if(isTop)
return;
var top;
var bottom;
var count= _tableView.selection.count;
var i=0;
_tableView.selection.forEach( function(rowIndex) {
if(i === 0)
top = rowIndex;
if(i=== (count-1))
bottom = rowIndex;
_tableModel.move(rowIndex,rowIndex-1,1);
TestManager.moveUpOneLib(rowIndex);
i++;
} )
_tableView.selection.clear();
for(var n2 = 0; n2<indexList.length; n2++)
_tableView.selection.select(Number(indexList[n2])-1);
}
下移功能实现
function downRow()
{
//判断是否已经到了最下面
var isLast = false;
_tableView.selection.forEach( function(rowIndex) {
if(rowIndex === (_tableModel.count-1))
isLast = true;
})
if(isLast)
return;
//反向获得新的list 需要先移动最下面的行
var list = [];
var revertList;
_tableView.selection.forEach( function(rowIndex) {
list.push(rowIndex);
} )
revertList = Utils.revert(list);
if(revertList.length > 0)
{
var top;
var bottom;
var count= _tableView.selection.count;
for(var n = 0; n<revertList.length; n++)
{
var rowIndex = Number(revertList[n]);
if(n === 0)
bottom = rowIndex;
if(n=== (revertList.length-1))
top = rowIndex;
_tableModel.move(rowIndex,rowIndex+1,1);
}
_tableView.selection.clear();
for(var n2 = 0; n2<revertList.length; n2++)
_tableView.selection.select(Number(revertList[n2])+1);
}
}
全选和全不选
function selectAll()
{
_tableView.selection.selectAll();
}
function deSelectAll()
{
_tableView.selection.clear();
}
右键菜单
右键菜单主要是在 rowDelegate 做了操作
Component{
id:rowDele
Rectangle{
width: _tableView.width
height: singleLineHeight
//color: styleData.selected?"#450000ff":"#22000000"
color: styleData.selected ? Style.color_cyan_secondary : Style.color_elevation_bg_low
//color: (/*styleData.selected || */styleData.row === _tableView.currentRow )? Style.color_cyan_secondary : Style.color_elevation_bg_low
MouseArea
{
anchors.fill: parent
acceptedButtons: Qt.RightButton
onClicked: {
console.log("right button clikced",_tableView.selection.count)
if(_tableView.selection.count === 0)
{
_tableView.selection.clear()
_tableView.selection.select(styleData.row)
_tableView.currentRow = styleData.row
}
contentMenu.popup()
}
}
}
}
其他的可直接参考源码
基于QtQuick 2.14 版本的TableView用法
主要关注一下属性设置
columnWidthProvider : var
rowHeightProvider : var
代码举例

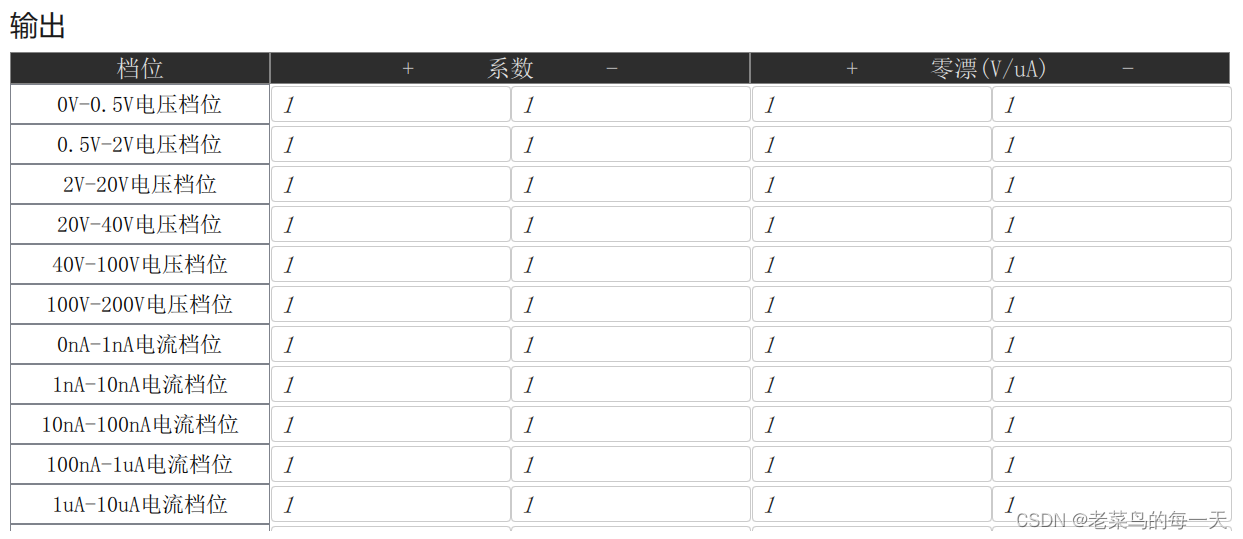

Item {
id:root
//TableModelColumn{ display: "radio+"; edit: "radio-" } // using two roles
//TableModelColumn{ display: "drift+"; edit: "drift-" } // using two roles
property var type // "out" "in"
property int rowHeight : 40
property int hearderHeight:45
property var headerModel: [qsTr("档位"),qsTr("+ 系数 -"),qsTr("+ 零漂(V/uA) -")];
property var para1: ""
property var para2: ""
property var para3: ""
property var para4: ""
property var columnWidths: [260, 480, 480]
property var tableWidth : {
getTableWidth()+5
}
function getColumnWidth(column)
{
return columnWidths[column]
}
function getTableWidth()
{
var w=0;
for(var i=0;i<columnWidths.length;i++)
{
w += columnWidths[i];
console.log("columnWidths[i]",columnWidths[i])
}
console.log("getTableWidth",w)
return w;
}
width: tableWidth
height: Math.max( tablemodel.rowCount*rowHeight+hearderHeight+30,300)
visible: true
TableView {
id: _tableView
width: parent.width
height:parent.height*0.95
//anchors.horizontalCenter: parent.horizontalCenter
clip: true // clip content to table dimensions
boundsBehavior: Flickable.StopAtBounds
reuseItems: false // forces table to destroy delegates
columnSpacing: 1 // in case of big/row spacing, you need to take care of width/height providers (to get along with it)
// margins to vertical/horizontal headers
//leftMargin: verticalHeader.width
topMargin: horizontalHeader.height
// scrollbar config
ScrollBar.horizontal: ScrollBar{
//policy: "AlwaysOn"
}
ScrollBar.vertical: ScrollBar{
//policy: "AlwaysOn"
}
ScrollIndicator.horizontal: ScrollIndicator { }
ScrollIndicator.vertical: ScrollIndicator { }
// width and height providers
columnWidthProvider: function(column){ return columnWidths[column] }
rowHeightProvider: function (column) { return rowHeight }
// table horizontal header
Row {
id: horizontalHeader
y: _tableView.contentY
z: 2
Repeater {
model: _tableView.columns
Rectangle {
width: _tableView.columnWidthProvider(modelData)
height: headerTextInput.paintedHeight+8
color: "#2d2d2d"
border.width: 1
border.color: "#838383"
Text {
id: headerTextInput
anchors.centerIn: parent
text: headerModel[index]
font.pixelSize: Style.font_size_cn_24
color: "#e5e5e5"
}
}
}
}
// defining model columns' roles
model: TableModel {
id: tablemodel
TableModelColumn{ display: "gearName" }
TableModelColumn{ display: para1; edit: para2 } // using two roles
TableModelColumn{ display: para3; edit: para4 } // using two roles
}
// defining custom delegates and model connection
delegate: DelegateChooser {
DelegateChoice {
column: 0
delegate:Rectangle {
border.width: 1
border.color: "#7f838c"
Text {
anchors.centerIn: parent
verticalAlignment: Text.AlignVCenter;
horizontalAlignment: Text.AlignHCenter
text: display
font.pixelSize: Style.font_size_cn_22
color: "#000000"
}
}
}
DelegateChoice {
column: 1
delegate: RowLayout { // two textfields in same column model
spacing: 0
APPLineField {
implicitWidth: parent.width / 2
text: model.display
placeholderText: "+"
selectByMouse: true
font.italic: true
onMyEditFinished:model.display = Number(this.text)
//onEditingFinished: model.display = Number(this.text)
font.pixelSize: Style.font_size_cn_24
type:AppSettings.appkeyboard_number
childType: AppSettings.numberKeyBoard_OnlyDigit
}
APPLineField {
implicitWidth: parent.width / 2
text: model.edit
placeholderText: "-"
selectByMouse: true
font.italic: true
font.pixelSize: Style.font_size_cn_24
type:AppSettings.appkeyboard_number
childType: AppSettings.numberKeyBoard_OnlyDigit
//onEditingFinished:
onMyEditFinished:
{
model.edit = Number(this.text)
//printAlllData();
}
}
}
}
DelegateChoice {
column: 2
delegate: RowLayout { // two textfields in same column model
spacing: 0
APPLineField {
implicitWidth: parent.width / 2
text: model.display
placeholderText: "+"
selectByMouse: true
font.pixelSize: Style.font_size_cn_24
font.italic: true
type:AppSettings.appkeyboard_number
childType: AppSettings.numberKeyBoard_OnlyDigit
/*onEditingFinished */onMyEditFinished: model.display = Number(this.text)
}
APPLineField {
implicitWidth: parent.width / 2
text: model.edit
placeholderText: "-"
selectByMouse: true
font.italic: true
font.pixelSize: Style.font_size_cn_24
type:AppSettings.appkeyboard_number
childType: AppSettings.numberKeyBoard_OnlyDigit
/*onEditingFinished*/ onMyEditFinished: model.edit = Number(this.text)
}
}
}
}
}
Timer
{
id:_testTimer
interval: 1000
repeat: false
onTriggered:
{
console.log("Calitable view append row")
tablemodel.appendRow({ "gearName":"2-5v",
"radio+":"小花",
"radio-":"女",
"drift+":"汉",
"drift-":"27",});
_tableView.forceLayout() // forces _tableView update
initTableData();
}
}
function reset()
{
for (var i = 0; i < tablemodel.rowCount; ++i) {
var obj = tablemodel.getRow(i);
console.log("rest",JSON.stringify(obj),para1,para2,para3,para4,obj.hasOwnProperty(para1))
if(obj.hasOwnProperty(para1))
{
obj[para1] = 0;
}
if(obj.hasOwnProperty(para2))
{
obj[para2] = 0;
}
if(obj.hasOwnProperty(para3))
{
obj[para3] = 0;
}
if(obj.hasOwnProperty(para4))
{
obj[para4] = 0;
}
tablemodel.setRow(i,obj)
}
}
function getAllData()
{
var dataArray = new Array;
for (var i = 0; i < tablemodel.rowCount; ++i) {
console.log("str=", JSON.stringify(tablemodel.getRow(i)));
dataArray.push(tablemodel.getRow(i))
}
return dataArray;
}
function printAlllData() {
console.log("Calitable view get all data",tablemodel.rowCount,_tableView.height)
for (var i = 0; i < tablemodel.rowCount; ++i) {
var obj = tablemodel.getRow(i);
var str = JSON.stringify(obj)//.toLowerCase();
console.log("str=", str);
}
}
function updateaTableData(address)
{
}
}
实现的效果如图 :
