参考文档：Swiper中文网-轮播图幻灯片js插件,H5页面前端开发
标准地图来源：自然资源部地图技术审查中心承办的标准地图服务
想要了解和下载更多关于 标准地图 的内容，欢迎访问中国地图出版集团官网和中国地图出版集团官方微博

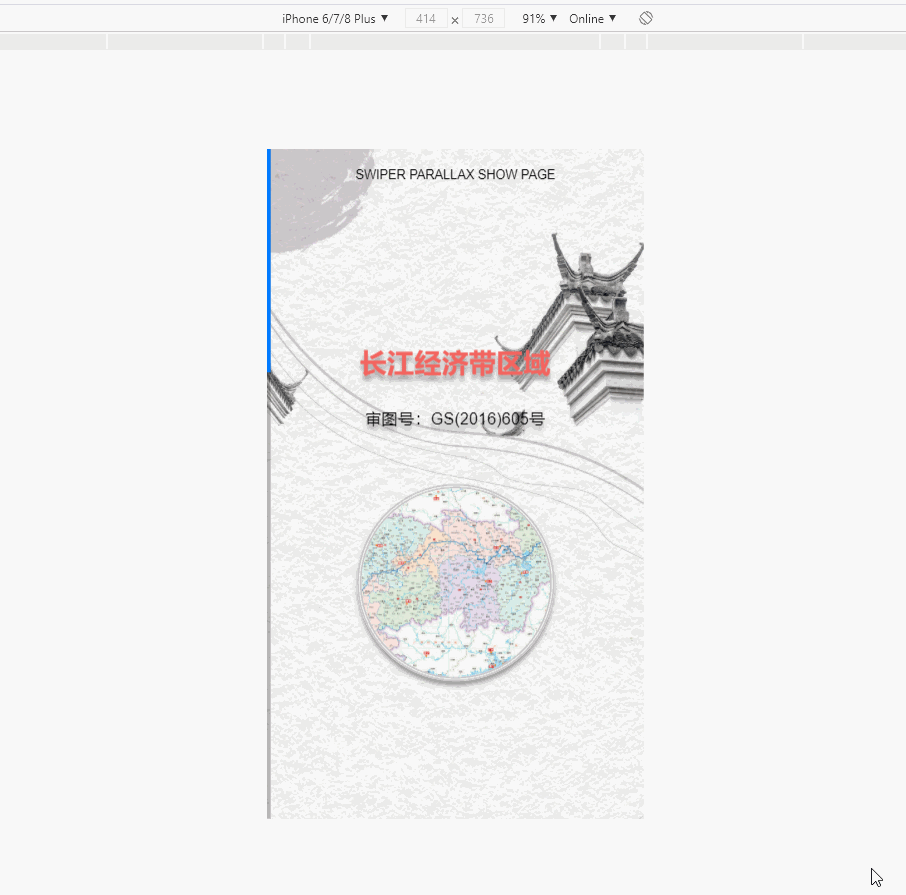

效果演示

滑动时，地图元素的位移和文字元素的位移偏差导致的视差效果
在这里插入图片描述

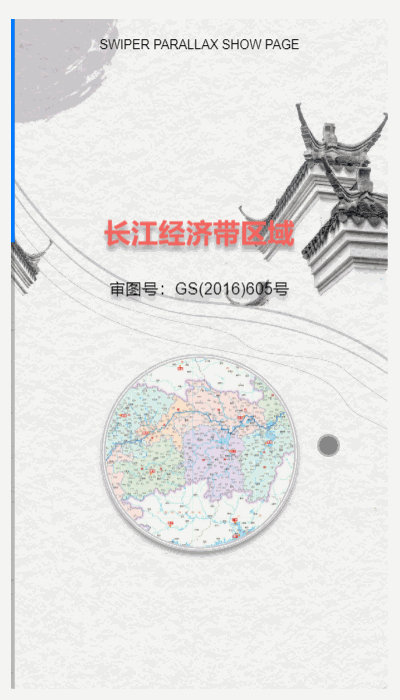

横屏时显示蒙版，锁定显示（文字其实应该是，“请竖屏观看”😓，懒得再录屏了）

代码分释

主要用的是 swiper.js 基本属性中的 parallax 项

官网说明如下

parallax
设置为true开启Swiper的视差效果，内容在切换时更有层次感。
效果可以应用于container或slide的子元素。当应用于container的子元素（常用于视差背景图），每次切换时视差效果仅有设定值的slide个数-1分之1
视差位移变化
在所需要的元素上增加data-swiper-parallax属性（与Swiper切换方向相同）或data-swiper-parallax-x （x方向） data-swiper-parallax-y（y方向）
data-swiper-parallax接受两种类型的参数。

number（单位：px），如-300，从右边300px进入左边出去。
percentage（百分比），移动距离=该元素宽度 * percentage。

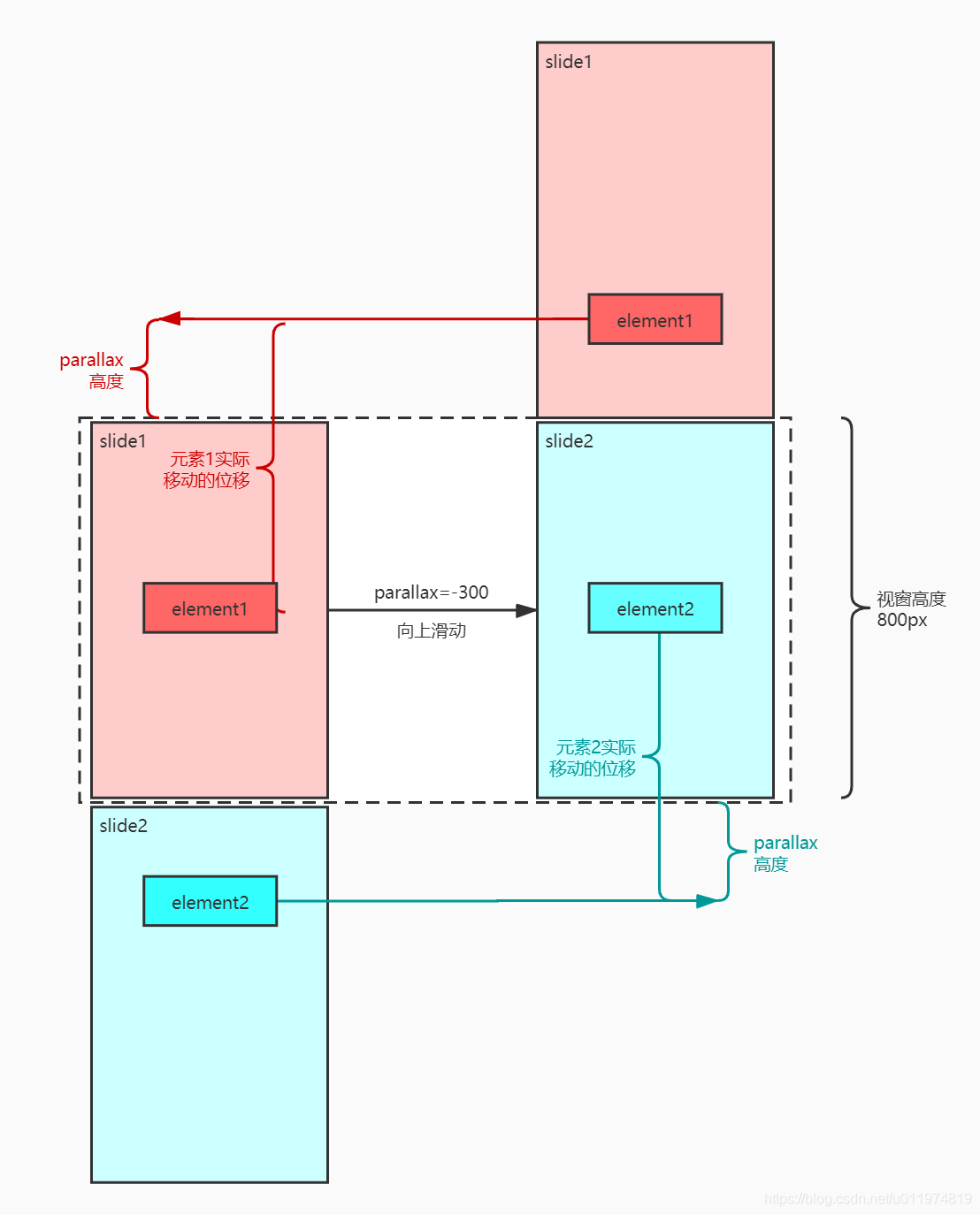

配图解释下 data-swiper-parallax 参数设定的 视差位移变化

当视差设定在 slide 子元素上时
data-swiper-parallax 代表切换时，元素的起始定位（或者终止定位）
其中正数代表从左往右（从上往下），负数代表从右往左（从下往上）

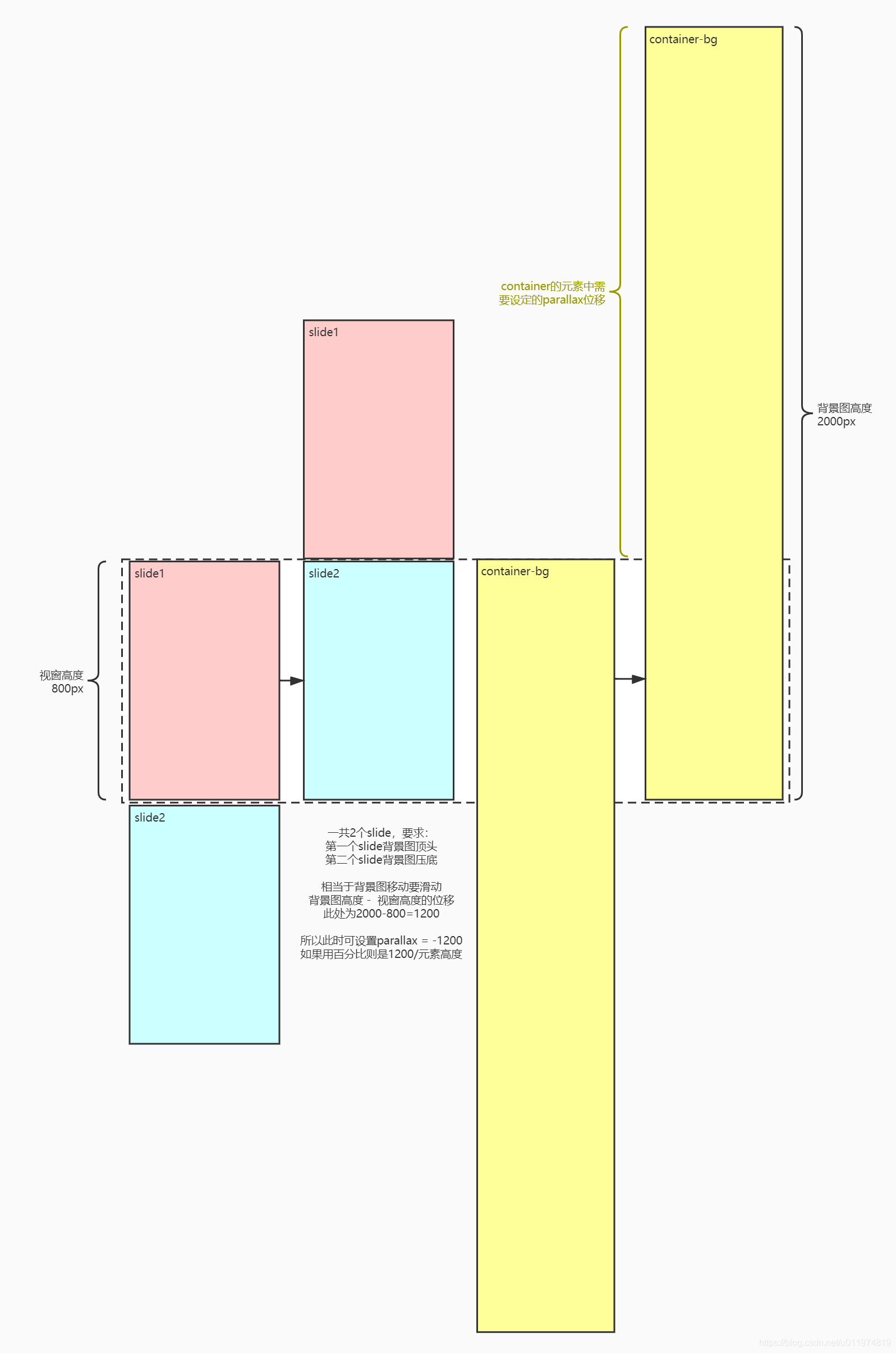

当视差设定在 container 子元素上时，常作为视差的背景图
data-swiper-parallax 设定的值代表所有的 slide 滑动后，背景图需要移动多少位移
当 data-swiper-parallax 为百分比的时候，其实是移动的像素距离，与当前元素宽度（高度）的比值

DOM 结构

<!-- 提示请竖屏观看 蒙版 -->
<div class="mask">
    请竖屏观看
</div>

<div class="swiper-container">
    <div class="swiper-title">
        SWIPER PARALLAX SHOW PAGE
    </div>

    <div class="parallax-bg" data-swiper-parallax="-100%">
        <img class="bg" src="assets/bg.jpg" width="100%" />
    </div>

    <div class="swiper-wrapper">
        <div class="swiper-slide">
            <div class="title" data-swiper-parallax="-1000">
                <h3>长江经济带区域</h3>
                <p>审图号：GS(2016)605号</p>
            </div>
            <div class="map" data-swiper-parallax="-100">
                <img src="assets/map1.jpg" alt="长江经济带区域">
            </div>
        </div>
        <div class="swiper-slide">
            <div class="title" data-swiper-parallax="-1000">
                <h3>京津冀都市圈</h3>
                <p>审图号：GS(2016)1610号</p>
            </div>
            <div class="map" data-swiper-parallax="-100">
                <img src="assets/map2.jpg" alt="京津冀都市圈">
            </div>
        </div>
        <div class="swiper-slide">
            <div class="title" data-swiper-parallax="-1000">
                <h3>粤港澳大湾区</h3>
                <p>审图号：GS(2019)4342号</p>
            </div>
            <div class="map" data-swiper-parallax="-100">
                <img src="assets/map3.jpg" alt="粤港澳大湾区">
            </div>
        </div>
    </div>

    <div class="swiper-pagination"></div>

    <div class="swiper-author">
        Develop By Nora7aki
    </div>
</div>

脚本代码

const parallaxBg = document.querySelector('.bg')

// animate动画执行方法
const animateCSS = (element, animation, prefix = '') =>
    new Promise((resolve, reject) => {
        const animationName = `${prefix}${animation}`;
        const node = element.nodeType == 1 ? element : document.querySelector(element);

        node.classList.add(`${prefix}animated`, animationName);

        function handleAnimationEnd(event) {
            event.stopPropagation();
            node.classList.remove(`${prefix}animated`, animationName);
            resolve('Animation ended');
        }

        node.addEventListener('animationend', handleAnimationEnd, { once: true });
    });

// 图片点击事件
document.querySelectorAll('img').forEach(el => {
    el.addEventListener('click', function () { animateCSS(this, 'heartBeat') })
})

// 检测竖屏状态
const isVertical = () => {
    return window.orientation % 180 === 0
}

// 计算移动的位移
const setParallax = () => {
    const mask = document.querySelector('.mask')

    // 如果是横屏则蒙版
    if (!isVertical()) {
        mask.style.display = 'flex'
        return
    }
    // 计算滚动百分比
    mask.style.display = 'none'
    let pt = (parallaxBg.height - window.innerHeight) / window.innerHeight * 100
    document.querySelector('.parallax-bg').setAttribute('data-swiper-parallax', `-${pt}%`)
}

// 图片加载后 & resize事件
parallaxBg.onload = setParallax
window.addEventListener('resize', setParallax)

// 初始化swiper
var swiper = new Swiper('.swiper-container', {
    speed: 600,
    parallax: true,
    direction: 'vertical',
    pagination: {
        el: '.swiper-pagination',
        type: 'progressbar',
    },
});

完整代码

Github - h5-demos / Parallax

<!DOCTYPE html>
<html lang="en">

<head>
    <meta charset="UTF-8">
    <meta http-equiv="X-UA-Compatible" content="IE=edge">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="screen-orientation" content="portrait">
    <title>Parallax demo</title>

    <link href="https://cdn.bootcdn.net/ajax/libs/Swiper/6.4.14/swiper-bundle.min.css" rel="stylesheet">
    <link href="https://cdn.bootcdn.net/ajax/libs/animate.css/4.1.1/animate.compat.min.css" rel="stylesheet">

    <link rel="stylesheet" href="assets/style.css">
</head>

<body>
    <!-- 提示请竖屏观看 蒙版 -->
    <div class="mask">
        请竖屏观看
    </div>

    <div class="swiper-container">
        <div class="swiper-title">
            SWIPER PARALLAX SHOW PAGE
        </div>

        <div class="parallax-bg" data-swiper-parallax="-100%">
            <img class="bg" src="assets/bg.jpg" width="100%" />
        </div>

        <div class="swiper-wrapper">
            <div class="swiper-slide">
                <div class="title" data-swiper-parallax="-1000">
                    <h3>长江经济带区域</h3>
                    <p>审图号：GS(2016)605号</p>
                </div>
                <div class="map" data-swiper-parallax="-100">
                    <img src="assets/map1.jpg" alt="长江经济带区域">
                </div>
            </div>
            <div class="swiper-slide">
                <div class="title" data-swiper-parallax="-1000">
                    <h3>京津冀都市圈</h3>
                    <p>审图号：GS(2016)1610号</p>
                </div>
                <div class="map" data-swiper-parallax="-100">
                    <img src="assets/map2.jpg" alt="京津冀都市圈">
                </div>
            </div>
            <div class="swiper-slide">
                <div class="title" data-swiper-parallax="-1000">
                    <h3>粤港澳大湾区</h3>
                    <p>审图号：GS(2019)4342号</p>
                </div>
                <div class="map" data-swiper-parallax="-100">
                    <img src="assets/map3.jpg" alt="粤港澳大湾区">
                </div>
            </div>
        </div>

        <div class="swiper-pagination"></div>

        <div class="swiper-author">
            Develop By Nora7aki
        </div>
    </div>

    <script src="https://cdn.bootcdn.net/ajax/libs/Swiper/6.4.14/swiper-bundle.min.js"></script>
    <script>
        const parallaxBg = document.querySelector('.bg')

        // animate动画执行方法
        const animateCSS = (element, animation, prefix = '') =>
            new Promise((resolve, reject) => {
                const animationName = `${prefix}${animation}`;
                const node = element.nodeType == 1 ? element : document.querySelector(element);

                node.classList.add(`${prefix}animated`, animationName);

                function handleAnimationEnd(event) {
                    event.stopPropagation();
                    node.classList.remove(`${prefix}animated`, animationName);
                    resolve('Animation ended');
                }

                node.addEventListener('animationend', handleAnimationEnd, { once: true });
            });

        // 图片点击事件
        document.querySelectorAll('img').forEach(el => {
            el.addEventListener('click', function () { animateCSS(this, 'heartBeat') })
        })

        // 检测竖屏状态
        const isVertical = () => {
            return window.orientation % 180 === 0
        }

        // 计算移动的位移
        const setParallax = () => {
            const mask = document.querySelector('.mask')

            // 如果是横屏则蒙版
            if (!isVertical()) {
                mask.style.display = 'flex'
                return
            }
            // 计算滚动百分比
            mask.style.display = 'none'
            let pt = (parallaxBg.height - window.innerHeight) / window.innerHeight * 100
            document.querySelector('.parallax-bg').setAttribute('data-swiper-parallax', `-${pt}%`)
        }

        // 图片加载后 & resize事件
        parallaxBg.onload = setParallax
        window.addEventListener('resize', setParallax)

        // 初始化swiper
        var swiper = new Swiper('.swiper-container', {
            speed: 600,
            parallax: true,
            direction: 'vertical',
            pagination: {
                el: '.swiper-pagination',
                type: 'progressbar',
            },
        });
    </script>

</body>

</html>

/**
* 全屏通用 RESET 部分
*/

html, body {
    position: relative;
    height: 100%;
}

body {
    background: #eee;
    font-family: Helvetica Neue, Helvetica, Arial, sans-serif;
    font-size: 14px;
    color: #000;
    margin: 0;
    padding: 0;
}

.swiper-container {
    width: 100%;
    height: 100%;
}

.swiper-slide {
    text-align: center;
    font-size: 18px;
    /* Center slide text vertically */
    display: -webkit-box;
    display: -ms-flexbox;
    display: -webkit-flex;
    display: flex;
    -webkit-box-pack: center;
    -ms-flex-pack: center;
    -webkit-justify-content: center;
    justify-content: center;
    -webkit-box-align: center;
    -ms-flex-align: center;
    -webkit-align-items: center;
    align-items: center;
}

/**
* 本例独用
*/

.parallax-bg {
    position: absolute;
    left: 0;
    top: 0;
    width: 100%;
    height: 100%;
    -webkit-background-size: cover;
    background-size: cover;
    background-position: center;
}

.mask {
    position: absolute;
    height: 100%;
    width: 100%;
    z-index: 100;
    /* text-align: center; */
    align-items: center;
    justify-content: center;
    display: none;
    background: #f2f2f2;
    color: #333;
    font-size: 32px;
}

.swiper-title {
    top: 20px;
    left: 0;
    width: 100%;
    position: absolute;
    text-align: center;
    -webkit-transition: .3s opacity;
    -o-transition: .3s opacity;
    transition: .3s opacity;
    -webkit-transform: translate3d(0, 0, 0);
    transform: translate3d(0, 0, 0);
    z-index: 10;
}

.swiper-author{
    bottom: 20px;
    left: 0;
    width: 100%;
    position: absolute;
    text-align: center;
    -webkit-transition: .3s opacity;
    -o-transition: .3s opacity;
    transition: .3s opacity;
    z-index: 10;
}

.title {
    text-shadow: 0px 5px 5px #999;
    position: absolute;
    text-align: center;
    left: 0;
    top: 25%;
    width: 100%;
}

.title h3 {
    font-size: 30px;
    font-weight: bold;
    color: #f4645f;
}

.map {
    position: absolute;
    left: 0;
    top: 50%
}

.map img {
    box-shadow: 0px 5px 5px #999;
    width: 50%;
    border-radius: 50%;
    border: 5px double #ccc;
}
