Android Gradle源码分析

一.如何调试Android Gradle源码

最简单的方式如下:
1.配置 gradle.properties
比较方便的做法是配置全局的 gradle.properties,这样对所有 Gradle 工具都适用,配置文件位于 ~/.gradle/gradle.properties,在 gradle.properties 文件中加上 org.gradle.jvmargs 属性:

org.gradle.jvmargs=-XX:MaxPermSize=4g -XX:+HeapDumpOnOutOfMemoryError -Xmx4g -agentlib:jdwp=transport=dt_socket,server=y,suspend=n,address=5006

2.启动 Gradle Daemon 进程

$ ./gradlew --stop     # 先停掉 daemon 进程
$ ./gradlew --daemon   # 启动 daemon 进程

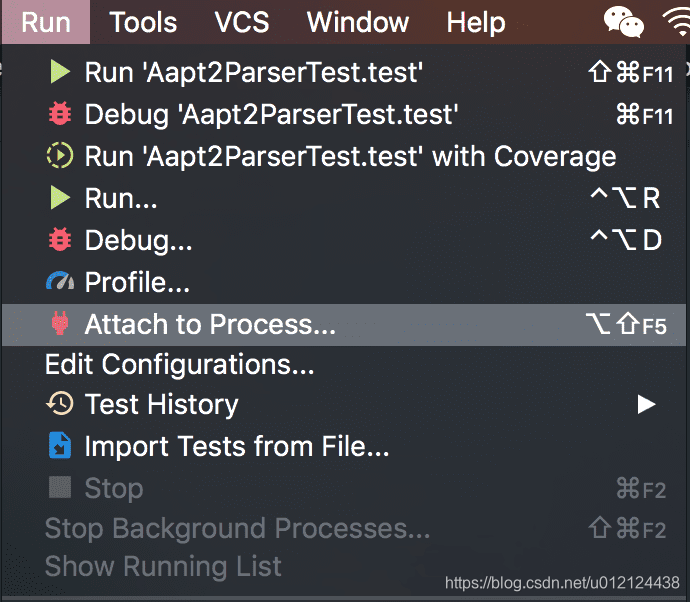

3.Attach daemon 进程
在这里插入图片描述
然后,选择 Gradle Daemon 进程,如下图所示:
在这里插入图片描述

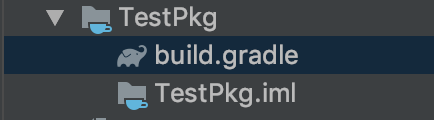

4.新建一个空的module
删除所有其他文件,只留如下2个文件
在这里插入图片描述
gradle文件配置如下

apply plugin: 'groovy'

dependencies {
    implementation gradleApi()
    implementation localGroovy()
    implementation 'com.android.tools.build:gradle:3.5.0'
}

这样就引入了源码,想看对应版本的源码,改变相应的引用即可
保持和classpath声明的一致

 classpath 'com.android.tools.build:gradle:3.5.0'

5.放断点
在相应的代码行放上断点

6.运行构建,开始调试

在命令行中执行相应的 Task,例如:

$ ./gradlew assembleDebug

二.Gralde Plugin源码分析

平时我们使用plugin都是通过apply方法,例如:

apply plugin: 'com.android.application'

所以我们就从apply方法入手

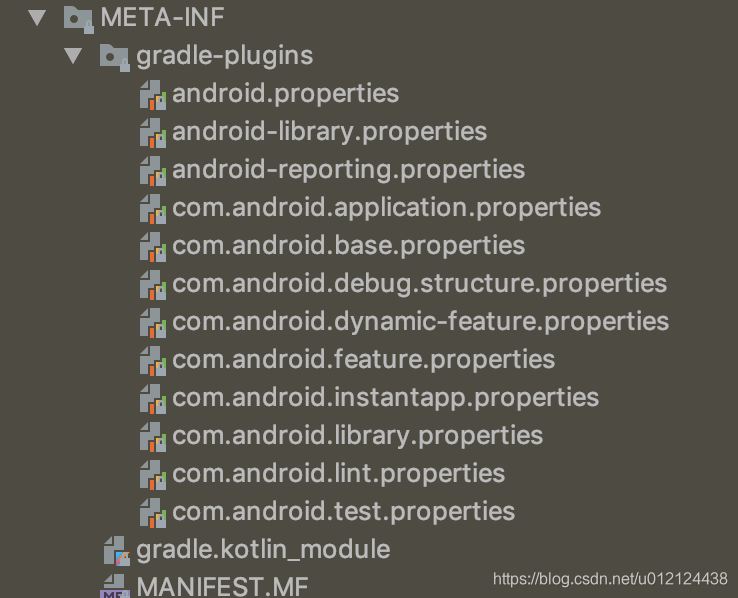

1.AppPlugin#apply
在这里插入图片描述
在这里插入图片描述
从上面得知 ‘com.android.application’ 对应com.android.build.gradle.AppPlugin

AppPlugin继承自AbstractAppPlugin,AbstractAppPlugin继承自BasePlugin

2.BasePlugin#apply

  @Override
    public final void apply(@NonNull Project project) {
        CrashReporting.runAction(
                () -> {
                    basePluginApply(project);
                    pluginSpecificApply(project);
                });
    }

3.BasePlugin#basePluginApply

private void basePluginApply(@NonNull Project project) {
        // We run by default in headless mode, so the JVM doesn't steal focus.
        System.setProperty("java.awt.headless", "true");

        this.project = project;
        this.projectOptions = new ProjectOptions(project);
        checkGradleVersion(project, getLogger(), projectOptions);
        DependencyResolutionChecks.registerDependencyCheck(project, projectOptions);

        project.getPluginManager().apply(AndroidBasePlugin.class);

        checkPathForErrors();
        checkModulesForErrors();

        PluginInitializer.initialize(project);
        RecordingBuildListener buildListener = ProfilerInitializer.init(project, projectOptions);
        ProfileAgent.INSTANCE.register(project.getName(), buildListener);
        threadRecorder = ThreadRecorder.get();

        Workers.INSTANCE.initFromProject(
                projectOptions,
                // possibly, in the future, consider using a pool with a dedicated size
                // using the gradle parallelism settings.
                ForkJoinPool.commonPool());

        ProcessProfileWriter.getProject(project.getPath())
                .setAndroidPluginVersion(Version.ANDROID_GRADLE_PLUGIN_VERSION)
                .setAndroidPlugin(getAnalyticsPluginType())
                .setPluginGeneration(GradleBuildProject.PluginGeneration.FIRST)
                .setOptions(AnalyticsUtil.toProto(projectOptions));

        if (!projectOptions.get(BooleanOption.ENABLE_NEW_DSL_AND_API)) {

            threadRecorder.record(
                    ExecutionType.BASE_PLUGIN_PROJECT_CONFIGURE,
                    project.getPath(),
                    null,
                    this::configureProject);

            threadRecorder.record(
                    ExecutionType.BASE_PLUGIN_PROJECT_BASE_EXTENSION_CREATION,
                    project.getPath(),
                    null,
                    this::configureExtension);

            threadRecorder.record(
                    ExecutionType.BASE_PLUGIN_PROJECT_TASKS_CREATION,
                    project.getPath(),
                    null,
                    this::createTasks);
        } else {
            // Apply the Java plugin
            project.getPlugins().apply(JavaBasePlugin.class);

            // create the delegate
            ProjectWrapper projectWrapper = new ProjectWrapper(project);
            PluginDelegate<E> delegate =
                    new PluginDelegate<>(
                            project.getPath(),
                            project.getObjects(),
                            project.getExtensions(),
                            project.getConfigurations(),
                            projectWrapper,
                            projectWrapper,
                            project.getLogger(),
                            projectOptions,
                            getTypedDelegate());

            delegate.prepareForEvaluation();

            // after evaluate callbacks
            project.afterEvaluate(
                    CrashReporting.afterEvaluate(
                            p -> {
                                threadRecorder.record(
                                        ExecutionType.BASE_PLUGIN_CREATE_ANDROID_TASKS,
                                        p.getPath(),
                                        null,
                                        delegate::afterEvaluate);
                            }));
        }
    }

threadRecoirder.recode()是记录最后一个参数的路径和执行的时间点,前面做了一些必要性的信息检测之前,其实主要做了以下几件事情:

// 配置项目,设置构建回调
this::configureProject
// 配置Extension
this::configureExtension
// 创建任务
this::createTasks

4.configureProject

 private void configureProject() {
        final Gradle gradle = project.getGradle();
        ObjectFactory objectFactory = project.getObjects();

        extraModelInfo = new ExtraModelInfo(project.getPath(), projectOptions, project.getLogger());

        final SyncIssueHandler syncIssueHandler = extraModelInfo.getSyncIssueHandler();

        SdkComponents sdkComponents =
                SdkComponents.Companion.createSdkComponents(
                        project,
                        projectOptions,
                        // We pass a supplier here because extension will only be set later.
                        this::getExtension,
                        getLogger(),
                        syncIssueHandler);

        dataBindingBuilder = new DataBindingBuilder();
        dataBindingBuilder.setPrintMachineReadableOutput(
                SyncOptions.getErrorFormatMode(projectOptions) == ErrorFormatMode.MACHINE_PARSABLE);

        if (projectOptions.hasRemovedOptions()) {
            syncIssueHandler.reportWarning(
                    Type.GENERIC, projectOptions.getRemovedOptionsErrorMessage());
        }

        if (projectOptions.hasDeprecatedOptions()) {
            extraModelInfo
                    .getDeprecationReporter()
                    .reportDeprecatedOptions(projectOptions.getDeprecatedOptions());
        }

        if (!projectOptions.getExperimentalOptions().isEmpty()) {
            projectOptions
                    .getExperimentalOptions()
                    .forEach(extraModelInfo.getDeprecationReporter()::reportExperimentalOption);
        }

        // Enforce minimum versions of certain plugins
        GradlePluginUtils.enforceMinimumVersionsOfPlugins(project, syncIssueHandler);

        // Apply the Java plugin
        project.getPlugins().apply(JavaBasePlugin.class);

        DslScopeImpl dslScope =
                new DslScopeImpl(
                        syncIssueHandler, extraModelInfo.getDeprecationReporter(), objectFactory);

        @Nullable
        FileCache buildCache = BuildCacheUtils.createBuildCacheIfEnabled(project, projectOptions);

        globalScope =
                new GlobalScope(
                        project,
                        creator,
                        new ProjectWrapper(project),
                        projectOptions,
                        dslScope,
                        sdkComponents,
                        registry,
                        buildCache,
                        extraModelInfo.getMessageReceiver());

        project.getTasks()
                .named("assemble")
                .configure(
                        task ->
                                task.setDescription(
                                        "Assembles all variants of all applications and secondary packages."));

        // call back on execution. This is called after the whole build is done (not
        // after the current project is done).
        // This is will be called for each (android) projects though, so this should support
        // being called 2+ times.
        gradle.addBuildListener(
                new BuildListener() {
                    @Override
                    public void buildStarted(@NonNull Gradle gradle) {}

                    @Override
                    public void settingsEvaluated(@NonNull Settings settings) {}

                    @Override
                    public void projectsLoaded(@NonNull Gradle gradle) {}

                    @Override
                    public void projectsEvaluated(@NonNull Gradle gradle) {}

                    @Override
                    public void buildFinished(@NonNull BuildResult buildResult) {
                        // Do not run buildFinished for included project in composite build.
                        if (buildResult.getGradle().getParent() != null) {
                            return;
                        }
                        ModelBuilder.clearCaches();
                        Workers.INSTANCE.shutdown();
                        sdkComponents.unload();
                        SdkLocator.resetCache();
                        threadRecorder.record(
                                ExecutionType.BASE_PLUGIN_BUILD_FINISHED,
                                project.getPath(),
                                null,
                                () -> {
                                    if (!projectOptions.get(
                                            BooleanOption.KEEP_SERVICES_BETWEEN_BUILDS)) {
                                        WorkerActionServiceRegistry.INSTANCE
                                                .shutdownAllRegisteredServices(
                                                        ForkJoinPool.commonPool());
                                    }
                                    Main.clearInternTables();
                                });
                        DeprecationReporterImpl.Companion.clean();
                    }
                });

        createLintClasspathConfiguration(project);
    }

这里在添加了 BuildListener,在 buildFinished 的时候清楚了dex缓存
总结一下 configureProject 做的事情,主要是进行版本有效性的判断,并设置了构建流程的回调来处理依赖和dex的加载和缓存清理。

5.configureExtension
这个阶段就是配置 extension 的阶段,就是创建我们 android 块中的可配置的对象

ObjectFactory objectFactory = project.getObjects();
        final NamedDomainObjectContainer<BuildType> buildTypeContainer =
                project.container(
                        BuildType.class,
                        new BuildTypeFactory(
                                objectFactory,
                                project,
                                extraModelInfo.getSyncIssueHandler(),
                                extraModelInfo.getDeprecationReporter()));
        final NamedDomainObjectContainer<ProductFlavor> productFlavorContainer =
                project.container(
                        ProductFlavor.class,
                        new ProductFlavorFactory(
                                objectFactory,
                                project,
                                extraModelInfo.getDeprecationReporter(),
                                project.getLogger()));
        final NamedDomainObjectContainer<SigningConfig> signingConfigContainer =
                project.container(
                        SigningConfig.class,
                        new SigningConfigFactory(
                                objectFactory,
                                GradleKeystoreHelper.getDefaultDebugKeystoreLocation()));

        final NamedDomainObjectContainer<BaseVariantOutput> buildOutputs =
                project.container(BaseVariantOutput.class);

        project.getExtensions().add("buildOutputs", buildOutputs);

        sourceSetManager =
                new SourceSetManager(
                        project,
                        isPackagePublished(),
                        globalScope.getDslScope(),
                        new DelayedActionsExecutor());

        extension =
                createExtension(
                        project,
                        projectOptions,
                        globalScope,
                        buildTypeContainer,
                        productFlavorContainer,
                        signingConfigContainer,
                        buildOutputs,
                        sourceSetManager,
                        extraModelInfo);

        globalScope.setExtension(extension);

首先创建了 BuildType、ProductFlavor、SigningConfig 三个类型的Container,接着传入到了createExtension方法中,点入查看是个抽象的方法,各自的实现在子类中,这里也就是我们的AppPlugin 中

6.AbstractAppPlugin#createExtension

@NonNull
    @Override
    protected BaseExtension createExtension(
            @NonNull Project project,
            @NonNull ProjectOptions projectOptions,
            @NonNull GlobalScope globalScope,
            @NonNull NamedDomainObjectContainer<BuildType> buildTypeContainer,
            @NonNull NamedDomainObjectContainer<ProductFlavor> productFlavorContainer,
            @NonNull NamedDomainObjectContainer<SigningConfig> signingConfigContainer,
            @NonNull NamedDomainObjectContainer<BaseVariantOutput> buildOutputs,
            @NonNull SourceSetManager sourceSetManager,
            @NonNull ExtraModelInfo extraModelInfo) {
        return project.getExtensions()
                .create(
                        "android",
                        getExtensionClass(),
                        project,
                        projectOptions,
                        globalScope,
                        buildTypeContainer,
                        productFlavorContainer,
                        signingConfigContainer,
                        buildOutputs,
                        sourceSetManager,
                        extraModelInfo,
                        isBaseApplication);
    }

这里也就是可以看到我们android块配置是如何来的了,对应的Extension也确实是AppExtension,继续查看 configureExtension 的源码

 variantFactory = createVariantFactory(globalScope, extension);

        taskManager =
                createTaskManager(
                        globalScope,
                        project,
                        projectOptions,
                        dataBindingBuilder,
                        extension,
                        variantFactory,
                        registry,
                        threadRecorder);

        variantManager =
                new VariantManager(
                        globalScope,
                        project,
                        projectOptions,
                        extension,
                        variantFactory,
                        taskManager,
                        sourceSetManager,
                        threadRecorder);

        registerModels(registry, globalScope, variantManager, extension, extraModelInfo);

这一部分主要是创建一些管理类,其中 createTaskManager、createVariantFactory 都是抽象方法,对应的实现类

createTaskManager
AppPlugin -> ApplicationTaskManager
LibraryPlugin -> LibraryTaskManager

createVariantFactory
AppPlugin -> ApplicationVariantFactory
LibraryPlugin -> LibraryVariantFactory

这里简单介绍一下 TaskManager 就是创建具体任务的管理类,app 工程和库 library 工程所需的构建任务是不同的,后面我们会介绍 app 工程创建的构建任务;VariantFactory 就是我们常说的构建变体的工厂类,主要是生成Variant(构建变体)的对象。我们回到 createExtension 的源码中

 buildTypeContainer.whenObjectAdded(
                buildType -> {
                    if (!this.getClass().isAssignableFrom(DynamicFeaturePlugin.class)) {
                        SigningConfig signingConfig =
                                signingConfigContainer.findByName(BuilderConstants.DEBUG);
                        buildType.init(signingConfig);
                    } else {
                        // initialize it without the signingConfig for dynamic-features.
                        buildType.init();
                    }
                    variantManager.addBuildType(buildType);
                });

        productFlavorContainer.whenObjectAdded(variantManager::addProductFlavor);

        // map whenObjectRemoved on the containers to throw an exception.
        signingConfigContainer.whenObjectRemoved(
                new UnsupportedAction("Removing signingConfigs is not supported."));
        buildTypeContainer.whenObjectRemoved(
                new UnsupportedAction("Removing build types is not supported."));
        productFlavorContainer.whenObjectRemoved(
                new UnsupportedAction("Removing product flavors is not supported."));

        // create default Objects, signingConfig first as its used by the BuildTypes.
        variantFactory.createDefaultComponents(
                buildTypeContainer, productFlavorContainer, signingConfigContainer);

这一部分做得事情,配置了 BuildTypeContainer、ProductFlavorContainer、SigningConfigContainer 这三个配置项的 whenObjectAdded 的回调,每个配置的添加都会加入到 variantManager 中;创建默认配置,下面是 ApplicationVariantFactory 的 createDefaultComponents 代码

7.ApplicationVariantFactory#createDefaultComponents

 @Override
    public void createDefaultComponents(
            @NonNull NamedDomainObjectContainer<BuildType> buildTypes,
            @NonNull NamedDomainObjectContainer<ProductFlavor> productFlavors,
            @NonNull NamedDomainObjectContainer<SigningConfig> signingConfigs) {
        // must create signing config first so that build type 'debug' can be initialized
        // with the debug signing config.
        signingConfigs.create(DEBUG);
        buildTypes.create(DEBUG);
        buildTypes.create(RELEASE);
    }

总结一下 configureExtension 方法的作用,主要是创建 Android 插件的扩展对象,对配置项 BuildType、ProductFlavor、SigningConfig 做了统一的创建和回调处理, 创建taskManager、variantFactory、variantManager。

8.BasePlugin#createTasks

private void createTasks() {
        threadRecorder.record(
                ExecutionType.TASK_MANAGER_CREATE_TASKS,
                project.getPath(),
                null,
                () -> taskManager.createTasksBeforeEvaluate());

        project.afterEvaluate(
                CrashReporting.afterEvaluate(
                        p -> {
                            sourceSetManager.runBuildableArtifactsActions();

                            threadRecorder.record(
                                    ExecutionType.BASE_PLUGIN_CREATE_ANDROID_TASKS,
                                    project.getPath(),
                                    null,
                                    this::createAndroidTasks);
                        }));
    }

这里主要是分两块,一个是在 beforeEvaluate 创建任务;一个是在 afterEvaluate 创建任务。这里的区别是 AndroidTask 是依赖配置项的配置才能生成相应任务,所以是需要在 afterEvaluate 之后创建,如果对项目评估回调不理解的话,可以查阅Project文档。beforeEvaluate 创建的任务跟我们编译没有太大关系,我们重点查看一下 afterEvaluate 创建的任务 createAndroidTasks

List<VariantScope> variantScopes = variantManager.createAndroidTasks();

        ApiObjectFactory apiObjectFactory =
                new ApiObjectFactory(
                        extension,
                        variantFactory,
                        project.getObjects());
        for (VariantScope variantScope : variantScopes) {
            BaseVariantData variantData = variantScope.getVariantData();
            apiObjectFactory.create(variantData);
        }

        // Make sure no SourceSets were added through the DSL without being properly configured
        // Only do it if we are not restricting to a single variant (with Instant
        // Run or we can find extra source set
        if (projectOptions.get(StringOption.IDE_RESTRICT_VARIANT_NAME) == null) {
            sourceSetManager.checkForUnconfiguredSourceSets();
        }

        // must run this after scopes are created so that we can configure kotlin
        // kapt tasks
        taskManager.addDataBindingDependenciesIfNecessary(
                extension.getDataBinding(), variantManager.getVariantScopes());


        // create the global lint task that depends on all the variants
        taskManager.configureGlobalLintTask(variantManager.getVariantScopes());

        int flavorDimensionCount = 0;
        if (extension.getFlavorDimensionList() != null) {
            flavorDimensionCount = extension.getFlavorDimensionList().size();
        }

        taskManager.createAnchorAssembleTasks(
                variantScopes,
                extension.getProductFlavors().size(),
                flavorDimensionCount,
                variantFactory.getVariantConfigurationTypes().size());

        // now publish all variant artifacts.
        for (VariantScope variantScope : variantManager.getVariantScopes()) {
            variantManager.publishBuildArtifacts(variantScope);
        }

        checkSplitConfiguration();
        variantManager.setHasCreatedTasks(true);

我们主要看下variantManager的createAndroidTasks的方法

9.VariantManager#createAndroidTasks

public List<VariantScope> createAndroidTasks() {
        variantFactory.validateModel(this);
        variantFactory.preVariantWork(project);

        if (variantScopes.isEmpty()) {
            populateVariantDataList();
        }

        // Create top level test tasks.
        taskManager.createTopLevelTestTasks(!productFlavors.isEmpty());

        for (final VariantScope variantScope : variantScopes) {
            createTasksForVariantData(variantScope);
        }

        taskManager.createSourceSetArtifactReportTask(globalScope);

        taskManager.createReportTasks(variantScopes);

        return variantScopes;
    }

首先判断 variantDataList 是否是空,如果是空的就会进入到 populateVariantDataList 方法中

10.VariantManager#populateVariantDataList

public void populateVariantDataList() {
        List<String> flavorDimensionList = extension.getFlavorDimensionList();

        if (productFlavors.isEmpty()) {
            configureDependencies();
            createVariantDataForProductFlavors(Collections.emptyList());
        } else {
            // ensure that there is always a dimension
            if (flavorDimensionList == null || flavorDimensionList.isEmpty()) {
                globalScope
                        .getErrorHandler()
                        .reportError(
                                EvalIssueReporter.Type.UNNAMED_FLAVOR_DIMENSION,
                                new EvalIssueException(
                                        "All flavors must now belong to a named flavor dimension. "
                                                + "Learn more at "
                                                + "https://d.android.com/r/tools/flavorDimensions-missing-error-message.html"));
            } else if (flavorDimensionList.size() == 1) {
                // if there's only one dimension, auto-assign the dimension to all the flavors.
                String dimensionName = flavorDimensionList.get(0);
                for (ProductFlavorData<CoreProductFlavor> flavorData : productFlavors.values()) {
                    CoreProductFlavor flavor = flavorData.getProductFlavor();
                    if (flavor.getDimension() == null && flavor instanceof DefaultProductFlavor) {
                        ((DefaultProductFlavor) flavor).setDimension(dimensionName);
                    }
                }
            }

            // can only call this after we ensure all flavors have a dimension.
            configureDependencies();

            // Create iterable to get GradleProductFlavor from ProductFlavorData.
            Iterable<CoreProductFlavor> flavorDsl =
                    Iterables.transform(
                            productFlavors.values(),
                            ProductFlavorData::getProductFlavor);

            // Get a list of all combinations of product flavors.
            List<ProductFlavorCombo<CoreProductFlavor>> flavorComboList =
                    ProductFlavorCombo.createCombinations(
                            flavorDimensionList,
                            flavorDsl);

            for (ProductFlavorCombo<CoreProductFlavor>  flavorCombo : flavorComboList) {
                //noinspection unchecked
                createVariantDataForProductFlavors(
                        (List<ProductFlavor>) (List) flavorCombo.getFlavorList());
            }
        }

        configureVariantArtifactTransforms(variantScopes);
    }

从方法注释可以看到,这个方法主要的作用就是创建所有的 variants

创建构建变体(BuildVariant)
继续观察上面的代码,可以看到无论是否有配置productFlavor 子项,都会进入到 createVariantDataForProductFlavors 方法。如果有配置的话,通过获取配置的 flavorDimension 和 productFlavor 数组,调用 ProductFlavorCombo.createCombinations 组合出最后的产品风味数组 flavorComboList ,最后通过遍历调用 createVariantDataForProductFlavors 方法

11.VariantManager#createVariantDataForProductFlavors

/**
     * Creates VariantData for a specified list of product flavor.
     *
     * This will create VariantData for all build types of the given flavors.
     *
     * @param productFlavorList the flavor(s) to build.
     */
    private void createVariantDataForProductFlavors(
            @NonNull List<ProductFlavor> productFlavorList) {
        for (VariantType variantType : variantFactory.getVariantConfigurationTypes()) {
            createVariantDataForProductFlavorsAndVariantType(productFlavorList, variantType);
        }
    }

12.VariantManager#createVariantDataForProductFlavorsAndVariantType

......
if (!ignore) {
                BaseVariantData variantData =
                        createVariantDataForVariantType(
                                buildTypeData.getBuildType(), productFlavorList, variantType);
                addVariant(variantData);
				........

            }

看上述代码,通过 creatVariantData 方法,将 buildType 和 productFlavor 的作为参数传入,创建了 variantData,并且加入到了 variantScopes 集合中,这里我们就是将所有的构建变体VariantScope集合到了 variantScopes 中。

接着我们返回继续看 createAndroidTasks 方法

  1. VariantManager#createAndroidTasks
   /** Variant/Task creation entry point. */
    public List<VariantScope> createAndroidTasks() {
        variantFactory.validateModel(this);
        variantFactory.preVariantWork(project);

        if (variantScopes.isEmpty()) {
            populateVariantDataList();
        }

        // Create top level test tasks.
        taskManager.createTopLevelTestTasks(!productFlavors.isEmpty());

        for (final VariantScope variantScope : variantScopes) {
            createTasksForVariantData(variantScope);
        }

        taskManager.createSourceSetArtifactReportTask(globalScope);

        taskManager.createReportTasks(variantScopes);

        return variantScopes;
    }

继续看如下关键代码:

    for (final VariantScope variantScope : variantScopes) {
            createTasksForVariantData(variantScope);
        }

14.VariantManager#createTasksForVariantData

/** Create tasks for the specified variant. */
    public void createTasksForVariantData(final VariantScope variantScope) {
        final BaseVariantData variantData = variantScope.getVariantData();
        final VariantType variantType = variantData.getType();
        final GradleVariantConfiguration variantConfig = variantScope.getVariantConfiguration();

        taskManager.createAssembleTask(variantData);
        if (variantType.isBaseModule()) {
            taskManager.createBundleTask(variantData);
        }

        if (variantType.isTestComponent()) {
           ...........
        } else {
            taskManager.createTasksForVariantScope(
                    variantScope,
                    variantScopes
                            .stream()
                            .filter(TaskManager::isLintVariant)
                            .collect(Collectors.toList()));
        }
    }

首先会先根据 variantData 信息创建 assemble 任务,可以看下taskManager. createAssembleTask里的代码,然后这里最后是if else判断, if (variantType.isTestComponent())这里明显是测试会走,所以打包时候我们直接看else

taskManager.createTasksForVariantScope(
                    variantScope,
                    variantScopes
                            .stream()
                            .filter(TaskManager::isLintVariant)
                            .collect(Collectors.toList()));

15.TaskManager#createAssembleTask

 public void createAssembleTask(@NonNull final BaseVariantData variantData) {
        final VariantScope scope = variantData.getScope();
        taskFactory.register(
       			 //注册任务名字为 assembleXXX的任务
                getAssembleTaskName(scope, "assemble"),
                null /*preConfigAction*/,
                task -> {
                    task.setDescription(
                            "Assembles main output for variant "
                                    + scope.getVariantConfiguration().getFullName());
                },
                taskProvider -> scope.getTaskContainer().setAssembleTask(taskProvider));
    }

回到 createAndroidTasks 方法中

16.BasePlugin#createAndroidTasks

.......
 ApiObjectFactory apiObjectFactory =
                new ApiObjectFactory(
                        extension,
                        variantFactory,
                        project.getObjects());
        for (VariantScope variantScope : variantScopes) {
            BaseVariantData variantData = variantScope.getVariantData();
            apiObjectFactory.create(variantData);
        }

.......

最后就遍历 VariantScope 通过 ApiObjectFactory 创建 variantApi,添加到 extensions 中;
至此,我们就已经将配置的构建变种任务已经添加到我们的任务列表中,并形成了相关依赖。

public BaseVariantImpl create(BaseVariantData variantData) {
        if (variantData.getType().isTestComponent()) {
            // Testing variants are handled together with their "owners".
            createVariantOutput(variantData, null);
            return null;
        }

        BaseVariantImpl variantApi =
                variantFactory.createVariantApi(
                        objectFactory,
                        variantData,
                        readOnlyObjectProvider);
        if (variantApi == null) {
            return null;
        }
        ............
        createVariantOutput(variantData, variantApi);

        try {
            // Only add the variant API object to the domain object set once it's been fully
            // initialized.
            extension.addVariant(variantApi);
        } catch (Throwable t) {
            // Adding variant to the collection will trigger user-supplied callbacks
            throw new ExternalApiUsageException(t);
        }

        return variantApi;
    }

Application 的编译任务
17. ApplicationTaskManager#createTasksForVariantScope
taskManager.createTasksForVariantData,发现 createTasksForVariantData 是抽象方法,这里的 taskManager 具体实现是 ApplicationTaskManager,查看 ApplicationTaskManager 的 createTasksForVariantData 方法

@Override
    public void createTasksForVariantScope(
            @NonNull final VariantScope variantScope,
            @NonNull List<VariantScope> variantScopesForLint) {
        createAnchorTasks(variantScope);
        createCheckManifestTask(variantScope);

        handleMicroApp(variantScope);

        // Create all current streams (dependencies mostly at this point)
        createDependencyStreams(variantScope);

        // Add a task to publish the applicationId.
        createApplicationIdWriterTask(variantScope);

        taskFactory.register(new MainApkListPersistence.CreationAction(variantScope));
        createBuildArtifactReportTask(variantScope);

        // Add a task to process the manifest(s)
        createMergeApkManifestsTask(variantScope);

        // Add a task to create the res values
        createGenerateResValuesTask(variantScope);

        // Add a task to compile renderscript files.
        createRenderscriptTask(variantScope);

        // Add a task to merge the resource folders
        createMergeResourcesTask(
                variantScope,
                true,
                Sets.immutableEnumSet(MergeResources.Flag.PROCESS_VECTOR_DRAWABLES));

        // Add tasks to compile shader
        createShaderTask(variantScope);

        // Add a task to merge the asset folders
        createMergeAssetsTask(variantScope);

        // Add a task to create the BuildConfig class
        createBuildConfigTask(variantScope);

        // Add a task to process the Android Resources and generate source files
        createApkProcessResTask(variantScope);

        // Add a task to process the java resources
        createProcessJavaResTask(variantScope);

        createAidlTask(variantScope);

        // Add external native build tasks
        createExternalNativeBuildJsonGenerators(variantScope);
        createExternalNativeBuildTasks(variantScope);

        // Add a task to merge the jni libs folders
        createMergeJniLibFoldersTasks(variantScope);

        // Add feature related tasks if necessary
        if (variantScope.getType().isBaseModule()) {
            // Base feature specific tasks.
            taskFactory.register(new FeatureSetMetadataWriterTask.CreationAction(variantScope));

            createValidateSigningTask(variantScope);
            // Add a task to produce the signing config file.
            taskFactory.register(new SigningConfigWriterTask.CreationAction(variantScope));

            if (extension.getDataBinding().isEnabled()) {
                // Create a task that will package the manifest ids(the R file packages) of all
                // features into a file. This file's path is passed into the Data Binding annotation
                // processor which uses it to known about all available features.
                //
                // <p>see: {@link TaskManager#setDataBindingAnnotationProcessorParams(VariantScope)}
                taskFactory.register(
                        new DataBindingExportFeatureApplicationIdsTask.CreationAction(
                                variantScope));

            }
        } else {
            // Non-base feature specific task.
            // Task will produce artifacts consumed by the base feature
            taskFactory.register(
                    new FeatureSplitDeclarationWriterTask.CreationAction(variantScope));
            if (extension.getDataBinding().isEnabled()) {
                // Create a task that will package necessary information about the feature into a
                // file which is passed into the Data Binding annotation processor.
                taskFactory.register(
                        new DataBindingExportFeatureInfoTask.CreationAction(variantScope));
            }
            taskFactory.register(new MergeConsumerProguardFilesTask.CreationAction(variantScope));
        }

        // Add data binding tasks if enabled
        createDataBindingTasksIfNecessary(variantScope, MergeType.MERGE);

        // Add a compile task
        createCompileTask(variantScope);

        createStripNativeLibraryTask(taskFactory, variantScope);

        if (variantScope.getVariantData().getMultiOutputPolicy().equals(MultiOutputPolicy.SPLITS)) {
            if (extension.getBuildToolsRevision().getMajor() < 21) {
                throw new RuntimeException(
                        "Pure splits can only be used with buildtools 21 and later");
            }

            createSplitTasks(variantScope);
        }

        createPackagingTask(variantScope);

        maybeCreateLintVitalTask(
                (ApkVariantData) variantScope.getVariantData(), variantScopesForLint);

        // Create the lint tasks, if enabled
        createLintTasks(variantScope, variantScopesForLint);

        taskFactory.register(new FeatureSplitTransitiveDepsWriterTask.CreationAction(variantScope));

        createDynamicBundleTask(variantScope);
    }

这个主要就是生成 variantData 的一系列像 compileXXX、generateXXX、processXXX、mergeXXX的任务,这一系列 task 就是构建一个可运行的完整APK的所需的所有task。

Dex的编译过程
我们查看重点方法,createCompileTask
1.ApplicationTaskManager#createCompileTask

protected void createCompileTask(@NonNull VariantScope variantScope) {
        TaskProvider<? extends JavaCompile> javacTask = createJavacTask(variantScope);
        addJavacClassesStream(variantScope);
        setJavaCompilerTask(javacTask, variantScope);
        createPostCompilationTasks(variantScope);
    }

创建Javac任务,将java文件编译为class文件

2.TaskManager#createJavacTask

public TaskProvider<? extends JavaCompile> createJavacTask(@NonNull final VariantScope scope) {
        taskFactory.register(new JavaPreCompileTask.CreationAction(scope));

        boolean processAnnotationsTaskCreated = ProcessAnnotationsTask.taskShouldBeCreated(scope);
        if (processAnnotationsTaskCreated) {
            taskFactory.register(new ProcessAnnotationsTask.CreationAction(scope));
        }

        final TaskProvider<? extends JavaCompile> javacTask =
                taskFactory.register(
                        new AndroidJavaCompile.CreationAction(
                                scope, processAnnotationsTaskCreated));

        postJavacCreation(scope);

        return javacTask;
    }

在执行 createPostCompilationTasks 之前,先创建了 javac 任务,任务名称为 compileXXXJavaWithJavac ,该任务是将 java 源文件编译成 class 文件,

/** Makes the given task the one used by top-level "compile" task. */
    public static void setJavaCompilerTask(
            @NonNull TaskProvider<? extends JavaCompile> javaCompilerTask,
            @NonNull VariantScope scope) {
        TaskFactoryUtils.dependsOn(scope.getTaskContainer().getCompileTask(), javaCompilerTask);
    }

在这里插入图片描述
使compileXXXXSources依赖compileXXXXJavaWithJavac

紧接着我们来看一下 createPostCompilationTasks 的方法
3.TaskManager#createPostCompilationTasks

/**
     * Creates the post-compilation tasks for the given Variant.
     *
     * These tasks create the dex file from the .class files, plus optional intermediary steps like
     * proguard and jacoco
     */
    public void createPostCompilationTasks(
            @NonNull final VariantScope variantScope) {



        final BaseVariantData variantData = variantScope.getVariantData();
        final GradleVariantConfiguration config = variantData.getVariantConfiguration();

        TransformManager transformManager = variantScope.getTransformManager();
        //注册合并混淆文件的任务
        taskFactory.register(new MergeGeneratedProguardFilesCreationAction(variantScope));

        ........
        maybeCreateDesugarTask(
                variantScope, config.getMinSdkVersion(), transformManager, isTestCoverageEnabled);

        AndroidConfig extension = variantScope.getGlobalScope().getExtension();

        // Merge Java Resources.
        createMergeJavaResTask(variantScope);

        // ----- External Transforms -----
        // apply all the external transforms.
        List<Transform> customTransforms = extension.getTransforms();
        List<List<Object>> customTransformsDependencies = extension.getTransformsDependencies();

        for (int i = 0, count = customTransforms.size(); i < count; i++) {
            Transform transform = customTransforms.get(i);

            List<Object> deps = customTransformsDependencies.get(i);
            transformManager.addTransform(
                    taskFactory,
                    variantScope,
                    transform,
                    null,
                    task -> {
                        if (!deps.isEmpty()) {
                            task.dependsOn(deps);
                        }
                    },
                    taskProvider -> {
                        // if the task is a no-op then we make assemble task depend on it.
                        if (transform.getScopes().isEmpty()) {
                            TaskFactoryUtils.dependsOn(
                                    variantScope.getTaskContainer().getAssembleTask(),
                                    taskProvider);
                        }
                    });
        }

        // Add transform to create merged runtime classes if this is a feature, a dynamic-feature,
        // or a base module consuming feature jars. Merged runtime classes are needed if code
        // minification is enabled in a project with features or dynamic-features.
        if (variantData.getType().isFeatureSplit() || variantScope.consumesFeatureJars()) {
            createMergeClassesTransform(variantScope);
        }

        // ----- Android studio profiling transforms
        if (appliesCustomClassTransforms(variantScope, projectOptions)) {
            for (String jar : getAdvancedProfilingTransforms(projectOptions)) {
                if (jar != null) {
                    transformManager.addTransform(
                            taskFactory,
                            variantScope,
                            new CustomClassTransform(
                                    jar,
                                    packagesCustomClassDependencies(variantScope, projectOptions)));
                }
            }
        }

        // ----- Minify next -----
        //只有开启混淆这里才会shrinker不为null
        CodeShrinker shrinker = maybeCreateJavaCodeShrinkerTransform(variantScope);
        if (shrinker == CodeShrinker.R8) {
            maybeCreateResourcesShrinkerTransform(variantScope);
            maybeCreateDexSplitterTransform(variantScope);
            // TODO: create JavaResSplitterTransform and call it here (http://b/77546738)
            return;
        }

        // ----- Multi-Dex support
        DexingType dexingType = variantScope.getDexingType();

        // Upgrade from legacy multi-dex to native multi-dex if possible when using with a device
        if (dexingType == DexingType.LEGACY_MULTIDEX) {
            if (variantScope.getVariantConfiguration().isMultiDexEnabled()
                    && variantScope
                                    .getVariantConfiguration()
                                    .getMinSdkVersionWithTargetDeviceApi()
                                    .getFeatureLevel()
                            >= 21) {
                dexingType = DexingType.NATIVE_MULTIDEX;
            }
        }

        if (variantScope.getNeedsMainDexList()) {
            taskFactory.register(new D8MainDexListTask.CreationAction(variantScope, false));
        }

        if (variantScope.getNeedsMainDexListForBundle()) {
            taskFactory.register(new D8MainDexListTask.CreationAction(variantScope, true));
        }

        createDexTasks(variantScope, dexingType);

        maybeCreateResourcesShrinkerTransform(variantScope);

        // TODO: support DexSplitterTransform when IR enabled (http://b/77585545)
        maybeCreateDexSplitterTransform(variantScope);
        // TODO: create JavaResSplitterTransform and call it here (http://b/77546738)
    }

4.TaskManager#maybeCreateResourcesShrinkerTransform

/**
     * Checks if {@link ShrinkResourcesTransform} should be added to the build pipeline and either
     * adds it or registers a {@link SyncIssue} with the reason why it was skipped.
     */
    protected void maybeCreateResourcesShrinkerTransform(@NonNull VariantScope scope) {
        if (!scope.useResourceShrinker()) {
            return;
        }

        // if resources are shrink, insert a no-op transform per variant output
        // to transform the res package into a stripped res package
        File shrinkerOutput =
                FileUtils.join(
                        globalScope.getIntermediatesDir(),
                        "res_stripped",
                        scope.getVariantConfiguration().getDirName());

        ShrinkResourcesTransform shrinkResTransform =
                new ShrinkResourcesTransform(
                        scope.getVariantData(),
                        scope.getArtifacts()
                                .getFinalArtifactFiles(InternalArtifactType.PROCESSED_RES),
                        shrinkerOutput,
                        logger);

        Optional<TaskProvider<TransformTask>> shrinkTask =
                scope.getTransformManager()
                        .addTransform(
                                taskFactory,
                                scope,
                                shrinkResTransform,
                                taskName ->
                                        scope.getArtifacts()
                                                .appendArtifact(
                                                        InternalArtifactType.SHRUNK_PROCESSED_RES,
                                                        ImmutableList.of(shrinkerOutput),
                                                        taskName),
                                null,
                                null);

        if (!shrinkTask.isPresent()) {
            globalScope
                    .getErrorHandler()
                    .reportError(
                            Type.GENERIC,
                            new EvalIssueException(
                                    "Internal error, could not add the ShrinkResourcesTransform"));
        }

        // And for the bundle
        taskFactory.register(new ShrinkBundleResourcesTask.CreationAction(scope));
    }

这里代码执行之后会生成build/intermediates/res_stripped/release/resources-release-stripped.ap_

重点在于createDexTasks方法

/**
     * Creates tasks used for DEX generation. This will use an incremental pipeline that uses dex
     * archives in order to enable incremental dexing support.
     */
    private void createDexTasks(
            @NonNull VariantScope variantScope, @NonNull DexingType dexingType) {
        TransformManager transformManager = variantScope.getTransformManager();

        DefaultDexOptions dexOptions;
        if (variantScope.getVariantData().getType().isTestComponent()) {
            // Don't use custom dx flags when compiling the test FULL_APK. They can break the test FULL_APK,
            // like --minimal-main-dex.
            dexOptions = DefaultDexOptions.copyOf(extension.getDexOptions());
            dexOptions.setAdditionalParameters(ImmutableList.of());
        } else {
            dexOptions = extension.getDexOptions();
        }

        Java8LangSupport java8SLangSupport = variantScope.getJava8LangSupportType();
        boolean minified = variantScope.getCodeShrinker() != null;
        boolean supportsDesugaring =
                java8SLangSupport == Java8LangSupport.UNUSED
                        || (java8SLangSupport == Java8LangSupport.D8
                                && projectOptions.get(
                                        BooleanOption.ENABLE_DEXING_DESUGARING_ARTIFACT_TRANSFORM));
        boolean enableDexingArtifactTransform =
                globalScope.getProjectOptions().get(BooleanOption.ENABLE_DEXING_ARTIFACT_TRANSFORM)
                        && extension.getTransforms().isEmpty()
                        && !minified
                        && supportsDesugaring
                        && !appliesCustomClassTransforms(variantScope, projectOptions);
        FileCache userLevelCache = getUserDexCache(minified, dexOptions.getPreDexLibraries());
        DexArchiveBuilderTransform preDexTransform =
                new DexArchiveBuilderTransformBuilder()
                        .setAndroidJarClasspath(globalScope.getFilteredBootClasspath())
                        .setDexOptions(dexOptions)
                        .setMessageReceiver(variantScope.getGlobalScope().getMessageReceiver())
                        .setErrorFormatMode(
                                SyncOptions.getErrorFormatMode(
                                        variantScope.getGlobalScope().getProjectOptions()))
                        .setUserLevelCache(userLevelCache)
                        .setMinSdkVersion(
                                variantScope
                                        .getVariantConfiguration()
                                        .getMinSdkVersionWithTargetDeviceApi()
                                        .getFeatureLevel())
                        .setDexer(variantScope.getDexer())
                        .setUseGradleWorkers(
                                projectOptions.get(BooleanOption.ENABLE_GRADLE_WORKERS))
                        .setInBufferSize(projectOptions.get(IntegerOption.DEXING_READ_BUFFER_SIZE))
                        .setOutBufferSize(
                                projectOptions.get(IntegerOption.DEXING_WRITE_BUFFER_SIZE))
                        .setIsDebuggable(
                                variantScope
                                        .getVariantConfiguration()
                                        .getBuildType()
                                        .isDebuggable())
                        .setJava8LangSupportType(java8SLangSupport)
                        .setProjectVariant(getProjectVariantId(variantScope))
                        .setNumberOfBuckets(
                                projectOptions.get(IntegerOption.DEXING_NUMBER_OF_BUCKETS))
                        .setIncludeFeaturesInScope(variantScope.consumesFeatureJars())
                        .setEnableDexingArtifactTransform(enableDexingArtifactTransform)
                        .createDexArchiveBuilderTransform();
        transformManager.addTransform(taskFactory, variantScope, preDexTransform);

        if (projectOptions.get(BooleanOption.ENABLE_DUPLICATE_CLASSES_CHECK)) {
            taskFactory.register(new CheckDuplicateClassesTask.CreationAction(variantScope));
        }

        createDexMergingTasks(variantScope, dexingType, enableDexingArtifactTransform);
    }

5.TaskManager#maybeCreateDexSplitterTransform
这里是只有使用了Multidex 才会走到这里

private void maybeCreateDexSplitterTransform(@NonNull VariantScope variantScope) {
        if (!variantScope.consumesFeatureJars()) {
            return;
        }

        File dexSplitterOutput =
                FileUtils.join(
                        globalScope.getIntermediatesDir(),
                        "dex-splitter",
                        variantScope.getVariantConfiguration().getDirName());
        FileCollection featureJars =
                variantScope.getArtifactFileCollection(METADATA_VALUES, PROJECT, METADATA_CLASSES);
        BuildableArtifact baseJars =
                variantScope
                        .getArtifacts()
                        .getFinalArtifactFiles(
                                InternalArtifactType.MODULE_AND_RUNTIME_DEPS_CLASSES);
        BuildableArtifact mappingFileSrc =
                variantScope.getArtifacts().hasArtifact(InternalArtifactType.APK_MAPPING)
                        ? variantScope
                                .getArtifacts()
                                .getFinalArtifactFiles(InternalArtifactType.APK_MAPPING)
                        : null;
        BuildableArtifact mainDexList =
                variantScope
                        .getArtifacts()
                        .getFinalArtifactFilesIfPresent(
                                InternalArtifactType.MAIN_DEX_LIST_FOR_BUNDLE);

        DexSplitterTransform transform =
                new DexSplitterTransform(
                        dexSplitterOutput, featureJars, baseJars, mappingFileSrc, mainDexList);

        Optional<TaskProvider<TransformTask>> transformTask =
                variantScope
                        .getTransformManager()
                        .addTransform(
                                taskFactory,
                                variantScope,
                                transform,
                                taskName ->
                                        variantScope
                                                .getArtifacts()
                                                .appendArtifact(
                                                        InternalArtifactType.FEATURE_DEX,
                                                        ImmutableList.of(dexSplitterOutput),
                                                        taskName),
                                null,
                                null);

        if (transformTask.isPresent()) {
            publishFeatureDex(variantScope);
        } else {
            globalScope
                    .getErrorHandler()
                    .reportError(
                            Type.GENERIC,
                            new EvalIssueException(
                                    "Internal error, could not add the DexSplitterTransform"));
        }
    }
©️2020 CSDN 皮肤主题: 大白 设计师: CSDN官方博客 返回首页
实付0元
点击重新获取
扫码支付
钱包余额 0

抵扣说明:

1.余额是钱包充值的虚拟货币,按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载,可以购买VIP、C币套餐、付费专栏及课程。

余额充值
