背景

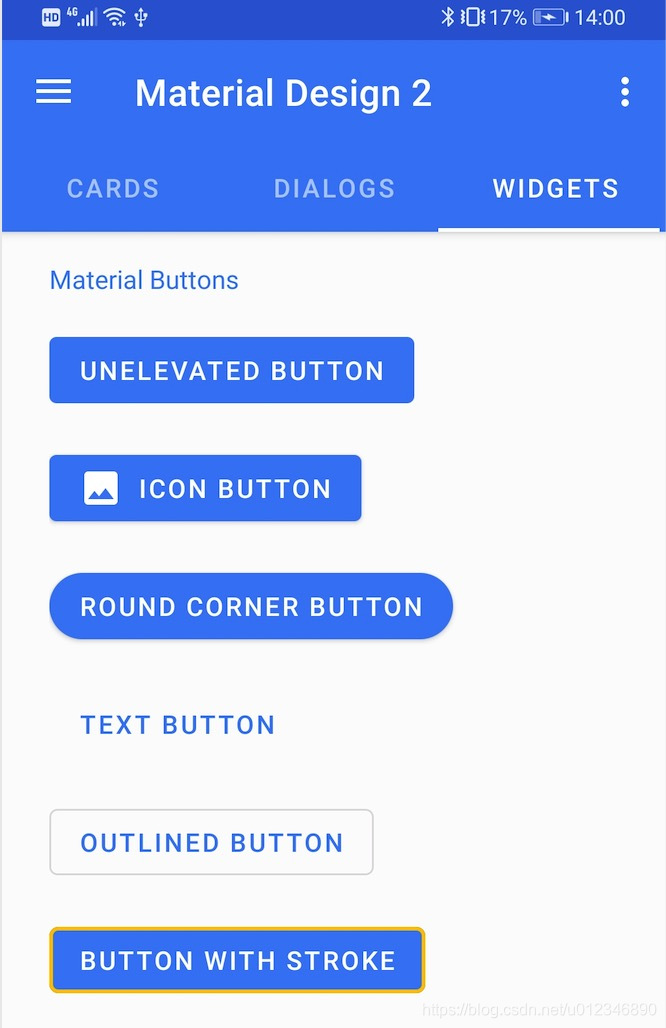

我们要实现下面的几个Button样式,常规做法是用button或者textview通过setbackground设置xml,这个xml里面实现selector+shape或者单纯的shape。
MaterialButton给我们带来了便捷
<com.google.android.material.button.MaterialButton
style="@style/Widget.MaterialComponents.Button.UnelevatedButton"
android:layout_width="wrap_content"
android:layout_height="wrap_content"
android:layout_marginTop="@dimen/dimen_common"
android:clickable="true"
android:gravity="center_vertical"
android:paddingStart="16dp"
android:paddingEnd="16dp"
android:text="@string/main_widget_material_button_unelevated"
android:textColor="@color/white"
app:rippleColor="@color/color_ripple" />
<com.google.android.material.button.MaterialButton
style="@style/Widget.MaterialComponents.Button.Icon"
android:layout_width="wrap_content"
android:layout_height="48dp"
android:layout_marginTop="@dimen/dimen_common"
android:clickable="true"
android:gravity="center_vertical"
android:paddingStart="16dp"
android:paddingEnd="16dp"
android:text="@string/main_widget_material_button_icon"
android:textColor="@color/white"
app:icon="@drawable/ic_photo_white_24dp"
app:rippleColor="@color/color_ripple" />
<com.google.android.material.button.MaterialButton
android:layout_width="wrap_content"
android:layout_height="48dp"
android:layout_marginTop="@dimen/dimen_common"
android:clickable="true"
android:paddingStart="16dp"
android:paddingEnd="16dp"
android:text="@string/main_widget_material_button_default"
android:stateListAnimator="@null"
android:textColor="@color/white"
app:cornerRadius="20dp"
app:rippleColor="@color/color_ripple" />
<com.google.android.material.button.MaterialButton
style="@style/Widget.MaterialComponents.Button.TextButton"
android:layout_width="wrap_content"
android:layout_height="48dp"
android:layout_marginTop="@dimen/dimen_common"
android:clickable="true"
android:gravity="center_vertical"
android:paddingStart="16dp"
android:paddingEnd="16dp"
android:text="@string/main_widget_material_button_text" />
<com.google.android.material.button.MaterialButton
style="@style/Widget.MaterialComponents.Button.OutlinedButton"
android:layout_width="wrap_content"
android:layout_height="48dp"
android:layout_marginTop="@dimen/dimen_common"
android:clickable="true"
android:gravity="center_vertical"
android:paddingStart="16dp"
android:paddingEnd="16dp"
android:text="@string/main_widget_material_button_outline" />
<com.google.android.material.button.MaterialButton
style="@style/Widget.MaterialComponents.Button.UnelevatedButton"
android:layout_width="wrap_content"
android:layout_height="48dp"
android:layout_marginTop="@dimen/dimen_common"
android:clickable="true"
android:paddingStart="16dp"
android:paddingEnd="16dp"
android:text="@string/main_widget_material_button_stroke"
android:textColor="@color/white"
app:rippleColor="@color/color_ripple"
app:strokeColor="@color/colorAccent"
app:strokeWidth="2dp" />
减少了drawable大量近似的代码,提高了效率,但是如果想修改背景色,setBackground是无效的
@Override
public void setBackground(Drawable background) {
setBackgroundDrawable(background);
}
@Override
public void setBackgroundDrawable(Drawable background) {
if (isUsingOriginalBackground()) {
if (background != this.getBackground()) {
Log.w(
LOG_TAG,
"Do not set the background; MaterialButton manages its own background drawable.");
materialButtonHelper.setBackgroundOverwritten();
super.setBackgroundDrawable(background);
} else {
// ViewCompat.setBackgroundTintList() and setBackgroundTintMode() call setBackground() on
// the view in API 21, since background state doesn't automatically update in API 21. We
// capture this case here, and update our background without replacing it or re-tinting it.
getBackground().setState(background.getState());
}
} else {
super.setBackgroundDrawable(background);
}
}
跟到源码里面已经写的很清楚了,MaterialButton想要改变背景色通过setBackground是无效的,默认背景色就是主题色也就是colorPrimary。但是想改当然是可以改的了,关注下面几个属性:
属性 | 描述 |
---|---|
app:backgroundTint | 背景着色() |
app:backgroundTintMode | 背景模式 |
app:strokeColor | 描边颜色 |
app:strokeWidth | 描边宽度 |
app:cornerRadius | 圆角大小 |
app:rippleColor | 按压水波纹颜色 |
app:icon | 图标(注:位置只能在文本左侧) |
app:iconSize | 图标大小 |
app:iconGravity | 图标重心 |
app:iconTint | 图标着色 |
app:iconTintMode | 图标着色模式 |
app:iconPadding | 图标和文本之间的间距 |
注意
- 如果设置了android:backgroundTint会覆盖app:backgroundTint
- attr format=“color” name=“backgroundTint”/> 背景只能是颜色,不可以是shape selector gradient之类的
- TintMode取值有六种模式,看需求使用
- 不支持渐变色,如果用到渐变色,还是要用常规的shape gradient
- android:insetBottom=“0dp”
android:insetTop=“0dp”
可去除MaterialButton自带的透明padding - android:stateListAnimator="@null"去除阴影
总结
移动互联网在国内也走过了近10年,UI也已经更成熟,我们需要紧随时代脚步,在掌握最新技能的同时,拓宽更广泛的技术栈。共勉
