Ixia breakpoint 测试仪网络层（network neighborhood）配置（1）

Ixia breakpoint 简介

BreakingPointPowered by Application and Threat Intelligence, BreakingPoint devices enable companies to maintain resilient IT infrastructures against escalating threats. Only BreakingPoint security and performance testing products stress and optimize end-to-end IT infrastructures by creating real user actions with a blend of application and attack traffic including malware, mobile malware, DDoS, and more.

1. Corerouter 模式

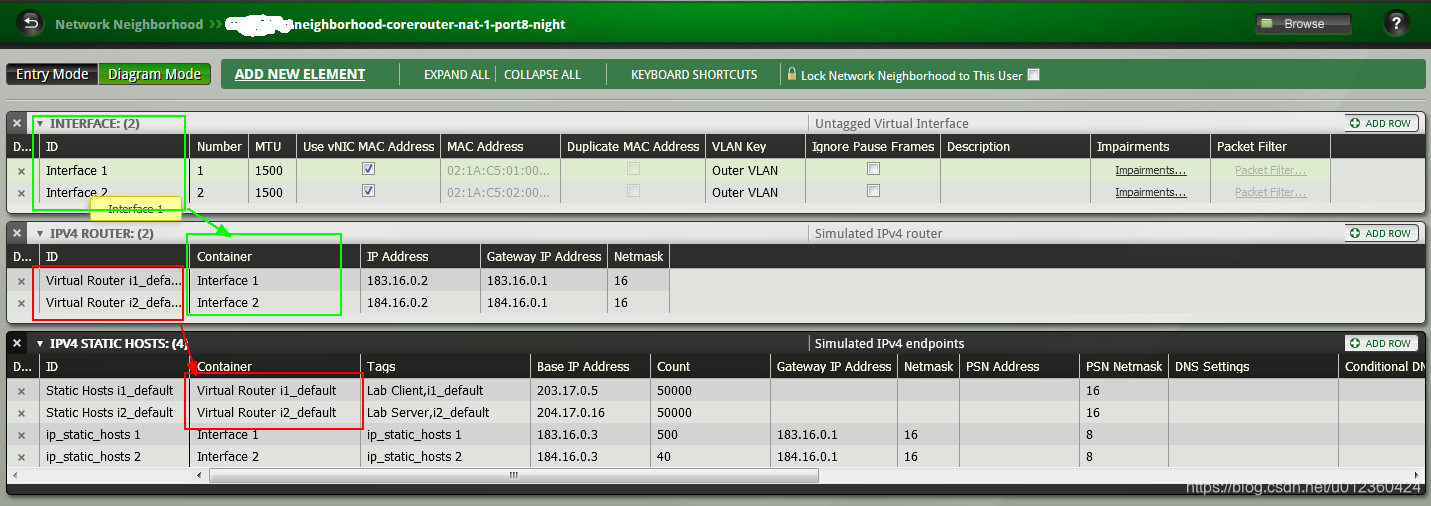

network neighborhood需要元素：interface、ipv4router、ipv4static host （下图中vlan和ipv4external hosts 请忽略）。作用：network可模拟虚拟主机和虚拟路由器，当测试仪接口直连DUT时，当需要模拟大量不同用户时，减少对DUT arp表项所造成的压力。

如图中所示，实际发包的源地址和目的地址为203.17.0.5和204.17.0.16。

名称对照关系：见图中方框和箭头所示。

DUT配置路由      dst  204.17.0.16/16  gw 184.16.0.2
