MQTT-智能设备上下线案例

智能设备上下线案例

需求
1、智能设备上线以后向MQTT服务端发送消息，后端服务从MQTT中获取消息记录设备信息到数据库中
2、后端服务向MQTT服务端发送开启或者关闭消息，设备端从MQTT中获取消息控制设备的开和关

数据库表

• 自行创建库： iot_demo
• 创建表

-- 智能设备表
CREATE TABLE `tb_device` (
  `id` bigint NOT NULL AUTO_INCREMENT,
  `device_id` varchar(50) DEFAULT NULL,
  `status` int DEFAULT NULL COMMENT '1：上线  0：下线',
  `create_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ,
  `update_time` datetime NOT NULL DEFAULT CURRENT_TIMESTAMP ON UPDATE CURRENT_TIMESTAMP,
  PRIMARY KEY (`id`)
) ENGINE=InnoDB ;

引入数据库依赖

<dependency>
    <groupId>com.baomidou</groupId>
    <artifactId>mybatis-plus-boot-starter</artifactId>
    <version>3.5.3.1</version>
</dependency>

<dependency>
    <groupId>mysql</groupId>
    <artifactId>mysql-connector-java</artifactId>
    <version>8.0.32</version>
</dependency>

项目配置

• 增加数据相关配置信息
• 修改订阅主题为通配模式：lq/iot/demo/ => lq/iot/demo/#

spring:
  mqtt:
    # mqtt 服务器地址
    url: tcp://192.168.40.128:1883
    # 订阅客户端ID
    subClientId: sub_client_id_1
    # 订阅主题
    # subTopic: lq/iot/demo/
    subTopic: lq/iot/demo/#
    # 发布客户端ID
    pubClientId: pub_client_id_1
    # 用户名
    username: admin
    # 密码
    password: admin123456

  datasource:
    driver-class-name: com.mysql.cj.jdbc.Driver
    url: jdbc:mysql://127.0.0.1:3307/iot_demo?useUnicode=true&characterEncoding=utf-8&useSSL=false&serverTimezone=Asia/Shanghai
    username: root
    password: root

  mybatis-plus:
    configuration:
      log-impl: org.apache.ibatis.logging.stdout.StdOutImpl
      map-underscore-to-camel-case: true
    mapper-locations: classpath*:mapper/*Mapper.xml

代码

• 设备实体类

DeviceEntity.java

package com.study.mqtt.demo.entitiy;

import com.baomidou.mybatisplus.annotation.TableName;
import lombok.Data;

import java.util.Date;

@TableName("tb_device")
@Data
public class DeviceEntity {
    private Integer id;
    private String deviceId;
    private Integer status;
    private Date createTime;
    private Date updateTime;
}

• 设备实体Mapper类

DeviceMapper.java

package com.study.mqtt.demo.mapper;

import com.baomidou.mybatisplus.core.mapper.BaseMapper;
import com.study.mqtt.demo.entitiy.DeviceEntity;
import org.apache.ibatis.annotations.Mapper;

@Mapper
public interface DeviceMapper extends BaseMapper<DeviceEntity> {
}

• 启动类开启mapper扫描

MqttDemoApplication.java

package com.study.mqtt.demo;

import com.study.mqtt.demo.domain.MqttConfig;
import org.mybatis.spring.annotation.MapperScan;
import org.springframework.boot.SpringApplication;
import org.springframework.boot.autoconfigure.SpringBootApplication;
import org.springframework.boot.context.properties.EnableConfigurationProperties;

@SpringBootApplication
@EnableConfigurationProperties(value = MqttConfig.class)
@MapperScan("com.study.mqtt.demo.mapper")
public class MqttDemoApplication {

    public static void main(String[] args) {
        SpringApplication.run(MqttDemoApplication.class, args);
    }

}

• 设备服务类

DeviceService.java

package com.study.mqtt.demo.service;

import com.baomidou.mybatisplus.extension.service.IService;
import com.study.mqtt.demo.entitiy.DeviceEntity;
import org.springframework.stereotype.Service;

@Service
public interface DeviceService extends IService<DeviceEntity> {

    void updateDeviceOnlineStatus(String jsonInfo);
}

• 设备服务实现类

DeviceServiceImpl.java

package com.study.mqtt.demo.service.impl;

import com.alibaba.fastjson.JSON;
import com.baomidou.mybatisplus.core.conditions.query.LambdaQueryWrapper;
import com.baomidou.mybatisplus.extension.service.impl.ServiceImpl;
import com.study.mqtt.demo.entitiy.DeviceEntity;
import com.study.mqtt.demo.mapper.DeviceMapper;
import com.study.mqtt.demo.service.DeviceService;
import org.springframework.stereotype.Service;

import java.util.Date;
import java.util.Map;

@Service
public class DeviceServiceImpl extends ServiceImpl<DeviceMapper, DeviceEntity> implements DeviceService {
    @Override
    public void updateDeviceOnlineStatus(String jsonInfo) {
        // 解析消息获取设备id和上线状态
        Map<String ,  Object> map = JSON.parseObject(jsonInfo, Map.class);
        String deviceId = map.get("deviceId").toString();
        Integer status = Integer.parseInt(map.get("online").toString());

        // 根据设备的id查询设备数据
        LambdaQueryWrapper<DeviceEntity> lambdaQueryWrapper = new LambdaQueryWrapper<>() ;
        lambdaQueryWrapper.eq(DeviceEntity::getDeviceId , deviceId) ;
        DeviceEntity deviceEntity = this.getOne(lambdaQueryWrapper);
        if(deviceEntity == null) {
            // 设备不存在，新增设备
            deviceEntity = new DeviceEntity() ;
            deviceEntity.setDeviceId(deviceId);
        }
        deviceEntity.setStatus(status);
        deviceEntity.setUpdateTime(new Date());

        this.saveOrUpdate(deviceEntity);
    }
}

• 消息接收类
  • 增加 设备上下线主题的消息接收 lq/iot/demo/device/online
  • 更新 设备表中对应的记录状态 tb_device

ReceiveMsgHandler.java

package com.study.mqtt.demo.handler;

import com.study.mqtt.demo.service.DeviceService;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.messaging.Message;
import org.springframework.messaging.MessageHandler;
import org.springframework.messaging.MessageHeaders;
import org.springframework.messaging.MessagingException;
import org.springframework.stereotype.Component;

import java.util.Date;

@Component
public class ReceiveMsgHandler implements MessageHandler {

    @Autowired
    private DeviceService deviceService;
    @Override
    public void handleMessage(Message<?> message) throws MessagingException {
        System.out.println("当前时间：" + new Date());
        System.out.println("接收到消息对象：" + message);
        // 消息内容
        Object payload = message.getPayload();
        MessageHeaders headers = message.getHeaders();
        Object mqttReceivedTopic = headers.get("mqtt_receivedTopic");
        System.out.println("接收的消息主题：" + mqttReceivedTopic);
        System.out.println("接收的消息内容：" + payload);

        if("lq/iot/demo/device/online".equals(mqttReceivedTopic)) {
        	// 更新设备的上线状态
         	deviceService.updateDeviceOnlineStatus(message.getPayload().toString());
        }
    }
}

测试

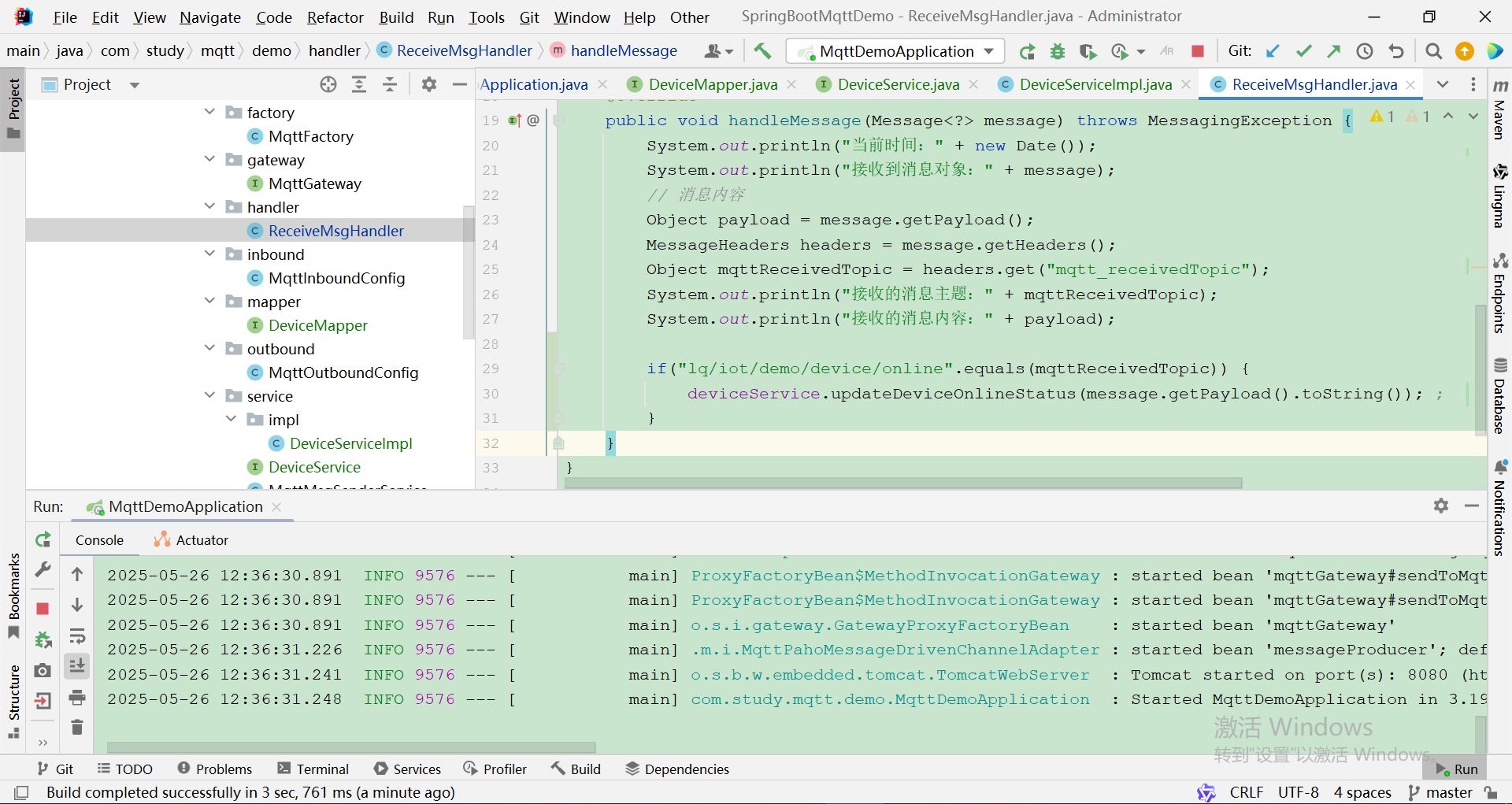

• 启动项目

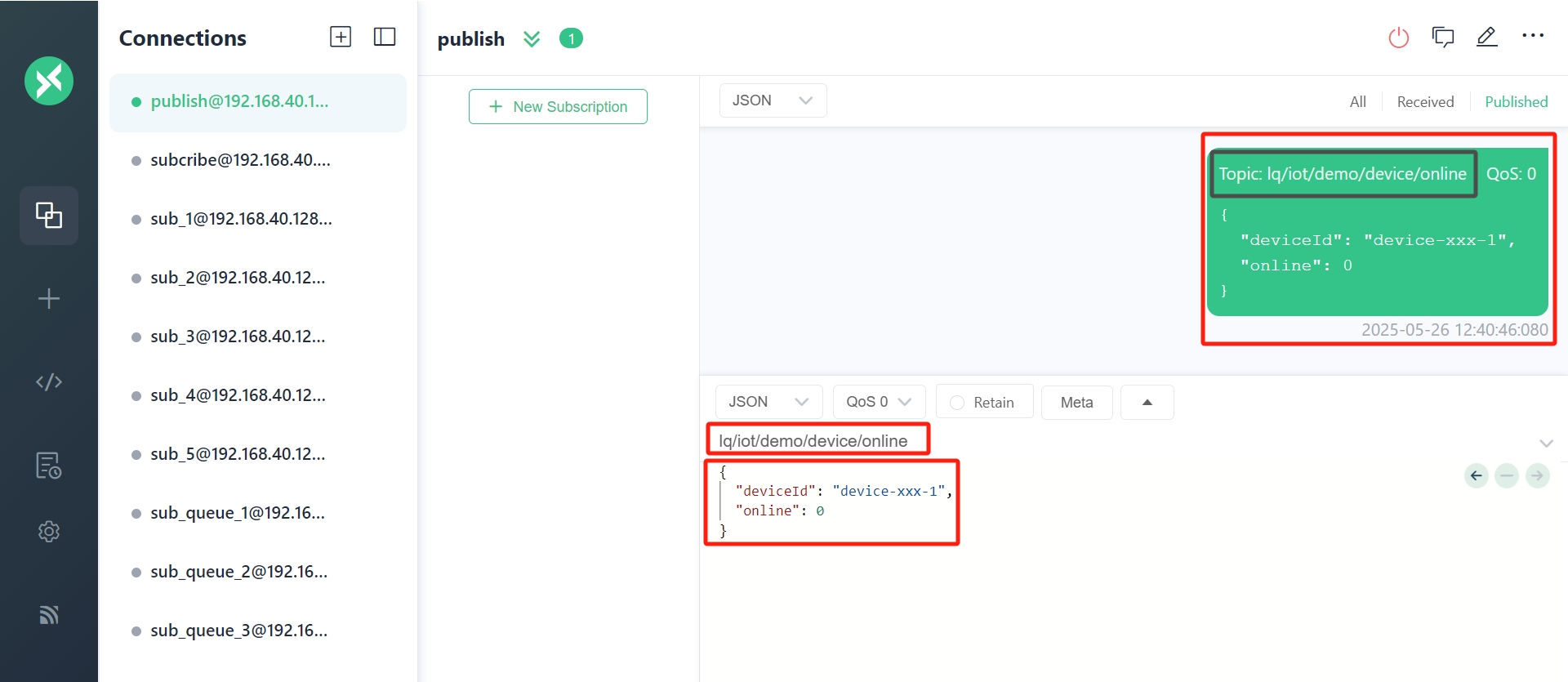

• 发布者发布消息
  • 利用 发布者模拟设备上线
  • 发布主题 lq/iot/demo/device/online
  • 消息内容 { "deviceId": "device-xxx-1", "online": 0 }

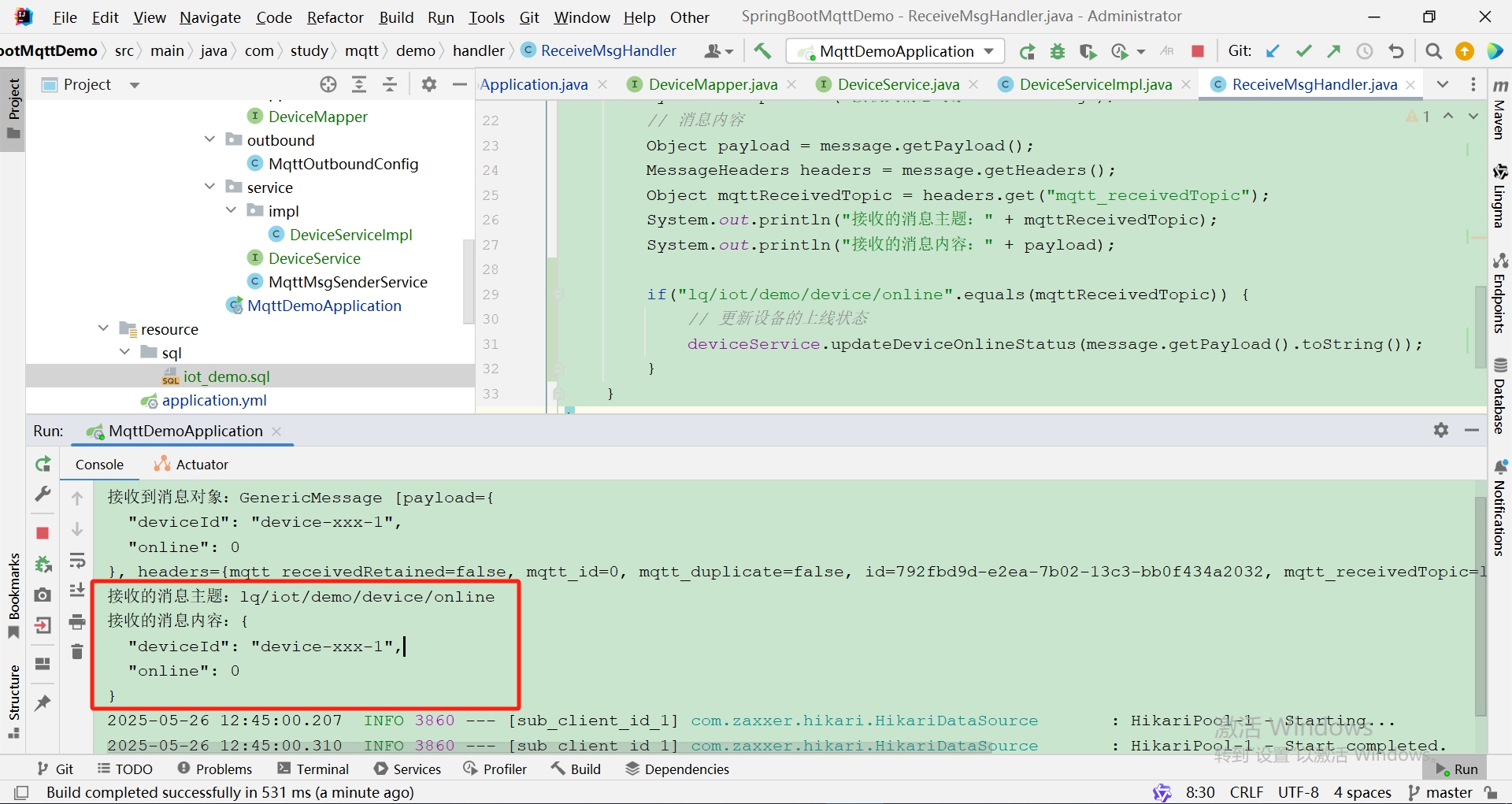

• 后台服务接收到消息

• 设备信息入库

• 更新设备状态
  • 利用 发布者模拟设备
  • 发布主题 lq/iot/demo/device/online
  • 消息内容 { "deviceId": "device-xxx-1", "online": 1 }

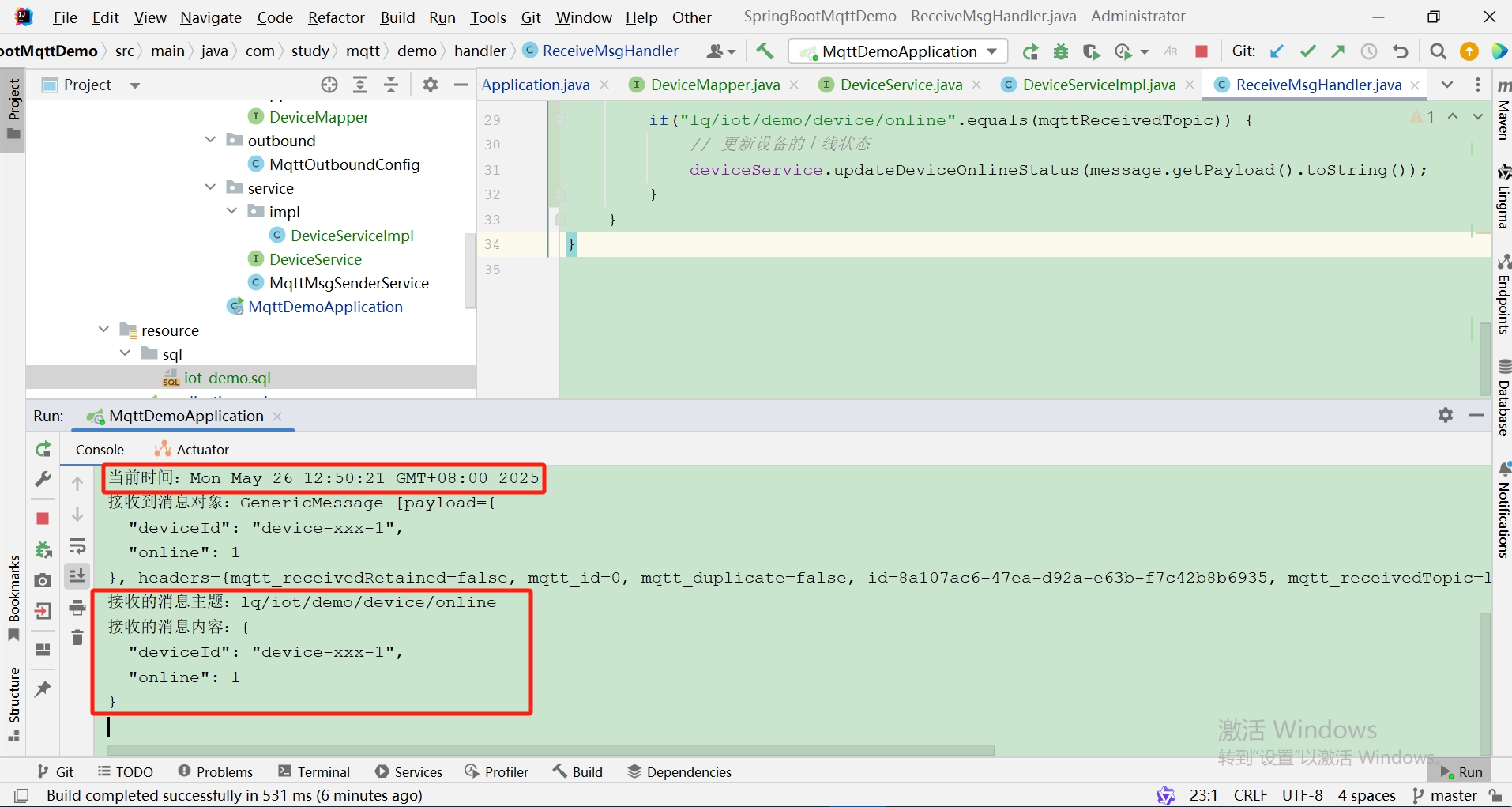

• 后台服务接收到消息
  • 接收到的时间： Mon May 26 12:50:21 GMT+08:00 2025

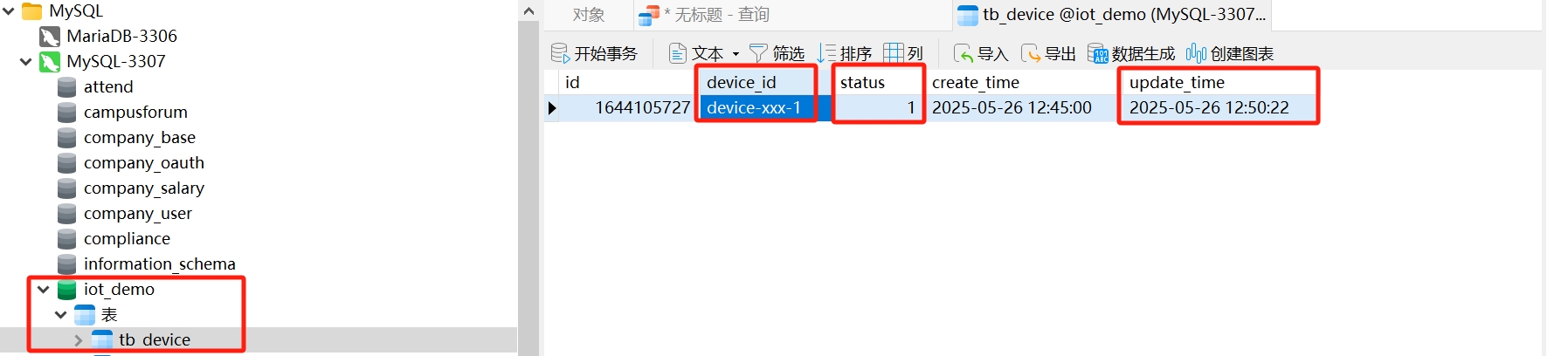

• 设备状态更新入库
  • 记录更新时间：2025-05-26 12:50:22
