基于kafka的实时链路

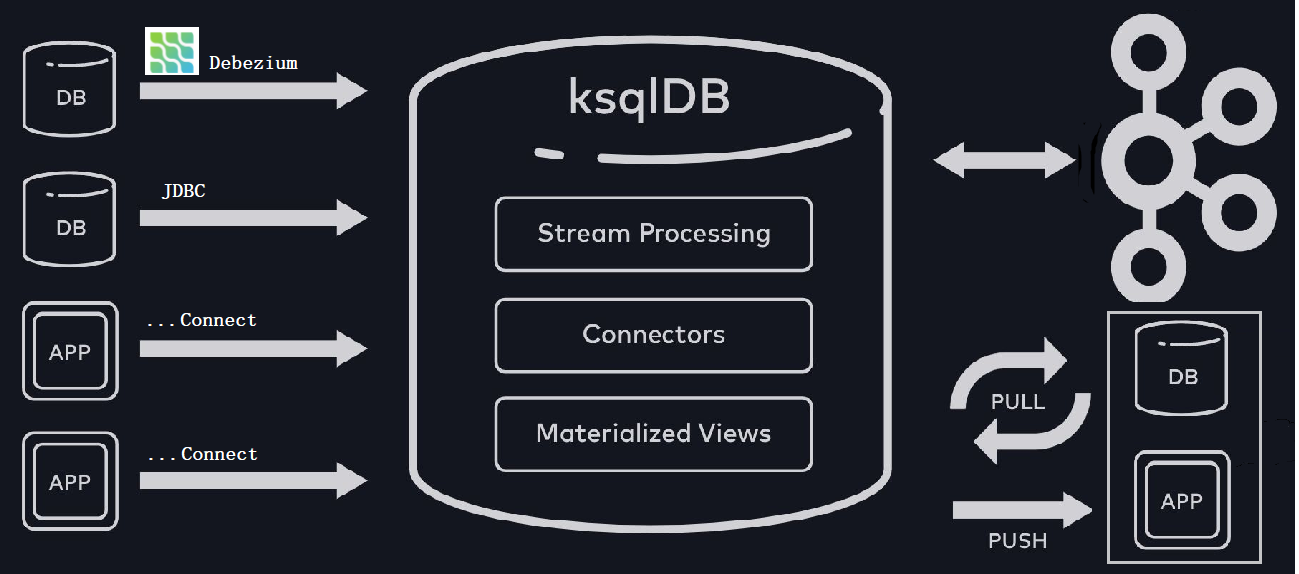

实时链路架构图

环境部署

使用docker compose部署便于测试

1. 创建一个docker-compose.yml文件，定义要启动的服务

---
version: '2'

services:
  mysql:
    image: mysql:8.0.32
    hostname: mysql
    container_name: mysql
    ports:
      - "3306:3306"
    environment:
      MYSQL_ROOT_PASSWORD: mysql-pw
      MYSQL_DATABASE: call-center
      MYSQL_USER: example-user
      MYSQL_PASSWORD: example-pw
    volumes:
      - "./mysql/custom-config.cnf:/etc/mysql/conf.d/custom-config.cnf"

  zookeeper:
    image: confluentinc/cp-zookeeper:7.3.0
    hostname: zookeeper
    container_name: zookeeper
    ports:
      - "2181:2181"
    environment:
      ZOOKEEPER_CLIENT_PORT: 2181
      ZOOKEEPER_TICK_TIME: 2000

  broker:
    image: confluentinc/cp-kafka:7.3.0
    hostname: broker
    container_name: broker
    depends_on:
      - zookeeper
    ports:
      - "29092:29092"
    environment:
      KAFKA_BROKER_ID: 1
      KAFKA_ZOOKEEPER_CONNECT: 'zookeeper:2181'
      KAFKA_LISTENER_SECURITY_PROTOCOL_MAP: PLAINTEXT:PLAINTEXT,PLAINTEXT_HOST:PLAINTEXT
      KAFKA_ADVERTISED_LISTENERS: PLAINTEXT://broker:9092,PLAINTEXT_HOST://localhost:29092
      KAFKA_OFFSETS_TOPIC_REPLICATION_FACTOR: 1
      KAFKA_GROUP_INITIAL_REBALANCE_DELAY_MS: 0
      KAFKA_TRANSACTION_STATE_LOG_MIN_ISR: 1
      KAFKA_TRANSACTION_STATE_LOG_REPLICATION_FACTOR: 1

  schema-registry:
    image: confluentinc/cp-schema-registry:7.3.0
    hostname: schema-registry
    container_name: schema-registry
    depends_on:
      - zookeeper
      - broker
    ports:
      - "8081:8081"
    environment:
      SCHEMA_REGISTRY_HOST_NAME: schema-registry
      SCHEMA_REGISTRY_KAFKASTORE_BOOTSTRAP_SERVERS: "PLAINTEXT://broker:9092"

  ksqldb-server:
    image: confluentinc/ksqldb-server:0.28.2
    hostname: ksqldb-server
    container_name: ksqldb-server
    depends_on:
      - broker
      - schema-registry
    ports:
      - "8088:8088"
    volumes:
      - "./confluent-hub-components/:/usr/share/kafka/plugins/"
    environment:
      KSQL_LISTENERS: "http://0.0.0.0:8088"
      KSQL_BOOTSTRAP_SERVERS: "broker:9092"
      KSQL_KSQL_SCHEMA_REGISTRY_URL: "http://schema-registry:8081"
      KSQL_KSQL_LOGGING_PROCESSING_STREAM_AUTO_CREATE: "true"
      KSQL_KSQL_LOGGING_PROCESSING_TOPIC_AUTO_CREATE: "true"
      # Configuration to embed Kafka Connect support.
      KSQL_CONNECT_GROUP_ID: "ksql-connect-cluster"
      KSQL_CONNECT_BOOTSTRAP_SERVERS: "broker:9092"
      KSQL_CONNECT_KEY_CONVERTER: "org.apache.kafka.connect.storage.StringConverter"
      KSQL_CONNECT_VALUE_CONVERTER: "io.confluent.connect.avro.AvroConverter"
      KSQL_CONNECT_VALUE_CONVERTER_SCHEMA_REGISTRY_URL: "http://schema-registry:8081"
      KSQL_CONNECT_CONFIG_STORAGE_TOPIC: "_ksql-connect-configs"
      KSQL_CONNECT_OFFSET_STORAGE_TOPIC: "_ksql-connect-offsets"
      KSQL_CONNECT_STATUS_STORAGE_TOPIC: "_ksql-connect-statuses"
      KSQL_CONNECT_CONFIG_STORAGE_REPLICATION_FACTOR: 1
      KSQL_CONNECT_OFFSET_STORAGE_REPLICATION_FACTOR: 1
      KSQL_CONNECT_STATUS_STORAGE_REPLICATION_FACTOR: 1
      KSQL_CONNECT_PLUGIN_PATH: "/usr/share/kafka/plugins"

  ksqldb-cli:
    image: confluentinc/ksqldb-cli:0.28.2
    container_name: ksqldb-cli
    depends_on:
      - broker
      - ksqldb-server
    entrypoint: /bin/sh
    tty: true

2. 配置mysql
   MySQL 需要一些自定义配置才能很好地与 Debezium 配合使用，所以首先要注意这一点。如果您有兴趣， Debezium 有专门的文档，但本指南仅涵盖要点。使用以下内容创建一个新文件mysql/custom-config.cnf

[mysqld]
server-id                = 223344
log_bin                  = mysql-bin
binlog_format            = ROW
binlog_row_image         = FULL
expire_logs_days         = 10
gtid_mode                = ON
enforce_gtid_consistency = ON

3. 下载必要的连接器
   下载地址:https://www.confluent.io/product/connectors/
   所需的连接器:
   Debezium MySQL CDC Source Connector 实时数据需要
   JDBC Connector JDBC连接数据库获取批量数据
   mysql-connector-java-8.0.28.jar mysql数据库驱动
4. 解压驱动器包到指定的目录(docker-compose.yml中ksqldb-server容器的插件目录KSQL_CONNECT_PLUGIN_PATH对应的宿主机目录./confluent-hub-components/)
   **注意：JDBC Connector 包中没有mysql的驱动，所以在解压后将mysql-connector-java-8.0.28.jar 放到./confluent-hub-components/confluentinc-kafka-connect-jdbc-10.6.4/lib目录下
5. 启动容器

docker compose up -d

6. mysql数据库用户授权及建表

##进入mysql容器
docker exec -it mysql /bin/bash
##以root身份登录mysql
mysql -uroot -pmysql-pw
##为简单起见，授予example-user从任何主机连接的所有权限
GRANT ALL PRIVILEGES ON *.* TO 'example-user' WITH GRANT OPTION;
ALTER USER 'example-user'@'%' IDENTIFIED WITH mysql_native_password BY 'example-pw';
FLUSH PRIVILEGES;
##切换数据库及创建表
USE call-center;
CREATE TABLE calls (name TEXT, reason TEXT, duration_seconds INT);
##添加一些测试数据
INSERT INTO calls (name, reason, duration_seconds) VALUES ("michael", "purchase", 540);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("michael", "help", 224);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("colin", "help", 802);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("derek", "purchase", 10204);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("derek", "help", 600);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("colin", "refund", 105);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("michael", "help", 2030);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("colin", "purchase", 800);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("derek", "help", 2514);
INSERT INTO calls (name, reason, duration_seconds) VALUES ("derek", "refund", 325);

7. 启动 Debezium 连接器

##进入ksqldb-cli容器，启动 Debezium 连接器
docker exec -it ksqldb-cli ksql http://ksqldb-server:8088
##告诉ksqlDB 从每个主题的最早点开始所有查询
SET 'auto.offset.reset' = 'earliest';
##创建一个 Debezium 源连接器并将其所有更改写入 Kafka 主题
CREATE SOURCE CONNECTOR calls_reader WITH (
    'connector.class' = 'io.debezium.connector.mysql.MySqlConnector',
    'database.hostname' = 'mysql',
    'database.port' = '3306',
    'database.user' = 'example-user',
    'database.password' = 'example-pw',
    'database.allowPublicKeyRetrieval' = 'true',
    'database.server.id' = '184054',
    'database.server.name' = 'call-center-db',
    'database.whitelist' = 'call-center',
    'database.history.kafka.bootstrap.servers' = 'broker:9092',
    'database.history.kafka.topic' = 'call-center',
    'table.whitelist' = 'call-center.calls',
    'include.schema.changes' = 'false'
);
SHOW TOPICS;
##打印topic内容
PRINT 'call-center-db.call-center.calls' FROM BEGINNING;
##查看连接器状态
DESCRIBE CONNECTOR calls_reader;

8. 创建stream

CREATE STREAM calls WITH (
    kafka_topic = 'call-center-db.call-center.calls',
    value_format = 'avro'
);
select * from calls EMIT CHANGES;

9. 创建物化视图

CREATE TABLE support_view AS
    SELECT after->name AS name,
           count_distinct(after->reason) AS distinct_reasons,
           latest_by_offset(after->reason) AS last_reason
    FROM calls
    GROUP BY after->name
    EMIT CHANGES;
select * from support_view EMIT CHANGES;

10. 推送数据到目标数据库

##进入mysql容器
docker exec -it mysql /bin/bash
##以root身份登录mysql
mysql -uroot -pmysql-pw
##切换数据库及创建表
USE call-center;
CREATE TABLE SUPPORT_VIEW1_PK (NAME VARCHAR(32), DISTINCT_REASONS INT, LAST_REASON TEXT,PRIMARY KEY (NAME));
##进入ksqldb-cli容器，启动 Debezium 连接器
docker exec -it ksqldb-cli ksql http://ksqldb-server:8088
##告诉ksqlDB 从每个主题的最早点开始所有查询
SET 'auto.offset.reset' = 'earliest';
##创建一个 JDBC sink连接器并将topic中的数据推送到目标表
CREATE SINK CONNECTOR SINK_SUPPORT_VIEW_PK WITH (
    'connector.class' = 'io.confluent.connect.jdbc.JdbcSinkConnector',
    'connection.url' = 'jdbc:mysql://mysql:3306/call-center',
    'connection.user' = 'example-user',
	'connection.password'='example-pw',
	'table.name.format'='SUPPORT_VIEW_PK',
	'insert.mode'='upsert',
	'pk.mode'='record_key',
	'pk.fields'='NAME',
    'topics' = 'SUPPORT_VIEW'
);
##在mysql容器中查询数据
select * from SUPPORT_VIEW_PK;

删除容器及数据

docker compose down -v
