需求分析
作为一家已经经营起来的店铺,日常经常需要考虑的是需要提高营业额的手段,让利促销是店铺的常用手段,那么会员充值就是一种常见的营销手段,比如满几百送多少钱,让普通顾客成为会员,妥善的管理会员的余额,管理会员的充值记录、消费记录就成为了日常必需的功能,所以规划了此模块,分为会员的列表查询功能、充值功能、充值记录查看和消费记录查看等功能

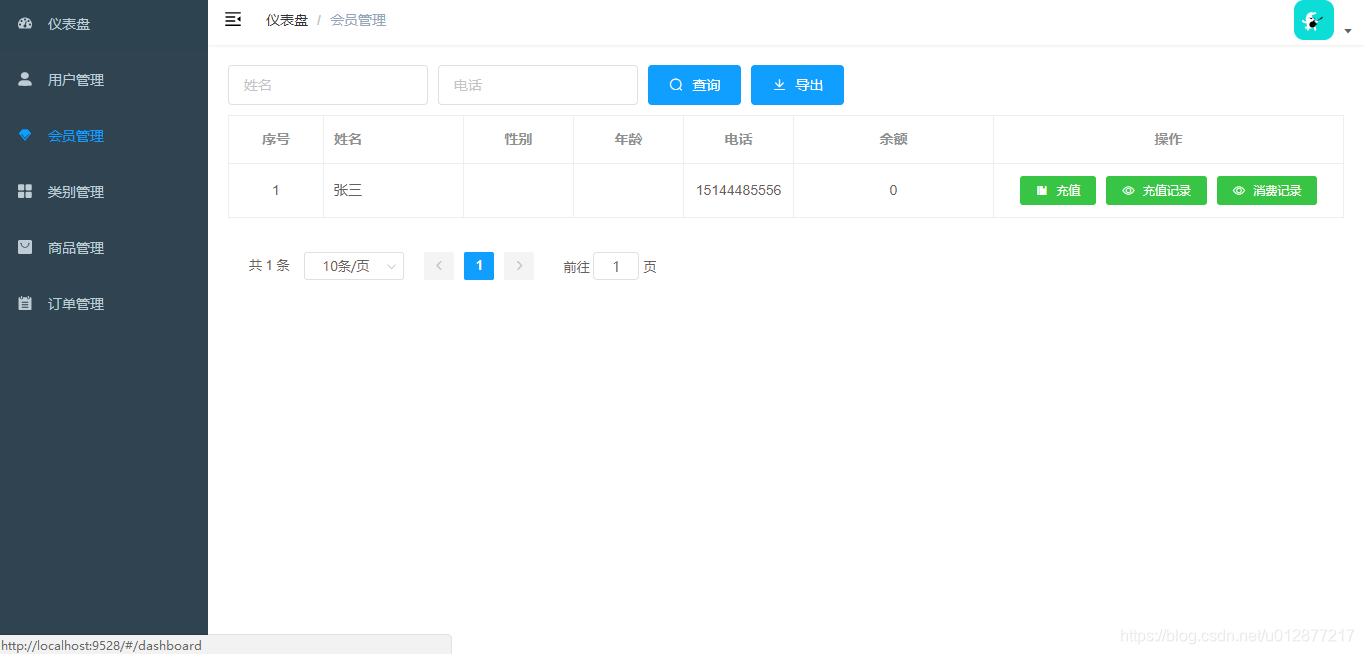

会员列表
-
在用户管理模块开卡成功之后会转为会员,可以在列表中查询到会员的信息
-
查询条件为姓名和电话
-
可以进行充值,可以查看充值记录和消费记录

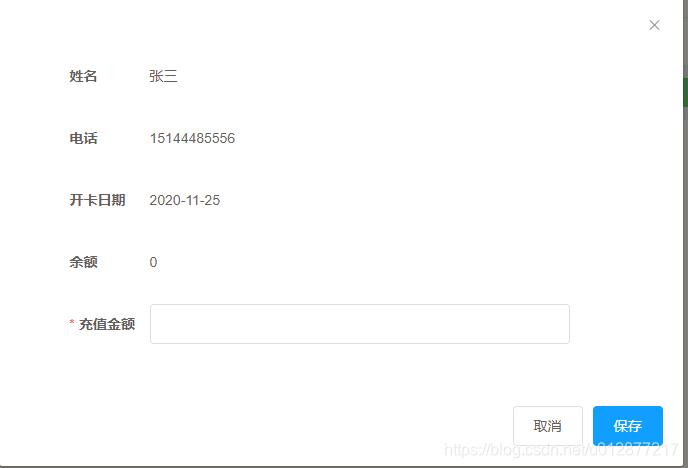

充值
- 列表上点击充值按钮,弹出充值页面
- 自动带出会员的基本信息包括姓名、电话、开卡日期、余额
- 充值金额限制为数字
- 点击保存后该会员的余额进行增加,余额=当前的余额+充值金额

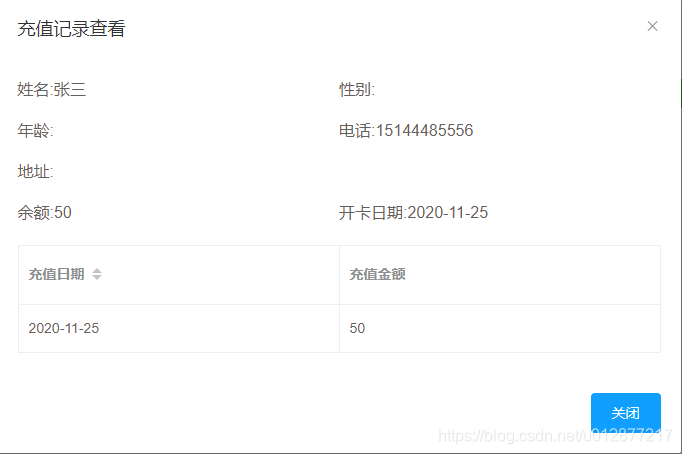

充值记录
- 列表点击充值记录按钮弹出该页面
- 显示该会员的基础信息,包括姓名、性别、年龄、电话、地址、余额、开卡日期
- 以表格的形式显示充值记录

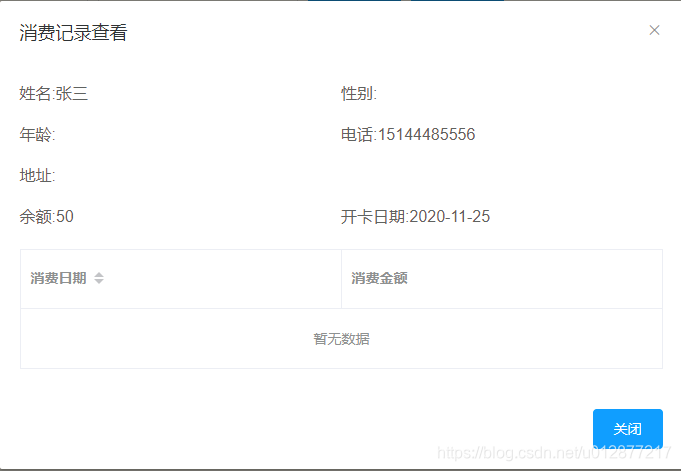

消费记录
- 列表点击消费记录按钮弹出该页面
- 显示该会员的基础信息,包括姓名、性别、年龄、电话、地址、余额、开卡日期
- 以表格的形式显示消费记录
功能设计
路由注册
{
path: '/member',
component: Layout,
children: [{
path: 'index',
name: 'member',
component: () => import('@/views/member/index'),
meta: { title: '会员管理', icon: 'member' }
}]
}

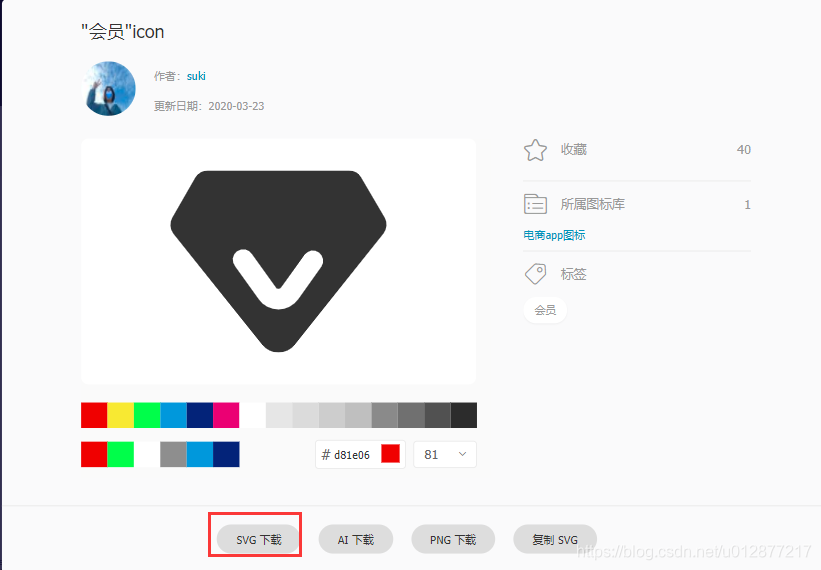

这里唯一需要注意的是icon的管理,vue支持自定义图标,先在阿里图标库寻找自己满意的图标阿里图标
选择SVG下载
将下载的图标命名为member.svg

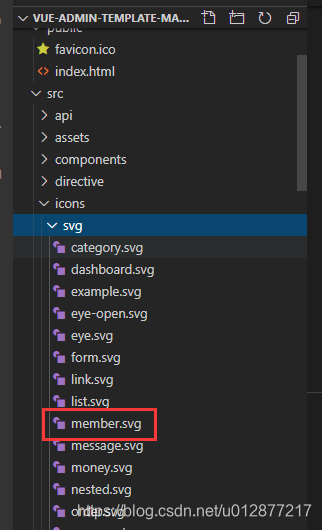

粘贴到工程src\icons\svg
这样就可以在路由配置中使用自定义的图标名称了
页面创建
在views目录下创建页面
页面代码
<template>
<div class="app-container">
<div class="filter-container">
<el-input v-model="listQuery.name" placeholder="姓名" style="width: 200px;" class="filter-item" clearable @keyup.enter.native="handleFilter" />
<el-input v-model="listQuery.telphone" placeholder="电话" style="width: 200px;margin-left:10px;margin-right:10px" class="filter-item" clearable @keyup.enter.native="handleFilter" />
<el-button v-waves class="filter-item" type="primary" icon="el-icon-search" @click="handleFilter">
查询
</el-button>
<el-button v-waves :loading="downloadLoading" class="filter-item" type="primary" icon="el-icon-download" @click="handleDownload">
导出
</el-button>
</div>
<el-table
v-loading="listLoading"
:data="list"
element-loading-text="Loading"
border
fit
highlight-current-row
>
<el-table-column align="center" label="序号" width="95">
<template slot-scope="scope">
{{ scope.$index+1 }}
</template>
</el-table-column>
<el-table-column v-if="show" label="ID" prop="_id" align="center" width="80">
<template slot-scope="{row}">
<span>{{ row._id }}</span>
</template>
</el-table-column>
<el-table-column label="姓名">
<template slot-scope="scope">
{{ scope.row.name }}
</template>
</el-table-column>
<el-table-column label="性别" width="110" align="center">
<template slot-scope="scope">
<span>{{ scope.row.sex }}</span>
</template>
</el-table-column>
<el-table-column label="年龄" width="110" align="center">
<template slot-scope="scope">
{{ scope.row.age }}
</template>
</el-table-column>
<el-table-column class-name="status-col" label="电话" width="110" align="center">
<template slot-scope="scope">
{{ scope.row.telphone }}
</template>
</el-table-column>
<el-table-column align="center" prop="created_at" label="余额" width="200">
<template slot-scope="scope">
<span>{{ scope.row.balance }}</span>
</template>
</el-table-column>
<el-table-column label="操作" align="center" width="350" class-name="small-padding fixed-width">
<template slot-scope="{row,$index}">
<el-button v-if="row.status==1" icon="el-icon-s-management" size="mini" type="success" @click="handleAdd(row,$index)">
充值
</el-button>
<el-button v-if="row.status==1" icon="el-icon-view" size="mini" type="success" @click="handleView(row)">
充值记录
</el-button>
<el-button v-if="row.status==1" icon="el-icon-view" size="mini" type="success" @click="handleReduceView(row)">
消费记录
</el-button>
</template>
</el-table-column>
</el-table>
<pagination v-show="total>0" :total="total" :page.sync="listQuery.page" :limit.sync="listQuery.limit" @pagination="fetchData" />
<el-dialog :title="textMap[dialogStatus]" :visible.sync="dialogAddFormVisible">
<el-form ref="dataForm" :rules="rules" :model="temp" label-position="left" label-width="80px" style="width: 500px; margin-left:50px;">
<el-form-item v-if="show" label="ID" prop="_id">
<el-input v-model="temp._id" />
</el-form-item>
<el-form-item label="姓名">
{{ temp.name }}
</el-form-item>
<el-form-item label="电话">
{{ temp.telphone }}
</el-form-item>
<el-form-item label="开卡日期">
{{ temp.registerdate }}
</el-form-item>
<el-form-item label="余额">
{{ temp.balance }}
</el-form-item>
<el-form-item label="充值金额" prop="addmoney">
<el-input v-model.number="temp.addmoney" />
</el-form-item>
</el-form>
<div slot="footer" class="dialog-footer">
<el-button @click="dialogAddFormVisible = false">
取消
</el-button>
<el-button type="primary" @click="addMoney()">
保存
</el-button>
</div>
</el-dialog>
<el-dialog :visible.sync="dialogPvVisible" title="充值记录查看">
<el-row>
<el-col :span="12"><div class="grid-content">姓名:{{ temp.name }}</div></el-col>
<el-col :span="12"><div class="grid-content">性别:{{ temp.sex }}</div></el-col>
</el-row>
<el-row>
<el-col :span="12"><div class="grid-content">年龄:{{ temp.age }}</div></el-col>
<el-col :span="12"><div class="grid-content">电话:{{ temp.telphone }}</div></el-col>
</el-row>
<el-row>
<el-col :span="24"><div class="grid-content">地址:{{ temp.address }}</div></el-col>
</el-row>
<el-row>
<el-col :span="12"><div class="grid-content">余额:{{ temp.balance }}</div></el-col>
<el-col :span="12"><div class="grid-content">开卡日期:{{ temp.registerdate }}</div></el-col>
</el-row>
<el-table :data="temp.addrecord" border fit highlight-current-row style="width: 100%">
<el-table-column prop="adddate" label="充值日期" :formatter="dateFormatter" :sortable="true" :sort-method="sortByDate" />
<el-table-column prop="name" label="充值金额">
<template slot-scope="scope">
{{ scope.row.addmoney }}
</template>
</el-table-column>
</el-table>
<span slot="footer" class="dialog-footer">
<el-button type="primary" @click="dialogPvVisible = false">关闭</el-button>
</span>
</el-dialog>
<el-dialog :visible.sync="dialogReduceVisible" title="消费记录查看">
<el-row>
<el-col :span="12"><div class="grid-content">姓名:{{ temp.name }}</div></el-col>
<el-col :span="12"><div class="grid-content">性别:{{ temp.sex }}</div></el-col>
</el-row>
<el-row>
<el-col :span="12"><div class="grid-content">年龄:{{ temp.age }}</div></el-col>
<el-col :span="12"><div class="grid-content">电话:{{ temp.telphone }}</div></el-col>
</el-row>
<el-row>
<el-col :span="24"><div class="grid-content">地址:{{ temp.address }}</div></el-col>
</el-row>
<el-row>
<el-col :span="12"><div class="grid-content">余额:{{ temp.balance }}</div></el-col>
<el-col :span="12"><div class="grid-content">开卡日期:{{ temp.registerdate }}</div></el-col>
</el-row>
<el-table :data="temp.reducecorde" border fit highlight-current-row style="width: 100%">
<el-table-column prop="reducedate" label="消费日期" :formatter="dateReduceFormatter" :sortable="true" :sort-method="sortByDate" />
<el-table-column prop="reducemoney" label="消费金额">
<template slot-scope="scope">
{{ scope.row.reducemoney }}
</template>
</el-table-column>
</el-table>
<span slot="footer" class="dialog-footer">
<el-button type="primary" @click="dialogReduceVisible = false">关闭</el-button>
</span>
</el-dialog>
</div>
</template>
<script>
// import { getList } from '@/api/customer'
import waves from '@/directive/waves'
import Pagination from '@/components/Pagination'
import { parseTime } from '@/utils'
export default {
filters: {
statusFilter(status) {
const statusMap = {
published: 'success',
draft: 'gray',
deleted: 'danger'
}
return statusMap[status]
}
},
components: { Pagination },
directives: { waves },
data() {
return {
list: null,
listLoading: true,
show: false,
total: 0,
listQuery: {
page: 1,
limit: 10,
name: undefined,
telphone: undefined
},
options: ['男', '女', '其他'],
statusOptions: ['published', 'draft', 'deleted'],
temp: {
_id: undefined,
name: '',
sex: '',
age: '',
telphone: '',
address: '',
status: 0
},
dialogStatus: '',
textMap: {
update: '编辑用户',
create: '新增用户',
add: '充值'
},
dialogPvVisible: false,
dialogReduceVisible: false,
pvData: [],
rules: {
addmoney: [{ required: true, type: 'number', message: '金额必须为数字', trgger: 'blur' }]
},
dialogFormVisible: false,
dialogAddFormVisible: false,
downloadLoading: false
}
},
async created() {
// const username = this.$store.state.user.username
// const password = this.$store.state.user.password
const loginState = this.$cloudbase.auth().hasLoginState()
if (loginState) {
// 登录态有效
this.fetchData()
} else {
// 没有登录态,或者登录态已经失效
await this.$store.dispatch('user/logout')
this.$cloudbase.auth({ persistence: 'local' }).signOut()
this.$router.push(`/login?redirect=${this.$route.fullPath}`)
}
// this.$cloudbase.auth({ persistence: 'local' }).signInWithEmailAndPassword(username, password)
},
methods: {
async fetchData() {
this.listLoading = true
const queryString = { status: 1 }
if (this.listQuery.name) {
queryString.name = this.listQuery.name
}
if (this.listQuery.telphone) {
queryString.telphone = this.listQuery.telphone
}
const queryResult = await this.$cloudbase.database().collection('customer').where(queryString).skip((this.listQuery.page - 1) * this.listQuery.limit).limit(this.listQuery.limit).orderBy('createdate', 'desc').get()
const queryTotal = await this.$cloudbase.database().collection('customer').where(queryString).count()
this.list = queryResult.data
this.listLoading = false
this.total = queryTotal.total
/* getList().then(response => {
this.list = response.data.items
this.listLoading = false
})*/
},
handleFilter() {
this.fetchData()
},
handleDownload() {
this.downloadLoading = true
import('@/vendor/Export2Excel').then(excel => {
const tHeader = ['姓名', '性别', '年龄', '电话', '联系地址']
const filterVal = ['name', 'sex', 'age', 'telphone', 'address']
const data = this.formatJson(filterVal)
excel.export_json_to_excel({
header: tHeader,
data,
filename: '用户列表'
})
this.downloadLoading = false
})
},
formatJson(filterVal) {
return this.list.map(v => filterVal.map(j => {
if (j === 'timestamp') {
return parseTime(v[j])
} else {
return v[j]
}
}))
},
addMoney() {
this.$refs['dataForm'].validate((valid) => {
if (valid) {
const newbalance = this.temp.balance + this.temp.addmoney
let record = []
if (this.temp.addrecord) {
record = this.temp.addrecord
}
record.push({
adddate: new Date(),
addmoney: this.temp.addmoney
})
this.$cloudbase.database().collection('customer').doc(this.temp._id).update({
balance: newbalance,
addrecord: record
}).then(res => {
const index = this.list.findIndex(v => v._id === this.temp._id)
this.list.splice(index, 1, this.temp)
this.dialogAddFormVisible = false
this.$notify({
title: '操作提示',
message: '充值成功',
type: 'success',
duration: 2000
})
this.fetchData()
})
}
})
},
handleUpdate(row) {
this.temp = Object.assign({}, row) // copy obj
this.temp.timestamp = new Date(this.temp.timestamp)
this.dialogStatus = 'update'
this.dialogFormVisible = true
this.$nextTick(() => {
this.$refs['dataForm'].clearValidate()
})
},
handleView(row) {
this.temp = Object.assign({}, row) // copy obj
this.temp.registerdate = parseTime(this.temp.registerdate, '{y}-{m}-{d}')
this.pvData = this.temp.items
this.dialogPvVisible = true
},
handleReduceView(row) {
this.temp = Object.assign({}, row) // copy obj
this.temp.registerdate = parseTime(this.temp.registerdate, '{y}-{m}-{d}')
this.pvData = this.temp.items
this.dialogReduceVisible = true
},
handleAdd(row) {
this.temp = Object.assign({}, row)
this.temp.registerdate = parseTime(this.temp.registerdate, '{y}-{m}-{d}')
this.dialogAddFormVisible = true
},
dateFormatter(row, column) {
const datetime = parseTime(row.adddate, '{y}-{m}-{d}')
return datetime
},
dateReduceFormatter(row, column) {
const datetime = parseTime(row.reducedate, '{y}-{m}-{d}')
return datetime
},
sortByDate(obj1, obj2) {
const val1 = obj1.adddate
const val2 = obj2.adddate
return val1 - val2
}
}
}
</script>
<style scoped>
.filter-container{
padding-bottom:10px
}
.text {
font-size: 14px;
}
.item {
margin-bottom: 18px;
}
.clearfix:before,
.clearfix:after {
display: table;
content: "";
}
.clearfix:after {
clear: both
}
.box-card {
width: 480px;
}
.el-row {
margin-bottom: 5px;
}
.el-col {
border-radius: 4px;
}
.bg-purple-dark {
background: #99a9bf;
}
.bg-purple {
background: #d3dce6;
}
.bg-purple-light {
background: #e5e9f2;
}
.grid-content {
border-radius: 4px;
min-height: 36px;
font-size:16px;
text-align: left;
vertical-align: bottom;
}
.row-bg {
padding: 10px 0;
background-color: #f9fafc;
}
.el-header, .el-footer {
background-color: #B3C0D1;
color: #333;
text-align: center;
line-height: 60px;
}
.el-aside {
background-color: #D3DCE6;
color: #333;
text-align: center;
line-height: 200px;
}
.el-main {
background-color: #E9EEF3;
color: #333;
text-align: center;
line-height: 160px;
}
body > .el-container {
margin-bottom: 40px;
}
.el-container:nth-child(5) .el-aside,
.el-container:nth-child(6) .el-aside {
line-height: 260px;
}
.el-container:nth-child(7) .el-aside {
line-height: 320px;
}
</style>
组件分析
我们这个功能依次使用了el-table、pagination、el-dialog、el-form和布局组件,在element的官网找到对应组件熟悉组件的属性和方法即可搭建出页面
源码
源码请访问
https://gitee.com/tuodagitee/membercms.git
