背景
还记得我刚毕业那会儿,接触的项目就是跟音频应用相关的工作,包括语音识别、语音合成以及音频剪辑等功能,具体见https://github.com/heartsuit/BaiduASRAndTTS,当时主要是调用了百度的 ASR
与 TTS
接口。后来有的项目用到语音合成功能时,直接通过前端的 NPM
包 speak-tts
即可实现(调用客户端操作系统的类库实现)。
关于语音合成 TTS
(Text to Speech),如果想要私有化部署一套 TTS
服务,如今的选择是真多: ChatTTS
, VITS
, MeloTTS
, CoquiTTS
等,此外, HuggingFace
, ModelScope
上的开源模型更是数不胜数。
这里的需求是在纯CPU、无互联网的环境下完成中文文本语音合成,时间要求是5秒以内。
结合实际的应用场景,本次主要关注在纯 CPU
场景下,对于中文文本的合成效果(人声自然)与合成效率(时间短)两个方面。以下将通过对 eSpeak
, ChatTTS
, CoquiTTS
这三种语音合成 TTS
服务离线部署测试,分析三种方案的优劣。
先看结果
模型名称 | 合成效果 | 合成效率 |
---|---|---|
eSpeak | 鬼畜声、比较差 | 毫秒级~几秒 |
ChatTTS | 逼真流畅,音质高 | 50秒左右 |
CoquiTTS | 正常人声,音质一般 | 5秒左右 |
Note:以上是在纯 CPU
环境下使用100个字符以内的中文文本进行测试得出的结果。
eSpeak
eSpeak
是一个开源的文本到语音(TTS)合成器,适用于多种语言,包括英语和其他语言。 eSpeak
使用了形式合成方法,能够生成高质量的声音,并且因为其小文件大小和多语言特性,被广泛应用于各种场景中。
关于 eSpeak
的 TTS
方案,我直接使用 Cursor
来编码,全程没有一行自己编写的代码,部署到服务器上之后成功运行,不过,中文的合成效果很是鬼畜,挺差的。。
- 目录结构
D:.
│ docker-compose.yml
│ Dockerfile
│ package.json
│ README.md
│
└─src
│ index.js
│ tts.js
│
└─routes
tts.routes.js
代码结构比较简单,标准的 Node.js
后端项目,使用了传统的 Express
Web
框架,不多作解释。
tts.js
const {
exec
} = require('child_process');
const util = require('util');
const path = require('path');
const fs = require('fs').promises;
const execPromise = util.promisify(exec);
class TextToSpeech {
constructor() {
this.outputDir = process.env.OUTPUT_DIR || './output';
}
async convertToSpeech(text, options = {}) {
const {
language = 'zh',
speed = 175,
pitch = 50,
volume = 100
} = options;
const fileName = `${Date.now()}-${Math.random().toString(36).substring(7)}`;
const wavFile = path.join(this.outputDir, `${fileName}.wav`);
const mp3File = path.join(this.outputDir, `${fileName}.mp3`);
try {
// 1. 使用 espeak 生成 wav 文件
await execPromise(
`espeak -v ${language} -s ${speed} -p ${pitch} -a ${volume} -w "${wavFile}" "${text}"`
);
// 2. 转换为 mp3
await execPromise(
`sox "${wavFile}" "${mp3File}"`
);
// 3. 读取 MP3 文件
const audioBuffer = await fs.readFile(mp3File);
// 4. 清理临时文件
await Promise.all([
fs.unlink(wavFile),
fs.unlink(mp3File)
]);
return audioBuffer;
} catch (error) {
// 清理任何可能存在的临时文件
try {
await Promise.all([
fs.unlink(wavFile).catch(() => {}),
fs.unlink(mp3File).catch(() => {})
]);
} catch (e) {
// 忽略清理错误
}
throw new Error(`TTS conversion failed: ${error.message}`);
}
}
}
module.exports = TextToSpeech;
tts.routes.js
const express = require('express');
const router = express.Router();
const TextToSpeech = require('../tts');
const tts = new TextToSpeech();
router.post('/convert', async (req, res) => {
try {
const {
text,
options
} = req.body;
if (!text) {
return res.status(400).json({
error: 'Text is required'
});
}
const audioBuffer = await tts.convertToSpeech(text, options);
// 设置响应头
res.set({
'Content-Type': 'audio/mpeg',
'Content-Disposition': `attachment; filename="speech-${Date.now()}.mp3"`
});
// 发送音频数据
res.send(audioBuffer);
} catch (error) {
console.error('TTS Error:', error);
res.status(500).json({
error: error.message
});
}
});
// 添加健康检查端点
router.get('/health', (req, res) => {
res.json({
status: 'ok'
});
});
module.exports = router;
index.js
const express = require('express');
const cors = require('cors');
const morgan = require('morgan');
const ttsRoutes = require('./routes/tts.routes');
const app = express();
const port = process.env.PORT || 4000;
// 中间件
app.use(cors());
app.use(morgan('dev'));
app.use(express.json());
// 路由
app.use('/api/tts', ttsRoutes);
// 错误处理
app.use((err, req, res, next) => {
console.error(err.stack);
res.status(500).json({
error: 'Something went wrong!'
});
});
app.listen(port, () => {
console.log(`Server running on port ${port}`);
});
package.json
{
"name": "tts-service",
"version": "1.0.0",
"description": "Offline text-to-speech service",
"main": "src/index.js",
"dependencies": {
"express": "^4.18.2",
"cors": "^2.8.5",
"morgan": "^1.10.0",
"uuid": "^9.0.0"
}
}
Docker部署文件
- Dockerfile
FROM node:18-slim
# 设置时区
ENV TZ=Asia/Shanghai
RUN ln -snf /usr/share/zoneinfo/$TZ /etc/localtime && echo $TZ > /etc/timezone
# 安装必要的包
RUN apt-get update && apt-get install -y \
espeak \
espeak-ng \
sox \
libsox-fmt-mp3 \
&& rm -rf /var/lib/apt/lists/*
WORKDIR /app
# 复制 package.json 和 package-lock.json
COPY package*.json ./
# 安装依赖
RUN npm install --registry=https://registry.npmmirror.com/
# 复制源代码
COPY . .
# 创建输出目录
RUN mkdir -p output && chmod 777 output
EXPOSE 4000
CMD ["node", "src/index.js"]
- docker-compose.yml
version: '3'
services:
tts-service:
build: .
ports:
- "4000:4000"
volumes:
- ./output:/app/output
environment:
- PORT=4000
- OUTPUT_DIR=/app/output
README.md
使用方法:
1. 构建和运行服务:
docker-compose up --build
2. API 使用示例:
使用 curl:
curl -X POST http://192.168.44.171:4000/api/tts/convert \
-H "Content-Type: application/json" \
-d '{
"text": "这是一个测试文本",
"options": {
"language": "zh+f2",
"speed": 175,
"pitch": 50,
"volume": 100
}
}' \
--output speech.mp3
ChatTTS
ChatTTS
是一款专为对话场景设计的文本转语音(TTS)模型,支持中英文双语。经过大量训练, ChatTTS
能够生成自然、流畅且富有表现力的语音合成内容,并在韵律控制上超越了大多数开源模型。它不仅能细致地控制笑声、停顿和感叹词等特征,还可以用于多种语言和场景的语音内容生成。此外, ChatTTS
特别适用于大型语言模型(LLM)助手的对话任务以及诸如对话式音频和视频介绍等应用。它的性能非常出色,甚至在与微软 Azure-tts
这样的商业级项目相比时,也毫不逊色。
ChatTTS
提供了在线工具来生成语音,可以快速体验:https://chattts.com/zh?__theme=dark#Demo,不过经过测试,普通的一句话 TTS
一般需要20秒(这还是使用了 GPU
的)。下面是使用了基于 ChatTTS
实现语音合成的开源 UI
项目:ChatTTS-ui,主要是对官方的ChatTTS进行了容器化构建,并提供了一个用于测试的 Web
可视化页面和开放的 API
接口。

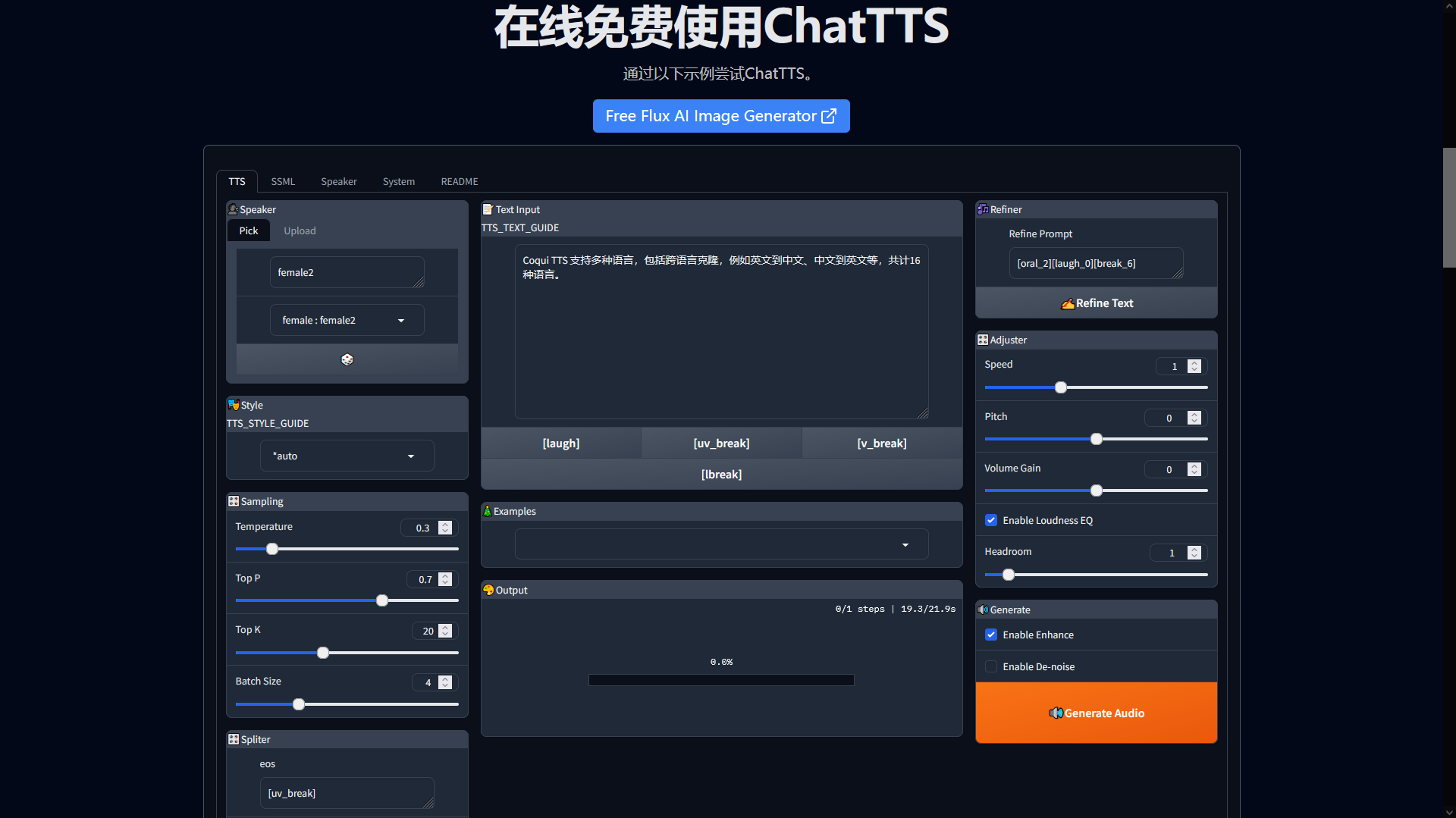

官方在线体验
本地部署
# 下载ChatTTS源码
cd ChatTTS-ui-main
# 运行cpu版本
docker-compose -f docker-compose.cpu.yaml up -d

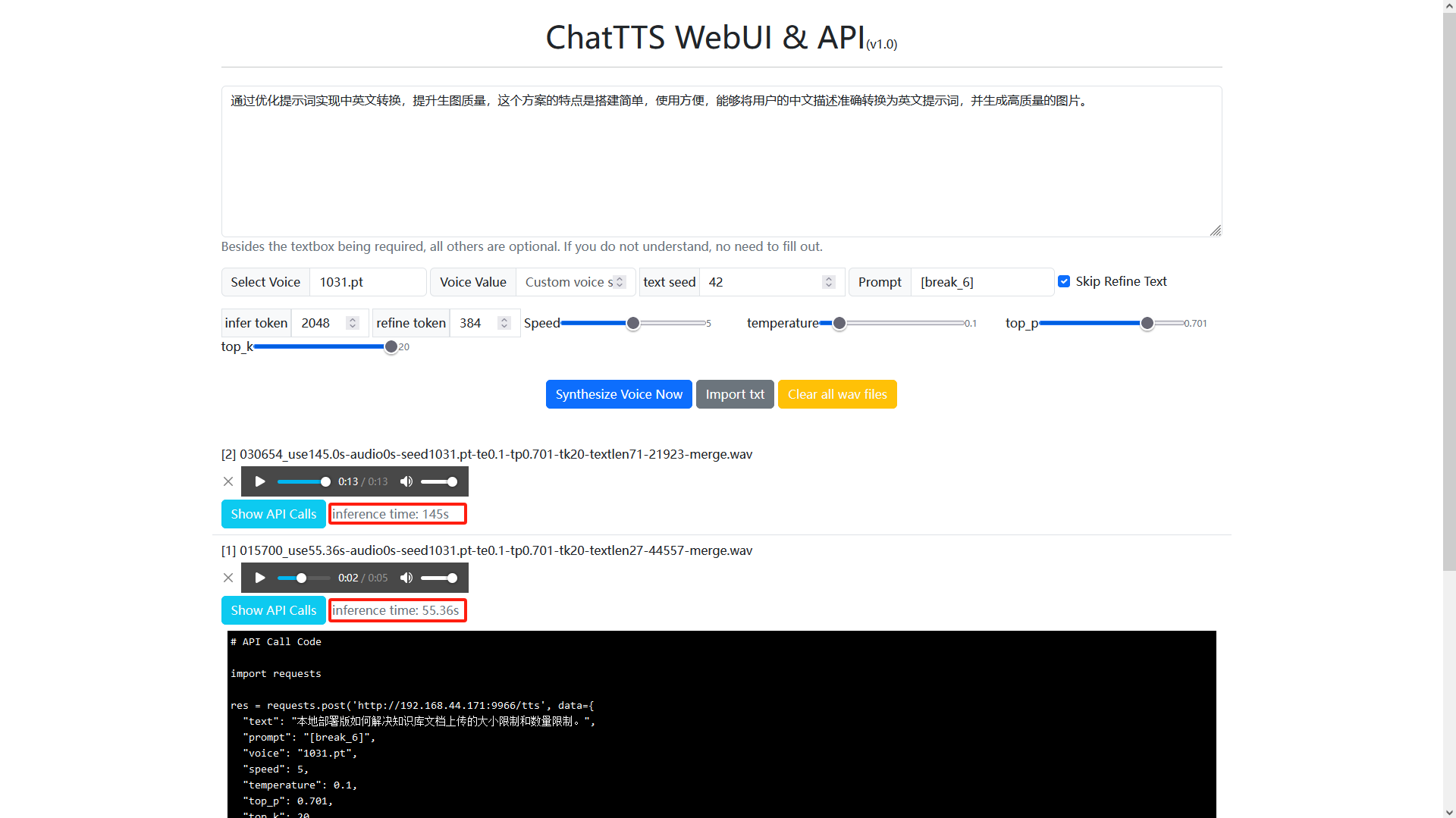

纯CPU运行效果
浏览器打开:http://192.168.44.171:9966;

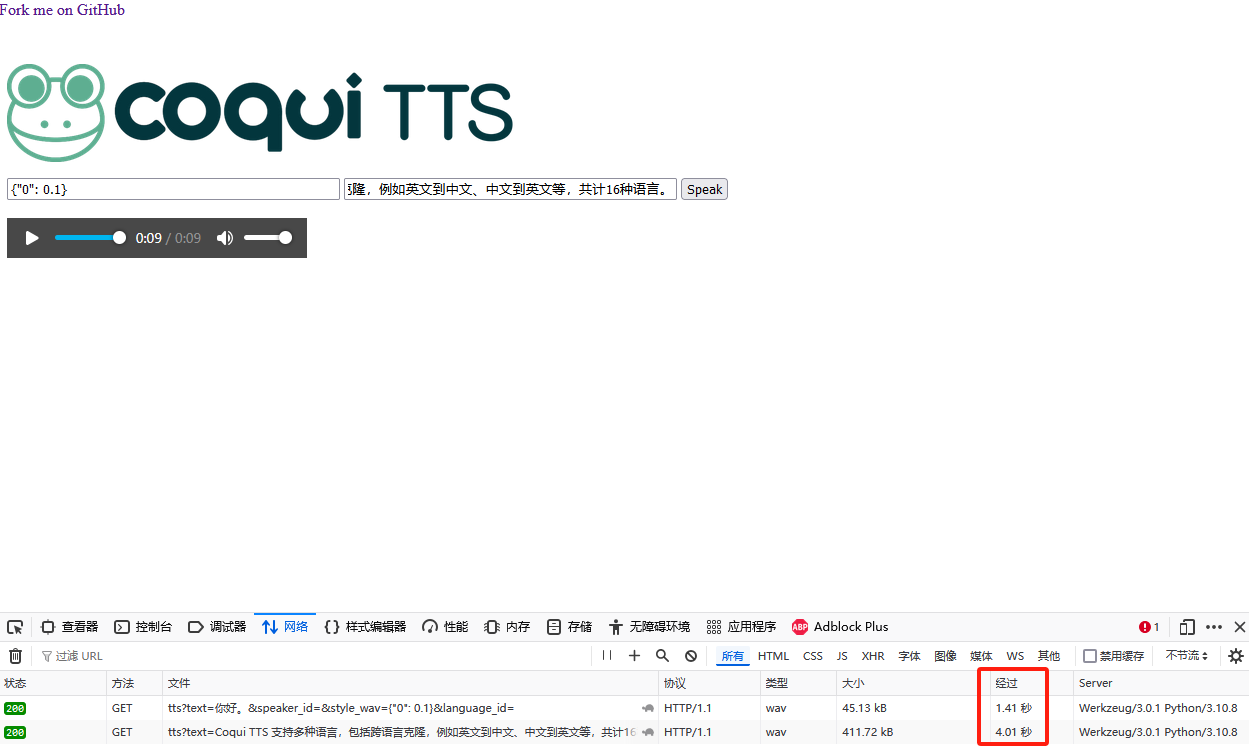

CoquiTTS
CoquiTTS
是一个开源的文字到语音(Text-to-Speech, TTS)系统,旨在使语音合成技术对研究人员、开发者和创造者更加可接近。它基于共同学习技术,能够从各语言的训练数据集中转换知识,从而有效降低所需的数据量。 CoquiTTS
支持多种语言,包括跨语言克隆,例如英文到中文、中文到英文等,共计 16
种语言。
此外, CoquiTTS
还提供了先进的多语言文本转语音库支持超过1100种语言的功能,并包含如 Tacotron2
、 VITS
和 YourTTS
等多种深度学习模型。它不仅用于生成高质量的语音,还提供训练新模型和微调现有模型的工具,支持多说话人 TTS,并提供了数据集分析功能。
CoquiTTS
因其高效性和多功能性而受到广泛关注,在 GitHub
上获得了 36.4k
的星标数,成为新一代开源语音技术的领军者。
安装
容器化部署,使用中文模型: tts_models/zh-CN/baker/tacotron2-DDC-GST
。
[root@tts ~]# docker run --rm -it -p 5002:5002 --entrypoint /bin/bash ghcr.io/coqui-ai/tts-cpu
Unable to find image 'ghcr.io/coqui-ai/tts-cpu:latest' locally
latest: Pulling from coqui-ai/tts-cpu
025c56f98b67: Pull complete
778656c04542: Pull complete
85485c9f43dd: Pull complete
23b3c91f0de2: Pull complete
fd19b936aab8: Pull complete
30b21c9aef2b: Pull complete
cc12d1e5322b: Pull complete
b91e9a336532: Pull complete
d679a5e35c77: Pull complete
0d84a5b8bca3: Pull complete
4f4fb700ef54: Pull complete
d170b2e70a00: Pull complete
c612db99f0b2: Pull complete
Digest: sha256:a2f6659245358c38efb1bb44b39f7b7b3459e03e9ed5687c447681cb82c35de3
Status: Downloaded newer image for ghcr.io/coqui-ai/tts-cpu:latest
root@b452b7513c7e:~# python3 TTS/server/server.py --list_models
Name format: type/language/dataset/model
1: tts_models/multilingual/multi-dataset/xtts_v2
2: tts_models/multilingual/multi-dataset/xtts_v1.1
3: tts_models/multilingual/multi-dataset/your_tts
4: tts_models/multilingual/multi-dataset/bark
5: tts_models/bg/cv/vits
6: tts_models/cs/cv/vits
7: tts_models/da/cv/vits
8: tts_models/et/cv/vits
9: tts_models/ga/cv/vits
10: tts_models/en/ek1/tacotron2
11: tts_models/en/ljspeech/tacotron2-DDC
12: tts_models/en/ljspeech/tacotron2-DDC_ph
13: tts_models/en/ljspeech/glow-tts
14: tts_models/en/ljspeech/speedy-speech
15: tts_models/en/ljspeech/tacotron2-DCA
16: tts_models/en/ljspeech/vits
17: tts_models/en/ljspeech/vits--neon
18: tts_models/en/ljspeech/fast_pitch
19: tts_models/en/ljspeech/overflow
20: tts_models/en/ljspeech/neural_hmm
21: tts_models/en/vctk/vits
22: tts_models/en/vctk/fast_pitch
23: tts_models/en/sam/tacotron-DDC
24: tts_models/en/blizzard2013/capacitron-t2-c50
25: tts_models/en/blizzard2013/capacitron-t2-c150_v2
26: tts_models/en/multi-dataset/tortoise-v2
27: tts_models/en/jenny/jenny
28: tts_models/es/mai/tacotron2-DDC
29: tts_models/es/css10/vits
30: tts_models/fr/mai/tacotron2-DDC
31: tts_models/fr/css10/vits
32: tts_models/uk/mai/glow-tts
33: tts_models/uk/mai/vits
34: tts_models/zh-CN/baker/tacotron2-DDC-GST
35: tts_models/nl/mai/tacotron2-DDC
36: tts_models/nl/css10/vits
37: tts_models/de/thorsten/tacotron2-DCA
38: tts_models/de/thorsten/vits
39: tts_models/de/thorsten/tacotron2-DDC
40: tts_models/de/css10/vits-neon
41: tts_models/ja/kokoro/tacotron2-DDC
42: tts_models/tr/common-voice/glow-tts
43: tts_models/it/mai_female/glow-tts
44: tts_models/it/mai_female/vits
45: tts_models/it/mai_male/glow-tts
46: tts_models/it/mai_male/vits
47: tts_models/ewe/openbible/vits
48: tts_models/hau/openbible/vits
49: tts_models/lin/openbible/vits
50: tts_models/tw_akuapem/openbible/vits
51: tts_models/tw_asante/openbible/vits
52: tts_models/yor/openbible/vits
53: tts_models/hu/css10/vits
54: tts_models/el/cv/vits
55: tts_models/fi/css10/vits
56: tts_models/hr/cv/vits
57: tts_models/lt/cv/vits
58: tts_models/lv/cv/vits
59: tts_models/mt/cv/vits
60: tts_models/pl/mai_female/vits
61: tts_models/pt/cv/vits
62: tts_models/ro/cv/vits
63: tts_models/sk/cv/vits
64: tts_models/sl/cv/vits
65: tts_models/sv/cv/vits
66: tts_models/ca/custom/vits
67: tts_models/fa/custom/glow-tts
68: tts_models/bn/custom/vits-male
69: tts_models/bn/custom/vits-female
70: tts_models/be/common-voice/glow-tts
Name format: type/language/dataset/model
1: vocoder_models/universal/libri-tts/wavegrad
2: vocoder_models/universal/libri-tts/fullband-melgan
3: vocoder_models/en/ek1/wavegrad
4: vocoder_models/en/ljspeech/multiband-melgan
5: vocoder_models/en/ljspeech/hifigan_v2
6: vocoder_models/en/ljspeech/univnet
7: vocoder_models/en/blizzard2013/hifigan_v2
8: vocoder_models/en/vctk/hifigan_v2
9: vocoder_models/en/sam/hifigan_v2
10: vocoder_models/nl/mai/parallel-wavegan
11: vocoder_models/de/thorsten/wavegrad
12: vocoder_models/de/thorsten/fullband-melgan
13: vocoder_models/de/thorsten/hifigan_v1
14: vocoder_models/ja/kokoro/hifigan_v1
15: vocoder_models/uk/mai/multiband-melgan
16: vocoder_models/tr/common-voice/hifigan
17: vocoder_models/be/common-voice/hifigan
Name format: type/language/dataset/model
1: voice_conversion_models/multilingual/vctk/freevc24

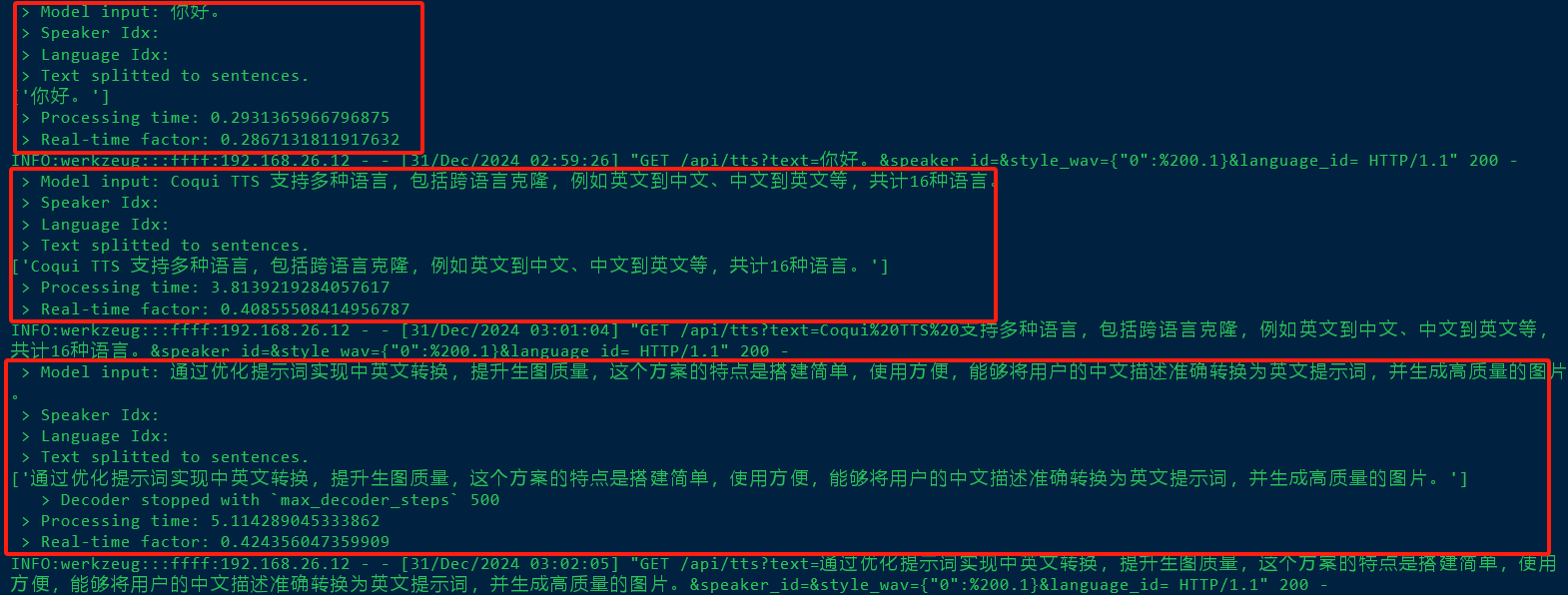

root@b452b7513c7e:~# python3 TTS/server/server.py --model_name tts_models/zh-CN/baker/tacotron2-DDC-GST
> tts_models/zh-CN/baker/tacotron2-DDC-GST is already downloaded.
> Using model: tacotron2
> Setting up Audio Processor...
| > sample_rate:22050
| > resample:False
| > num_mels:80
| > log_func:np.log10
| > min_level_db:-100
| > frame_shift_ms:None
| > frame_length_ms:None
| > ref_level_db:0
| > fft_size:1024
| > power:1.5
| > preemphasis:0.0
| > griffin_lim_iters:60
| > signal_norm:True
| > symmetric_norm:True
| > mel_fmin:50.0
| > mel_fmax:7600.0
| > pitch_fmin:0.0
| > pitch_fmax:640.0
| > spec_gain:1.0
| > stft_pad_mode:reflect
| > max_norm:4.0
| > clip_norm:True
| > do_trim_silence:True
| > trim_db:60
| > do_sound_norm:False
| > do_amp_to_db_linear:True
| > do_amp_to_db_mel:True
| > do_rms_norm:False
| > db_level:None
| > stats_path:/root/.local/share/tts/tts_models--zh-CN--baker--tacotron2-DDC-GST/scale_stats.npy
| > base:10
| > hop_length:256
| > win_length:1024
> Model's reduction rate `r` is set to: 2
* Serving Flask app 'server'
* Debug mode: off
INFO:werkzeug:WARNING: This is a development server. Do not use it in a production deployment. Use a production WSGI server instead.
* Running on all addresses (::)
* Running on http://[::1]:5002
* Running on http://[::1]:5002
INFO:werkzeug:Press CTRL+C to quit
INFO:werkzeug:::ffff:192.168.26.12 - - [31/Dec/2024 02:29:57] "GET / HTTP/1.1" 200 -
INFO:werkzeug:::ffff:192.168.26.12 - - [31/Dec/2024 02:30:39] "GET /favicon.ico HTTP/1.1" 404 -
INFO:werkzeug:::ffff:192.168.26.12 - - [31/Dec/2024 02:30:39] "GET /static/coqui-log-green-TTS.png HTTP/1.1" 200 -
> Model input: 你好。
> Speaker Idx:
> Language Idx:
> Text splitted to sentences.
['你好。']
Building prefix dict from the default dictionary ...
DEBUG:jieba:Building prefix dict from the default dictionary ...
Dumping model to file cache /tmp/jieba.cache
DEBUG:jieba:Dumping model to file cache /tmp/jieba.cache
Loading model cost 0.612 seconds.
DEBUG:jieba:Loading model cost 0.612 seconds.
Prefix dict has been built successfully.
DEBUG:jieba:Prefix dict has been built successfully.
> Processing time: 1.3838930130004883
> Real-time factor: 1.3535681749760808
INFO:werkzeug:::ffff:192.168.26.12 - - [31/Dec/2024 02:30:51] "GET /api/tts?text=你好。&speaker_id=&style_wav={"0":%200.1}&language_id= HTTP/1.1" 200 -
> Model input: Coqui TTS 支持多种语言,包括跨语言克隆,例如英文到中文、中文到英文等,共计16种语言。
> Speaker Idx:
> Language Idx:
> Text splitted to sentences.
['Coqui TTS 支持多种语言,包括跨语言克隆,例如英文到中文、中文到英文等,共计16种语言。']
Coqui TTS dʒʏ1ʈʂʏ2 duo1dʒoŋ3y3iɛn2 , baʌ1kuo4 kua4 y3iɛn2 kø4loŋ2 , li4ʐu2 ɨŋ1wœn2 daʌ4 dʒoŋ1wœn2 dʒoŋ1wœn2 daʌ4 ɨŋ1wœn2 dɵŋ3 , goŋ4dʑi4 ʂʏ2lio4dʒoŋ3 y3iɛn2 。
[!] Character 'C' not found in the vocabulary. Discarding it.
Coqui TTS dʒʏ1ʈʂʏ2 duo1dʒoŋ3y3iɛn2 , baʌ1kuo4 kua4 y3iɛn2 kø4loŋ2 , li4ʐu2 ɨŋ1wœn2 daʌ4 dʒoŋ1wœn2 dʒoŋ1wœn2 daʌ4 ɨŋ1wœn2 dɵŋ3 , goŋ4dʑi4 ʂʏ2lio4dʒoŋ3 y3iɛn2 。
[!] Character 'T' not found in the vocabulary. Discarding it.
Coqui TTS dʒʏ1ʈʂʏ2 duo1dʒoŋ3y3iɛn2 , baʌ1kuo4 kua4 y3iɛn2 kø4loŋ2 , li4ʐu2 ɨŋ1wœn2 daʌ4 dʒoŋ1wœn2 dʒoŋ1wœn2 daʌ4 ɨŋ1wœn2 dɵŋ3 , goŋ4dʑi4 ʂʏ2lio4dʒoŋ3 y3iɛn2 。
[!] Character 'S' not found in the vocabulary. Discarding it.
Coqui TTS dʒʏ1ʈʂʏ2 duo1dʒoŋ3y3iɛn2 , baʌ1kuo4 kua4 y3iɛn2 kø4loŋ2 , li4ʐu2 ɨŋ1wœn2 daʌ4 dʒoŋ1wœn2 dʒoŋ1wœn2 daʌ4 ɨŋ1wœn2 dɵŋ3 , goŋ4dʑi4 ʂʏ2lio4dʒoŋ3 y3iɛn2 。
[!] Character 'g' not found in the vocabulary. Discarding it.
> Processing time: 3.930570125579834
> Real-time factor: 0.4210506765887842
INFO:werkzeug:::ffff:192.168.26.12 - - [31/Dec/2024 02:37:24] "GET /api/tts?text=Coqui%20TTS%20支持多种语言,包括跨语言克隆,例如英文到中文、中文到英文等,共计16种语言。&speaker_id=&style_wav={"0":%200.1}&language_id= HTTP/1.1" 200
纯CPU运行效果
浏览器打开:http://192.168.44.171:5002;大部分情况下,会在5秒左右返回合成结果。
Note:
- 记得要在中文最后加上中文句号,否则模型会在后面加一段啊的声音,补齐12s的时长,这应该是个Bug。
- 对于较长的文本,比如50个文字以上,有时会出现最后一部分被截断的情况,这应该也是个Bug。
遇到模型下载失败的问题
- 报错信息:从GitHub上下载模型文件超时
root@b452b7513c7e:~# python3 TTS/server/server.py --model_name tts_models/zh-CN/baker/tacotron2-DDC-GST
> Downloading model to /root/.local/share/tts/tts_models--zh-CN--baker--tacotron2-DDC-GST
> Failed to download the model file to /root/.local/share/tts/tts_models--zh-CN--baker--tacotron2-DDC-GST
Traceback (most recent call last):
File "/usr/local/lib/python3.10/site-packages/urllib3/connection.py", line 203, in _new_conn
sock = connection.create_connection(
File "/usr/local/lib/python3.10/site-packages/urllib3/util/connection.py", line 85, in create_connection
raise err
File "/usr/local/lib/python3.10/site-packages/urllib3/util/connection.py", line 73, in create_connection
sock.connect(sa)
TimeoutError: [Errno 110] Connection timed out
The above exception was the direct cause of the following exception:
Traceback (most recent call last):
File "/usr/local/lib/python3.10/site-packages/requests/adapters.py", line 486, in send
resp = conn.urlopen(
File "/usr/local/lib/python3.10/site-packages/urllib3/connectionpool.py", line 844, in urlopen
retries = retries.increment(
File "/usr/local/lib/python3.10/site-packages/urllib3/util/retry.py", line 515, in increment
raise MaxRetryError(_pool, url, reason) from reason # type: ignore[arg-type]
urllib3.exceptions.MaxRetryError: HTTPSConnectionPool(host='github.com', port=443): Max retries exceeded with url: /coqui-ai/TTS/releases/download/v0.6.1_models/tts_models--zh-CN--baker--tacotron2-DDC-GST.zip (Caused by ConnectTimeoutError(<urllib3.connection.HTTPSConnection object at 0x7faab643bb50>, 'Connection to github.com timed out. (connect timeout=None)'))
- 解决方法:手动下载模型
从报错信息中可以看到模型的下载地址: https://github.com/coqui-ai/TTS/releases/download/v0.6.1_models/tts_models--zh-CN--baker--tacotron2-DDC-GST.zip
;手动下载后解压并传至容器的 /root/.local/share/tts
目录下。
[root@tts opt]# unzip tts_models--zh-CN--baker--tacotron2-DDC-GST.zip
Archive: tts_models--zh-CN--baker--tacotron2-DDC-GST.zip
creating: tts_models--zh-CN--baker--tacotron2-DDC-GST/
extracting: tts_models--zh-CN--baker--tacotron2-DDC-GST/model_file.pth
extracting: tts_models--zh-CN--baker--tacotron2-DDC-GST/scale_stats.npy
extracting: tts_models--zh-CN--baker--tacotron2-DDC-GST/config.json
[root@tts opt]# docker cp tts_models--zh-CN--baker--tacotron2-DDC-GST nostalgic_hawking:/root/.local/share/tts
Successfully copied 686MB to nostalgic_hawking:/root/.local/share/tts
小总结
架构是一种权衡。
根据当前的实际需求,下面来总结一下三种 TTS
方案的对比,在纯 CPU
、无互联网环境下进行中文文本语音合成(要求5秒内完成)时:
方案名称 | 合成效果 | 合成速度 | 是否满足需求 |
---|---|---|---|
eSpeak | 鬼畜声 | 毫秒级 | 速度满足,效果差 |
ChatTTS | 最佳 | 50秒左右 | 效果好,速度不达标 |
CoquiTTS | 正常 | 5秒左右 | 基本满足要求 |
综上, CoquiTTS
是最符合需求的方案,它能在纯 CPU
环境下5秒内完成合成,且语音效果可以接受。
Reference
- https://chattts.com/zh?__theme=dark#Demo
- https://github.com/jianchang512/ChatTTS-ui
- https://github.com/coqui-ai/TTS
- https://docs.coqui.ai/en/latest/tutorial_for_nervous_beginners.html
If you have any questions or any bugs are found, please feel free to contact me.
Your comments and suggestions are welcome!
