↵本项目第一版本实现在arduino框架下通过MAX30102 对血氧和心率进行实时监控，通过LM35 对温度进行监控。所有数值在 ssd 1306 上进行显示。在血氧低过一定数值的时，设备会通过蜂鸣器发出警报。

第二版本实现手机实时监控并做数据分析（后续更新）

第三版本实现远程监控（后续更新）

**********************************************

本文面向完全新手的arduino及无编程经验人员。让大家低成本的制作一台血氧仪实时监控自己和家人的健康状态。

PS:单本设备不能替代专业医疗血氧仪，仅作补充使用

器材：

LM 35 温度传感器

SSD 1306 OLED 显示器

MAX30102 心率传感器

杜邦线公母公公母母

蜂鸣器 micro bit51

arduino uno

面包板

绝缘胶布

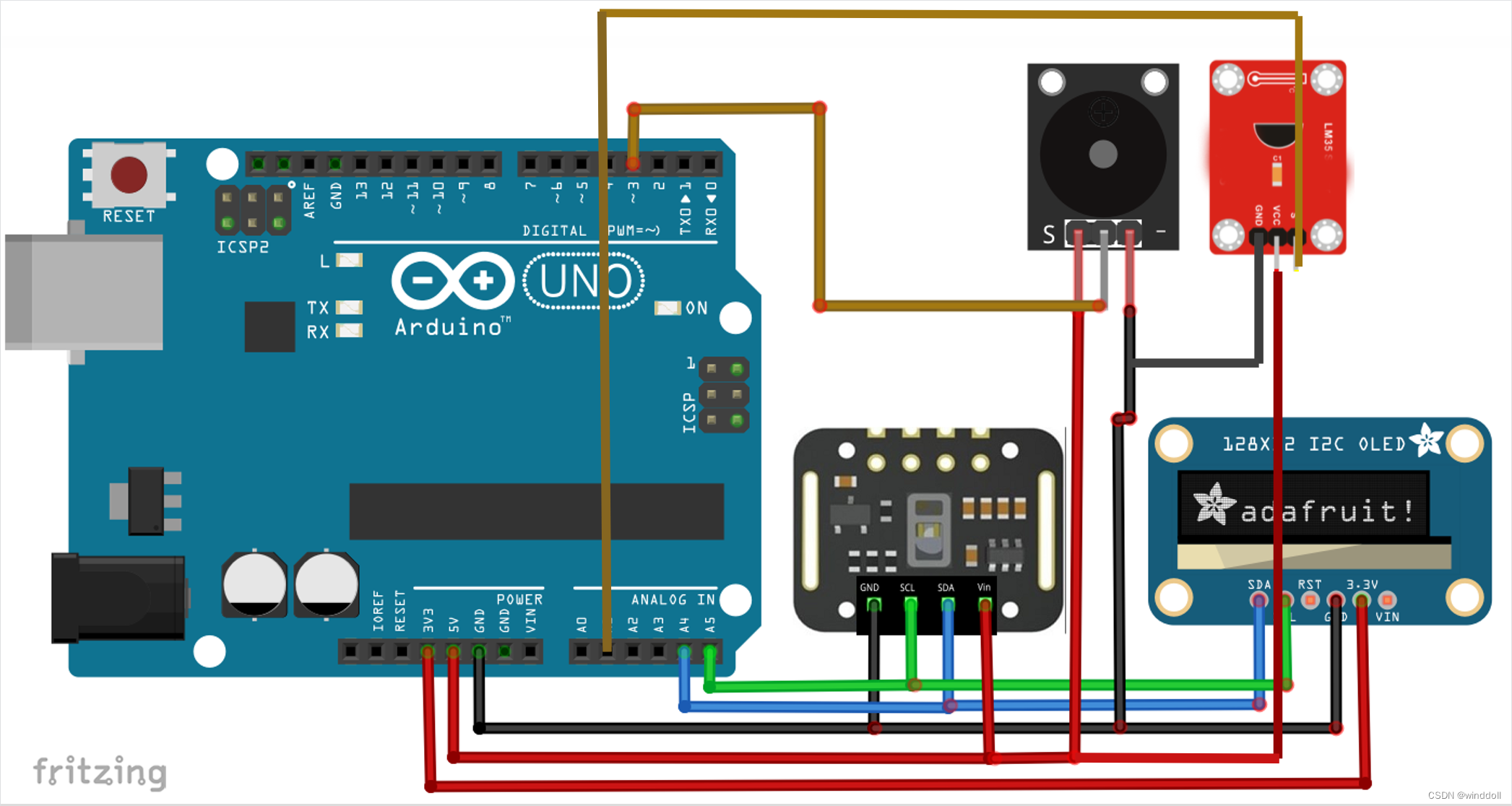

接线

LM35

arduino	LM35
5V	VCC
GND	GND
A1	S

SSD1306

arduino	SSD1306
3V3	3V3
GND	GND
A4	SDA
A5	SCL

蜂鸣器

arduino	蜂鸣器
5V	VCC
GND	GND
A1	S

MAX30102

arduino	MAX30102
3V3	3V3
GND	GND
A4	SDA
A5	SCL

******************************

如 max30102，ssd1306 同时需要连接A4 时，可以先连接面包板再连接进Arduino A4。

*****************************

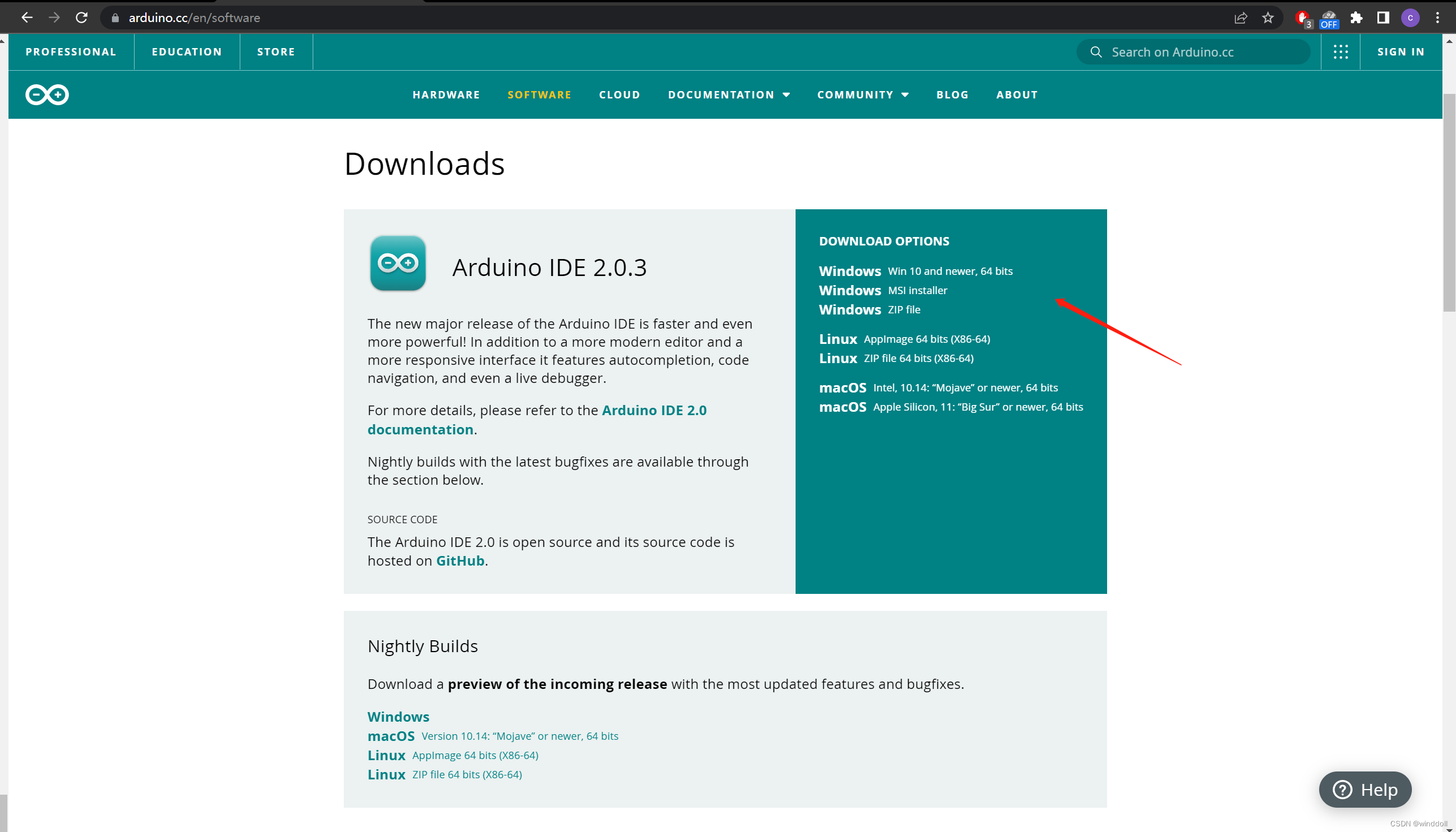

按照上述接线完成后，需要用到软件arduino

Software | Arduino

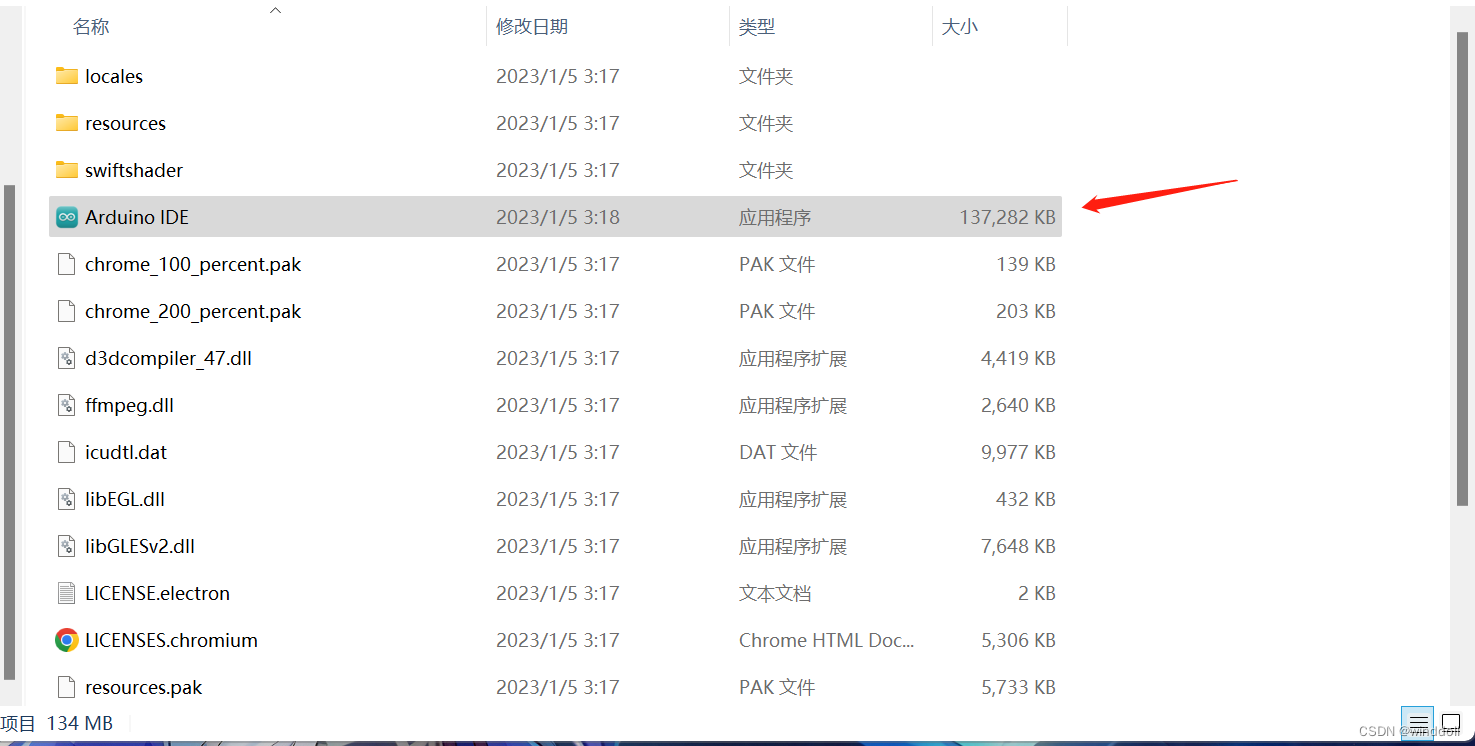

选择你要的版本；

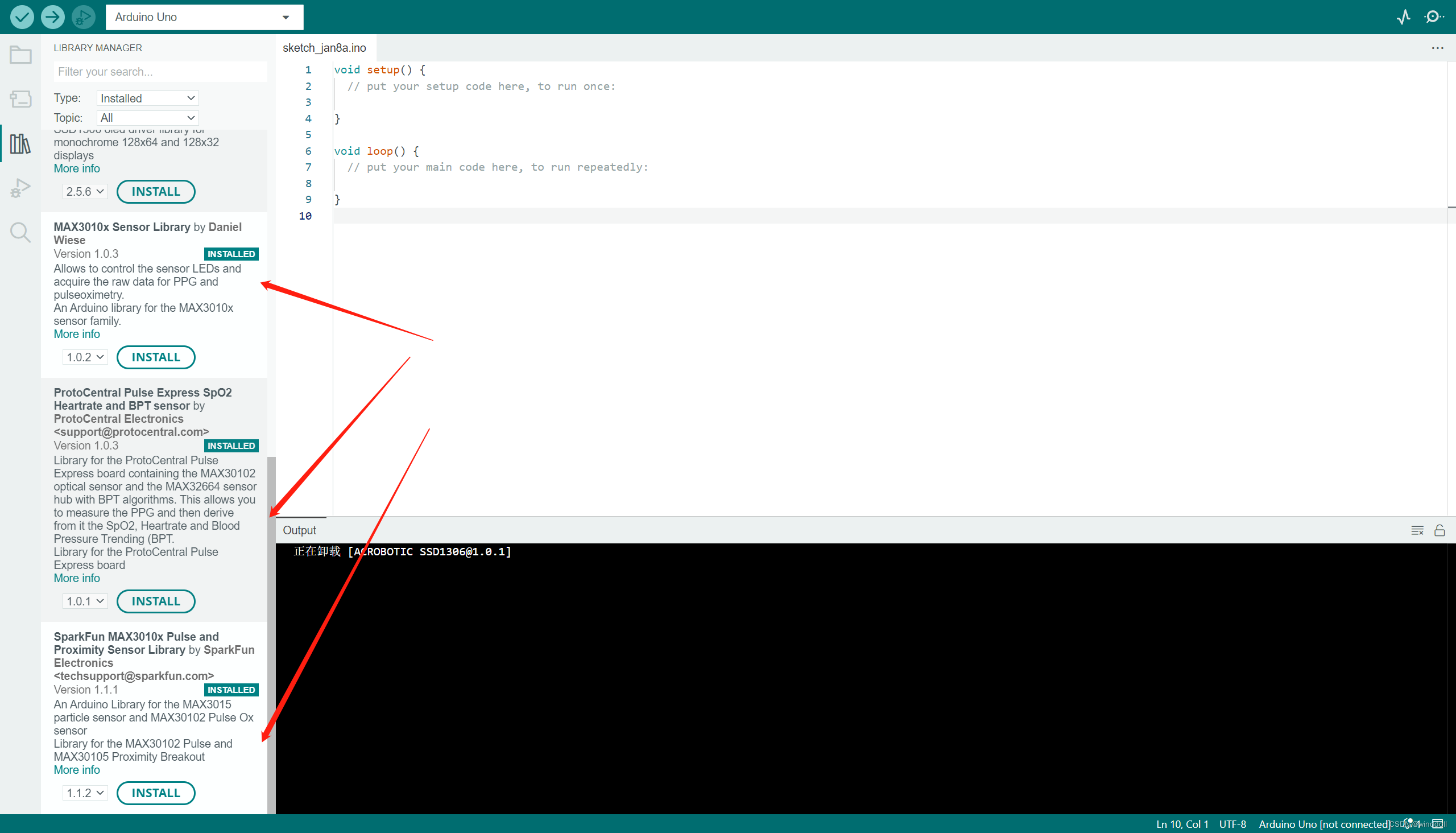

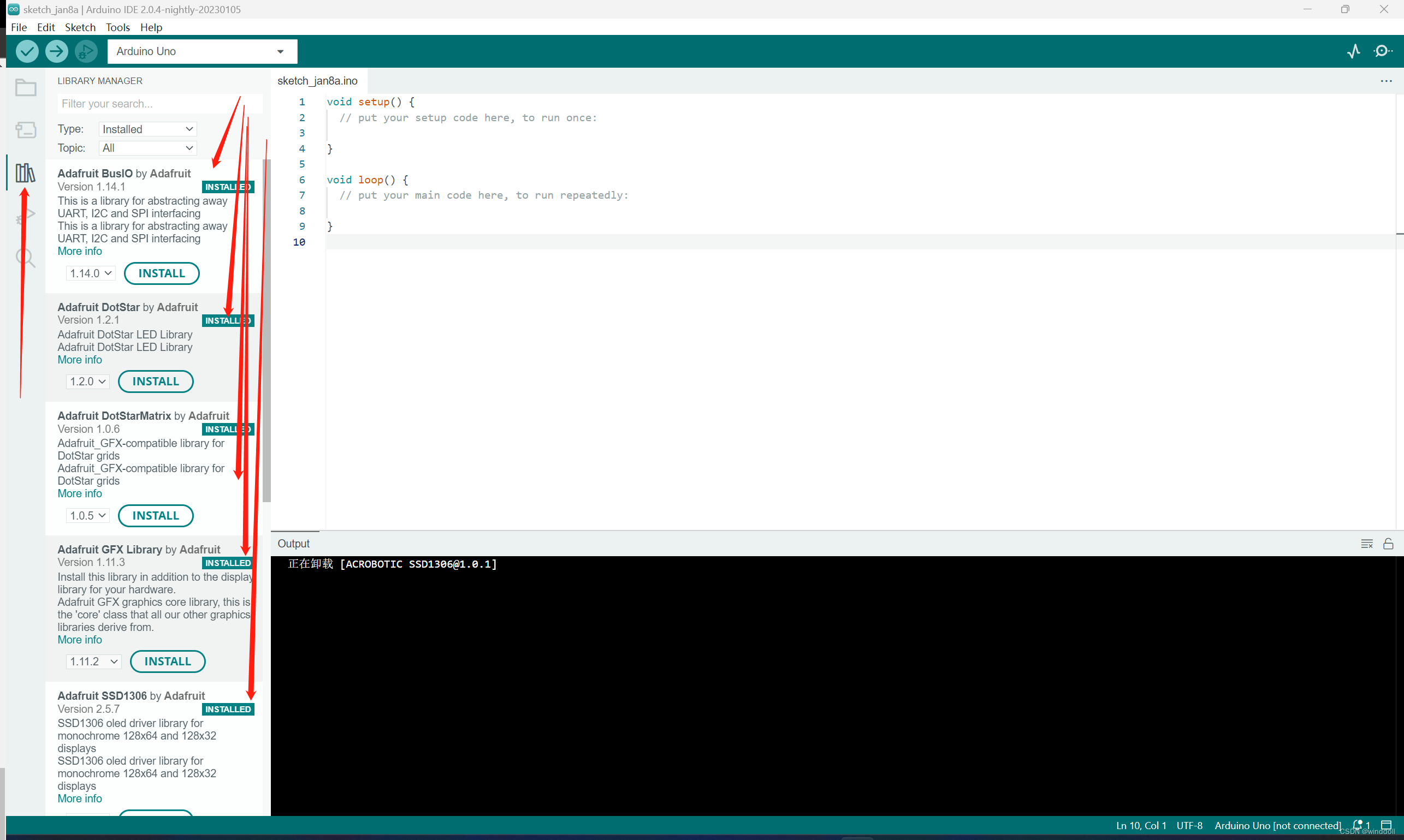

搜索并安装以下库，点击install 安装

将代码复制进项目里：

#include <MAX3010x.h>
#include "filters.h"
#include <Adafruit_GFX.h>        //OLED   libraries
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
//#include <MAX30105extra.h>
#define SCREEN_WIDTH 128 // OLED display width, in pixels
#define SCREEN_HEIGHT 64 // OLED display height, in pixels
#define OLED_RESET     -1 // Reset pin # (or -1 if sharing Arduino reset pin)
#define SCREEN_ADDRESS 0x3D ///< See datasheet for Address; 0x3D for 128x64, 0x3C for 128x32
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
// Sensor (adjust to your sensor type)
MAX30105 sensor;
//MAX30105extra particleSensor;
const auto kSamplingRate = sensor.SAMPLING_RATE_400SPS;
const float kSamplingFrequency = 400.0;

// Finger Detection Threshold and Cooldown
const unsigned long kFingerThreshold = 10000;
const unsigned int kFingerCooldownMs = 500;

// Edge Detection Threshold (decrease for MAX30100)
const float kEdgeThreshold = -2000.0;

// Filters
const float kLowPassCutoff = 5.0;
const float kHighPassCutoff = 0.5;

// Averaging
const bool kEnableAveraging = false;
const int kAveragingSamples = 5;
const int kSampleThreshold = 5;

// limitation of sop2
const int spo2limit =95;
void setup() {
  Serial.begin(9600);
  display.begin(SSD1306_SWITCHCAPVCC,   0x3C); //Start the OLED display
  delay(3000);
  tone(3,1000);                                        //And   tone the buzzer for a 100ms you can reduce it it will be better
  delay(1000);
  noTone(3);
  display.display();
  if(sensor.begin() && sensor.setSamplingRate(kSamplingRate)) {
    Serial.println("Sensor initialized");
  }
  else {
    Serial.println("Sensor not found");
    while(1);
  }
}

// Filter Instances
LowPassFilter low_pass_filter_red(kLowPassCutoff, kSamplingFrequency);
LowPassFilter low_pass_filter_ir(kLowPassCutoff, kSamplingFrequency);
HighPassFilter high_pass_filter(kHighPassCutoff, kSamplingFrequency);
Differentiator differentiator(kSamplingFrequency);
MovingAverageFilter<kAveragingSamples> averager_bpm;
MovingAverageFilter<kAveragingSamples> averager_r;
MovingAverageFilter<kAveragingSamples> averager_spo2;

// Statistic for pulse oximetry
MinMaxAvgStatistic stat_red;
MinMaxAvgStatistic stat_ir;

// R value to SpO2 calibration factors
// See https://www.maximintegrated.com/en/design/technical-documents/app-notes/6/6845.html
float kSpO2_A = 1.5958422;
float kSpO2_B = -34.6596622;
float kSpO2_C = 112.6898759;

// Timestamp of the last heartbeat
long last_heartbeat = 0;

// Timestamp for finger detection
long finger_timestamp = 0;
bool finger_detected = false;

// Last diff to detect zero crossing
float last_diff = NAN;
bool crossed = false;
long crossed_time = 0;

int lowsopcount =0;

void loop() {

  unsigned int val; //定义变量val
  unsigned int dat;//定义变量dat
  val=analogRead(1);//将val设置为读取到的A0的数值
  dat=(500 * val) /1024; //计算出当前温度数字dat
  auto sample = sensor.readSample(1000);
  float current_value_red = sample.red;
  float current_value_ir = sample.ir;
  // Detect Finger using raw sensor value
  if(sample.red > kFingerThreshold) {
    if(millis() - finger_timestamp > kFingerCooldownMs) {
      finger_detected = true;
    }
  }
  else {
    // Reset values if the finger is removed
    differentiator.reset();
    averager_bpm.reset();
    averager_r.reset();
    averager_spo2.reset();
    low_pass_filter_red.reset();
    low_pass_filter_ir.reset();
    high_pass_filter.reset();
    stat_red.reset();
    stat_ir.reset();

    finger_detected = false;
    finger_timestamp = millis();
  }

  if(finger_detected) {
    current_value_red = low_pass_filter_red.process(current_value_red);
    current_value_ir = low_pass_filter_ir.process(current_value_ir);

    // Statistics for pulse oximetry
    stat_red.process(current_value_red);
    stat_ir.process(current_value_ir);

    // Heart beat detection using value for red LED
    float current_value = high_pass_filter.process(current_value_red);
    float current_diff = differentiator.process(current_value);

    // Valid values?
    if(!isnan(current_diff) && !isnan(last_diff)) {

      // Detect Heartbeat - Zero-Crossing
      if(last_diff > 0 && current_diff < 0) {
        crossed = true;
        crossed_time = millis();
      }

      if(current_diff > 0) {
        crossed = false;
      }

      // Detect Heartbeat - Falling Edge Threshold
      if(crossed && current_diff < kEdgeThreshold) {
        if(last_heartbeat != 0 && crossed_time - last_heartbeat > 300) {
          // Show Results
          int bpm = 60000/(crossed_time - last_heartbeat);
          float rred = (stat_red.maximum()-stat_red.minimum())/stat_red.average();
          float rir = (stat_ir.maximum()-stat_ir.minimum())/stat_ir.average();
          float r = rred/rir;
          float spo2 = kSpO2_A * r * r + kSpO2_B * r + kSpO2_C;

          if(bpm > 50 && bpm < 250) {
            // Average?
            if(kEnableAveraging) {
              int average_bpm = averager_bpm.process(bpm);
              int average_r = averager_r.process(r);
              int average_spo2 = averager_spo2.process(spo2);

              // Show if enough samples have been collected
              if(averager_bpm.count() >= kSampleThreshold) {
                Serial.print("Time (ms): ");
                Serial.println(millis());
                Serial.print("Heart Rate (avg, bpm): ");
                Serial.println(average_bpm);
                Serial.print("R-Value (avg): ");
                Serial.println(average_r);
                Serial.print("SpO2 (avg, %): ");
                Serial.println(average_spo2);
                if( average_spo2 >100) average_spo2 = 100;
                display.clearDisplay();                                   //Clear the display
                display.setTextSize(2);                                   //Near   it display the average BPM you can display the BPM if you want
                display.setTextColor(WHITE);
                display.setCursor(15,0);
                display.println("BPM");
                display.setCursor(70,0);
                display.println(bpm);
                display.setCursor(15,18);
                display.println("SpO2");
                display.setCursor(70,18);
                display.println((int)average_spo2);
                display.setCursor(15,36);
                display.println("TMP");
                display.setCursor(70,36);
                display.println((int)dat);

                display.display();

                if ((int)average_spo2 < spo2limit){
                  lowsopcount++;
                  if (lowsopcount >3) {
                      tone(3,1000);                                        //And   tone the buzzer for a 100ms you can reduce it it will be better
                      delay(1000);
                      noTone(3);
                  }
                }
                if((int)average_spo2 >spo2limit)    lowsopcount = 0;
              }
            }
            else {
              Serial.print("Time (ms): ");
              Serial.println(millis());
              Serial.print("Heart Rate (current, bpm): ");
              Serial.println(bpm);
              Serial.print("R-Value (current): ");
              Serial.println(r);
              Serial.print("SpO2 (current, %): ");
              Serial.println(spo2);
              if( spo2 >100) spo2 = 100;
              display.clearDisplay();                                   //Clear the display
              display.setTextSize(2);                                   //Near   it display the average BPM you can display the BPM if you want
              display.setTextColor(WHITE);
              display.setCursor(15,0);
              display.println("BPM");
              display.setCursor(70,0);
              display.println(bpm);
              display.setCursor(15,18);
              display.println("SpO2");
              display.setCursor(70,18);
              display.println((int)spo2);
              display.setCursor(15,36);
              display.println("TMP");
              display.setCursor(70,36);
              display.println((int)dat);
              display.display();
              if ((int)spo2 < spo2limit){
                lowsopcount++;
                  if (lowsopcount >3) {
                      tone(3,1000);                                        //And   tone the buzzer for a 100ms you can reduce it it will be better
                      delay(1000);
                      noTone(3);
                  }
                }
              if((int)spo2 >spo2limit)    lowsopcount = 0;
            }
          }

          // Reset statistic
          stat_red.reset();
          stat_ir.reset();
        }

        crossed = false;
        last_heartbeat = crossed_time;
      }
    }

    last_diff = current_diff;
  }
}

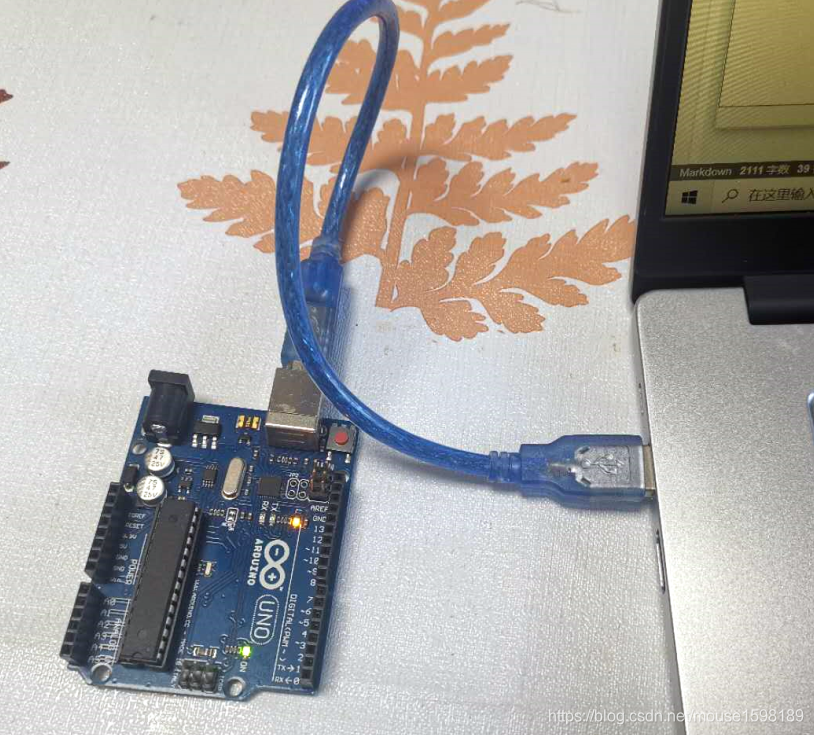

将arduino 插入电脑中

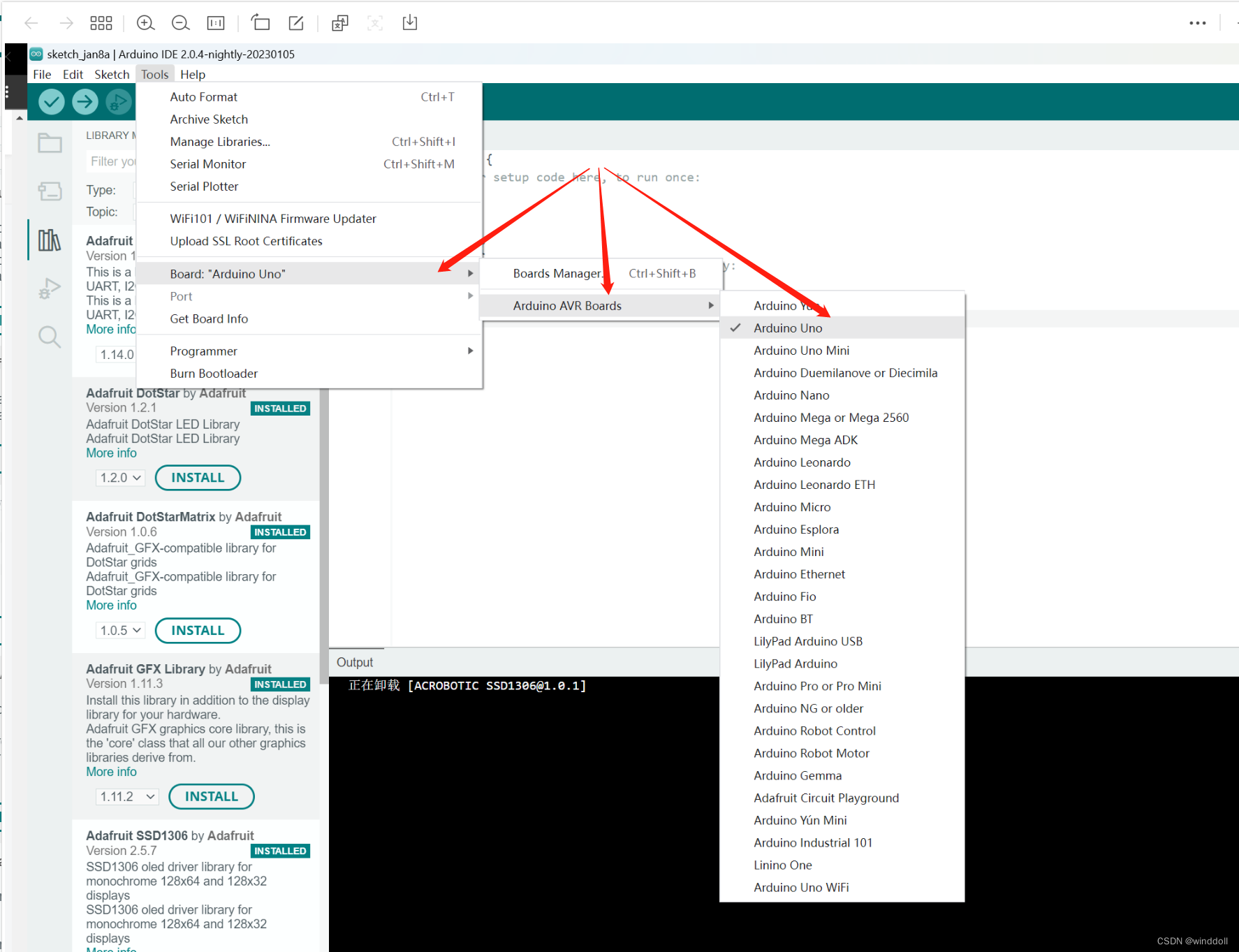

选择你所用的arduino uno板

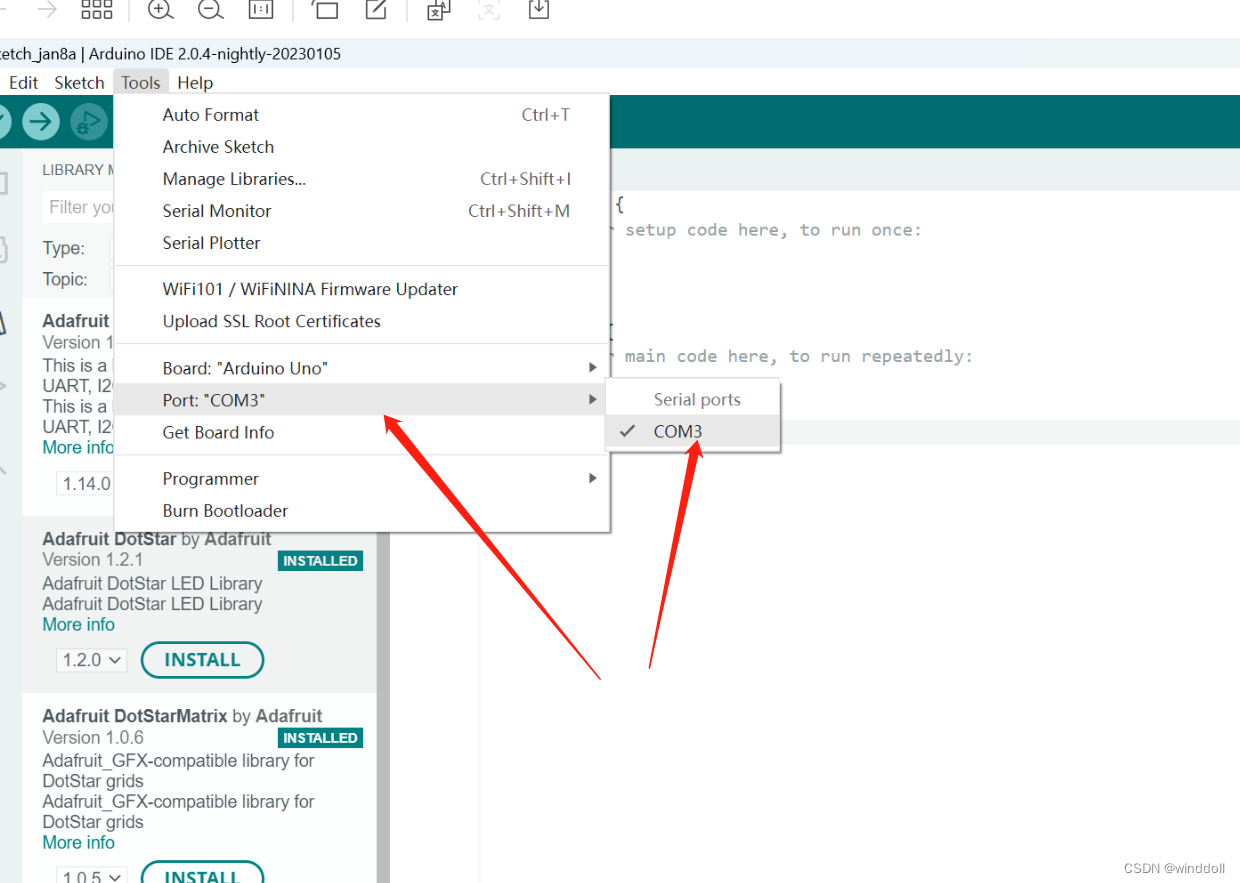

选择你的Port

***********************************

每台电脑的Port 口可能不一样，不影响代码导入

**********************************

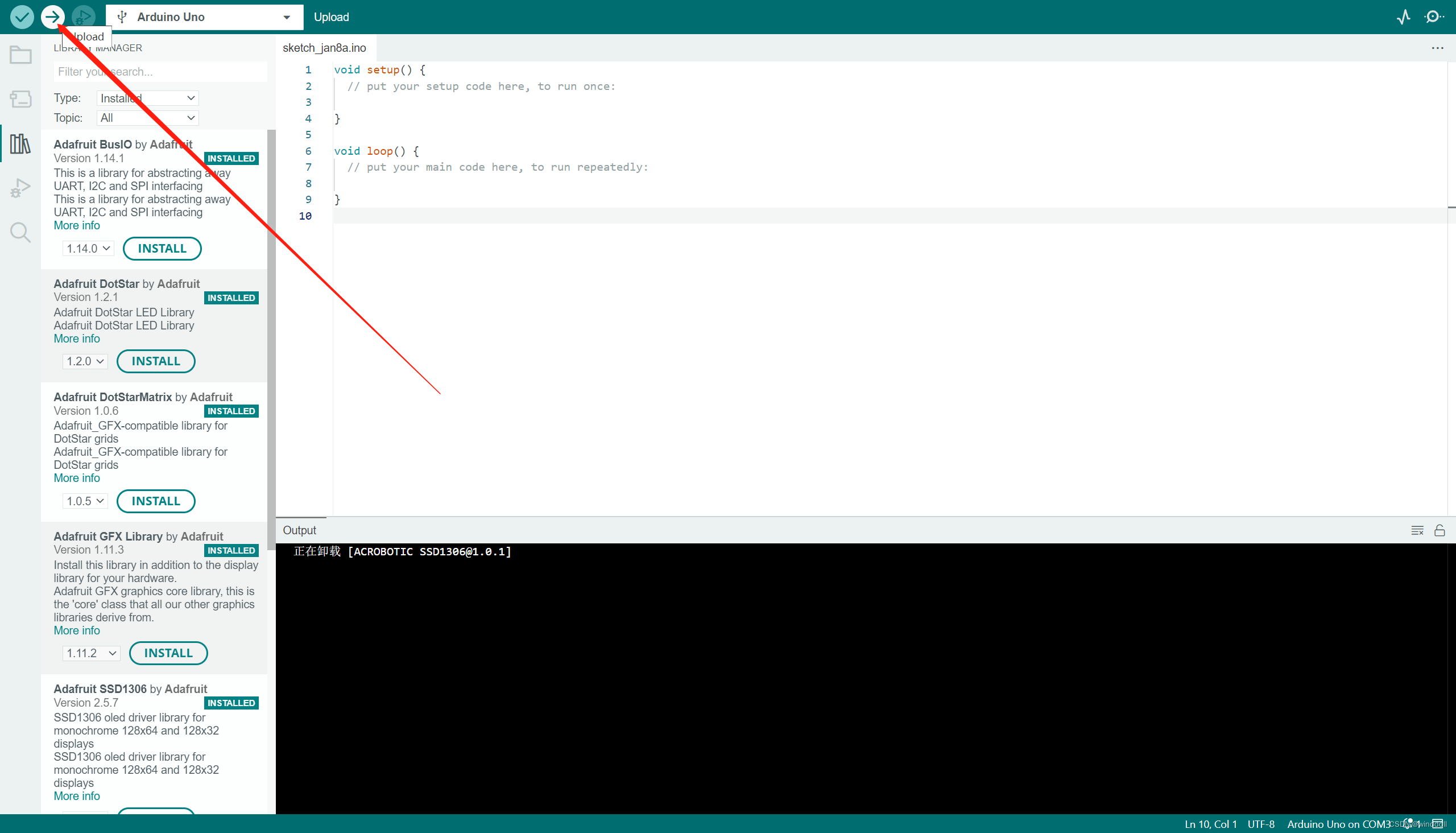

点击上传按钮将代码烧录进arduino uno里

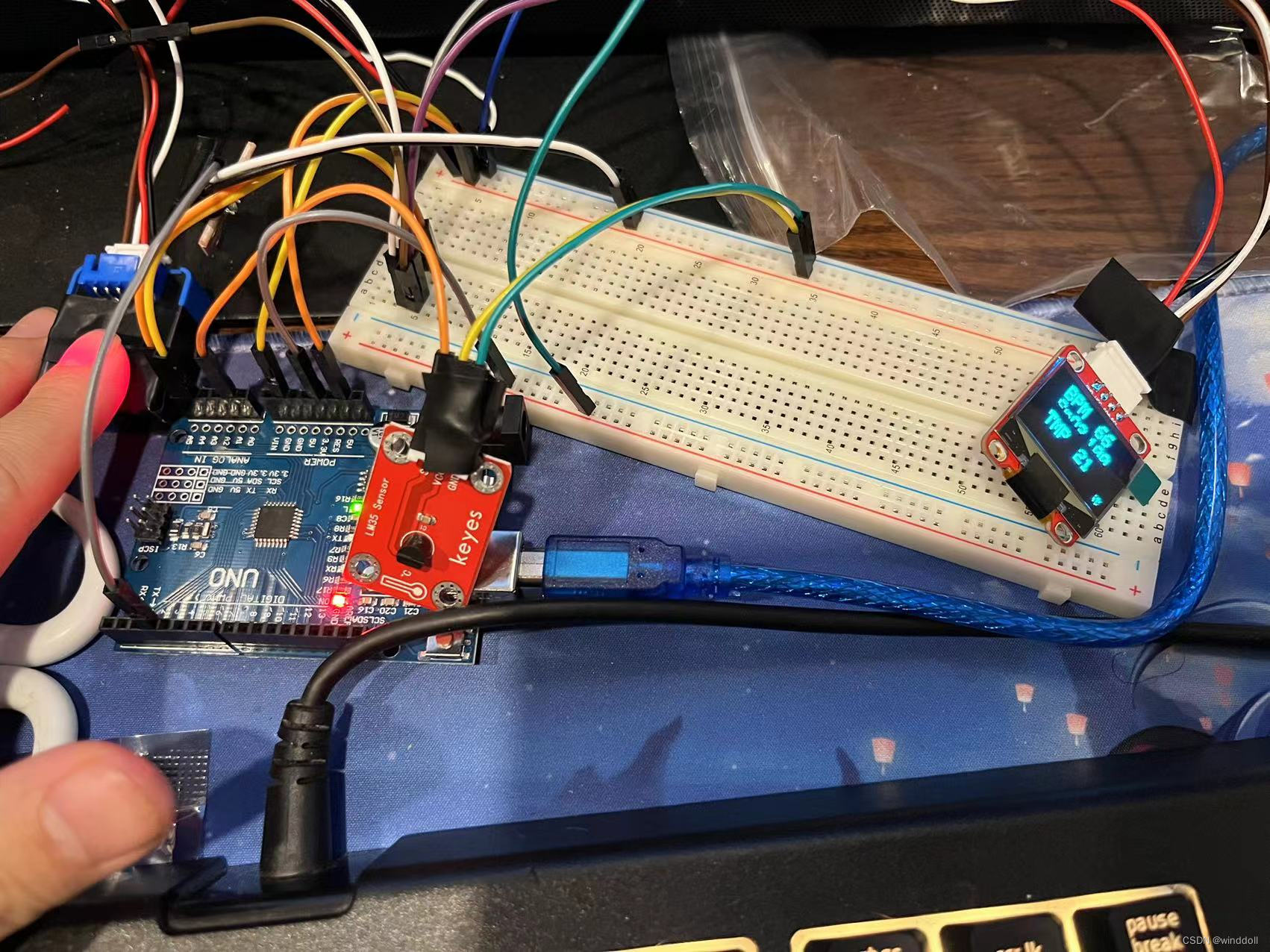

显示upload success，显示器显示adafruit的图案（杨桃），蜂鸣器发出声音表示代码正常导入arduino中。

备注：

Max30102可以在外围一圈包裹上绝缘胶布以提高其精准性

杜邦线也可以用绝缘胶布进行稳定

代码在upload 的时候可能会出错显示有的库未找到，再次upload就行。

对于MAX30102，最坑的地方在于，如果使用sparkfun/SparkFun MAX3010x Pulse and Proximity Sensor Library，那么读取到的IR和RED是反的。表现为可以读取到稳定的心率，却始终无法获取稳定的血氧, SPO2经常是-999。拿Example8_SPO2举例，原始代码为：

redBuffer[i] = particleSensor.getRed();
irBuffer[i] = particleSensor.getIR();

应改为

redBuffer[i] = particleSensor.getIR();
irBuffer[i] = particleSensor.getRed();

似乎是因为max30102和max30105的这个信息是反的。

这部分可以用下面的链接验证，RED应该要比IR的波动小才对：coniferconifer/ESP32_MAX30102_simple-SpO2_plotter: Simple SpO2 plotter from scratch for Arduno IDE by reading MH-ET LIVE MAX30102 raw RED/IR data (github.com)

---------------------
