【Spring】BeanFactoryPostProcessor的使用与执行原理分析

BeanFactory的后置处理器就是BeanFactoryPostProcessor接口，该接口有一个方法postProcessBeanFactory，这个方法会在BeanFactory初始化之后调用，这时所有的bean定义（BeanDefinition）已经保存加载到beanFactory，但是bean的实例还未创建，可以通过BeanFactory对BeanDefinition的内容进行修改，也可以增加BeanDefinition。

BeanFactoryPostProcessor

先自定义一个BeanFactoryPostProcessor：

package com.morris.spring.demo.ext;

import org.springframework.beans.BeansException;
import org.springframework.beans.factory.config.BeanFactoryPostProcessor;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;

import java.util.Arrays;

public class MyBeanFactoryPostProcessor implements BeanFactoryPostProcessor {

    @Override
    public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
        System.out.println("MyBeanPostProcessor.postProcessBeanFactory");
        Arrays.asList(beanFactory.getBeanDefinitionNames()).forEach(System.out::println);
    }
}

将自定义的BeanFactoryPostProcessor注入到容器中：

new AnnotationConfigApplicationContext(MyBeanFactoryPostProcessor.class);

也可以通过applicationContext.addBeanFactoryPostProcessor()将自定义的BeanFactoryPostProcessor注入到容器中:

AnnotationConfigApplicationContext applicationContext = new AnnotationConfigApplicationContext();
applicationContext.addBeanFactoryPostProcessor(new MyBeanFactoryPostProcessor());
applicationContext.refresh();

当然也可以像容器中注入任意bean的方式注入，如在类上加个@Compoent，让容器扫描到；在配置类中使用@Bean注入。

运行结果如下：

MyBeanPostProcessor.postProcessBeanFactory
org.springframework.context.annotation.internalConfigurationAnnotationProcessor
org.springframework.context.annotation.internalAutowiredAnnotationProcessor
org.springframework.context.annotation.internalCommonAnnotationProcessor
org.springframework.context.event.internalEventListenerProcessor
org.springframework.context.event.internalEventListenerFactory

BeanDefinitionRegistryPostProcessor

BeanDefinitionRegistryPostProcessor是BeanFactoryPostProcessor的子接口，它有一个postProcessBeanDefinitionRegistry方法，这个方法会在父接口BeanFactoryPostProcessor的postProcessBeanFactory()方法之前执行，可以用来给容器中添加新的BeanDefinition，后续容器会根据BeanDefinition注入对应的Bean。

自定义BeanDefinitionRegistryPostProcessor：

package com.morris.spring.demo.ext;

import com.morris.spring.entity.User;
import org.springframework.beans.BeansException;
import org.springframework.beans.PropertyValue;
import org.springframework.beans.factory.config.ConfigurableListableBeanFactory;
import org.springframework.beans.factory.support.AbstractBeanDefinition;
import org.springframework.beans.factory.support.BeanDefinitionBuilder;
import org.springframework.beans.factory.support.BeanDefinitionRegistry;
import org.springframework.beans.factory.support.BeanDefinitionRegistryPostProcessor;

import java.util.Arrays;

public class MyBeanDefinitionRegistryPostProcessor implements BeanDefinitionRegistryPostProcessor {
	@Override
	public void postProcessBeanDefinitionRegistry(BeanDefinitionRegistry registry) throws BeansException {
		System.out.println("MyBeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry");

		AbstractBeanDefinition beanDefinition = BeanDefinitionBuilder.genericBeanDefinition(User.class).getBeanDefinition();
		PropertyValue username = new PropertyValue("username", "morris");
		beanDefinition.getPropertyValues().addPropertyValue(username);
		PropertyValue age = new PropertyValue("age", 18);
		beanDefinition.getPropertyValues().addPropertyValue(age);
		registry.registerBeanDefinition("user", beanDefinition);
	}

	@Override
	public void postProcessBeanFactory(ConfigurableListableBeanFactory beanFactory) throws BeansException {
		System.out.println("MyBeanDefinitionRegistryPostProcessor.postProcessBeanFactory");
		Arrays.asList(beanFactory.getBeanDefinitionNames()).forEach(System.out::println);
	}
}

自定义的BeanDefinitionRegistryPostProcessor同样可以使用register和addBeanFactoryPostProcessor注入，这两种注入方法在执行顺序上会有点不一样，使用addBeanFactoryPostProcessor注入的BeanDefinitionRegistryPostProcessor的postProcessBeanDefinitionRegistry会先执行，这一点后面可以在源码分析中看到。

运行结果如下：

MyBeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry
MyBeanDefinitionRegistryPostProcessor.postProcessBeanFactory
org.springframework.context.annotation.internalConfigurationAnnotationProcessor
org.springframework.context.annotation.internalAutowiredAnnotationProcessor
org.springframework.context.annotation.internalCommonAnnotationProcessor
org.springframework.context.event.internalEventListenerProcessor
org.springframework.context.event.internalEventListenerFactory
myBeanDefinitionRegistryPostProcessor
user
User(username=morris, age=18)

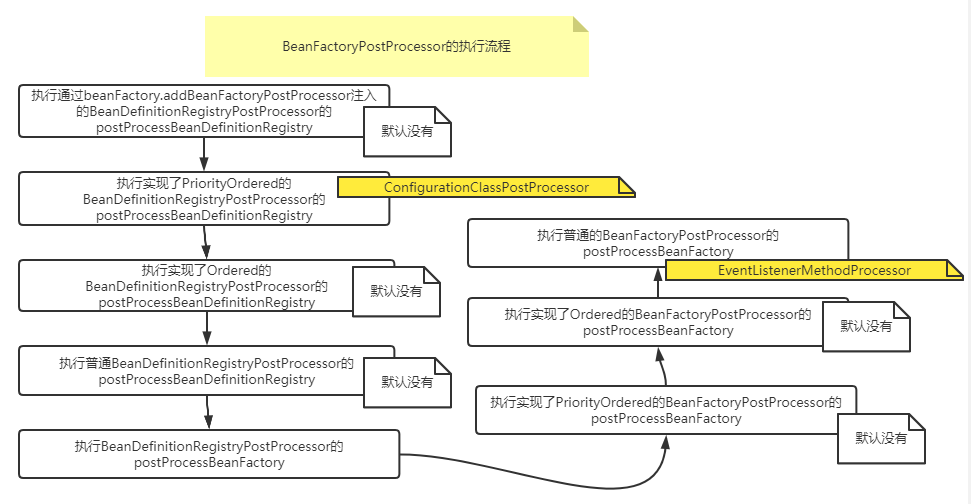

BeanFactoryPostProcessor的执行原理分析

BeanFactoryPostProcessor的执行逻辑是在PostProcessorRegistrationDelegate#invokeBeanFactoryPostProcessors中：

// BeanFactoryPostProcessor有两类
    // 一类就是BeanFactoryPostProcessor，方法postProcessBeanFactory，方法会在所有的BeanDefinition加载完成后执行
    // 一类是BeanFactoryPostProcessor的子接口BeanDefinitionRegistryPostProcessor，方法postProcessBeanDefinitionRegistry，可以使用此方法往容器中注入BeanDefinition，也可以修改容器中的BeanDefinition
    // postProcessBeanDefinitionRegistry方法在postProcessBeanFactory之前执行
    public static void invokeBeanFactoryPostProcessors(
            ConfigurableListableBeanFactory beanFactory, List<BeanFactoryPostProcessor> beanFactoryPostProcessors) {

        // Invoke BeanDefinitionRegistryPostProcessors first, if any.
        Set<String> processedBeans = new HashSet<>();

        if (beanFactory instanceof BeanDefinitionRegistry) {
            BeanDefinitionRegistry registry = (BeanDefinitionRegistry) beanFactory;
            List<BeanFactoryPostProcessor> regularPostProcessors = new ArrayList<>();
            List<BeanDefinitionRegistryPostProcessor> registryProcessors = new ArrayList<>();

            // 这里的beanFactoryPostProcessors是通过beanFactory.addBeanFactoryPostProcessor注入的
            // 先调用自己注入的BeanDefinitionRegistryPostProcessor的
            for (BeanFactoryPostProcessor postProcessor : beanFactoryPostProcessors) {
                if (postProcessor instanceof BeanDefinitionRegistryPostProcessor) {
                    BeanDefinitionRegistryPostProcessor registryProcessor =
                            (BeanDefinitionRegistryPostProcessor) postProcessor;
                    // 调用BeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry
                    registryProcessor.postProcessBeanDefinitionRegistry(registry);
                    registryProcessors.add(registryProcessor);
                }
                else {
                    regularPostProcessors.add(postProcessor);
                }
            }

            // Do not initialize FactoryBeans here: We need to leave all regular beans
            // uninitialized to let the bean factory post-processors apply to them!
            // Separate between BeanDefinitionRegistryPostProcessors that implement
            // PriorityOrdered, Ordered, and the rest.

            List<BeanDefinitionRegistryPostProcessor> currentRegistryProcessors = new ArrayList<>();

            // First, invoke the BeanDefinitionRegistryPostProcessors that implement PriorityOrdered.
            // 实现了PriorityOrdered接口的BeanDefinitionRegistryPostProcessor
            // 这里默认会有一个org.springframework.context.annotation.internalConfigurationAnnotationProcessor=ConfigurationClassPostProcessor
			/**
			 * AnnotationConfigApplicationContext构造方法中
			 * this.reader = new AnnotatedBeanDefinitionReader(this);
			 * 这个类何时被注入？AnnotatedBeanDefinitionReader中注入
			 * @see org.springframework.context.annotation.AnnotationConfigUtils#registerAnnotationConfigProcessors
			 */
            String[] postProcessorNames =
                    beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
            for (String ppName : postProcessorNames) {
                if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
                    // beanFactory.getBean会完成BeanFactoryPostProcessord
                    currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                    processedBeans.add(ppName);
                }
            }
            sortPostProcessors(currentRegistryProcessors, beanFactory);
            registryProcessors.addAll(currentRegistryProcessors);
            // 调用BeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry
            invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
            currentRegistryProcessors.clear();

            // Next, invoke the BeanDefinitionRegistryPostProcessors that implement Ordered.
            // 实现了Ordered接口的BeanDefinitionRegistryPostProcessor
            // 这里默认没有
            postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
            for (String ppName : postProcessorNames) {
                if (!processedBeans.contains(ppName) && beanFactory.isTypeMatch(ppName, Ordered.class)) {
                    currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                    processedBeans.add(ppName);
                }
            }
            sortPostProcessors(currentRegistryProcessors, beanFactory);
            registryProcessors.addAll(currentRegistryProcessors);
            // 调用BeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry
            invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
            currentRegistryProcessors.clear();

            // Finally, invoke all other BeanDefinitionRegistryPostProcessors until no further ones appear.
            boolean reiterate = true;
            while (reiterate) {
                reiterate = false;
                // 这里默认无
                postProcessorNames = beanFactory.getBeanNamesForType(BeanDefinitionRegistryPostProcessor.class, true, false);
                for (String ppName : postProcessorNames) {
                    if (!processedBeans.contains(ppName)) {
                        currentRegistryProcessors.add(beanFactory.getBean(ppName, BeanDefinitionRegistryPostProcessor.class));
                        processedBeans.add(ppName);
                        reiterate = true;
                    }
                }
                sortPostProcessors(currentRegistryProcessors, beanFactory);
                registryProcessors.addAll(currentRegistryProcessors);
                // 调用BeanDefinitionRegistryPostProcessor.postProcessBeanDefinitionRegistry
                invokeBeanDefinitionRegistryPostProcessors(currentRegistryProcessors, registry);
                currentRegistryProcessors.clear();
            }

            // Now, invoke the postProcessBeanFactory callback of all processors handled so far.
            // BeanFactoryPostProcessor的postProcessBeanFactory
            invokeBeanFactoryPostProcessors(registryProcessors, beanFactory);
            invokeBeanFactoryPostProcessors(regularPostProcessors, beanFactory);
        }

        else {
            // Invoke factory processors registered with the context instance.
            invokeBeanFactoryPostProcessors(beanFactoryPostProcessors, beanFactory);
        }

        // Do not initialize FactoryBeans here: We need to leave all regular beans
        // uninitialized to let the bean factory post-processors apply to them!
        // 获取spring容器所有实现了BeanFactoryPostProcessor接口的beandefinitin
        String[] postProcessorNames =
                beanFactory.getBeanNamesForType(BeanFactoryPostProcessor.class, true, false);

        // Separate between BeanFactoryPostProcessors that implement PriorityOrdered,
        // Ordered, and the rest.
        // 默认情况下priorityOrderedPostProcessors为空
        List<BeanFactoryPostProcessor> priorityOrderedPostProcessors = new ArrayList<>(); // 实现了PriorityOrdered的BeanFactoryPostProcessor集合
        List<String> orderedPostProcessorNames = new ArrayList<>(); // 实现了Ordered的BeanFactoryPostProcessor beanname集合
        List<String> nonOrderedPostProcessorNames = new ArrayList<>(); // 未实现PriorityOrdered和Ordered的BeanFactoryPostProcessor beanname集合
        for (String ppName : postProcessorNames) {
            if (processedBeans.contains(ppName)) {
                // skip - already processed in first phase above
            }
            else if (beanFactory.isTypeMatch(ppName, PriorityOrdered.class)) {
                priorityOrderedPostProcessors.add(beanFactory.getBean(ppName, BeanFactoryPostProcessor.class));
            }
            else if (beanFactory.isTypeMatch(ppName, Ordered.class)) {
                orderedPostProcessorNames.add(ppName);
            }
            else {
                nonOrderedPostProcessorNames.add(ppName);
            }
        }

        // First, invoke the BeanFactoryPostProcessors that implement PriorityOrdered.
        // 对实现了PriorityOrdered接口的BeanFactoryPostProcessors排序
        // 根据PriorityOrdered接口的getOrder方法进行排序
        sortPostProcessors(priorityOrderedPostProcessors, beanFactory);
        // 调用实现了PriorityOrdered接口的BeanFactoryPostProcessor的postProcessBeanFactory
        invokeBeanFactoryPostProcessors(priorityOrderedPostProcessors, beanFactory);

        // Next, invoke the BeanFactoryPostProcessors that implement Ordered.
        // 默认情况下，实现了Ordered接口的BeanFactoryPostProcessors为空
        List<BeanFactoryPostProcessor> orderedPostProcessors = new ArrayList<>(); // 实现了Ordered的BeanFactoryPostProcessor集合
        for (String postProcessorName : orderedPostProcessorNames) {
            orderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
        }
        // 对实现了Ordered接口的BeanFactoryPostProcessors排序
        // 根据Ordered接口的getOrder方法进行排序
        sortPostProcessors(orderedPostProcessors, beanFactory);
        // 调用实现了Ordered接口的BeanFactoryPostProcessor的postProcessBeanFactory
        invokeBeanFactoryPostProcessors(orderedPostProcessors, beanFactory);

        // Finally, invoke all other BeanFactoryPostProcessors.
        // nonOrderedPostProcessors有一个org.springframework.context.event.internalEventListenerProcessor=EventListenerMethodProcessor
        List<BeanFactoryPostProcessor> nonOrderedPostProcessors = new ArrayList<>(); // 未实现PriorityOrdered和Ordered的BeanFactoryPostProcessor集合
        for (String postProcessorName : nonOrderedPostProcessorNames) {
            nonOrderedPostProcessors.add(beanFactory.getBean(postProcessorName, BeanFactoryPostProcessor.class));
        }
        // 调用未实现PriorityOrdered和Ordered的BeanFactoryPostProcessor的postProcessBeanFactory
        invokeBeanFactoryPostProcessors(nonOrderedPostProcessors, beanFactory);

        // Clear cached merged bean definitions since the post-processors might have
        // modified the original metadata, e.g. replacing placeholders in values...
        beanFactory.clearMetadataCache();
    }
