Swift4.0 实现底部弹出框



网上找了些例子，但是并不能满足我的要求，下面我将网上的荔枝与自己的改进分享给大家

原理： 通过swift4的present 结合SnapKit进行布局

看效果图：

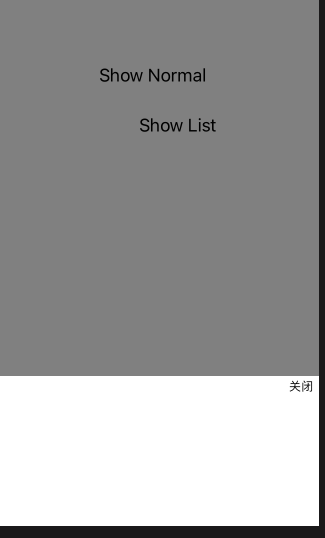

1、包含自定义view：

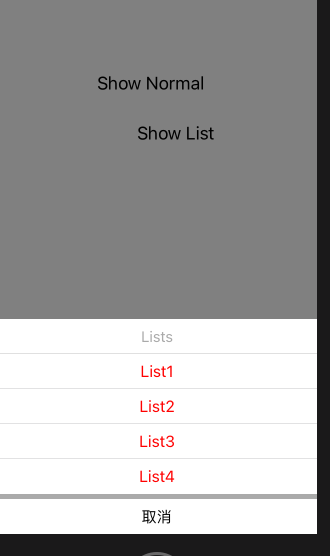

2:显示List



项目引进Snapkit

# Uncomment the next line to define a global platform for your project
# platform :ios, '9.0'

target 'Test' do
  # Comment the next line if you don't want to use dynamic frameworks
  use_frameworks!
  pod 'SnapKit'
  # Pods for lhcp
end



弹出框的基类： 可继承实现自己的效果

import SnapKit
import UIKit
class BasePopView: UIViewController{

    var contentVeiw = UIView()
    var viewHight: CGFloat = 150
    var needClose = true

    let kScreenWidth: CGFloat = UIScreen.main.bounds.size.width
    let kScreenHeight: CGFloat = UIScreen.main.bounds.size.height


    required init() {
        super.init(nibName: nil, bundle: nil)

        view.backgroundColor = UIColor.clear
        self.providesPresentationContextTransitionStyle = true
        self.definesPresentationContext = true
        self.modalPresentationStyle = .custom

        // 初始化UI
        setupUIViews()
    }

    required init?(coder aDecoder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    override func viewWillAppear(_ animated: Bool) {
        super.viewWillAppear(animated)
        UIView.animate(withDuration: 0.25) {
            self.contentVeiw.alpha = 1
        }

    }

    func setupUIViews() {
        self.contentVeiw = UIView()
        self.contentVeiw.backgroundColor = UIColor.white
        view.addSubview(self.contentVeiw)
        self.contentVeiw.snp.makeConstraints { (make) -> Void in
            make.left.equalTo(0)
            make.right.equalTo(0)
            make.width.equalTo(kScreenWidth)
            make.height.equalTo(viewHight)
            make.top.equalTo(self.view).offset(kScreenHeight-viewHight)
        }

        if(needClose){
            let close = UIButton()
            close.titleLabel?.font = UIFont.systemFont(ofSize: 12)
            close.setTitle("关闭", for: UIControl.State())
            close.setTitleColor(UIColor.black, for: UIControl.State())
            close.contentHorizontalAlignment = UIControl.ContentHorizontalAlignment.center
            close.backgroundColor = .white
            close.addTarget(self, action: #selector(sheetViewDismiss), for: .touchUpInside)
            self.contentVeiw.addSubview(close)
            close.snp.makeConstraints { (make) -> Void in
                make.right.equalTo(0)
                make.width.equalTo(35)
                make.height.equalTo(20)
                make.top.equalTo(self.contentVeiw)
            }
        }

    }

    @objc func sheetViewDismiss() {
        UIView.animate(withDuration: 0.1, animations: {
            self.contentVeiw.alpha = 0
        }) { (_) in
            self.dismiss(animated: false, completion: nil)
        }
    }

    override func touchesBegan(_ touches: Set<UITouch>, with event: UIEvent?) {
        //如果所有点都在ContentView外 才关闭
        for touch:AnyObject in touches{
            let point = (touch as AnyObject).location(in: self.view)
            let pt = self.contentVeiw.layer.convert(point, from: self.view.layer)
            if self.contentVeiw.layer.contains(pt){
                return
            }
        }

        sheetViewDismiss()
    }

    @objc func cancelBtnDidClick(btn: UIButton) {
        sheetViewDismiss()
    }
}



List部分代码：

import UIKit
import SnapKit
class ListPopViewController: BasePopView {
    // ----------------外界调用的属性值--------------
    var valueBlock: valueBlock?
    /// cell内容
    var cellTitleList = [String]()
    /// cell字体颜色
    var cellTitleColor = UIColor.white
    /// cell字体大小
    var cellTitleFont: CGFloat = 16
    /// 标题
    var titleString: String? = "标题"
    /// 标题字体大小
    var titleFont: CGFloat = 15



    // ---------------内部属性-------------------
    typealias valueBlock = (NSInteger)->Swift.Void
    var tableView = UITableView()
    let cellID = "cellID"
    var tableViewHight: CGFloat {
        return CGFloat(cellTitleList.count) * rowHight + headerViewHight + footerViewHight
    }
    fileprivate let rowHight: CGFloat = 35
    fileprivate let headerViewHight: CGFloat = 35
    fileprivate var footerViewLineHight: CGFloat = 5
    fileprivate var footerViewHight: CGFloat {
        return headerViewHight + footerViewLineHight
    }

    required init?(cellTitleList: [String]!) {
        super.init()
        self.needClose = false
        // 初始化
        self.cellTitleList = cellTitleList
        self.viewHight = tableViewHight

        view.backgroundColor = UIColor.clear
        self.providesPresentationContextTransitionStyle = true
        self.definesPresentationContext = true
        self.modalPresentationStyle = .custom

        // 初始化UI
        setupListViews()
    }

    required init() {
        fatalError("init() has not been implemented")
    }

    required init?(coder aDecoder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    override func viewDidLoad() {
        super.viewDidLoad()

    }

    func setupListViews() {
        tableView = UITableView(frame: CGRect(x: 0, y: 0, width: kScreenWidth, height: tableViewHight), style: .plain)
        tableView.delegate = self
        tableView.dataSource = self
        tableView.showsVerticalScrollIndicator = false
        tableView.showsHorizontalScrollIndicator = false
        tableView.isScrollEnabled = false
        tableView.bounces = false
        tableView.isPagingEnabled = false
        tableView.separatorInset = UIEdgeInsets(top: 0, left: 0, bottom: 0, right: 0)
        tableView.register(TitleCell.classForCoder(), forCellReuseIdentifier: cellID)
        view.addSubview(tableView)
        self.tableView.snp.makeConstraints { (make) -> Void in
            make.left.equalTo(0)
            make.right.equalTo(0)
            make.height.equalTo(tableViewHight)
            make.top.equalTo(self.view).offset(kScreenHeight-tableViewHight)
        }
    }

}


// MARK: UITableViewDelegate, UITableViewDataSource
extension ListPopViewController: UITableViewDelegate, UITableViewDataSource {

    func tableView(_ tableView: UITableView, numberOfRowsInSection section: Int) -> Int {
        return cellTitleList.count
    }

    func tableView(_ tableView: UITableView, cellForRowAt indexPath: IndexPath) -> UITableViewCell {

        let cell = tableView.dequeueReusableCell(withIdentifier: cellID, for: indexPath) as! TitleCell
        cell.titleLabel.text = cellTitleList[indexPath.row]
        cell.titleLabel.textColor = cellTitleColor
        cell.titleLabel.font = UIFont.systemFont(ofSize: cellTitleFont)
        return cell
    }

    func tableView(_ tableView: UITableView, heightForRowAt indexPath: IndexPath) -> CGFloat {
        return CGFloat(rowHight)
    }

    func tableView(_ tableView: UITableView, didSelectRowAt indexPath: IndexPath) {
        tableView.deselectRow(at: indexPath, animated: true)

        if (self.valueBlock != nil) {
            self.valueBlock!(indexPath.row)
        }
    }

    func tableView(_ tableView: UITableView, heightForHeaderInSection section: Int) -> CGFloat {
        return headerViewHight
    }

    func tableView(_ tableView: UITableView, heightForFooterInSection section: Int) -> CGFloat {
        return headerViewHight + 5
    }

    func tableView(_ tableView: UITableView, viewForHeaderInSection section: Int) -> UIView? {

        let view = UIView(frame: CGRect(x: 0, y: 0, width: kScreenWidth, height: headerViewHight))
        // 标题
        let titleLabel = UILabel(frame: CGRect(x: 0, y: 0, width: kScreenWidth, height: headerViewHight))
        titleLabel.text = titleString
        titleLabel.font = UIFont.systemFont(ofSize: titleFont)
        titleLabel.textColor = UIColor.lightGray
        titleLabel.textAlignment = .center
        view.addSubview(titleLabel)
        // 线
        let lineView = UIView(frame: CGRect(x: 0, y: view.frame.size.height-1, width: kScreenWidth, height: 1))
        lineView.backgroundColor = UIColor(red: 220/250.0, green: 220/250.0, blue: 220/250.0, alpha: 1.0)
        view.addSubview(lineView)
        return view

    }

    func tableView(_ tableView: UITableView, viewForFooterInSection section: Int) -> UIView? {
        let footerView = UIView(frame: CGRect(x: 0, y: 0, width: kScreenWidth, height: footerViewHight))

        let lineView = UIView(frame: CGRect(x: 0, y: 0, width: kScreenWidth, height: footerViewLineHight))
        lineView.backgroundColor = UIColor.lightGray
        footerView.addSubview(lineView)

        let btn = UIButton(type: .custom)
        btn.frame = CGRect(x: 0, y: footerViewLineHight, width: kScreenWidth, height: footerViewHight-footerViewLineHight)
        footerView.addSubview(btn)
        btn.setTitle("取消", for: .normal)
        btn.titleLabel?.font = UIFont.systemFont(ofSize: titleFont)
        btn.setTitleColor(UIColor.black, for: .normal)
        btn.addTarget(self, action: #selector(cancelBtnDidClick(btn:)), for: .touchUpInside)

        return footerView;
    }
}

class TitleCell: UITableViewCell {
    let titleLabel = UILabel()

    override func awakeFromNib() {
        super.awakeFromNib()
    }

    override init(style: UITableViewCell.CellStyle, reuseIdentifier: String?) {
       super.init(style: style, reuseIdentifier: reuseIdentifier)
        titleLabel.textAlignment = .center
        addSubview(titleLabel)
    }

    required init?(coder aDecoder: NSCoder) {
        fatalError("init(coder:) has not been implemented")
    }

    override func layoutSubviews() {
        super.layoutSubviews()
        titleLabel.frame = self.bounds
    }
}





调用：

import UIKit
import SnapKit
class ViewController: UIViewController {

    override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.
        self.view.backgroundColor = .gray
        let btn = UIButton()
        btn.setTitle("Show Normal", for: UIControl.State())
        btn.setTitleColor(UIColor.black, for: UIControl.State())
        btn.layer.cornerRadius = 3
        self.view.addSubview(btn)
        btn.snp.makeConstraints { (make) -> Void in
            make.left.equalTo(100)
            make.top.equalTo(self.view).offset(100)
        }

        let btn2 = UIButton()
        btn2.setTitle("Show List", for: UIControl.State())
        btn2.setTitleColor(UIColor.black, for: UIControl.State())
        btn2.layer.cornerRadius = 3
        self.view.addSubview(btn2)
        btn2.snp.makeConstraints { (make) -> Void in
            make.left.equalTo(140)
            make.top.equalTo(self.view).offset(150)
        }
        btn.addTarget(self, action: #selector(popNormal), for: .touchUpInside)
        btn2.addTarget(self, action: #selector(popList), for: .touchUpInside)
    }

    @objc func popNormal()  {
        let acVC = BasePopView()
        present(acVC, animated: true, completion:  nil)
    }

    @objc func popList()  {
        let acVC = ListPopViewController(cellTitleList: ["List1", "List2", "List3", "List4"])!
        acVC.valueBlock = { index in
            print(index)
        }
        acVC.cellTitleColor = UIColor.red
        acVC.cellTitleFont = 16
        acVC.titleString = "Lists"

        present(acVC, animated: true, completion:  nil)
    }

}





希望大家高效、愉快撸码
