Flink 写入Apache Arrow

Apache Arrow是什么

数据格式：arrow 定义了一种在内存中表示tabular data的格式。这种格式特别为数据分析型操作(analytical operation)进行了优化。比如说列式格式(columnar format)，能充分利用现代cpu的优势，进行向量化计算(vectorization)。不仅如此，Arrow还定义了IPC格式，序列化内存中的数据，进行网络传输，或者把数据以文件的方式持久化。



开发库：arrow定义的格式是与语言无关的，所以任何语言都能实现Arrow定义的格式。arrow项目为几乎所有的主流编程语言提供了SDK
Arrow其实和protobuf很像，只不过protobuf是为了structured data提供内存表示方式和序列化方案。可是两者的使用场景却很不一样。protobuf主要是序列化structured data，有很多的键值对和非常深的nested structure。arrow序列化的对象主要还是表格状数据。

另外，Arrow定义了一个传输协议，能把多个record batch序列化成一个二进制的字节流，并且把这些字节流反序列化成record batch，从让数据能在不同的进程之间进行交换。

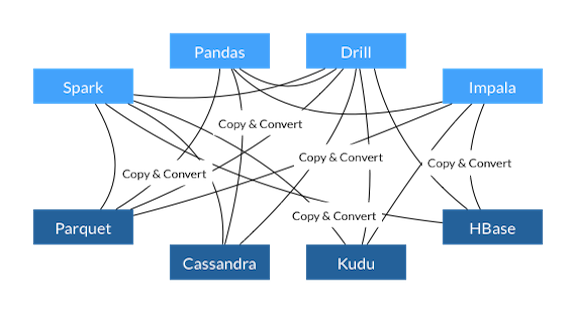

通过将Apache Arrow作为标准的数据交换格式，各种大数据分析系统和应用程序之间的互操作性水平提高了。 标准格式无需花费大量的CPU周期对数据进行序列化和反序列化以在各种格式之间转换数据，而是可以在系统和进程之间以无缝，无摩擦的方式共享数据。 这意味着客户能够相互结合部署这些系统，而不会产生任何开销。

Flink简单读写Apache Arrow

 代码依赖

        <dependency>
            <groupId>org.apache.arrow</groupId>
            <artifactId>arrow-memory-netty</artifactId>
            <version>${arrow.version}</version>
        </dependency>
        <dependency>
            <groupId>org.apache.arrow</groupId>
            <artifactId>arrow-vector</artifactId>
            <version>${arrow.version}</version>
        </dependency>
        <!-- https://mvnrepository.com/artifact/org.apache.arrow.gandiva/arrow-gandiva -->
        <dependency>
            <groupId>org.apache.arrow.gandiva</groupId>
            <artifactId>arrow-gandiva</artifactId>
            <version>8.0.0</version>
        </dependency>

测试代码

本文通过DataStream ，将Flink DataStream<Event>映射到Apache Arrow数据格式，并通过文件存储，方便后续Python读写。

数据的存储方式通过Flink CheckPoint 机制，周期性存储，本文暂未实现。

**
 * Flink  DataStream写入数据到Apache Arrow
 */

public class FLinkWriteArrowFile {
    public static void main(String[] args) throws Exception {
        StreamExecutionEnvironment env = StreamExecutionEnvironment.getExecutionEnvironment();
        env.setParallelism(1);

        // 每 1000ms 开始一次 checkpoint
        env.enableCheckpointing(1000);

        // 设置模式为精确一次 (这是默认值)
        env.getCheckpointConfig().setCheckpointingMode(CheckpointingMode.EXACTLY_ONCE);

        // 确认 checkpoints 之间的时间会进行 500 ms
        env.getCheckpointConfig().setMinPauseBetweenCheckpoints(500);

        // Checkpoint 必须在一分钟内完成，否则就会被抛弃
        env.getCheckpointConfig().setCheckpointTimeout(60000);

        // 同一时间只允许一个 checkpoint 进行
        env.getCheckpointConfig().setMaxConcurrentCheckpoints(1);

        // 开启在 job 中止后仍然保留的 externalized checkpoints
        env.getCheckpointConfig().enableExternalizedCheckpoints(CheckpointConfig.ExternalizedCheckpointCleanup.RETAIN_ON_CANCELLATION);

        SingleOutputStreamOperator<Event> eventStream = env.fromElements(
                new Event("Alice", "./home", 1000L),
                new Event("Bob", "./cart", 2000L),
                new Event("Alice", "./prod?id=1", 5 * 1000L),
                new Event("Cary", "./home", 60 * 1000L),
                new Event("Bob", "./prod?id=3", 90 * 1000L),
                new Event("Alice", "./prod?id=1", 105 * 1000L)
        );

        eventStream.addSink(new ArrowSink());
        env.execute();
      //  while (true) ;
    }

    public static class ArrowSink extends RichSinkFunction<Event> implements CheckpointListener {

        private VectorSchemaRoot root;
        private FileOutputStream fileOutputStream;

        VarCharVector userVector;
        VarCharVector urlVector;
        BigIntVector timestampVector;

        @Override
        public void open(Configuration parameters) throws Exception {
            Field user = new Field("user",
                    FieldType.nullable(new ArrowType.Utf8()),/*children*/ null);

            Field url = new Field("url",
                    FieldType.nullable(new ArrowType.Utf8()),/*children*/ null);

            Field timestamp = new Field("timestamp",
                    FieldType.nullable(new ArrowType.Int(64, true)),/*children*/ null);

            Schema schema = new Schema(asList(user, url, timestamp));
            BufferAllocator allocator = new RootAllocator();
            root = VectorSchemaRoot.create(schema, allocator);
            File file = new File("random_access_file.arrow");
            fileOutputStream = new FileOutputStream(file);

            userVector = (VarCharVector) root.getVector("user");
            userVector.allocateNew();
            urlVector = (VarCharVector) root.getVector("url");
            urlVector.allocateNew();
            timestampVector = (BigIntVector) root.getVector("timestamp");
            timestampVector.allocateNew();
        }

        @Override
        public void invoke(Event value, Context context) throws Exception {
            int index = userVector.getLastSet() + 1;
            userVector.set(index, value.user.getBytes(StandardCharsets.UTF_8));
            urlVector.set(index, value.url.getBytes(StandardCharsets.UTF_8));
            timestampVector.set(index, value.timestamp);

            //todo：增加时间判断
            if (index >= urlVector.getByteCapacity()) {
                ArrowFileWriter writer = new ArrowFileWriter(root, /*provider*/ null, fileOutputStream.getChannel());
                writer.start();
                writer.writeBatch();
                writer.end();
                System.out.println("Record batches written: " + writer.getRecordBlocks().size()
                        + ". Number of rows written: " + root.getRowCount());
            }
        }


        @Override
        public void close() throws Exception {
            super.close();
            fileOutputStream.close();
        }

        @Override
        public void notifyCheckpointComplete(long checkpointId) throws Exception {
            //todo
//            ArrowFileWriter writer = new ArrowFileWriter(root, /*provider*/ null, fileOutputStream.getChannel());
//            writer.start();
//            writer.writeBatch();
//            writer.end();
//            System.out.println("Record batches written: " + writer.getRecordBlocks().size()
//                    + ". Number of rows written: " + root.getRowCount());
        }

        @Override
        public void notifyCheckpointAborted(long checkpointId) throws Exception {
            //  CheckpointListener.super.notifyCheckpointAborted(checkpointId);
        }
    }
}
