结论已经出来了，现在补充下正文...

碰到CRC校验好多次了..

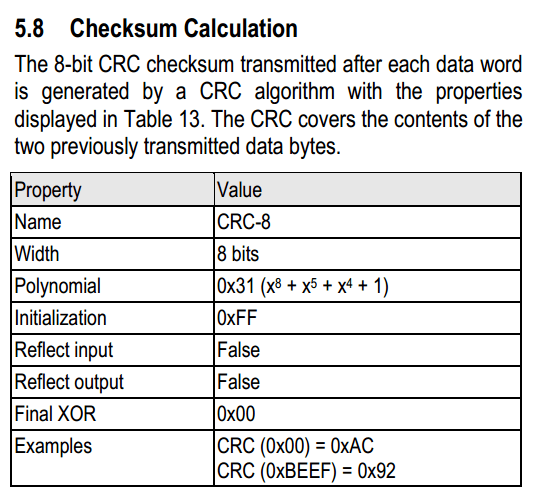

这次在datasheet里面直接看到了。

不纠结。

果断去找资料。

这个.c文件不记得从哪里扣过来的了..

/*

* crc8.c

*

* Computes a 8-bit CRC

*

*/

#include

#include

#include

#define GP 0x131 /* x^8 + x^5 + x^4 + 1 */

#define DI 0x31

static unsigned char crc8_table[256]; /* 8-bit table */

static int made_table = 0;

static void init_crc8()

/*

* Should be called before any other crc function.

*/

{

int i, j;

unsigned char crc;

if (!made_table) {

for (i = 0; i < 256; i++) {

crc = i;

for (j = 0; j < 8; j++)

crc = (crc << 1) ^ ((crc & 0x80) ? DI : 0);

crc8_table[i] = crc & 0xFF;

printf("table[%d] = %d (0x%X)\n", i, crc, crc);

}

made_table = 1;

}

}

void crc8(unsigned char *crc, unsigned char m)

/*

* For a byte array whose accumulated crc value is stored in *crc, computes

* resultant crc obtained by appending m to the byte array

*/

{

if (!made_table)

init_crc8();

*crc = crc8_table[(*crc) ^ m];

*crc &= 0xFF;

}

int main(void)

{

init_crc8();

uint8_t i = 0;

uint8_t crc = 0xFF;

crc ^= i;

crc8(&crc, 0x00);

printf("table[%d] = %d (0x%X)\n", i, crc, crc);

uint8_t b1 = 0xBE;

uint8_t b2 = 0xEF;

crc = 0xFF;

crc ^= b1;

crc8(&crc, 0x00);

crc ^= b2;

crc8(&crc, 0x00);

printf("crc 0xBEEF = %d (0x%X)\n", crc, crc);

system("pause");

}

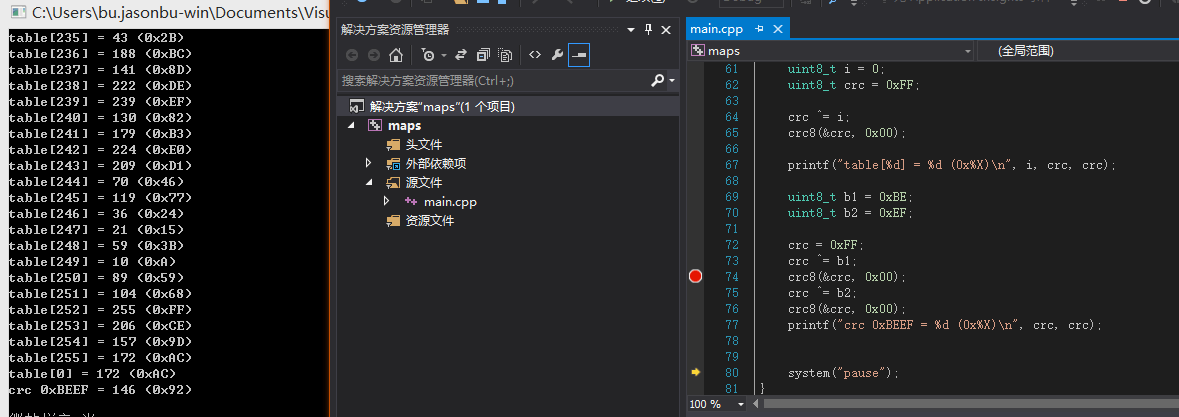

然后改了改 跑起来结论跟example里面相同。

然后就可以使用C的fprintf函数打印到文件。得到数组

uint8_t const c_chCrcTable[256]={

0x00,0x31,0x62,0x53,0xC4,0xF5,0xA6,0x97,0xB9,0x88,0xDB,0xEA,0x7D,0x4C,0x1F,0x2E,

0x43,0x72,0x21,0x10,0x87,0xB6,0xE5,0xD4,0xFA,0xCB,0x98,0xA9,0x3E,0x0F,0x5C,0x6D,

0x86,0xB7,0xE4,0xD5,0x42,0x73,0x20,0x11,0x3F,0x0E,0x5D,0x6C,0xFB,0xCA,0x99,0xA8,

0xC5,0xF4,0xA7,0x96,0x01,0x30,0x63,0x52,0x7C,0x4D,0x1E,0x2F,0xB8,0x89,0xDA,0xEB,

0x3D,0x0C,0x5F,0x6E,0xF9,0xC8,0x9B,0xAA,0x84,0xB5,0xE6,0xD7,0x40,0x71,0x22,0x13,

0x7E,0x4F,0x1C,0x2D,0xBA,0x8B,0xD8,0xE9,0xC7,0xF6,0xA5,0x94,0x03,0x32,0x61,0x50,

0xBB,0x8A,0xD9,0xE8,0x7F,0x4E,0x1D,0x2C,0x02,0x33,0x60,0x51,0xC6,0xF7,0xA4,0x95,

0xF8,0xC9,0x9A,0xAB,0x3C,0x0D,0x5E,0x6F,0x41,0x70,0x23,0x12,0x85,0xB4,0xE7,0xD6,

0x7A,0x4B,0x18,0x29,0xBE,0x8F,0xDC,0xED,0xC3,0xF2,0xA1,0x90,0x07,0x36,0x65,0x54,

0x39,0x08,0x5B,0x6A,0xFD,0xCC,0x9F,0xAE,0x80,0xB1,0xE2,0xD3,0x44,0x75,0x26,0x17,

0xFC,0xCD,0x9E,0xAF,0x38,0x09,0x5A,0x6B,0x45,0x74,0x27,0x16,0x81,0xB0,0xE3,0xD2,

0xBF,0x8E,0xDD,0xEC,0x7B,0x4A,0x19,0x28,0x06,0x37,0x64,0x55,0xC2,0xF3,0xA0,0x91,

0x47,0x76,0x25,0x14,0x83,0xB2,0xE1,0xD0,0xFE,0xCF,0x9C,0xAD,0x3A,0x0B,0x58,0x69,

0x04,0x35,0x66,0x57,0xC0,0xF1,0xA2,0x93,0xBD,0x8C,0xDF,0xEE,0x79,0x48,0x1B,0x2A,

0xC1,0xF0,0xA3,0x92,0x05,0x34,0x67,0x56,0x78,0x49,0x1A,0x2B,0xBC,0x8D,0xDE,0xEF,

0x82,0xB3,0xE0,0xD1,0x46,0x77,0x24,0x15,0x3B,0x0A,0x59,0x68,0xFF,0xCE,0x9D,0xAC,

};

附上打印文件的函数

void print_to_file(void)

{

FILE * fp;

fp = fopen("arr.c", "w+");

fprintf(fp, "uint8_t const c_chCrcTable[256]={");

for (uint8_t i = 0; i < 16; i++){

fprintf(fp, "\n");

for (uint8_t j = 0; j < 16; j++){

fprintf(fp, "\t0x%02X,", crc8_table[i*16+j]);

}

}

fprintf(fp, "\n};");

fclose(fp);

}

记得包头文件。还有VS2013里面必须定义这个宏才能编译通过

#define _CRT_SECURE_NO_WARNINGS

#include
