本文介绍了Java VisualVM，它能在JVM上运行Java应用时提供可视化界面查看详细信息、进行故障排除和性能分析。还介绍了Eclipse launcher for VisualVM插件，方便IDE用户监控和分析Eclipse项目，并给出下载地址和详细安装步骤。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

Java VisualVM

Java VisualVM is a tool that provides a visual interface for viewing detailed information about Java applications while they are running on a Java Virtual Machine (JVM), and for troubleshooting and profiling these applications. Various optional tools, including Java VisualVM, are provided with Sun's distribution of the Java Development Kit (JDK) for retrieving different types of data about running JVM software instances.

Eclipse launcher for VisualVM

The Eclipse launcher for VisualVM is an Eclipse plugin to make monitoring and profiling Eclipse projects using VisualVM more convenient to the IDE users. It starts the VisualVM tool along with the monitored application and automatically opens the application tab after VisualVM startup.

visualvm Eclipse launcher plugin 下载地址： http://visualvm.java.net/eclipse-launcher.html

Installation

Eclipse 3.6+Unzip the archive into directory of your choice

Add local update site pointing to the chosen directory

Install VisualVM Launcher Feature

安装过程；

1、下载visualvm Eclipse launcher后，解压缩到本地目录。

2、在Eclipse中点击Help->Install new software->Add->local选择对应的目录

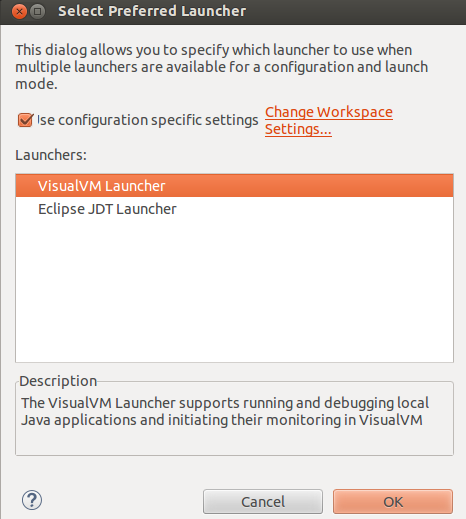

3、按照提示即可安装VisualVM及对应的Eclipse插件。之后运行程序时可以选择VisualVM Launcher运行程序。

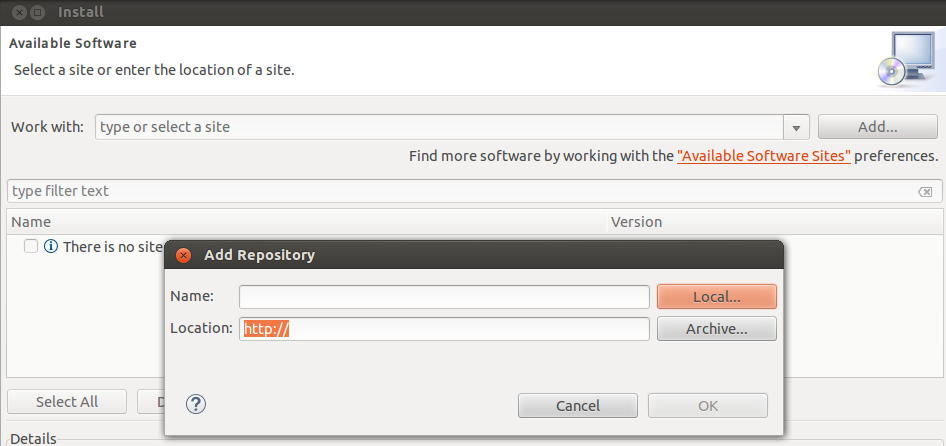

安装过程截图：

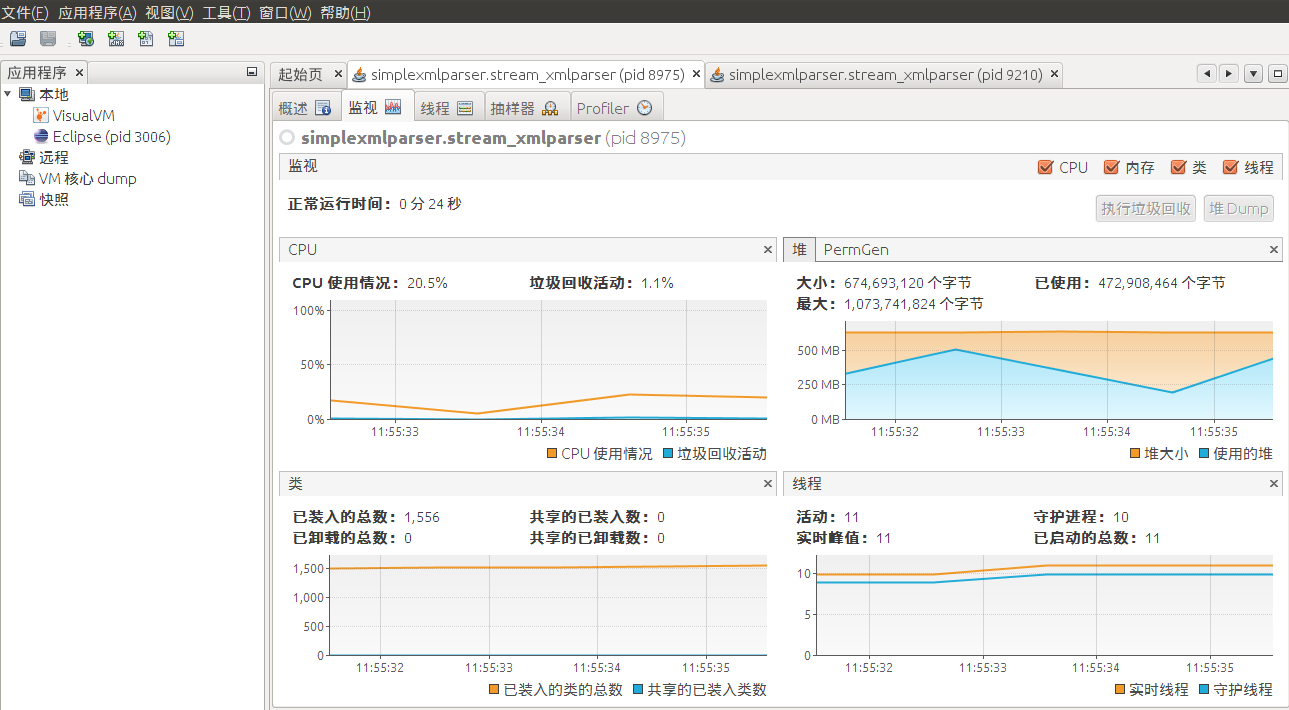

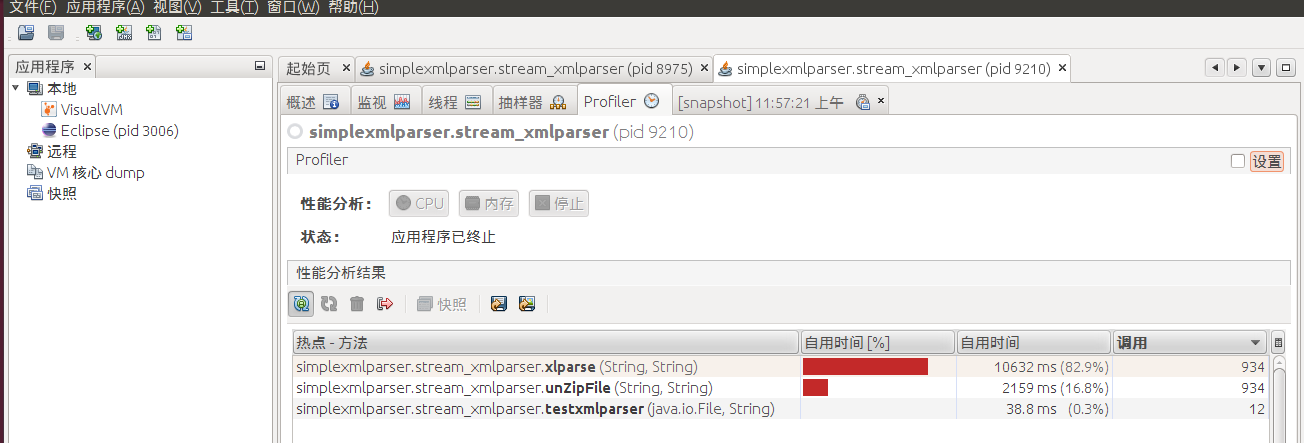

运行过程及监控结果：

附录：

http://stackoverflow.com/questions/2713940/eclipse-java-profiler

Java VisualVM

http://docs.oracle.com/javase/6/docs/technotes/guides/visualvm/

Eclipse launcher for VisualVM

http://visualvm.java.net/eclipse-launcher.html
