说明

这篇文章介绍prometheus和alertmanager的报警和通知规则，prometheus的配置文件名为prometheus.yml，alertmanager的配置文件名为alertmanager.yml
报警：指prometheus将监测到的异常事件发送给alertmanager，而不是指发送邮件通知
通知：指alertmanager发送异常事件的通知（邮件、webhook等）

报警规则

在prometheus.yml中指定匹配报警规则的间隔

# How frequently to evaluate rules.
[ evaluation_interval: <duration> | default = 1m ]

在prometheus.yml中指定规则文件（可使用通配符，如rules/*.rules）

# Load rules once and periodically evaluate them according to the global 'evaluation_interval'.
rule_files:
  - rules/mengyuan.rules

在rules目录中添加mengyuan.rules

ALERT goroutines_gt_70
  IF go_goroutines > 70
  FOR 5s
  LABELS { status = "yellow" }
  ANNOTATIONS {
    summary = "goroutines 超过 70，当前值{{ $value }}",
    description = "当前实例 {{ $labels.instance }}",
  }

ALERT goroutines_gt_90
  IF go_goroutines > 90
  FOR 5s
  LABELS { status = "red" }
  ANNOTATIONS {
    summary = "goroutines 超过 90，当前值{{ $value }}",
    description = "当前实例 {{ $labels.instance }}",
  }

配置文件设置好后，需要让prometheus重新读取，有两种方法：

通过HTTP API向/-/reload发送POST请求，例：curl -X POST http://localhost:9090/-/reload
向prometheus进程发送SIGHUP信号

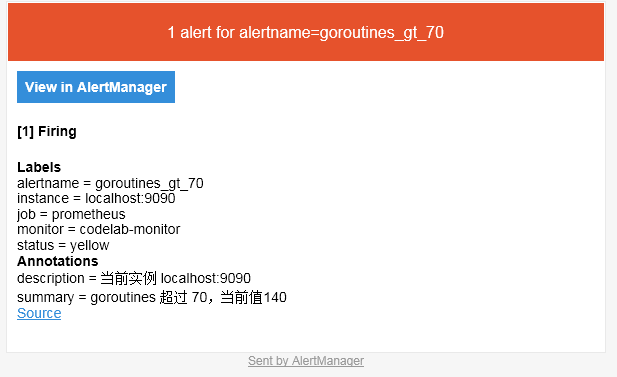

将邮件通知与rules对比一下（还需要配置alertmanager.yml才能收到邮件）

通知规则

设置alertmanager.yml的的route与receivers

route:
  # The labels by which incoming alerts are grouped together. For example,
  # multiple alerts coming in for cluster=A and alertname=LatencyHigh would
  # be batched into a single group.
  group_by: ['alertname']

  # When a new group of alerts is created by an incoming alert, wait at
  # least 'group_wait' to send the initial notification.
  # This way ensures that you get multiple alerts for the same group that start
  # firing shortly after another are batched together on the first
  # notification.
  group_wait: 5s

  # When the first notification was sent, wait 'group_interval' to send a batch
  # of new alerts that started firing for that group.
  group_interval: 1m

  # If an alert has successfully been sent, wait 'repeat_interval' to
  # resend them.
  repeat_interval: 3h

  # A default receiver
  receiver: mengyuan

receivers:
- name: 'mengyuan'
  webhook_configs:
  - url: http://192.168.0.53:8080
  email_configs:
  - to: 'mengyuan@tenxcloud.com'

名词解释

Route

route属性用来设置报警的分发策略，它是一个树状结构，按照深度优先从左向右的顺序进行匹配。

// Match does a depth-first left-to-right search through the route tree
// and returns the matching routing nodes.
func (r *Route) Match(lset model.LabelSet) []*Route {

Alert

Alert是alertmanager接收到的报警，类型如下。

// Alert is a generic representation of an alert in the Prometheus eco-system.
type Alert struct {
    // Label value pairs for purpose of aggregation, matching, and disposition
    // dispatching. This must minimally include an "alertname" label.
    Labels LabelSet `json:"labels"`

    // Extra key/value information which does not define alert identity.
    Annotations LabelSet `json:"annotations"`

    // The known time range for this alert. Both ends are optional.
    StartsAt     time.Time `json:"startsAt,omitempty"`
    EndsAt       time.Time `json:"endsAt,omitempty"`
    GeneratorURL string    `json:"generatorURL"`
}

具有相同Lables的Alert（key和value都相同）才会被认为是同一种。在prometheus rules文件配置的一条规则可能会产生多种报警

Group

alertmanager会根据group_by配置将Alert分组。如下规则，当go_goroutines等于4时会收到三条报警，alertmanager会将这三条报警分成两组向receivers发出通知。

ALERT test1
  IF go_goroutines > 1
  LABELS {label1="l1", label2="l2", status="test"}
ALERT test2
  IF go_goroutines > 2
  LABELS {label1="l2", label2="l2", status="test"}
ALERT test3
  IF go_goroutines > 3
  LABELS {label1="l2", label2="l1", status="test"}

主要处理流程

接收到Alert，根据labels判断属于哪些Route（可存在多个Route，一个Route有多个Group，一个Group有多个Alert）
将Alert分配到Group中，没有则新建Group
新的Group等待group_wait指定的时间（等待时可能收到同一Group的Alert），根据resolve_timeout判断Alert是否解决，然后发送通知
已有的Group等待group_interval指定的时间，判断Alert是否解决，当上次发送通知到现在的间隔大于repeat_interval或者Group有更新时会发送通知

TODO

重启对发送报警与通知的影响
能否组成集群
