前言

在上一篇介绍了netty基础概念，这一篇主要针对这些概念进行实践，加深印象

• 3种IO区别以及netty基础学习笔记

coder

测试下coder，在channelpipeline链上一开始进来就是需要对byte进行解码，在输出的时候进去编码。

解码器

在这里插入代码片public class MyDecoder extends ByteToMessageDecoder {

    private int length;

    public MyDecoder(int length) {
        this.length = length;
    }

    @Override
    protected void decode(ChannelHandlerContext ctx, ByteBuf in, List<Object> out) throws Exception {
        int bytes = in.readableBytes();
        if (bytes >= length) {
            int readLength = length;
            while (bytes >= 0) {
                if (bytes < length) {
                    readLength = bytes;
                }
                ByteBuf byteBuf = in.readBytes(readLength);
                out.add(byteBuf);
                bytes -= length;
            }
        }
    }

}

这个解码器主要是为了将传入的数据切成固定的长度，其余的放下一个。

Test

@Test
    public void encoder() {
        ByteBuf byteBuf = Unpooled.buffer();
        for (int i = 0; i < 10; i++) {
            byteBuf.writeByte(i);
        }
        //read会索引移动
        /*System.out.println(byteBuf.readBytes(5));
        System.out.println(byteBuf.readerIndex());
        System.out.println(byteBuf.readBytes(5));
        System.out.println(byteBuf.readerIndex());*/

        EmbeddedChannel embeddedChannel = new EmbeddedChannel(new MyDecoder(3));
        //System.out.println(byteBuf.readBytes(10));

        System.out.println(embeddedChannel.writeInbound(byteBuf.readBytes(5)));
        ByteBuf byteBuf2 = embeddedChannel.readInbound();
        System.out.println("可读字数：" + byteBuf2.readableBytes());
        while (byteBuf2.isReadable()) {
            System.out.println(byteBuf2.readByte());
        }
        byteBuf2.release();
        ByteBuf byteBuf3 = embeddedChannel.readInbound();
        System.out.println("可读字数：" + byteBuf3.readableBytes());
        while (byteBuf3.isReadable()) {
            System.out.println(byteBuf3.readByte());
        }
        byteBuf3.release();
    }

输出结果

true
可读字数：2
3
4
可读字数：3
5
6
7

从上面注释掉的代码可以看到，read这个ByteBuf的话索引是会移动的。

ToLongDecoder

当输入的长度太长的时候会抛出异常。

@Test
    public void tooLong() {
        ByteBuf byteBuf = Unpooled.buffer();
        for (int i = 0; i < 10; i++) {
            byteBuf.writeByte(i);
        }
        EmbeddedChannel embeddedChannel = new EmbeddedChannel(new ToLongDecoder(8));
        try {
            System.out.println(embeddedChannel.writeInbound(byteBuf.readBytes(10)));
        } catch (TooLongFrameException e) {
            System.out.println("太长...");
        }
        ByteBuf byteBuf1 = embeddedChannel.readInbound();
        System.out.println("可读字数：" + byteBuf1.readableBytes());
        while (byteBuf1.isReadable()) {
            System.out.println(byteBuf1.readByte());
        }
        byteBuf1.release();
    }

心跳

  这个我基本是试了一天，差点没有吐血，哈哈哈。（可能我还是比较菜吧）

  EmbeddedChannel这个类是不能用来测试心跳的，一直报UnSupportException，最后只能实现一个服务端跟客户端了。

服务端

public static void main(String[] args) throws InterruptedException {
        EventLoopGroup bossGroup = new NioEventLoopGroup();
        EventLoopGroup workGroup = new NioEventLoopGroup();
        try {
            ServerBootstrap b = new ServerBootstrap();
            b.group(bossGroup, workGroup);
            b.channel(NioServerSocketChannel.class);
//            b.childHandler(idleStateHandler);
//            b.childHandler(new MyIdleHandler());
            b.childHandler(new ChannelInitializer<SocketChannel>() {
                @Override
                protected void initChannel(SocketChannel ch) throws Exception {
                    ch.pipeline().addLast("idle",new IdleStateHandler(
                            6L,0L,0L, TimeUnit.SECONDS))
                            .addLast("MyIdleHandler",new MyIdleHandler());
                }
            });
            System.out.println("服务端开启等待客户端连接....");
            Channel ch = b.bind(8888).sync().channel();
            ch.closeFuture().sync();
        } catch (Exception e) {
            e.printStackTrace();
        }finally{
            //优雅的退出程序
            bossGroup.shutdownGracefully().sync();
            workGroup.shutdownGracefully().sync();
        }
    }

注意一下细节，b.childHandler(idleStateHandler);我使用之后一直不行，后面统一使用ChannelInitializer来添加ChannelPipeline.

针对超时引发IdleStateEvent做处理，如果超过太多次就直接断开连接。

@ChannelHandler.Sharable
public class MyIdleHandler extends ChannelInboundHandlerAdapter {

    @Override
    public void channelActive(ChannelHandlerContext ctx) throws Exception {
        System.out.println("had connection");
        super.channelActive(ctx);
    }

    @Override
    public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
        System.out.println("get data:"+msg);
        super.channelRead(ctx, msg);
    }

    private int lossConnectCount = 0;

    @Override
    public void userEventTriggered(ChannelHandlerContext ctx, Object evt) throws Exception {
        lossConnectCount++;
        if(lossConnectCount==3){
            ctx.channel().close();
        }
        if (evt instanceof IdleStateEvent) {
            System.out.println("too long close connection");
            ctx.writeAndFlush(Unpooled.copiedBuffer("closing", CharsetUtil.UTF_8)).addListener(ChannelFutureListener.CLOSE_ON_FAILURE);
        }
        super.userEventTriggered(ctx, evt);
    }

}

addListener(ChannelFutureListener.CLOSE_ON_FAILURE);

目前是如果发送不成功，那么客户端绝壁挂了，直接关闭channel~

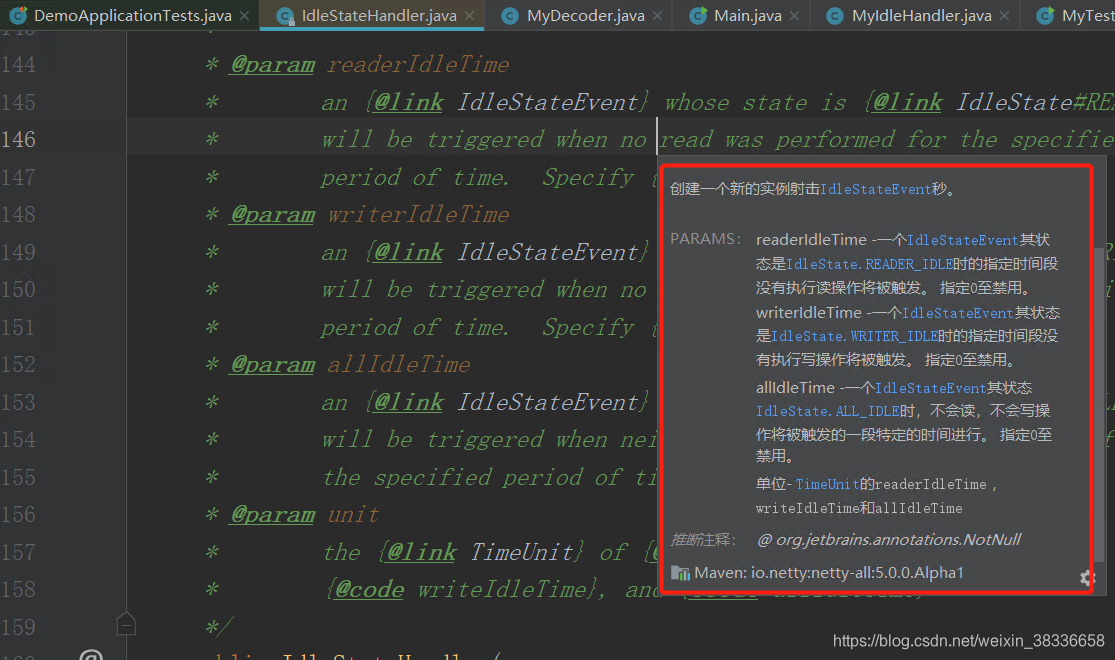

new IdleStateHandler(6L,0L,0L, TimeUnit.SECONDS)

服务端使用read超时，客户端使用write超时

客户端

EventLoopGroup group = new NioEventLoopGroup();
        Bootstrap bootstrap = new Bootstrap();
        bootstrap.group(group)
                .channel(NioSocketChannel.class)
                .handler(new ChannelInitializer<SocketChannel>() {

                    @Override
                    protected void initChannel(SocketChannel ch) throws Exception {
                        ch.pipeline().addLast(new SimpleChannelInboundHandler<ByteBuf>() {

                            @Override
                            public void channelRead(ChannelHandlerContext ctx, Object msg) throws Exception {
                                System.out.println(msg);
                                if (msg instanceof ByteBuf) {
                                    byte[] bytes = new byte[((ByteBuf) msg).readableBytes()];
                                    ((ByteBuf) msg).readBytes(bytes);
                                    System.out.println(new String(bytes));
                                }
                                super.channelRead(ctx, msg);
                            }

                            @Override
                            protected void messageReceived(ChannelHandlerContext ctx, ByteBuf msg) throws Exception {

                            }

                        });
                    }
                });
        Channel channel = bootstrap.connect("127.0.0.1", 8888).channel();
        int i = 0;
        while (i < 3) {
            i++;
            channel.writeAndFlush(Unpooled.copiedBuffer(new Date() + ": hello world!", CharsetUtil.UTF_8)).addListener(future -> {
                if (future.isSuccess()) {
                    System.out.println("send...");
                } else {
                    System.out.println("send fail...");
                    future.cause().printStackTrace();
                }
            });
            Thread.sleep(2000);
        }

输出结果

1.服务端

14:54:37.753 [nioEventLoopGroup-3-3] INFO com.example.demo.test.MyIdleHandler - had connection
14:54:37.763 [nioEventLoopGroup-3-3] INFO com.example.demo.test.MyIdleHandler - get data:UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 42, cap: 1024)
14:54:37.763 [nioEventLoopGroup-3-3] DEBUG io.netty.channel.DefaultChannelPipeline - Discarded inbound message UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 42, cap: 1024) that reached at the tail of the pipeline. Please check your pipeline configuration.
14:54:39.763 [nioEventLoopGroup-3-3] INFO com.example.demo.test.MyIdleHandler - get data:UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 42, cap: 1024)
14:54:39.763 [nioEventLoopGroup-3-3] DEBUG io.netty.channel.DefaultChannelPipeline - Discarded inbound message UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 42, cap: 1024) that reached at the tail of the pipeline. Please check your pipeline configuration.
14:54:41.763 [nioEventLoopGroup-3-3] INFO com.example.demo.test.MyIdleHandler - get data:UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 42, cap: 512)
14:54:41.764 [nioEventLoopGroup-3-3] DEBUG io.netty.channel.DefaultChannelPipeline - Discarded inbound message UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 42, cap: 512) that reached at the tail of the pipeline. Please check your pipeline configuration.
14:54:47.763 [nioEventLoopGroup-3-3] INFO com.example.demo.test.MyIdleHandler - too long close connection
14:54:53.764 [nioEventLoopGroup-3-3] INFO com.example.demo.test.MyIdleHandler - too long close connection
14:54:59.765 [nioEventLoopGroup-3-3] INFO com.example.demo.test.MyIdleHandler - too long close connection

每6秒心跳问下客户端，你还活着吗？可以看到14:54:41.763的时候收到客户端的发送，在14:54:47.763的时候没有回复了就开始心跳，咚咚咚~

2.客户端

send...
send...
send...
UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 7, cap: 1024)
closing
UnpooledUnsafeDirectByteBuf(ridx: 0, widx: 7, cap: 1024)
closing

一开始发送消息，证明自己是活着的。后面没有发送消息之后，收到了来自服务端closing这个心跳。

总结

  上面看到服务端是正常的超时进行心跳，同样客户端也能配置超时，就是写超时，当超时的时候给服务端心跳访问，当然这个时间可以短些，这样服务端写就不会超时了。

• Netty学习（五）—IdleStateHandler心跳机制

  当超时channel关闭时，可以试下重连~

下一篇

  下一篇讲讲解我大学做的一个小项目（基于netty图文直播），当然是抄抄网络大佬们的代码，因为我现在回头看这些代码都有些看不太懂咯~
