博客介绍了在使用Easypoi处理Excel导入时遇到的问题，当使用Office Excel时，文件格式变化导致数据错位。通过调整代码，使用`ExcelImportUtil.importExcel`方法可以避免此问题，同时保留正确和错误的数据。文章提供了详细的代码示例，展示了如何在导入过程中捕获并记录错误行号和错误信息，以便后续处理。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

easypoi先介绍导入的pom文件的依赖版本：


        <dependency>
            <groupId>cn.afterturn</groupId>
            <artifactId>easypoi-base</artifactId>
            <version>4.1.0</version>
        </dependency>
        <dependency>
            <groupId>cn.afterturn</groupId>
            <artifactId>easypoi-web</artifactId>
            <version>4.1.0</version>
        </dependency>
        <dependency>
            <groupId>cn.afterturn</groupId>
            <artifactId>easypoi-annotation</artifactId>
            <version>4.1.0</version>
        </dependency>

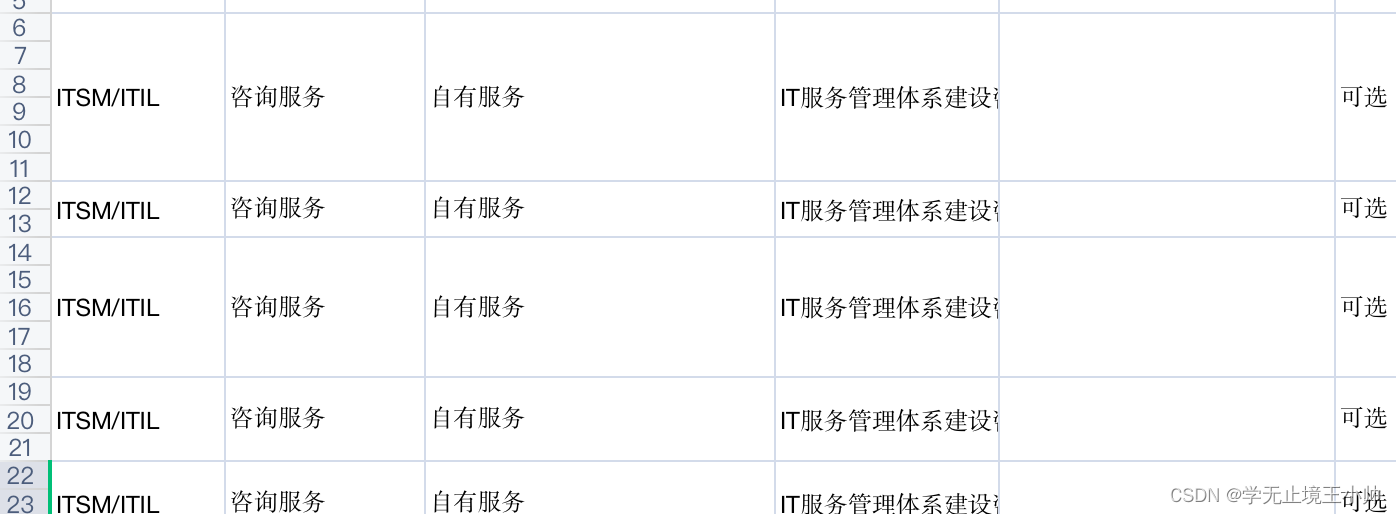

我们使用wps导入excel的时候，是没有这个错误的。但是当使用的是office excel的时候就会导致文件的格式会发生变化，如下图：

可以看到一行的数据，占了好多行。针对这种数据，使用

ExcelImportUtil.importExcelMore(inputStream, pojoClass, params);

是导入不进去的，会报错：Cannot add merged region T485:T499 to sheet because it overlaps with an existing merged region (T482:T485)."

那么应该咋修改呢？

ExcelImportUtil.importExcel(inputStream, pojoClass, params);

使用这个方法，就可以避免。但是我们又想保留导入的正确的数据和错误的数据，但是importExcel这个方法的返回值是List<T>

public static <T> List<T> importExcel(InputStream inputstream, Class<?> pojoClass, ImportParams params) throws Exception {
        return (new ExcelImportService()).importExcelByIs(inputstream, pojoClass, params, false).getList();
    }

    public static <T> ExcelImportResult<T> importExcelMore(InputStream inputstream, Class<?> pojoClass, ImportParams params) throws Exception {
        return (new ExcelImportService()).importExcelByIs(inputstream, pojoClass, params, true);
    }

那么应该咋办呢？如下代码：

public static <T> ExcelImportResult<T> importExcel(InputStream inputStream, Integer titleRows, Integer headerRows, boolean needVerfiy, Class<T> pojoClass) throws IOException {
        if (inputStream == null) {
            return null;
        }
        ImportParams params = new ImportParams();
        params.setTitleRows(titleRows);
        params.setHeadRows(headerRows);
//        params.setSaveUrl("/excel/");
        params.setNeedSave(false);
        params.setNeedVerify(needVerfiy);
        params.setStartSheetIndex(1);
        try {
//            return ExcelImportUtil.importExcelMore(inputStream, pojoClass, params);
            return (new ExcelImportService()).importExcelByIs(inputStream, pojoClass, params, false);
        } catch (NoSuchElementException e) {
            throw new IOException("excel文件不能为空");
        } catch (Exception e) {
            throw new IOException(e.getMessage());
        }
    }

needMore设置为false即可。

源码：

while(true) {
                if (i >= params.getStartSheetIndex() + params.getSheetNum()) {
                    if (params.isNeedSave()) {
                        this.saveThisExcel(params, pojoClass, isXSSFWorkbook, book);
                    }

                    importResult.setList(result);
                    if (!needMore) {
                        break;
                    }

                    ByteArrayInputStream successIs = new ByteArrayInputStream(baos.toByteArray());

                    try {
                        Workbook successBook = WorkbookFactory.create(successIs);
                        importResult.setWorkbook(this.removeSuperfluousRows(successBook, this.failRow, params));
                        importResult.setFailWorkbook(this.removeSuperfluousRows(book, this.successRow, params));
                        importResult.setFailList(this.failCollection);
                        importResult.setVerfiyFail(this.verifyFail);
                        break;
                    } finally {
                        successIs.close();
                    }
                }

就到这吧。

我自己的代码，结合了导入正确的数据和错误的数据，并且报出来哪一行错误。记录一下，与人方便。

//easypoi解析excel得到成功的集合和失败的集合
            Map<String, String> map = new HashMap<>();
            ExcelImportResult<UploadDataVo> result = ExcelUtils.importExcel(file, 0, 1, true, UploadDataVo.class);
            List<UploadDataVo> uploadDataVos = result.getList();
            List<UploadDataVo> failList = result.getFailList()==null?new ArrayList<UploadDataVo>():result.getFailList();
            ArrayList<Integer> objects = Lists.newArrayList();
            if (CollectionUtil.isNotEmpty(failList)) {
                failList.forEach(uploadDataVo -> {
                    objects.add(uploadDataVo.getRowNum());
                });
                String collect = failList.stream().map(x -> x.getErrorMsg()).collect(Collectors.joining(","));
                map.put("message", "提示：" + collect);
                map.put("fail", "异常数据行号：" + JSONUtil.toJsonStr(objects));
            }
            map.put("total", "本次导入共" + (uploadDataVos.size() + failList.size()) + "条数据");
            map.put("success", "导入成功" + uploadDataVos.size() + "条数据");

@Data
@EqualsAndHashCode
public class UploadDataVo implements IExcelDataModel, IExcelModel , Serializable {
    private static final long serialVersionUID = 1L;
    /**
     * 行号
     */
    private int rowNum;
    /**
     * 错误消息
     */
    private String errorMsg;
    @Excel(name="产品编码")
    @NotEmpty(message = "[产品编码]不能为空")
    private String productCode;
}

工具类：

public class ExcelUtils {
    /**
     * excel 导出
     *
     * @param list           数据
     * @param title          标题
     * @param sheetName      sheet名称
     * @param pojoClass      pojo类型
     * @param fileName       文件名称
     * @param isCreateHeader 是否创建表头
     * @param response
     */
    public static void exportExcel(List<?> list, String title, String sheetName, Class<?> pojoClass, String fileName, boolean isCreateHeader, HttpServletResponse response) throws IOException {
        ExportParams exportParams = new ExportParams(title, sheetName, ExcelType.XSSF);
        exportParams.setCreateHeadRows(isCreateHeader);
        defaultExport(list, pojoClass, fileName, response, exportParams);
    }

    /**
     * excel 导出
     *
     * @param list      数据
     * @param title     标题
     * @param sheetName sheet名称
     * @param pojoClass pojo类型
     * @param fileName  文件名称
     * @param response
     */
    public static void exportExcel(List<?> list, String title, String sheetName, Class<?> pojoClass, String fileName, HttpServletResponse response) throws IOException {
        defaultExport(list, pojoClass, fileName, response, new ExportParams(title, sheetName, ExcelType.XSSF));
    }

    /**
     * excel 导出
     *
     * @param list         数据
     * @param pojoClass    pojo类型
     * @param fileName     文件名称
     * @param response
     * @param exportParams 导出参数
     */
    public static void exportExcel(List<?> list, Class<?> pojoClass, String fileName, ExportParams exportParams, HttpServletResponse response) throws IOException {
        defaultExport(list, pojoClass, fileName, response, exportParams);
    }

    /**
     * excel 导出
     *
     * @param list     数据
     * @param fileName 文件名称
     * @param response
     */
    public static void exportExcel(List<Map<String, Object>> list, String fileName, HttpServletResponse response) throws IOException {
        defaultExport(list, fileName, response);
    }

    /**
     * 默认的 excel 导出
     *
     * @param list         数据
     * @param pojoClass    pojo类型
     * @param fileName     文件名称
     * @param response
     * @param exportParams 导出参数
     */
    private static void defaultExport(List<?> list, Class<?> pojoClass, String fileName, HttpServletResponse response, ExportParams exportParams) throws IOException {
        Workbook workbook = ExcelExportUtil.exportExcel(exportParams, pojoClass, list);
        downLoadExcel(fileName, response, workbook);
    }

    /**
     * 默认的 excel 导出
     *
     * @param list     数据
     * @param fileName 文件名称
     * @param response
     */
    private static void defaultExport(List<Map<String, Object>> list, String fileName, HttpServletResponse response) throws IOException {
        Workbook workbook = ExcelExportUtil.exportExcel(list, ExcelType.HSSF);
        downLoadExcel(fileName, response, workbook);
    }

    /**
     * 下载
     *
     * @param fileName 文件名称
     * @param response
     * @param workbook excel数据
     */
    private static void downLoadExcel(String fileName, HttpServletResponse response, Workbook workbook) throws IOException {
        try {
            response.setCharacterEncoding("UTF-8");
            response.setHeader("content-Type", "application/vnd.ms-excel");
            response.setHeader("Content-Disposition", "attachment;filename=" + URLEncoder.encode(fileName + "." + ExcelTypeEnum.XLSX.getValue(), "UTF-8"));
            workbook.write(response.getOutputStream());
        } catch (Exception e) {
            throw new IOException(e.getMessage());
        }
    }

    /**
     * excel 导入
     *
     * @param filePath   excel文件路径
     * @param titleRows  标题行
     * @param headerRows 表头行
     * @param pojoClass  pojo类型
     * @param <T>
     * @return
     */
    public static <T> List<T> importExcel(String filePath, Integer titleRows, Integer headerRows, Class<T> pojoClass) throws IOException {
        if (StringUtils.isBlank(filePath)) {
            return null;
        }
        ImportParams params = new ImportParams();
        params.setTitleRows(titleRows);
        params.setHeadRows(headerRows);
        params.setNeedSave(true);
        params.setSaveUrl("/excel/");
        try {
            return ExcelImportUtil.importExcel(new File(filePath), pojoClass, params);
        } catch (NoSuchElementException e) {
            throw new IOException("模板不能为空");
        } catch (Exception e) {
            throw new IOException(e.getMessage());
        }
    }

    /**
     * excel 导入
     *
     * @param file      excel文件
     * @param pojoClass pojo类型
     * @param <T>
     * @return
     */
    public static <T> ExcelImportResult<T> importExcel(MultipartFile file, Class<T> pojoClass) throws IOException {
        return importExcel(file, 1, 1, pojoClass);
    }

    /**
     * excel 导入
     *
     * @param file       excel文件
     * @param titleRows  标题行
     * @param headerRows 表头行
     * @param pojoClass  pojo类型
     * @param <T>
     * @return
     */
    public static <T> ExcelImportResult<T> importExcel(MultipartFile file, Integer titleRows, Integer headerRows, Class<T> pojoClass) throws IOException {
        return importExcel(file, titleRows, headerRows, false, pojoClass);
    }

    /**
     * excel 导入
     *
     * @param file       上传的文件
     * @param titleRows  标题行
     * @param headerRows 表头行
     * @param needVerfiy 是否检验excel内容
     * @param pojoClass  pojo类型
     * @param <T>
     * @return
     */
    public static <T> ExcelImportResult<T> importExcel(MultipartFile file, Integer titleRows, Integer headerRows, boolean needVerfiy, Class<T> pojoClass) throws IOException {
        if (file == null) {
            return null;
        }
        try {
            return importExcel(file.getInputStream(), titleRows, headerRows, needVerfiy, pojoClass);
        } catch (Exception e) {
            throw new IOException(e.getMessage());
        }
    }

    /**
     * excel 导入
     *
     * @param inputStream 文件输入流
     * @param titleRows   标题行
     * @param headerRows  表头行
     * @param needVerfiy  是否检验excel内容
     * @param pojoClass   pojo类型
     * @param <T>
     * @return
     */
    public static <T> ExcelImportResult<T> importExcel(InputStream inputStream, Integer titleRows, Integer headerRows, boolean needVerfiy, Class<T> pojoClass) throws IOException {
        if (inputStream == null) {
            return null;
        }
        ImportParams params = new ImportParams();
        params.setTitleRows(titleRows);
        params.setHeadRows(headerRows);
//        params.setSaveUrl("/excel/");
        params.setNeedSave(false);
        params.setNeedVerify(needVerfiy);
        params.setStartSheetIndex(1);
        try {
//            return ExcelImportUtil.importExcelMore(inputStream, pojoClass, params);
            return (new ExcelImportService()).importExcelByIs(inputStream, pojoClass, params, false);
        } catch (NoSuchElementException e) {
            throw new IOException("excel文件不能为空");
        } catch (Exception e) {
            throw new IOException(e.getMessage());
        }
    }

    /**
     * Excel 类型枚举
     */
    enum ExcelTypeEnum {
        XLS("xls"), XLSX("xlsx");
        private String value;

        ExcelTypeEnum(String value) {
            this.value = value;
        }

        public String getValue() {
            return value;
        }

        public void setValue(String value) {
            this.value = value;
        }
    }
}
