地震wiggle图显示

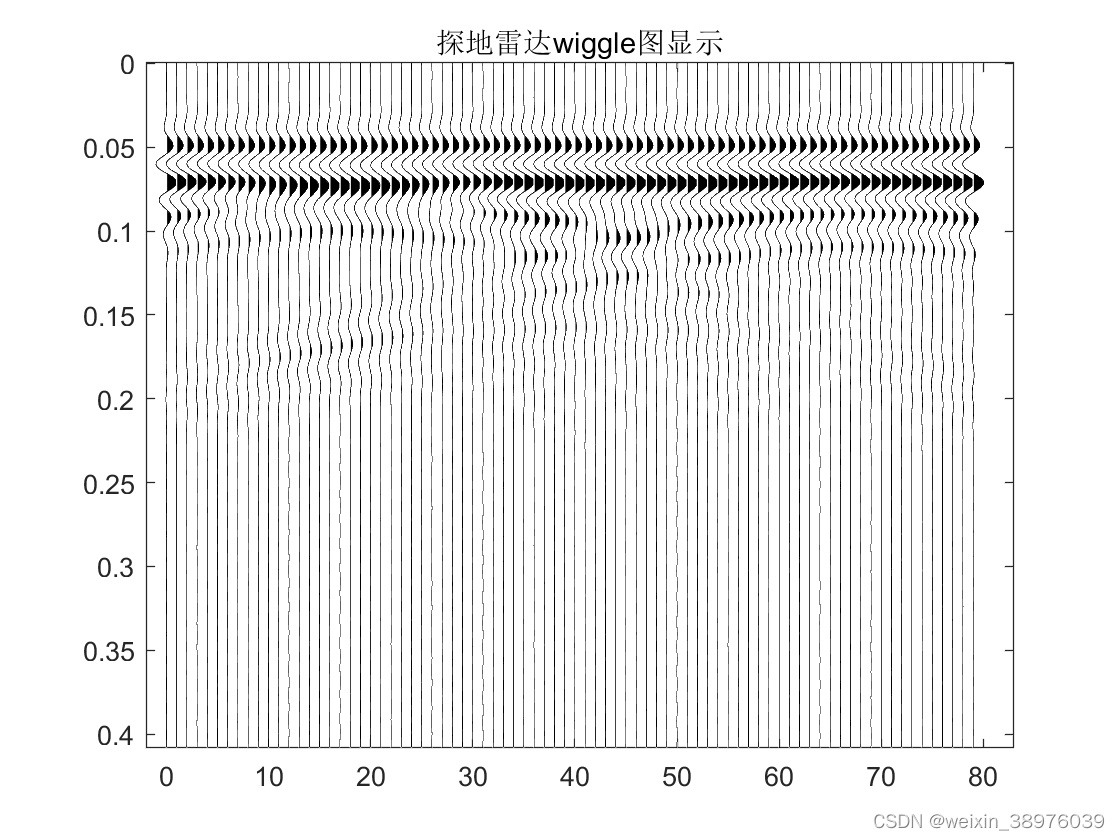

地震剖面图通常在一屏上显示多道数据，每道数据用一条wiggle曲线描述，wiggle曲线是由许多小线段组成，线段顶点横坐标、纵坐标分别与地震波振幅、时间深度一一对应，把这些顶点两两相连，便可实现wiggle曲线的绘制

代码链接
下面是网上找的代码，对于line的警告可以删除erasmode和background这两个属性
function wigb (a,scal,x,z,amx)

%WIGB: Plot seismic data using wiggles.

%

% WIGB(a,scal,x,z,amx)

%

% IN a: seismic data

% scale: multiple data by scale

% x: x-axis;

% z: vertical axis (time or depth)

%

% If only ‘a’ is enter, ‘scal,x,z,amn,amx’ are decided automatically;

% otherwise, ‘scal’ is a scalar; ‘x, z’ are vectors for annotation in

% offset and time, amx are the amplitude range.

%

%

% Author(s): Xingong Li (Exxon-Mobil)

% Copyright 1998-2003 Xingong

%
