Glide源码阅读之原型模式【TransitionOptions】【BaseRequestOptions】【RequestBuilder】

定义

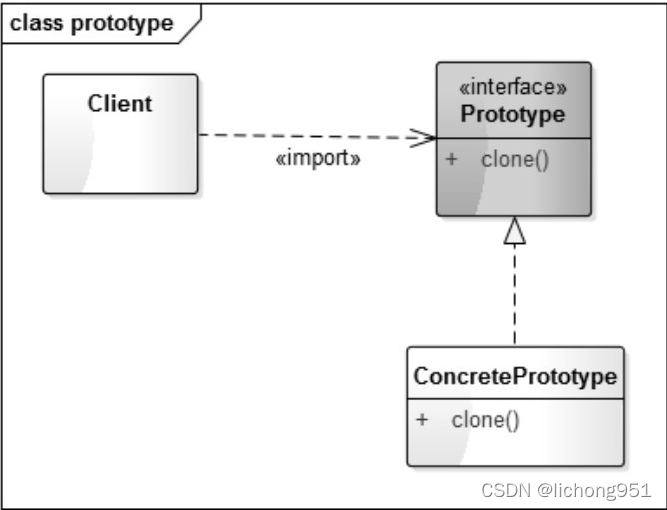

菜鸟教程

原型模式（Prototype Pattern）是用于创建重复的对象，同时又能保证性能。这种类型的设计模式属于创建型模式，它提供了一种创建对象的最佳方式。

这种模式是实现了一个原型接口，该接口用于创建当前对象的克隆。当直接创建对象的代价比较大时，则采用这种模式。例如，一个对象需要在一个高代价的数据库操作之后被创建。我们可以缓存该对象，在下一个请求时返回它的克隆，在需要的时候更新数据库，以此来减少数据库调用

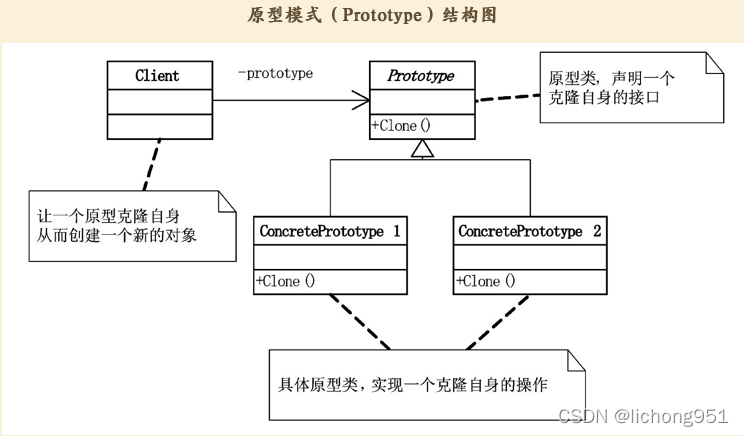

大话设计模式

用原型实例指定创建对象的种类，并且通过拷贝这些原型创建新的对象

《Android源码设计模式解析与实践》

特点

最大的特点是：implements Cloneable；但凡实现Cloneable接口的一般都满足原型模式。当然也不排除有其他变种情况，不过目前没有碰到。如果有请留言分享，或者后期我碰到后再补充。

注意事项：

与通过对一个类进行实例化来构造新对象不同的是，原型模式是通过拷贝一个现有对象生成新对象的。浅拷贝实现 Cloneable，重写，深拷贝是通过实现 Serializable 读取二进制流。

使用场景

1. 简历模板
2. 历史文档修改记录（比如：飞书、腾讯等在线编辑文档）

浅拷贝、深拷贝

浅拷贝

被复制对象的所有变量都含有与原来的对象相同的值，而所有的对其他对象的引用都仍然指向原来的对象。

深拷贝

把引用对象的变量指向复制过的新对象，而不是原有的被引用的对象

Glide原型模式应用

包路径：com.bumptech.glide.TransitionOptions

登录后复制

/**
 * A base class for setting a transition to use on a resource when a load completes.
 *
 * @param <CHILD> The implementation of this class to return to chain methods.
 * @param <TranscodeType> The type of resource that will be animated.
 */
public abstract class TransitionOptions<
        CHILD extends TransitionOptions<CHILD, TranscodeType>, TranscodeType>
    implements Cloneable {
  private TransitionFactory<? super TranscodeType> transitionFactory = NoTransition.getFactory();

  /**
   * Removes any existing animation put on the builder. Will be overridden by subsequent calls that
   * put an animation.
   *
   * @return This request builder.
   */
  @NonNull
  public final CHILD dontTransition() {
    return transition(NoTransition.getFactory());
  }

  /**
   * Sets an {@link android.view.animation.Animation} to run on the wrapped target when an resource
   * load finishes. Will only be run if the resource was loaded asynchronously (i.e. was not in the
   * memory cache).
   *
   * @param viewAnimationId The resource id of the {@link android.view.animation} to use as the
   *     transition.
   * @return This request builder.
   */
  @NonNull
  public final CHILD transition(int viewAnimationId) {
    return transition(new ViewAnimationFactory<>(viewAnimationId));
  }

  /**
   * Sets an animator to run a {@link android.view.ViewPropertyAnimator} on a view that the target
   * may be wrapping when a resource load finishes. Will only be run if the load was loaded
   * asynchronously (i.e. was not in the memory cache).
   *
   * @param animator The {@link com.bumptech.glide.request.transition.ViewPropertyTransition
   *     .Animator} to run.
   * @return This request builder.
   */
  @NonNull
  public final CHILD transition(@NonNull ViewPropertyTransition.Animator animator) {
    return transition(new ViewPropertyAnimationFactory<>(animator));
  }

  /**
   * Uses the given {@link TransitionFactory} to build a {@link
   * com.bumptech.glide.request.transition.Transition} for each request started with these {@code
   * TransitionOptions}.
   *
   * @return This request builder.
   */
  @NonNull
  public final CHILD transition(
      @NonNull TransitionFactory<? super TranscodeType> transitionFactory) {
    this.transitionFactory = Preconditions.checkNotNull(transitionFactory);
    return self();
  }

  @SuppressWarnings({
    // cast to CHILD is safe given the generic argument represents the object's runtime class
    "unchecked",
    // CHILD is the correct class name.
    "PMD.CloneMethodReturnTypeMustMatchClassName",
    // we don't want to throw to be user friendly
    "PMD.CloneThrowsCloneNotSupportedException"
  })
  @Override
  public final CHILD clone() {
    try {
      return (CHILD) super.clone();
    } catch (CloneNotSupportedException e) {
      throw new RuntimeException(e);
    }
  }

  final TransitionFactory<? super TranscodeType> getTransitionFactory() {
    return transitionFactory;
  }

  @SuppressWarnings("unchecked")
  private CHILD self() {
    return (CHILD) this;
  }
}

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.
• 42.
• 43.
• 44.
• 45.
• 46.
• 47.
• 48.
• 49.
• 50.
• 51.
• 52.
• 53.
• 54.
• 55.
• 56.
• 57.
• 58.
• 59.
• 60.
• 61.
• 62.
• 63.
• 64.
• 65.
• 66.
• 67.
• 68.
• 69.
• 70.
• 71.
• 72.
• 73.
• 74.
• 75.
• 76.
• 77.
• 78.
• 79.
• 80.
• 81.
• 82.
• 83.
• 84.
• 85.
• 86.
• 87.
• 88.
• 89.
• 90.

被RequestBuilder调用，同时RequestBuilder也是原型模式，两者结合正好说明浅拷贝和深拷贝。TransitionOptions属于浅拷贝那种
RequestBuilder调用了TransitionOptions的clone()属于深拷贝那种。当然深浅拷贝取舍也是根据实际业务场景设定的。

登录后复制

/**
 * A generic class that can handle setting options and staring loads for generic resource types.
 *
 * @param <TranscodeType> The type of resource that will be delivered to the {@link
 *     com.bumptech.glide.request.target.Target}.
 */
// Public API.
@SuppressWarnings({"unused", "WeakerAccess"})
public class RequestBuilder<TranscodeType> extends BaseRequestOptions<RequestBuilder<TranscodeType>>
    implements Cloneable, ModelTypes<RequestBuilder<TranscodeType>> {
  。。。
   @NonNull
  @SuppressWarnings("unchecked")
  private TransitionOptions<?, ? super TranscodeType> transitionOptions;
  /**
   * Returns a copy of this request builder with all of the options put so far on this builder.
   *
   * <p>This method returns a "deep" copy in that all non-immutable arguments are copied such that
   * changes to one builder will not affect the other builder. However, in addition to immutable
   * arguments, the current model is not copied so changes to the model will affect both builders.
   */
  @SuppressWarnings({
    // we don't want to throw to be user friendly
    "PMD.CloneThrowsCloneNotSupportedException"
  })
  @CheckResult
  @Override
  public RequestBuilder<TranscodeType> clone() {
    RequestBuilder<TranscodeType> result = super.clone();
    result.transitionOptions = result.transitionOptions.clone();
    if (result.requestListeners != null) {
      result.requestListeners = new ArrayList<>(result.requestListeners);
    }
    if (result.thumbnailBuilder != null) {
      result.thumbnailBuilder = result.thumbnailBuilder.clone();
    }
    if (result.errorBuilder != null) {
      result.errorBuilder = result.errorBuilder.clone();
    }
    return result;
  }

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.

再补充一个BaseRequestOptions

登录后复制

/**
 * A base object to allow method sharing between {@link RequestOptions} and {@link
 * com.bumptech.glide.RequestBuilder}.
 *
 * <p>This class is not meant for general use and may change at any time.
 *
 * @param <T> The particular child implementation
 */
@SuppressWarnings({"PMD.UseUtilityClass", "unused"})
public abstract class BaseRequestOptions<T extends BaseRequestOptions<T>> implements Cloneable {
  private static final int UNSET = -1;
  private static final int SIZE_MULTIPLIER = 1 << 1;
  。。。

  /**
   * Returns a copy of this request builder with all of the options put so far on this builder.
   *
   * <p>This method returns a "deep" copy in that all non-immutable arguments are copied such that
   * changes to one builder will not affect the other builder. However, in addition to immutable
   * arguments, the current model is not copied copied so changes to the model will affect both
   * builders.
   *
   * <p>Even if this object was locked, the cloned object returned from this method will not be
   * locked.
   */
  @SuppressWarnings({
    "unchecked",
    // we don't want to throw to be user friendly
    "PMD.CloneThrowsCloneNotSupportedException",
    // The types we're using here do this automatically.
    "PMD.CloneMethodReturnTypeMustMatchClassName"
  })
  @CheckResult
  @Override
  public T clone() {
    try {
      BaseRequestOptions<?> result = (BaseRequestOptions<?>) super.clone();
      result.options = new Options();
      result.options.putAll(options);
      result.transformations = new CachedHashCodeArrayMap<>();
      result.transformations.putAll(transformations);
      result.isLocked = false;
      result.isAutoCloneEnabled = false;
      return (T) result;
    } catch (CloneNotSupportedException e) {
      throw new RuntimeException(e);
    }
  }
。。。。

• 1.
• 2.
• 3.
• 4.
• 5.
• 6.
• 7.
• 8.
• 9.
• 10.
• 11.
• 12.
• 13.
• 14.
• 15.
• 16.
• 17.
• 18.
• 19.
• 20.
• 21.
• 22.
• 23.
• 24.
• 25.
• 26.
• 27.
• 28.
• 29.
• 30.
• 31.
• 32.
• 33.
• 34.
• 35.
• 36.
• 37.
• 38.
• 39.
• 40.
• 41.
• 42.
• 43.
• 44.
• 45.
• 46.
• 47.
• 48.
• 49.

总结

具体的业务上和功能上的介绍就免了，如果有兴趣可以自行翻译。本文介绍的是原型模式的结构以及深浅拷贝的说明。聚焦设计模式解析，争取读完一个模式解析即可在项目上进行应用。
