R语言可视化（一）GGally包

GGally

GGally包作为ggplot2扩展包之一，可以方便的显示配对图矩阵，散点图矩阵，平行坐标图，生存图，以及绘制网络。下面对其功能做代码展示：

Talk is cheap, let’s coding!

首先在R中安装GGally包，显示线性回归各系数显著性。
以iris鸢尾花数据集为例：

#交流Q 63531202
install.packages("GGally")
library(GGally)

reg <- lm(Sepal.Length ~ Sepal.Width + Petal.Length + Petal.Width, data = iris)
ggcoef(reg)

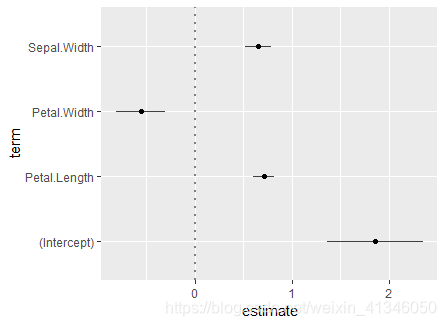

从上图可以看出，除了Petal width系数小于0，其他均大于0。
用GGally显示逻辑回归系数的可视化效果会是怎样呢？
以泰坦尼克号数据为例：

d <- as.data.frame(Titanic)
log.reg <- glm(Survived ~ Sex + Age + Class, family = binomial, data = d, weights = d$Freq)
ggcoef(log.reg, exponentiate = TRUE)

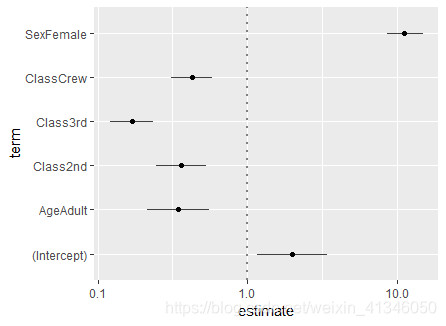

从上图可以直观的看出，女性对于幸存者来说有显著影响。这与泰坦尼克号救援时先救妇女儿童相契合。

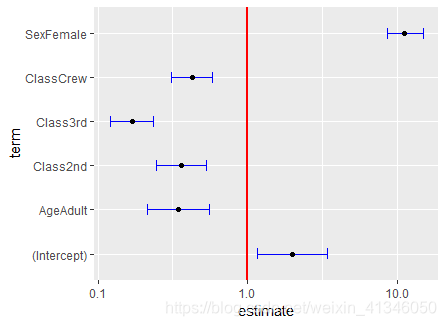

除了显示回归系数显著性，GGally包也可以绘制误差线，示例代码如下：

#errorbar======
ggcoef(
  log.reg,
  exponentiate = TRUE,
  vline_color = "red",
  vline_linetype =  "solid",
  errorbar_color = "blue",
  errorbar_height = .25
)

这样是不是对于回归系数结果更加一目了然了呢？

library(ggplot2)
ggcoef(log.reg, exponentiate = TRUE, mapping = aes(x = estimate, y = term, size = p.value)) +
  scale_size_continuous(trans = "reverse")

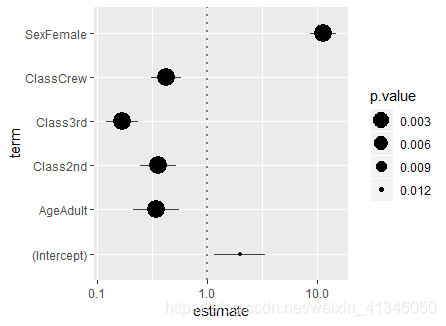

可以根据显著性程度调节圆点大小。

下面阐述相关矩阵图的方法，以psychademic数据集为例：

#Canonical Correlation Analysis=========
data(psychademic)
str(psychademic)

(psych_variables <- attr(psychademic, "psychology"))
(academic_variables <- attr(psychademic, "academic"))

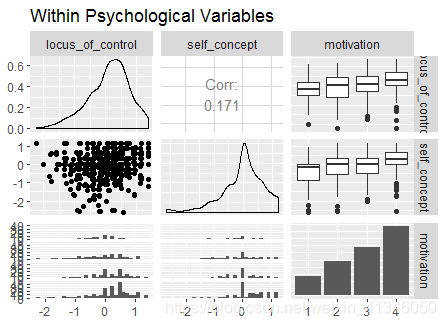

ggpairs(psychademic, psych_variables, title = "Within Psychological Variables")

ggpairs(psychademic, academic_variables, title = "Within Academic Variables")

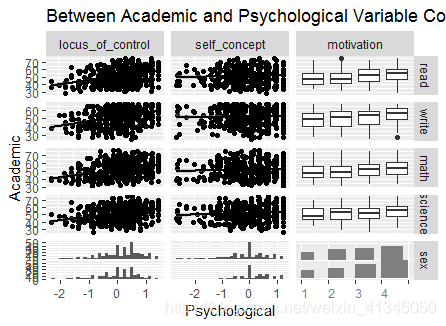

ggduo(
  psychademic, psych_variables, academic_variables,
  types = list(continuous = "smooth_lm"),
  title = "Between Academic and Psychological Variable Correlation",
  xlab = "Psychological",
  ylab = "Academic"
)

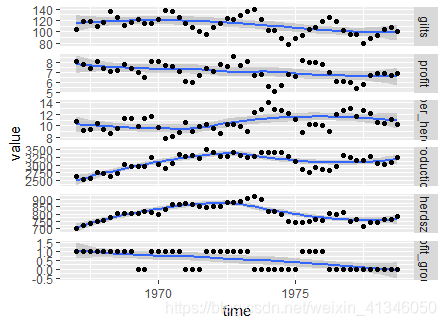

最后，说说GGally在时间序列可视化方面的应用

#Multiple Time Series Analysis=========
library(ggplot2)
data(pigs)
pigs_dt <- pigs[-(2:3)] # remove year and quarter
pigs_dt$profit_group <- as.numeric(pigs_dt$profit > mean(pigs_dt$profit))
qplot(
  time, value,
  data = reshape::melt.data.frame(pigs_dt, "time"),
  geom = c("smooth", "point")
) +
  facet_grid(variable ~ ., scales = "free_y")
#交流Q 63531202

R GGally包功能强大，篇幅有限只展示了一些基础功能，有兴趣的小伙伴欢迎随时沟通交流！笔芯！
