一.基本介绍
1. Spring 事务控制我们需要明确的
- JavaEE 体系进行分层开发,事务处理位于业务层,Spring 提供了分层设计业务层的事务处理解决方案。
- Spring 框架为我们提供了一组事务控制的接口。这组接口是在spring-tx-5.0.2.RELEASE.jar 中。
- Spring 的事务控制都是基于 AOP 的,它既可以使用编程的方式实现,也可以使用配置的方式实现。
2. Spring 中事务控制的 API
2.1 PlatformTransactionManager
PlatformTransactionManager是Spring的事务管理器的接口,在实际开发中,我们使用它的实现类org.springframework.jdbc.datasource.DataSourceTransactionManager。
2.2 TransactionDefinition
// 获取事务的传播行为
int getPropagationBehavior();
// 获取事务的隔离级别
int getIsolationLevel();
// 获取事务的超时时间
int getTimeout();
// 获取事务是否只读
boolean isReadOnly();
// 获取事务对象名称
String getName();
TransactionDefinition是事务的定义信息对象。
事务的类型说明:
读写型事务:增加、删除、修改时开启事务。
只读型事务:执行查询时,也会开启事务。
2.2.1 事务的隔离级别
事务隔离级反映事务提交并发访问时的处理态度
-ISOLATION DEFAULT
默认级别,归属下列某一种
-ISOLATION_READ_UNCOMMITTED
可以读取未提交数据
-ISOLATION READ COMMITTED
只能读取已提交数据,解决脏读问题(Oracle默认级别)
-ISOLATION_REPEATABLE_READ
是否读取其他事务提交修改后的数据,解决不可重复读问题(MySQL默认级别)
-ISOLATION SERIALIZABLE一是否读取其他事务提交添加后的数据,解决幻影读问题
2.2.2 事务的传播行为
REQUIRED:如果当前没有事务,就新建一个事务,如果已经存在一个事务中,加入到这个事务中。一般的选择(默认值)
SUPPORTS:支持当前事务,如果当前没有事务,就以非事务方式执行(没有事务)
MANDATORY:使用当前的事务,如果当前没有事务,就抛出异常
REQUERS_NEW:新建事务,如果当前在事务中,把当前事务挂起。
NOT_SUPPORTED:以非事务方式执行操作,如果当前存在事务,就把当前事务挂起
NEVER:以非事务方式运行,如果当前存在事务,抛出异常
NESTED:如果当前存在事务,则在嵌套事务内执行。如果当前没有事务,则执行 REQUIRED 类似的操作。
2.2.3 超时时间
默认值是-1,没有超时限制。如果有,以秒为单位进行设置。
2.2.4 是否是只读事务
建议查询时设置为只读。
2.3 TransactionStatus
TransactionStatus接口描述了某个时间点上事务对象的状态信息,包含有6个具体的操作
-刷新事务
void flush()
-获取是否是否存在存储点
boolean hasSavepoint()
-获取事务是否完成
boolean isCompleted()
-获取事务是否为新的事务
boolean isNew Transaction()
-获取事务是否回滚
boolean isRollbackOnly()
-设置事务回滚
void setRollbackOnly()
二. 基于 XML 的声明式事务控制
1. pom.xml
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-context</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-jdbc</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-tx</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>org.springframework</groupId>
<artifactId>spring-test</artifactId>
<version>5.0.2.RELEASE</version>
</dependency>
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>5.1.6</version>
</dependency>
<dependency>
<groupId>org.aspectj</groupId>
<artifactId>aspectjweaver</artifactId>
<version>1.8.7</version>
</dependency>
<dependency>
<groupId>junit</groupId>
<artifactId>junit</artifactId>
<version>4.12</version>
</dependency>
2. Account.java
public class Account implements Serializable {
private Integer id;
private String name;
private Float money;
//get、set、toString方法省略
}
3. DAO层
public interface IAccountDao {
/**
* 根据Id查询账户
* @param accountId
* @return
*/
Account findAccountById(Integer accountId);
/**
* 根据名称查询账户
* @param accountName
* @return
*/
Account findAccountByName(String accountName);
/**
* 更新账户
* @param account
*/
void updateAccount(Account account);
}
public class AccountDaoImpl extends JdbcDaoSupport implements IAccountDao {
public Account findAccountById(Integer accountId) {
List<Account> accounts = super.getJdbcTemplate().query("select * from account where id = ?",new BeanPropertyRowMapper<Account>(Account.class),accountId);
return accounts.isEmpty()?null:accounts.get(0);
}
public Account findAccountByName(String accountName) {
List<Account> accounts = super.getJdbcTemplate().query("select * from account where name = ?",new BeanPropertyRowMapper<Account>(Account.class),accountName);
if(accounts.isEmpty()){
return null;
}
if(accounts.size()>1){
throw new RuntimeException("结果集不唯一");
}
return accounts.get(0);
}
public void updateAccount(Account account) {
super.getJdbcTemplate().update("update account set name=?,money=? where id=?",account.getName(),account.getMoney(),account.getId());
}
}
4. Service层
public interface IAccountService {
/**
* 根据id查询账户信息
* @param accountId
* @return
*/
Account findAccountById(Integer accountId);
/**
* 转账
* @param sourceName 转成账户名称
* @param targetName 转入账户名称
* @param money 转账金额
*/
void transfer(String sourceName,String targetName,Float money);
}
public class AccountServiceImpl implements IAccountService{
private IAccountDao accountDao;
public void setAccountDao(IAccountDao accountDao) {
this.accountDao = accountDao;
}
public Account findAccountById(Integer accountId) {
return accountDao.findAccountById(accountId);
}
public void transfer(String sourceName, String targetName, Float money) {
System.out.println("transfer....");
//2.1根据名称查询转出账户
Account source = accountDao.findAccountByName(sourceName);
//2.2根据名称查询转入账户
Account target = accountDao.findAccountByName(targetName);
//2.3转出账户减钱
source.setMoney(source.getMoney()-money);
//2.4转入账户加钱
target.setMoney(target.getMoney()+money);
//2.5更新转出账户
accountDao.updateAccount(source);
int i=1/0;
//2.6更新转入账户
accountDao.updateAccount(target);
}
}
5. bean.xml
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/tx
https://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/aop
https://www.springframework.org/schema/aop/spring-aop.xsd">
<!-- 配置业务层-->
<bean id="accountService" class="com.uos.service.impl.AccountServiceImpl">
<property name="accountDao" ref="accountDao"></property>
</bean>
<!-- 配置账户的持久层-->
<bean id="accountDao" class="com.uos.dao.impl.AccountDaoImpl">
<property name="dataSource" ref="dataSource"></property>
</bean>
<!-- 配置数据源-->
<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"></property>
<property name="url" value="jdbc:mysql://localhost:3306/account?serverTimezone=UTC"></property>
<property name="username" value="root"></property>
<property name="password" value="123456"></property>
</bean>
<!--1、配置事务管理器-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"></property>
</bean>
<!--2、配置事务的通知-->
<tx:advice id="txAdvice" transaction-manager="transactionManager">
<!--5、配置事务的属性-->
<tx:attributes>
<tx:method name="*" propagation="REQUIRED" read-only="false"/>
<tx:method name="find" propagation="SUPPORTS" read-only="true"/>
</tx:attributes>
</tx:advice>
<!-- 配置aop-->
<aop:config>
<!--3、配置切入点表达式-->
<aop:pointcut id="pt1" expression="execution(* com.uos.service.impl.*.*(..))"/>
<!--4、建立切入点表达式和事务通知之间的关系-->
<aop:advisor advice-ref="txAdvice" pointcut-ref="pt1"></aop:advisor>
</aop:config>
</beans>
6. 测试
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(locations = "classpath:bean.xml")
public class AccountServiceTest {
@Autowired
private IAccountService as;
@Test
public void testTransfer(){
as.transfer("aaa","bbb",100f);
}
}
三. 基于注解的声明式事务控制
1. 修改bean.xml
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:aop="http://www.springframework.org/schema/aop"
xmlns:tx="http://www.springframework.org/schema/tx"
xmlns:context="http://www.springframework.org/schema/context"
xsi:schemaLocation="
http://www.springframework.org/schema/beans
https://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/tx
https://www.springframework.org/schema/tx/spring-tx.xsd
http://www.springframework.org/schema/aop
https://www.springframework.org/schema/aop/spring-aop.xsd
http://www.springframework.org/schema/context
https://www.springframework.org/schema/context/spring-context.xsd">
<!--告知Spring创建容器时需要扫描的包-->
<context:component-scan base-package="com.uos"></context:component-scan>
<bean id="jdbcTemplate" class="org.springframework.jdbc.core.JdbcTemplate">
<property name="dataSource" ref="dataSource"></property>
</bean>
<!-- 配置数据源-->
<bean id="dataSource" class="org.springframework.jdbc.datasource.DriverManagerDataSource">
<property name="driverClassName" value="com.mysql.jdbc.Driver"></property>
<property name="url" value="jdbc:mysql://localhost:3306/account?serverTimezone=UTC"></property>
<property name="username" value="root"></property>
<property name="password" value="123456"></property>
</bean>
<!--Spring基于XML的声明式事务控制配置步骤
1.配置事务管理器
2.开启Spring对注解事务的支持
3.在需要支持事务的地方使用@Transcation注解
-->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"></property>
</bean>
<tx:annotation-driven transaction-manager="transactionManager"></tx:annotation-driven>
</beans>

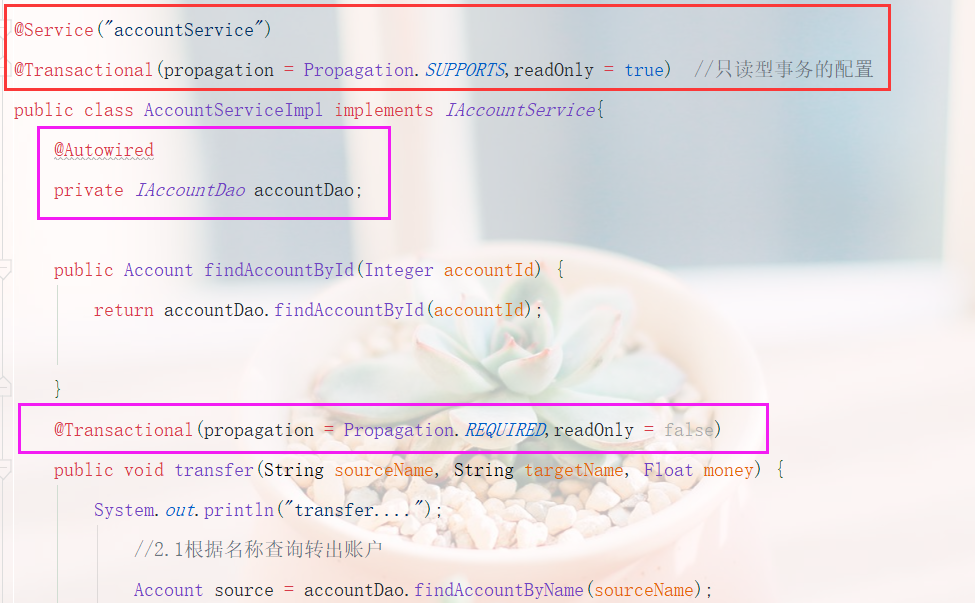

2. 添加相关注解
四. 基于注解的声明式事务控制
1. SpringConfiguration.java
@Configuration
@ComponentScan(basePackages = "com.uos")
@Import({JdbcConfig.class, TransactionConfig.class})
@PropertySource("classpath:jdbc.properties")
@EnableTransactionManagement //开启Spring事务管理
public class SpringConfiguration {
}
2. JdbcConfig.java
public class JdbcConfig {
@Value("${jdbc.driver}")
private String driver;
@Value("${jdbc.url}")
private String url;
@Value("${jdbc.name}")
private String name;
@Value("${jdbc.password}")
private String password;
@Bean(name = "dataSource")
public DataSource createDataSource() {
DriverManagerDataSource driverManagerDataSource = new DriverManagerDataSource();
driverManagerDataSource.setDriverClassName(driver);
driverManagerDataSource.setUrl(url);
driverManagerDataSource.setUsername(name);
driverManagerDataSource.setPassword(password);
return driverManagerDataSource;
}
@Bean(name = "jdbcTemplate")
public JdbcTemplate createJdbcTemplate(DataSource dataSource) {
return new JdbcTemplate(dataSource);
}
@Bean(name = "transactionManager")
public PlatformTransactionManager createTransactionManager(DataSource dataSource) {
return new DataSourceTransactionManager(dataSource);
}
}
3. TransactionConfig.java
public class TransactionConfig {
@Bean(name = "transactionManager")
public PlatformTransactionManager createTransactionManager(DataSource dataSource) {
return new DataSourceTransactionManager(dataSource);
}
}
4. jdbc.properties
jdbc.driver=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://localhost:3306/account?serverTimezone=UTC
jdbc.name=root
jdbc.password=123456
5. 测试
@RunWith(SpringJUnit4ClassRunner.class)
@ContextConfiguration(classes = SpringConfiguration.class)
public class AccountServiceTest {
@Autowired
private IAccountService as;
@Test
public void testTransfer(){
as.transfer("aaa","bbb",100f);
}
}
