digispark使用

Digspark  ATtiny 85开发

工具

https://downloads.arduino.cc/arduino-1.8.9-windows.zip

https://github-production-release-asset-2e65be.s3.amazonaws.com/28220127/e05aa054-9020-11e6-9de6-61504f7ad160?X-Amz-Algorithm=AWS4-HMAC-SHA256&X-Amz-Credential=AKIAIWNJYAX4CSVEH53A%2F20190328%2Fus-east-1%2Fs3%2Faws4_request&X-Amz-Date=20190328T073942Z&X-Amz-Expires=300&X-Amz-Signature=97cca79192d79680baf069fbdac9e45cf43bd0b3a2fe79ad520e8ca27f44ec57&X-Amz-SignedHeaders=host&actor_id=30594564&response-content-disposition=attachment%3B%20filename%3DDigistump.Drivers.zip&response-content-type=application%2Foctet-stream

使用digispark打开记事本程序的代码

#include "DigiKeyboard.h"
void setup() {
 DigiKeyboard.sendKeyStroke(0);
  DigiKeyboard.delay(2000);  //延时
  DigiKeyboard.sendKeyStroke(KEY_R,MOD_GUI_LEFT);
  DigiKeyboard.delay(50);
  DigiKeyboard.println("notepad");  //打开记事本
  DigiKeyboard.delay(50);
}
void loop() {

}

配置信息三步

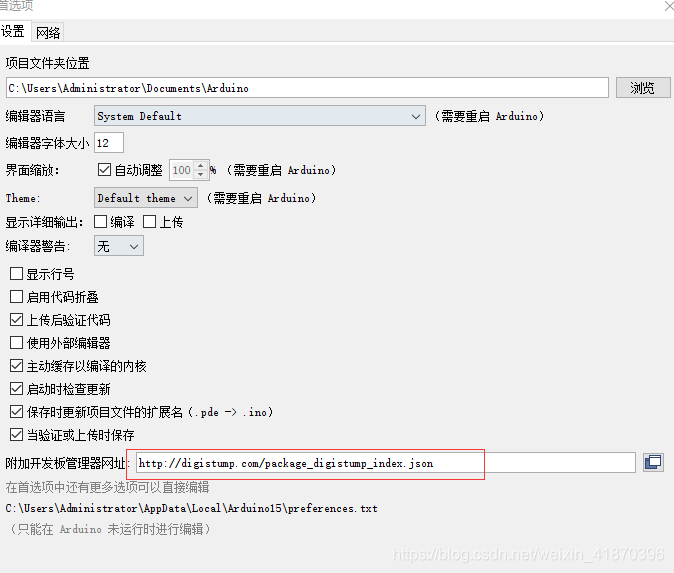

一，文件--》首选项

http://digistump.com/package_digistump_index.json

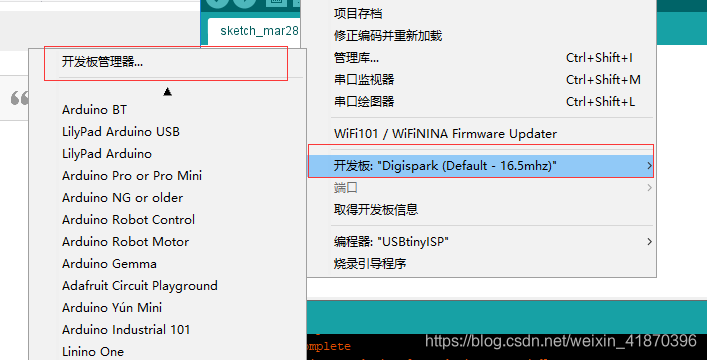

二，attiny85默认没有这个开发板选项

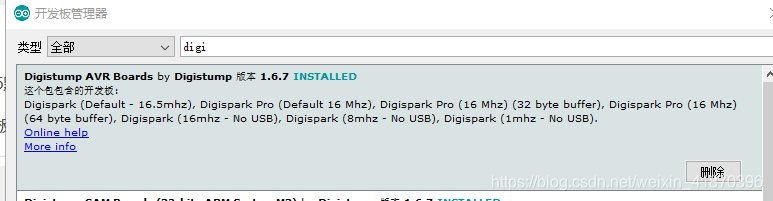

需要到开发板管理器中下载

下载这个即可

让后保持如下选项

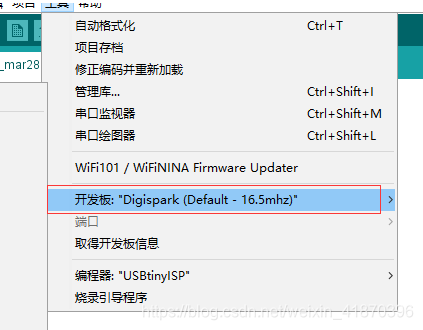

第三部  选着default 16.5即可

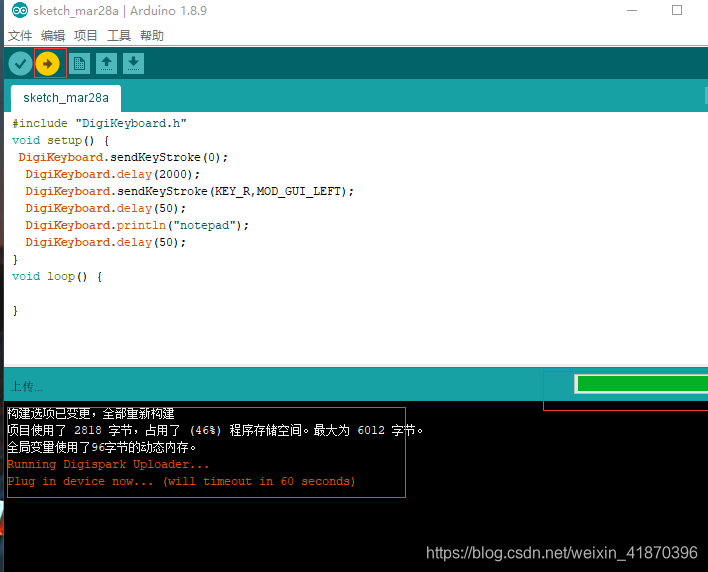

之后插digispark直到出现Thankyou
