Qt Charts QML下的图形绘制方法

一、参考

https://doc.qt.io/qt-5/qtcharts-index.html

二、简介

Qt Charts 提供了一系列使用图表功能的简单方法。它使用Qt Graphics View Framework 图形视图框架，因此可以很容易集成到用户界面。可以使用Qt Charts作为QWidgets, QGraphicsWidget, 或者 QML类型。

使用Qt Charts时：需要在.pro文件中添加 QT += charts。
① 当把Qt Charts作为QML类型时，需要在qml文件中

import QtCharts 2.3

② 当把Qt Charts作为C++类时，需要在cpp/h文件中

 #include <QtCharts>
 using namespace QtCharts;

Qt Charts提供了如下图表类型：

① 折线图和曲线图
② 面积图和散点图
③ 柱状图
④ 饼状图
⑤ 箱形图
⑥ 蜡烛图
⑦ 极坐标图

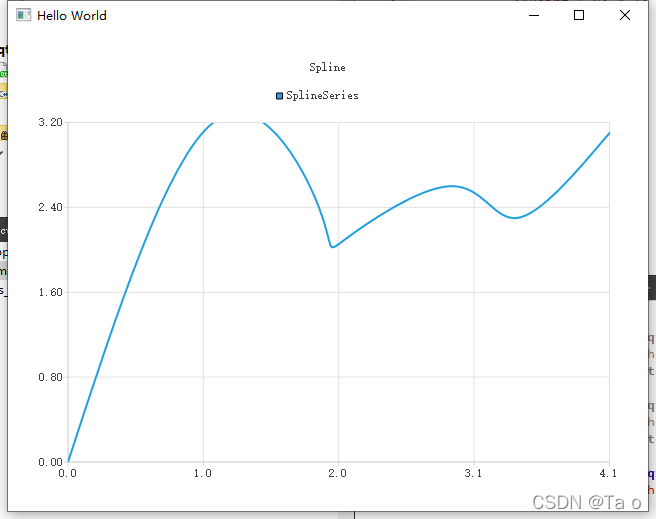

三、静态绘制曲线图

创建 Qt Quick Application - Empty项目。

① pro文件：

QT += quick

CONFIG += c++11
QT += charts

# The following define makes your compiler emit warnings if you use
# any Qt feature that has been marked deprecated (the exact warnings
# depend on your compiler). Refer to the documentation for the
# deprecated API to know how to port your code away from it.
DEFINES += QT_DEPRECATED_WARNINGS

# You can also make your code fail to compile if it uses deprecated APIs.
# In order to do so, uncomment the following line.
# You can also select to disable deprecated APIs only up to a certain version of Qt.
#DEFINES += QT_DISABLE_DEPRECATED_BEFORE=0x060000    # disables all the APIs deprecated before Qt 6.0.0

SOURCES += \
        main.cpp

RESOURCES += qml.qrc

# Additional import path used to resolve QML modules in Qt Creator's code model
QML_IMPORT_PATH =

# Additional import path used to resolve QML modules just for Qt Quick Designer
QML_DESIGNER_IMPORT_PATH =

# Default rules for deployment.
qnx: target.path = /tmp/$${TARGET}/bin
else: unix:!android: target.path = /opt/$${TARGET}/bin
!isEmpty(target.path): INSTALLS += target

② main.cpp文件：

#include <QApplication>
#include <QQmlApplicationEngine>

int main(int argc, char *argv[])
{
    QCoreApplication::setAttribute(Qt::AA_EnableHighDpiScaling);

    QApplication app(argc, argv);

    QQmlApplicationEngine engine;
    const QUrl url(QStringLiteral("qrc:/main.qml"));
    QObject::connect(&engine, &QQmlApplicationEngine::objectCreated,
                     &app, [url](QObject *obj, const QUrl &objUrl) {
        if (!obj && url == objUrl)
            QCoreApplication::exit(-1);
    }, Qt::QueuedConnection);
    engine.load(url);

    return app.exec();
}

③ main.qml文件：

import QtQuick 2.12
import QtQuick.Window 2.12
import QtCharts 2.3

Window {
    visible: true
    width: 640
    height: 480
    title: qsTr("Hello World")

    ChartView {
        title: "Spline"
        anchors.fill: parent
        antialiasing: true

        SplineSeries {
            name: "SplineSeries"
            XYPoint { x: 0; y: 0.0 }
            XYPoint { x: 1.1; y: 3.2 }
            XYPoint { x: 1.9; y: 2.4 }
            XYPoint { x: 2.1; y: 2.1 }
            XYPoint { x: 2.9; y: 2.6 }
            XYPoint { x: 3.4; y: 2.3 }
            XYPoint { x: 4.1; y: 3.1 }
        }
    }
}

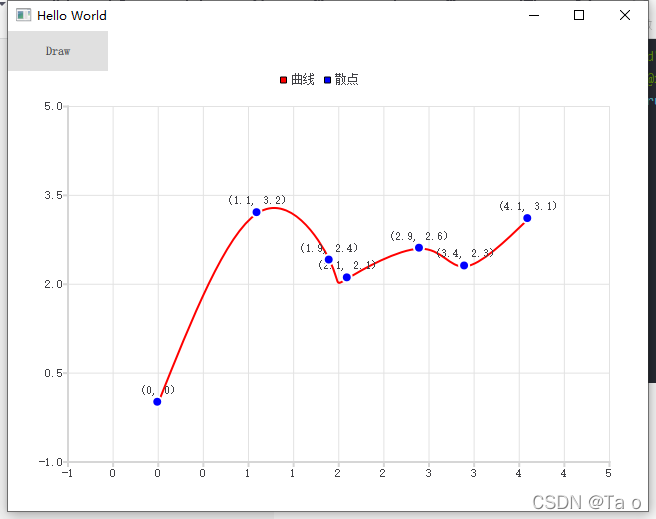

四、动态绘制曲线图和散点图

pro文件和main.cpp文件与上面相同，修改main.qml如下：

import QtQuick 2.12
import QtQuick.Window 2.12
import QtCharts 2.3
import QtQuick.Controls 2.5

Window {
    visible: true
    width: 640
    height: 480
    title: qsTr("Hello World")

    ChartView {
        id: mychart
        anchors.fill: parent
        antialiasing: true
        theme:ChartView.ChartThemeBlueNcs
    }

    Button {
        text: "Draw"
        onClicked:
        {
            var spline = mychart.createSeries(ChartView.SeriesTypeSpline, "曲线");
            spline.color = 'red';
            spline.axisX.max=5;
            spline.axisX.min=-1;
            spline.axisY.max=5;
            spline.axisY.min=-1;
            spline.axisX.tickType = ValueAxis.TicksDynamic;
            spline.axisX.tickInterval = 0.5;
            spline.axisX.labelFormat = "%d";

            spline.append(0, 0);
            spline.append(1.1, 3.2);
            spline.append(1.9, 2.4);
            spline.append(2.1, 2.1);
            spline.append(2.9, 2.6);
            spline.append(3.4, 2.3);
            spline.append(4.1, 3.1);

            var scatter = mychart.createSeries(ChartView.SeriesTypeScatter, "散点");
            scatter.markerSize = 10;
            scatter.color = 'blue';
            scatter.axisX.max=5;
            scatter.axisX.min=-1;
            scatter.axisY.max=5;
            scatter.axisY.min=-1;
            scatter.axisX.tickType = ValueAxis.TicksDynamic;
            scatter.axisX.tickInterval = 0.5;
            scatter.axisX.labelFormat = "%d";
            scatter.pointLabelsFormat = "(@xPoint, @yPoint)";
            scatter.pointLabelsVisible = true;

            scatter.append(0, 0);
            scatter.append(1.1, 3.2);
            scatter.append(1.9, 2.4);
            scatter.append(2.1, 2.1);
            scatter.append(2.9, 2.6);
            scatter.append(3.4, 2.3);
            scatter.append(4.1, 3.1);
        }
    }
}

五、如何确定哪些QML对象属性可以被JS调用

① 在 ChartView QML Type 中可以找到其提供了：

AbstractSeries createSeries(enumeration type, string name, AbstractAxis axisX, AbstractAxis axisY)

来创建绘制各种图线。根据type来选择图线类型，如ChartView.SeriesTypeSpline。方法返回 AbstractSeries 类型。

② 在AbstractSeries QML Type 中可以得知它被AbstractBarSeries, AreaSeries, BoxPlotSeries, CandlestickSeries, PieSeries, and XYSeries 继承。

③ 在 XYSeries QML Type 中可以得知它被LineSeries, ScatterSeries, and SplineSeries 继承。

④ 在 SplineSeries QML Type 中可以查看SplineSeries提供的全部成员。例如设置颜色、坐标轴、数据标签等。

⑤ 可以推测当type为ChartView.SeriesTypeSpline时，createSeries 方法返回的对象类型就是SplineSeries QML Type。那这样的话就可以对曲线进行相关设置。

六、如何确定某些QML属性赋值的格式

如 XYSeries QML Type 中的 pointLabelsFormat （设置数据点标签）只介绍了是string类型，如下图，但具体的格式是什么样的？

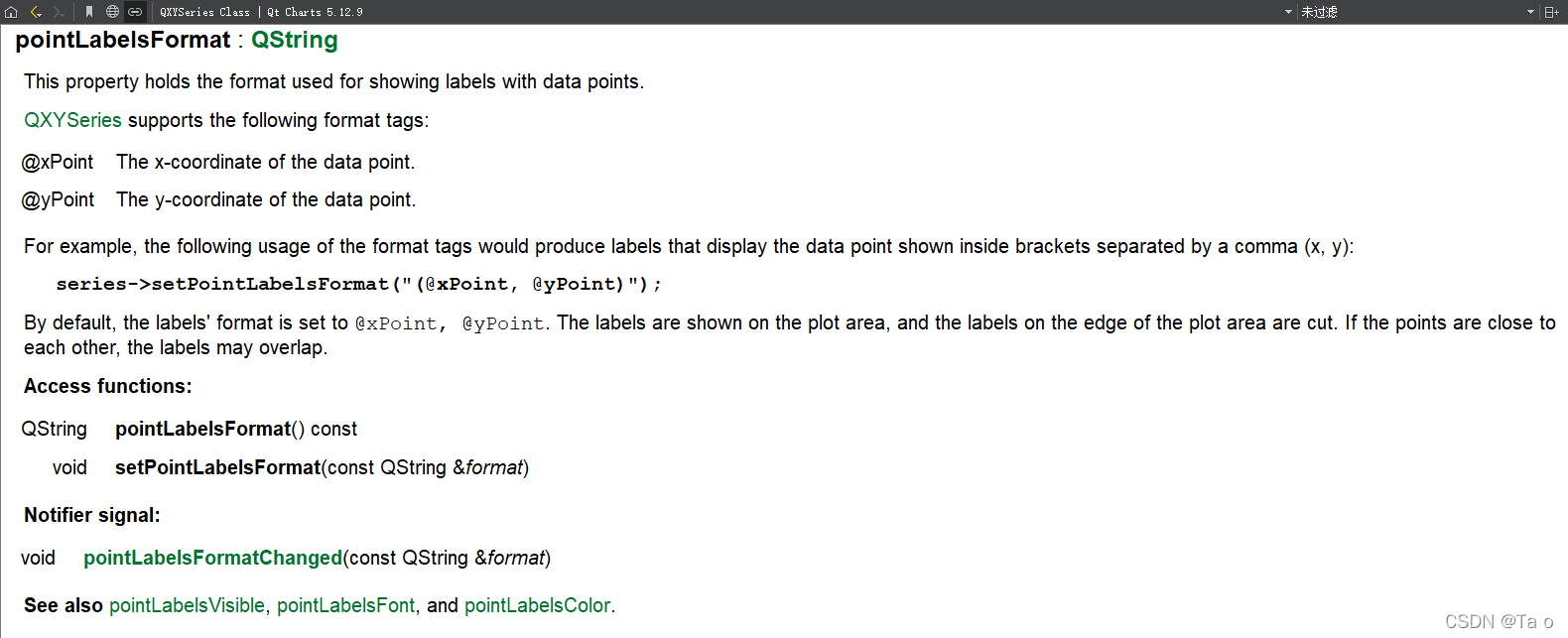

可以在qt creator的帮助页面查找关键词pointLabelsFormat ，发现qt在 QXYSeries Class中介绍了 pointLabelsFormat的具体格式如下：

感觉还是Qt的文档不是很全。QML相关的文档没有QWidgets文档完整。
