latex常见应用

latex中加罗马数字

\uppercase\expandafter{\romannumeral2}

直接显示罗马数字

latex中多个作者用同一个地址（比如A，B，D是一个地址，C是另一个地址）

\author[author1]{A}
\author[author1]{B{cor1}}
% cor1表示引注，一般用于通信作者
\ead{XX@stu.xjtu.edu.cn}
\author[author2]{C}
\author[author1]{D}
\address[author1]{School of Software Engineering, Xi'an Jiaotong University, Xi'an 710049, China}
\address[author2]{School of Mechanical Engineering, Xi'an Jiaotong University, Xi'an 710049, China}
\cortext[cor1]{Corresponding author.}

latex显示编辑行数

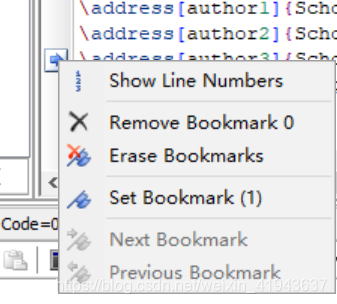

右击左侧箭头中的show line numbers

latex中添加两行两列的图片

\begin{figure}[htbp]
\centering
\subfigure[The recurrent cell with 2 nodes.]{
\begin{minipage}[t]{0.5\linewidth}
\centering
\includegraphics[width=1.2in]{graph/step_2.png}
\end{minipage}
}
\subfigure[The recurrent cell with 4 nodes.]{
\begin{minipage}[t]{0.5\linewidth}
\centering
\includegraphics[width=1.2in]{graph/step_4.png}
\end{minipage}
}

%这个回车键很重要 \quad也可以
\subfigure[The recurrent cell with 8 nodes.]{
\begin{minipage}[t]{0.5\linewidth}
\centering
\includegraphics[width=1.3in]{graph/step_8.png}
%\caption{fig2}
\end{minipage}
}
\subfigure[The recurrent cell with 12 nodes.]{
\begin{minipage}[t]{0.5\linewidth}
\centering
\includegraphics[width=1.5in]{graph/step_12.png}
\end{minipage}
}

\centering
\caption{RNN cells containing different nodes on the FD001 dataset.}
\end{figure}
