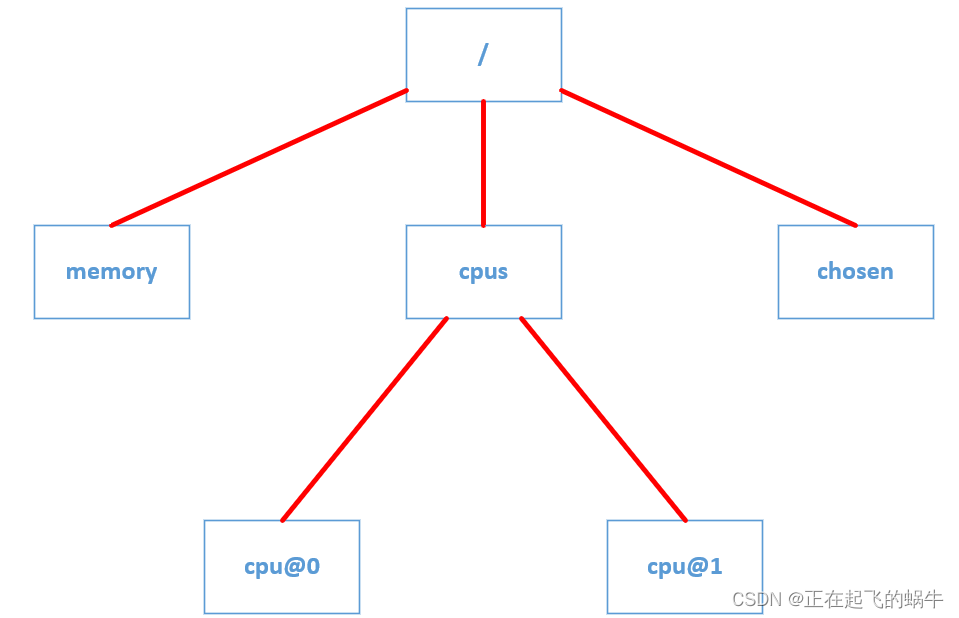

设备树的树形结构到底是怎样体现的？

正在起飞的蜗牛

于 2022-07-31 00:02:59 发布

阅读量459

点赞数

分类专栏： linux设备树详解文章标签：设备树 linux内核

本文链接：https://blog.csdn.net/weixin_42031299/article/details/126073782

版权

linux设备树详解专栏收录该内容

7 篇文章

订阅专栏

1、dts示例源码

/ {
	model = "Hisilicon HI3516DV300 DEMO Board";
	compatible = "hisilicon,hi3516dv300";

	memory {
		device_type = "memory";
		reg = <0x82000000 0x20000000>;
	};

	 chosen {
        bootargs = "console=ttySAC2,115200n8 root=/dev/nfs nfsroot=192.168.0.101:/home/run/work/rootfs/";
    };

	cpus {
		#address-cells = <1>;
		#size-cells = <0>;
		enable-method = "hisilicon,hi3516dv300";

		cpu@0 {
			device_type = "cpu";
			compatible = "arm,cortex-a7";
			clock-frequency = <HI3516DV300_FIXED_1000M>;
			reg = <0>;
		};
		cpu@1 {
			device_type = "cpu";
			compatible = "arm,cortex-a7";
			clock-frequency = <HI3516DV300_FIXED_1000M>;
			reg = <1>;
		};
	};
};
