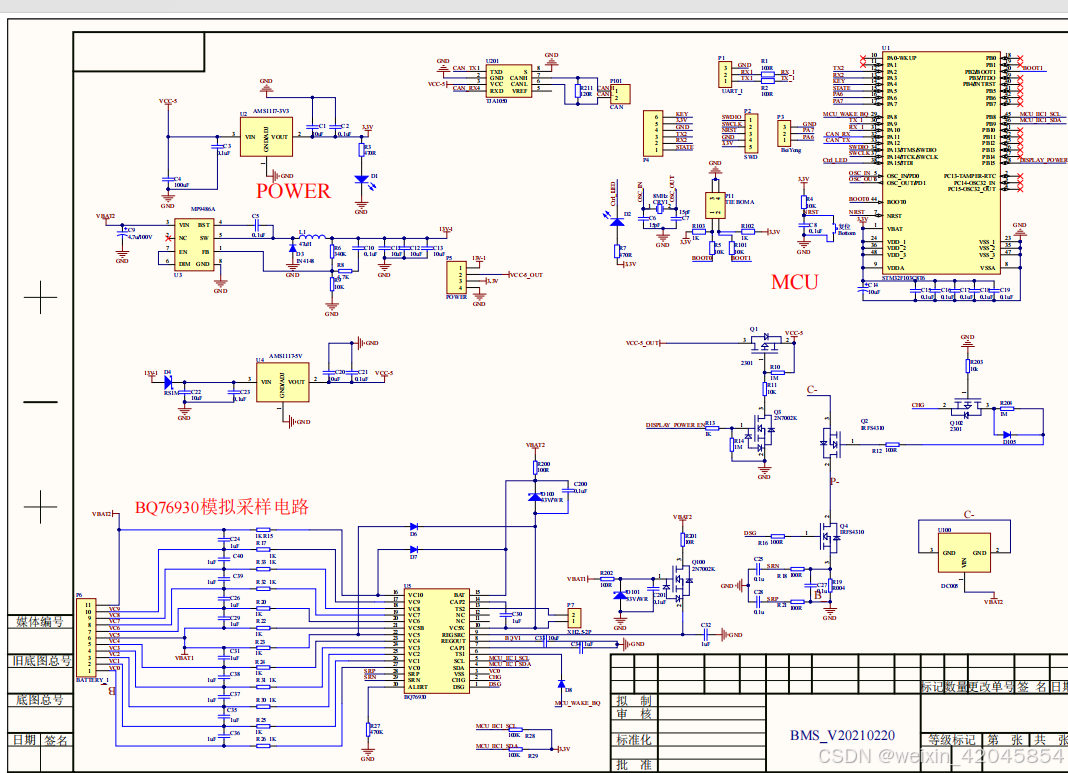

stm32+bq76930 bms电池管理系统开发源码+原理图

最新推荐文章于 2025-02-25 13:36:38 发布

weixin_42045854

最新推荐文章于 2025-02-25 13:36:38 发布

阅读量1.4k

点赞数 23

文章标签： stm32 单片机嵌入式硬件

本文链接：https://blog.csdn.net/weixin_42045854/article/details/140708937

版权

#include "stm32f10x.h"
#include "led.h"
#include "wdg.h"
#include "SYSTICK.h"
#include "usart.h"
#include "usart2.h"
#include "i2c1.h"
#include "BQ76930.h"
#include "IO_CTRL.h"
#include <stdio.h>
#include "math.h"
#include "timer.h"
#include "stm32f10x_it.h"
#include "can.h"
/**
* @file main
* @brief Main program.
* @param None
* @retval None
*/

extern unsigned char ucUSART1_ReceiveDataBuffer[];
unsigned char BMS_DATA_FLAG;
void RECEICE_DATA_DEAL(void)
{

if( Get_USART1_StopFlag() == USART1_STOP_TRUE) //????????????
{

       if((ucUSART1_ReceiveDataBuffer[0] ==0X01) && (ucUSART1_ReceiveDataBuffer[1] ==0X02)&& (ucUSART1_ReceiveDataBuffer[2] ==0X55))
       {
LEDXToggle(5);
           BMS_DATA_FLAG=1;
       }
       if((ucUSART1_ReceiveDataBuffer[0] ==0X01) && (ucUSART1_ReceiveDataBuffer[1] ==0X03)&& (ucUSART1_ReceiveDataBuffer[2] ==0X55))
       {
LEDXToggle(5);
           BMS_DATA_FLAG=0;
       }
       if((ucUSART1_ReceiveDataBuffer[0] ==0X01) && (ucUSART1_ReceiveDataBuffer[1] ==0X04)&& (ucUSART1_ReceiveDataBuffer[2] ==0X55))
       {
LEDXToggle(5);
           Only_Open_DSG   ();
       }
       if((ucUSART1_ReceiveDataBuffer[0] ==0X01) && (ucUSART1_ReceiveDataBuffer[1] ==0X05)&& (ucUSART1_ReceiveDataBuffer[2] ==0X55))
       {
LEDXToggle(5);
           Only_Close_DSG();
       }
       if((ucUSART1_ReceiveDataBuffer[0] ==0X01) && (ucUSART1_ReceiveDataBuffer[1] ==0X06)&& (ucUSART1_ReceiveDataBuffer[2] ==0X55))
       {
LEDXToggle(5);
           Only_Open_CHG   ();
       }
       if((ucUSART1_ReceiveDataBuffer[0] ==0X01) && (ucUSART1_ReceiveDataBuffer[1] ==0X07)&& (ucUSART1_ReceiveDataBuffer[2] ==0X55))
       {
LEDXToggle(5);
           Only_Close_CHG();
       }
   }
           Set_USART1_StopFlag( USART1_STOP_FALSE );
   }

   const u8 TEXT_Buffer[]={0,1};
#define SIZE sizeof(TEXT_Buffer)
   u8 datatemp[SIZE],OV_FLAG,UV_FLAG;
   u32 FLASH_SIZE = 16*1024*1024;
extern int Batteryval[50];
int main(void)
{
SYSTICK_Init(); //系统初始化，时钟配置；
   delay_ms(1000);
   NVIC_PriorityGroupConfig(NVIC_PriorityGroup_2); //设置NVIC中断分组2:2位抢占优先级，2位响应优先级

   uart_init(115200);   //串口初始化为115200
   USART2_Config(); //蓝牙串口初始化为9600
LED_GPIO_Config();//电量显示，4个LED设置；
IO_CTRL_Config(); //系统的一些IO口设置；
   I2C1_Configuration(); //BQ76930_1的IIC配置；
   BQ76930_config(); //BQ76930的初始化，唤醒设备，OV,UV,SCD,OCD的配置；
   delay_ms(100);
   PB15_ONOFF(1);
   delay_ms(1000);
   TIM2_Config(99,7199);//100mS定时器中断
   //UartSend("BL(350);\r\n");
   CAN_Mode_Init(CAN_SJW_1tq,CAN_BS2_8tq,CAN_BS1_9tq,4,CAN_Mode_Normal);//CAN初始化环回模式,波特率500Kbps

   UartSend("MODE_CFG(1);DIR(1);FSIMG(2097152,0,0,220,176,0);\r\n");
   delay_ms(1000);
UartSend("CLR(61);\r\n");
       IWDG_Init(6,1250); //看门狗4S左右

while (1)
{
   IWDG_Feed();
//   ALERT_1_Recognition();
       RECEICE_DATA_DEAL();
//           if(BMS_DATA_FLAG==1)
//           {
       Get_Update_Data();
           Cell_Balance(50); //均衡开启条件为压差大于50mV即开启；
           LEDXToggle(5);
           //}
           if((Batteryval[0]>4200)||(Batteryval[1]>4200)||(Batteryval[4]>4200)||(Batteryval[5]>4200)||(Batteryval[6]>4200)||(Batteryval[9]>4200))
                   {
                       Only_Close_CHG();
                       IIC1_write_one_byte_CRC(SYS_STAT,0xFF); //清除状态
                       OV_FLAG=1;
                   }
if(OV_FLAG==1)
           {
                   if((Batteryval[0]<4100)&&(Batteryval[1]<4100)&&(Batteryval[4]<4100))
                   {
                       Only_Open_CHG();
                       IIC1_write_one_byte_CRC(SYS_STAT,0xFF); //清除状态
                       OV_FLAG=0;
                   }
           }
                   if((Batteryval[0]<2800)||(Batteryval[1]<2800)||(Batteryval[4]<2800)||(Batteryval[5]<2800)||(Batteryval[6]<2800)||(Batteryval[9]<2800))
                   {
                       Only_Close_DSG();
                       IIC1_write_one_byte_CRC(SYS_STAT,0xFF); //清除状态
                       UV_FLAG=1;
                   }
if(UV_FLAG==1)
           {
                   if((Batteryval[0]>2800)&&(Batteryval[1]>2800)&&(Batteryval[4]>2800))
                   {
                       Only_Open_DSG();
                       IIC1_write_one_byte_CRC(SYS_STAT,0xFF); //清除状态
                       UV_FLAG=0;
                   }
           }
           if(Batteryval[11]>2000)//如果电流大于2000ma，关闭充放电MOS管
           {
           Close_DSG_CHG();
                       IIC1_write_one_byte_CRC(SYS_STAT,0xFF); //清除状态


           }
//                                   IIC1_write_one_byte_CRC(SYS_STAT,0xFF); //清除状态

       }


}

/*********************************************************************************************************
END FILE
*********************************************************************************************************/

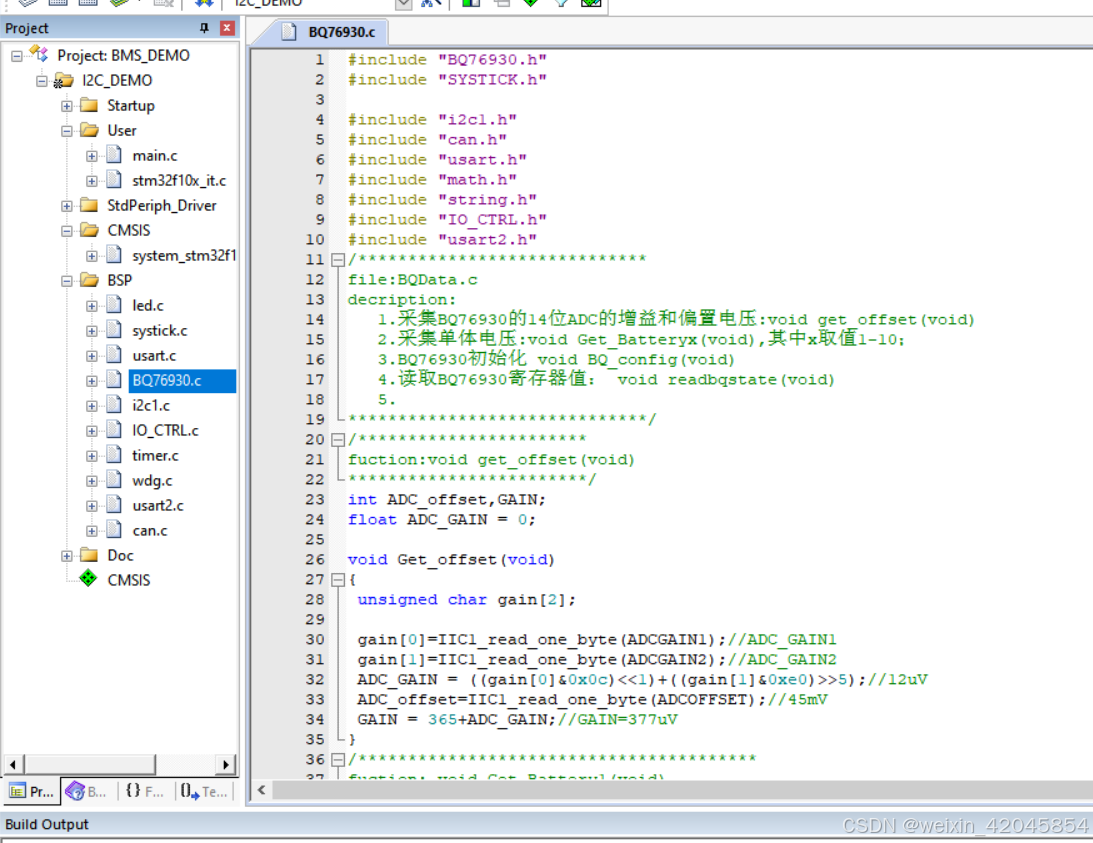

#include "BQ76930.h"
#include "SYSTICK.h"

#include "i2c1.h"
#include "can.h"
#include "usart.h"
#include "math.h"
#include "string.h"
#include "IO_CTRL.h"
#include "usart2.h"
/*****************************
file:BQData.c
decription:
1.采集BQ76930的14位ADC的增益和偏置电压:void get_offset(void)
2.采集单体电压:void Get_Batteryx(void),其中x取值1-10；
3.BQ76930初始化 void BQ_config(void)
4.读取BQ76930寄存器值： void readbqstate(void)
5.
******************************/
/***********************
fuction:void get_offset(void)
************************/
int ADC_offset,GAIN;
float ADC_GAIN = 0;

void Get_offset(void)
{
unsigned char gain[2];

gain[0]=IIC1_read_one_byte(ADCGAIN1);//ADC_GAIN1
gain[1]=IIC1_read_one_byte(ADCGAIN2);//ADC_GAIN2
ADC_GAIN = ((gain[0]&0x0c)<<1)+((gain[1]&0xe0)>>5);//12uV
ADC_offset=IIC1_read_one_byte(ADCOFFSET);//45mV
GAIN = 365+ADC_GAIN;//GAIN=377uV
}
/****************************************
fuction: void Get_Battery1(void)
description:获取第1号单体电池电压
Parameters:batterylval[0],battery1val[1];
******************************************/
void BQ76930_config(void)
{
WAKE_ALL_DEVICE();
BQ_1_2_config();
Get_offset();
OV_UV_1_2_PROTECT();
OCD_SCD_PROTECT();
}

void BQ_1_2_config(void)
{

BQ_1_config();//
}

void OV_UV_1_2_PROTECT(void)
{
OV_UV_1_PROTECT();
}

void WAKE_ALL_DEVICE(void)
{
   MCU_WAKE_BQ_ONOFF(1);
   delay_ms(100);
   MCU_WAKE_BQ_ONOFF(0);
}

void SHIP_ALL_DEVICE(void)
{
IIC1_write_one_byte_CRC(SYS_STAT,0xFF);
SHIP_1_BQ769();
}

int Batteryval[50]={0};
unsigned char shang[50]={0xAA,0x01};
unsigned char shang1[50]={0xAA,0x02};

unsigned char can_buf1[8]={0xAA,0x01};
unsigned char can_buf2[8]={0xAA,0x02};
unsigned char can_buf3[8]={0xAA,0x03};
unsigned char can_buf4[8]={0xAA,0x04};
unsigned char can_buf5[8]={0xAA,0x05};
unsigned char can_buf6[8]={0xAA,0x06};
unsigned char can_buf7[8]={0xAA,0x07};

void Get_Battery1(void)
{
unsigned int readbattbuf[2];
unsigned int battery1val[2];
short batteryval1;

readbattbuf[1] = IIC1_read_one_byte(0x0c);
readbattbuf[0] = IIC1_read_one_byte(0x0d);

batteryval1= readbattbuf[1];
batteryval1= (batteryval1 << 8) |readbattbuf[0];
batteryval1=((batteryval1*GAIN)/1000)+ADC_offset;//单体电压计算公式，第1串
Batteryval[0]=batteryval1;

battery1val[1]=(char)(batteryval1 >> 8);
battery1val[0]=(char)(batteryval1 & 0x00FF);

   shang[2]=battery1val[1];
   shang[3]=battery1val[0];

   can_buf1[2]=shang[2];
   can_buf1[3]=shang[3];

//printf("%d\n",batteryval1);
}

/****************************************
fuction: void Get_Battery2(void)
description:获取第2号单体电池电压
Parameters:battery2val[0],battery2val[1];
******************************************/
void Get_Battery2(void)
{

char readbattbuf[2];
int batteryval2;
short battery2val[2];

readbattbuf[1]=IIC1_read_one_byte(0x0e);
readbattbuf[0]=IIC1_read_one_byte(0x0f);

batteryval2= readbattbuf[1];
batteryval2= (batteryval2 << 8) |readbattbuf[0];

batteryval2=((batteryval2*GAIN)/1000)+ADC_offset;//????????,?2?
   Batteryval[1]=batteryval2;

battery2val[1]=(char)(batteryval2 >> 8);
battery2val[0]=(char)(batteryval2 & 0x00FF);

   shang[4]=battery2val[1];
   shang[5]=battery2val[0];
   can_buf1[4]=shang[4];
   can_buf1[5]=shang[5];

}
/****************************************
fuction: void Get_Battery3(void)
description:获取第3号单体电池电压
Parameters:battery3val[0],battery3val[1];
******************************************/
void Get_Battery3(void)
{

char readbattbuf[2];
int batteryval3 ;
char battery3val[2];
readbattbuf[1]=IIC1_read_one_byte(0x10);
readbattbuf[0]=IIC1_read_one_byte(0x11);

batteryval3= readbattbuf[1];
batteryval3= (batteryval3 << 8) |readbattbuf[0];
batteryval3=((batteryval3*GAIN)/1000)+ADC_offset;//????????,?3?
   Batteryval[2]=batteryval3;
battery3val[1]=(char)(batteryval3 >> 8);
battery3val[0]=(char)(batteryval3 >> 0);
   shang[6]=battery3val[1];
   shang[7]=battery3val[0];

   can_buf1[6]=shang[6];
   can_buf1[7]=shang[7];

}
/****************************************
fuction: void Get_Battery4(void)
description:获取第4号单体电池电压
Parameters:battery4val[0],battery4val[1];
******************************************/
void Get_Battery4(void)
{
char readbattbuf[2];
int batteryval4 ;
char battery4val[2];
readbattbuf[1]=IIC1_read_one_byte(0x12);
readbattbuf[0]=IIC1_read_one_byte(0x13);

batteryval4= readbattbuf[1];
batteryval4= (batteryval4 << 8) |readbattbuf[0];
batteryval4=((batteryval4*GAIN)/1000)+ADC_offset;//????????,?4?
   Batteryval[3]=batteryval4;
battery4val[1]=(char)(batteryval4 >> 8);
battery4val[0]=(char)(batteryval4 >> 0);
   shang[8]=battery4val[1];
   shang[9]=battery4val[0];
   can_buf2[2]=shang[8];
   can_buf2[3]=shang[9];

}
/****************************************
fuction: void Get_Battery5(void)
description:获取第5号单体电池电压
Parameters:battery5val[0],battery5val[1];
******************************************/
void Get_Battery5(void)
{
char readbattbuf[2];
short batteryval5 ;
char battery5val[2];
readbattbuf[1]=IIC1_read_one_byte(0x14);
readbattbuf[0]=IIC1_read_one_byte(0x15);

batteryval5= readbattbuf[1];
batteryval5= (batteryval5 << 8) |readbattbuf[0];
batteryval5=((batteryval5*GAIN)/1000)+ADC_offset;//????????,?5?
Batteryval[4]=batteryval5;
battery5val[1]=(char)(batteryval5 >> 8);
battery5val[0]=(char)(batteryval5 & 0x00FF);

   shang[10]=battery5val[1];
   shang[11]=battery5val[0];

   can_buf2[4]=shang[10];
   can_buf2[5]=shang[11];

}
/****************************************
fuction: void Get_Battery6(void)
description:获取第6号单体电池电压
Parameters:battery6val[0],battery6val[1];
******************************************/
void Get_Battery6(void)
{

char readbattbuf[2];
short batteryval6 ;
char battery6val[2];
readbattbuf[1]=IIC1_read_one_byte(0x16);
readbattbuf[0]=IIC1_read_one_byte(0x17);

batteryval6= readbattbuf[1];
batteryval6= (batteryval6 << 8) |readbattbuf[0];
batteryval6=((batteryval6*GAIN)/1000)+ADC_offset;//????????,?6?
   Batteryval[5]=batteryval6;
battery6val[1]=(char)(batteryval6 >> 8);
battery6val[0]=(char)(batteryval6 & 0x00FF);

   shang[12]=battery6val[1];
   shang[13]=battery6val[0];

   can_buf2[6]=shang[12];
   can_buf2[7]=shang[13];

}
/****************************************
fuction: void Get_Battery7(void)
description:获取第7号单体电池电压
Parameters:battery7val[0],battery7val[1];
******************************************/
void Get_Battery7(void)
{
char readbattbuf[2];
short batteryval7 ;
char battery7val[2];
readbattbuf[1]=IIC1_read_one_byte(0x18);
readbattbuf[0]=IIC1_read_one_byte(0x19);

batteryval7= readbattbuf[1];
batteryval7= (batteryval7 << 8) |readbattbuf[0];
batteryval7=((batteryval7*GAIN)/1000)+ADC_offset;//????????,?7?
   Batteryval[6]=batteryval7;
battery7val[1]=(char)(batteryval7 >> 8);
battery7val[0]=(char)(batteryval7 & 0x00FF);

   shang[14]=battery7val[1];
   shang[15]=battery7val[0];

   can_buf3[2]=shang[14];
   can_buf3[3]=shang[15];

}
/****************************************
fuction: void Get_Battery8(void)
description:获取第8号单体电池电压
Parameters:battery8val[0],battery8val[1];
******************************************/
void Get_Battery8(void)
{
char readbattbuf[2];
int batteryval8 ;
char battery8val[2];
readbattbuf[1]=IIC1_read_one_byte(0x1a);
readbattbuf[0]=IIC1_read_one_byte(0x1b);

batteryval8= readbattbuf[1];
batteryval8= (batteryval8 << 8) |readbattbuf[0];
batteryval8=((batteryval8*GAIN)/1000)+ADC_offset;//????????,?8?
   Batteryval[7]=batteryval8;
battery8val[1]=(char)(batteryval8 >> 8);
battery8val[0]=(char)(batteryval8 >> 0);
   shang[16]=battery8val[1];
   shang[17]=battery8val[0];

   can_buf3[4]=shang[16];
   can_buf3[5]=shang[17];

}

/****************************************
fuction: void Get_Battery9(void)
description:获取第9号单体电池电压
Parameters:battery9val[0],battery9val[1];
******************************************/
void Get_Battery9(void)
{
char readbattbuf[2];
short batteryval9 ;
char battery9val[2];
readbattbuf[1]=IIC1_read_one_byte(0x1c);
readbattbuf[0]=IIC1_read_one_byte(0x1d);

batteryval9= readbattbuf[1];
batteryval9= (batteryval9 << 8) |readbattbuf[0];
batteryval9=((batteryval9*GAIN)/1000)+ADC_offset;//????????,?8?

   Batteryval[8]=batteryval9;
battery9val[1]=(char)(batteryval9 >> 8);
battery9val[0]=(char)(batteryval9 & 0x00FF);
   //Batteryval[4]=batteryval9;

   shang[18]=battery9val[1];
   shang[19]=battery9val[0];
   can_buf3[6]=shang[18];
   can_buf3[7]=shang[19];

}
/****************************************
fuction: void Get_Battery10(void)
description:获取第10号单体电池电压
Parameters:battery10val[0],battery10val[1];
******************************************/
void Get_Battery10(void)
{
char readbattbuf[2];
short batteryval10 ;
char battery10val[2];
readbattbuf[1]=IIC1_read_one_byte(0x1e);
readbattbuf[0]=IIC1_read_one_byte(0x1f);

batteryval10= readbattbuf[1];
batteryval10= (batteryval10 << 8) |readbattbuf[0];
batteryval10=((batteryval10*GAIN)/1000)+ADC_offset;//????????,?8?
   Batteryval[9]=batteryval10;
battery10val[1]=(char)(batteryval10 >> 8);
battery10val[0]=(char)(batteryval10 & 0x00FF);

   shang[20]=battery10val[1];
   shang[21]=battery10val[0];

   can_buf4[2]=shang[20];
   can_buf4[3]=shang[21];
   shang1[2]=battery10val[1];
   shang1[3]=battery10val[0];

}

/****************************************
/****************************
获取所有电池的总电压值并用串口1打印出来
*****************************/
float SOC;
void Get_Update_ALL_Data(void)
{
   int i,Sum_val=0;
for(i=0;i<10;i++)
   {
   Sum_val+= Batteryval[i];
   }
   Batteryval[10] = Sum_val;



   shang[22]=(char)(Batteryval[10] >> 8);
shang[23]=(char)(Batteryval[10] &0XFF);

   can_buf6[2]=shang[22];
   can_buf6[3]=shang[23];
   shang1[4]=shang[22];
   shang1[5]=shang[23];

}

void Get_SOC(void)
{
// float a;
// a = (float)Batteryval[10];

// if(   Batteryval[10] >(4100*6))
// {SOC=100;}
//   else if((   Batteryval[10] >(4100*6))&&(Batteryval[10]<(4150*6))){SOC=95;}
//   else if((Batteryval[10]>(4050*6))&&(Batteryval[10]<(4100*6))){SOC=90;}
//   else if((Batteryval[10]>(4000*6))&&(Batteryval[10]<(4050*6))){SOC=88;}
//   else if((Batteryval[10]>(3950*6))&&(Batteryval[10]<(4000*6))){SOC=87;}
//   else if((Batteryval[10]>(3900*6))&&(Batteryval[10]<(3950*6))){SOC=86;}
//   else if((Batteryval[10]>(3900*6))&&(Batteryval[10]<(3950*6))){SOC=85;}
//   else if((Batteryval[10]>(3850*6))&&(Batteryval[10]<(3900*6))){SOC=84;}
//   else if((Batteryval[10]>(3800*6))&&(Batteryval[10]<(3850*6))){SOC=83;}
//   else if((Batteryval[10]>(3750*6))&&(Batteryval[10]<(3800*6))){SOC=82;}
//   else if((Batteryval[10]>(3700*6))&&(Batteryval[10]<(3750*6))){SOC=81;}
//   else if((Batteryval[10]>(3650*6))&&(Batteryval[10]<(3700*6))){SOC=80;}
//   else if((Batteryval[10]>(3600*6))&&(Batteryval[10]<(3650*6))){SOC=79;}
//   else if((Batteryval[10]>(3550*6))&&(Batteryval[10]<(3600*6))){SOC=78;}
//   else if((Batteryval[10]>(3500*6))&&(Batteryval[10]<(3550*6))){SOC=77;}
//
//   else if((Batteryval[10]>(3450*6))&&(Batteryval[10]<(3500*6))){SOC=40;}
//   else if((Batteryval[10]>(3400*6))&&(Batteryval[10]<(3500*6))){SOC=30;}
//   else if((Batteryval[10]>(3300*6))&&(Batteryval[10]<(3400*6))){SOC=20;}
//   else if((Batteryval[10]>(3200*6))&&(Batteryval[10]<(3300*6))){SOC=10;}
//   else if((Batteryval[10]>(3100*6))&&(Batteryval[10]<(3200*6))){SOC=5;}
//   Batteryval[32] = SOC;

// shang[24]=(char)(Batteryval[32] >> 8);
// shang[25]=(char)(Batteryval[32] &0XFF);
// can_buf6[4]=shang[24];
// can_buf6[5]=shang[25];

float SOC;

SOC = (float)Batteryval[1];
   SOC = (SOC-2800)/(4200-2800)*100;
   Batteryval[32] = SOC;
//   Batteryval[7] = SOC;
shang[24]=(char)(Batteryval[32] >> 8);
shang[25]=(char)(Batteryval[32] &0XFF);
shang1[6]=shang[24];
   shang1[7]=shang[25];
   can_buf6[4]=shang[24];
   can_buf6[5]=shang[25];

}

void OV_UV_1_PROTECT(void)
{
unsigned char OVTrip_Val,UVTrip_Val;
float t = 0.377;
OVTrip_Val = (unsigned char)((((unsigned int)((OVPThreshold - ADC_offset)/t + 0.5 ) )>>4) &0xFF);
UVTrip_Val = (unsigned char)((((unsigned int)((UVPThreshold - ADC_offset)/t + 0.5 ) )>>4) &0xFF);
IIC1_write_one_byte_CRC(OV_TRIP,OVTrip_Val);
IIC1_write_one_byte_CRC(UV_TRIP,UVTrip_Val);
}

void OCD_SCD_PROTECT(void)
{

IIC1_write_one_byte_CRC(PROTECT1,0xFF);//设置短路电流66A(SRN-SRP33mV)，短路延时400us，RSNS=0.
IIC1_write_one_byte_CRC(PROTECT2,0xFF);//设置OSD为100A(SRN-SRP50mV)，延时设置最长为1280ms。

}

/****************************************
fuction: void BQ_1_config(void)
description:BQ76930初始化
Parameters: None
//0x04寄存器0x19对应SCD延时70uS，放电短路电压33mV；
//0x05寄存器设置检测电流为1-shot模式；
//0x06寄存器0x39对应OCD的延时时间80mS，放电过流电压33mV；短路和过流对应电流都是60A.
******************************************/
unsigned char BQ769_INITAdd[11]={SYS_STAT,CELLBAL1,CELLBAL2,SYS_CTRL1,SYS_CTRL2,PROTECT1,PROTECT2,PROTECT3,OV_TRIP,UV_TRIP,CC_CFG};
unsigned char BQ769_INITdata[11]={0xFF, 0x00, 0x00, 0x18, 0X43, 0x00, 0x00, 0x00, 0x00, 0x00, 0x19};
void BQ_1_config(void)
{
char i;
for(i=0;i<11;i++)
{
           delay_ms(50);
           IIC1_write_one_byte_CRC(BQ769_INITAdd[i],BQ769_INITdata[i]);
}
}

/****************************************
/****************************************
fuction:void SHIP_1_BQ769(void)
description:BQ76930进入低功耗模式
Parameters: None
******************************************/
void SHIP_1_BQ769(void)
{
IIC1_write_one_byte_CRC(SYS_CTRL1,0x19); //01
delay_ms(20);
IIC1_write_one_byte_CRC(SYS_CTRL1,0x1a); //10
}

/****************************************
fuction:void SHIP_2_BQ769(void)
description:从BQ76930低功耗模式唤醒
Parameters: None
******************************************/
void WAKE_1_BQ769(void)
{
MCU_WAKE_BQ_ONOFF(1);
delay_ms(50);
MCU_WAKE_BQ_ONOFF(0);
}
/****************************************

/****************************************
fuction: void Get_BQCurrent(void)
description:BQ76930电流测量，采样电阻按4mΩ/8计算
Parameters: None
******************************************/

void Get_BQ_Current(void)
{
unsigned char readCurrentbuf[2];
   unsigned int Currentbufval;
   unsigned int Currentval;
unsigned char Currentbuf[1];
   readCurrentbuf[1]=IIC1_read_one_byte(CC_HI_BYTE);
readCurrentbuf[0]=IIC1_read_one_byte(CC_LO_BYTE);
Currentbufval = (readCurrentbuf[1] << 8)+readCurrentbuf[0];

   if( Currentbufval <= 0x7D00 )
   {

           Currentval = (Currentbufval*2.11); //单位mV；按4mΩ计算，单位mA；
           Batteryval[11]=Currentval;
           shang[26]= Currentval>>8;
           shang[27]= Currentval&0X00FF;
           can_buf6[6]=shang[26];
           can_buf6[7]=shang[27];
          shang1[8]=shang[26];
   shang1[9]=shang[27];

   }
else
   {
       Currentval = ((0XFFFF - Currentbufval )*2.11);
       Batteryval[11]=Currentval;
shang[26]= Currentval>>8;
   shang[27]= Currentval&0X00FF;
can_buf6[6]=shang[26];
   can_buf6[7]=shang[27];
       shang1[8]=shang[26];
   shang1[9]=shang[27];

}
}
/****************************************
fuction: void Get_BQ_1_Temp(void)
description:BQ76930 103AT温度测量
Parameters: None
******************************************/

float Tempval_2;

void Get_BQ1_2_Temp(void)
{
float Rt=0;
float Rp=10000;
float T2=273.15+25;
float Bx=3380;
float Ka=273.15;
unsigned char readTempbuf[2];
   int TempRes;
unsigned char Tempbuf[1];
   readTempbuf[1]=IIC1_read_one_byte(TS2_HI_BYTE);
readTempbuf[0]=IIC1_read_one_byte(TS2_LO_BYTE);
TempRes = (readTempbuf[1] << 8 ) | readTempbuf[0];
   TempRes = (10000*(TempRes*382/1000))/(3300-(TempRes*382/1000));
Tempval_2 = 1/(1/T2+(log(TempRes/Rp))/Bx)- Ka + 0.5;
   Batteryval[12] = Tempval_2;
shang[28]=Batteryval[12];

      can_buf7[2]=shang[28];
      shang1[10]=shang[28];

}

/****************************************
fuction: 均衡的1、2、3、4、5、6、7、8、9、10分别表示电池组上第1到10节的均衡，
并且需要注意相邻的电池串不能同时开启均衡。由于均衡的条件不同需要用户根据自己的需求开启。
description:
Parameters: None
******************************************/
void Battery1_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL1,0X01);
}

void Battery2_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL1,0X02);
}
void Battery3_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL1,0X04);
}
void Battery4_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL1,0X10);
}
void Battery5_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL2,0X01);
}

void Battery6_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL2,0X02);
}

void Battery7_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL2,0X10);
}
void Battery8_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL2,0X04);
}
void Battery9_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL2,0X08);
}
void Battery10_Balance(void)
{
IIC1_write_one_byte_CRC(CELLBAL2,0X10);
}

void Balance_Stop(void)
{
IIC1_write_one_byte_CRC(CELLBAL1,0X00);
IIC1_write_one_byte_CRC(CELLBAL2,0X00);
}

void Balance_Start(char i)
{
   if(i==0)
   {
   Battery1_Balance();
   }
   else if(i==1)
   {
   Battery2_Balance();
   }
   else if(i==2)
   {
   Battery3_Balance();
   }
   else if(i==3)
   {
   Battery4_Balance();
   }
   else if(i==4)
   {
   Battery5_Balance();
   }
   else if(i==5)
   {
   Battery6_Balance();
   }
       else if(i==6)
   {
   Battery7_Balance();
   }

       else if(i==7)
   {
   IIC1_write_one_byte_CRC(CELLBAL2,0X04);
   }

       else if(i==8)
   {
   IIC1_write_one_byte_CRC(CELLBAL2,0X08);
   }

       else if(i==9)
   {
   IIC1_write_one_byte_CRC(CELLBAL2,0X10);
   }

}

int imax,imin,imaxp,iminp;
void Cell_Battery_MAX_MIN(void)
{
   char i;
   imaxp=iminp=0;
   imax=imin=Batteryval[0];
   for(i=0;i<10;i++)
   {
   if(Batteryval[i]>imax)
{
imax=Batteryval[i];
imaxp=i;
}
if(Batteryval[i]<imin)
{
imin=Batteryval[i];
iminp=i;
}
   }

}

void Cell_Balance(int Difference)
{
Cell_Battery_MAX_MIN();
if((imax - imin)>Difference)
{
Balance_Start(imaxp);
}
else Balance_Stop();

}

unsigned char BMS_sta,DSG_STA,CHG_STA,DSG_STA_FLAG,CHG_STA_FLAG;
void BMS_STA(void)
   {
BMS_sta = IIC1_read_one_byte(SYS_CTRL2);
DSG_STA = BMS_sta&0x02;
   CHG_STA = BMS_sta&0x01;
   shang[29]=DSG_STA;
   shang[30]=CHG_STA;

   can_buf7[3]=shang[29];
   can_buf7[4]=shang[30];
   }

void Only_Open_CHG(void)
   {
       BMS_STA();
       if(DSG_STA!=0)
       {
   IIC1_write_one_byte_CRC(SYS_CTRL2,0X43);
       }
       else {IIC1_write_one_byte_CRC(SYS_CTRL2,0X41);}
   }
void Only_Close_CHG(void)
   {
       BMS_STA();
       if(DSG_STA!=0)
       {
   IIC1_write_one_byte_CRC(SYS_CTRL2,0X42);
       }
       else
       {IIC1_write_one_byte_CRC(SYS_CTRL2,0X40);   }
   }

   void Only_Open_DSG(void)
   {
       BMS_STA();
       if(CHG_STA!=0)
       {
   IIC1_write_one_byte_CRC(SYS_CTRL2,0X43);
       }
       else
       {IIC1_write_one_byte_CRC(SYS_CTRL2,0X42);}
   }
void Only_Close_DSG(void)
   {
       BMS_STA();
       if(CHG_STA!=0)
       {
   IIC1_write_one_byte_CRC(SYS_CTRL2,0X41);
       }
       else
       {IIC1_write_one_byte_CRC(SYS_CTRL2,0X40);   }
   }

   void Open_DSG_CHG(void)
   {
   IIC1_write_one_byte_CRC(SYS_CTRL2,0X43);

   }
void Close_DSG_CHG(void)
   {
   IIC1_write_one_byte_CRC(SYS_CTRL2,0X40);
   }
void Update_val(void)
{
char NEW[50]={0};
   int n;
   for(n=0;n<50;n++)

       {
           USART_SendData(USART1, shang[n]); //发送一个字节数据
           delay_ms(10);

       }

   USART2_Printf( shang,20,ASCII_CODE);
       delay_ms(200);
       USART2_Printf( shang1,19,ASCII_CODE);


       Can_Send_Msg(can_buf1,8,0x0001);
       delay_ms(5);
       Can_Send_Msg(can_buf2,8,0x0002);
       delay_ms(5);
       Can_Send_Msg(can_buf3,8,0x0003);
       delay_ms(5);
       Can_Send_Msg(can_buf4,8,0x0004);
       delay_ms(5);
       Can_Send_Msg(can_buf5,8,0x0005);
       delay_ms(5);
       Can_Send_Msg(can_buf6,8,0x0006);
       delay_ms(5);
       Can_Send_Msg(can_buf7,8,0x0007);
delay_ms(5);

UartSend("CLR(61);\r\n");
delay_ms(200);
   UartSend("CLR(61);\r\n");
delay_ms(200);
UartSend("DIR(1);\r\n");
delay_ms(200);
   sprintf(NEW,"DCV16(0,0,'%s%d%s',3);\r\n","第一节电压:",Batteryval[0],"mV");
UartSend(NEW);

   delay_ms(200);

   sprintf(NEW,"DCV16(0,20,'%s%d%s',3);\r\n","第二节电压:",Batteryval[1],"mV");
UartSend(NEW);

delay_ms(200);


   sprintf(NEW,"DCV16(0,40,'%s%d%s',3);\r\n","第三节电压:",Batteryval[4],"mV");
UartSend(NEW);

   delay_ms(200);
   sprintf(NEW,"DCV16(0,60,'%s%d%s',3);\r\n","第四节电压:",Batteryval[5],"mV");
UartSend(NEW);

   delay_ms(200);
   sprintf(NEW,"DCV16(0,80,'%s%d%s',3);\r\n","第五节电压:",Batteryval[6],"mV");
UartSend(NEW);

   delay_ms(200);
   sprintf(NEW,"DCV16(0,100,'%s%d%s',3);\r\n","第六节电压:",Batteryval[9],"mV");
UartSend(NEW);
   delay_ms(1000);
   UartSend("CLR(61);\r\n");
delay_ms(200);

   delay_ms(200);
   sprintf(NEW,"DCV16(0,00,'%s%d%s',3);\r\n","总电压:",Batteryval[10],"mV");

UartSend(NEW);
delay_ms(200);
   sprintf(NEW,"DCV16(0,20,'%s%d%s',3);\r\n","电池SOC为:",Batteryval[32],"%");
UartSend(NEW);

   delay_ms(200);
   sprintf(NEW,"DCV16(0,40,'%s%.2f%s',3);\r\n","电池温度为:",Tempval_2,"℃");
UartSend(NEW);

   delay_ms(200);
   sprintf(NEW,"DCV16(0,60,'%s%d%s',3);\r\n","电流:",Batteryval[11],"mA");
UartSend(NEW);

   delay_ms(200);

   sprintf(NEW,"DCV24(0,20,'%s',3);\r\n","");
UartSend(NEW);

   delay_ms(100);

}
void Get_Update_Data(void)
{
Get_Battery1();
Get_Battery2();
Get_Battery5();
Get_Battery6();
Get_Battery7();
Get_Battery10();
       Get_Update_ALL_Data();//总电压
   Get_SOC();
       Get_BQ1_2_Temp();
Get_BQ_Current();
BMS_STA();
       Update_val();
}
int OT_Alarm_flag,UT_Alarm_flag;

/****************************************
fuction:void readbqstate(void)
description:读取报警信号值
Parameters: UV_Alarm_flagOV_Alarm_flag
SCD_Alarm_flag,OCD_Alarm_flag
******************************************/

int UV_Alarm_flag,OV_Alarm_flag,SCD_Alarm_flag,OCD_Alarm_flag;
void ALERT_1_Recognition(void)
{

unsigned char sys_stat_1,sys_stat_2,UV_1,OV_1,UV_2,OV_2,SCD,OCD;
sys_stat_1 = IIC1_read_one_byte(SYS_STAT);//获取状态SYS_CTRL2


UV_1 = sys_stat_1&0x08; //取出UV位
OV_1 = sys_stat_1&0x04;
SCD = sys_stat_1&0x02;
OCD = sys_stat_1&0x01;
if((UV_1 == 0x08)||(UV_2 == 0x08))
{
       IIC1_write_one_byte_CRC(SYS_STAT,0X88);

UV_Alarm_flag = 1; //欠压报警
       printf("pack UV\n");
}
else
UV_Alarm_flag = 0; //没有欠压
if((OV_1 == 0x04)||(OV_2 == 0x04))
{
OV_Alarm_flag = 1;
IIC1_write_one_byte_CRC(SYS_STAT,0X84);
       printf("pack OV\n");
}
else
OV_Alarm_flag = 0;
if(SCD == 0x02)
                       {
                           IIC1_write_one_byte_CRC(SYS_STAT,0X82);
                           SCD_Alarm_flag = 1;
                           printf("pack SCD\n");
                       }
                           else
                                   SCD_Alarm_flag = 0;

                                   if(OCD == 0x01)
                                       {
                                           OCD_Alarm_flag = 1;
                                                                       IIC1_write_one_byte_CRC(SYS_STAT,0X81);

                                           printf("pack OCD\n");
                                       }
                                           else
                                                   OCD_Alarm_flag = 0;
}

unsigned char CRC8(unsigned char *ptr, unsigned char len,unsigned char key)
{
   unsigned char i;
   unsigned char crc=0;
   while(len--!=0)
   {
       for(i=0x80; i!=0; i/=2)
       {
           if((crc & 0x80) != 0)
           {
               crc *= 2;
               crc ^= key;
           }
           else
               crc *= 2;

           if((*ptr & i)!=0)
               crc ^= key;
       }
       ptr++;
   }
   return(crc);
}
