用vue3+vite + three.js +canvas 写了2个demo

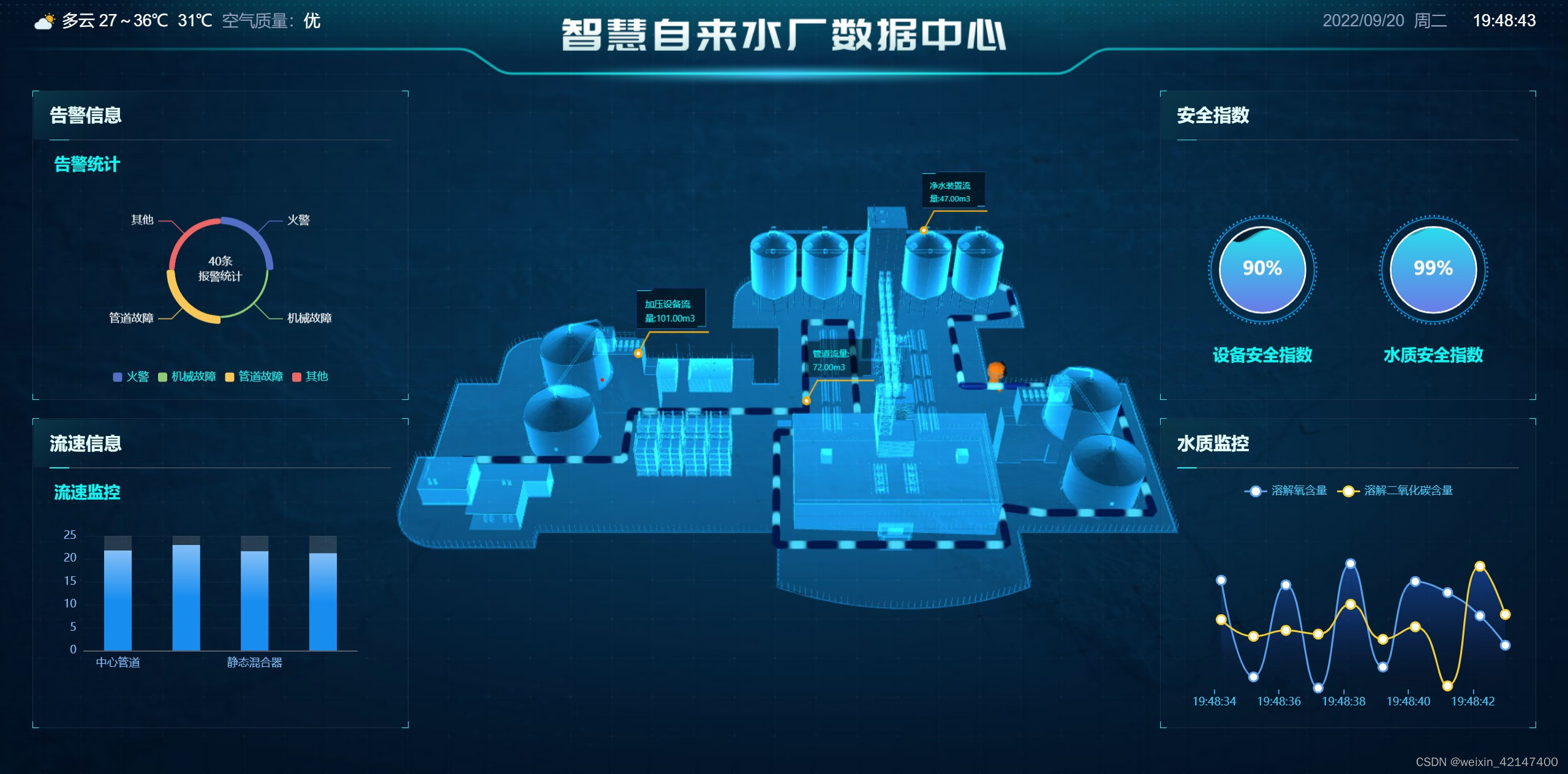

1.智慧水厂的展示,运用到了tween.js来实现镜头动画,运用CSS3DSprite来创建标签面板,实现转动时,面板面朝视角跟随转动,并且附着点不变。
// 新建标签
function createLableObj(label) {
const { id, text, value, vector } = label
let laberDiv = document.createElement("div"); //创建div容器
laberDiv.innerHTML = `<div>
<div class='label-top'>
<div class='label-inner'>
<div class='label-item'></div>
<div class='label-name label-item' id='label${id}'>${text} ${value} m3</div>
</div>
<div class='label-point'></div>
</div>
<div class='label-bottom'></div>
</div>`
let pointLabel = new CSS3DSprite(laberDiv);
pointLabel.position.set(vector.x, vector.y, vector.z);
return pointLabel;
}
demo 地址智慧水厂

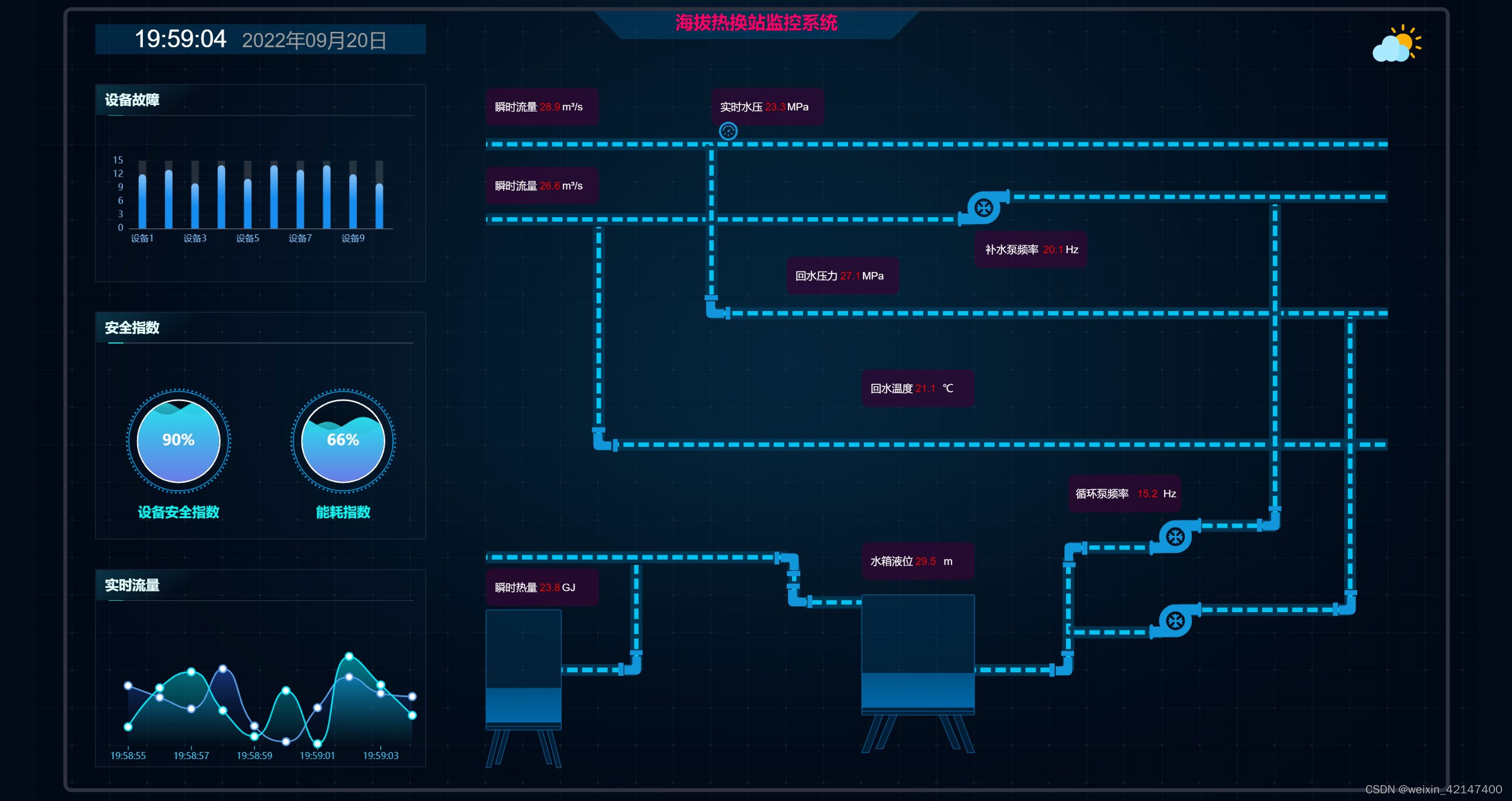

2.热交换数据大屏,原生canvas+echarts
以下是简易的canvas引擎
/*
* @Author: wujian
* @Date: 2022-08-26 13:39:21
* @LastEditors: wujian
* @LastEditTime: 2022-08-29 15:25:56
* @FilePath: \3d_case\cases\src\utils\canvasEngine.js
* @Description:
* @email: 281919544@qq.com
* Copyright (c) 2022 by wujian 281919544@qq.com, All Rights Reserved.
*/
export class canvasEngine {
constructor(id) {
this.canvas = document.getElementById(id)
this.ctx = this.canvas.getContext('2d')
}
/**
* @author: wujian
* @description: 画虚线
* @param {*} color
* @param {*} lineWidth
* @param {*} lineLong1
* @param {*} lineLong2
* @param {*} x
* @param {*} y
* @param {*} w
* @param {*} h
* @return {*}
*/
drawDash({ color, lineWidth, lineLong1, lineLong2, offset, x, y, w, h }) {
this.ctx.lineWidth = lineWidth
this.ctx.strokeStyle = color
// 设置虚线
this.ctx.setLineDash([lineLong1, lineLong2])
this.ctx.lineDashOffset = - offset;
this.ctx.strokeRect(x, y, w, h)
this.ctx.setLineDash([0, 0])
}
/**
* @author: wujian
* @description: 画图片
* @param {*} src
* @param {*} x
* @param {*} y
* @param {*} w
* @param {*} h
* @return {*}
*/
drawImg(src, { x, y, w, h }) {
var img = new Image()
img.src = src
const ctx = this.ctx
img.onload = function () {
ctx.drawImage(img, x, y, w, h)
}
// ctx.fillRect(x, y, w, h)
}
/**
* @author: wujian
* @description: 写文字
* @param {*} font
* @param {*} color
* @param {*} text
* @param {*} x
* @param {*} y
* @return {*}
*/
drawText({ font, color, text, x, y, textAlign }) {
this.ctx.font = font
this.ctx.fillStyle = color
this.ctx.textAlign = textAlign
this.ctx.fillText(text, x, y)
}
/**
* @author: wujian
* @description: 画圆角框
* @param {*} x
* @param {*} y
* @param {*} w
* @param {*} h
* @param {*} r
* @return {*}
*/
drawRoundRect(x, y, w, h, r) {
if (w < 2 * r) { r = w / 2; }
if (h < 2 * r) { r = h / 2; }
this.ctx.beginPath();
this.ctx.moveTo(x + r, y);
this.ctx.arcTo(x + w, y, x + w, y + h, r);
this.ctx.arcTo(x + w, y + h, x, y + h, r);
this.ctx.arcTo(x, y + h, x, y, r);
this.ctx.arcTo(x, y, x + w, y, r);
this.ctx.fill();
}
/**
* @author: wujian
* @description: 画圆角框
* @param {*} x
* @param {*} y
* @param {*} w
* @param {*} h
* @param {*} r
* @return {*}
*/
drawRoundRectStroke(x, y, w, h, r) {
if (w < 2 * r) { r = w / 2; }
if (h < 2 * r) { r = h / 2; }
this.ctx.beginPath();
this.ctx.moveTo(x + r, y);
this.ctx.arcTo(x + w, y, x + w, y + h, r);
this.ctx.arcTo(x + w, y + h, x, y + h, r);
this.ctx.arcTo(x, y + h, x, y, r);
this.ctx.arcTo(x, y, x + w, y, r);
this.ctx.stroke();
}
/**
* @author: wujian
* @description: 清除
* @return {*}
*/
clear() {
this.ctx.clearRect(0, 0, this.canvas.width, this.canvas.height);
}
}
export class Wcanvas extends canvasEngine {
constructor(id) {
super(id)
}
/**
* @author: wujian
* @description:
* @param {*} watherLevel
* @param {*} color
* @param {*} x
* @param {*} y
* @param {*} w
* @param {*} h
* @return {*}
*/
drawWatherTower(waterLevel, { waterStartColor, waterStopColor, towerColor, towerBgColor, x, y, w, h }) {
// 画水
let gradientPoint1 = {
x,
y
}
let gradientPoint2 = {
x: x,
y: y + h
}
let linearGradient = this.ctx.createLinearGradient(gradientPoint1.x, gradientPoint1.y, gradientPoint2.x, gradientPoint2.y)
linearGradient.addColorStop(0, waterStartColor)
linearGradient.addColorStop(1, waterStopColor)
this.ctx.fillStyle = linearGradient
this.ctx.fillRect(x, y + waterLevel, w, h - waterLevel)
// 画水塔
this.ctx.lineWidth = 2
this.ctx.strokeStyle = towerColor
this.ctx.fillStyle = towerBgColor
this.drawRoundRectStroke(x, y, w, h + 20, 4)
this.drawRoundRect(x, y, w, h + 20, 4)
// 底座
this.ctx.beginPath()
this.ctx.moveTo(x, y + h + 10)
this.ctx.lineTo(x + w, y + h + 10)
this.ctx.stroke()
// 画腿
const drawLeg = (points) => {
this.ctx.beginPath()
points.map((point, idx) => {
if (idx == 0) {
this.ctx.moveTo(point.x, point.y)
} else {
this.ctx.lineTo(point.x, point.y)
}
})
this.ctx.closePath()
this.ctx.stroke()
this.ctx.fill()
}
const legWidth = w / 16
const legheight = h / 3
let legPoints = []
legPoints.push([{ x: x + w / 8, y: y + h + 20 }, { x: x + w / 8 + legWidth, y: y + h + 20 }, { x: x + w / 16, y: y + h + 20 + legheight }, { x: x, y: y + h + 20 + legheight }])
legPoints.push([{ x: x + w / 4, y: y + h + 20 }, { x: x + w / 4 + legWidth, y: y + h + 20 }, { x: x + w / 16 + w / 8, y: y + h + 10 + legheight }, { x: x + w / 4 - w / 16 - legWidth, y: y + h + 10 + legheight }])
legPoints.push([{ x: x + w - w / 8 - legWidth, y: y + h + 20 }, { x: x + w - w / 8, y: y + h + 20 }, { x: x + w, y: y + h + 20 + legheight }, { x: x + w - legWidth, y: y + h + 20 + legheight }])
legPoints.push([{ x: x + w - w / 4 - legWidth, y: y + h + 20 }, { x: x + w - w / 4, y: y + h + 20 }, { x: x + w - w / 8, y: y + h + 10 + legheight }, { x: x + w - legWidth - w / 8, y: y + h + 10 + legheight }])
legPoints.forEach(legPoint => {
drawLeg(legPoint)
})
}
/**
* @author: wujian
* @description: 画文字面板
* @param {*} panel
* @param {*} labels
* @return {*}
*/
drawLabelPanel(panel, labels) {
this.drawPanel(panel)
labels.map(label => {
this.drawText(label)
})
}
/**
* @author: wujian
* @description: 画面板
* @param {*} x
* @param {*} y
* @param {*} w
* @param {*} h
* @param {*} r
* @param {*} color
* @return {*}
*/
drawPanel({ x, y, w, h, r, color }) {
this.ctx.fillStyle = color
this.drawRoundRect(x, y, w, h, r)
}
/**
* @author: wujian
* @description: 创建管道
* @return {*}
*/
drawPipe({ pipeColor, lineColor, lineLong1, lineLong2, pipeWidth, lineWidth, offset }, points) {
// 画管道
this.ctx.strokeStyle = pipeColor
this.ctx.lineWidth = pipeWidth
this.ctx.beginPath()
points.map((point, idx) => {
if (idx == 0) {
this.ctx.moveTo(point.x, point.y)
} else {
this.ctx.lineTo(point.x, point.y)
}
})
this.ctx.stroke()
this.ctx.beginPath()
// 设置虚线
points.map((point, idx) => {
if (idx == 0) {
this.ctx.moveTo(point.x, point.y)
} else {
this.ctx.lineTo(point.x, point.y)
}
})
this.ctx.lineWidth = lineWidth
this.ctx.strokeStyle = lineColor
this.ctx.setLineDash([lineLong1, lineLong2])
this.ctx.lineDashOffset = - offset;
this.ctx.stroke()
this.ctx.setLineDash([0, 0])
}
/**
* @author: wujian
* @description: 边框
* @return {*}
*/
drawBorder() {
this.ctx.strokeStyle = 'rgba(46,50,63,1)'
this.ctx.lineWidth = 10
this.drawRoundRectStroke(80, 40, 3680, 2080, 16)
}
/**
* @author: wujian
* @description: 边框
* @return {*}
*/
drawTitle(textConfig) {
const titleWdith = 880
const screenWidth = 3840
const titleHeight = 80
this.ctx.fillStyle = 'rgba(0, 105, 168, 0.3)'
const paths = []
paths.push({
x: (screenWidth - titleWdith) / 2,
y: 40
})
paths.push({
x: (screenWidth + titleWdith) / 2,
y: 40
})
paths.push({
x: (screenWidth + titleWdith) / 2 - 80,
y: 40 + titleHeight
})
paths.push({
x: (screenWidth - titleWdith) / 2 + 80,
y: 40 + titleHeight
})
this.ctx.beginPath()
paths.forEach((point, idx) => {
if (idx == 0) {
this.ctx.moveTo(point.x, point.y)
} else {
this.ctx.lineTo(point.x, point.y)
}
})
this.ctx.closePath()
this.ctx.fill()
Object.assign(textConfig, {
x: (screenWidth) / 2,
y: 92,
font: "bold 48px Arial",
textAlign: 'center'
})
this.drawText(textConfig);
}
}
demo 地址热交换数据大屏
话不多说,直接上git地址,分享源码,觉得不错请点赞https://github.com/TianCaiDeXiaoBai/VisualizeDemo/
