Android 仿微信界面 使用RadioGroup+ViewPager实现底部按钮切换以及滑动

先来效果图哈哈

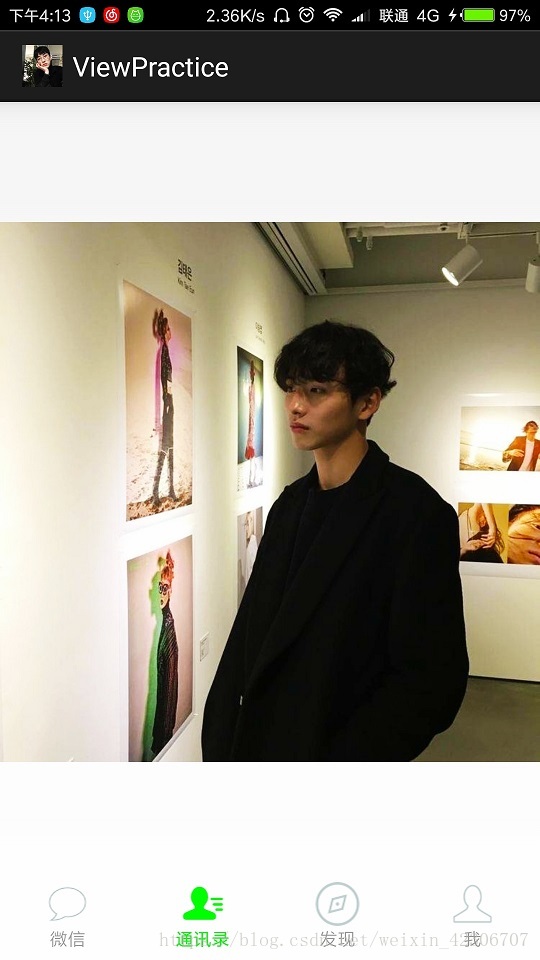

图一：
![在这里插入图片描述](https://img-blog.csdn.net/20181009163516801?watermark/2/text/aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80MjMwNjcwNw==/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70)

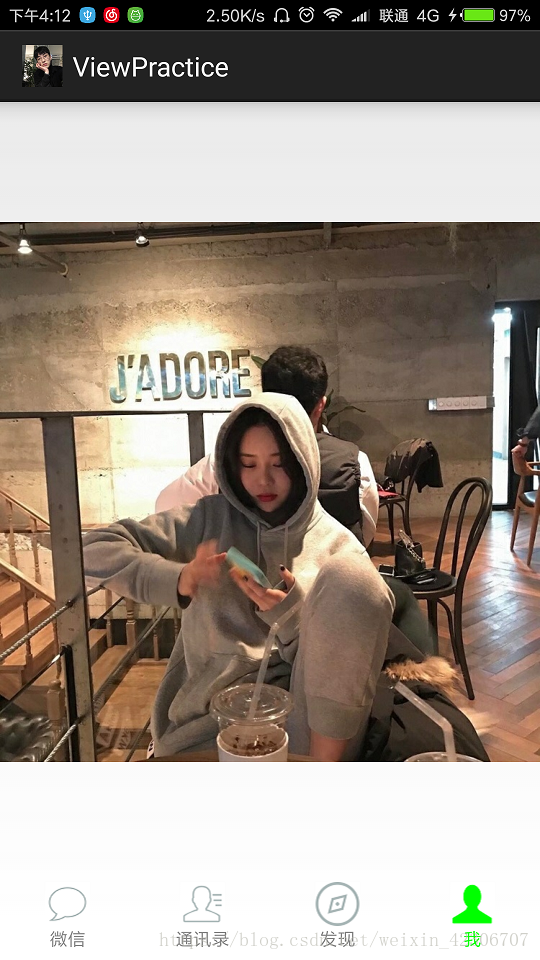

图二：![在这里插入图片描述](https://img-blog.csdn.net/20181009163551156?watermark/2/text/aHR0cHM6Ly9ibG9nLmNzZG4ubmV0L3dlaXhpbl80MjMwNjcwNw==/font/5a6L5L2T/fontsize/400/fill/I0JBQkFCMA==/dissolve/70)

1.首先搭建MainActivity的界面    名为activity_main.xml

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    xmlns:tools="http://schemas.android.com/tools"
    android:layout_width="match_parent"
    android:layout_height="match_parent"
    android:orientation="vertical"
    tools:context="${relativePackage}.${activityClass}" >
	//ViewPager需要提前导入design包
   <android.support.v4.view.ViewPager

       android:id="@+id/viewpager"
       android:layout_width="match_parent"
       android:layout_height="0dp"
       android:layout_weight="10">

   </android.support.v4.view.ViewPager>
	    <RadioGroup
        android:id="@+id/group"
        android:layout_width="match_parent"
        android:layout_height="0dp"
        android:layout_weight="1"
        android:orientation="horizontal" >

        <RadioButton
            android:id="@+id/one"
            android:layout_width="0dp"
            android:layout_height="match_parent"
