SAP ABAP-FTP操作记录&解析相关XML文件

---

前言

关于SAP-FTP上操作说明网上可参考的内容略显单薄，特此种下树苗，为后来人好乘凉

---

一、连接FTP服务器

在敲代码前，先进行连接测试，确保FTP服务器与sap相通.

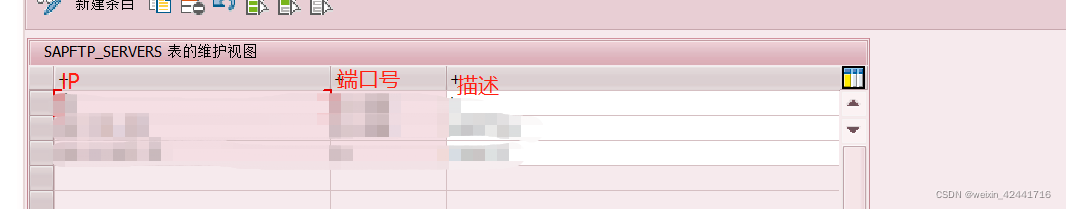

维护相关配置表 SM30->SAPFTP_SERVERS_V

FTP服务器IP，PORT 由FTP团队提供
例如：IP:144.144.144.144 端口号：21 描述 ： SAPFTPA

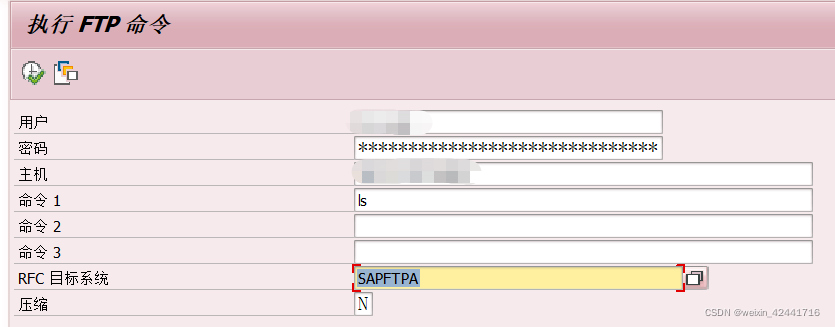

SAP提供了标准的测试程序:SE38-> rsftp002

例如：
用户:user
密码：123456(密码最好小于9位数)
主机：144.144.144.144 21 (其中端口号意空格隔开)
命令：ls (ls命令是打开FTP目录列表)
RFC 目标系统:SAPFTPA (SAPTPA:以本地连接FTP服务器，SAPFTPA:以SAP服务器连接FTP服务器。项目中通常用SAPFTPA)

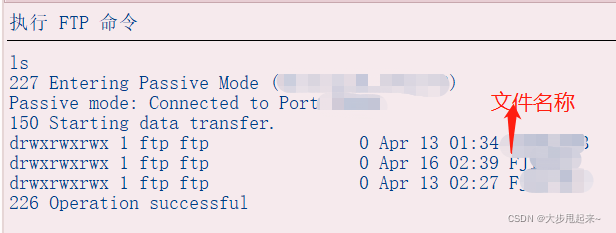

成功链接会返回相关的目录列表

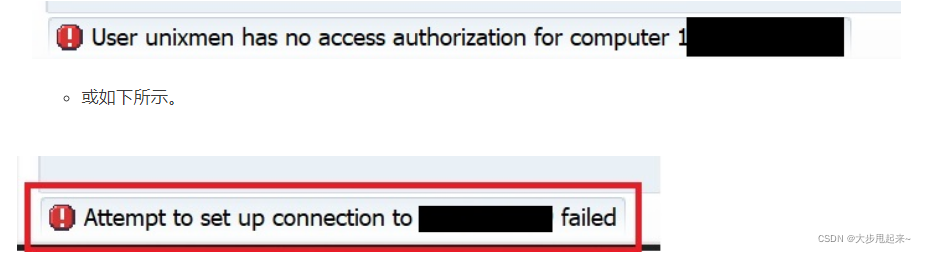

失败则报错

二、关于FTP命令

FTP相关命令,可以查看相关FTP文档 或者 自行百度.
如：FTP大全详解
或者自行查阅相关资料，本文只介绍基础，常用命令

三、相关代码示例

1.连接FTP服务器

FORM ftpconnect USING es_ret TYPE zsappo_ret_info.

  DATA:l_pwdlength TYPE i.
  DATA:l_key       TYPE i VALUE 26101957 .
  DATA l_ftppwd(255)  TYPE c.
  SELECT SINGLE * FROM zwmt011 INTO @DATA(ls_zwmt011) .
  IF sy-subrc NE 0.
    es_ret-code = 'E'.
    es_ret-msg = 'ZWMT011表数据未维护'.
    RETURN.
  ENDIF.
  thosts = ls_zwmt011-ip. "'144.144.144.144 21'."
  tusers = ls_zwmt011-zaccount."'USER'."P_USER.
  tpword = ls_zwmt011-zpassword."'123456'."P_PWD.
  l_pwdlength = strlen( tpword )."长度

* 定义RFC连接目标，前后台执行时不同

  trfcdest = 'SAPFTPA'." 'SAPFTPA'.


*****************开始FTP传输数据**********
  CALL FUNCTION 'HTTP_SCRAMBLE' "密码加密
    EXPORTING
      source      = tpword
      sourcelen   = l_pwdlength
      key         = l_key
    IMPORTING
      destination = l_ftppwd.

*该函数可以定义有网关时账户密码，一般公司内部访问时无此设置
  CALL FUNCTION 'FTP_CONNECT'
    EXPORTING
      user            = tusers
      password        = l_ftppwd
      host            = thosts
      rfc_destination = trfcdest
    IMPORTING
      handle          = thandle"获取权柄
    EXCEPTIONS
      not_connected   = 1
      OTHERS          = 2.
ENDFORM.

2.打开指定目录

命令:CD

FORM open_sel_path  USING p_zpath.
  DATA:BEGIN OF com OCCURS 0,
    cmd(100) TYPE C,
  END OF com.
  DATA:BEGIN OF res OCCURS 0,
    LINE(100) TYPE C,
  END OF res.
  CONCATENATE 'cd' p_zpath INTO com-cmd SEPARATED BY ' '."p_zpath为具体文件路径
  CLEAR:RES[],y_subrc.
*执行FTP指令
  CALL FUNCTION 'FTP_COMMAND'
  EXPORTING
    handle        = thandle
    command       = com-cmd
  TABLES
  DATA          = res
  EXCEPTIONS
    tcpip_error   = 1
    command_error = 2
    data_error    = 3
    OTHERS        = 4.
  IF SY-SUBRC NE 0.
    y_subrc = SY-subrc.
  ENDIF.
ENDFORM.

3.查询该目录下所有文件，并获取文件名

此步骤需要先执行步骤2.后根据不同系统进行字段偏移来获取文件名
命令:dir

FORM read_filename_data USING del_zftp TYPE zftp_path.

  DATA:BEGIN OF res OCCURS 0,
         line(100) TYPE c,
       END OF res.
  CLEAR:gt_file.
  CALL FUNCTION 'FTP_COMMAND'
    EXPORTING
      handle        = thandle
      command       = 'dir'
    TABLES
      data          = res
    EXCEPTIONS
      tcpip_error   = 1
      command_error = 2
      data_error    = 3
      OTHERS        = 4.

  LOOP AT res INTO DATA(s_res) WHERE line CS '.xml' OR line CS '.CONFIRM'OR line CS '.confirm' OR line CS '.XML'.
    gs_file-filename = s_res-line+50.


    APPEND gs_file TO gt_file.
    CLEAR:gs_file.
  ENDLOOP.
  ENDFORM.

4.解析相关文件

CALL FUNCTION ‘FTP_SERVER_TO_R3’时需要注意character_mode 参数
如果 character_mode = ’ ’ 时，数据将以数据流的方式返回至 blob 表参数
character_mode = ’ X’ 时 时，数据将以文本的形式返回至text表参数
以下有两住方式提供参考
方式1:只解析单纯的文本

FORM deal_filename_data USING p_zftp TYPE zftp_path.
  DATA:blob_length TYPE i.
  DATA:filename    TYPE rlgrap-filename .
  DATA: BEGIN OF blob OCCURS 0,
          line(100) TYPE x,
        END OF blob.
  DATA: BEGIN OF ls_line,
          line(2000),
        END OF ls_line,
        lt_line LIKE TABLE OF ls_line.
  DATA:lt_zwmt015 LIKE TABLE OF zwmt015,
       ls_zwmt015 LIKE zwmt015.
  CLEAR:lt_zwmt015.
  LOOP AT gt_file INTO gs_file.
    CLEAR:filename,blob_length,blob,lt_line.
    filename = gs_file-filename.
    CALL FUNCTION 'FTP_SERVER_TO_R3' "获取FTP服务器文件数据
      EXPORTING
        handle         = thandle
        fname          = filename
        character_mode = 'X' "参数为X此时文件会返回至TEXT
      IMPORTING
        blob_length    = blob_length
      TABLES
        blob           = blob
        text           = lt_line.
    TRANSLATE  gs_file-filename TO UPPER CASE.
    SEARCH gs_file-filename FOR '.CONFIRM.DEL'.
    IF sy-subrc = 0.
      ls_zwmt015-zlot_number = gs_file-filename(sy-fdpos).

      ls_zwmt015-ztype = p_zftp-ztype.
      ls_zwmt015-zsource = p_zftp-zsource_fab.
      ls_zwmt015-zdestination = p_zftp-zdestination_fab.
      IF lt_line IS NOT INITIAL.
        READ TABLE lt_line INTO ls_line INDEX 1.
        IF sy-subrc = 0.
          IF ls_line CS 'S'.
            ls_zwmt015-type = 'S'.
          ELSE.
            ls_zwmt015-type = 'E'.
          ENDIF.
          ls_zwmt015-msg = ls_line-line.
        ENDIF.

      ELSE.
        ls_zwmt015-type = 'E'.
        ls_zwmt015-msg = '无法读取文件'&& filename.
      ENDIF.
      gs_lotid-lotid = ls_zwmt015-zlot_number.
      APPEND gs_lotid TO gt_lotid.
      CLEAR:gs_lotid.
      APPEND ls_zwmt015 TO lt_zwmt015.
      CLEAR:ls_zwmt015.
    ENDIF.
    CLEAR:gs_file.
  ENDLOOP.

  IF lt_zwmt015 IS NOT INITIAL.
    MODIFY zwmt015 FROM TABLE lt_zwmt015.
    IF sy-subrc = 0.
      COMMIT WORK AND WAIT .
    ELSE.
      ROLLBACK WORK.
    ENDIF.
  ENDIF.
ENDFORM.

方式二：解析相关XML

FORM xml_filename_data USING p_zftp TYPE zftp_path.
  DATA lt_xml TYPE xml_rawdata.
  DATA:lv_xml TYPE xstring.
  DATA:blob_length TYPE i.
  DATA:filename    TYPE rlgrap-filename .
  DATA: BEGIN OF blob OCCURS 0,
          line(100) TYPE x,
        END OF blob.
  DATA: BEGIN OF ls_line,
          line(2000),
        END OF ls_line,
        lt_line LIKE TABLE OF ls_line.
  DATA:lt_zwmt015 LIKE TABLE OF zwmt015,
       ls_zwmt015 LIKE zwmt015.
  CLEAR:lt_zwmt015.
  LOOP AT gt_file INTO gs_file.
    CLEAR:filename,blob_length,blob,lt_line.
    filename = gs_file-filename.
    CALL FUNCTION 'FTP_SERVER_TO_R3' "获取FTP服务器文件数据
      EXPORTING
        handle         = thandle
        fname          = filename
        character_mode = ' ' "参数为X此时文件会返回至blob
      IMPORTING
        blob_length    = blob_length
      TABLES
        blob           = blob
        text           = lt_line.

	      "转换成XSTRING格式
    CALL FUNCTION 'SCMS_BINARY_TO_XSTRING'
     EXPORTING
          input_length = blob_length
     IMPORTING
          buffer       = lv_xml
        TABLES
          binary_tab   = blob.
       "解析XML转换成内表 相关配置要在TCODE :STRANS进行配置
      CALL TRANSFORMATION zftp_xml
      SOURCE XML  lv_xml
      RESULT lt_ftp = gt_ftp.
  ENDLOOP.


ENDFORM.

5.上传相关文件

"前置条件 先执行步骤2打开指定路径

FORM update_ftp_file USING zlot_number es_ret TYPE zsappo_ret_info.
  DATA:lv_xml TYPE xstring.
  DATA:x_hash TYPE xstring.
  DATA:lv_size TYPE i.
  DATA lt_xml TYPE xml_rawdata.
  DATA lt_hash TYPE xml_rawdata.
  DATA:i_fname(100).
  DATA LV_STR TYPE STRING.
  DATA: lo_writer TYPE REF TO cl_sxml_string_writer.
  lo_writer = cl_sxml_string_writer=>create(
  type                     = if_sxml=>co_xt_xml10
  encoding                 = `UTF-8` )."将抬头转换成UTF-8

  CALL TRANSFORMATION zftp_xml
  SOURCE lt_ftp = gt_ftp
*sflight = lt_itab2
  RESULT XML lo_writer.
  lv_xml = lo_writer->get_output( ).
  i_fname = zlot_number && '.XML'.
  PERFORM frm_ftr_server TABLES lt_xml USING lv_xml i_fname es_ret CHANGING lv_size.
  IF es_ret-code = 'E'.
    RETURN.
  ENDIF.
  "MD5加密校验文件完整性

  CALL FUNCTION 'ZWMFU006'
    EXPORTING
      filelength = lv_size
    IMPORTING
      hash       = e_hash
    TABLES
      binary_tab = lt_xml.
  LV_STR = e_hash.
  CALL FUNCTION 'SCMS_STRING_TO_XSTRING'
    EXPORTING
      text   = LV_STR
*     MIMETYPE       = ' '
*     ENCODING       =
    IMPORTING
      buffer = x_hash
    EXCEPTIONS
      failed = 1
      OTHERS = 2.
  IF sy-subrc <> 0.
* Implement suitable error handling here
  ENDIF.
  i_fname = zlot_number && '.CONFIRM'.

  PERFORM frm_ftr_server TABLES lt_xml USING x_hash i_fname es_ret CHANGING lv_size.
  IF es_ret-code = 'E'.
    RETURN.
  ENDIF.



ENDFORM.

FORM frm_ftr_server TABLES lt_raw TYPE xml_rawdata
                        USING  x_str TYPE xstring
                               i_fname
                               es_ret TYPE zsappo_ret_info
                        CHANGING lv_size.
*  DATA:lv_size TYPE i.
*  DATA lt_raw TYPE xml_rawdata.
  CLEAR:lt_raw.
  CLEAR:lv_size.
  CALL FUNCTION 'SCMS_XSTRING_TO_BINARY'
    EXPORTING
      buffer        = x_str
    IMPORTING
      output_length = lv_size
    TABLES
      binary_tab    = lt_raw.

*  i_fname =  zlot_number && '.xml'.
  CALL FUNCTION 'FTP_R3_TO_SERVER'
    EXPORTING
      handle         = thandle
      fname          = i_fname "'ZPPT035-ZDESNATION LOT_NUMBER.XML' "l_filename
      blob_length    = lv_size
      character_mode = ' '
    TABLES
      blob           = lt_raw
    EXCEPTIONS
      tcpip_error    = 1
      command_error  = 2
      data_error     = 3
      OTHERS         = 4.
  IF sy-subrc NE 0.
    es_ret-code = 'E'.
    es_ret-msg = i_fname && '文件上传失败'.
  ENDIF.
ENDFORM.

6.剪切相关文件至其他目录

命令：rename 此命令也可用于重命名

FORM frm_copy_file  USING    p_zftp TYPE zftp_path
                             w_zftp TYPE zftp_path
                             del_zftp TYPE zftp_path.

  DATA:p_zpath TYPE zftp_path-zpath.
  DATA:w_zpath TYPE zftp_path-zpath.
  DATA:del_zpath TYPE zftp_path-zpath.
  "打开指定目录
  PERFORM open_sel_path USING p_zftp-zpath.
  "剪切
  LOOP AT gt_lotid INTO gs_lotid.
    ".XML
    p_zpath = p_zftp-zpath && '/' &&  gs_lotid-lotid && '.xml'.
    w_zpath = w_zftp-zpath &&  '/' &&  gs_lotid-lotid && '.xml'.
    PERFORM frm_move_file USING p_zpath w_zpath.
    "confirm

    p_zpath = p_zftp-zpath && '/' &&  gs_lotid-lotid && '.confirm'.
    w_zpath = w_zftp-zpath &&  '/' &&  gs_lotid-lotid && '.confirm'.
    PERFORM frm_move_file USING p_zpath w_zpath.


    CLEAR:gs_lotid.
  ENDLOOP.
ENDFORM.
FORM open_sel_path  USING p_zpath.
  DATA:BEGIN OF com OCCURS 0,
    cmd(100) TYPE C,
  END OF com.
  DATA:BEGIN OF res OCCURS 0,
    LINE(100) TYPE C,
  END OF res.
  CONCATENATE 'cd' p_zpath INTO com-cmd SEPARATED BY ' '.
  CLEAR:RES[],y_subrc.
*执行FTP指令
  CALL FUNCTION 'FTP_COMMAND'
  EXPORTING
    handle        = thandle
    command       = com-cmd
  TABLES
  DATA          = res
  EXCEPTIONS
    tcpip_error   = 1
    command_error = 2
    data_error    = 3
    OTHERS        = 4.
  IF SY-SUBRC NE 0.
    y_subrc = SY-subrc.
  ENDIF.
ENDFORM.
FORM frm_move_file  USING p_zpath"源
                          w_zpath."目的地
  DATA:BEGIN OF com OCCURS 0,
         cmd(500) TYPE c,
       END OF com.
  DATA:BEGIN OF res OCCURS 0,
         line(100) TYPE c,
       END OF res.
  CONCATENATE 'rename' p_zpath  w_zpath INTO com-cmd SEPARATED BY space.

  CALL FUNCTION 'FTP_COMMAND'
    EXPORTING
      handle        = thandle
      command       = com-cmd
    TABLES
      data          = res
    EXCEPTIONS
      tcpip_error   = 1
      command_error = 2
      data_error    = 3
      OTHERS        = 4.
ENDFORM.

7.关闭连接

  "关闭FTP 连接
  CALL FUNCTION 'FTP_DISCONNECT'
  EXPORTING
    handle = thandle.
